A novel dansyl-appended bile acid receptor for preferential recognition of Hg²⁺

Abstract

We have designed and synthesized a novel dansyl appended bile acid chemosensor using click chemistry. The chemosensor shows selective and efficient recognition of Hg²⁺ ions by forming a 1 : 1 complex with Hg²⁺ with a binding constant of 3.3 × 10⁴ M⁻¹. The limit of detection for Hg²⁺ was estimated to be 2 μM.

---

Bile acids and their derivatives have been a subject of considerable attention to the scientific community due to their potential applications in supramolecular chemistry.¹ Their unique structural features, such as, slightly curved shape, rigidity, amphiphilicity, and availability of hydroxyl groups for further derivatization, render them useful for development of a variety of chemosensors for the recognition of various guests.² Recently, 1,2,3-triazole based bile acid frameworks utilizing click chemistry for ionic recognition have gained importance because of their geometry and coordination properties with anions and metal ions.³

Since fluorescence-based methods for recognition offer high sensitivity coupled with use of simple instrumentation,⁴ considerable efforts have been invested in designing fluorescent chemosensors for detection of heavy metal ions,⁵ specially mercury. Although mercury and its salts have high toxicity, they are widely used in industry and hence are widespread in the environment. The exposure to mercury even at low levels leads to various health problems, especially neurological disorders.^6–8 Most of the reported chemosensors for Hg²⁺ display low selectivity and sensitivity; many suffer from interference from other metals ions such as Cu²⁺, Cd²⁺ and Pb²⁺.^9–11 There is always a need to design and develop better performing sensors for Hg²⁺.

In this Communication, we report a novel bile acid-based fluorescent receptor 5 in which two dansyl moieties are conjugated by a triazole group acting as a linker as well as binding site for heavy metal ions. Dansyl group, when covalently bound to a host molecule, offers many attractive and pertinent features due partly to (i) its strong fluorescence (absorption bands in the near-UV and intense fluorescence in the visible region), (ii) relatively long emission wavelength, and (iii) its solvatochromic nature (i.e., sensitivity to the polarity of the medium owing to the presence of twisted intramolecular charge transfer (TICT) excited-state).¹² Although dansyl-appended cholic acid derivatives have been used to investigate protein binding and aggregation of bile acids,¹³ this is the first study where a host is synthesized by covalently attaching two dansyl moieties to bile acid via 1,2,3-triazole using click chemistry and is investigated for its potential as a fluorescence-based chemosensor for metal ion detection. Receptor 5 is found to effectively recognize mercury ion amongst lithium, sodium, magnesium, zinc, lead, manganese, copper, cobalt, and cadmium via fluorescence quenching mechanism. Receptor 5 was obtained in 80% yield through a series of reactions presented in Scheme 1.^3,14 After synthesis, its molecular structure was confirmed by ¹H/¹³C NMR spectroscopy as well as ESI-TOF MS analysis (ESI, Fig. S1 and S2†).

Scheme 1 Synthesis of receptor 5 via click reaction (10 mol% CuSO₄·5H₂O, 20 mol% sodium ascorbate, H₂O–t-BuOH).

To explore Hg²⁺ recognition ability of the receptor, its dilute solution (25 μM) in CHCl₃ : MeOH (7 : 3, v/v) was excited at an optimum wavelength of 351 nm,^12,15 the resulting fluorescence (maxima at 536 nm, characteristic of dansyl fluorescence) was subsequently measured in the presence of varying concentration of metal ions. Interestingly, as shown in Fig. 1, a significant quenching of the fluorescence emission intensity along with ∼10 nm hypsochromic shift was observed in the presence of Hg²⁺ (fluorescence intensity of receptor 5 decreases by 76% in the presence of 100 μM Hg²⁺). Clearly, receptor 5 shows excellent recognition ability towards Hg²⁺.

Fig. 1 Quenching of fluorescence intensity of receptor 5 (25 μM) in the presence of Hg²⁺ in CHCl₃ : MeOH (7 : 3, v/v) (λ_excitation = 351 nm).

This is supported by time-resolved fluorescence measurements. A 340 nm LED is used as excitation source and excited-state intensity decay data of the receptor is collected in the absence and presence of 100 μM Hg²⁺. In the absence of Hg²⁺, the excited-state intensity decay of receptor 5 was best fit to a single exponential decay model with lifetime of 14.4 ns (Fig. 2). This fluorescence lifetime is characteristic of dansyl moiety.¹² However, in the presence of 100 μM Hg²⁺, the intensity decay data could not fit to a single exponential decay model satisfactorily, instead a double exponential decay model with decay times of 2.2 and 11.9 ns were required to fit the data adequately. Presence of two decay times as well as gradual hypsochromic shift in the fluorescence band of receptor 5 in the presence of Hg²⁺ hint at possible formation of a weakly fluorescent complex between receptor 5 and Hg²⁺. Detection limit (LOD) is obtained to be ∼2 μM from linear calibration plot (0–25 μM Hg²⁺) using departure of 3 × s₀ in signal to be criterion for the detection, where s₀ represents standard deviation of fluorescence intensity in the absence of Hg²⁺ for 12 replicate measurements (ESI, Fig. S3†).^16,17

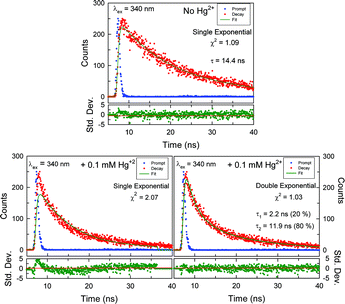

Fig. 2 Excited-state intensity decay curves of receptor 5 (25 μM) in the absence (upper panel) and presence (lower panel) of 100 μM Hg²⁺ in CHCl₃ : MeOH (7 : 3, v/v).

The mode of recognition of Hg²⁺ by receptor 5 was further studied by UV-vis molecular absorbance spectroscopy. In the absence of Hg²⁺, it exhibited two absorbance peaks at 254 nm and 340 nm that could be assigned to triazole rings and dansyl moieties, respectively (Fig. 3). Gradual addition of Hg²⁺ to 100 μM solution of receptor 5 led to appearance of a new peak centered at 385 nm with two clearly present isosbestic points at 317 nm and 354 nm. The UV-vis absorbance data clearly indicate that a complex forms between host 5 and guest Hg²⁺ and it exists in equilibrium with receptor 5 and Hg²⁺ within the solution. This adequately conforms with the fluorescence data as the complex formed between receptor 5 and Hg²⁺ is amply chromophoric albeit weakly fluorescent due to the presence of mercury, as the heavy-atoms would promote intersystem crossing thus increasing the rates of non-radiative decay processes within the system.¹²

Fig. 3 Change in UV-Vis spectra of receptor 5 (100 μM) upon addition of Hg²⁺ in CHCl₃ : MeOH (7 : 3, v/v).

Selectivity is an important characteristic of a chemosensor as far as ion sensing is concerned. To assess the selectivity of receptor 5 towards Hg²⁺, titration experiments were preformed with other metal ions besides Hg²⁺ with perchlorate as the counter ion under identical conditions. In the presence of other metal ions (Co²⁺, Cu²⁺, Mn²⁺, Pb²⁺, Mg²⁺, Cd²⁺, Na⁺ and Li⁺), the decrease in the fluorescence intensity of receptor 5 was insignificant in comparison to that of Hg²⁺ ion (Fig. 4). It was found that Cu²⁺ and Co²⁺, respectively, partly quench the fluorescence intensity of receptor 5 as they are well-known metal ion quenchers.¹² However, the quenching by these two ions was significantly less than that by Hg²⁺. In contrast to the quenching of the fluorescence of receptor 5 by Hg²⁺, the quenching in the presence of Cu²⁺ is purely dynamic or collisional in nature as the UV-vis absorbance spectra shows no change in the presence of Cu²⁺ clearly indicating absence of any complex formation between receptor 5 and Cu²⁺ (ESI, Fig. S4:† no new absorbance band or isosbestic point(s) appear). Addition of Cd²⁺ resulted in a very slight enhancement of its fluorescence intensity (Fig. 4). Selectivity coefficient, , to assess possible interference was estimated and plotted for many metal ions (Fig. 4 inset). A careful observation of this data reveals k_{Mⁿ⁺,Hg²⁺} for most metal ions to be small enough to pose any significant interference with the detection of Hg²⁺ by receptor 5. It is important to mention that the control experiments with dansyl chloride led to insignificant changes in the fluorescence intensity of the naked fluorophore (as opposed to quenching shown by receptor 5) in the presence of Hg²⁺. To further explore the extent of selectivity of the receptor towards Hg²⁺, experiments were performed where 1 mM Hg²⁺ in combination with 1 mM competitive metal ions were present in the solution. The similar reduction in fluorescence intensity in the presence of several different metal ions (ESI, Fig. S5†) clearly highlights that all other metal ions have marginal effect on the fluorescence emission spectra of receptor 5.

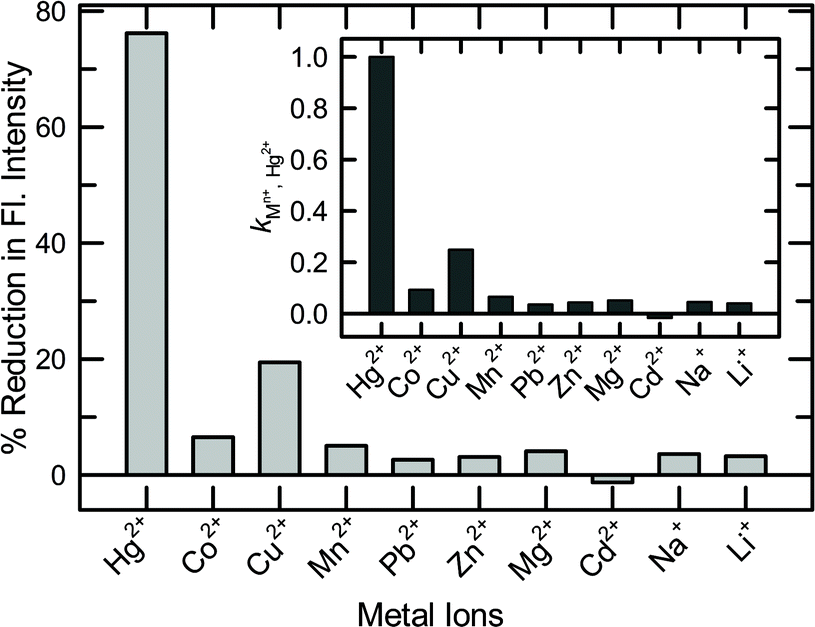

Fig. 4 Percentage reduction in the fluorescence intensity of receptor 5 in the presence of 100 μM Mⁿ⁺ in CHCl₃ : MeOH (7 : 3, v/v) (λ_excitation = 351 nm). Inset shows selectivity coefficient, for receptor 5.

Fluorescence data of receptor 5 in the presence of varying [Hg²⁺] was further analyzed to obtain key information regarding the mode of interaction between the host and the guest. For [Hg²⁺] = 0 to 200 μM, the plot of [(F₀/F) − 1] versus [Hg²⁺] was found to be linear revealing the stoichiometry of the complex to be 1 : 1 (where F₀ and F are the fluorescence intensities in the absence and presence of Hg²⁺, respectively) (Fig. S7†). The association equilibrium constant was estimated from the slope to be 3.3(±0.5) × 10⁴ M⁻¹ implying adequate affinity of Hg²⁺ by receptor 5.

¹H NMR titration experiments in CDCl₃ : MeOD (7 : 3, v/v) were carried out to elucidate the binding mode of Hg²⁺ with receptor 5.

The NMR spectra of receptor 5 in the presence of increasing equivalents of Hg(ClO₄)₂ resulted in deshielding and broadening of the signals of the protons of dansyl moieties as well as that of triazole units as compared to those of free receptor. The addition of 0.6 equivalent of Hg²⁺ led to a downfield shift of both triazole protons (H15 and H16) by 0.15 and 0.20 ppm, respectively. In the aromatic region, a significant downfield shift in H4 and H10 of dansyl moiety by 0.34 ppm, along with substantial deshielding of N(CH₃)₂ protons by 0.25 ppm (13 and 14) suggested close proximity of Hg²⁺ with N(CH₃)₂ groups of the dansyl framework. This highlights key role of both dansyl group and triazole unit in Hg²⁺ recognition. Based on ¹H NMR data, a tentative binding model depicting possible mode of complexation involving receptor 5 and Hg²⁺ is presented as a cartoon in Fig. 5 (the structures are not drawn according to size and shape). Similar mode of complexation involving N(CH₃)₂ groups of dansyl moieties have been reported earlier also in some dansyl-appended metal-ion-receptors.^18,19

Fig. 5 Partial ¹H NMR spectra (300 MHz, CDCl₃ : CD₃OD, (7 : 3, v/v), δ in ppm) of receptor 5 showing chemical shift change in the presence of incremental addition of Hg(ClO₄)₂·H₂O (CDCl₃ : CD₃OD, (7 : 3, v/v)).

Conclusions

In conclusion, a novel-dansyl appended bile acid based fluorescent chemosensor for Hg²⁺ is presented. The chemosensor is found to possess good sensitivity and excellent selectivity towards Hg²⁺. The recognition is via formation of a weakly fluorescent complex of 1 : 1 stoichiometry with adequate binding affinity.

Acknowledgements

PKM thanks CSIR, Government of India for his fellowship and SP thanks Department of Science & Technology, Government of India for the Fast-Track fellowship as Young Investigator.

Notes and references

1. (a) P. R. Brotherhood and A. P. Davis, Chem. Soc. Rev., 2010, 39, 3633; (b) Y. Li and J. R. Dias, Chem. Rev., 1997, 97, 283; (c) A. P. Davis, Molecules, 2007, 12, 2106.
2. (a) A. P. Davis and J. B. Joos, Coord. Chem. Rev., 2003, 240, 143; (b) A. P. Davis, Coord. Chem. Rev., 2006, 250, 2939; (c) J. Zhang, J. Luo, X. X. Zhu, M. J. N. Junk and D. Hinderberger, Langmuir, 2010, 26, 2958; (d) J. Hu, J. R. Lu and Y. Ju, Chem. – Asian J., 2011, 6, 2636; (e) W. Li, Q. Xu, Y. Li, W. Zhu, J. Cui, Y. Ju and G. Li, Tetrahedron Lett., 2013, 54, 3868; (f) J. Lu, C. Liu, J. Hu and Y. Ju, Bioorg. Med. Chem., 2013, 23, 1302; (g) V. K. Khatri, S. Upreti and P. S. Pandey, Org. Lett., 2006, 8, 1755; (h) M. Chahar and P. S. Pandey, Tetrahedron, 2008, 64, 6488; (i) V. K. Khatri, M. Chahar, K. Pavani and P. S. Pandey, J. Org. Chem., 2007, 72, 10224; (j) A. Tripathi and P. S. Pandey, Tetrahedron Lett., 2011, 52, 3558.
3. (a) A. Kumar and P. S. Pandey, Org. Lett., 2008, 10, 165; (b) A. Kumar and P. S. Pandey, Tetrahedron Lett., 2009, 50, 5842; (c) A. Kumar, R. K. Chhatra and P. S. Pandey, Org. Lett., 2010, 12, 24; (d) R. K. Chhatra, A. Kumar and P. S. Pandey, J. Org. Chem., 2011, 76, 9086; (e) Y. H. Lau, P. J. Rutledge, M. Watkinson and M. H. Todd, Chem. Soc. Rev., 2011, 40, 2848.
4. (a) J. H. Wosnick and T. M. Swager, Chem. Commun., 2004, 2744; (b) J. Bugler, J. F. J. Engbersen and D. N. Reinhoudt, J. Org. Chem., 1998, 63, 5339; (c) Applied Fluorescence in Chemistry, Biology, and Medicine, ed. W. Rettig, B. Strehmel, S. Schrader and H. Seifert, Springer, Berlin Heidelber, New York, 1999; (d) Practical Fluorescence, ed. G. G. Guilbault, Marcel Dekker, New York, 1990.
5. (a) S. Nath and U. Maitra, ARKIVOC, 2005, 3, 133; (b) Nonappa and U. Maitra, Org. Biomol. Chem., 2008, 6, 657; (c) J. Rohacova, M. L. Marin, A. M. Romera, J. E. Oconnor, M. J. G. Lechon, M. T. Donato, J. V. Castell and M. A. Miranda, Org. Biomol. Chem., 2009, 7, 4973; (d) Y. Jeong and J. Yoon, Inorg. Chim. Acta, 2012, 381, 2; (e) H. N. Kim, Z. Guo, W. Zhu, J. Yoon and H. Tian, Chem. Soc. Rev., 2011, 40, 79.
6. (a) R. Métivier, I. Leray and B. Valeur, Chem.–Eur. J., 2004, 10, 4480; (b) W. S. Han, H. Y. Lee, S. H. Jung, S. J. Lee and S. J. Jung, Chem. Soc. Rev., 2009, 38, 1904; (c) S. Pandey, A. Azam and H. M. Chawla, Org. Biomol. Chem., 2009, 7, 269.
7. (a) E. M. Nolan and S. J. Lippard, Chem. Rev., 2008, 108, 3443; (b) H. N. Kim, M. H. Lee, H. J. Kim and J. S. Kim, Chem. Soc. Rev., 2008, 37, 1465.
8. (a) A. W. Czarnik, ACS Symposium Series 538, American Chemical Society, Washington DC, 1993; (b) A. P. de Silva, D. B. Fox, A. J. Huxley and T. S. Moody, Coord. Chem. Rev., 2000, 205, 41.
9. (a) M. Kumar, N. Kumar, V. Bhalla, H. Singh, P. R. Sharma and T. Kaur, Org. Lett., 2011, 13, 1422; (b) H. N. Kim, W. X. Ren, J. S. Kim and J. Yoon, Chem. Soc. Rev., 2012, 41, 3210.
10. (a) L. N. Neupane, J. M. Kim, C. R. Lohani and K. H. Lee, J. Mater. Chem., 2012, 22, 4003; (b) H. F. Wang and S. P. Wu, Tetrahedron, 2013, 69, 1965.
11. (a) K. Ghosh and T. Sarkar, Supramol. Chem., 2012, 24, 748; (b) W. Shi and H. Ma, Chem. Commun., 2008, 1856.
12. J. R. Lakowicz, in Principles of Fluorescence Spectroscopy, Kluwer Academics/Plenum Publishers, New York, 3rd edn, 2006.
13. M. G. Mendoza, M. Luisa Marin and M. A. Miranda, J. Phys. Chem. B, 2012, 116, 14776.
14. A. I. Sarez, M. R. Braden, J. M. Gerdes and C. M. Thompson, Bioorg. Med. Chem. Lett., 2010, 20, 194.
15. B. Valeur, in Molecular Fluorescence: Principle and Applications, Wiley-VCH, Weinheim, 2002.
16. W. E. Acree Jr, Absorption and Luminescence Probes, in Encyclopedia of Analytical Chemistry: Theory and Instrumentation, ed. R. A. Meyer, John Wiley & Sons, Ltd., Chichester, 2000, and references cited therein.
17. (a) J. D. Ingle, Chem. Educ., 1970, 42, 100; (b) H. Kaiser, Anal. Chem., 1987, 42, 53A; (c) G. L. Lang and J. D. Winefordner, Anal. Chem., 1983, 55, 712A.
18. P. Srivastava, M. Shahid and A. Misra, Org. Biomol. Chem., 2011, 9, 5051.
19. D. Maity and T. Govindaraju, Chem. Commun., 2010, 46, 4499.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c4ra02460e

---
