Multicomponent diversity-oriented synthesis of symmetrical and unsymmetrical 1,4-dihydropyridines in recyclable glycine nitrate (GlyNO₃) ionic liquid: a mechanistic insight using Q-TOF, ESI-MS/MS

Abstract

Multicomponent reactions are compelling strategies for generating a chemically diverse set of multifunctionalized heterocyclic motifs with high atom economy, rendering the transformations green. These strategies can further become more prolific if catalyst recyclability, compatibility and exploration of precise mechanistic pathways are considered. To this end, an inexpensive and recyclable glycine nitrate (GlyNO₃) ionic liquid has been efficiently employed to obtain diversely substituted symmetrical and unsymmetrical 1,4-dihydropyridines with up to 93% yields via three and four components, respectively. The catalyst recyclability and compatibility to obtain both symmetrical and unsymmetrical 1,4 DHPs under identical reaction conditions are added benefits to its practical utility. Furthermore, progress of the reaction was monitored by Q-TOF, direct infusion electrospray ionization mass spectrometry (ESI-MS), and key cationic intermediates involved in the reaction have been further identified by a tandem MS experiment (Q-TOF, ESI-MS/MS), which served as the proof of concept to the mechanistic model. This is the first report which revealed that the Hantzsch reaction predominantly follows the diketone pathway among four competing reaction pathways.

---

Introduction

The creation of multiple carbon–carbon or carbon–hetero bonds in a one-pot reaction helps in minimizing the waste of time and energy. These benefits are broadly encompassed under the periphery of green chemistry and are generally accomplished by using the multicomponent reaction (MCRs),¹ which have been used for the preparation of structurally diverse, drug-like compounds.² As a result, they have emerged as significant tool in organic synthesis.³

One prominent MCR that produces an interesting class of nitrogen-based heterocycles is the venerable Hantzsch reaction, which provides 1,4-dihydropyridines (1,4-DHPs) as privileged pharmacophores.⁴ DHP derivatives exhibit a wide range of pharmacological properties.⁵ Initially, these molecules were recognized as calcium channel modulators but were later developed as cardiovascular and antihypertensive drugs, which includes amlodipine, felodipine, nicardipine and nifedipine⁶ (Fig. 1). Beside this, these structural motifs are also credited with such versatile biological properties as anticonvulsant,⁷ radioprotective,⁸ selective antagonism of adenosine-A3 receptors,⁹ anticancer,¹⁰ HIV protease inhibition,¹¹ and the treatment of Alzheimer's disease.¹²

Fig. 1 1,4 DHPs used as clinical drugs.

Conventionally, 1,4-DHPs accessed through Hantzsch reaction, reduction of pyridines, addition to pyridines, or cycloaddition¹³ suffer from the limitations, including low to moderate yields besides requiring harsh conditions and longer reaction times. As a result, several modifications have been developed for the classical Hantzsch approach.¹⁴ However, despite their potential usefulness, many of these methods still involve expensive and toxic catalysts, cumbersome product isolation procedures and incompatibility with certain functional groups. Thus, these methods are not aligned with the principles of green chemistry. Hence, the challenge for a sustainable environment calls for more general and viable routes, which would be of great relevance to both synthetic and medicinal chemists.

In this context, ionic liquids (ILs) is being hailed as the green solvent of the future, which increases the portfolio of environmentally benign organic synthesis due to their particular properties such as undetectable vapour pressure, ease of recovery and reuse.¹⁵ Thus far, ILs with cations derived from imidazolium- and guanidinium-based ILs have been used as catalysts for the Hantzsch reaction.¹⁶ Although these ILs help to reduce the risk of air pollution, concerns are being raised over their potential toxicity to aquatic environments and inaccessible biodegradability.¹⁷

Therefore, the development of bio-degradable ILs based on amino acids and their derivatives to replace the above cations is another promising approach because these compounds are the most abundant natural source of quaternary nitrogen precursors.¹⁸ Moreover, low cost, easy preparation, and their properties to act as both anions and cations are added advantage in these amino acid ionic liquids^18b,e,19 (AAILs).

As a continuation of our ongoing endeavours in developing novel and practical multicomponent reactions to synthesize useful heterocyclic compounds,²⁰ we herein present the catalytic efficiency of glycine nitrate (GlyNO₃) ionic liquid under microwave (MW) irradiation for the multicomponent synthesis of aromatic/heterocyclic symmetrical and unsymmetrical 1,4-DHPs under identical reaction conditions (Scheme 1). Furthermore, a detailed Q-TOF-, ESI-MS- and ESI-MS/MS-based mechanistic study revealed that the reaction predominately follows the diketone pathway among four competing pathways.

Scheme 1 Synthesis of symmetrical and unsymmetrical 1,4-dihydropyridines in GlyNO₃ ionic liquid via three- and four-component reactions.

Results and discussion

After an initial survey of reaction conditions, a mixture of 4-chlorobenzaldehyde (1a, 0.5 mmol), methylacetoacetate (2a, 2 equiv.), ammonium acetate (3a, 2 equiv.) and GlyNO₃ (0.4 equiv.) as a catalyst was irradiated under focused monomode microwave (CEM, P = 100 W, 90 °C) for 20 min in EtOH (0.5 mL), producing 1,4-dihydropyridines 4a in 45% yield (Table 1, entry 1). To further increase the yield of 4a, various sources of ammonium salt were screened (Table 1, entries 2–5), wherein the satisfactory yield of 4a up to 73% was obtained with ammonium carbonate (Table 1, entry 5). Thereafter, the effect of the amount of catalyst (Table 1, entries 6–7) was considered, and a yield of 82% was obtained with 0.5 equiv. GlyNO₃ (Table 1, entry 6).

Table 1 Optimization study for the synthesis of 1,4-dihydropyridins^a

S. No	Ammonium salt	Solvent	Ionic liquid	Yield^b (%)
a Experimental conditions: 0.5 mmol of 4-chlorobenzaldehyde, methylacetoacetate (2 equiv.), (NH4)2CO3 (2 equiv.), GlyNO3 (0.5 equiv.) in 1 mL of EtOH under MW at P = 100 W, 90 °C for 20 min.b Isolated yield (after recrystallization in water and methanol).c GlyNO3 (0.5 equiv.).d GlyNO3 (0.6 equiv.).e EtOH (1 mL).f Reflux for 5 h. For entries 1–7, EtOH = 0.5 mL; entries 8–22, solvent = 1 mL.
1	NH4OAc	EtOH	GlyNO3	45
2	NH4BF4	EtOH	GlyNO3	30
3	NH4Cl	EtOH	GlyNO3	20
4	NH4HCO3	EtOH	GlyNO3	70
5	(NH4)2CO3	EtOH	GlyNO3	73
6^c	(NH4)2CO3	EtOH	GlyNO3	82
7^d	(NH4)2CO3	EtOH	GlyNO3	80
8^e	(NH4)2CO3	EtOH	GlyNO3	87
9	(NH4)2CO3	H2O	GlyNO3	19
10	(NH4)2CO3	DCM	GlyNO3	34
11	(NH4)2CO3	DMSO	GlyNO3	20
12	(NH4)2CO3	PEG 400	GlyNO3	30
13	(NH4)2CO3	EtOH–H2O	GlyNO3	40
14	(NH4)2CO3	EtOH	GlySO4	66
15	(NH4)2CO3	EtOH	GlyTFA	40
16	(NH4)2CO3	EtOH	GlyOAC	59
17	(NH4)2CO3	EtOH	GlyCl	57
18	(NH4)2CO3	—	GlyNO3	29
19	(NH4)2CO3	EtOH	—	26
20^f	(NH4)2CO3	EtOH	GlyNO3	55
21	(NH4)2CO3	EtOH	Glycine	65
22	(NH4)2CO3	EtOH	HNO3	20

---

A further increase in the amount of catalyst could not exert any positive influence on the yields of 4a (Table 1, entry 7). Gratifyingly, the yield was improved to 87% with the increased in volume of EtOH up to 1 mL (Table 1, entry 8). A further increase in the volume of EtOH fails to enhance the yields of 4a. Thereafter, the effects of different solvents and co-solvents (Table 1, entries 9–13), and catalysts (Table 1, entries 14–17) were studied, but inferior yields were obtained compared with Table 1, entry 8.

Control experiments in the absence of solvents and catalysts (Table 1, entries 18–19) produced 4a in low yield, demonstrating the crucial role of solvents and catalysts. The reaction under conventional conditions by refluxing the reaction mixture for 5 h failed to improve the yield of 4a (Table 1, entry 20). Surprisingly, an experiment with glycine (Table 1, entry 21) and HNO₃ (Table 1, entry 22) resulted in a drastic decrease in the yield of 4a, which emphasized the importance of GlyNO₃ IL in catalysis.

With the optimized reaction conditions in hand for the synthesis of symmetrica1 1,4-DHPs (Table 1, entry 8), the generality and scope of this one-pot, three-component Hantzsch reaction was then explored. For this, a wide range of substituted benzaldehyde compounds, including heterocyclic moieties (1a–i), methylacetoacetate (2a), and ammonium carbonate (3a), were irradiated under focused MW (P = 100 W, 90 °C) for 20 min, which produced the corresponding 1,4-DHPs 4a in good-to-excellent yields (Table 2, entries 4a–i). During the substrate scope study, it was observed that the catalyst exhibited remarkable activity for heterocyclic-substituted benzaldehydes, particularly for thiophene containing moiety (Table 2, entries 4d–i). Therefore, we further extended our substrate scope by using various dicarbonyl compounds in conjunction with thiophene-2-carboxaldehyde and ammonium carbonate, which afforded the desired compound in good yield (Table 2, entries 4j–l).

After the successful synthesis of three-component symmetrical 1,4-DHPs, our goal was to synthesize four-component unsymmetrical 1,4-DHPs, also known as polyhydroquinoline, which enjoys the status of being privileged motifs in terms of their diverse biological profiles, compared with symmetrical 1,4-DHPs.²¹

Recently, these motifs have been recognized as lead molecules in antidiabetic drug discovery.²² There are a plethora of reagents and catalyst reported in the literature for the synthesis of unsymmetrical 1,4-DHPs.²³ However, some of these suffer from limitations such as the usage of precious metal catalysts, longer reaction time (6–11 h), two-step synthesis, cumbersome product isolation, selectivity and recyclability issues.

In addition, Rajesh et al.^23x have recently reported hydromagnesite as a heterogeneous solid-based catalyst for the synthesis of 1,4-DHPs. Despite promising results, this methodology has limited substrate scope due to the non-involvement of any heterocyclic benzaldehydes.

To the best of our knowledge, only a small number of reports exist in literature in which the synthesis of unsymmetrical and symmetrical 1,4-DHPs is carried out under identical reaction conditions; these suffer from limitations such as longer reaction times, poor substrate scopes and tedious synthesis of catalysts.²⁴ Considering the sheer importance of unsymmetrical 1,4-DHPs, we were also interested in investigating whether our catalytic system could efficiently result in the synthesis of unsymmetrical 1,4-DHPs by overcoming the existing lacunae of reported protocols.²³

We were pleased to observe that the mixture of 5-bromothiophene-2-carboxaldehyde (1a), methylacetoacetate (2a), 5,5-dimethyl-1,3-cyclohexanedione (2b) and ammonium carbonate (3a) successfully condensed in one pot under similar reaction conditions²⁵ providing 5a in 83% yield. Thereafter, various substituted aromatic or heterocyclic benzaldehydes (1a–i) were condensed with 2a, 2b and 3a to produce unsymmetrical 1,4-DHPs (Table 3, 5b–i) in excellent yields.

Table 2 Substrate scope of GlyNO₃-catalyzed synthesis of symmetrical 1,4-dihydropyridines^a

a Experimental conditions: 0.5 mmol of substituted benzaldehyde, methylacetoacetate (2 equiv.), (NH₄)₂CO₃ (2 equiv.), GlyNO₃ (0.5 equiv.) in 1 mL of EtOH under MW at P = 100 W, 90 °C for 20 min.b Isolated yield (after recrystallization in water and methanol).

---

Table 3 Substrate scope of GlyNO₃-catalyzed synthesis of unsymmetrical 1,4-dihydropyridines^a

a Experimental conditions: 0.5 mmol of substituted benzaldehyde, 2a (1 equiv.), 3a (1 equiv.), (NH₄)₂CO₃ (2 equiv.), GlyNO₃ (0.5 equiv.) in 1 mL of EtOH under MW at P = 100 W, 90 °C, for 20 min.b Isolated yield (after recrystallization in water and methanol).

---

From an economical point of view, the recyclability of GlyNO₃ was also considered. The IL retained high reactivity for up to six cycles (Scheme 2).

Scheme 2 Recyclability study of catalyst for the synthesis of 1,4-dihydropyridines.

Mechanistic study

Mechanistically, it was presumed that there are four plausible pathways²⁶ for the synthesis of symmetrical 1,4-DHPs (Fig. 2). These are (i) enamine (ii) diketone, (iii) dienamine and (iv) imine pathways (Fig. 2 and see ESI‡).

Fig. 2 Various plausible pathways for the synthesis of 1,4-dihydropyridines.

Q-TOF electrospray ionization mass spectrometry (ESI-MS) is the preferred technique for studying reaction intermediates because of its ability to “fish” ionic or ionized intermediates directly from reaction solutions into the gas phase with high speed and sensitivity²⁷ to prove the feasibility of precise pathways among four competing mechanisms involved in the synthesis of 1,4-dihydropyridines. Moreover, its tandem version, ESI-MS/MS, is rapidly becoming the technique of choice for solution-phase mechanistic studies in chemistry.²⁸

Therefore, we performed Q-TOF ESI (+ve) MS studies on aliquots of samples withdrawn after 10 min from the GlyNO₃-catalyzed reaction of 1g, 2a and 3a (Scheme 3)²⁹ at capillary voltage (3100 V), cone voltage (25 V), dissolution temp. (200 °C) and source temp. (80 °C).

Scheme 3 The one-pot, three-component Hantzsch reaction.

The total ion chromatogram (TIC) revealed the presence of ions at m/z 308.26 (m₁), 325.29 (m₂), 344.31 (m₃), 327.31 (m₄), 224.15 (m₅),³⁰ 211.16 (m₆), 179.09 (m₇), and 117.13 (m₈), which corresponds to [4g + H]⁺, [4g + NH₃ +H]⁺, [11a + H]⁺, [10a + H]⁺, [19a + H]⁺, [7a + H]⁺, [7a − OMe]⁺ and [2a + H]⁺, respectively. The presence of characteristic peaks m₃ = [11a + H]⁺, m₄ = [10a + H]⁺ and m₆ = [7a + H]⁺ in Fig. 3 revealed the possibility of diketone pathways (Fig. 2), and the absence of key intermediate 6a (enamine), 13a (dienamine) and 17a (imine) (Scheme 4) in the TIC (Fig. 3) ruled out the possibility of enamine, dienamine and imine pathways.

Fig. 3 TIC of Q-TOF, ESI(+) MS of sample withdrawn after 10 min for three-component Hantzsch reaction of 1g, 2a and 3a catalyzed by GlyNO₃.

Scheme 4 Key intermediates of four plausible pathways.

For further structure elucidation in the context of diketone pathways and product formation, tandem MS/MS experiments were carried out for a few selected ions observed in the TIC (Fig. 3) at m/z 308.17 = m₁, 325.29 = m₂, 344.31 = m₃ and 327.31 = m₄. The MS/MS or MS² spectra derived from the ion of m/z 308.17 = m₁ showed peak m/z at 276.14 and 224.15 assigned as [4g − OCH₃]⁺ and [4g − C₄H₃S + H]⁺ (Fig. 4), respectively, confirmed the product formation.

Fig. 4 On line Q-TOF, ESI(+) MS/MS of peak m₁ = 308.17 as shown in Fig. 2.

In the case of m₂, the MS² spectra (Fig. 5) exhibited the parent ion m₂ = [4g + NH₃ + H]⁺ and daughter ion with m/z at 308.17 and 224.28 corresponded to [4g − NH₃ + H]⁺ and [4g − C₄H₃S + H]⁺, respectively, confirming the ammoniated adduct of desired product, i.e. 4g (Scheme 3).

Fig. 5 On line Q-TOF, ESI(+) MS/MS of peak m₂ = 325.29, as shown in Fig. 2.

To further confirm the presence of the intermediate (m₃) in the context of diketone pathways, the MS² experiment was carried out of m₃ = [11a + H]⁺ ion (Fig. 6). The MS/MS spectra revealed the presence of the ion with m/z 327.34, 309.31, 295.29 and 211.21, which were diagnosed as [11a − NH₂]⁺, [11a − NH₂ − H₂O]⁺, [11a − NH₂ − H₂O − CH₃]⁺ and [11a − NH₂ − H₂O − CH₃ − C₄H₄O₂]⁺, respectively, confirmed the fragments of m₃ and their involvement in diketone pathways.

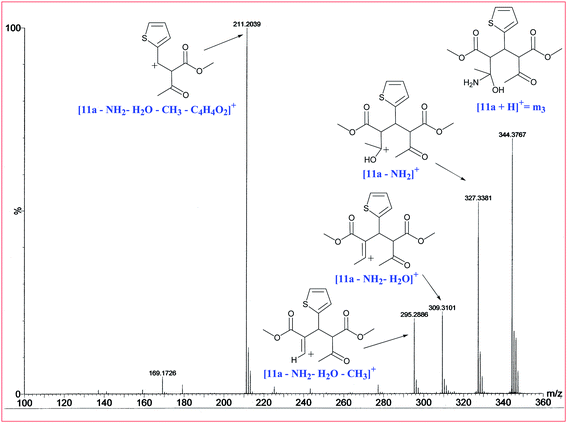

Fig. 6 On line Q-TOF, ESI(+) MS/MS of peak m₃ = 344.31, as shown in Fig. 2.

Most importantly, the key intermediate involved in diketone pathway m₄ = [10a + H]⁺ was also ascertained by the MS² experiment. The MS² spectra (Fig. 7) exhibited the parent ion m₄ = [10a + H]⁺ and daughter ions with m/z 295.18, 243.21 and 211.13 correspond to [10a − OCH₃]⁺, [10a − C₄H₃S]⁺ and [10a − C₅H₇O₃]⁺, respectively, confirmed the fragments of ion m₄ and their involvement in diketone pathways.

Fig. 7 On line Q-TOF, ESI(+) MS/MS of peak m₄ = 327.31, as shown in Fig. 2.

On the basis of the Q-TOF, ESI-MS/MS studies, it is determined that GlyNO₃ IL-catalyzed three-component Hantzsch reaction follows the diketone pathway among four competing mechanistic pathways (Fig. 2).

On the other hand, the possibility of enamine pathways cannot be ignored because of the observation of peak m₆ = [7a + H]⁺ (Fig. 3) during the analysis of aliquots of samples withdrawn after 10 min, which is also one of the intermediates of enamine pathways (Fig. 2). Therefore, two control experiments or experiments to validate our perception regarding diketone pathways were carried out in sequential one-pot two-step ways (Schemes 5 and 6). The results revealed that 61% of the product yield (Scheme 5) was obtained via diketone pathways, compared with a 22% yield via enamine pathways (Scheme 6).

Scheme 5 Sequential one-pot, two-step synthesis of 1,4-DHP via diketone pathway.

Scheme 6 Sequential one-pot, two-step synthesis of 1,4-DHP via enamine pathway.

Finally, on the basis of control experiments and the Q-TOF, ESI-MS/MS studies, we can say that the most predominant pathway for the synthesis of symmetrical 1,4-DHPs is diketone, rather than enamine, dienamine and imine. This is the first report that proved the participation of diketone pathways in the synthesis of symmetrical 1,4-DHPs by using the Q-TOF, ESI-MS/MS studies.

Conclusion

In summary, an operationally simple and highly efficient one-pot multicomponent reaction for the synthesis of symmetrical and unsymmetrical 1,4 DHPs has been developed, which could have great importance for synthetic and medicinal chemistry. The methodology is practical, recyclable and economical, in addition to being flexible, because it also allows heterocyclic benzaldehydes to participate in the synthesis of both symmetrical and unsymmetrical 1,4 DHPs under identical reaction conditions. Furthermore, mechanistic studies using Q-TOF, ESI-MS/MS revealed that the synthesis of symmetrical 1,4 DHPs predominately follows the diketone pathway among four competing reaction pathways. Finally, we anticipate that this catalytic system will find applications in both academia and industry. The Q-TOF, ESI-MS/MS-based studies may also helpful to reveal the mechanistic details of numerous other reactions. The mechanistic study related to unsymmetrical 1,4 DHPs is currently under investigation.

Experimental section

General procedure for the synthesis of symmetrical 1,4-dihydropyridins from substituted benzaldehydes (Table 2, 4a–l)

Substituted benzaldehyde (0.5 mmol), dicarbonyl compound (2 equiv.), ammonium carbonate (2 equiv.) and glycine nitrate (0.5 equiv.) were taken in 1 mL ethanol in a round-bottomed flask and the reaction mixture was subjected to microwave irradiation by using a CEM monomode microwave at P = 100 W, 90 °C for 20 min. After completion, the crude reaction mixture was filtered to obtain GlyNO₃. The filtrate was vacuum evaporated and then recrystallized from water–methanol, which gave an isolated yield of 4a–l in the range of 52–93% yields. Products were identified and confirmed by their ¹H, ¹³C NMR spectra and HRMS values.

General procedure for the synthesis of unsymmetrical 1,4-dihydropyridins from substituted benzaldehydes (Table 3, 5a–i)

Substituted benzaldehyde (0.5 mmol), methylacetoacetate (1 equiv.), 5,5-dimethyl-1,3-cyclohexanedione (1 equiv.), ammonium carbonate (2 equiv.) and glycine nitrate (0.5 equiv.) were taken in 1 mL ethanol in a round-bottomed flask, and the reaction mixture was subjected to microwave irradiation by using a CEM monomode microwave at P = 100 W, 90 °C for 20 min. After completion, the crude reaction mixture was filtered to obtain GlyNO₃. The filtrate was vacuum evaporated and then recrystallized from water–methanol, which gave an isolated yield of 5a–i in the range of 52–93% yields. Products were identified and confirmed by their ¹H, ¹³C NMR spectra and HRMS values.
