Synthesis of functionalized dispiro-oxindoles through azomethine ylide dimerization and mechanistic studies to explain the diastereoselectivity

Abstract

We have developed a one-pot synthesis of polycyclic fused dispiro-oxindole derivatives by the [3 + 3]-cycloaddition (dimerization) of azomethine ylide derived from condensation of isatin and proline. The dispiro-oxindole ring system is found at the core of a number of alkaloids, which possess significant biological activity and are interesting, challenging targets for chemical synthesis. We have demonstrated formation of two isomers, cis and trans with variable selectivity depending upon the substitution pattern at the N-atom of isatin moiety arising during this type of dimerization. We could also correlate these diastereoselectivities with DFT calculations. The formation and X-ray crystal structure of the cis isomer in this cycloaddition reaction is reported first time. We also gave clear insight into the mechanism of this dimerization reaction.

---

Introduction

The 1,3-dipolar cycloaddition reaction is a versatile synthetic strategy for the construction of five,^1–4 and six-membered ring heterocycles.⁵ The routine [3 + 2]-cycloadditions of Azomethine ylide (AMY) are reported with a variety of dipolarophiles e.g. alkenes,^6–10 alkynes,¹¹ carbonyl compounds like aldehydes,¹² anhydrides,¹³ imines¹⁴ etc. and limited [3 + 3]-cycloadditions are also known to synthesize piperazine derivatives by self condensation of AMY.¹⁵ Highly functionalized piperazine moieties constitute the main structural element of different alkaloids¹⁷ and pharmacologically active compounds. Piperazine ring structures also have importance in carbohydrate chemistry,¹⁸ drugs like anthelmintics,¹⁹ and veterinary medicine to treat parasitic infections.²⁰

Synthesis of piperazine derivatives is known in the literature employing several methods including the [3 + 3]-cycloaddition reaction.²¹ Among the various methods reported for AMY generation, one of the common methods is condensation of isatin and proline. The molecules synthesized by this type of AMY, have had pharmacological as well as biological importance for a long time.²² Perumal et al. have reported^16a such a dimer (I) to have very good activity towards anti-tuberculosis; however they could not predict the right structure of the dimer (Fig. 1). Recently, Essassi et al. reported²³ the correct structure of the dimer (II) by single crystal X-ray crystallography (Fig. 1). Tuberculosis (TB), caused by Mycobacterium tuberculosis. (M. Tb), is a major infectious disease suffered by mankind in mostly low and middle income countries, although no region in the world remains untouched. According to World Health Organization (WHO) data, every second a new infection by tuberculosis bacillus occurs somewhere in the world; the number of infections is constantly rising and will soon affect a third of the world's population. The statistics indicate that 1.3 million people throughout the world died from TB in 2008.^16b Presently our group is involved in developing anti-tuberculosis drug candidates. Our research interest^1d,24 in AMY cycloaddition and other projects involving this type of isatin derived AMY surprisingly gave the dimers. We want to report in this present article the systematic studies involving the effect of EWG, EDG, and solvents on the [3 + 3]-cycloaddition reaction of AMY generated from isatin and proline. Biological testing of all these compounds towards anti-tuberculosis activities will give very important information and may lead to a very good target compound for the above mentioned purpose.

Fig. 1 Two previously reported structures of the dimer.

Results and discussion

The AMY derived from condensation of isatin (1) and proline (7) is found to be very reactive towards [3 + 2]-cycloaddition with electron deficient dipolarophiles.^16,25 Our observation is interesting for the similar reaction without any dipolarophile. 1 and 7 when admixed together in presence of 4 Å molecular sieves in toluene, under refluxing condition, 1 was completely consumed within four hour. After complete analysis of the above mentioned reaction, gave two products 8 and 9 in (1.3 : 1) diastereoisomeric ratio (Scheme 1). In ¹H NMR of 8, four aromatic protons were appeared which indicates this molecule had isatin moiety. Interestingly, compound 9 showed much deferent ¹H NMR. In aromatic region of compound 9, eight protons were observed followed by twice number of protons in aliphatic region as compared to 8. These observations indicated that the presence of two proline moieties i.e. a molecular symmetry could be present in compound 8. The mass spectrum of both the compounds 8, and 9 gave the same molecular ion peak (m/z).

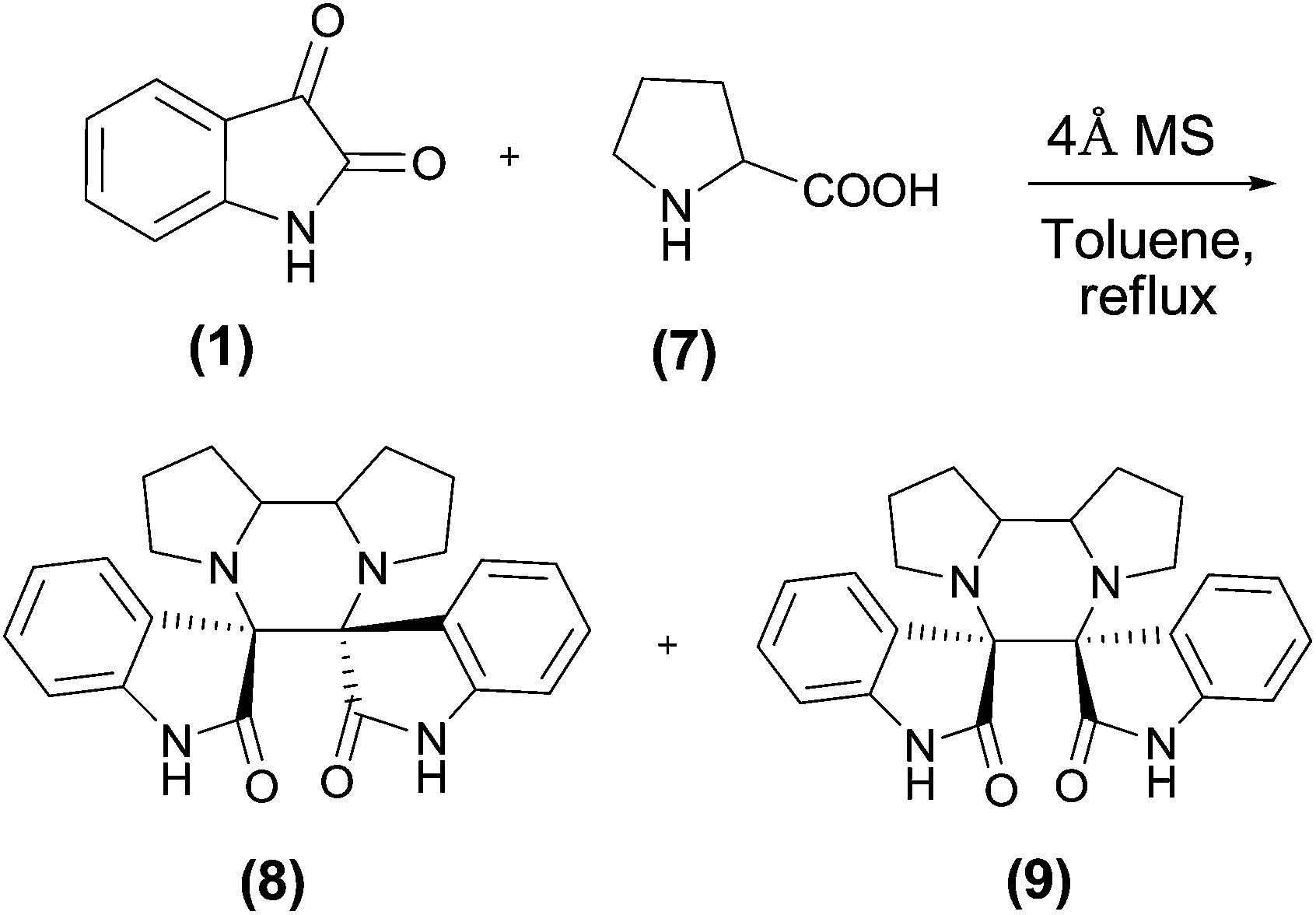

Scheme 1 Dimerization of AMY.

Fortunately, both compounds 8, 9 were crystalline solid at room temperature. The Single crystal X-ray data analysis of both compounds revealed trans dimer (8) and another was cis dimer (9) of AMY (Fig. 2). Both compounds were diastereomers with respect to each other and in 8 half of the total protons of molecule were magnetically equivalent while in 9 all protons were magnetically non equivalent due to different chemical environment. In this fashion the occurrence of the cis isomer during this type dimerization reaction was documented first time in the literature.

Fig. 2 ORTEP Diagram of the molecular structure of 8 and 9.

The possible mechanism for the dimerization of AMY is reported in literature.²⁶ Two kinds of dimerizations of AMY generated in the above mentioned manner are possible, either head-head fashion of the resonance hybrid or by head-tail fashion of the same resonance hybrid (Scheme 2). Interestingly, the product observed is only of former type. The less hindered head–head 1st step of the dimerization may be driving force for forming 8 instead of 19. DFT calculation was performed to critically examine this dimerization motive.

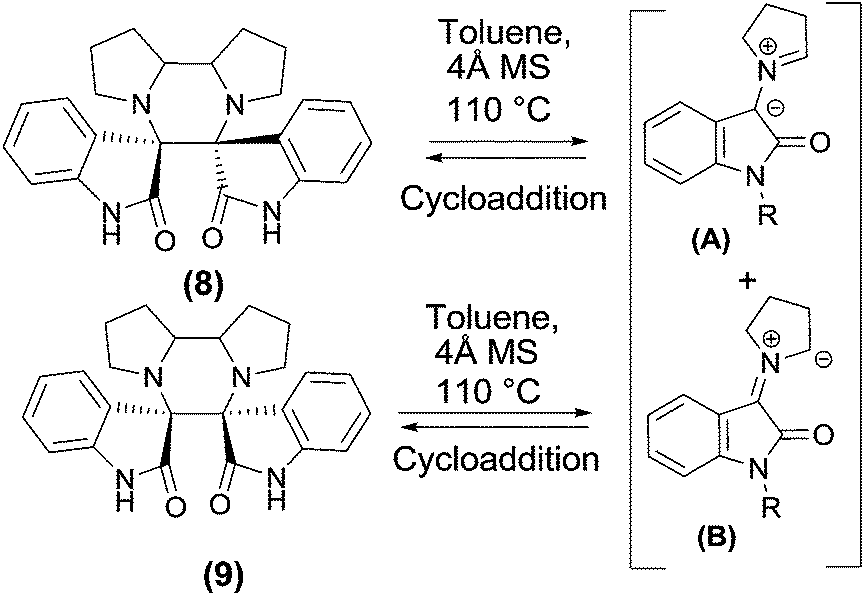

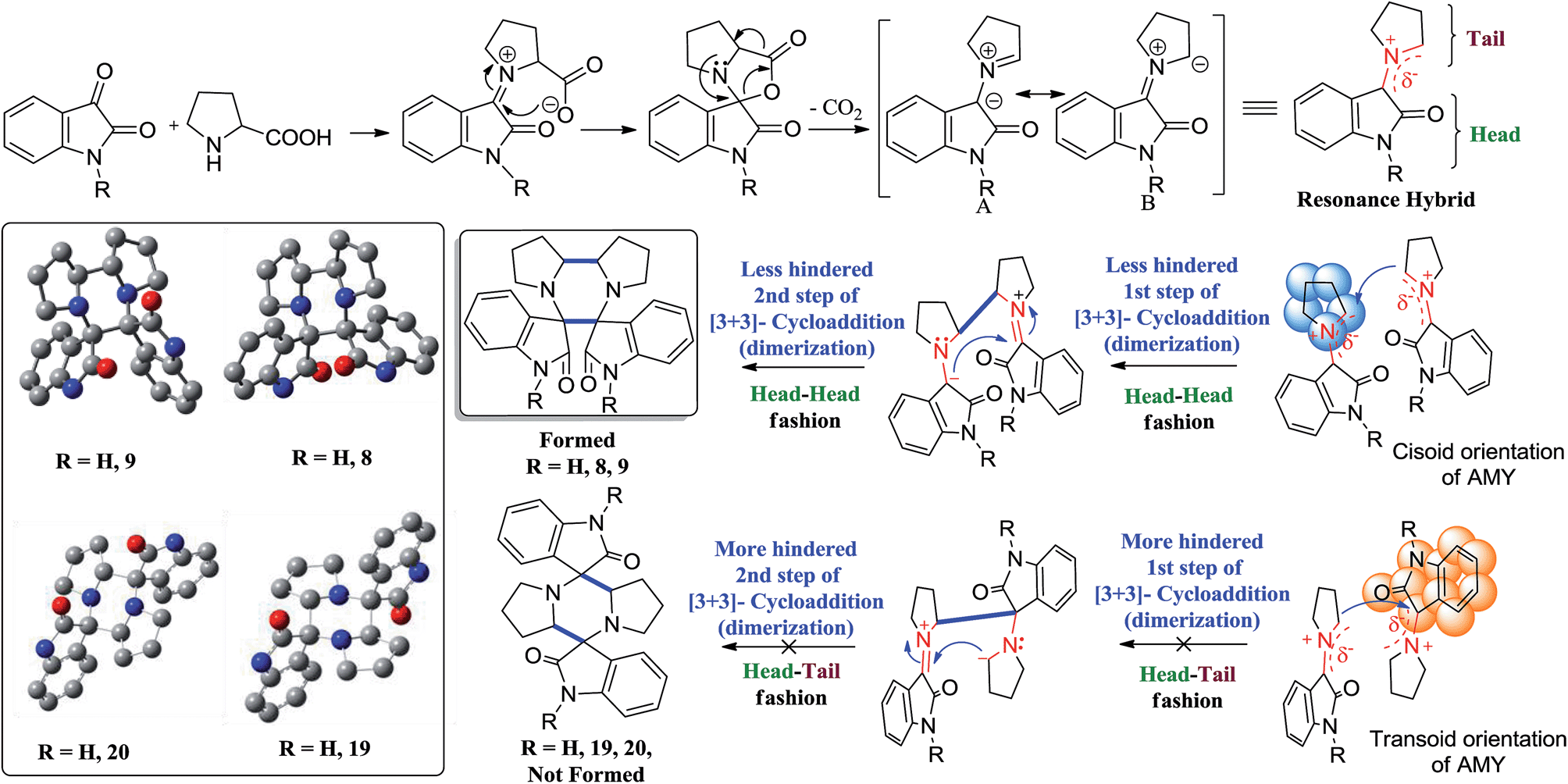

Scheme 2 Proposed mechanism of AMY generation and its dimerization.

When 8 was refluxed in toluene with 4 Å MS under N₂ atmosphere, 9 formed slowly and the conversion was observed in (50 : 50) ratio after 48 h. Again similar observation was noticed with 9 (Scheme 3). This is only possible when the activation energy for the both products is very close and passes through a common intermediate.

Scheme 3 Interconversion of trans and cis dimers.

The lock and key chemistry of this type of AMY dimerization was also studied by taking different electron donating and electron withdrawing substituent at N-atom of isatin. When N-methyl isatin (2) was refluxed with 7 same result (10, 11) was obtained as in above mentioned reaction. The rate of reaction is, somewhat, slower than the isatin reaction (Table 1) and trans-isomer was formed as major. N-Ethyl isatin (3) derived AMY underwent cycloaddition reaction in same condition and gave both isomers (12, 13) in moderate yield. This reaction was slower than N-methyl isatin (2) case and completed in 8 h. The trans diastereomer (12) was found to be major and formed first relative to cis diastereomer (13) (Table 1). The effect of benzyl group on the dimerization of AMY derived from N-benzyl isatin (4) was also studied. This reaction was very slow in compare to other derivatives of isatin studied by us, and completed in 13 h. In this dimerization reaction trans dimer (14) was formed as major product in compare to cis dimer (15). The yield of 15 was very poor (Table 1), this could be due to steric effect of benzyl groups that opposed the reaction between two AMY fragment in cis orientation. The result obtained by substituting hydrogen of NH in isatin with methyl, ethyl and benzyl was found that the yield of cis product was decreased in same trend as bulkiness of the group increases. So, it was cleared that size of substituent played major role for controlling the diastereoselectivity of AMY dimerization.

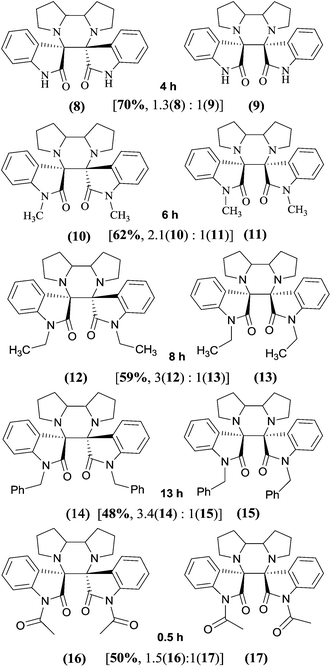

Table 1 Dimerization of AMY with different substituent of isatin^a,b

a Reactions were performed in toluene.b Isolated yield by flash column chromatography.

---

After studying the effect of electron donating and bulkier group on dimerization of AMY, the EWG like acetyl and Boc were taken as substituent for our investigation. When N-acetyl isatin (5) was applied in the same reaction condition, it was observed that reaction was very fast and completed within 0.5 h. This reaction also gave the trans (16) and cis dimer (17) in quantitative yield. The ratio of trans and cis (1.5 : 1) was close to isatin ratio (Table 1). In 16, ¹H NMR pattern was slightly different from above mentioned analogue due to presence of the acetyl group.

When N-Boc isatin (6) was refluxed with proline (7), reaction was completed within 0.5 h. Interestingly, after complete analysis of isolated product we found that in this case dimerization of AMY did not occur, in spite of this five member ring of isatin was opened with proline (7) to form carbamate derivatives (18). The carbamate derivative 18 was found to be crystalline solid and single crystal X-ray was taken. This observation is documented in the literature,²⁷ but our finding contradicts in the case of N-acetyl isatin where the dimerized product could only be isolated but it was reported to cleave as observed in N-Boc case. This could be due to special arrangement of oxygen of isatin carbonyl and Boc-ester moiety which brings proline closer to isatin carbamate functionality to cleave it selectively. This reaction also disclosed the stability and reactivity of isatin to form AMY depending upon the different substituent present at N-atom of isatin (Scheme 4).

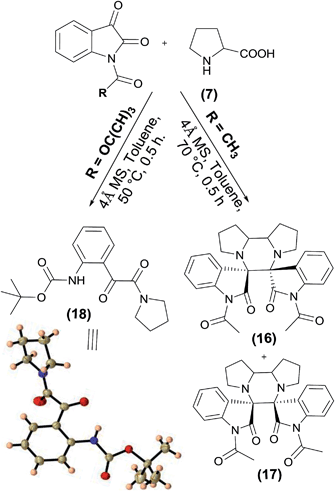

Scheme 4 Effect of N-acetyl and N-Boc group on AMY dimerzation.

When reaction was screened by changing the solvent, it was observed that in toluene reaction was completed within 4 h (Table 2). While reaction time was decreased in methanol and methanol : dioxane (1 : 1) as solvent. This could be due to the solvent role in transition state stabilization. The TS of AMY formation in this reaction was polar (confirmed by DFT) and stabilized by the polar solvent.

Table 2 Screening of temperature vs. solvent effect on isatin and Proline reaction

Entry no.	Solvent	Temp. (°C)	Time (h)
1	Toluene	110	4
2	Methanol	64	1
3	Dioxane : methanol (1 : 1)	70	1

---

Mechanistic studies

The regio and diastereoselectivities of this type of AMY dimerization derived from isatin derivatives and proline (7) were also studied by us using ab initio density functional theory (DFT). All the structures have been geometry optimized using B3LYP functional employing 6-31G (d, p)²⁸ basis set as implemented in Gaussian-09 code.²⁹ Vibrational analysis has been performed for all the stationary points. Transition states are characterized by one negative imaginary frequency along the reaction coordinate. For all transition state structures, the intrinsic reaction coordinate (IRC)³⁰ calculation was performed to ascertain that each transition state connected the expected reactants and products.

Theoretical calculation for the 1,3-dipolar cycloaddition reaction of AMY generated by the above discussed manner from isatin is reported in the literatures.³¹ However, our interest was to know the difference between activation energy (ΔE_a) of transition states among both diasteriomers (cis, trans). The activation energy (ΔE_a) for cis and trans diasterioisomeric products was analyzed. The activation energy for trans product 8 (4.2 kcal mol⁻¹) was found to be less than the cis product 9 (5.1 kcal mol⁻¹) (entry 1 and 2, Table 3). Due to this reason the transoid orientation of two AMY could surpass the energy barrier more frequently than the cisoid orientation. This DFT interpretated data could explain the regeochemistry and selectivity of the experimental result where product 8 was found to be major. The computed transition state structures were found to be polar with high dipole moment (trans, 8: μ= 1.7 D; cis, 9: μ= 3.8 D). The high dipole moment may have resulted the higher stability of TS in polar solvents compared to non polar solvents. This prediction also support our experimental results where the reaction is found to be faster in polar solvent (entry 3, Table 2). Similarly, for N-benzyl substituted AMY dimerization, activation energy of trans adduct (14) is (5.0 kcal mol⁻¹) lesser than cis adduct, 15 (7.8 kcal mol⁻¹) due to which the experimental yield of trans adduct was found to be higher than cis adduct (15) (entry 5 and 6, Table 4). It was also noticed that the activation energy difference between 8 and 9 (0.8 kcal mol⁻¹) was less than 14 and 15 (2.8 kcal mol⁻¹) (Fig. 3, 4). This activation energy difference between differently substituted adducts resulted in variation in the ratio of their corresponding diastereoselectivity. Steric hindrance have also played a major role with respect to stereo selectivity as well as reaction productivity.

Table 3 Energetics of [3 + 3] – cycloaddition (dimerization) reaction and their activation energy (R = H). 0.00 = −81 4811.5780101882 kcal mol⁻¹

S. no.	R	ER (2 AMY) (kcal mol^−1)	Ep (kcal mol^−1)	TS frequency (cm^−1)	ETS (kcal mol^−1)	Ea (kcal mol^−1)
1	Trans, H(1), (experimental)	0.00	−15.375 (8)	−273.52	4.200 (23)	4.2
2	Cis, H(1) (experimental)	3.75	−17.5125 (9)	−286.04	8.813 (24)	5.1
3	Trans, H(1) (expected)	4.53	−22.890 (19)	−290.61	13.64 (25)	9.1
4	Cis, H(1) (expected)	1.10	−19.943 (20)	−231.59	13.674 (26)	12.6

---

Table 4 Energetics of [3 + 3] – cycloaddition (dimerization) reaction and their activation energy (R = benzyl).^a 0.00 = −1 154 134.9684358091 kcal mol⁻¹

S. no.	R (experimental)	ER (2 AMY) (kcal mol^−1)	Ep (kcal mol^−1)	TS frequency (cm^−1)	ETS (kcal mol^−1)	Ea (kcal mol^−1)
a ER = energy of reactants, Ep = energy of products, ETS = energy of transition states, Ea = activation energy.
5.	Trans, Bn (4)	0.00	−13.577 (14)	−277.69	5.000 (27)	5.0
6.	Cis, Bn (4)	2.19	−17.467 (15)	−295.43	7.725 (28)	7.8

---

Fig. 3 Energy profile diagram of [3 + 3] dimerization reaction of isatin – proline derived AMY.

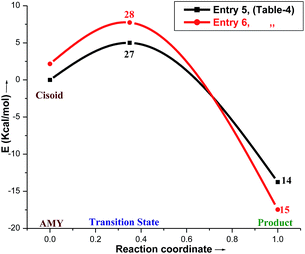

Fig. 4 Energy profile diagram of [3 + 3] dimerization reaction of N - benzyl isatin – proline derived AMY.

The reason behind the non-existence of other expected adducts (19, 20) during experiment, could be explained with the help of DFT studies. The activation energy for both 19 (9.1 kcal mol⁻¹) and 20 (12.6 kcal mol⁻¹) isomers were more than the experimentally observed adducts (entry 3 and 4, Table 3, Fig. 3). This energy difference between transition states may be responsible for the formation of 8 and 9 in spite of 19 and 20.

Conclusions

In conclusion, dimerization of AMY was well affected using different substituent at N-atom of isatin and also it was evidented that presence of EWG like Boc banned the AMY formation from isatin and proline. DFT studies supported the experimental results and gave conclusive evidence of activation energy differences of TSs. X-ray crystallography provided complete structure of both isomers of dispiro-oxindoles. The formation of the cis compound, which was otherwise neglected as polar impurities in earlier studies, was characterized fully first time in the literature. Bioactivity of the newly synthesized compounds will be published elsewhere.

Experimental

General

The reagents isatin (1), proline (7) were commercially available and were used without further purification. Toluene was dried over P₂O₅ then sodium metal and stored at 4 Å molecular sieves for at least 48 h prior to use. N-Methyl,³² N-ethyl,³² N-benzyl,³² N-acetyl³³ and N-Boc Isatin³⁴ were synthesized according to their reported procedure. Reactions were performed under N₂ in oven dried glassware. The developed chromatogram was analyzed by UV lamp (254 nm), or iodine stain. Products were purified by flash chromatography on silica gel (mesh size 230–400) and further purified by crystallization with ethanol at r.t. Chemical shifts of Proton and ¹³C NMR spectra are expressed in parts per million (ppm). All coupling constants are absolute values and are expressed in Hz. The description of the signals include: s = singlet, brs = broad singlet d = doublet, dd = double doublet, t = triplet, q = quartet, m = multiplet and td = triplet of doublet.

Typical experimental procedure for alkylation of isatin (procedure A)

A round bottom flask was charged with isatin, K₂CO₃ and dry acetonitrile followed by addition of alkyl iodide under nitrogen atmosphere. Resulting mixture was refluxed overnight and reaction progress was monitored by TLC. After completion of the reaction, solvent was evaporated at reduced pressure and crude mixture was quenched by water. Ethyl acetate was added to the resulting mixture and aqueous layer was extracted with ethyl acetate. The combined organic layer was dried over Na₂SO_4, concentrated in vaccuo. and purified by flash column chromatography with (EtOAc/hexane) to afford desire alkylated product.

Synthesis of 1-methylindoline-2,3-dione (2). Prepared by following procedure A; isatin (1 g, 6.8 mmol), methyl iodide (1.16 g, 8.16 mmol), K₂CO₃ (2.81 g, 20.4 mmol) and dry acetonitrile (30 ml), yield (0.82 g, 75%). ¹H NMR (400 MHz, CDCl₃): δ 7.63 (td, J = 7.6 Hz, J = 1.3 Hz, 1H), 7.54 (d, J = 7.6 Hz, 1H), 7.13 (td, J = 7.6 Hz, J = 1.3 Hz, 1H), 6.94 (d, J = 7.6 Hz, 1H), 3.25 (s, 3H).

Synthesis of 1-ethylindoline-2,3-dione (3). Prepared by following procedure A; isatin (1 g, 6.98 mmol), ethyl iodide (1.3 g, 8.38 mmol), K₂CO₃ (2.81 g, 20.4 mmol), dry acetonitrile (30 ml), yield (0.88 g, 72%). ¹H NMR (400 MHz, CDCl₃): δ 7.57 (m, 2H), 7.09 (t, J = 7.6 Hz, 1H), 6.89 (d, J = 7.6 Hz, 1H), 3.76 (q, J = 7.6 Hz, 2H), 1.29 (t, J = 7.6 Hz, 3H).

Synthesis of 1-benzylindoline-2,3-dione (4). Prepared following procedure A; isatin (1 g, 6.98 mmol) in dry acetonitrile (30 ml), benzyl iodide (1.16 g, 8.16 mmol) and K₂CO₃ (2.81 g, 20.4 mmol) yield (1.12 g, 68%). ¹H NMR (400 MHz, CDCl₃): δ 7.54 (d, J = 7.6 Hz, 1H), 7.4 (td, J = 7.6, 2.9 Hz, 1H), 7.2–7.3 (m, 5H), 7.01 (t, J = 7.6 Hz, 1H), 6.7 (d, J = 7.6 Hz, 1H), 4.85 (s, 2H).

Synthesis of 1-acetylindoline-2,3-dione (5). Isatin (1 g, 6.98 mmol) and acetic anhydride (16 ml) was heated at 90–100 °C under nitrogen atmosphere for overnight. Reaction was monitored by TLC and after complete consumption of isatin, mixture was allowed to cool at rt. The crude mixture was kept in freeze for overnight to get fine yellow crystal of the product (0.82 g, 62%). ¹H NMR (400 MHz, CDCl₃): δ 8.44 (d, J = 7.9 Hz, 1H), 7.8 (dd, = 7.43, 1.4 Hz, 1H), 7.74 (td, J = 7.9, 1.4 Hz, 1H), 7.35 (td, J = 7.9, 1.4 Hz, 1H), 2.75 (s, 3H).

Synthesis of tert-butyl 2,3-dioxoindoline-1-carboxylate (6). To a solution of DMAP (0.042 mg, 0.5 mmol) in dry THF (32 ml), isatin (1 g, 6.8 mmol) was added at room temperature. Then di-tert-butyl dicarbonate (1.77 g, 1.2 mmol) was slowly added to the mixture. After stirring for 6 h, water (20 ml) was introduced to precipitate the product. After filtration, the product was recrystallized with DCM/Hexane. The resultant solid was dried in vacuo to give 1-tert-butoxycarbonyl isatin as (1 g, 60%). ¹H NMR (400 MHz, CDCl₃): δ 8.08 (d, J = 7.8 Hz, 1H), 7.72 (m, 2H), 7.29 (d, J = 7.8, 1H), 1.65 (s, 9H).

Typical experimental procedure for cycloaddition reaction of Azomethine ylied (procedure B)

The round bottom flask was charged with N-substituted isatin derivative, proline and 4 Å MS followed by successive addition of dry toluene under nitrogen atmosphere. Reaction mixture was brought to reflux and was monitored by TLC at different interval. After completion of reaction, mixture was cooled at r.t., filtered through celite and evaporated in vacuo. The crude mixture was purified by flash column chromatography with EtOAc/Hexane and recrystallized with ethanol to afford heptacyclic adduct.

(8, 9) Reaction was performed by following procedure B; isatin (0.5 g, 3.4 mmol), proline (0.391 g, 3.4 mmol), toluene (30 ml), 4 Å MS (200 mol%), time = 4 h.

Synthesis of (3R,7′S) −1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (8). Yield = 40%, white solid, mp = 188–190 °C (decomposed), IR (neat) ν_max 3303, 3176, 3153, 3082, 2973, 2948, 2848, 2810, 1724, 1701, 1619, 1471, 1187, 767, 683 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 7.47 (d, J = 7.6 Hz, 2H), 7.2–7.3 (brs, 2H), 7.05 (td, J = 7.6, 1.1 Hz, 2H), 6.9 (td, J = 7.6, 1.1 Hz, 2H), 6.47 (d, J = 7.7 Hz, 2H), 3.62 (m, 2H), 2.62 (td, J = 8.7, 2.4 Hz, 2H), 2.17 (q, J = 8.5 Hz, 2H), 1.9 (m, 2H), 1.78 (m, 2H), 1.62 (m, 4H). ¹³C NMR (100 MHz, CDCl₃ and DMSO – D₆): δ 20.5, 27.1, 47.1, 58.7, 68.1, 108.7, 120.9, 125.8, 126.1, 128.5, 141.6, 175.9. TOF MS ES+ 401 (M + H). HRMS calcd. for C₂₄H₂₄N₄O₂ (M + H) 401.1977 found 401.1987.

Synthesis of (3R,7′R) −1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (9). Yield = 30%, white solid, mp = 198–200 °C (decomposed), IR neat: ν_max 3280, 3195, 3083, 2965, 2820, 1713, 1617, 1469, 1192, 754. ¹H NMR (400 MHz, CDCl₃): δ 8.04 (d, 7.7 Hz, 1H), 7.5–7.63 (brs, 2H), 7.28 (t, J = 7.7 Hz, 1H), 7.09 (t, J = 7.7 Hz, 1H), 7.02 (t, J = 7.7 Hz, 1H), 6.71 (d, J = 7.7 Hz, 1H), 6.64 (d, J = 7.7 Hz, 1H), 6.47 (t, J = 7.7 Hz, 1H), 6.08 (d, J = 7.7 Hz, 1H), 3.88 (td, J = 10.1, 5.8 Hz, 1H), 3.72 (td, J = 10.1, 5.8 Hz, 1H), 2.87 (m, 2H), 2.56 (td, J = 8.7, 2.7, 1H), 2.17 (q, J = 8.7 Hz, 1H), 1.92 (m, 2H), 1.85 (m, 1H), 1.77 (m, 2H), 1.68 (m, 2H), 1.52 (m, 1H). ¹³C NMR (100 MHz, CDCl₃ and DMSO – D₆): δ 20.3, 20.4, 26.8, 27.0, 45.7, 46.1, 58.0, 59.8, 66.9, 70.5, 108.3, 108.8, 119.5, 119.8, 124.6, 125.4, 125.7, 128.1, 128.3, 128.5, 142.3, 142.6, 173.8, 174.4, TOF MS ES+ 401 (M + H). HRMS calcd. for C₂₄H₂₄N₄O₂ (M + H) 401.1977 found 401.1976.

(10, 11) Reaction was performed by following procedure B; N-methyl isatin (0.5 g, 3.105 mmol), proline (0.357 g, 3.105 mmol), dry toluene (30 ml), 4 Å MS (200 mol%), time = 6 h.

Synthesis of (3R,7′S)-1,1′′-dimethyl-1,1′′,2,2′′ tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (10). Yield = 42%, white solid, mp = 183–186 °C, IR (neat): ν_max 2970, 2816, 2313, 1737, 1696, 1608, 1466, 1344 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 7.28 (d, J = 7.7 Hz, 2H), 7.08 (t, J = 7.7 Hz, 2H), 6.89 (t, J = 7.7 Hz, 2H), 6.38 (d, J = 7.7 Hz, 2H), 3.72 (t, J = 4.7 Hz, 2H), 2.9 (s, 6H), 2.62 (td, J = 8.2, 2.4 Hz, 2H), 2.09 (q, J = 8.2 Hz, 2H), 1.9 (brs, 2H), 1.79 (q, J = 8.6 Hz, 2H), 1.63 (brm, 4H). ¹³C NMR (100 MHz, CDCl₃): δ 21.1, 24.9, 27.6, 47.8, 59.3, 69.0, 107.2, 121.6, 125.2, 125.7, 129.1, 143.6, 174.7. TOF MS ES+ 429 (M + H). HRMS calcd. for C₂₆H₂₉N₄O₂ (M + H) 429.229 found 429.2301.

Synthesis of (3R,7′R)1,1′′-dimethyl-1,1′′,2,2′′ tetrahydrodispiro[indole-3.8′ [6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (11). Yield = 0.265 g, 20%, white solid, mp = 174–176 °C, IR (neat): ν_max 3016, 2971, 2316, 1736, 1368, 1222 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 8.05 (d, J = 7.7 Hz, 1H), 7.3 (t, J = 7.7 Hz, 1H), 7.09 (t, J = 7.7 Hz, 1H), 7.03 (t, J = 7.7 Hz, 1H), 6.6 (dd, J = 4.6, 3.1 Hz, 2H), 6.43 (t, J = 7.7 Hz, 1H), 6.04 (d, J = 7.7 Hz, 1H), 3.97 (td, J = 5.8, 4.3 Hz, 1H), 3.16 (s, 3H), 2.87 (m, 1H), 2.87 (m, 1H), 2.83 (s, 3H), 2.73 (brd, J = 7.4 Hz, 1H), 2.53 (td, J = 7.3, 2.7 Hz, 1H), 2.08 (q, J = 8.6 Hz, 1H), 1.92 (m, 2H), 1.82 (m, 1H), 1.71 (dd, J = 7.8, 2.75 Hz, 1H), 1.65 (m, 2H), 1.5 (td, J = 7.7, 2.7 Hz, 2H). ¹³C NMR (100 MHz, CDCl₃): δ 20.9, 21.1, 25.6, 26.1, 27.4, 27.8, 46.6, 46.9, 58.9, 60.9, 67.8, 71.5, 107.3, 107.6, 120.7, 121.2, 124.8, 125.2, 125.8, 128.9, 129.0, 129.1, 144.6, 173.0, 174.0. TOF MS ES+ 429 (M + H). HRMS calcd. for C₂₆H₂₈N₄O₂Na (M + Na) 451.21045 found 451.2120.

(12, 13) Reaction was performed by following procedure B; N-ethyl isatin (0.5 g, 2.857 mmol), proline (0.328 g, 2.857 mmol), dry toluene (30 ml), 4 Å MS (200 mol%), time = 8 h.

Synthesis of (3R,7′S)-1,1′′-diethyl-1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (12). Yield = 44%, white solid, mp = 180–181 °C, IR (neat): ν_max 2969, 2810, 1696, 1606, 1465, 1347, 1205, 1133, 1094 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 7.34 (d, J = 7.7 Hz, 2H), 7.05 (t, J = 7.7 Hz, 2H), 6.83 (t, J = 7.7 Hz, 2H), 6.42 (d, J = 7.7 Hz, 2H), 3.66 (brt, J = 5.5, 4.9 Hz, 2H), 3.4 (q, J = 7.1 Hz, 2H), 3.5 (q, J = 7.2 Hz, 2H), 2.58 (td, J = 8.6, 2.2 Hz, 2H), 2.05 (q, J = 8.4 Hz, 2H), 1.87 (brm, 2H), 1.76 (m, 2H), 1.6 (m, 4H), 1.07 (t, J = 7.2 Hz, 6H). ¹³C NMR (100 MHz, CDCl₃): δ 12.7, 20.9, 27.5, 33.9, 47.5, 59.2, 68.2, 107.4, 121.7, 126.0, 126.2, 129.0, 142.9, 174.1. TOF MS ES+ 457 (M + H). HRMS calcd. for C₂₈H₃₃N₄O₂ (M + H) 457.2603 found 457.2614.

Synthesis of (3R,7′R)-1,1′′-diethyl-1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′ [6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (13). Yield = 15%, white solid, mp = 180–181 °C, IR (neat): ν_max 2968, 2931, 2874, 2809, 1714, 1605, 1462, 1153, and 1221. ¹H NMR (400 MHz, CDCl₃): δ 8.04 (d, J = 7.7 Hz, 1H), 7.29 (td, J = 7.7, 1.1 Hz, 1H), 7.6 (td, J = 7.7, 1.1 Hz, 1H), 7.01 (td, J = 7.7, 1.1 Hz, 1H), 6.6 (d, J = 7.7 Hz, 2H), 6.41 (td, J = 7.7, 1.1 Hz, 1H), 5.98 (d, J = 7.7 Hz, 1H), 3.98 (td, J = 10.2, 5.8, 4.2 Hz, 1H), 3.78 (q, J = 7.5 Hz, 1H), 3.69 (q, J = 7.5 Hz, 1H), 3.58 (q, J = 7.2 Hz, 1H), 3.24 (q, J = 7.2 Hz, 1H), 2.91 (td, J = 9.9, 5.9, 1H), 2.76 (td, J = 8.3, 2.2 Hz, 1H), 2.54 (td, J = 8.7, 2.7 Hz, 1H), 2.1 (q, J = 8.7 Hz, 1H), 1.92 (m, 2H), 1.81 (m, 1H), 1.7 (m, 4H), 1.5 (m, 2H), 1.24 (t, J = 7.3 Hz, 3H), 0.58 (t, J = 7.3 Hz, 3H). ¹³C NMR (100 MHz, CDCl₃): δ 11.6, 12.6, 20.9, 21.1, 27.4, 27.8, 34.1, 34.2, 46.6, 46.8, 58.9, 60.9, 67.6, 71.3, 107.3, 107.6, 120.5, 120.9, 125.2, 125.4, 126.1, 128.8, 129.0, 129.3, 143.6, 143.7, 172.3, 173.4. TOF MS ES+ 457 (M + H). HRMS calcd. for C₂₈H₃₂N₄O₂Na (M + Na) 479.2418 found 479.2439.

(14, 15) Reaction was performed by following procedure B; N-benzyl isatin (0.5 g, 2.11 mmol), proline (0.243 g, 2.11 mmol), dry toluene (30 ml), 4 Å MS (200 mol%), time = 13 h.

Synthesis of (3R,7′S)-1,1′′-dibenzyl-1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (14). Yield = 37%, white solid, mp = 172–173 °C, IR (neat): ν_max 2975, 2949, 2878, 2812, 1693, 1604, 1468, 1339, 1180, 1165, 767 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 7.3 (d, J = 7.7 Hz, 2H), 7.2–7.25 (m, 6H), 7.11 (t, J = 7.7 Hz, 2H), 6.95 (t, J = 7.7 Hz, 2H), 6.7 (t, J = 7.7 Hz, 2H), 6.31 (d, J = 7.7 Hz, 2H), 4.88 (d, J = 15.7 Hz, 2H), 4.47 (d, J = 15.7 Hz, 2H), 3.7 (t, J = 6.7 Hz, 2H), 2.6 (t, J = 6.7 Hz, 2H), 2.13 (q, J = 6.7 Hz, 2H), 1.91 (br, 2H), 1.78 (dd, J = 8.3, 7.8 Hz, 2H), 1.65 (m, 4H), 1.23 (td, J = 7.0, 0.78 Hz, 2H). ¹³C NMR (100 MHz, CDCl₃): δ 21.0, 27.5, 43.3, 47.7, 59.4, 68.6, 108.5, 122.1, 125.8, 126.0, 127.45, 127.6, 128.7, 128.9, 135.8, 143.1, 174.6. TOF MS ES+ 581 (M + H). HRMS calcd. for C₃₈H₃₇N₄O₂ (M + H) 581.2916 found 581.2933.

Synthesis of (3R,7′R)-1,1′′-dibenzyl-1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (15). Yield = 11%, white solid, mp = 175–176 °C, IR (neat): ν_max 2984, 2949, 2828, 2352, 2312, 1708, 1606, 1485, 1464, 1365, 1349, 1166, 745, 741, 696 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 8.1 (d, J = 7.7 Hz, 1H), 7.34 (d, J = 7.7, 2H), 7.23–7.16 (brm, 4H), 7.1–7.04 (m, 2H), 7.03–6.95 (m, 3H), 6.49–6.43 (dd, J = 7.7, 1.8 Hz, 3H), 6.42–6.38 (d, J = 7.7 Hz, 2H), 6.15 (d, J = 7.7 Hz, 1H), 5.1 (d, J = 15.9 Hz, 2H), 4.8 (d, J = 15.9 Hz, 1H), 4.34 (d, J = 15.9 Hz, 1H), 4.04 (td, J = 9.9, 5.8 Hz, 1H), 2.95 (td, J = 9.9, 5.8 Hz, 1H), 2.85 (td, J = 8.4, 2.4 Hz, 1H), 2.61 (td, J = 8.4, 2.4 Hz, 1H), 2.21 (q, J = 8.7 Hz, 1H), 1.98 (m, 2H), 1.86 (m, 1H), 1.74 (m, 4H), 1.54 (m, 2H). ¹³C NMR (100 MHz, CDCl₃): δ 20.9, 21.1, 27.5, 27.8, 43.4, 43.9, 46.6, 47.0, 59.1, 60.9, 67.7, 71.3, 108.9, 109.0, 121.1, 121.3, 124.7, 125.3, 126.2, 126.4, 126.9, 127.2, 127.5, 128.6, 128.7, 128.9, 129.1, 129.2, 135.1, 136.5, 143.6, 144.1, 173.1, 173.9. TOF MS ES+ 581 (M + H). HRMS calcd. for C₃₈H₃₇N₄O₂ (M + H) 581.2916 found 581.2933.

(16, 17) Reaction was performed by following procedure B; N-acetyl isatin (0.1 g, 0.5291 mmol), proline (0.06 g, 0.5291 mmol), dry toluene (4 ml), 4 Å MS (200 mol%), time = 30 min.

Synthesis of (3R,7′S)-1,1′′-diacetyl-1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (16). Yield = 30%, white solid, mp = 170 °C (decomposed) melted at 240–250 °C. IR (neat): ν_max 2961, 2917, 2866, 2815, 1750, 1708, 1461, 1331, 1268, 1152, 1011, 761 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 7.84 (d, J = 7.8 Hz, 2H), 7.37 (d, J = 7.8 Hz, 2H), 7.18 (td, J = 7.8, 1.4 Hz, 2H), 7.07 (td, J = 7.8, 1.4 Hz, 2H), 3.64 (m, 2H), 2.28 (m, 2H), 2.62 (s, 6H), 2.10 (q, J = 8.3 Hz, 2H), 1.98 (m, 2H), 1.82 (m, 2H), 1.69 (m, 2H), 1.61 (m, 2H). ¹³C NMR (100 MHz, CDCl₃): δ 21.1, 26.9, 27.8, 48.1, 59.6, 69.3, 116.4, 124.4, 124.6, 124.6, 130.4, 140.0, 169.9, 175.5. TOF MS ES+ 485 (M + H). HRMS calcd. for C₂₈H₂₈N₄O₄Na (M + Na) 507.2008 found 507.2004.

Synthesis of (3R,7′R)-1,1′′-diacetyl-1,1′′,2,2′′-tetrahydrodispiro[indole-3.8′-[6,9]diazatricyclo[7.3.0.02,6]dodecane-7′,3′′-indole]-2,2′′-dione (17). Yield = 20%, white solid, mp = 170 °C (decomposed) melted at 240–250 °C. IR (neat): ν_max 2961, 2925, 2868, 2823, 1759, 1708, 1462, 1332, 1303, 1270, 1161, 760 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 8.33 (d, J = 7.9 Hz, 1H), 8.23 (m, 2H), 7.61 (dd, J = 7.9, 1.1 Hz, 1H), 7.43 (td, J = 7.9, 1.1 Hz, 1H), 7.37 (td, J = 7.9, 1.1 Hz, 1H), 7.3 (td, J = 7.9, 1.1 Hz, 2H), 4.19 (dd, J = 10.8, 6.2 Hz, 1H), 3.72 (d, J = 10.8, 6.2 Hz, 1H), 2.75 (s, 3H), 2.73 (3, 3H), 2.71 (m, 2H), 2.19 (q, 1H), 1.87 (q, 1H), 1.73 (m, 1H), 1.63 (m, 1H), 1.53 (m, 1H), 1.45 (m, 1H), 1.41 (m, 1H), 1.25 (m, 2H), 0.83 (m, 1H). ¹³C NMR (100 MHz, CDCl₃): δ 20.8, 21.2, 23.7, 24.4, 27.1, 27.2, 46.0, 46.8, 60.7, 62.4, 67.1, 68.1, 116.3, 116.4, 123.9, 124.0, 125.2, 125.7, 127.4, 128.5, 129.5, 129.6, 139.7, 140.6, 170.7, 170.9, 176.4, 176.7. TOF MS ES+ 485 (M + H). HRMS calcd. for C₂₈H₂₈N₄O₄Na (M + Na) 507.2008 found 507.2020.

Synthesis of tert-butyl 2-(2-oxo-2-(pyrrolidin-1-yl)acetyl)phenylcarbamate (18). Reaction was performed by following procedure B; N-Boc- isatin (0.2 g, 0.8097 mmol), proline (0.093 g, 0.8097 mmol) dry toluene (47 ml), 4 Å MS (200 mol%), time = 30 min, yield = 65%, white solid, mp. = 107 °C, IR: (neat) ν_max broadband 3000–2887, 1732, 1635, 1514, 1446, 1249, 1145, 775 cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 10.56 (brs, 1H), 8.5 (d, J = 7.8 Hz, 1H), 7.65 (d, J = 7.8 Hz, 1H), 7.56 (t, J = 7.8 Hz, 1H), 7.02 (t, J = 7.8 Hz, 1H), 3.64 (t, J = 6.9 Hz, 2H), 3.37 (t, J = 6.9 Hz, 2H), 1.94 (m, 4H), 1.52 (s, 9H). ¹³C NMR (100 MHz, CDCl₃): δ 24.2, 25.9, 28.4, 45.3, 46.7, 81.2, 117.1, 119.1, 121.5, 133.7, 136.7, 143.7, 152.9, 164.6, 195.4. TOF MS ES+ 341 (M + Na). HRMS calcd. for C₁₇H₂₂N₂O₄Na (M + Na) 341.1477 found 341.1516.
