Mechanism studies of terpolymerization of phthalic anhydride, propylene epoxide, and carbon dioxide catalyzed by ZnGA

Abstract

The terpolymerizations of carbon dioxide (CO₂), propylene oxide (PO) and phthalic anhydride (PA) using zinc glutarate (ZnGA) as the catalyst were carried out in toluene solution. The monomer reactivity ratios of carbon dioxide and phthalic anhydride (r_CO2 = 5.94 and r_PA = 0.21) were experimentally evaluated by Fineman–Ross methodology. The results indicate that the reactivity of CO₂ is much higher than that of PA, resulting in a random sequence structure of ester and carbonate units in the terpolymer. It is found that the introduction of a small amount of the third monomer PA can significantly increase PO conversion and the molecular weight of the terpolymer. Terpolymers with very high number-average molecular weight (M_n), up to 221 kg mol⁻¹, can be obtained at the optimal reaction conditions (PA/PO molar ratio: 1/8, temperature: 75 °C, CO₂ pressure: 5 MPa). This is the highest M_n reported to date for the terpolymerization of CO₂, epoxides and cyclic anhydrides, together with very high PO conversion of 72.5%. Moreover, the synthesized terpolymers exhibit a high T_g of about 41 °C and higher thermal stabilities compared with the copolymer of PO and CO₂.

---

Introduction

The limited oil resources and growing environmental awareness have triggered the search for alternative carbon resources for the production of chemicals and polymers, which should minimize the detrimental environmental effects when using oil resources. CO₂ is a main component of greenhouse gases that contributes to global warming, but it is also an inexpensive, virtually nontoxic, abundantly available carbon resource. Copolymerization of CO₂ and epoxides to produce biodegradable aliphatic polycarbonate is considered to be one of the most promising routes towards chemical fixing of CO₂ and has attracted intensive research interest since the pioneering work of Inoue.¹ In the past decades, a variety of catalysts, such as zinc carboxylates,^2-4 a rare-earth ternary catalyst,⁵ β-diiminate zinc derivatives,^6,7 metal salen derivatives^8–11 have been explored for effective copolymerization of CO₂ with various epoxides. The copolymerizations of propylene oxide (PO) or cyclohexene oxide (CHO) with CO₂ are the most intensively studied systems, including the mechanism, the reaction conditions, and the properties of the corresponding copolymers.^12–14 Although tremendous progress has been made over the past decades in increasing polymer selectivity, suppressing ether linkages and controlling molecular weight, the comprehensive performances of the copolymers of CO₂ and single epoxide still can't meet the requirement of diverse applications. Therefore, further development of this green technology is needed to improve material performance as well as product type. Recently, researchers are putting their effort on introducing a third monomer into the copolymerization of CO₂ and PO or CHO, which was proved to be an effective way to tune the properties of the copolymers.^15–21

Anhydrides are another kind of abundantly available monomers, which are used to synthesize biodegradable aliphatic polyesters.^22–24 Terpolymerization of CO₂, epoxides and anhydrides is an attractive way to afford biodegradable terpolymers with tailorable degradation rate as well as thermal and mechanical properties.²⁵ Zhang et al. reported a one-pot terpolymerization of CO₂, CHO and maleic anhydride (MAH) to afford a random poly (ester-co-carbonate) using a Zn–Co(III) double metal cyanide complex catalyst.²⁶ Whereas Coates and co-workers demonstrated the formation diblock poly(ester-b-carbonate)s upon terpolymerization of CO₂, CHO and diglycolic anhydride (DGA) using a β-diiminate zinc catalyst.²⁷ Terpolymerization of CO₂, CHO with various carboxylic acid anhydrites was also proved to be feasible by chromium tetraphenylprophyrinato catalyst or (salen) CrCl catalyst.^28,29 Despite of variety in catalysts, all the above reports demonstrated that the reactivity of anhydrides was higher than the reactivity of CO₂ from the fact that the ester: carbonate ratio was invariably higher than expected based on the initial ratio of anhydride and epoxide. We have studied the terpolymerization of CO₂, PO with MAH or phthalic anhydride (PA) using zinc glutarate (ZnGA) catalyst. ZnGA is not only an excellent catalyst for alternating copolymerization of CO₂ and epoxides, but also a highly active catalyst for these terpolymerizations.^30,31 We observed that the molar ratio of ester to carbonate in the resultant terpolymer was lower than expected based on the feed ratio of anhydride and epoxide. Three possible reasons are supposed to explain the phenomenon. One is that the ZnGA catalyst favors CO₂ insertion over anhydride insertion. The second reason might be the lower solubility of the anhydride than CO₂ in PO during the bulk terpolymerization. The third explanation is that during the long time terpolymerization process, the anhydride concentration continuously decreasing while the concentration of CO₂ changes little by keeping CO₂ pressure constant. To further elucidate these suppositions, herein, the terpolymerization of CO₂, PO and PA using ZnGA catalyst in toluene solution (Scheme 1) is intensively reported.

Scheme 1 Terpolymerization of PA, PO and CO₂ catalyzed by ZnGA.

Experimental section

Materials

Carbon dioxide with a purity of 99.99% was used as obtained. Propylene epoxide (PO) of 99.5% purity was refluxed over calcium hydride for 4 h. It was then distilled under dry nitrogen gas and stored over 4 Å molecular sieves prior to use. Phthalic anhydride (PA) was recrystallized from ethyl acetate. Zinc glutarate (ZnGA) was prepared according to previous work.³² Solvents such as toluene, methanol, ethyl acetate, acetone, chloroform were of analytical reagent grade and used as received and without further treatment.

Terpolymerization of CO₂, PO, and PA

Terpolymerization of CO₂, PO, and PA was carried out in a 500 mL autoclave equipped with a mechanical stirrer using toluene as solvent. A typical terpolymerization process was as following: 1.0 g dry catalyst and 12.76 g PA were introduced into the autoclave as quickly as possible. The autoclave was then capped with its head, and the entire assembly was connected to the reaction system equipped with a vacuum line. The autoclave with catalyst and PA inside was further dried for 4 h under vacuum at 80 °C. Upon cooling down, 40 g PO and 40 g toluene were added to the autoclave. Subsequently the autoclave was purged with CO₂ and pressurized to 5.0 MPa. The terpolymerization was performed at 75 °C and a constant 5.0 MPa CO₂ pressure for 15 h, and then the autoclave was cooled down followed by releasing the pressure. The very viscous resulting mixture was dissolved in chloroform. Then the excess anhydride and catalyst was extracted from the product solution by pouring it into vigorously stirred methanol containing a small amount of hydrochloric acid (5%). The final PPCPA precipitates were filtered and dried in a vacuum oven at room temperature.

Copolymerization of PA and PO

The procedure for copolymerization of PA and PO was similar to that for terpolymerization of PA, PO and CO₂, with the exception that the autoclave was purged with N₂ instead of CO₂ and was pressurized to 0.5 MPa.

Polymer characterization

The molecular weight (M_n/M_w) and molecular weight distribution (MWD) were measured using a gel permeation chromatography (GPC) system (Waters 515 HPLC Pump, Waters 2414 detector) with a set of three columns (Waters Styragel 500 Å, 10 000 Å, and 100 000 Å). The GPC system was calibrated by a series of polystyrene standards with polydispersities of 1.02, which were supplied from Shodex Inc. Chloroform (HPLC grade) was used as eluent. The glass transition temperature (T_g) of the polymers determined by differential scanning calorimetry (DSC) measurements were carried out under nitrogen flow on a Netzsch calorimeter (Model 204) from −20 °C to 100 °C at a heating rate of 10 °C min⁻¹. T_g of the samples was determined from the second run. Thermogravimetric analysis (TGA) measurements were performed in a Perkin-Elmer TGS-2 under a protective nitrogen atmosphere. The temperature ranged from 50 to 500 °C with a heating rate of 10 °C min⁻¹. All samples for thermal analyses were the purified samples.

¹H NMR spectra of the polymers were obtained on a Bruker DRX-400 NMR spectrometer using tetramethylsilane as an internal standard and D-chloroform (CDCl₃) as solvent. Typical ¹H NMR spectra of the PA/PO/CO₂ terpolymer, PA/PO copolymer and PO/CO₂ copolymer are shown in Fig. S1–S3 in ESI.† The composition of copolymers was estimated according to the ¹H NMR spectra (see eqn (S1)–(S3) in ESI†).

Measurement of CO₂ solubility

The solubility of the CO₂ in the reaction solution at 75 °C and 1 MPa CO₂ pressure was measured as follows: firstly, an empty dry autoclave with volume of 110 mL was weighed (W₁), then the autoclave was heated to 75 °C and purged with CO₂ and pressurized to 1.0 MPa and then was weighed again (W₂). After that, the CO₂ was released and 15 mL PO, 15 mL toluene and 4.0 g PA (the mole ratio of PA to PO was 1 : 8) was added into the autoclave and sealed. The autoclave was then weighed to get the weight W₃. Subsequently the autoclave was heated to 75 °C, and then was pressurized to 1.0 MPa via a CO₂ cylinder. After equilibrium, the autoclave was weighed again to get the weight W₄. The amount of CO₂ dissolved in the mixture of 15 mL PO, 15 mL toluene and 4.0 g PA can be estimated by the following equation:

W_d = W₄ − W₃ − (W₂ − W₁) × V ÷ 110 (1)

where V is the volume of the mixture of 15 mL PO, 15 mL toluene and 4.0 g PA, and it is estimated to be 32.6 mL. By this method, the amount of CO₂ dissolved in the reaction solution at different CO₂ pressures was estimated.

Results and discussion

Firstly, the copolymerizations of PO with CO₂ or PA using ZnGA catalyst were performed at 75 °C in toluene solution for 15 h. The results are given in Table 1 (entries 1 and 2). Evidently, ZnGA can effectively catalyze the copolymerization of PO with CO₂ in toluene solution with relatively high selectivity of polycarbonate over polyether. ZnGA can also catalyze the copolymerization of PO with PA in toluene solution, resulting in higher PO conversion as compared with the case of PO and CO₂ copolymerization. However, a poly(ester-co-ether) with relatively low molecular weight and 51% polyester linkage was obtained due to low selectivity of the reaction conditions employed. Since the molar feed ratio of PA and PO is 1 : 1, the very close percentage of polyester linkage and polyether linkage in the resulting copolymer indicates that the insertion reactivity of PO and PA into the zinc–alkoxide active chain end is almost same. The as prepared poly(ester-co-ether) is proved to be a random one by ¹H NMR spectrum (Fig. S2†). The clear resonance peak (δ 5.25 ppm) appears adjacent to the peak for CH linked to the ester unit (δ 5.45 ppm) can be attributed to the random inserted PA–PO–PO–PA structure in the ester rich linkage, and the obvious splitting of the NMR resonances of the ether unit indicates the existence of random inserted PO–PA–PO structure in the ether rich linkage.

Table 1 Effect of PA loading on ZnGA catalyzed terpolymerization of PA/PO/CO₂^a

Entry	PA/PO (mole ratio)	P CO2 (MPa)	M n ^b (kg mol^−1)	MWD^b (Mw/Mn)	Composition^c (%)			Yield^d (g)	ηPO^e (%)	ηPA^f (%)
					PE	PC	PPO
a Conditions: 1 g ZnGA, 40 g PO, 40 g toluene, 15 h, 75 °C, 5 MPa CO2. b Determined by gel permeation chromatography (GPC), calibrated by polystyrene standards. c PE = polyester, PC = polycarbonate. PPO = polyether. The compositions were estimated according to the ^1H NMR spectra by eqn (S1)–(S3) (see ESI). d Weight of the polymer obtained. e Conversion of PO, calculated from the weight of the polymer obtained and the composition of the polymer. f Conversion of PA, calculated from the weight of the polymer obtained and the composition of the polymer.
1	0 : 1	5	26.4	2.12	—	94.3	5.7	8.7	12.7	—
2	1 : 1	0	7.4	2.22	51.0	—	49.0	18.1	19.7	10.0
3	1 : 11	5	79.6	3.08	4.8	92.5	2.7	16.0	21.9	11.6
4	1 : 8	5	110.0	3.10	6.4	89.3	4.3	24.1	32.7	16.8
5	1 : 6	5	99.6	3.44	8.1	86.8	5.1	21.9	29.3	14.3
6	1 : 3	5	29.0	2.23	10.5	82.4	7.1	20.0	26.4	8.3

---

A series of one-pot terpolymerizations of PA, PO and CO₂ with various PA/PO molar ratios (entries 3–6, Table 1) were then performed at 75 °C, 5 MPa CO₂ in toluene for 15 h. It is apparent that the contents of polyester in the resulting terpolymers increase with increasing PA amount. By comparing the molar ratios of ester unit to carbonate unit in terpolymers with PA/PO molar feed ratios, we find that ester/carbonate molar ratios are much lower than expected. This phenomenon was also observed in the bulk polymerization of PA, CO₂ and PO in previous work.³¹ Since the solubility of PA in toluene is pretty high at 75 °C, the lower ester/carbonate molar ratios in the resulting terpolymers is not resulted from the low solubility of PA in reaction system. It needs to elucidate whether ZnGA catalyst favors CO₂ insertion over PA insertion in the terpolymerization.

To quantitatively compare the reactivity of PA and CO₂, we carefully measured the solubility of CO₂ in the mixture solution of PO, toluene and PA (mass ratio of PO/toluene equals to 1, molar ratio of PA/PO equals to 1/8) under different CO₂ pressures at 75 °C. The terpolymerization was then conducted under these pressures in a period of 2 h. The experiment results are shown in Table 2. If ignoring the formation of the ether linkages, the terpolymerization is considered as a copolymerization of the PO–PA and PO–CO₂ units as shown in Scheme 2. Therefore, the reactivity ratio of PA and CO₂ can be defined as r_PA = r₁ = k₁₁/k₁₂ and r_CO2 = r₂ = k₂₂/k₂₁, respectively. From PA/CO₂ feed ratios and PE/PC ratios in resulting polymers, the reactivity ratios of PA and CO₂ at 75 °C were evaluated by Fineman–Ross method (eqn (2)).³³ The data for PA/CO₂ mole ratios in feed (F) and PE/PC ratios in polymers (f) fit Fineman–Ross plot well (R² = 0.982, Fig. 1), and the monomer reactivity ratios r_PA (k₁₁/k₁₂) and r_CO2 (k₂₂/k₂₁) obtained from the intercept and slop are 0.21 and 5.94, respectively. It is obvious from the results that the reactivity of CO₂ is much higher than that of PA. It is interesting that other catalysts, such as Zn–Co(III) double metal cyanide complex catalyst, β-diiminate zinc catalyst, chromium tetraphenylprophyrinato catalyst and (salen) CrCl catalysts were reported to favor anhydride insertion over CO₂ insertion.^26–29 ZnGA catalyst used in this work is the only exception reported so far.

Table 2 Monomer reactivity ratio evaluation in terpolymerization^a

Entry	P CO2 (MPa)	M CO2 in feed (mol)	M PA in feed (mol)	ηPO (%)	F ^b	f ^c
a Terpolymerization conditions: 1 g ZnGA, 40 g PO, 40 g toluene, PA/PO feed molar ratio = 1/8, 2 h, 75 °C. b Molar ratio of PA and CO2 in feed. c Molar ratio of PE and PC in copolymer, determined by ^1H NMR spectroscopy of the polymer.
1	0.5	0.044	0.086	3.50	1.96	0.35
2	1.5	0.060	0.086	3.67	1.44	0.27
3	2.0	0.081	0.086	3.82	1.07	0.18
4	2.5	0.116	0.086	3.89	0.74	0.13

---

Scheme 2 Kinetic parameters for the terpolymerization of PA/PO/CO₂.

Fig. 1 Fineman–Ross plot of PA/PO/CO₂ terpolymerization reaction.

According to Fineman–Ross plot and reactivity ratio conception, a carbonate polymer end group has a much greater propensity for CO₂ insertion over PA insertion. Therefore, the alternate insertion of CO₂ and PO into polymer chain dominates the chain propagation. PA can randomly insert into the polycarbonate chain to form (CO₂–PO)_n–PA–PO–(CO₂–PO)_m linkages. This is consistent with the result of a large polycarbonate peak (δ 5.0 ppm) companied with an adjacent small shoulder peak (δ 5.1 ppm) in ¹H NMR (Fig. S1†) of terpolymers. Certainly, it cannot exclude the random insertion of two successive ester unit (PA–PO–PA–PO linkages) in polycarbonate chain since r_PA ≠ 0. The peak at δ 5.4 ppm in ¹H NMR (Fig. S1†) of the terpolymer indicates the existence of aforementioned linkage.

Comparing the results between terpolymerization and PO/CO₂ copolymerization (Table 1, entries 1, 3–6), it should be noted that the introduction of the third monomer PA results in a significant increasing of yield and molecular weight of the polymer. The yield of polymer increases from 8.7 g to 24.1 g and the M_n of polymer increases from 26.4 kg mol⁻¹ to 110.0 kg mol⁻¹ when PA/PO molar ratio increases from 0 : 1 to 1 : 8. However, M_n and yield of polymer decrease with further increasing PA molar fraction in the feed. The introduction of PA has two opposite effects on the reaction rate as shown in Scheme 3. On one hand, since the reactivity of CO₂ is higher than that of PA (k₂ > k₁), excess PA competes with CO₂ to coordinate with ZnGA, therefore decreasing the reaction rate. On the other hand, the activity of a zinc benzoate chain end reacting with an epoxide is higher than that of a zinc carbonate chain end reacting with an epoxide. As indicated in Scheme 3, complex B coordinates with a relatively stronger electron-withdrawing group of phthalic benzoyl, while complex A connects with a relatively weaker electron-withdrawing group of carbonyl. The polarity of Zn–O bond in complex B is stronger than that of Zn–O bond in complex A, leading to its more active in reacting with epoxide (k₃ > k₄).³⁴ In this sense, the more PA in the feed, the more zinc benzoate chain end formed at propagating chain. Consequently, faster reaction rate is expected. Due to the opposite effect on the reaction rate, there should exist an optimal PA molar fraction in the feed to reach the highest reaction rate and molecular weight of terpolymer. This value has been experimentally proved to be PA/PO = 1 : 8. Moreover, the molecular weight of terpolymer decreases with increasing the amount of anhydride, which has also been disclosed by Sun et al. for the terpolymerization of CO₂, CHO and maleic anhydride using double metal cyanide complex catalyst. They proposed that some diacid impurities in anhydride act as chain transfer agent and thus obviously decreases M_n.²⁶ Similarly, this might be another reason for the significant decrease in M_n when PA/PO molar ratio in the feed increases up to 1/3.

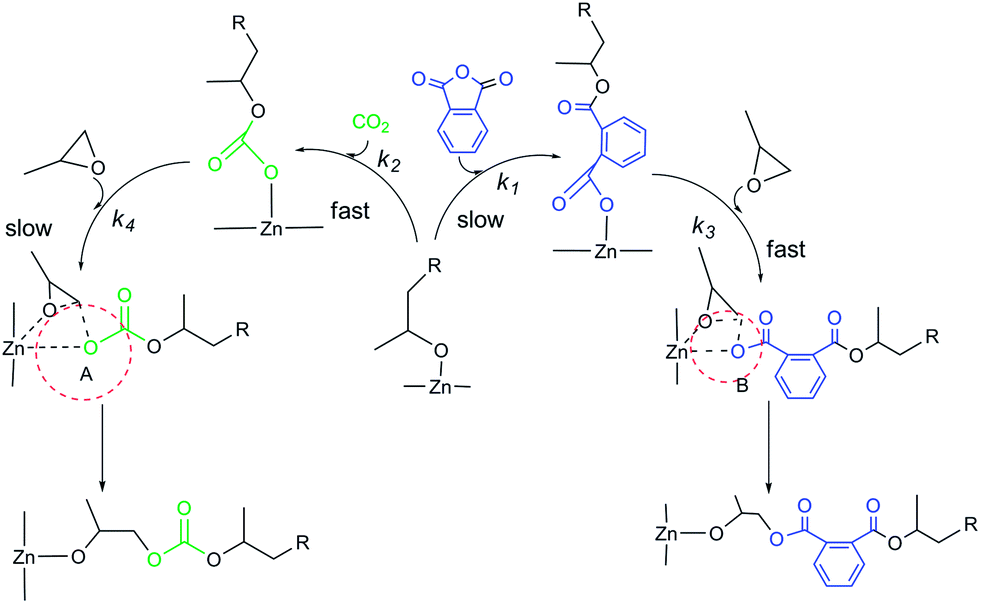

Scheme 3 Mechanism for terpolymerization of PA, PO and CO₂.

The influence of reaction time on the terpolymerization was further investigated at a fixing PA/PO feed ratio of 1/8. As shown in Table 3, the PE contents of the terpolymer decrease slightly with increasing reaction time. It is owing to that the anhydride concentration continuously decreases during the polymerization process while the concentration of CO₂ is relatively stable due to its constant pressure. We can also see from Table 3 that the PO conversions and molecular weights of resulting terpolymers increase significantly with increasing reaction time. The highest PO conversion of 72.5% PO to poly(ester-co-carbonate) was achieved together with very high molecular weight of 221 kg mol⁻¹. This is the highest molecular weight reported for the terpolymerization of CO₂, epoxides and cyclic anhydrides to date. Compared to the copolymerization of CO₂ and PO under same conditions, only 55.3% PO conversion and a poly(propylene carbonate) (PPC) with M_n of 68 kg mol⁻¹ can be obtained.

Table 3 Effect of reaction time on terpolymerization of PA/PO/CO₂^a

Entry	PA/PO (mole ratio)	Time (h)	M n ^b (kg mol^−1)	MWD^b (Mw/Mn)	Composition^c (%)			Yield^d (g)	ηPO^e (%)	ηPA^f (%)
					PE	PC	PPO
a Conditions: 1 g ZnGA, 40 g PO, 40 g toluene, 75 °C, 5 MPa CO2. b Determined by gel permeation chromatography (GPC), calibrated by polystyrene standards. c PE = polyester, PC = polycarbonate. PPO = polyester. The compositions were estimated according to the ^1H NMR spectra by eqn (S1)–(S3) (see ESI). d Weight of the polymer obtained. e Total PO conversion calculated from the weight of the polymer obtained and the composition of the polymer. f Conversion of PA, calculated from the weight of the polymer obtained and the composition of the polymer. g Polymerization was conducted under 2.5 MPa CO2 pressure.
1	1 : 8	5	72.1	3.7	8.2	87.6	4.2	7.9	10.5	6.9
2	1 : 8	10	74.8	2.8	6.6	89.2	4.2	18.0	24.4	12.9
3	1 : 8	15	110.0	3.1	6.4	89.3	4.3	24.1	32.7	16.8
4	1 : 8	25	172.5	3.9	5.8	90.9	3.3	32.2	43.8	20.4
5	1 : 8	40	221.0	2.8	5.6	89.3	5.1	52.8	72.5	32.6
6	0 : 1	40	68.0	2.0	0	95.2	4.8	38.1	55.3	—
7^g	1 : 8	40	220.0	2.8	6.7	88.0	5.3	52.0	70.7	38.1

---

Due to the incorporation of aromatic phthalic groups, the synthesized terpolymers exhibit better thermal properties compared with the copolymer of CO₂ and PO (PPC). The glass transition temperature (T_g) of the terpolymer (Table 3 entry 5) is higher than 40 °C, which is 6 °C higher than that of PPC (Table 3 entry 6) (Fig. 2). The 5% weight loss temperature (T_5%) and the temperature of maximum decomposition temperature (T_max) are 258 °C and 300 °C (Fig. 3) respectively, which is 14 °C and 33 °C higher than that of PPC.

Fig. 2 DSC curves of (1) PPC (entry 6, Table 3), (2) terpolymer (entry 5, Table 3).

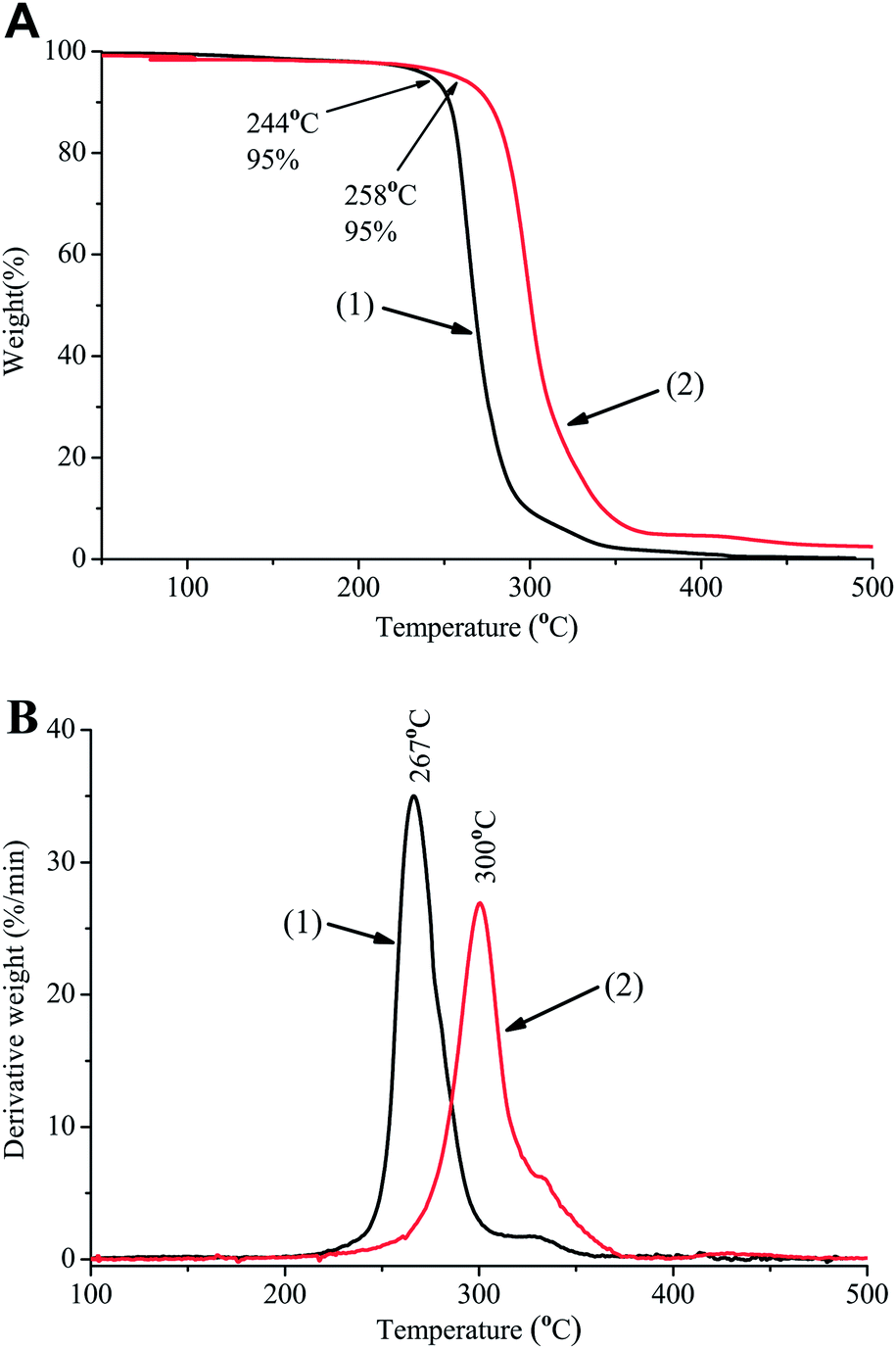

Fig. 3 TG (A) and DTG (B) curves of (1) PPC (entry 6, Table 3) (2) terpolymer (entry 5, Table 3).

It is well known that the homopolymerization of PO generally takes place during the copolymerization of PO and CO₂ at relatively higher temperature and lower CO₂ pressure, thus resulting in higher polyether (PE) content. We have carried out the copolymerization of PO and CO₂ in toluene at 75 °C and 2.5 MPa CO₂ pressure for 40 h, leading to a polycarbonate with M_n of 61.9 kg mol⁻¹ and 16% PE moieties. However, it is very interesting that the terpolymerization at 2.5 MPa CO₂ pressure (Table 3 entry 7) gave a terpolymer with relatively lower polyether content. Presumably, the competitive coordination of PA and PO with Zn²⁺ center inhibits the consecutive insertion of PO.

Conclusions

For the terpolymerizations of carbon dioxide (CO₂), propylene oxide (PO) and phthalic anhydride (PA) using zinc glutarate (ZnGA) as catalyst, the monomer reactivity ratios of CO₂ and PA can be evaluated using Fineman–Ross plot method. The results reveal that the reactivity of CO₂ is much higher than that of PA in the terpolymerization of PA/PO/CO₂ catalyzed in toluene at 75 °C. The introduction of PA monomer exhibits two opposite effects on the terpolymerization rate. The optimal PA/PO molar ratio of about 1/8 in feed results in the fastest reaction rate and highest molecular weight of resulting polymer. Furthermore, the incorporation of small amount of PA is found to enhance the thermal properties of the polymers and inhibit the formation of polyether under relatively lower CO₂ pressures.

Acknowledgements

The authors would like to thank the China High-Tech Development 863 Key Program (2009AA034900), National Natural Science Foundation of China (Grant no. 21376276), Guangdong Province Universities and Colleges Pearl River Scholar Funded Scheme (2010), Guangdong Province Sci & Tech Bureau (Key Strategic Project Grant no. 2008A080800024), and Chinese Universities Basic Research Founding for financial support of this work.

Notes and references

1. S. Inoue, H. Koinuma and T. Tsuruta, J. Polym. Sci., Part B: Polym. Lett., 1969, 7, 287.
2. M. Ree, J. Y. Bae, J. H. Jung and T. J. Shin, J. Polym. Sci., Part A: Polym. Chem., 1999, 37, 1863.
3. Y. Z. Meng, L. C. Du, S. C. Tiong, Q. Zhu and A. S. Hay, J. Polym. Sci., Part A: Polym. Chem., 2002, 40, 3579.
4. J. T. Wang, D. Shu, M. Xiao and Y. Z. Meng, J. Appl. Polym. Sci., 2006, 99, 200.
5. B. Y. Liu, X. J. Zhao, X. H. Wang and F. S. Wang, J. Polym. Sci., Part A: Polym. Chem., 2001, 39, 2751.
6. M. Cheng, D. R. Moore, J. J. Reczek, B. M. Chamberlain, E. B. Lobkovsky and G. W. Coates, J. Am. Chem. Soc., 2001, 123, 8738.
7. D. R. Moore, M. Cheng, E. B. Lobkovsky and G. W. Coates, Angew. Chem., Int. Ed., 2002, 41, 2599.
8. D. J. Darensbourg and J. C. Yarbrough, J. Am. Chem. Soc., 2002, 124, 6335.
9. D. J. Darensbourg and R. M. Mackiewicz, J. Am. Chem. Soc., 2005, 127, 14026.
10. E. K. Noh, S. J. Na, S. Sujith, S. W. Kim and B. Y. Lee, J. Am. Chem. Soc., 2007, 129, 8082.
11. W. M. Ren, Z. W. Liu, Y. Q. Wen, R. Zhang and X. B. Lu, J. Am. Chem. Soc., 2009, 131, 11509.
12. G. W. Coates and D. R. Moore, Angew. Chem., Int. Ed., 2004, 43, 6618.
13. D. J. Darensbourg, Chem. Rev., 2007, 107, 2388.
14. M. R. Kember, A. Buchard and C. K. Williams, Chem. Commun., 2011, 47, 141.
15. Y. Wang, J. Jung, M. Ree and H. Kim, Macromolecules, 2003, 36, 8210.
16. D. J. Darensbourg, R. R. Poland and A. L. Strickland, J. Polym. Sci., Part A: Polym. Chem., 2012, 50, 127.
17. J. E. Seong, S. J. Na, A. Cyriac, B. W. Kim and B. Y. Lee, Macromolecules, 2010, 43, 903.
18. G. P. Wu, D. J. Darensbourg and X. B. Lu, J. Am. Chem. Soc., 2012, 134, 17739.
19. L. J. Gao, M. Xiao, S. J. Wang and Y. Z. Meng, J. Appl. Polym. Sci., 2008, 108, 1037.
20. L. Gu, Y. Qin, Y. Gao, X. Wang and F. Wang, Journal of Chemistry, 2012, 30, 2121.
21. D. J. Darensbourg and W. C. Chung, Polyhedron, 2013, 58, 139.
22. A. Bernard, C. Chatterjee and M. H. Chisholm, Polymer, 2013, 54, 2639.
23. E. H. Nejad, A. Paoniasari, C. G. W. van Melis, C. E. Koning and R. Duchateau, Molecules, 2013, 46, 631.
24. J. Liu, Y.-Y. Bao, Y. Liu, W.-M. Ren and X.-B. Lu, Polym. Chem., 2013, 4, 1439.
25. Y. Liu, K. Huang, D. Peng and H. Wu, Polymer, 2006, 47, 8453.
26. X. K. Sun, X. H. Zhang, S. Chen, B. Y. Du, Q. Wang, Z. Q. Fan and G. R. Qi, Polymer, 2010, 51, 5719.
27. R. C. Jeske, J. M. Rowley and G. W. Coates, Angew. Chem., Int. Ed., 2008, 47, 6041.
28. S. Huijser, E. H. Nejad, R. Sablong, C. Jong, C. E. Koning and R. Duchateau, Macromolecules, 2011, 44, 1132.
29. D. J. Darensbourg, R. R. Poland and C. Escobedo, Macromolecules, 2012, 45(5), 2242.
30. P. F. Song, M. Xiao, F. G. Du, S. J. Wang, L. Q. Gan, G. Q. Liu and Y. Z. Meng, J. Appl. Polym. Sci., 2008, 109, 4121.
31. P. F. Song, Ph. D. Thesis, Sun Yat-sen University, June 2008.
32. Q. Zhu, Y. Z. Meng, S. C. Tjong, X. S. Zhao and Y. L. Chen, Polym. Int., 2002, 51, 1079.
33. M. Fineman and S. P. Ross, J. Polym. Sci., 1950, 5, 259.
34. J. Lustoň and F. Vašš, Adv. Polym. Sci., 1984, 56, 92.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c3ra46343e

---
