Self-assembled hierarchical β-cobalt hydroxide nanostructures on conductive textiles by one-step electrochemical deposition

Abstract

Three-dimensional (3D) hierarchical cabbage-like β-cobalt hydroxide (β-Co(OH)₂) nanostructures were fabricated onto conducive textiles composed of copper-coated polyethylene terephthalate fibers by a simple one-step electrochemical deposition (ED) method. Under an external applied voltage of −0.75 V for 4 h, the hierarchical cabbage-like β-Co(OH)₂ nanostructures were well decorated on the conductive textiles. During the ED process, they were self-assembled by the tangled layers of nanoplate (thickness of ~45–55 nm) building blocks and exhibited a cabbage-shaped architecture. The structure and morphology of the as-prepared hierarchical cabbage-like β-Co(OH)₂ nanostructures were characterized. The growth mechanism of cabbage like β-Co(OH)₂ nanostructures was also investigated by varying the growth time. Moreover, the feasibility test for supercapacitors by measuring the electrochemical properties of the as-prepared nanostructures was performed by cyclic voltammetry and galvanic charge–discharge measurements. The obtained results show that the cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate exhibited superior energy storage performance compared to the nanoplate morphology.

---

1. Introduction

In recent years, a lot of effort has been focused on the development of low-cost, portable, and eco-friendly electrical energy storage devices for high-power energy sources.^1,2 Particularly, the flexible devices based on nickel (Ni) foam and metal sheet substrates have attracted increasing attention due to their flexibility and light weight compared to the rigid, heavy, and bulky substrates.^3,4 However, these applications still have several problems including expensive production and complicated fabrication processing. To fulfill the above requirements, the textile-based devices can be expected to solve the problems from their natural advantageous properties of low cost, high flexibility, low weight, and large surface area of conductive textile fibers.^5–8

On the other hand, divalent transition metal hydroxides (DTMHs) have received great research interest in a wide range of application fields because of their novel electrical, physical, and chemical properties.^9,10 Among various DTMHs, Co(OH)₂ has promising potential as an electroactive and catalyst material in many fields of applications such as supercapacitors, lithium-ion batteries, catalysts for water splitting, sensors, etc.^11–13 It is well known that Co(OH)₂ has two polymorphs, α- and β-Co(OH)₂. These structures provide a high redox activity in supercapacitors due to their layered structure with large interlayer spacing. Accordingly, many studies have been concentrated on controlling their size, morphology, and geometry to increase the potentiality of specific applications.^14,15 Especially, three-dimensional (3D) hierarchical Co(OH)₂ nanostructures such as urchin-shaped spheres and flower-like structures have exhibited excellent electrochemical properties because they provide high surface area, efficient charge transportation, and highly exposed electrochemically active sites for electrolyte diffusion.^16,17 However, these 3D hierarchical Co(OH)₂ architectures still require somewhat complicated fabrication processes. Typically, the 3D building blocks can be synthesized by a surfactant, template-assisted chemical synthesis method.^18,19

In this work, we fabricated the 3D hierarchical cabbage-like β-Co(OH)₂ nanostructures on conductive textile substrates by one-step electrochemical deposition (ED) which is a simple and facile way for preparing various metal oxide/hydroxide nanostructures. By controlling the growth time under an optimized external applied voltage, cabbage-like β-Co(OH)₂ nanostructures were self-assembled by the nanoplates and multilayered nanoplate building blocks. Also, a feasibility test for supercapacitors was performed, together with physical and chemical property studies of these nanostructures.

2. Experimental procedure

The cabbage-like β-Co(OH)₂ nanostructures were synthesized by the one-step ED process using a simple two-electrode system. Herein, the platinum (Pt) mesh and conductive textile were used as the anode and the cathode, respectively. For preparing the growth solution, all of the chemicals were of analytical grade and used as purchased without further purification. To employ the conductive textile as a substrate, the commercially available conductive textile composed of copper (Cu)-coated polyethylene terephthalate (PET) fibers was used. Before preparing the growth solution for the ED process, the conductive textile substrates were cut into a size of 2 cm × 2 cm and cleaned with acetone and de-ionized (DI) water in an ultrasonic bath for 10 min. After cleaning the conductive textile, it was dried under a flow of nitrogen gas. Meanwhile, the growth solution was prepared by dissolving 10 mM cobalt(II) nitrate hexahydrate (Co(NO₃)₂·6H₂O, Sigma-Aldrich Chemicals) and 10 mM hexamethylenetetramine (HMTA, C₆H₁₂N₄, Sigma-Aldrich Chemicals) into 900 ml of DI water at ~72–75 °C, which creates a pink-colored solution during the reaction. Then, the conductive textile was carefully immersed into the growth solution and each electrode was connected to a direct current power supply. During the ED process, the growth solution was slowly stirred by a magnetic bar. By applying a constant external applied voltage of −0.75 V between two electrodes, the β-Co(OH)₂ was grown on the conductive textile at different growth times from 30 min to 8 h. After the ED process, the sample was carefully pulled out and cleaned by flowing DI water.

2.1 Characterization

The surface morphology and structural properties of the as-prepared samples were characterized by using a field-emission scanning electron microscope (FE-SEM, LEO SUPRA 55, Carl Zeiss), a transmission electron microscope (TEM, JEM 200CX, JEOL), and a 2θ scan X-ray diffractometer (XRD, Mac Science, M18XHF-SRA). The samples were further characterized by X-ray photoelectron spectroscopy (XPS, THERMO MULTILAB 2000 SYSTEM) and Fourier transform infrared spectroscopy (FT-IR, JASCO FT-IR 470 PLUS SPECTROMETER) measurements.

2.2 Electrochemical measurements

The electrochemical measurements were performed using a three-electrode testing system composed of Ag/AgCl as the reference electrode, Pt wire as the counter electrode, and β-Co(OH)₂ nanostructures on the conductive textile as the working electrode. Herein, 1 M KOH aqueous solution was used as an electrolyte. Cyclic voltammetry (CV) curve characteristics were measured at 30 mV s⁻¹ under voltages between −0.1 and 0.5 V and galvanic charge–discharge (GCD) test was performed in the voltage range of −0.1 to 0.5 V at a constant current density of 1 A g⁻¹. All of the electrochemical measurements were carried out by using an IVIUMSTAT electrochemical analyzer.

3. Results and discussion

Fig. 1 shows the FE-SEM images of the fabricated cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate. Here, the ED process was carried out with an external voltage of −0.75 V for 4 h. From the perspective view of the FE-SEM image in Fig. 1(a), the surfaces of the textile fibers were well decorated with hierarchical β-Co(OH)₂ nanostructures. As shown in the photographic images in the inset of Fig. 1(a), it can be observed that the conductive textile was uniformly covered by β-Co(OH)₂ without any voids or gaps, exhibiting a pinkish-brown color, in comparison with the bare conductive textile substrate. In the magnified view of the FE-SEM image (Fig. 1(b)), it is clearly seen that the β-Co(OH)₂ nanostructures were well adhered to the textile fiber and their sizes were estimated to be ~4–4.5 μm. These β-Co(OH)₂ nanostructures exhibited a cabbage-like morphology and were assembled by plenty of interconnected and curved nanoplates in Fig. 1(c). During the ED process, initially, the precipitated β-Co(OH)₂ nanoparticles were strongly immobilized, thus providing the nucleation sites for the formation of nano-crystalline sheets onto the overall surface of the working electrode. However, under the continuous supply of electrons, these primary nanosheets contributed to further growth of other nanoplates, which leads to the multilayered nanoplate assembly. In fact, the increased nucleation sites on previously formed nanoplates guided the growth of multilayered nanoplates.²⁰ Thus, the spherical contours of cabbage-like morphology were formed by the tangled layers of nanoplates. From the high-magnification view of the FE-SEM image in Fig. 1(d), the cabbage-like β-Co(OH)₂ nanostructures were composed of multiple nanoplates with thicknesses of approximately 45–55 nm. To illustrate the structure of grown β-Co(OH)₂ nanostructures, the schematic diagram is shown in Fig. 1(e).

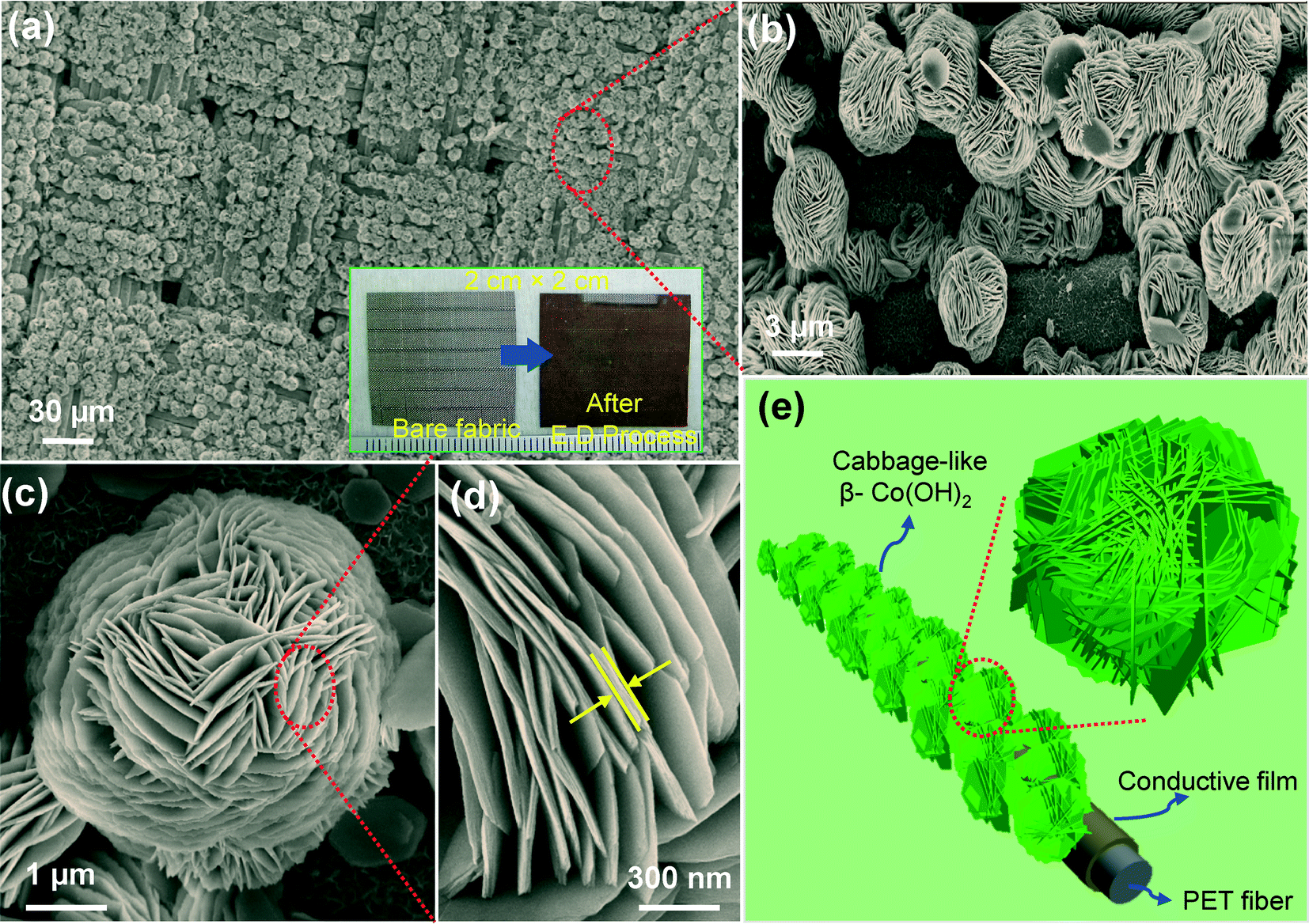

Fig. 1 FE-SEM images of the cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate synthesized at an external applied voltage of −0.75 V for 4 h: (a) perspective view and (b–d) high-magnification views. (e) 3D schematic diagram of the corresponding structures. The inset of (a) shows the photographic images of the conductive textile fabric before and after ED.

To understand the formation mechanism of the self-assembled cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate, the growth time was varied under the same external applied voltage of −0.75 V. In the ED process, generally, the formation of β-Co(OH)₂ is based on the generation of hydroxyl ions at the surface of the working electrode. When the substrate was immersed in the growth solution, the nitrate (NO₃⁻) ions were electrochemically reduced with water on the working substrate, leading to the formation of hydroxyl (OH⁻) ions and nitrite (NO₂⁻) ions by the support of electrons. Subsequently, the cobalt (Co²⁺) ions in the vicinity of the working electrode react with the OH⁻ ions, resulting in the formation of precipitated cobalt hydroxide on the working substrate and providing the subsequent nucleation sites.²¹ As shown in Fig. 2(a), the surface of the conductive textile fibers was uniformly covered with thin β-Co(OH)₂ nanosheets at the growth time of 30 min. As-grown nanosheets have thicknesses of ~15–20 nm (see the inset of Fig. 2(a)). When the growth time was increased to 1 h, some nanoplates were formed due to the increased crystal nuclei on the nanosheets. After 1.5 h, the nanoplates were more stacked and shaped into the multilayered nanoplates with increased diameters as shown in Fig. 2(c). In general, the nucleation and growth processes are prolonged, ensuring a well-defined matrix with strong coagulation of nanoplates together. As a result, the multilayered nanoplates could be assembled from the nanoplate morphology. These multilayered nanoplates were gradually molded and they were partially formed as cabbage-like β-Co(OH)₂ nanostructures at the growth time of 2 h (see Fig. 2(d)). When the growth time reached 4 h, the cabbage-like morphology of self-assembled nanoplates was completely formed on the textile surface by the oriented attachment, as can be seen in Fig. 2(e). The nanoplates in the cabbage-like β-Co(OH)₂ nanostructures were compactly and closely gathered around each other with further increase in the reaction time to 8 h as shown in Fig. 2(f). In fact, during the self-assembly process, the exterior crystallites on the multilayered nanoplates served as starting points to attract the smaller metastable crystallites in the growth solution. Through this process, the multilayered nanoplates were grown step by step into cabbage-like structures via the nanoplate morphology.²² The photographic images of the β-Co(OH)₂ nanostructures on conductive textile substrates at different growth times are shown in Fig. S1 of the ESI.† This formation mechanism can be explained by the fact that the ionic species strongly accumulated on the specific crystal surface of the already formed nanosheet under the electric field in the growth solution. Therefore, β-Co(OH)₂ nanoplates were grown on the conductive fiber surface with an average diameter of a few hundred nanometers. However, under the continuously induced electric field in the growth solution, the nanosheets and nanoplates further offered the subsequent nucleation sites for the oriented branch growth of multilayered nanoplates. Finally, these multilayered nanoplates were self-assembled by each other, forming cabbage-like β-Co(OH)₂ nanostructures on the surface of the conductive textile substrate, which is schematically explained in Fig. 2(g).

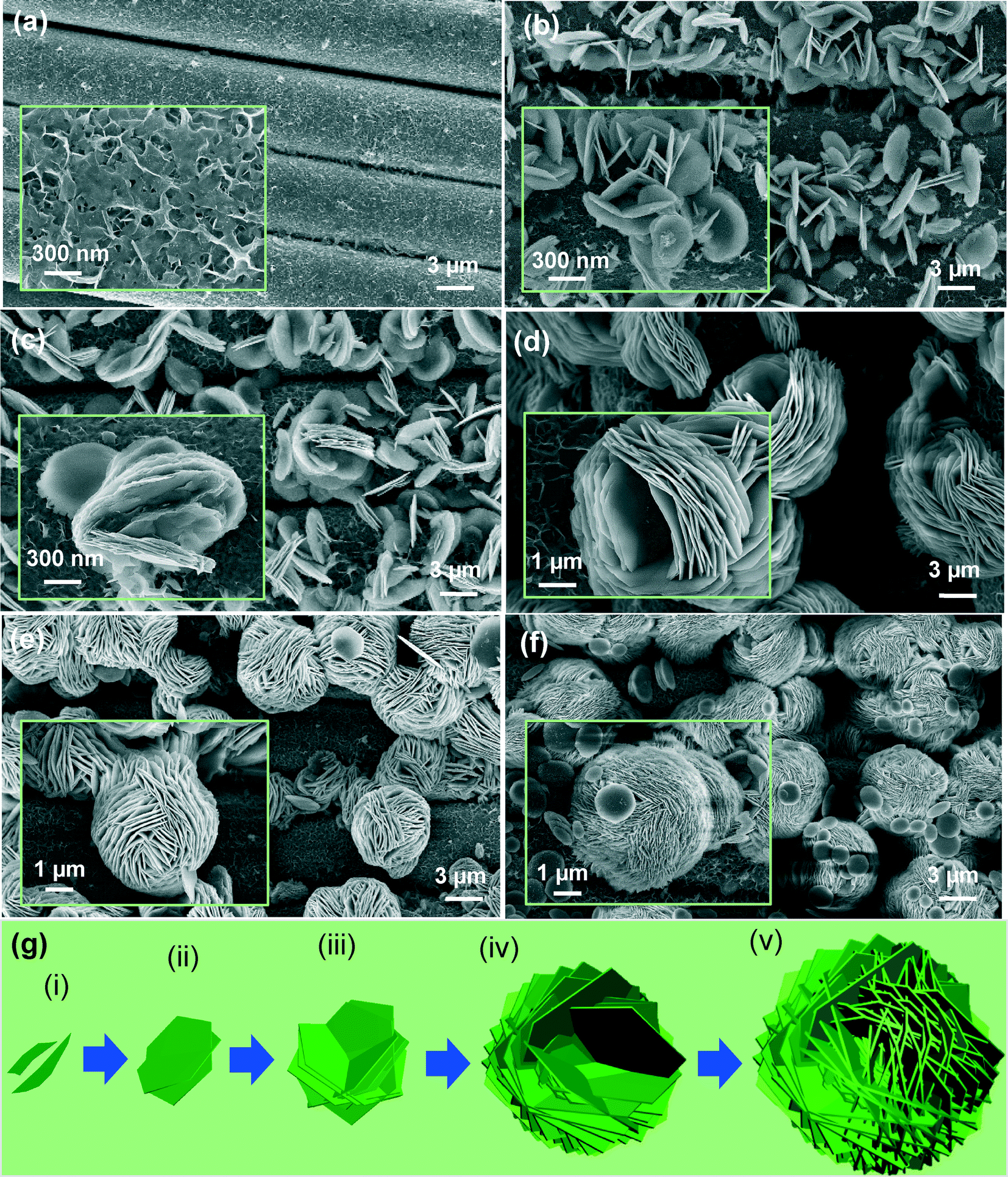

Fig. 2 FE-SEM images of the cabbage-like β-Co(OH)₂ nanostructures on the conductive textile at different growth times of (a) 30 min, (b) 1 h, (c) 1.5 h (d) 2 h (e) 4 h, and (f) 8 h under the constant external applied voltage of −0.75 V. (g) Schematic illustration of the structural formation of the cabbage-like β-Co(OH)₂ nanostructures.

Fig. 3 shows the (a) 2θ scan XRD pattern, (b) TEM images, and (c) high-resolution TEM (HRTEM) image of the cabbage-like β-Co(OH)₂ on the conductive textile substrate. The selective area electron diffraction (SAED) pattern of the corresponding sample is shown in the inset of (c). The as-grown sample was confirmed by the 2θ scan XRD analysis. The XRD pattern of the fabricated sample was indexed to JCPDS card no. 30-0443 and 85-1326. These correspond to Cu crystal structures and brucite-like β-Co(OH)₂. The main XRD peaks were observed at 19.08, 32.5, and 37.9° related to the (001), (100), and (101) planes of β-Co(OH)₂ on the conductive textile, respectively. Also, the substrate peaks of Cu were observed at 43.3 and 50.4° corresponding to the crystal planes of (111) and (200) with PET fiber peaks, respectively. Without any impurities, the XRD pattern confirmed that the well-crystallized cabbage-like β-Co(OH)₂ nanostructures were decorated on the conductive textile by the ED process. In order to obtain the TEM images, the sample was scrapped into small pieces and mixed with ethanol solution followed by ultrasonication for 20 min to separate cabbage-like β-Co(OH)₂ nanostructures from the conductive textile substrate. Then, the ethanol solution containing cabbage-like β-Co(OH)₂ nanostructures was dropped onto the copper grid and then dried in air before transferring it to the microscope chamber. From the low-magnification TEM image in Fig. 3(b), the edge part of the cabbage-like β-Co(OH)₂ nanostructure could be observed and it confirmed that the hierarchical cabbage-like structure is composed of multilayered nanoplates. The stacked nanoplates are clearly seen in the inset of Fig. 3(b). The average size of nanoplates was estimated to be approximately 350–500 nm. In Fig. 3(c), the lattice spacing between the two planes was 0.237 nm, which is in good agreement with the (101) crystal plane of β-Co(OH)₂. As can be seen in the inset of Fig. 3(c), the dotted spots in the SAED pattern clearly indicate that the prepared β-Co(OH)₂ sample was assembled by single crystals along the preferential orientation.

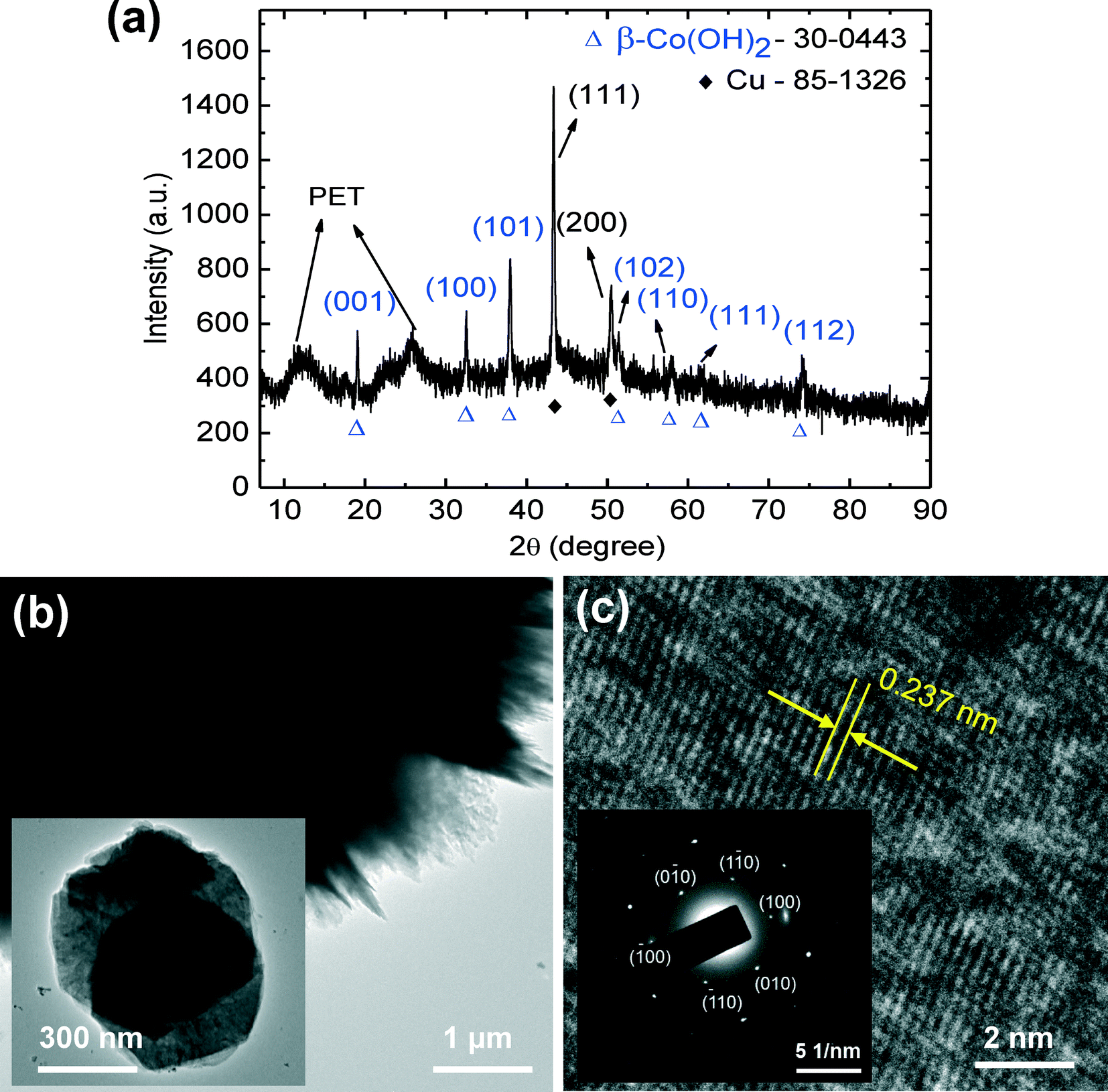

Fig. 3 (a) 2θ scan XRD pattern, (b) TEM images, and (c) HRTEM image of the cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate. The inset of (c) shows the SAED pattern of the corresponding sample.

Fig. 4 shows the FT-IR spectrum and XPS analysis of the cabbage-like β-Co(OH)₂ nanostructures. As shown in the FT-IR spectra of Fig. 4(a), the characteristic sharp band observed at 3631 cm⁻¹ can be assigned to the O–H stretching vibration of the free Co–OH groups within the brucite-like layers. The strong peak of O–H stretching vibration in the spectrum clearly indicates that the hydroxyl groups in the layered structure were strongly coupled with hydrogen bonding via a hydration process intercalating interlayer water molecules. The peak observed at 1633 cm⁻¹ is caused by the bending mode of water molecule deformation vibration. The bending vibration mode of Co–OH peak was also observed at 489 cm⁻¹ in the β-phase. In the XPS analysis of Fig. 4(b), the chemical composition in the cabbage-like β-Co(OH)₂ was examined with the peaks of Co 2p, O 1s, and C 1s regions, which clearly indicate the presence of cobalt, oxygen, and carbon in the fabricated sample. As shown in the Co 2p spectrum (Fig. 4(c)), the main peaks were observed at 780.4 and 797.17 eV corresponding to the Co 2p_3/2 and Co 2p_1/2, respectively. In the O 1s spectra (Fig. 4(d)), the peak observed at 531.09 eV can be attributed to the shoulder peak of oxygen atoms in β-Co(OH)₂. The C 1s spectrum in the inset of Fig. 4(d) shows the characteristic peak at 284.38 eV, and small peaks at 285.57 and 286.27 eV correspond to the hydrocarbon in the substrate, C=O, and C–OH groups. These results confirm that the cabbage-like β-Co(OH)₂ nanostructures were fabricated on the surface of the conductive textile fabric.

Fig. 4 (a) FT-IR spectrum and (b) XPS spectrum of the cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate. (c) Co 2p and (d) O 1s, C 1s (inset) spectra.

To investigate the feasibility for supercapacitors, we measured the electrochemical properties by CV and GCD measurements using a three-electrode system at room temperature in 1 M KOH aqueous solution. The fabricated β-Co(OH)₂ nanostructures on the conductive textile (area of 1.5 cm²) were directly used as the working electrode, and the Pt wire and the Ag/AgCl were used as counter and reference electrodes, respectively. Fig. 5(a) shows the measured CV curves of the as-prepared β-Co(OH)₂ nanostructures on the conductive textile at a scan rate of 30 mV s⁻¹ within the potential window of approximately −0.1 to 0.5 V for both nanoplates and cabbage-like β-Co(OH)₂ nanostructures on the conductive textiles. For two CV curves, it commonly exhibited a normal rectangular shape. Furthermore, these curves were distinguished from electric double-layer capacitance with two pairs of redox peaks. The anodic and cathodic peaks were caused by the quasireversible reactions occurring at the electrode/electrolyte interface during the potential sweep as follows:^23,24

Co(OH)₂ + OH⁻ ↔ CoOOH + H₂O + e⁻ and CoOOH + OH⁻ ↔ CoO₂ + H₂O + e⁻.

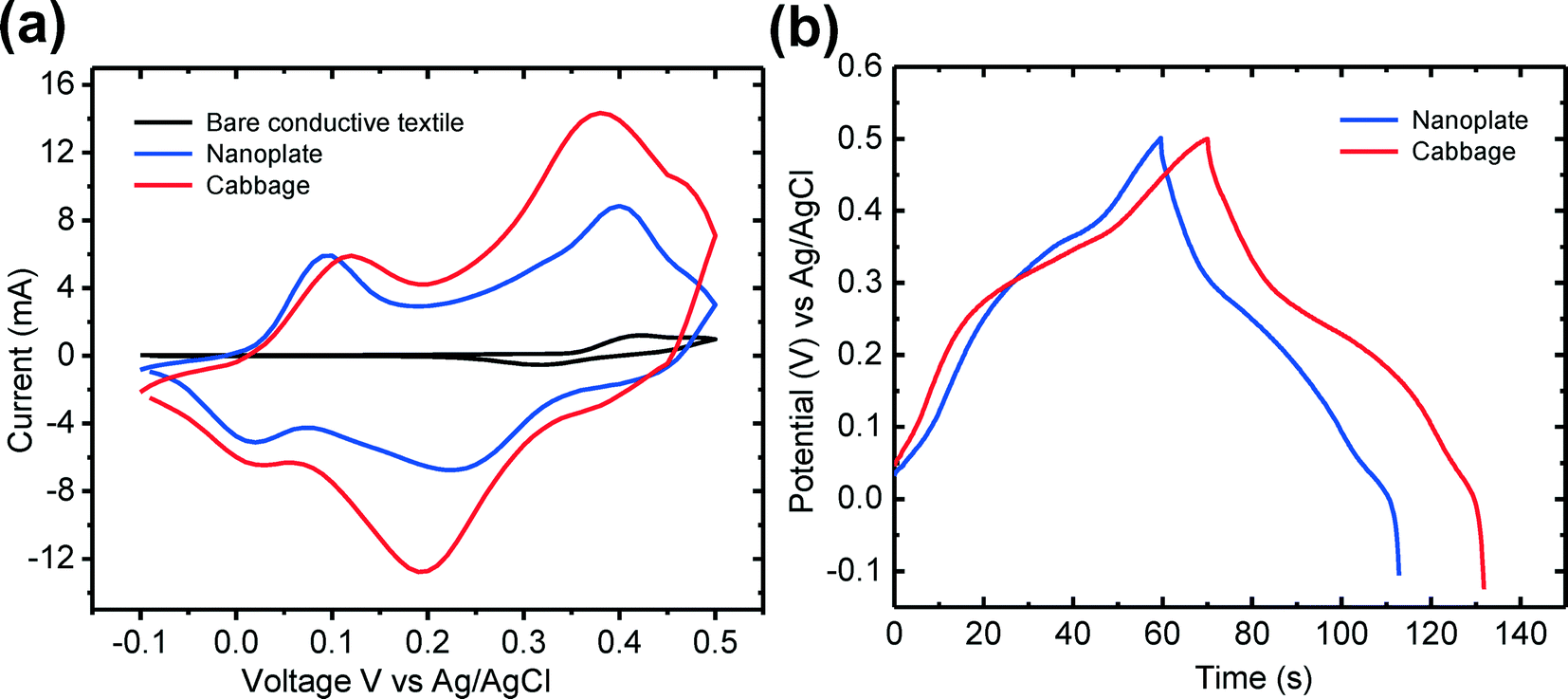

Fig. 5 (a) Cyclic voltammetry curves and (b) galvanic charge–discharge plots of the nanoplates and cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate.

Compared to the CV curve of the cabbage-like β-Co(OH)₂ nanostructures, the CV curve of the bare conductive textile (black color) was relatively small, indicating that the conductive textile contributes little to the total energy storage capacitance of the electrode. Also, it could be clearly observed that the area integrated with the cabbage-like β-Co(OH)₂ nanostructures in the CV curve is larger than that of the β-Co(OH)₂ nanoplates. This is mainly caused by the fact that the 3D cabbage-like nanostructures provide increased channels for the charge transportation and facilitate deep penetration of electrolyte ions into the active sites on the electrode surface. Therefore, the surface area of the cabbage-like β-Co(OH)₂ nanostructures on the conductive textile substrate for electrochemical reaction was increased, and thus superior energy storage properties than those of the β-Co(OH)₂ nanoplates were obtained.²⁵ To evaluate the specific capacitance of the β-Co(OH)₂ nanostructures on the conductive textile substrate, GCD measurements were carried out at a constant current density of 1 A g⁻¹ in the three electrode system. The specific capacitance of the β-Co(OH)₂ nanostructures can be calculated according to the following equation:²⁴

C_m = IΔt/(mΔV), (1)

where C_m (F g⁻¹) is the specific capacitance, I (mA) is the applied charge–discharge current, Δt (s) is the discharge time, m (mg) is the mass of the β-Co(OH)₂ nanostructures deposited on the conductive textile substrate, and ΔV (V) is the potential drop during the discharge time. Fig. 5(b) shows the GCD curves of the nanoplate and cabbage-like nanostructures deposited on the conductive textile substrate. On comparing both the curves, the cabbage-like β-Co(OH)₂ nanostructures grown on the conductive textile electrode exhibited the maximum charging and discharging times. The calculated specific capacitance values for both the nanoplate and cabbage-like β-Co(OH)₂ nanostructures were 96.8 and 108.7 F g⁻¹, respectively, which are higher than the results reported before.¹⁹ The cabbage-like β-Co(OH)₂ nanostructure exhibited higher specific capacitance values than the β-Co(OH)₂ nanoplates. This could be explained by the fact that the cabbage-like β-Co(OH)₂ nanostructures were assembled by the intertwined multi-layered nanoplates, allowing easy accessibility of hydroxyl ions among them and shortening diffusion paths for electrons and ions. These cabbage-like β-Co(OH)₂ nanostructures also provide a relatively large electroactive surface area for highly feasible redox reactions. These features in the cabbage-like β-Co(OH)₂ nanostructures were helpful in obtaining high specific capacitance values compared to the β-Co(OH)₂ nanoplates on the conductive textile substrate.²⁶ This facile fabrication method could be extended to the growth of various NiCo₂O₄/Ni–Co layered double hydroxide like nanomaterials on wearable conductive textile substrates for better electrochemical properties.²⁷

4. Conclusion

The ED process was carried out for the fabrication of 3D cabbage-like β-Co(OH)₂ hierarchical structures on the conductive textile substrate. By applying an external voltage of −0.75 V for 4 h, the cabbage-like nanostructures were densely assembled and firmly decorated onto the conductive textiles. Cabbage-like β-Co(OH)₂ nanostructures were formed by the self-assembly of multilayered nanoplates. By varying the growth time under the external applied voltage of −0.75 V, the growth mechanism of the cabbage-like β-Co(OH)₂ nanostructures was investigated. Under the continuous supply of electrons in the growth solution, initially formed nanosheet and nanoplate structures provided the nucleation sites for the growth of intertwined and multilayered nanoplates. These were further oriented by the self-assembly process and formed to the cabbage-like β-Co(OH)₂ nanostructures. The FE-SEM, TEM, XRD, FT-IR, and XPS analyses confirmed that the cabbage-like β-Co(OH)₂ nanostructures were well decorated on the conductive textile substrate with good crystallinity. Additionally, electrochemical properties suggest that the cabbage-like β-Co(OH)₂ nanostructures revealed better energy storage performance. This facile process for cabbage-like β-Co(OH)₂ nanostructures on conductive textiles can be expected to be a promising fabrication method for flexible, wearable energy storage and electronic device applications.
