Massimo
Cametti
*a and
Zoran
Džolić
*b
aDepartment of Chemistry, Materials and Chemical Engineering “Giulio Natta”, Politecnico di Milano, Via Mancinelli 7, I-20131, Milan, Italy. E-mail: massimo.cametti@chem.polimi.it
bRuđer Bosković Institute, Bijenička c. 54, 10000 Zagreb, Croatia. E-mail: Zoran.Dzolic@irb.hr
First published on 19th March 2014
The last decade has witnessed an increasing interest in the development of hybrid materials with novel properties. Noble metal NPs–gel materials represent a new class of hybrid composites, envisaged by many to have great potential for technological applications, as a consequence of the beneficial integration of the properties of both the NPs and the gelling compounds. This review article provides an up-to-date account of the most interesting and inspiring works published in the field, especially focusing on their preparation and characterization. Some examples of practical uses of such intriguing materials are also described.
Over the last decade, a very original line of research has focused on the attempt to integrate NPs into unconventional environments, with the aim of producing hybrid materials. The coupling of material systems belonging to different dimensional scales into integrated novel composites is an exciting area of research. In particular, the integration of nano-objects within micro environments would eventually generate materials of macro dimensions whose properties might open new perspectives from the applicative and technological points of view.
If precise control of the process of transcription of chemical information from the molecular to the macroscopic level is feasible, complex functional materials can be assembled from simple building blocks.5 When both organic and inorganic units are employed, the resultant composites may possess advantages offered by the combination of complementary strengths, and by the synergy between the properties of components derived from different chemical domains. This approach is significant not only for the design of nanodevices, but also for the fundamental understanding of the collective properties which may arise from inter-component interactions within the final composite assembly. The organization of NPs into well-defined and easily reproducible 2- and 3-D architectures is a particularly promising route not only for the construction of optoelectronic and biomedical devices, but also for the discovery of novel physico-chemical properties of organized matter. In order to explore these possibilities, a variety of strategies have been undertaken. A particularly promising one focuses on gel systems, which have attracted considerable interest in this respect. Indeed, the past decade has witnessed an increased interest in the development of gel systems as structural partners for noble metal NPs, giving rise to unique novel materials: NPs–gel systems.
Gels are soft materials generated by the entrapment of large quantities of solvent within a reticulated superstructure made of intertwined fibrils of varying dimensions, which constitutes only a tiny fraction of the overall mass of the system (<1%).6a Gels can be of chemical or physical nature, polymeric or generated by low molecular weight gelator (LMWG) molecules. The latter category has attracted significant attention due to the ever-increasing possibility that a fully supramolecular approach can indeed be achieved.6,7 A non-covalent approach enables the construction of materials with a fine design and precise organization just above the molecular level. Moreover, non-covalent bonds are reversible and more susceptible to the environment, thus their use paves the way to adaptable and stimuli responsive materials. Despite the superior intrinsic robustness of polymeric gels and the ease in their mechanical manipulation,8 cross-linking reactions do not allow for fine control of the material’s internal structure.
As this review intends to demonstrate, LMWG gel systems can indeed be advantageous for achieving the assembly of objects belonging to different dimensional domains into functional materials. Indeed, integrated NPs–gel systems consist of a combination of nanoscale objects, i.e., the incorporated NPs, and micrometer-scale gel-fibers, all of them assembled into a macroscopic material. Most interestingly, the distribution of NPs within the composite material might be far from homogeneous. This strongly depends on the gel morphology and, thus, the final properties of the nanoscale objects within the macroscopic materials might be modulated by the microscopic features of the gel’s internal structure.
This review article presents an account of the works related to the emerging field of supramolecular NPs–gel materials. Extensive discussions and numerous reviews on each separate structural element constituting these novel hybrid materials, viz., LMWG gel systems and NPs, already exist in the literature.9 Therefore, here we will focus on the general aspects pertaining to the design of supramolecular NPs–gel systems and to the different methods of their preparation. To this end, we have selected prime examples which describe how these novel materials can be produced. The variables involved in the preparation of NPs–gel materials require attention in order to outline common procedural features. Despite the rather large chemical variety of the species considered in this review, it was quite feasible to identify two main categories of works according to the synthetic pathway used in the material preparation. We also describe the structural and optical features of these novel materials, which are usually investigated by physico-chemical tools (TEM, SEM, AFM, surface plasmon resonance (SPR), X-ray powder diffraction, etc.). In general, most of the research studies reported in this review look into the effects that the entrapment of pre-formed NPs into a gel environment has on their properties, or into the effect that gelator molecules and their assembly exert on the formation and on the final stability of the NPs. Moreover, they are actually carried out with the aim of specifically improving one of the two components (viz., the gel or the NPs) by the effect exerted by the presence of the other one in the composite. At odds with this narrow view, we and others strongly believe that the resulting materials can be thought of as integrated systems which could lead to novel materials with unprecedented properties. Hence, the second part of this work is dedicated to displaying some of the most interesting practical uses that can be attained by NPs–gel systems.
While the type I group includes procedures in which the NPs are prepared by classical methods10 and integrated into the gel matrix afterwards, in the examples of the type II group the NPs are generated by in situ reduction, by chemical or physical stimuli, within the gel material or during its formation. The latter group includes reduction processes based on light absorption, or by chemical reduction achieved by the gelator molecules themselves or by classical reducing agents (NaBH4, etc.). As the reader might easily imagine, these two methods achieve different outcomes. Indeed, while the type I process embeds into the gel matrix NPs whose intrinsic properties are largely pre-determined, the type II procedure partially empowers the gel formation process itself to determine the final NPs' characteristics. Another key aspect is the type of chemical protective coverings (termed capping agents) employed in synthesis of the NPs. While they are necessary to ensure prolonged stability of the NPs and avoid their aggregation,11 capping agents also provide additional variability and interest to these systems. Not only that, they mediate the interactions between the NPs and their surroundings, thus representing a functional interface.
The strong interaction that can be established between noble metals NPs and thiol groups can be essential in order to obtain NPs–gel materials. As described by Kimura, Shirai and co-workers,12 gelator 1a (Scheme 2), despite its reduced gelling ability compared to the parent 1b (Scheme 2), can still produce gel materials in several polar and apolar systems. Its two thiol units may be used as anchoring points for octanethiol-stabilized gold nanoparticles (1.7 ± 0.3 nm ∅, SPRmax = 512 nm), synthesized independently by the classical Brust method.10
A heated solution of 1a in degassed toluene in the presence of octanethiol-stabilized AuNPs produced a gel upon cooling. TEM analysis revealed the presence of spatially organized AuNPs assembled onto the gel fibers (80–400 nm ∅). The better gelator, 1b, was unable to generate the composite material. A site-exchange mechanism operates, and a number of capping agents, originally on the NPs, are replaced by the gelator thiol groups. The lack of –SH groups in 1b precluded the essential direct gelator–NPs interaction.
The same concept underlies the work of Smith et al., which reported the stabilization and organization of AuNPs by the cysteine-functionalised organogelator 2a (Scheme 2).13 In the presence of AuNPs, 2a formed a gel material in toluene, on whose fibers (75–200 nm ∅) the nanoparticles were aligned, as shown by the TEM images (Fig. 1a).
Fig. 1 SEM and TEM images of NPs–gel systems. (a) TEM image of AuNPs stabilized by ODS and interacting with the fibers of 2a, from ref. 13; (b) TEM image of AuNPs stabilized by 4a and interacting with fibers of 3, from ref. 14, reproduced with permission, Copyright © (2006) American Chemical Society; (c) TEM image of AuNPs stabilized by 7 and interacting with gel fibers of 5, from ref. 15b, reproduced with permission, Copyright © 2009, WILEY-VCH Verlag GmbH & Co; (d) SEM image of xerogels of 5, and of the hybrids 6c-capped NPs–gel (e), 7-capped NPs (f) and 8-capped NPs (g), from ref. 15a, reproduced with permission, Copyright © 2006, WILEY-VCH Verlag GmbH & Co; (h) TEM image of AgNPs stabilized by 11 and interacting with gel fibers made of 12, ref. 16, reproduced with permission, Copyright © (2012) American Chemical Society; (i) SEM image of AuNPs stabilized by fluorous thiols HSR (R = C2H4–C8F17) and interacting with gel fibers made of Phe–Phe 14, from ref. 18, reproduced with permission, Copyright © (2013) American Chemical Society. |
Most interestingly, the coverage of NPs on the fibers was found to be dependent on the capping agent used, viz., either octadecylsulfide (ODS) or hexadecylthiol (HTD). The replacement of capping thiols with the organogelator 2a, via a ligand exchange mechanism, occurred in both cases, but ODS showed a lesser degree of substitution, shown by the more effective coating of the gel fibers by NPs when HTD cappings were employed. Further confirmation of the actual active role of the sulfur atom in 2a was given by the outcome of a control experiment with a tryptophan functionalised gelator 2b (Scheme 2). This species was ineffective in the organization of NPs. The authors cleverly also measured the average size of the AuNPs after the formation of the NPs–gel material, and they found a slight shift in the NPs' size distribution (from 2.8 ± 0.8 to 2.1 ± 1.0 nm ∅), which might indicate some reorganization occurring during the formation of the new material. In principle, the gel forming process could have an influence on pre-formed NPs as well, but this aspect is seldom investigated, and the previous study, to the best of our knowledge, is one of only two cases in which this additional study was performed.
A different strategy, which focuses on the capping ligands as interaction mediators between the NPs and the gelator, is exemplified by the following interesting works. The tripodal bile-acid gelator 3 (Scheme 2) is known to form gels in an AcOH–H2O mixture (fibers of 50 nm ∅). Capping agents such as 4a–c (Scheme 2) were envisaged to be able to interact with 3,14 in view of the well documented self-aggregation tendency of facially amphiphilic steroids. Indeed, while AuNPs capped with 4a–c agents (1.5–3.5 nm ∅, SPRmax = 520 nm) were found to be unstable in an AcOH–H2O mixture, they showed no sign of degradation within the gel materials made from 3. TEM images show a regular arrangement of the NPs on the top of (and possibly inside) the gel fibers (Fig. 1b).
Bhattacharya and co-workers focused on a different gelator system, the N-lauroyl-L-alanine 5 (Scheme 2), which has already been the subject of extensive studies of its gelation properties of hydrocarbons (fibers of 50–100 nm ∅). The gel system provided a basis for a systematic study15 aimed at recognizing the effect of the conspicuous presence of NPs well within the gel matrix, as observed from the TEM image for the example shown in Fig. 1c, on the properties of the gel. Effort was made to identify the influence that capping agents may exert on the morphological features and viscoelastic properties of the AuNPs–gel nanocomposites. Different sets of capping agents were used, e.g., 4-, 6-, and 10-carbon long alkyl- and aromatic thiols, 6a–c and 7, and bile-acid derivative 8 (Scheme 2). SEM analyses showed that gel fibres made of 5 behaved in a considerably different manner depending on the capping agents covering the NPs (3.0 ± 0.8 to 6 ± 1 nm ∅, SPRmax = 500–525 nm). Upon addition of AuNPs stabilized by the aliphatic thiols 6a–c, the gel reshaped into a thick network of collated fibers, while “rolled-tubular” aggregates formed upon addition of NPs capped with the cholesterol derivative 8. Such morphologies, which also display thicker fibers, indicate increased fiber–fiber interactions induced by the presence of the NPs. Finally, 7-capped AuNPs generated less dense, platelet-like structures (see Fig. 1d–g). Rheological studies performed on the composites showed that the incorporation of alkanethiol- and cholesterolthiol-capped AuNPs (6a–c and 8) improved the rigidity of the gel (higher yield stress values were observed). On the other hand, 7-capped AuNPs slightly decreased the rigidity. This data set clearly demonstrates the importance of the gelator–capping agent relationship.
Banerjee and co-workers16 recently reported on the modulation of the mechanical properties of hybrid hydrogel materials by incorporating AgNPs capped with cysteine (Cys, 9) and the cysteine-based dipeptides Cys–Leu (10) and Cys–Phe (11) (Scheme 2). The N-terminally protected tri-peptide 12 (Scheme 2) produces a stable supramolecular hydrogel (fibers of 80–150 nm ∅ by SEM). Cysteine-based capping ligands have two functions: the cysteine fragment stabilizes the AgNPs (2.4–4.5 nm ∅), and the adjacent residue interacts with the hydrogelator molecules through hydrophobic interactions. Morphological studies of the hybrid hydrogel by TEM (Fig. 1h) confirmed the presence of AgNPs, mainly along the hydrogel nanofibers. The mechanical strength of the gel can be modulated by varying the nature of the capping ligands, similar to that seen in the previous examples, but also by varying the size and the amount of NPs employed. Increasing the total surface area of the NPs (by adding more NPs or by increasing their size) invariably leads to diminished gelator–gelator interactions, which, in turn, lower the gel strength in all cases.
A similar behavior was also observed by Del Guerzo and co-workers, who noticed a gradual decrease in the stiffness of an organogel material made of the anthracene derivative 13 in n-butanol upon addition of increasing amounts of AuNPs.17 While the presence of the AuNPs (ca. 3 nm ∅, SPRmax = 500 nm), capped with different linear alkyl- and perfluoroalkyl-thiols (C6H13, C12H25 and C2H4–C8F17), did not alter the morphology of the gel fibers (100–200 nm ∅), the hosted NPs did have a dramatic effect on the fluorescence of the gelator molecule, in a manner that shows some degree of proportionality with the concentration of NPs. Indeed, the observed optical response, which is linear for <10−5 molar ratios of NPs, suggests a regular decrease in the inter-particle distance, simply obtained by diluting the content of NPs.
A final example reveals an interesting relationship between NPs’ dimensions and gel morphology. When a chloroform solution of AuNPs – pre-formed by classical reduction methods in the presence of sodium citrate – is added to a solution of diphenylalanine (Phe–Phe) dipeptide 14 in hexafluoropropanol, a gel is formed, as reported by Demirel et al.18 A SEM image of the obtained NPs–gel material is shown in Fig. 1i. Interestingly, significant differences in the gel morphology were observed depending on the average size of the NPs employed (10–60 nm ∅, SPRmax = 495–533 nm), as shown by the SEM study. While 10 nm sized NPs did not practically change the original gel structure, increasing the dimensions of the nano-objects (up to 60 nm ∅) affected the gelator self-assembly process. The authors related this phenomenon to other works on the adhesion of proteins to the surface of NPs, where it was found that flatter NP surfaces can better adsorb proteins. The system can also undergo a laser-triggered gel disruption process. Indeed, illumination of the NPs–gel system by a green laser, whose emission matches the absorption profile of the NPs, led to a transition to solution.
John et al.19 described two ways of making hybrid materials in which in situ HAuCl4 to AuNPs conversion was achieved in the presence of a molecular species capable of acting in two roles: as a gelator and as a reducing agent. In the first case, the authors focused on the mono-substituted urea derivatives 15a–c (Scheme 3), which are excellent ambidextrous gelators.19a In a typical procedure, a mixture of HAuCl4 and gelator was heated to 50 °C, then allowed to cool down. The initial change of the solution from yellow to colourless progressed to a pink-coloured gel material at room temperature, which was identified as a AuNPs gel (SPRmax = 553 nm). SEM and TEM analyses showed an unchanged gel morphology, regardless of the presence of the AuNPs, which were found to be spherical in shape (11–15 nm ∅) and dispersed mainly on the edges of the gel platelets (Fig. 2a).
Fig. 2 (a) TEM image and magnification of AuNPs within the gel system made of 15a, adapted from ref. 19a; (b–d) pictures of the process of the NPs' transfer from the hydrogel to the organogel system of 21a, and (e) TEM image of the AuNPs embedded in the gel; reproduced from ref. 22. |
Due to the terminal ureidic NH2 group, compounds 15a–c were suggested to be responsible for the reduction of Au(III) to Au(0). In order to test the above hypothesis, the acetanilide derivative 16 was synthesized (Scheme 3). Under the same conditions, it did form a gel material, but no nanoparticles were detected within it. This fact, however, might not be definitive proof, and an electrochemical investigation on the redox potentials of the system could be helpful in this case.
In the second example, in situ synthesis of AuNPs in a gel matrix was accomplished by employing the ascorbic acid derivative 17 (Scheme 3), which can form highly inter-digitated bilayer-like gels in water at low concentrations.19b The gelator design originates from the ability of ascorbic acid to reduce auric salts to metallic gold and the need of an amphiphilic character (introduced by the alkyl chain) to induce gelation. The addition of 17 to a HAuCl4 solution, followed by heating, resulted in a change in the solution colour, from yellow to colorless, which then progresses to the formation of a pink gel. The presence of the NPs in the materials was confirmed by the presence of a telltale SPR band in the UV-vis spectrum (SPRmax = 555 nm). SEM analysis showed that the sheet-like morphology of the gel did not change due to the presence of the AuNPs. Moreover, TEM images revealed that the AuNPs (11–18 nm ∅) were not assembled along fibers, and rather were uniformly distributed within the gel matrix. Bearing in mind the different behavior described for the systems presented previously, the lack of specific NP–gelator interactions might be responsible for that.
Banerjee and co-workers20 studied the tripeptide organogelator 18 containing two Tyr residues (Scheme 3). Chloroauric acid was added to a gel made of 18 in a basic 1:1 MeOH–water mixture and heated at 50 °C. Once equilibrated at room temperature, the characteristic yellow shade of the AuCl4− species was lost and the gel acquired a bluish-violet color (SPRmax = 551 nm). AuNPs (15–40 nm ∅) were formed within the gel matrix. The hypothesis that the Tyr residues acted as the reducing agent was confirmed by the use of the model tripeptide Boc–Ala–Phe–Ala–OMe (19, Scheme 3) which was found to be completely ineffective under the investigated conditions.
Similarly, in situ syntheses of gold nanoparticles in hydrogels made of the tryptophan-based dipeptide amphiphiles 20a–d were reported (Scheme 3).21 It was found that the different gel morphologies observed for the four gelators was a key factor in the formation of differently sized and shaped AuNPs. Both SPR data and TEM images corroborate the presence of nanosheets, nanowires, nano-octahedra and nano-decahedra NPs (10–200 nm ∅, SPRmax = 515–688 nm) within the gel matrices.
The same group also reported a very intriguing process in which in situ synthesized AuNPs–hydrogel nanocomposites could be converted into an AuNPs–organogel hybrid simply by changing the pH.22 The system is based on the amphiphilic dipeptides 21a–c (Scheme 3), containing tryptophan residues, but surprisingly also with the derivative 21d. In general, these derivatives have an interesting feature: their carboxylate form behaves as a hydrogelator, while the carboxylic acid form acts as an organogelator. The whole process starts with the formation of an AuNPs–hydrogel made by the addition of aqueous HAuCl4 to preformed 21a–d hydrogels (under stirring, pH = 9–10) to achieve a final gelator:Au(III) ratio of 10:1. Analysis of this material confirmed the presence of AuNPs based on a colour change (Fig. 2b) and the appearance of the SPR band (SPRmax 523–525 nm). After that, toluene was added to form a biphasic system and aqueous HCl was used to convert the carboxylate into acid. This addition led to a transfer of the gelators into the organic phase, carrying the AuNPs along with them (Fig. 2c). The mixture was eventually gelated with simultaneous NPs entrapment (Fig. 2d). The novel materials were also analyzed by SEM and TEM imaging, X-ray diffraction, fluorescence and rheology. In particular, the TEM images revealed the importance of the supramolecular networks in the stabilization of the nanoparticles in both the hydrogel and the organogel, as the AuNPs (12–14 nm and 15–17 nm for 21a–b and 21c–d, respectively) were found to be aligned on the surface of the amphiphilic nanofibers (Fig. 2e). Also, the mechanical strength of the nanocomposite improved, probably due to the formation of denser and more compact fibers. Questions remain as to the rationale on the basis of the behavior of 21d, which does not possess the reducing tryptophan moiety. Additional comparison with the behavior of simpler systems, and even with a simple linear aliphatic fatty acid (C16) – which surprisingly succeeds in the formation of the material, although showing limited NPs formation – indicates that the presence of specific reducing moieties, usually considered as essential by some authors, might not be quite so.
Indeed, the latter observation is supported by a recent work mainly related to gelator structural modifications aimed at providing enhanced gelling ability.23 Here, it has been shown that the L-phenylalanine-based poor hydrogelator 22 (Scheme 3), and the more efficient tail-modified amphiphiles 23a–c (Scheme 3) were capable of the in situ synthesis of AuNPs within the gel material without the help of any external reducing agents. Interestingly, the identity of the gelator and its concentration relative to the Au(III) salt dictated the shape and size of the resulting embedded AuNPs (spherical, triangular or polyhedral shapes, 15–45 nm ∅).
A very interesting example of a bio-inspired system is given by the work of Nandi and co-workers,24 which investigated the riboflavine (24)/melamine (25) two-component system with the aim of NPs production (Scheme 3). Mixing different quantities of AgNO3 powder with a 1:1 mixture of 24 and 25 in water, after homogenization at 90 °C, produces a AgNPs–hydrogel composite (the riboflavin moiety acts as the reducing agent). Spectroscopic and electron microscopy techniques reveal a well-defined morphologic transformation of the gel materials: the hollow tubes of the hydrogel are converted either into helical fibers, rod-like structures, or spheroidal aggregates, simply depending on the concentration of metal salt used. Also, the size of the NPs drastically increases with the amount of AgNO3 employed in the material production (12 ± 4 to 52 ± 8 nm ∅, SPRmax = 535 nm; 1000 ± 200 nm ∅, SPR absent).
Under certain conditions, UV light is capable of reducing metal salts to metallic NPs.25 One of the first examples of UV light induced formation of gel–NPs materials was presented by Chechik, Smith et al.26 The authors employed a gel material made of the dendritic gelator 26a in toluene (Scheme 4). Chloroauric acid was transferred into the toluene phase by the use of a phase transfer agent (tetraoctylammonium bromide) and allowed to diffuse into the gel material. Once irradiated with a Hg-lamp, the gel initially changed its colour from yellow to colourless and finally to deep purple in a matter of hours (indicating a two step Au(III) → Au(I) → Au(0) transformation). In this case, the quaternary ammonium salt also acts as a sacrificial reductant species.27 TEM images of the obtained NPs–gel system confirmed the presence of NPs within the gel matrix (13 nm ∅, SPRmax = 550 nm). The gelator was found to be essential for nanoparticle formation, since the irradiation of a toluene solution of HAuCl4 alone resulted in the deposition of bulk elemental gold. Indeed, the gelator acts as a stabilizer for the NPs, as shown by the fact that whenever the gel is disrupted (by heating or by adding MeOH) the NPs collapse into black aggregates. Interestingly, the hypothesis of specific sulfur–gold gelator–NPs interactions can be ruled out, since a structurally related gelator 26b (Scheme 4), devoid of the S–S bridge, practically behaves in the same way as 26a.
Peptide- and amino acid-based hydrogels have been used for the in situ generation of fluorescent silver nanoclusters at room temperature under sunlight irradiation, conditions more suited to “green chemistry” protocols. The dipeptides Fmoc–Val–Asp–OH28 (27) and Fmoc-protected L-phenylalanine29 (28) were studied by Banerjee et al. on separate occasions (Scheme 4). The two compounds form a transparent, stable hydrogel (0.1–0.2% w/v). The preparation of the gel–NPs composites consists of the addition of freshly prepared aqueous AgNO3 to a solution of the gelator (DMSO in the case of 27, and water for 28). Ag(I)-containing transparent hydrogels were immediately formed. Exposure to sunlight generated a light violet colour in few minutes, indicating the reduction of silver ions to silver nanoclusters (broad SPRmax = 530 nm and 510 nm, for systems made of 27 and 28, respectively). While such transformation does not lead to significant morphological changes for the gel made of 27, the formation of Ag nanoclusters within the hydrogel of 28 produces a transition from helical nanofibers to nanovesicles (as observed by HR-TEM and X-ray diffraction, FE-SEM and AFM). Interestingly, the two systems are able to produce stable AgNPs of small size (1–3 nm ∅) and of narrow size distribution.
The pyridyl bis(urea) gelator 29a, developed by Steed et al. (Scheme 4), is also interesting.30 Addition of AgBF4 to a 7:3 THF:water solution of 29a, followed by sonication, yielded homogeneous gel materials. Exposure to ambient light transformed the material into a AgNPs composite in 1–2 weeks. A detailed systematic study, performed by varying the AgBF4:gelator and the THF:water ratios and the ambient light exposure time, led to the following conclusions: (i) the size and size distribution of the AgNPs strongly depended on the AgBF4:gelator ratio. While a 1:1 ratio produces small particles (2–6 nm ∅, SPRmax = 430 nm) which were clearly attached to the gel fibers (Fig. 3a), increasing the initial AgBF4 loading leads to larger particles (5–50 nm ∅ up to 100 nm ∅) which showed signs of particle aggregation; (ii) a 1.5 AgBF4:gelator ratio seems to be optimal for the structural stability of the gel materials. Compound 29b (Scheme 4), devoid of the donor N atom on the central ring, does not form any gel material under the same experimental conditions. This strongly hints at the active role of all three pyridyl rings on 29a in forming the AgNPs materials.
Fig. 3 TEM images of NPs–gel systems: (a) AgNPs in the gel made of a 1:1 AgBF4:29a mixture, after exposure to light, from ref. 30; (b) AgNPs deposited over the fibers of 30, from ref. 31, kindly provided by Prof. M. Kimura. |
Heterocyclic–metal coordination was also applied in another study described by Kimura et al.31 Here, the self-assembly of the imidazole-containing polycyclic aromatic 30 leads to gel materials in 2-methoxyethanol (Scheme 4). The addition of a solution of AgNO3 to the gel material in the dark produced a novel gel species, where coordination of the Ag(I) ions to the imidazole units took place (as evidenced by 1H-NMR, MALDI-TOF and the fluorescence quenching of the initial emitting gel). UV light irradiation transformed the material. TEM imaging (Fig. 3b) revealed the presence of gel fibers nicely decorated with abundant AgNPs (8 nm ∅, SPRmax = 400–700 nm).
Finally, the following examples demonstrate cases in which an external reducing agent is employed for the reduction of silver and gold cations to elemental species. Taubert and co-workers32 successfully synthesized an AgNPs–gel system by using mixtures of 31a and 31b (Scheme 5). Two-component LMWG systems33 represent a less frequently used approach for gel preparation, which hinges on the use of two pro-gelator molecules capable of forming a gel only in the presence of each other. This is the case for the two tri-peptides 31a and 31b. By varying the molar ratio of the two components, modulation of the properties of the material can be achieved. The two tri-peptides consist of a Val–Val–Val and a Val–Val–Cys sequence, respectively, and the results show that the NPs assembly was controlled by the fraction of cysteine-containing gelator present within the gel system. The reduction of AgNO3 was accomplished in a hot n-butanol solution of the oligopeptides by addition of DMF. The latter species is known to reduce silver ions to metallic silver even at room temperature.34 Cooling afforded a gel material embedded with AgNPs. Interestingly, the shape and size of the AgNPs could be tuned by varying the 31a:31b ratio. While small spherical particles were obtained at higher doses of 31b (9 nm ∅), larger particles with complex shapes (plate-like and raspberry-like) were obtained at lower contents of 31b (>100 nm ∅). XPS and SERS studies indicated a strong interaction between the S atom of the cysteine residue of 31b with silver, a feature absent in the case of tri-peptide 31a.

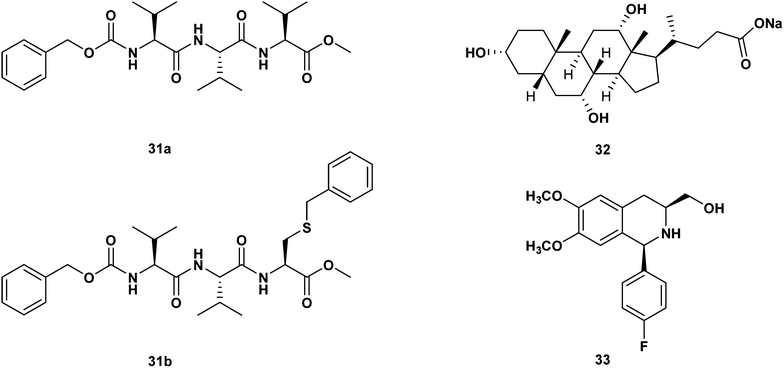

Maitra and co-workers studied the Ca(II)-induced gel formation by sodium cholate, 32 (Scheme 5) for the preparation of AgNPs–gel and AuNPs–gel materials.35 The AuNPs in the hydrogel were generated in situ by doping the calcium cholate hydrogel with AuCl3 salt, and slowly diffusing sodium cyanoborohydride through the hydrogel. The reduction of Au(III) to AuNPs produced a magenta-coloured material (SPRmax = 490 nm). Notably, the molar ratio between Ca(II) and Au(III) ions was found to play an important role in the control of agglomeration and the rheological properties of AuNPs–gel hybrid, which could probably be attributed to the competition between the two metals for coordinating the carboxylate groups in 32. Similarly, when a Ag(I)-doped calcium cholate hydrogel was prepared and treated with sodium cyanoborohydride solution, a yellowish brown hydrogel material containing AgNPs was obtained (SPRmax = 415 nm). TEM images revealed the presence of Ag-NPs and Au-NPs (1.5–2 nm ∅), mainly distributed on the junction zones between gel fibres.
Kang, Gao and co-workers36 developed a cyclic β-aminoalcohol gelator 33 (Scheme 5) derived from 1,2,3,4-tetrahydroisoquinoline and capable of gel formation in various aprotic solvents. The toluene gel of 33 exhibits enhanced stability towards metal ions and quaternary ammonium salts such as tetraoctylammonium chloroaurate ((TOA)AuCl4) with respect to its non-fluorinated analogue. This feature becomes relevant in the preparation of AuNPs–gel materials. Indeed, addition of the gelator 33 to a (TOA)AuCl4 solution in toluene, followed by heating, yielded upon cooling a gel and a colour change, from red to colourless, due to the reduction of Au(III) to Au(I). Further reduction of Au(I) to Au(0) was achieved by allowing the material to react with aqueous NaBH4. This example represents an “intermediate” case, where the reduction is achieved only partially by the gelator and an external reducing agent is needed. TEM images of the AuNPs-containing xerogel show the presence of spherical NPs (5–9 nm ∅) arranged along the gel fibers. Strong interactions between Ag(I) cations and fluorine atoms are suggested to be responsible for the fast disruption of the material upon addition of silver ions.
A different concept, which is simple and effective, was based on the use of pre-assembled fibrous materials obtained by a adding preformed NPs into a fluid dispersion of the chiral anthraquinone-based oxalamide gelators 35 (R and S, Scheme 6).39 The self-assembled fibers served as chiral templates for a 3D arrangement of gold nanorods (NRs) into the hybrid materials, thus transferring the chirality from the fibers to the NPs. Indeed, CD measurements revealed an intense plasmon-induced Cotton effect (R and S derivatives) with strong anisotropy. Notably, spherical NPs show no such behavior, indicating the crucial role of the NP's shape.
Achieving catalysis by means of NPs–gel systems is quite an appealing idea. Noble metals such as Ag and Au are used for catalysis in numerous important chemical transformations.40 To achieve a high performance at a low cost, precious catalysts are required to have a large surface–volume ratio. Hence, NPs are highly attractive species to serve as catalysts and their incorporation into gel networks might represent an winning strategy in catalyst design.
Two notable examples exist in the literature. The non-symmetric bis-tetrazole based ligand 36, described by Lee, Jung and co-workers,41 is able to form a gel in water under basic pH conditions in the presence of AgNO3 or AgClO4 salts. Over time, a progressive change of the gel colour, from white to brown, along with TEM images, proved the reduction of the Ag(I) cation to metallic AgNPs within the gel material. The data also show that the size distribution of the NPs can be modulated by changing the gelator:Ag salt ratio (1–3 nm ∅ for a 1:2 ratio, 2–5 nm ∅ for a 1:4 ratio). The catalytic activity of the new material was examined by investigating the reduction of a simple model compound, 4-nitrophenol (4NP) to 4-aminophenol (4AP). The test was performed by percolating a solution containing 4NP and NaBH4 through a glass column filled with the AgNPs–gel material. It is well known that the 4NP to 4AP conversion in the presence of NaBH4 is thermodynamically favoured but kinetically slow, and this transformation is often chosen as a model reaction for testing the catalytic activity of various metallic species.42 The NPs–gel system based on 36 affords the desired product with high yield, and no alteration of the catalytic material was detected. An electron-relay mechanism, in which electron transfer from the hydride to the substrate is mediated by the AgNPs, was suggested, in line with previous studies.43
In Banerjee's laboratory, a three component hybrid material composed of a gel matrix containing both graphene oxide (GO) fragments and gold NPs has been created and studied.44 The key ingredient is the hydrogelator molecule, the pyrene-conjugated tryptophan based compound 37. The intrinsic gelating properties of 37 in phosphate buffered solution are dependent on the presence of large surface aromatics and a Trp group, which are both crucial features. As shown, the pyrene unit is capable of establishing interactions with the flat GO fragments, while the Trp group allows for the in situ formation of gold NPs. The morphology of the tri-hybrid hydrogel studied by TEM and FE-SEM revealed the coexistence of three distinctly different nanostructures: nanofibers, nanosheets and nanoparticles, deriving from the self-assembly of 37, the GO and the AuNPs, respectively. The catalytic activity was tested for the reduction of the aromatic nitro group of 4NP and 4-nitroaniline (4NA) in the presence of NaBH4. The authors compared this tri-hybrid material with a hybrid AuNPs composite obtained by an in situ process between 37 and Au(III) ions. The latter system would be per se rightfully part of the collection of examples in this review, being itself a novel AuNPs gel system. However, its catalytic properties are indeed surpassed by those of the tri-hybrid system, thus proving the successful synergy between the GO and the AuNPs within the hydrogel matrix. A comparison between the novel catalytic systems here described with other systems reported in the literature is limited due to the lack of experimental details, especially on the kinetic model assumed, which is needed to extract reliable quantitative information from the kinetic data.43
Novel optical properties emerge in the novel linear hybrid system in which AuNPs are bound to π-conjugated oligo(p-phenylenevinylene) (OPV) supramolecular aggregates, as described by Meskers, Schenning and co-workers.45 The authors employed the gelator molecule 38 (Scheme 6) in toluene as a scaffold for the spatial organization of AuNPs capped with the derivative 39 (obtained by the introduction of a disulfide moiety in 38). The AuNPs capped with 39 interact with the gel materials made of 38, also influencing its critical gelation concentration (cgc). More importantly, as shown by the TEM images, the NPs are found to align on both sides of gel tapes – 40 nm wide and 7 nm high (minimum detected) – giving rise to a hybrid material. Such alignment was not induced by the drying effect, and cryo-TEM images confirmed the distribution of the NPs in the composite.
The spectroscopic data on the novel material confirm the electronic communication between the gel tapes made of 38 and the 39–AuNPs, since the fluorescence of OPV derivative 38 was considerably quenched in the hybrid material – the emission intensity was reduced by a factor of 33 in comparison with the emission intensity of 38 alone – with a concomitant decrease in its lifetime. Photoinduced absorption (PIA) studies confirmed the presence of a dynamic process that takes place on a nanosecond time scale and involves the diffusion of electronic excitations through the tape toward the AuNPs.
Another application of NPs–gel materials derives from the fact that silver and silver NPs have been known since Roman times to possess antimicrobial activity, and their use in the healthcare industry is nowadays well established.46 In general, AgNPs are routinely found to be more effective against Gram-negative bacteria than Gram-positive ones and, for this reason, the work done by Das and co-workers47 on the use of AgNPs–gel materials with high antimicrobial activity is particularly interesting.
Following various in situ procedures, compounds 40a–c, 41a–b, 42 and 43a–b (Scheme 6), can afford AgNPs–gel materials.
Table 1 summarizes the antimicrobial activity of the AgNPs gel composites made with 40–43, with the minimum inhibitory concentration (MIC) calculated referring to the gelator concentration and to the metal concentration (in parentheses). As can be clearly seen, the effectiveness of the activity observed spans over two orders of magnitude of concentration but, in general, the nanocomposites exhibited excellent antibacterial activity against both Gram-positive and Gram-negative bacteria. In some of the most effective cases, for 40a and especially for 40b–c, the increase in efficacy is remarkably high, between ca. 10- to 50-fold. These data can be compared, although only qualitatively, with those reported for various AgNP suspensions,48 and it must be noted that compounds 40a–c already showed antimicrobial activity per se.47b
+ | − | |||
---|---|---|---|---|
B. subtilis | S. aureus | E. coli | K. aerogens | |
40a | 20 (7.4) | 10 (3.7) | 60 (22.2) | 80 (29.6) |
40b | 3 | 2 | 100 | 20 |
40c | 5 | 2 | 50 | 25 |
41a | 100 (56) | 150 (84) | 150 (84) | 75 (42) |
41b | 200 (74) | 200 (74) | 200 (74) | 100 (37) |
42 | 20 (7.8) | 10 (2.8) | 75 (21) | 55 (15.4) |
43a | 70 | 50 | 100 | 75 |
43b | 30 | 20 | 60 | 50 |
Despite extensive investigation of both the supramolecular chemistry of LMWGs and the preparation and physico-chemical properties of noble NPs, the integration of these components into a single entity represents a very recent and highly welcome novelty in the field of functional, smart materials.
This review intends to display the works at the avant garde on the developments of noble metal NPs–gel systems. These materials originate from the combination of objects belonging to different scale domains. Micrometer-scaled fibers, created by the self-assembly of gelator monomers, interact with nanoclusters of noble metals, in what eventually makes up a macroscopic object. Such inter-domain crossing is reckoned to be of great and increasing importance in supramolecular and materials chemistry and, undoubtedly, will enable advances in both fields.
Noble metal NPs–gels hybrids can be obtained by several different procedures and their features can be characterized inter alia by a combination of electronic microscopy (SEM, TEM, etc.) and UV-vis spectroscopy. Both the preparation and characterization of NPs–gel materials are described in this review. In particular, we put strong emphasis in the description of the various synthetic pathways, which are grouped into two different categories: type I and type II, depending on whether the NPs are formed prior to the material formation or by an in situ process. The many variables involved in the preparation of NPs–gel materials and the lack of a comprehensive and accepted view on the influence of the preparation on the final properties of the material demands attention.
Although many of the works surveyed here focus on the study of the effect that one of the components may exert on the other, in terms of both structural and/or optical features, we believe that these new materials can be indeed considered entities in their own right. As mentioned above, the exploitation of their novel emerging properties could engender remarkable developments and some applications have already been reported. NPs–gel materials have indeed been tested as novel catalysts, as antimicrobial supports, and for the construction of chiral optical materials. Despite these applied developments, the research on this topic, so far, has had many features in common with the exploration of a terra incognita, and many aspects of the integration of NPs into gel materials are not completely understood. In particular, attention should be paid to identifying whether the presence of NPs can contribute additional stabilization of the gel matrix or not, and, eventually, to what extent. The mode of NPs–gel hybrid preparation (pre-formed NPs or in situ generated NPs) is obviously relevant to this issue. Also, the influence of the presence of NPs on the self-assembly process of the gelator is not yet completely understood, let alone the role of the formation process of the NPs on the resultant material properties. For example, although some authors believe that in situ NPs formation could allow for the retention of the original gelator self-assembly process, the data collectively reviewed here strongly indicate quite a variability of behavior, depending on the identity of the gelator species and the experimental conditions employed.
Although in its early stages of development, and despite many fundamental questions that still remain unanswered, NPs–gel materials represent a promising field of research and we expect a thriving future ahead.
