Preparation of dispersible graphene through organic functionalization of graphene using a zwitterion intermediate cycloaddition approach

Abstract

Highly functionalized graphene were obtained through a zwitterion intermediate cycloaddition onto exfoliated graphene flakes under new reaction conditions. The functionalized graphene obtained formed stable dispersions in common solvents, including dimethylformamide (DMF), CHCl₃ and water. Its dispersion in water is especially useful in a wide range of areas, such as composites, devices and biological applications.

---

In the last decade, graphene, a single-layer of graphite with a two-dimensional honeycomb lattice, has emerged as one of the most promising future materials due to its unique physical, mechanical and thermal properties.¹ Potential applications of graphene in Li-ion batteries, supercapacitors, transparent electrode, sensors and composites have already been demonstrated.² However, a key challenge in handling graphene based materials is in how to obtain a large amount of dispersible graphene flakes in either organic solvents or water for certain uses, such as in composites, devices and biological applications.³ Several chemical methods have been developed, including reduction of graphene oxide,⁴ bottom-up organic synthesis⁵ and dispersion of graphite in certain solvents.^6–8 Methods employing the reduction of graphene oxide requires harsh oxidation conditions to prepare graphene oxide and a subsequent chemical and/or thermal reduction step. Graphene prepared by the organic synthesis route is impeded by limitations to size. Of these approaches, direct sonication of graphite in solvents promises to be the simplest method to obtain dispersible and relatively defect-free graphene flakes. However, the graphene flakes suspended in solvents (such as in N-methyl pyrrolidone,⁶ortho-dichlorobenzene^7a and ethanol)^8a tend to aggregate due to the strong π–π interactions between the individual flakes, which seriously limits their application. In order to solve this problem and further improve their dispersibility, stability and processability, considerable efforts have been devoted to functionalize graphene flakes by noncovalent⁹ or covalent methods.¹⁰ In contrast to noncovalent methods, covalent methods can provide for more stable and robust materials. Covalently attached functional groups on graphene can improve the dispersibility of graphene, but also increase compatibility with various interfaces and matrixes. Furthermore, covalently functionalized graphene can be applied in subsequent chemical processes that are usually unsuitable for non-covalent/physisorbed functionalized graphene. More importantly, covalently functionalized graphene can yield graphene samples that show long-term stability when dispersed in solvents, which is necessary for application. However, covalent functionalization may affect the electronic properties of graphene. Thus, controlling the degree of functionalization of graphene is essential. Although the reactivity of graphene is less than those of fullerenes and carbon nanotubes, the wrinkled and folded structure and defects present in graphene can increase its reactivity towards organic reagents.¹¹ To date, a number of chemical reactions on graphene have been reported, including 1,3-dipolar cycloaddition,¹⁰ diazonium chemistry,¹² nitrene addition,¹³ radical addition¹⁴ and click chemistry.¹⁵ Through these reactions, a range of functional groups can be introduced and also the degree of functionalization of graphene can be tuned. However, chemical modification of graphene has yet to be fully studied and more facile and mild methods are highly desirable.

Here, we take a zwitterion intermediate cycloaddition functionalization approach, which was previously applied to fullerenes and carbon nanotubes,¹⁶ to functionalize graphene obtained using the solvent dispersion and exchange method.^10a The functionalized graphene formed stable dispersions in common solvents (most remarkably in water) and was characterized by several spectroscopic and microscopic techniques.

Functionalization of graphene through the zwitterion approach is shown in Scheme 1 (see Scheme S1† for the proposed mechanism).¹⁶ 4-dimethylaminopyridine (DMAP) reacts with the triple bond of acetylene dicarboxylates to form a zwitterionic intermediate, which then reacts with the double bond of graphene followed by reaction with the carbonyl group. Finally, the positively charged DMAP moiety is substituted by an alkoxy group, yielding the functionalized graphene product. Graphene in ODCB was prepared by the solvent dispersion method,^10a followed by a solvent exchange process developed by our group to transfer graphene into dry toluene (see supporting information†).^8a The graphene dispersed in dry toluene was reacted with DMAP, and acetylenedicarboxylates 1 or 2 at 85 °C under Ar atmosphere for 3 d. The functionalized graphene was purified by multiple filtration/redispersion cycles (see supporting information). Notably, the functionalized graphene is no longer dispersible in ODCB or toluene but 1 functionalized graphene shows good dispersion in both DMF (∼0.28 mg mL⁻¹) and CHCl₃ (∼0.19 mg mL⁻¹), while 2 functionalized graphene shows good dispersibility in water (∼0.06 mg mL⁻¹) (Fig. S1†).¹⁷ UV/Vis absorption spectrometry can be used to investigate the stability of graphene samples in the solvents by measuring the changes in apparent absorption (in fact the changes in scattering of light by graphene) with time.^6,8a In the present case, 1 functionalized graphene was stable in DMF and CHCl₃ for at least two months, while 2 functionalized graphene dispersed in water was stable for at least one month. The stability is comparable with the 1,3-dipolar cycloaddition functionalized graphene dispersed in ethanol (at least 30 days).^10c

Scheme 1 Preparation of functionalized graphene through the zwitterion approach.

The Fourier transform infrared spectroscopy (FTIR) spectra of graphene, 1 and 2 functionalized graphene, and the control samples are shown in Fig. 1. The FTIR spectrum of graphene itself is almost featureless, indicative of a low content of defects in the graphene. For both 1 and 2 functionalized graphene, the absorption bands at 1715 and 1240 cm⁻¹ correspond to carbonyl and ether groups, respectively. The spectra of the control samples (Control 1: graphene reacted with 1 only; Control 2 : graphene reacted with 2 only; Control 3: graphene reacted with DMAP only), did not show the above mentioned absorptions. This strongly supports that the modification is covalent in the two functionalized graphene samples and not physisorption.

Fig. 1 FTIR spectra of graphene, 1 and 2 functionalized graphene, and control samples.

The presence of organic functional groups in the functionalized graphene products is further confirmed by thermal gravimetric analysis (TGA). Fig. 2 shows the TGA curves of graphene, 1 and 2 functionalized graphene. The weight loss of graphene is about 5% between 200 °C and 450 °C, which is due to the defects caused by sonication, and also residual solvents. In the same temperature range, 1 and 2 functionalized graphene show about 54% and 36% weight loss, respectively. This weight loss is attributed to the decomposition of organic functional groups attached onto graphene. The degree of functionalization was estimated to be one functional group per 10 carbon atoms for 1 functionalized graphene, and per 50 carbon atoms for 2 functionalized graphene.

Fig. 2 TGA curves of graphene, 1 and 2 functionalized graphene.

Raman spectroscopy is widely used to study the structural and electronic properties of graphitic materials.¹⁸ The typical Raman bands for graphitic materials are: a disorder-induced D band at ∼1350 cm⁻¹, a doubly degenerate zone centre E_2g mode at about 1580 cm⁻¹ (G band, indicative to sp² carbon bonds), and a two phonon double resonance Raman process at ∼2700 cm⁻¹ (2D band).¹⁸ The intensity ratio I_D/I_G between the D band and G band is often used to quantify the defects in graphitic materials. Graphene shows a small D band and a strong G band, with a I_D/I_G ratio of 0.3 (Fig. 3). For 1 and 2 functionalized graphene, an increased I_D/I_G ratio (0.4 and 0.54, respectively) is observed compared with graphene. Attachment of organic functional groups changes some carbon atoms from sp² to sp³ and therefore results in an increased I_D/I_G ratio, which indicates successful covalent functionalization.^10,19 Due to the relatively small size of the graphene flakes and aggregation when deposited onto the substrate, it is difficult to distinguish single-layer graphene by Raman spectroscopy in the present case. However, the positions and shapes of the spectra of graphene and functionalized graphene indicates the graphene flakes are a mixture of single- and few-layer graphene.^6,8a,10

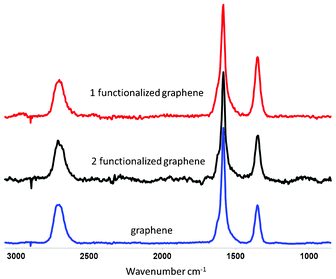

Fig. 3 Raman spectra of graphene, 1 and 2 functionalized graphene (λ_exc = 532 nm).

The morphologies of graphene before and after functionalization were studied by transmission electron microscopy (TEM) analysis. The presence of single-layer graphene flakes is shown in Fig. 4a, which is confirmed by its electron diffraction pattern (Fig. S2†, the intensity of inner spots is greater than the outer spots).^6,8a,10a A large number of few-layer graphene flakes are also present in the graphene samples used for functionalization (Fig. 4b). 1 functionalized graphene shows good dispersion behaviour both in DMF and CHCl₃ (Fig. 4c and Fig. 4d), while 2 functionalized graphene disperse well in water (Fig. 4e, Fig. 4f and Fig. S3†). After functionalization, little change in the morphology of graphene is observed, and importantly, the size of the graphene flakes is not decreased. This is an advantage compared with the harsh oxidation methods used to prepare graphene oxide, in which the flake size is normally significantly reduced.

Fig. 4 TEM images of graphene in ODCB (a, b), 1 functionalized graphene in DMF (c) and CHCl₃ (d) and 2 functionalized graphene in H₂O (e, f). The samples were prepared by dropcasting the dispersion onto a holey carbon grid. For HRTEM images, see Fig. S4† in the supporting information.

The conductivity of films of graphene, 1 and 2 functionalized graphene was also determined using the standard four-point probe method. The films were prepared by vacuum filtration of the corresponding dispersions. The graphene film shows a conductivity of 3269 ± 132 S m⁻¹, whereas for 1 and 2 functionalized graphene films a conductivity of 6.88 ± 0.36 and 665 ± 20 S m⁻¹ was determined, respectively (see Table S1† for details). The reduced conductivity of the two functionalized graphene films compared to graphene itself is due to the covalent modification of the graphene. However, it should be noted that the two conductivity values are still much higher than that of graphene oxide (10⁻⁸–10⁻⁵ S m⁻¹).²⁰

In conclusion, functionalized graphene has been successfully prepared using a zwitterion intermediate cycloaddition approach under new reaction conditions, and was characterized by FTIR, Raman spectroscopy and by additional control experiments. The degree of functionalization on graphene was determined by TGA and more interestingly it was relevant to the acetylenedicarboxylates uses. TEM images show that the functionalized graphene has good dispersibility in common solvents, such as DMF, CHCl₃ and especially water. The functionalized graphene films show conductivity several orders of magnitude better than graphene oxide. We believe this novel zwitterion functionalization method will broaden the chemistry of graphene substantially and that these functionalized graphene materials could be useful in composites, devices and biological applications (sensing, drug loading and delivery).³
