Crystal structure of a hybrid salt–cocrystal and its resolution by preferential crystallization: ((±)trans-N,N′-dibenzyldiaminocyclohexane)(2,3-dichlorophenylacetic acid)₄

Abstract

trans-N,N′-Dibenzyldiaminocyclohexane (B) crystallizes with 2,3-dichlorophenylacetic acid (AH); the crystal structure, resolved by using crystal X-ray diffraction, revealed an odd stoichiometry composed of H₂B²⁺, two A⁻ and two AH forming an unexpected hybrid salt–cocrystal. As this compound is a stable conglomerate (i.e. every single crystal contains the enantiomerically pure cation H₂B²⁺, RR or SS), several preferential crystallization attempts (AS3PC) were performed in methanol and in THF and gave unexpected final enantiomeric excesses greater than 20% for the entrainment in methanol. These results suggest that the crystal growth mechanism preferentially involves building units composed of [H₂B²⁺; 2A⁻ and 2AH] or reconstruction of some crystal interfaces rather than a layer by layer construction.

---

Introduction

The demand for chiral compounds is steadily increasing both in academic research and for industrial applications. Although efficient routes of asymmetric syntheses are now available, chiral resolutions of racemic mixtures keep being the preferred options in many large-scale applications. These processes can be run by chromatography on chiral stationary phases,¹ biocatalytic processes² (involving enzymes or microorganisms) and crystallization.³ This latter mode offers several possibilities to resolve a racemic mixture: diastereomeric entities (by formation of salts in the Pasteur resolution^4,5 or the enantioselective encapsulation into a chiral macrocycle in the host–guest association⁶), preferential nucleation,⁷ simultaneous crystallization,⁸ symmetry breaking^9,10 and preferential crystallization³ (PC). PC itself can be subdivided into several variants according to the nature of the crystallization process¹¹ (e.g. seeding procedures: SIPC (Seeded Isothermal Preferential Crystallization), S3PC (Seeded Polythermic Programmed Preferential Crystallization) and AS3PC¹² (Auto-Seeded Polythermic Programmed Preferential Crystallization)) and the possibility or not of in situ racemisation, SOAT¹³ (Second Order Asymmetric Transformation). Whatever those variants, the pre-requisite condition for application of preferential crystallization is the existence of a stable conglomerate¹¹ (see ref. 14–16 for counter-examples associated with metastable conglomerates). That is to say the racemic mixture of crystals is composed of enantiomerically pure solid particles even if partial solid solutions might exist without impairing preferential crystallization.¹⁷ Thus the screening of conglomerates corresponds to the identification of crystallized phases providing full chiral discrimination. When the molecule to be resolved contains an acidic or a basic function, this is usually performed by numerous attempts to crystallize salts. At the top of that, in order to spot conglomerates of solvated or heterosolvated salts,¹⁸ it is recommended to make a screening with different solvents or mixture of solvents for every counter-ion.

The conglomerates can be spotted by using various methods. The detection of the Second Harmonic Generation (SHG) effect¹⁹ is a pre-screening technique, which has recently proved to be fast, cheap and efficient. Nevertheless, complementary analyses are necessary to confirm the existence of a conglomerate by, for instance, comparisons of spectroscopic data such as X-ray powder diffraction (XRPD) or IR or ss-NMR or Raman patterns of the pure enantiomer and of the racemic mixture.

This article aims at showing that odd stoichiometries can sometimes provide the full chiral discrimination in the solid state, necessary for the application of PC. Therefore no a priori restriction should be considered in the screening of associations between partners of crystallization.

The molecule to be resolved is the diaminetrans-N,N′-dibenzyldiaminocyclohexane (compound B) (see the Syntheses section and Fig. 15) synthesized in our laboratory. This diamine crystallizes as a conglomerate with 2,3-dichlorophenylacetic acid (compound AH) (see the Screening of conglomerate section and Fig. 16). It belongs to a series of resolution agents, easy to obtain, and cheap, that are being developed within the European project: IntEnant.‡ An alternative process consists of synthesizing the pure enantiomer of compound B from the pure enantiomer of trans-1,2-diaminocyclohexane. The pure enantiomer of trans-1,2-diaminocyclohexane ((±) DACH) can be resolved by two distinct methods: preferential crystallization²⁰ or formation of diastereomeric salt.²¹ These resolutions circumvent the asymmetric synthesis of (+) or (−) DACH. Moreover, DACH being simultaneously CO₂, O₂, hν and moisture sensitive, it is preferably stored as a salt (e.g.citrate monohydrate²⁰).

Results and discussion

Single crystal structural description

The complete structure of the phase between B and AH was determined by single crystal X-ray diffraction. Despite numerous attempts on different single crystals, the R-factors remained greater than 5% probably due to the poor crystal quality (Fig. 1). Nevertheless, the reliability of the results is high enough for an error free determination of the stoichiometry. Crystallographic data are summarized in Table 1.

Fig. 1 SEM picture of a single crystal of a hybrid salt–cocrystal obtained by smooth evaporation in methanol. Defects at the extremities can be observed on many single crystals.

Table 1 Crystal data of the hybrid salt–cocrystal

Chemical formula	[C6H10–(NH2–CH2–C6H5)2]^2+, 2[C6H3Cl2–CH2–COO]^−, 2[C6H3Cl2–CH2–COOH]
CSD number	CCDC 818797
Molecular weight/g mol^−1	1114.54
Crystal system	Monoclinic
a/Å	25.444(2)
b/Å	8.0222(7)
c/Å	13.4912(12)
β/°	106.581(1)
Unit cell volume/Å^3	2640.2(4)
Calculated density/g cm^−3	1.402
Space group	C2 (no. 5)
No. of formula per unit cell, Z, Z′	2, 0.5
Absorption coefficient/μ mm^−1	0.481
No. of reflections measured	10 636
No. of independent reflections	5364
R int	0.0202
No. of reflections with I > 2σI	4681
Final R1 value (I > 2σI)	0.0657
Final wR2 value (I > 2σI)	0.1713
Final R1 value (all data)	0.0739
Final wR2 value (all data)	0.1802
Goodness on fit	1.029

---

The asymmetric unit is composed of one molecule of acid (AH), one molecule of deprotonated acid (A⁻) and one half molecule of base H₂B²⁺ (Fig. 2). Therefore, the 2-fold axis regenerates a building unit (Fig. 3) composed of a single H₂B²⁺ and two pairs of AH and A⁻ that are tightly connected through strong ionic interactions (Table 2).

Fig. 2 Asymmetric unit with ellipsoidal contribution at room temperature (50% of probability). Molecule of the dibase is depicted in grey and white (to illustrate the symmetry generated part), the molecule of deprotonated acid is presented in purple and the full protonated acid is featured in yellow. Symmetry used to generate the equivalent atom: * (−x, y, 2 − z).

Fig. 3 The building unit formed by one molecule of H₂B²⁺ (grey), two molecules of A⁻ (purple) and two molecules of AH (yellow). The ionic bonds are depicted in dashed green lines or pink dashed lines regarding molecules involved.

Table 2 Ionic interactions

a Symmetry used to generate equivalent atoms: (1 − x, y, −z).
Molecule A^− to molecule H2B^2+
A⋯H–D	O(2A)⋯H(1B2)–N(1B)	O(1A) ^a⋯H(1B1)–N(1B)
d(H⋯A)/Å	1.81	1.91
(D⋯A)/Å	2.708(3)	2.738(3)
<DHA/°	172.1	152.6
Molecule A^− to molecule AH
A⋯H–D	O(2A)⋯H(2)–O(2)
d(H⋯A)/Å	1.81
(D⋯A)/Å	2.568(4)
<DHA/°	153.9

---

The oxygen atoms, O(1A) and O(2A), from the carboxylate function of A⁻ establish strong ionic bonds with the two hydrogen atoms of the protonated amine moiety, N(1B)H2. Molecule AH is involved in a second ionic interaction through the hydroxyl group, O(2)H, of the carboxylic moiety with the oxygen atom O(2A) of A⁻.

For molecule A⁻, the carbon–oxygen bond lengths are similar whereas for molecule AH these lengths exhibit an unambiguous difference (Table 3). Furthermore, the IRFT spectrum confirms the presence of protonated and deprotonated carboxylic moieties. Indeed, the representative vibrational band of the C=O at 1750–1700 cm⁻¹ is split, with equal intensity, into two bands, one at 1700 cm⁻¹ and the other at 1630 cm⁻¹. This latter can be attributed to the carboxylate moiety.

Table 3 Bond lengths within the carboxylic/carboxylate moieties

Molecule AH		Molecule A^−
C(8)–O(1)	1.195(5) Å	C(8A)–O(1A)	1.233(4) Å
C(8)–O(2)	1.289(6) Å	C(8A)–O(2A)	1.255(4) Å

---

According to these results, a proton transfer occurs between the two acids A⁻ and the base H₂B²⁺, whereas no proton exchange occurs within the other acid molecules AH. Therefore, the title compound is at the same time a salt because of the proton transfer and a cocrystal because the carboxylic moiety is not altered and remains neutral.^22,23

The building units are aligned along the b direction and thus formed rows in this direction (Fig. 4). Every building unit interacts with equivalent elementary blocks from adjacent rows along the c axis. These interactions are established between aromatic rings of molecules AH from one row to molecules A⁻ of adjacent rows; the distance between the centroids of these phenyl groups is circa 3.6 Å.

Fig. 4 Representation of the building unit stacking. The π–π interactions are represented in dashed blue lines. The 2-fold axes along the b axis are represented in black.

Therefore, the building units are stacked through π–π interactions and give rise to slices parallel to the (bc) plane with d₂₀₀ thickness. Moreover, two types of subslices exist along the c axis: the first composed of molecules AH with d₀₀₃ (=4.31 Å) thickness and the second containing chiral ions: H₂B²⁺ and 2A⁻ with 2d₀₀₃ (=8.62 Å) thickness (Fig. 5).

Fig. 5 Projection along the b axis, (200) layers are stacked along the a axis with d₂₀₀ thickness and (003) layers are stacked along the c axis. The symmetry elements are depicted in black.

The comparison between the experimental and the calculated morphologies by using the geometrical BFDH method²⁴ clearly shows that the main growth axis is [010] (Fig. 6). The fibrous aspect corresponds well to the rows spreading along b (Fig. 7).

Fig. 6 Comparison between the experimental and the calculated morphologies.

Fig. 7 SEM picture of a single crystal of a hybrid salt–cocrystal. A fibrous aspect can be observed on the single crystals.

In order to see if AH exhibits special structural features, its crystal structure was also investigated. The crystallographic data and details of the resolution are summarized in Table 4.

Table 4 Crystallographic data of 2,3-dichlorophenylacetic acid

Chemical formula	[C6H3Cl2–CH2–COOH]
CSD number	CCDC 818798
Molecular weight/g mol^−1	205.03
Crystal system	Monoclinic
a/Å	4.8955(5)
b/Å	12.3245(12)
c/Å	14.5030(14)
β/°	94.270(2)
Unit cell volume/Å^3	872.6(15)
Calculated density/g cm^−3	1.561
Space group	P21/c (no. 14)
No. of formula per unit cell, Z, Z′	4, 1
Absorption coefficient/μ mm^−1	0.695
No. of reflections measured	6796
No. of independent reflections	1774
R int	0.0186
No. of reflections with I > 2σI	1523
Final R1 value (I > 2σI)	0.0477
Final wR2 value (I > 2σI)	0.1307
Final R1 value (all data)	0.0542
Final wR2 value (all data)	0.1362
Goodness on fit	1.058

---

The asymmetric unit (Fig. 8) is composed of a single molecule of 2,3-dichlorophenylacetic acid. The molecules are tightly linked by the usual centrosymmetric hydrogen bonds between their acidic moieties O(2)⋯O(1), d = 2.67(1) Å (Fig. 9). During the last steps of the structure refinement, high electronic density was located at almost 1 Å to the oxygen atom O(2); therefore it was attributed to the hydrogen atom of the carboxylic moiety. However, the bond lengths observed within the carboxylic moiety of the 2,3-dichlorophenyl acetic acid are similar, C–O(1) 1.231(3)Å and C–O(2) 1.267(3)Å. Therefore the proton of the carboxylic moiety probably exhibits a disordered behaviour.

Fig. 8 Asymmetric unit with thermal ellipsoid representation (50% probability) and with atom labels.

Fig. 9 Centrosymmetric dimers interacting through π–π stacking along the a axis. These interactions are represented in dashed pink lines. The hydrogen bonds are represented in dashed blue lines.

These bonds give rise to centrosymmetric dimers that is a common feature when protonated carboxylic functions are involved. The dimers are interconnected by π-stacking spreading along the [100] direction (Fig. 9 and 10).

Fig. 10 Projection along the a axis. Between the pseudo-chains the cohesion is ensured by van der Waals interactions. The symmetry elements are depicted in black.

Two consecutive aromatic rings are at a distance of 3.7 Å from carbon atoms C(4)–C(3) to carbon atoms C(6)–C(7) from the adjacent ring, respectively. These interactions lead to pseudo-chains, along the a axis. The cohesion between these pseudo-chains is ensured by van der Waals interactions.

The crystal structure of the 2,3-dichlorophenylacetic acid is thus totally different with regard to the AH subslice of the phase between B and AH.

Preferential crystallization (AS3PC)

The main data of four consecutive batches in methanol are summarized in Table 5. The productivity is defined as the mass of pure enantiomer harvested per hour and per litre of solvent. This preferential crystallization exhibits a good reproducibility and a mean optical purity of ∼87% for the crude product obtained without washing or recrystallization. Moreover, the final enantiomeric excess of the mother liquors (e.e._final) appeared reproducibly greater than 20%.

Table 5 Principal data of batches carried out in methanol^a

Batch	Raw mass/g	Optical purity (%)	Pure enantiomer mass/g	e.e.final (%)	Duration
1	4.77	86	4.10	−20.20	55 min
2	5.49	−83	4.56	22.80	45 min
3	5.31	90	4.78	−20.64	50 min
4	5.20	−88	4.58	20.73	55 min
Average	5.19	87	4.51	21.10	51.25 min
Productivity/g L^−1 h^−1			52.80

---

The main data of three consecutive batches in THF are summarized in Table 6. Compared with methanol, the productivity and the optical purity are similar; however e.e._final is halved.

Table 6 Principal data of batches carried out in dry THF^a

Batch	Raw mass/g	Optical purity (%)	Pure enantiomer mass/g	e.e.final (%)	Duration
a The values of the optical purity correspond to the enantiomeric excess of the harvested solid without further purification. e.e.final stands for the enantiomeric excess in the final mother liquor.
1	6.16	84	5.17	−8.42	70 min
2	6.80	−81	5.51	9.55	70 min
3	6.79	89	6.04	−11.53	55 min
Average	6.58	84.7	5.57	9.83	65 min
Productivity/g L^−1 h^−1			51.42

---

Ideally, Meyerhoffer's rule²⁵ gives α_mol = S_mol(±)/S_mol(+) = 2 for covalent compounds, and α_mol = √2 for (1–1) stoichiometric salts. For this hybrid salt–cocrystal, even if the concentration in THF is circa twice as that in methanol, the preferential crystallization performances remained roughly the same in both solvents. These results come from the molar α ratio which is more favourable in methanol (α_mol = 1.20, Table 7) than in dry THF (α_mol = 1.52, Table 8). This is consistent with the ability of methanol to be a better solvent for ionic species than pure THF. Furthermore, the metastable zone width (MSZW assessed by β = S(±) at T_B/S(±) at T_F) is much wider in methanol (β = 1.55) than in dry THF (β = 1.23) confirming the important role of the solvent in the performances of preferential crystallization.

Table 7 Solubilities in MeOH of conglomerate

Solubilities in methanol
Temperature/°C	25	30	40
Solubilities (±) (% mass)	7.5	8.9	11.6
Solubilities (−) (% mass)	6.3	7.4	9.8
Solubilities (±) (molar fraction) × 10^2	0.23	0.28	0.37
Solubilities (−) (molar fraction) × 10^2	0.19	0.23	0.31
α mol	1.20	1.22	1.19

---

Table 8 Solubilities in THF of conglomerate

Solubilities in THF
Temperature/°C	30	35	40
Solubilities (±) (% mass)	22.5	25	27.7
Solubilities (−) (% mass)	15.8	17.9	20.2
Solubilities (±) (molar fraction) × 10^2	1.84	2.11	2.42
Solubilities (−) (molar fraction) × 10^2	1.2	1.39	1.61
α mol	1.53	1.52	1.50

---

Fig. 11 and 12 illustrate the projection of the solution point trajectory during an entrainment (AS3PC mode) in methanol and THF, respectively. Based on experimental results, it seems that the stereoselective crystallizations persist up to F points which means up to circa 23% in methanol and circa 10% in THF. These F points are located on the tie-lines which connect the antipode 〈−〉 to the racemic liquid at T_F. They correspond to the boundaries between the three phase domain: 〈+〉, 〈−〉 and racemic solution and the biphasic domain: 〈−〉 and saturated solution.

Fig. 11 Projection of the solution point trajectory (red line) during entrainment in methanol. The initial and final isothermal sections of the ternary system (+)-(−)-MeOH are drawn in black and in blue, respectively.

Fig. 12 Projection of the solution point trajectory (red line) during the entrainment in dry THF. The initial and final isothermal sections of the ternary system (+)-(−)-THF are drawn in black and in blue, respectively.

Prior to testing PC, the crystal structure features raised some concerns about the possibility to keep on with stereoselective crystallization while the two antipodes are supersaturated.

Considering the (001) orientation and assuming that AH could be the protruding units in solution, the non-chiral AH layers might induce a loss of transmission of chirality from underneath (H₂B²⁺–A₂⁻ layers) depending on the growing mode of the crystal (Fig. 13 and 14). This alternation of subslices forms a hybrid salt–cocrystal. This dual character has, even more surprisingly, been observed in the crystal structure of a (1–1) phase with Z′ = 3/2 containing phthalazine and fumaric acid.²⁶

Fig. 13 Growth by two-dimensional nucleation mode. Alternate achiral subslices of molecule AH thickness d₀₀₃ and chiral subslices of thickness 2d₀₀₃ of ions: H₂B²⁺ and A⁻.

Fig. 14 Illustration of the crystal growth by assemblage of solvated chiral building units.

One possible hypothesis consistent with all the results is that this crystal growth does not proceed by 2D nucleation on the (001) surface²⁷ but by assemblage of chiral building units (Fig. 14).

In this case, a full pre-assemblage in the vicinity of the growing surfaces might prevail and therefore allow the high efficiency in chiral discrimination in the solid state. That is to say, 2AH and 2A⁻ and H₂B²⁺ could be linked (building unit) prior to docking onto the growing surface. Thus, the necessary transmission of chirality throughout the crystal growth could be kept without any epitaxy of the antipode. The fibrous aspect along the b axis of single crystals together with large defects at the tips of the crystals obtained in methanol under smooth conditions seems consistent with this hypothesis. Another hypothesis could also involve an extensive reconstruction of this surface.

Experimental section

Analytical techniques

NMR spectra were recorded on a Bruker Advance-300 instrument (300 MHz for ¹H NMR and 75 MHz for ¹³C NMR) using CDCl₃ or DMSO-d₆ as solvent; δ values are quoted in ppm downfield from TMS using the residual proton signal of the solvent as reference.

X-Ray powder diffraction measurements were carried out on a SIEMENS D5000 Matic diffractometer (Bruker analytical X-ray Systems, D-76187 Karlsruhe, Germany) with a Bragg Brentano geometry, in theta/2-theta reflection mode. The instrument is equipped with a copper anticathode (40 kV, 40 mA, K_α1 radiation: 1.540 Å, K_α2 radiation: 1.544 Å) and a scintillation detector. The diffraction patterns were collected by steps of 0.04° (in 2-theta) over the angular range 3–30°, with a counting time of 4 s per step.

Polarimetric measurements were performed with a Perkin-Elmer® 341 (λ = 436 nm, T = 25 °C, l = 10 cm).

Scanning electron microscopy (SEM) pictures were obtained with a JEOL JCM-5000 NeoScope instrument (secondary scattering electron) at an accelerated voltage of 15 kV. Samples were stuck on an SEM stub with gloss carbon and coated with gold to reduce electric charges induced during analysis with a NeoCoater MP-19020NCTR.

Infrared spectra were measured on a Bruker Alpha-P FT-IR instrument in the ATR geometry with a diamond ATR unit.

Syntheses

All reagents and solvents were purchased from Acros Organics and were used without further purification.

trans-N,N′-Dibenzyldiaminocyclohexane (compound B) was prepared according to Jones and Mahon,²⁸ which was applied with modifications (Fig. 15).

Fig. 15 Reaction of formation of trans-N,N′-dibenzyldiaminocyclohexane.

A solution of benzaldehyde (2.05 eq., 75.02 g, 707 mmol) in methanol (400 mL) was added rapidly dropwise to a solution of trans-1,2-diaminocyclohexane ((±) DACH) (39.38 g, 345 mmol) in methanol (1 L) at room temperature. The reaction mixture was stirred for 6 hours at room temperature and then cooled down to 0 °C, followed by a slow addition of NaBH₄ (1.5 eq., 19.5 g, 515 mmol). After stirring the reaction mixture overnight at ambient temperature, the solvent was removed under vacuum. After addition of dichloromethane, the organic layer (300 mL) was washed with water (2 × 200 mL) and dried (MgSO₄). Dichloromethane was evaporated and the pure harvested product was a yellow oil (88.2 g, 299 mmol). The total yield was 87%. δH (300 MHz, CDCl₃), 1.10 (2H, t, J = 10.56 Hz), 1.25 (2H, d, J = 7.02 Hz), 1.74 (2H, d, J = 7.02 Hz), 2.17 (2H, d, J = 10.56 Hz), 2.30 (2H, br s), 3.68 (2H, d, J = 13.2 Hz), 3.92 (2H, d, J = 13.2 Hz), 7.23–7.28 (10H, m). δC (75 MHz, CDCl₃) 25.1, 31.5, 50.8, 60.9, 127.0, 128.2, 128.5, 140.8.

The enantiomeric product was synthesized from the starting chiral material (+ or –) DACH citrate monohydrate obtained from a preferential crystallization previously carried out in the laboratory.²⁰

A suspension of K₂CO₃ (2.5 eq., 532 mg, 3.85 mmol) and DACH citrate monohydrate (500 mg, 1.54 mmol) was prepared in methanol (20 mL) then a solution of benzaldehyde (2.11 eq., 344 mg, 3.25 mmol) in methanol was added dropwise. After stirring the reaction mixture overnight at ambient temperature, the solvent was removed under vacuum. After addition of dichloromethane (15 mL), the organic layer was washed with water (2 × 5 mL) and dried (MgSO₄). Dichloromethane was evaporated under vacuum. The crude product was dissolved in methanol (20 mL) then the solution was cooled at 0 °C, and NaBH₄ (1.6 eq., 93 mg, 2.46 mmol) was added slowly. After stirring the reaction mixture overnight at ambient temperature, the solvent was removed under vacuum. Dichloromethane (15 mL) was added and then the organic layer was washed with water (2 × 5 mL) and dried (MgSO₄). Dichloromethane was evaporated and the pure got back was a yellow oil (372 mg, 1.26 mmol). The results of NMR analyses were the same as that of the racemic oil. The final yield was 82%.

Screening of conglomerate

A screening of salts was carried out in order to spot stable conglomerates with compound B. All salts were prepared by using the same protocol; only the nature of the acid introduced varied. This screening allows access to all kinds of stoichiometries that lead to the possible conglomerate.²⁹

A methanol solution of pure acid was added slowly to a methanol solution of compound B at room temperature. Solutions were prepared so that the ratio of acidic/basic functions was respected. After a few minutes, the spontaneous crystallization of salt occurred at room temperature. The resulting suspension was filtered on the glass filter (porosity 4). The recovered salts were analyzed by SHG and in the case of positive results, pure enantiomeric salts were also crystallized. The X-ray powder patterns of these two salts were compared to confirm, or not, the existence of a conglomerate forming system.

Only the 2,3-dichlorophenylacetic acid (Fig. 16) in methanol gave rise to a conglomerate with compound B (Fig. 17).

Fig. 16 Structure of 2,3-dichlorophenylacetic acid.

Fig. 17 X-Ray powder patterns of the racemic salt (bottom), the enantiomer salt (middle) and the calculated salt (top) from the single crystal diffraction data.

As the main condition for preferential crystallization was fulfilled, AS3PC was tested.

Resolution by preferential crystallization

Preferential crystallizations using the Auto-Seeded variant (AS3PC)¹² were performed in a flask equipped with a magnetic stirrer. Temperature was accurately controlled by a cryo-thermostat (Huber_polystat CC240). The course of the entrainment was monitored by off-line polarimetric measurements of the mother liquor (λ = 436 nm). The presence of very small particles requires a filtration prior to measurement with disposable Gelman® Acrodiscs media (0.45 μm). Simultaneously, the clear mother liquor was sampled to determine its global composition (mass concentration) by refractometry (Fig. 18).

Fig. 18 Evolution of the refractive index of the solution versus the mass concentration of the hybrid salt–cocrystal (in methanol).

The AS3PC process is briefly recalled below (Fig. 19).

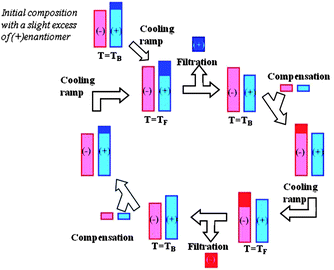

Fig. 19 Principle of the AS3PC. Two consecutive temperature cycles are represented: the enantiomeric excess at T_B engenders a preferential secondary nucleation and crystal growth during the cooling ramp. At T_F, the suspension is filtered and the crop obtained is pure enantiomer, whereas the solution is enriched in the counter-enantiomer (solid parts and liquid parts of the system are depicted in dark and in light colours, respectively).

A small amount of pure (+) enantiomer was added to a methanol saturated solution of racemic mixture at the initial temperature, T_B, so that the initial enantiomeric excess (e.e.) remained at circa 10%. A cooling ramp was applied to the system with a controlled rate, down to T_F in order to induce a dual enantioselective effect: secondary nucleation and crystalline growth of the (+) enantiomer. The crystallization of this enantiomer was maintained beyond the thermodynamic limit (i.e. e.e. = 0) due to the entrainment effect. Therefore the mother liquor became supersaturated in the counter-enantiomer (i.e. no spontaneous nucleation of the (−) enantiomer occurred for a given period of time). This slurry had to be filtered at T_F before the primary nucleation of the (−) enantiomer began. At this time, the system was a solution enriched in (−) enantiomer, but depleted in matter, so a compensation in the racemic mixture and solvent was made, and this prior to each new cycle. By means of continuous recycling of the mother liquor, every odd operation gave the (¬) enantiomer, and every even operation gave the (+) enantiomer.

The filtration cakes were neither washed nor recrystallized. The enantiomeric purities of the crops were determined by polarimetry. For each batch, the final composition of the mother liquor was measured (mass concentration and e.e._final = enantiomeric excess of the mother liquor at the end of a run).

In our case, the conglomerate exhibits good solubility in methanol (Table 7) and in THF (Table 8), so that these solvents were chosen for the preferential crystallization by the AS3PC method.

The first entrainments were performed with 10.4 g of racemic mixture in 100 mL of methanol and with 34 g in 100 mL of THF and led to the main AS3PC parameters, listed in Table 9.

Table 9 AS3PC parameters

	Solvent
	Methanol	THF
T B/°C	40	40
T F /°C	25	30
Cooling rate/°C min^−1	−0.29	−0.20
Solubility at 40 °C (% mass)	11.6	27.7

---

During these first tests, the α_D of the mother liquor was measured by off-line polarimetry. The filtration time was determined according to the monitoring of the α_D of the mother liquor.

Single crystal X-ray structural determination

A suitable single crystal of the title compound, (trans-N,N′-dibenzyldiaminocyclohexane)₁(2,3-dichlorophenylacetic acid)₄, was obtained by slow evaporation of a saturated solution in methanol at room temperature. A single crystal of 2,3-dichlorophenylacetic acid was obtained by slow evaporation of a saturated solution in dichloromethane at room temperature.

The crystal structures were determined by single crystal diffraction on a SMART APEX diffractometer (with MoK_α1 radiation: λ = 0.71073 Å). The structures were solved by direct methods (SHEL-XS³⁰). Anisotropic displacement parameters were refined for all non-hydrogen atoms using SHEL-XL³¹ available with the WinGX³² package. All hydrogen atoms were included in the models in calculated positions and were refined as contained to bonding atoms.

For (trans-N,N′-dibenzyldiaminocyclohexane)₁(2,3-dichloro-phenylacetic acid)₄, the final cycle of full-matrix least-square refinement on F² was based on 5300 observed reflections and 318 variable parameters and converged with unweighted and weighted agreement factors of R₁ = 0.0698, wR₂ = 0.1649 for 3171 reflections with I > 2σI and R₁ = 0.1165, wR₂ = 0.1888 for all data (see Table 1). Simulated morphology, calculated from the structural data with the geometric method published by Bravais, Friedel, Donnay and Harker (BFDH),²⁴ was determined, thanks to the Material Studio molecular modelling software.³³

For 2,3-dichlorophenylacetic acid, the final cycle of full-matrix least-square refinement on F² was based on 1774 observed reflections and 110 variable parameters and converged with unweighted and weighted agreement factors of R₁ = 0.0476, wR₂ = 0.1334 for 1523 reflections with I > 2σI and R₁ = 0.0537, wR₂ = 0.1334 for all data (see Table 3).

Conclusion

An unexpected hybrid salt–cocrystal between the dibase (H₂B²⁺) and four monoacids (2AH and 2A⁻) has been characterized. It crystallizes as a stable conglomerate. The stoichiometry of this compound emphasizes the importance of enlarging the “classic” stoichiometries when screening conglomerates.

The resolutions in methanol and in THF reveal that the entrainment effect, at its best, persists up to 22% e.e._final in the counter-enantiomer for a global concentration of 13% in methanol. Furthermore these results prove that the non-chiral protonated acid subslices do not induce any loss in the chiral selectivity of the self-assembling process (i.e. the stereoselective crystallization). The morphology of crystals and the high performance of AS3PC suggest that the crystal growth proceeds by direct incorporation of building units composed of H₂B²⁺, 2A⁻, 2AH or reconstruction of some surfaces of the crystal might occur.
