Simple and efficient copper metal-mediated synthesis of alkoxyamine initiators

Simon Harrisson , Patrick Couvreur and Julien Nicolas *
Laboratoire de Physico-Chimie, Pharmacotechnie et Biopharmacie, Univ Paris-Sud, UMR CNRS 8612, Faculté de Pharmacie, 5 rue Jean-Baptiste Clément, F-92296, Châtenay-Malabry cedex, France. E-mail: julien.nicolas@u-psud.fr; Fax: +33 1 46 83 59 46; Tel: +33 1 46 83 58 53

Received 28th March 2011 , Accepted 28th April 2011

First published on 27th May 2011


Abstract

A simple and efficient method is presented for the preparation of a wide range of alkoxyamines from nitroxide radicals and activated alkyl bromides at room temperature. The reaction requires a stoichiometric amount of copper metal (0.5 mol mol−1 alkyl bromide) and proceeds most rapidly in polar solvents such as acetonitrile, dimethyl sulfoxide or ethanol. No addition of copper(I) or copper(II) salts is necessary. Isolated yields of 71–94% were obtained across a range of alkyl bromide and nitroxide substrates, with reaction times of 1–16 h. The method is compatible with carboxylic acid and amine functionalities.


Introduction

Alkoxyamines of the form R1–ONR2R3, where R1 is a good homolytic leaving group, undergo reversible thermal homolysis of the R1–O bond to produce reactive R1˙ and persistent R2R3NO˙ free radicals. These compounds have found several applications in organic chemistry, including in the formation of heterobivalent libraries,1 radical cyclization2 and intermolecular addition reactions.2 The major application of alkoxyamines, however, is in nitroxide-mediated polymerization (NMP), a leading technique for the control of radical polymerizations.3 Early drawbacks of NMP, such as the requirement for high temperatures and applicability to a limited number of monomers, have been substantially overcome by the development of more active alkoxyamines derived from 2,2,5-trimethyl-4-phenyl-3-azahexane-3-oxyl (TIPNO)4 or N-tert-butyl-N-[1-diethylphosphono-(2,2-dimethylpropyl)] nitroxide (SG1)5 (Scheme 1).

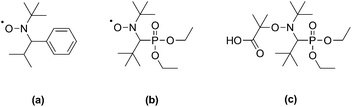

Structures of TIPNO (a) and SG1 (b) nitroxides, and of the SG1-based BlocBuilder MA alkoxyamine (c).
Scheme 1 Structures of TIPNO (a) and SG1 (b) nitroxides, and of the SG1-based BlocBuilder MA alkoxyamine (c).

These second-generation alkoxyamines have been successfully used to control the polymerization of styrenic and acrylic monomers with good control over molecular weight. In particular, N-(2-methylpropyl)-N-(1-diethylphosphono-2,2-dimethylpropyl)-O-(2-carboxylprop-2-yl) hydroxylamine (BlocBuilder MA, Scheme 1), based on SG1, is one of the most potent alkoxyamines developed so far. Its use has led to significant advances in the control of bulk/solution6–8 and emulsion9 polymerizations, and the preparation of functionalized polymers.10–13

Several routes have been developed for the synthesis of alkoxyamines,14,15 of which the most prominent are nucleophilic substitution of a hydroxylaminate anion on an alkyl halide, or the combination of an alkyl radical (generated in situ) with a stable nitroxide radical. The first method requires the preparation of a hydroxylamine and its anion. These compounds are generally quite unstable, and so this pathway has seen limited use, restricted to the preparation of some 2,2,6,6-tetramethylpiperidinyl-1-oxy (TEMPO) and di-tert-butyl nitroxide derivatives.

The second route is perhaps the most convenient and popular method for preparing alkoxyamines. The alkyl radical may be generated by thermolysis16 or photolysis17 of a radical initiator, or by homolytic scission of alkyl halides. The latter method was developed by Matyjaszewski et al.,18 who applied a concept from atom transfer radical polymerization (ATRP)19,20 to generate alkyl radicals by reaction of an activated alkyl bromide with CuBr (generated in situ by comproportionation of Cu metal and CuBr2). In this approach, the radicals were trapped by TEMPO or a related nitroxide to form the desired alkoxyamine. The versatility, high yield, simple purification and ready availability of brominated substrates have resulted in this method or variations thereof becoming one of the most popular for the production of alkoxyamines.1,21–30 A related technique involved the use of CuBr to generate polymeric radicals from ω-bromo polymers which were trapped in situ by functionalized nitroxides with high efficiency.31–36 However, the method is not without drawbacks: the original procedure18 was performed at elevated temperatures (55–75 °C) over 4–18 h, which would result in the decomposition of more labile SG1-based alkoxyamines. An optimized procedure21–23 gave good yields at room temperature but required the use of a 3-fold excess of copper (1–1.5 eq. Cu, 1.5–2 eq. CuBr relative to nitroxide) and excess activated alkyl bromide (1.5–2 eq. relative to nitroxide).

Recently, Percec et al. reported the controlled polymerization of acrylates and methacrylates mediated by Cu metal in dimethyl sulfoxide (DMSO).37 The polymerizations were rapid, with near complete conversion obtained in 10–30 minutes at room temperature. This system has since been extended to other solvents38,39 and monomers.40–42 These results, as well as some earlier reports of the use of Cu/alkyl halide as a radical generator,43–45 led us to consider the use of Cu metal as a reagent in the preparation of alkoxyamines. In this study, we report the synthesis of a small library of alkoxyamines from various alkyl halides and nitroxides in a very simple and efficient way using Cu metal. The reaction is summarized in Scheme 2.



          Copper metal-mediated reaction of alkyl halides with nitroxides (L = bipy or PMDETA).
Scheme 2 Copper metal-mediated reaction of alkyl halides with nitroxides (L = bipy or PMDETA).

Results and discussion

In an initial investigation, the reaction was performed in a number of different solvents of varying polarity at 30 °C, using ethyl 2-bromoisobutyrate (1 eq.) as the substrate, SG1 (1 eq.) as the nitroxide, N,N,N′,N′′,N′′-pentamethyldiethylenetriamine (PMDETA, 0.6 eq.) as the ligand and 0.2 mm diameter copper wire (0.5 eq.) as the reducing agent. The formation of alkoxyamine A1 (Table 1) was tracked using 1H NMR spectroscopy (Fig. 1) by comparing the area of the peak corresponding to the methyl groups of ethyl 2-bromoisobutyrate (δ 1.91 ppm, 6H) and the areas of the peaks corresponding to the methyl groups of the SG1 adduct (δ 1.57 and 1.67 ppm, 2 × 3H). The formation of the desired alkoxyamine was observed, which confirms the efficiency of the synthetic pathway employed here.
Table 1 Synthesis of alkoxyamines from alkyl bromides and nitroxides mediated by copper metal
Expt. R1–X R2R3NO˙ R1–ONR2R3 Liganda Solvent Cu (eq. to R1–X) Time /h Isolated yield
a PMDETA: N,N,N′,N′′,N′′-pentamethyldiethylenetriamine (1.2 eq. relative to Cu); bipy: 2,2′-bipyridine (2 eq. relative to Cu). b See ESI† for the synthetic procedure. c Cu powder was used in place of copper wire. d When PMDETA was used as ligand, no alkoxyamine was formed.
A1 PMDETA DMSO b 1c 1 94%
PMDETA DMSO b 0.5 2 91%
PMDETA MeCN 0.5 1 91%
PMDETA EtOH b 0.5 2 85%
A2 bipy MeCN 0.5 16 89%
PMDETA MeCN b 0.5 6 55%
A3 bipy d MeCN 0.5 16 89%
A4 bipy MeCN 1c 16 87%
PMDETA MeCN b 1c 16 55%
PMDETA MeCN 0.5c 16 32%
A5 PMDETA MeCN 1 16 78%c
A6 bipy d MeCN 0.5 16 71%
A7 PMDETA MeCN 0.5 3 87%
A8 PMDETA MeCN 0.5 3 72%



Extracts from 1H NMR spectra (CDCl3, 300 MHz) of the copper-mediated reaction between ethyl 2-bromo-2-methylpropionate and SG1 in DMSO, showing changing intensities of the peaks corresponding to methyl protons of ethyl 2-bromo-2-methylpropionate at 1.91 ppm and the SG1 adduct at 1.57 and 1.67 ppm.
Fig. 1 Extracts from 1H NMR spectra (CDCl3, 300 MHz) of the copper-mediated reaction between ethyl 2-bromo-2-methylpropionate and SG1 in DMSO, showing changing intensities of the peaks corresponding to methyl protons of ethyl 2-bromo-2-methylpropionate at 1.91 ppm and the SG1 adduct at 1.57 and 1.67 ppm.

In addition, the reaction was much more rapid in acetonitrile (MeCN), DMSO and ethanol (EtOH) than in ethyl acetate (EtOAc) and toluene, in accordance with previous polymerization results.38–40,46–48 The fastest reaction was observed in MeCN (Fig. 2). This is consistent with polymerization results which show that, at least in the early stages of polymerization, rates of copper-mediated polymerization in MeCN are similar to those in DMSO.47,48MeCN is more volatile than DMSO, and hence easier to remove during the purification step. Therefore it was used for subsequent copper metal-mediated reactions.

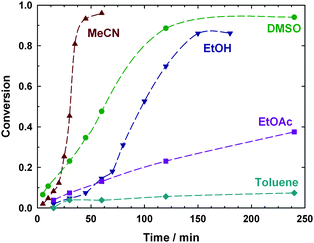

Effect of solvent on the rate of formation of alkoxyamine A1 in the copper-mediated reaction between 1 eq. ethyl 2-bromoisobutyrate and 1 eq. SG1 in the presence of 0.5 eq. Cu wire and 0.6 eq. PMDETA (lines connecting data points are guides for the eye only).
Fig. 2 Effect of solvent on the rate of formation of alkoxyamine A1 in the copper-mediated reaction between 1 eq. ethyl 2-bromoisobutyrate and 1 eq. SG1 in the presence of 0.5 eq. Cu wire and 0.6 eq. PMDETA (lines connecting data points are guides for the eye only).

A range of different alkyl halides and nitroxides were employed to determine the versatility of the method and to prepare a small library of alkoxyamines (Table 1). In a typical procedure, activated alkyl bromide (1 eq.) and nitroxide (1.08 eq.) were dissolved in 5 mL acetonitrile. Copper wire (0.2 mm diameter, 0.5 eq.) was added and the solution was sealed and degassed by bubbling with argon. PMDETA (0.6 eq.) was added by syringe. When 2,2′-bipyridine (bipy) was used as a ligand, 1 eq. of bipy was added prior to degassing. The different ratios of bipy[thin space (1/6-em)]:[thin space (1/6-em)]Cu and PMDETA[thin space (1/6-em)]:[thin space (1/6-em)]Cu reflect the different stoichiometries of the Cu(PMDETA)Br and Cu(bipy)2Br complexes.49 The reaction was stirred at room temperature for 1–16 h, depending on the substrate. While reactions involving the active tertiary substrate, ethyl 2-bromoisobutyrate (see A1 and A7–A8), were complete in 1–3 h, less active primary and secondary substrates were allowed to react for 16 h to ensure full conversion. The reaction mixture was diluted with EtOAc and copper(II) byproducts were removed by washing with dilute HCl, NaHCO3 and brine. The product was separated from any remaining copper and unreacted nitroxide by column chromatography on silica.

In some cases, low yields were obtained when PMDETA was used as a ligand (see A2–A4 and A6), possibly due to the formation of quaternary ammonium salts (1° and 2° halides) or base-catalyzed dehydrobromination (2° and 3° halides).50 In these cases, yields were significantly improved by substituting bipy (2 eq. relative to Cu) for PMDETA. With this modification, good isolated yields were obtained across a range of activated primary, secondary and tertiary bromide substrates.

Cu/PMDETA complexes are more active than Cu/bipy complexes in ATRP (KATRP = 7.5 × 10−8 and 3.9 × 10−9 respectively with ethyl 2-bromoisobutyrate in MeCN at 22 °C).51 This difference implies that Cu/PMDETA complexes will convert alkyl halides to radicals more rapidly than Cu/bipy complexes. This in turn should lead to a higher yield of alkoxyamines, the opposite of what was observed. Yields with PMDETA were generally observed to decrease as the substrate became less hindered (3° > 2° > 1° substrates), which is in line with expectations if the chief side reaction is formation of a quaternary ammonium salt with PMDETA, but inconsistent with side reactions such as excessive bimolecular termination caused by too-rapid formation of radicals.

Similar yields of alkoxyamine were obtained when copper powder was used in place of copper wire (see A1). From alkyl chloride substrates such as benzyl chloride and 2-chloropropionic acid, however, very low (≤5%) yields of alkoxyamine were obtained, perhaps due to the higher strength of the C–Cl bond compared to C–Br (data not shown). While increasing the temperature may have improved these yields, the appealing feature of a room temperature reaction would have been lost.

The acid-functionalized substrates, 2-methyl-2-bromopropionic acid (A4, the precursor to BlocBuilder MA) and 2-bromopropionic acid (A5), required the addition of an equimolar amount of copper powder in order to obtain the desired alkoxyamine in 70–90% yield after 16 h. When a stoichiometric amount (0.5 eq.) of copper powder was used in the synthesis of A4, a yield of only 32% was obtained after 16 h. The resulting acid-functionalized alkoxyamines were readily separated by dissolving the reaction mixture in a 1 M solution of NaOH, washing with diethyl ether, then acidifying the aqueous phase and extracting with dichloromethane. In contrast, the amine-functionalized alkoxyamine (A8) was prepared from TEMPO–NH2 in 72% isolated yield after 3 h reaction using a stoichiometric quantity (0.5 eq.) of copper wire. Another TEMPO derivative, 4-oxo-TEMPO, was also used with ethyl 2-bromo-2-methylpropionate to prepare the corresponding alkoxyamine (A7) in 87% yield.

The difficulty encountered in preparing acid-functionalized alkoxyamines may be due to protonation of the ligand (bipy or PMDETA) and its displacement from the copper(I) complex by the carboxylic acids of the substrate. Reaction mixtures containing acid substrates were blue, compared to the green solutions obtained from non-acid substrates, suggesting a change in the structure of the copper complex. While copper(I) acetate bis(4,4′-dinonyl-2,2′-bipyridine) has been shown to be an effective initiator of polymerization,52 acidic monomers such as methacrylic acid cannot be polymerized by ATRP except under basic conditions such that the acid is deprotonated.53 Even at high pH, Ashford et al. observed very low rates of polymerization of sodium methacrylate when using sodium 2-bromo-2-methylpropionate as an initiator.53 In our experiments with acid-functionalized substrates, twice the usual amount of copper metal was required to prepare the corresponding alkoxyamines in good yield, and nearly all of this copper was converted to copper salts (presumably copper(I)). This indicates that the presence of carboxylic acids inhibits the further oxidation of Cu(I) to Cu(II) by activated alkyl halides, probably by displacing the PMDETA or bipy ligands from the copper complex.

Experimental

Materials

All materials were used without further purification. N-tert-Butyl-N-(1-diethylphosphono-2,2-dimethylpropyl) nitroxide SG1 (85%) was kindly supplied by Arkema. All other reagents were obtained from Sigma-Aldrich at the highest available purity.

Instrumentation

1H and 13C NMR spectroscopy were performed in 5 mm diameter tubes in CDCl3 on a Bruker Avance-300 (300 MHz) spectrometer. The chemical shift scale was calibrated on the basis of the solvent peak (δ = 7.26 ppm). Mass spectrometry was performed on a Bruker Esquire-LC instrument using electrospray ionization with MeOH as solvent.

Kinetic experiments to determine the effect of solvent on the rate of formation of ethyl 2-methyl-2-[N-tert-butyl-N-(1-diethoxyphosphoryl-2,2-di-methylpropyl)-aminoxy] propionate (A1)

SG1 (0.94 g, 2.7 mmol), copper wire (0.2 mm diameter, 80 mg, 1.25 mmol), ethyl 2-bromo-2-methylpropionate (0.49 g, 2.5 mmol) and solvent (DMSO, EtOH, EtOAc, MeCN, or toluene, 5 mL) were added to a 25 mL round bottomed flask with magnetic stirrer bar. The flask was sealed with a rubber septum, placed in an oil bath at 30 °C, and degassed by bubbling with Ar for 10 min while stirring. N,N,N′,N′′,N′′-Pentamethyldiethylenetriamine (PMDETA, 0.3 mL, 0.25 g, 1.5 mmol) was added by syringe. The flask was stirred at 30 °C, and samples were removed by syringe at regular intervals. The samples were immediately diluted with CDCl3 and 1H NMR spectra were obtained. Conversion was calculated by comparing the area under the peak at 1.91 ppm (ethyl 2-bromo-2-methylpropionate, (CH3)2CBr, 6H) with the sum of the areas under the peaks at 1.57 and 1.67 ppm (SG1 adduct, (CH3)2CSG1, 2 × 3H) (Fig. 1).

Synthesis of alkoxyamines

General procedure. Activated alkyl bromide and nitroxide were dissolved in solvent (0.5 mL mmol−1 alkyl bromide). Copper wire or powder was added, and the solution was degassed by bubbling with Ar for 10 min. PMDETA was added by syringe. When bipy was used in place of PMDETA, it was dissolved in the solvent prior to degassing. The reaction was stirred at room temperature for 1–16 h depending on the substrate. The mixture was diluted with 50 mL EtOAc, washed with 10% HCl (3 × 30 mL), saturated NaHCO3 (3 × 30 mL) and sat. NaCl (30 mL). The organic phase was dried over MgSO4 and solvent was removed on a rotary evaporator.
Synthesis of A1. Synthesis followed the general procedure using SG1 (0.94 g, 2.7 mmol), ethyl 2-bromoisobutyrate (0.49 g, 2.5 mmol), Cu wire (80 mg, 1.25 mmol) and PMDETA (0.3 mL, 0.25 g, 1.5 mmol) in MeCN (5 mL). After 1 h, the product was separated according to the general procedure. A colorless oil was obtained (1.07 g) which crystallized on standing. The product was separated from its mother liquor by filtration. Yield: 0.703 g (69%) white crystals. A further 0.233 g product was separated from the mother liquor by column chromatography (1[thin space (1/6-em)]:[thin space (1/6-em)]1 EtOAc[thin space (1/6-em)]:[thin space (1/6-em)]hexane), total yield 0.936 g (91%). 1H NMR (CDCl3, 300 MHz, 25 °C): δ 1.08 ((CH3)3C, s, 9H), 1.17 ((CH3)3C, s, 9H), 1.21–1.33 ((CH3CH2O)2P + CH3CH2OCO, m, 9H), 1.58 ((CH3)2C, s, 3H), 1.63 ((CH3)2C, s, 3H), 3.26 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 25.8 Hz), 3.85–4.45 ((CH3CH2O)2P + CH3CH2OCO, m, 6H). 13C NMR (CDCl3, 75 MHz, 25 °C): δ 13.9 (CH3CH2OCO), 16.0 (CH3CH2OP, d, 3JC-P = 6.4 Hz), 16.4 (CH3CH2OP, d, 3JC-P = 5.8 Hz), 22.3 ((CH3)2C), 27.8 ((CH3)2C), 28.0 ((CH3)3CN), 29.8 ((CH3)3CCHP, d, 3JC-P = 5.3 Hz), 35.7 ((CH3)3CCHP, d, 2JC-P = 6.3 Hz), 58.3 (CH3CH2OP, d, 2JC-P = 7.3 Hz), 60.5 (CH3CH2OCO), 61.5 (CH3CH2OP, d, 2JC-P = 5.9 Hz), 61.9 ((CH3)3CN), 69.9 ((CH3)3CCHP, d, 1JC-P = 137 Hz), 83.4 ((CH3)2CCO2Et), 174.7 ((CH3)2CCO2Et) ppm. MS (ESI): m/z = 432 (M + Na+). Calc. for C19H40NNaO6P: 432.3.
Synthesis of (1-[N-tert-butyl-N-(1-diethoxyphosphoryl-2,2-di-methylpropyl)aminoxy]ethyl) benzene (A2). Synthesis followed the general procedure using SG1 (0.94 g, 2.7 mmol), (1-bromoethyl) benzene (0.463 g, 2.5 mmol), Cu wire (80 mg, 1.25 mmol) and bipy (0.4 g, 2.5 mmol) in MeCN (5 mL). After 16 h, the copper had dissolved and a green precipitate had formed. The product was separated according to the general procedure and purified by column chromatography on silica using 25% EtOAc/cyclohexane as the eluent. Yield: 0.888 g (89%) as a colorless oil containing a mixture of diastereomers. 1H NMR (CDCl3, 300 MHz, 25 °C): major diastereomer: δ 0.88 ((CH3CH2O)2P, t, 3H, J = 7.1 Hz), 1.21 (2 × (CH3)3C, s, 18H), 1.23–1.26 ((CH3CH2O)2P, m, 3H), 1.56 (CH3CH(Ph)O, d, 3H, J = 6.6 Hz), 3.40 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 26.1 Hz), 3.15–4.05 ((CH3CH2O)2P, m, 4H), 5.24 (CH3CH(Ph)O, q, 1H, J = 6.6 Hz), 7.15–7.50 (C6H5, m, 5H) ppm. Minor diastereomer: δ 0.83 ((CH3)3C, s, 9H), 1.09–1.37 ((CH3CH2O)2P, m, 6H), 1.23 ((CH3)3C, s, 9H), 1.59 (CH3CH(Ph)O, d, 3H, J = 6.8 Hz), 3.34 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 26.1 Hz), 3.75–4.45 ((CH3CH2O)2P, m, 4H), 4.98 (CH3CH(Ph)O, q, 1H, J = 6.7 Hz), 7.25–7.35 (C6H5, m, 5H) ppm. 13C NMR (CDCl3, 75 MHz, 25 °C): major diastereomer: 16.3 (CH3CH2OP, d, 3JC-P = 6.3 Hz), 16.7 (CH3CH2OP, d, 3JC-P = 5.5 Hz), 28.2 ((CH3)3CN), 28.6 (CH3CH(Ph)O), 30.6 ((CH3)3CCHP, d, 3JC-P = 5.8 Hz), 35.3 (Me3CCHP, d, 2JC-P = 5.0 Hz), 58.6 (CH3CH2OP, d, 2JC-P = 7.5 Hz), 61.2 (CH3CH2OP), 61.6 (Me3CN), 70.1 (tBuCHP, d, 1JC-P = 139 Hz), 78.3 (MeCH(Ph)O), 127.1 (C6H5, para), 127.9 (C6H5, meta), 126.9 (C6H5, ortho), 143.3 (C6H5, quat.) ppm. Minor diastereomer: 16.3 (CH3CH2OP, d, 3JC-P = 6.3 Hz), 16.7 (CH3CH2OP, d, 3JC-P = 5.5 Hz), 24.1 (CH3CH(Ph)O), 28.5 ((CH3)3CN), 30.1 ((CH3)3CCHP, d, 3JC-P = 5.5 Hz), 35.6 (Me3CCHP, d, 2JC-P = 5.7 Hz), 58.8 (CH3CH2OP, d, 2JC-P = 7.2 Hz), 61.1 (CH3CH2OP), 61.6 (Me3CN), 69.8 (tBuCHP, d, 1JC-P = 139 Hz), 85.3 (MeCH(Ph)O), 127.3 (C6H5, ortho), 127.8 (C6H5, para), 128.0 (C6H5, meta), 145.4 (C6H5, quat.) ppm. MS (ESI): m/z = 422 (M + Na+). Calc. for C21H38NNaO4P: 422.2.
Synthesis of 2-[N-tert-butyl-N-(1-diethoxyphosphoryl-2,2-di-methylpropyl)aminoxy] acetonitrile (A3). Synthesis followed the general procedure using SG1 (0.94 g, 2.7 mmol), bromoacetonitrile (0.30 g, 2.5 mmol), Cu wire (80 mg, 1.25 mmol) and bipy (0.4 g, 2.5 mmol) in MeCN (5 mL). After 16 h, the copper had dissolved and a green precipitate had formed. The product was separated according to the general procedure and purified by column chromatography on silica using 50% EtOAc/cyclohexane as the eluent. Yield: 0.743 g (89%) as a pale yellow oil which crystallized on standing. 1H NMR (CDCl3, 300 MHz, 25 °C): δ 1.13 ((CH3)3C, s, 9H), 1.18 ((CH3)3C, s, 9H), 1.30 ((CH3CH2O)2P, t, 6H, 3JH-H = 7.0 Hz), 3.27 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 16.0 Hz), 3.85–4.30 ((CH3CH2O)2P, m, 4H), 4.48 (OCH2CN, d, 1H, 2JH-H = 15.7 Hz), 4.80 (OCH2CN, d, 1H, 2JH-H = 15.5 Hz). 13C NMR (CDCl3, 75 MHz, 25 °C): 16.2 (CH3CH2OP, d, 3JC-P = 6.7 Hz), 16.6 (CH3CH2OP, d, 3JC-P = 5.3 Hz), 27.5 ((CH3)3CN), 29.7 ((CH3)3CCHP, d, 3JC-P = 5.2 Hz), 35.3 (Me3CCHP, d, 2JC-P = 4.1 Hz), 59.5 (CH3CH2OP, d, 2JC-P = 7.0 Hz), 61.5 (Me3CN), 61.7 (CH3CH2OP, d, 2JC-P = 6.4 Hz), 62.5 (OCH2CN), 69.5 (tBuCHP, d, 1JC-P = 140 Hz), 115.6 (OCH2CN) ppm. MS (ESI): m/z = 357 (M + Na+). Calc. for C15H31N2NaO4P: 357.2.
Synthesis of 2-[N-tert-butyl-N-(1-diethoxyphosphoryl-2,2-di-methylpropyl)aminoxy] 2-methyl propionic acid (A4, BlocBuilder MA). Synthesis followed the general procedure using SG1 (0.94 g, 2.7 mmol), 2-bromo-2-methyl propionic acid (0.418 g, 2.5 mmol), Cu powder (160 mg, 2.5 mmol) and bipy (0.8 g, 5 mmol) in MeCN (5 mL). After 16 h, most copper had dissolved and a green precipitate had formed. The mixture was diluted with 50 mL 1 MNaOH. The aqueous phase was washed with Et2O (3 × 30 mL), then acidified with concentrated HCl and extracted with CH2Cl2 (3 × 30 mL). The organic phase was dried over MgSO4 and solvent was removed on a rotary evaporator. Yield: 0.835 g (87%) as a pale green crystalline solid. 1H NMR (CDCl3, 300 MHz, 25 °C): δ 1.15 ((CH3)3C, s, 9H), 1.24 ((CH3)3C, s, 9H), 1.28–1.41 ((CH3CH2O)2P, m, 6H), 1.60 ((CH3)2C, s, 3H), 1.79 ((CH3)2C, s, 3H), 3.41 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 26.4 Hz), 3.95–4.40 ((CH3CH2O)2P, m, 4H) ppm. 13C NMR (CDCl3, 75 MHz, 25 °C): δ 16.1 (CH3CH2OP, d, 3JC-P = 6.6 Hz), 16.5 (CH3CH2OP, d, 3JC-P = 5.4 Hz), 24.3 ((CH3)2C), 28.3 ((CH3)2C), 28.7 ((CH3)3CN), 29.8 ((CH3)3CCHP, d, 3JC-P = 5.4 Hz), 36.1 (Me3CCHP, d, 2JC-P = 5.9 Hz), 60.3 (CH3CH2OP, d, 2JC-P = 7.7 Hz), 62.4 (CH3CH2OP, d, 2JC-P = 6.6 Hz), 63.3 (Me3CN), 69.9 (tBuCHP, d, 1JC-P = 137 Hz), 84.8 (Me2CCOOH), 176.8 (Me2CCOOH) ppm. MS (ESI): m/z = 382 (M + H+). Calc. for C17H37NO6P: 382.2.
Synthesis of 2-[N-tert-butyl-N-(1-diethoxyphosphoryl-2,2-di-methylpropyl)aminoxy] propionic acid (A5, AMA-SG1). Synthesis followed the general procedure using SG1 (0.94 g, 2.7 mmol), 2-bromo-2-methyl propionic acid (0.418 g, 2.5 mmol), Cu powder (160 mg, 2.5 mmol) and PMDETA (0.6 mL, 0.5 g, 3 mmol) in MeCN (5 mL). After 16 h, most copper had dissolved and a green precipitate had formed. The mixture was diluted with 50 mL 1 MNaOH. The aqueous phase was washed with Et2O (3 × 30 mL), then acidified with concentrated HCl and extracted with CH2Cl2 (3 × 30 mL). The organic phase was dried over MgSO4 and solvent was removed on a rotary evaporator. Yield: 0.723 g (78%) as a colorless oil which crystallized on standing. 1H NMR (CDCl3, 300 MHz, 25 °C): major diastereomer: δ 1.17 ((CH3)3C, s, 9H), 1.18 ((CH3)3C, s, 9H), 1.21–1.38 ((CH3CH2O)2P, m, 6H), 1.54 (CH3CHCOOH, d, 3H, 3JH-H = 6.9 Hz), 3.31 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 25.7 Hz), 3.90–4.28 ((CH3CH2O)2P, m, 4H), 4.60 (CH3CHCOOH, q, 1H, J = 6.9 Hz) ppm. Minor diastereomer: δ 1.12 ((CH3)3C, s, 9H), 1.17 ((CH3)3C, s, 9H), 1.21–1.38 ((CH3CH2O)2P, m, 6H), 1.49 (CH3CHCOOH, d, 3H, 3JH-H = 7.0 Hz), 3.37 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 27.5 Hz), 3.96–4.36 ((CH3CH2O)2P, m, 4H), 4.54 (CH3CHCOOH, q, 1H, J = 7.0 Hz) ppm. 13C NMR (CDCl3, 75 MHz, 25 °C): major diastereomer: 16.1 (CH3CH2OP, d, 3JC-P = 5.7 Hz), 16.3 (CH3CH2OP, d, 3JC-P = 4.5 Hz), 18.5 (CH3CHCOOH), 27.7 ((CH3)3CN), 30.2 ((CH3)3CCHP, d, 3JC-P = 5.7 Hz), 35.5 (Me3CCHP, d, 2JC-P = 4.5 Hz), 60.6 (CH3CH2OP, d, 2JC-P = 7.8 Hz), 62.5 (CH3CH2OP, d, 2JC-P = 7.4 Hz), 62.5 (Me3CN), 68.1 (tBuCHP, d, 1JC-P = 139 Hz), 81.4 (MeCHCOOH), 174.3 (MeCHCOOH) ppm. Minor diastereomer: 16.0 (CH3CH2OP, d, 3JC-P = 6.0 Hz), 16.3 (CH3CH2OP, d, 3JC-P = 4.8 Hz), 18.9 (CH3CHCOOH), 27.8 ((CH3)3CN), 29.6 ((CH3)3CCHP, d, 3JC-P = 5.6 Hz), 35.5 (Me3CCHP, d, 2JC-P = 4.5 Hz), 59.7 (CH3CH2OP, d, 2JC-P = 7.4 Hz), 62.2 (CH3CH2OP, d, 2JC-P = 7.8 Hz), 62.2 (Me3CN), 69.5 (CH3CH2OP, d, 1JC-P = 141 Hz), 82.3 (MeCHCOOH), 175.4 (MeCHCOOH) ppm. MS (ESI): m/z = 368 (M + H+). Calc. for C16H35NO6P: 368.2.
Synthesis of N-tert-butyl-N-(1-diethoxyphosphoryl-2,2-di-methylpropyl)aminoxymethyl benzene (A6). Synthesis followed the general procedure using SG1 (0.94 g, 2.7 mmol), benzyl bromide (0.428 g, 2.5 mmol), Cu wire (80 mg, 1.25 mmol) and bipy (0.4 g, 2.5 mmol) in MeCN (5 mL). After 16 h, the copper had dissolved and a green precipitate had formed. The product was separated according to the general procedure and purified by column chromatography on silica using 25% EtOAc/cyclohexane as the eluent. Yield: 0.688 g (71%) as a colorless oil. 1H NMR (CDCl3, 300 MHz, 25 °C): δ 1.03 ((CH3CH2O)2P, t, 3H, J = 7.1 Hz), 1.19 ((CH3)3C, s, 9H), 1.23 ((CH3)3C, s, 9H), 1.25 ((CH3CH2O)2P, t, 3H, J = 7.1 Hz), 3.28 ([double bond splayed left]CHPO3Et2, d, 1H, 2JH-P = 24.4 Hz), 3.4–4.1 ((CH3CH2O)2P, m, 4H), 4.58 (PhCH2O, d, 1H, J = 9.4 Hz), 5.23 (PhCH2O, d, 1H, J = 9.5 Hz), 7.2–7.5 (C6H5, m, 5H) ppm. 13C NMR (CDCl3, 75 MHz, 25 °C): 16.2 (CH3CH2OP, d, 3JC-P = 6.8 Hz), 16.4 (CH3CH2OP, d, 3JC-P = 5.8 Hz), 27.8 ((CH3)3CN), 30.1 ((CH3)3CCHP, d, 3JC-P = 5.9 Hz), 35.3 (Me3CCHP, d, 2JC-P = 5.3 Hz), 58.8 (CH3CH2OP, d, 2JC-P = 7.2 Hz), 61.6 (CH3CH2OP, d, 2JC-P = 6.4 Hz), 62.0 (Me3CN), 69.7 (CH3CH2OP, d, 1JC-P = 140 Hz), 77.8 (PhCH2O), 127.7 (C6H5, para), 128.0 (C6H5, meta), 129.6 (C6H5, ortho), 136.8 (C6H5, quat.) ppm. MS (ESI): m/z = 408 (M + Na+). Calc. for C20H36NNaO4P: 408.2.
Synthesis of ethyl 2-[2,2,6,6-tetramethyl-4-oxopiperidinyloxy]-2-methyl propionate (A7). Synthesis followed the general procedure using 4-oxo-TEMPO (0.23 g, 1.35 mmol), ethyl 2-bromo-2-methylpropionate (0.244 g, 1.25 mmol), Cu wire (40 mg, 0.63 mmol) and PMDETA (0.15 mL, 0.13 g, 0.71 mmol) in MeCN (5 mL). After 3 h, the copper had dissolved. The product was separated according to the general procedure and purified by column chromatography on silica using 25% EtOAc/cyclohexane as the eluent. Yield: 0.310 g (87%) as a colorless oil which crystallized on standing. 1H NMR (CDCl3, 300 MHz, 25 °C): δ 1.16 (CH3 (ring), s, 6H), 1.20 (CH3 (ring), s, 6H), 1.29 (CH3CH2O, 3H, J = 7.1 Hz), 1.52 ((CH3)2CCO2Et, s, 6H), 2.20 (CH2 (ring), d, 2H, J = 13.2 Hz), 2.58 (CH2 (ring), d, 2H, J = 13.1 Hz), 4.17 (CH3CH2O, q, 3H, J = 7.1 Hz) ppm. 13C NMR (CDCl3, 75 MHz, 25 °C): 14.1 (CH3CH2O), 22.4 (CH3 (ring)), 24.6 (CH3 (ring)), 33.0 ((CH3)2CCO2Et), 53.8 (CH2 (ring)), 60.8 (CH3CH2O), 62.7 (Me2C (ring)), 81.7 (Me2CCO2Et), 175.3 (CO2Et), 208.1 (C[double bond, length as m-dash]O (ring)) ppm. MS (ESI): m/z = 308 (M + Na+). Calc. for C15H27NNaO4: 308.2.
Synthesis of ethyl 2-[4-amino-2,2,6,6-tetramethylpiperidinyloxy]-2-methyl propionate (A8). Synthesis followed the general procedure using 4-amino-TEMPO (0.431 g, 2.43 mmol), ethyl 2-bromo-2-methylpropionate (0.442 g, 2.25 mmol), Cu wire (72.5 mg, 1.18 mmol) and PMDETA (0.27 mL, 0.22 g, 1.3 mmol) in MeCN (5 mL). After 3 h, the copper had dissolved. The mixture was diluted with 50 mL 1 MNaOH and extracted with EtOAc (3 × 30 mL). The organic phase was extracted with 10% HCl (3 × 30 mL) and the combined aqueous phases were then made basic by the addition of 50% NaOH solution. The aqueous phase was extracted with EtOAc and dried over MgSO4. Solvent was removed on a rotary evaporator. The product was recovered as an off-white, waxy solid. Yield: 0.649 g (72%). 1H NMR (CDCl3, 300 MHz, 25 °C): δ 1.01 (CH3 (ring), s, 6H), 1.1–1.3 (CH2 (ring), m, 2H), 1.18 (CH3 (ring), s, 6H), 1.28 (CH3CH2O, t, 3H, J = 7.2 Hz), 1.45 ((CH3)2CCO2Et, s, 6H), 1.6–1.75 (CH2 (ring), m, 2H), 2.9–3.1 (CHNH2, m, 1H), 4.16 (CH3CH2O, q, 2H, J = 7.1 Hz) ppm. 13C NMR (CDCl3, 75 MHz, 25 °C): 14.1 (CH3CH2O), 21.3 (CH3 (ring)), 24.5 (CH3 (ring)), 33.4 ((CH3)2CCO2Et), 41.8 (CH2 (ring)), 50.5 (CHNH2), 59.8 (Me2C (ring)), 60.6 (CH3CH2O), 81.2 (Me2CCO2Et), 175.9 (CO2Et) ppm. MS (ESI): m/z = 287 (M + H+). Calc. for C15H31N2O3: 287.2.

Conclusions

A simple and efficient method has been developed for the preparation of alkoxyamines, including thermally labile SG1-based alkoxyamines such as BlocBuilder MA, which has been demonstrated to be particularly efficient for the control of radical polymerizations. This method is compatible with a wide range of functionalities, including acid and amine groups. A stoichiometric amount of copper metal is used as a reducing agent, with no requirement for addition of copper(I) or copper(II) salts at the start of the reaction. The reaction proceeds rapidly at room temperature in polar solvents such as MeCN, EtOH or DMSO. Copper wire is a cheap and convenient reducing agent, whose dissolution provides a useful visual indication of the progress of the reaction. Purification is straightforward, and isolated yields of 71–94% are obtained across a wide range of activated alkyl bromide and nitroxide substrates.

Acknowledgements

The research leading to these results has received funding from the European Research Council under the European Community's Seventh Framework Programme FP7/2007-2013 (Grant Agreement No. 249835). The authors are grateful to Arkema for kindly providing the SG1 nitroxide. CNRS and French ministry of research are warmly acknowledged for funding.
