High yield synthesis of novel boron nitride submicro-boxes and their photocatalytic application under visible light irradiation

Abstract

In this study, hexagonal boron nitride submicro-boxes (BNMB) (0.50–1.4 μm) have been synthesized by using KBH₄, NH₄F and Zn in a stainless steel autoclave at 450 °C. The formation process was studied by XRD, TEM and EDS, and it is considered that the in situ formed KZnF₃ intermediate cubes serve as templates for the formation of BNMB. The as-formed BNMB, with unique structural features, high specific surface area (∼86.9 m² g⁻¹) and good chemical properties, can be applied as a catalyst support for SnO₂. The UV-Vis diffuse reflectance spectrum of SnO₂/BNMB shows the absorption edge in the visible region (∼470 nm), making it suitable for photocatalytic application. The experimental result indicates that the SnO₂/BNMB exhibited excellent photocatalytic activity on the degradation of methyl orange (MO), which was up to 92% after 30 min of visible-light (λ > 420 nm) irradiation. The good photocatalytic activity was attributed mainly to its suitable band gap energy, strong adsorption ability for MO, and effective charge separation at the SnO₂/BNMB photocatalyst interface.

---

1 Introduction

Owing to their unique properties and wide promising applications in encapsulation and controlled release of materials, robust catalysts and carriers, chemical and biological sensing, and energy-storage media, many efforts have been dedicated to the fabrication of micro- and nanobox materials.^1–3 Therefore, various hollow box materials such as Au, Pt, Cu, Cu_xS, SnO₂, Co₃O₄, Fe(OH)_x, WS₂, C, PbSe, HZSM-5 and CaTiO₃ have been successfully prepared.^4–15 Hexagonal boron nitride (h-BN) boxes may be an ideal candidate for functional materials due to their distinct advantages in comparison to other materials. As an important III–V compound, h-BN exhibits a series of remarkable properties like superb thermal stability and oxidation resistance, good mechanical strength and chemical inertness, unique luminescence and biocompatibility,^16–18 which can be quite important for a wide range of technical applications. Furthermore, for its high void ratio, large specific surface area and light weight, h-BN with hollow interiors has many potential/demonstrated applications, such as protective shields for materials, carriers for functional species, in building skeletons to construct devices, biological probes or catalyst supports. Accordingly, considerable effort has been directed toward the synthesis and functionalization of various BN hollow structures, e.g. micro-/nanotubes, nanoribbons, nanocages and hollow spheres.^19–22 However, for h-BN box structures, especially BN microboxes with well-defined hollow interiors, large void and high specific surface areas have not yet been well studied, which still remains a challenge to material researchers.

Tin oxide (SnO₂) is a promising photocatalyst on account of its excellent photoelectronic properties and physicochemical stabilities. However, pure SnO₂ only exhibits photocatalytic activities under UV irradiation due to its large band gap (E_g = 3.6 eV). Recently, nanoporous SnO₂ and SnO₂ bipods have been prepared and they have shown visible light photocatalysis for organic dye due to their distinctive particle form.^23,24 A drawback of these materials is that the recovery of nanosized photocatalysts in the aqueous phase has been greatly limited, for the separation of fine particles from treated water is usually difficult. To overcome this problem and improve photocatalytic performance of SnO₂, current studies hereby should focus on the immobilization of the SnO₂ photocatalyst onto appropriate supports.

Recently, catalytic active phases loaded on promising supports could create opportunities for substantial progress in numerous fields, and h-BN is one of these significant supports for catalysts. There are several reports published about the good performance of boron-nitride-based catalysts for catalytic applications, including deep oxidation of volatile organic compounds, hydrogen production, ammonia synthesis, NO_x reduction or selective hydrogenation, etc.^21,25–28 because of their low density, excellent chemical inertness and environmental friendliness. In addition, particular advantages of h-BN are its layered structure and hydrophobic nature. Several reports demonstrate that photocatalysts loaded on the high surface area supports with layered structure or hydrophobic property, such as SnO₂/MgAl-layered double hydroxide, TiO₂/Si₃N₄, and TiO₂/hydrophobic mesoporous Si,^29–31 show enhanced photocatalytic activity for degrading organic pollutants in an aqueous system. That may be because the hydrophobic support possesses favourable absorption ability for organic contaminants. Likewise, layered or high surface area materials exhibit the high adsorption capacity for organic dyes, available for enhanced photocatalytic reactivity. Moreover, a photocatalyst loaded on a layered structure is beneficial for reducing the rapid recombination of photogenerated electron–hole pairs which are necessary for the photocatalytic reaction.^29,32 However, the above reports sometimes involve complicated experimental processes, toxic or dangerous starting materials, limited chemical stability, and the related photocatalyst only active under UV irradiation. Thus, having in mind all the mentioned advantages of BNMB, it is of great interest to consider that BNMB could be advantageously used as a photocatalyst support for SnO₂.

In this study, the fabrication of a novel BNMB with a high yield was fulfilled by using KBH₄, NH₄F and Zn in a stainless steel autoclave at 450 °C. The edge length of the BNMB was in the range of 0.50–1.4 μm and the thickness was of about 20–30 nm. According to the fact that solid cubes (TEM observation), KZnF₃ phase (XRD pattern) as well as K, Zn, F elements (EDS spectrum) were detected in the crude samples, an in situ template role of cubic KZnF₃ was considered. The total surface area of the BNMB calculated from the analysis of N₂ adsorption isotherm data is ∼86.9 m² g⁻¹, suitable for using as a catalyst support. Therefore, in the second part of the work, the SnO₂ photocatalyst was deposited on BNMB by a simple wet chemistry method. The as-formed SnO₂/BNMB has the absorption edge at ∼470 nm corresponding to the band gap energy of 2.4 eV, making it suitable as an effective photocatalyst for photocatalytic application. And the photocatalytic performance of SnO₂/BNMB has been investigated via photocatalytic degradation of MO under visible irradiation.

2 Experimental

2.1 Synthesis

All the chemical reagents were of analytical-grade purity (Shanghai Chem. Co.) and were used without further purification. In a typical synthesis process, KBH₄ (0.015 mol), NH₄F (0.105 mol) and Zn powder (0.045 mol) were mixed and put into a 20 mL stainless steel autoclave. The autoclave was sealed and heated from room temperature to 450 °C with a heating rate of 10 °C min⁻¹, and then it was maintained at the target temperature for 30 h. After the autoclave was cooled to room temperature naturally, the crude product was collected and washed with dilute hydrochloric acid and distilled water several times to remove impurities. Finally, the product was dried in a vacuum at 80 °C for 6 h. To date, there has been no research on the preparation and catalytic properties of the SnO₂ photocatalyst loaded on BNMB. Here, a common wet chemistry method was applied to the preparation of SnO₂/BNMB composites.³³SnCl₂ powders (1.6 g, anhydrous, Alfa, 99%) were dissolved in distilled water (100 mL), and then HCl (1.2 mL, 38%) and BNMB (0.3 g) were added, respectively. The mixed solution was stirred and refluxed at 100 °C, and maintained at this temperature for 5 h. As the system was cooled to room temperature naturally, the as-formed sample was collected and washed with distilled water to a neutral pH. The as-formed SnO₂/BNMB composites were obtained after they were dried in a vacuum at 80 °C for 6 h and finally collected.

2.2 Characterization

The products were determined by a Bruker D8 advanced X-ray diffractometer with Cu-Kα radiation, Fourier transformation infrared spectroscopy (FTIR, VERTEX-70), and the Raman spectrum (NEXUS 670). To observe the morphology and structure of the samples, high-resolution electron microscopy (HRTEM, JEOL-2100) and field emission scanning electron microscopy (FESEM, JEOL JSM-7600F) were performed. Thermal gravimetric analysis (TGA) was performed on a Mettler Toledo TGA/SDTA 851 thermal analyzer apparatus under an ambient atmosphere. The BET surface area (SBET) and Barrett–Joyner–Halenda (BJH) pore size distribution (PSD) were measured using a QuadraSorb SI surface area analyzer. The optical absorption spectrum was conducted by a UV-Vis-NIR spectrometer (Shimadzu, UV-1700), and the CL spectrum was collected at room temperature with a Hitachi S4200 instrument. A diffuse reflectance UV-Vis spectrophotometer (DRS, TU-1901) was used to obtain the optical absorption spectra of photocatalysts and mass spectrometry (Agilent 6510 Q-TOF MS) was used to monitor the degradation process of MO.

2.3 Catalytic measurement

The photocatalysis experiments of the SnO₂/BNMB were carried out in a 100 mL cylindrical Pyrex glass reactor which contains 50 mL (25 mg L⁻¹) of MO aqueous solution and 0.025 g of photocatalysts. First, the suspension was stirred under dark conditions for 30 min to establish an adsorption–desorption equilibrium. Then, the aqueous suspension was irradiated under a 300 W xenon lamp (PLS-SXE300) which has an UV-cut-off filter as the visible light source (irradiation in the range of λ > 420 nm). Analytical samples were taken from the reaction systems every ten minutes and centrifuged to separate photocatalysts before analysis. The characteristic absorption of MO at λ = 464 nm is selected to monitor the photocatalytic degradation process, and the rate of degradation is estimated from residual concentration spectrophotometrically.

3 Results and discussion

The typical XRD pattern of the sample obtained at 450 °C for 30 h is shown in Fig. 1a. All the diffraction peaks can be indexed as hexagonal boron nitride, the calculated lattice constant (a = 2.501 Å, c = 6.669 Å) is in accord with the reported value (JCPDS card no. 34-0421). It is worth noting that the Bragg diffraction peak (002) shifts slightly to a lower angle compared to that of the well-crystalline h-BN, which indicates lattice expansion between two adjacent BN slabs along the c-axis. That could be attributed to the introduction of the strain owing to the curvature of the h-BN layers.³⁴ Meanwhile, the broadening of the (002) peak is caused by the coherent X-ray scattering of the reduced domain size in the direction that is perpendicular to the (00l) plane. Fig. 1b shows the typical FTIR spectrum of the sample. Two main characteristic absorption bands can be observed around 1377 and 814 cm⁻¹. The former can be attributed to the stretching vibration of the B–N bond, while the latter belongs to the B–N–B out-of-plane bending vibrations.³⁵ The weak absorption bands near 3420 and 3400 cm⁻¹ result from the residual N–H stretching and O–H vibrations that adsorbed on the sample surface. The corresponding Raman spectrum of the sample displays a dominant peak centered at 1368 cm⁻¹ which could be ascribed to the E_2g symmetric vibration mode due to the in-plane atomic displacement of B and N atoms (see Fig. 1c).

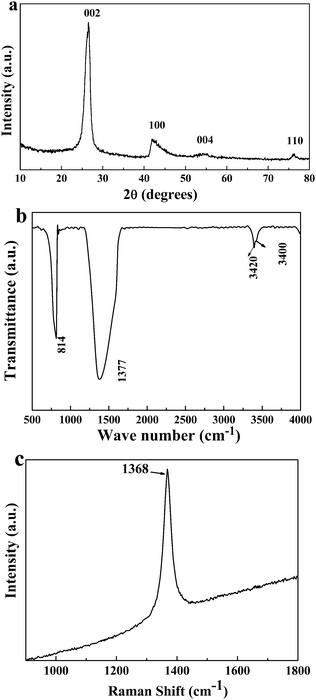

Fig. 1 (a) The typical XRD pattern of the sample obtained at 450 °C for 30 h, (b) the FTIR and (c) Raman spectrum of the as-formed sample.

The morphology of the sample was characterized by TEM and HRTEM. Fig. 2a shows a typical TEM image of the as-prepared sample, in which microboxes with well-defined shape can be observed. The sizes of the boxes typically range from 0.5 to 1.4 μm, and the strong contrast between the dark edges and the brighter centre is clearly indicative of their hollow nature. Fig. 2b gives the SEM image of an individual microbox with parallelepiped hexahedral morphology. A typical HRTEM image of the corner of a BN microbox is shown in Fig. 2c, the interspace between two adjacent layers is ∼0.34 nm, which corresponds to that of the bulk h-BN (0.333 nm). The selected area electron diffraction pattern (inset in Fig. 2c) could be indexed to the (002), (100), (004) and (110) planes of h-BN crystallites and the polycrystalline nature of BNMB could be confirmed. The SEM image of the obtained sample is shown in Fig. 2d, which demonstrates that the structural integrity of BNMB is retained after processing. It is worth noting that some microboxes show twisted and disordered facets, which is also displayed in the corresponding TEM image (inset in Fig. 2d). The sample after ultrasonic treatment for five minutes shown in Fig. 2e further implies that these BNMB have hollow structures. Most of BNMB surfaces are cracked to some extent due to the introduction of high intensity ultrasonic vibration.

Fig. 2 (a) A typical TEM image of the as-obtained BNMB. (b) SEM of an enlarged view of a microbox. (c) HRTEM image of a part of one microbox shell. Inset in (c) shows the corresponding SAED pattern of the microbox. (d) Low-magnification SEM and corresponding TEM images of BNMB (inset in d). (e) SEM image of broken hollow microboxes after ultrasonic treatment.

The UV absorption spectrum was used to investigate the optical properties of the sample (Fig. 3a). The absorption band centered at 200 nm could be attributed to the saddle point transition Q₂⁻–Q₂⁻ in the band structure of h-BN.³⁶ It is noteworthy that the spectrum shows multiple small split absorption bands near 200 nm, which may be the reflection of phonon–electron coupling.³⁷ Cathodoluminescence (CL) spectroscopy was used to evaluate the luminescence property of the sample. In Fig. 3b, a relatively broad emission peak with a maximum value at 330 nm is observed, which can be assigned to deep levels in the band gap due to intrinsic impurities or structure defects, such as O impurities and nitrogen or boron vacancies that are caused by the curling up h-BN sheets.³⁸ The UV absorption and CL emission properties, similar to previous reports, reveal that BNMB are promising candidates for deep-blue and UV applications such as blue light and UV emitters.

Fig. 3 UV-Vis absorption spectrum (a) and the corresponding CL emission spectrum (b) of the sample measured at room temperature.

A nitrogen cryo-adsorption/desorption isotherm and the corresponding pore size distribution curve of the sample are shown in Fig. 4a. The curve displays an adsorption–desorption hysteresis at a relative pressure of approximately 0.3–1.0, which can be attributed to the formed inhomogeneous mesopores during the aggregation of the nanocrystals. The value of specific surface area of the sample is 86.9 m² g⁻¹, which is larger than that of the commercial h-BN (∼25.3 m² g⁻¹), and the average pore size of the sample derived from the desorption branch of the isotherm is 3.97 nm with a narrow distribution (inset in Fig. 4a). The TGA curve of the sample is observed from Fig. 4b. The weight of the product has not changed significantly below 900 °C, while an obvious weight gain is observed between 900–1100 °C for the oxidation of the h-BN to B₂O₃. Therefore, the high specific surface area, narrow pore size distributions, and excellent thermal stability together with chemical inertness make BNMB a promising catalysis support for catalytic applications.

Fig. 4 (a) Nitrogen adsorption–desorption isotherm of the BNMB, (b) TGA curve of the as-prepared sample under flowing air.

To investigate the formation mechanism of the BNMB, the composition and morphology of the crude product without any post-treatment were studied. The XRD pattern of the crude product (Fig. 5a) can be indexed as KZnF₃ (JCPDS card no. 06-0439) and tetragonal ZnF₂ (JCPDS card no. 07-0214). Since the as-formed KZnF₃ and ZnF₂ are sensitive to water in an ambient atmosphere, ZnO can also be detected by XRD. Due to the low diffraction intensity, peaks of boron nitride were not obvious in the pattern. The core–shell structured cubes can be detected by TEM observation of the crude product, as shown in Fig. 5b. The EDX spectrum of these cubes shown in Fig. 5c displays that there are B, N, K, Zn, F and O (originates from the moisture absorbed on their surfaces) elements. We have also probed other cubes, and we confirm that only KZnF₃ were covered with h-BN layers. Thus, according to the above complementary analysis, an in situ template route for the formation of BNMB was proposed. During the reaction process, the cube-like KZnF₃ particles were firstly formed at a lower temperature. Theoretical calculations show that cubic KZnF₃ crystal planes (200), (210) and h-BN (101), (102) exist with small lattice mismatches of about 1.6% and 0.20%, respectively. Like that of ZnS, MgO and Ni,^20,39,40 the small lattice mismatch may orient deposition of the h-BN crystals preferentially onto the KZnF₃ surface. Finally, the h-BN@ KZnF₃ core–shell structure was formed, and a hollow h-BN microbox could be obtained as the crude sample was treated in dilute hydrochloric acid. Based on the above results, the chemical equation can be tentatively described as follows:

KBH₄ + 3Zn + 7NH₄F = BNMB + KZnF₃ + 2ZnF₂ + 7H₂ + 6NH₃

Fig. 6a displays the XRD pattern of the SnO₂/BNMB, and the diffraction peaks could be assigned to SnO₂ and BNMB, respectively. We have observed that the intensity of SnO₂/BNMB diffraction peaks is weakened slightly and the width of the diffraction peaks broadened, indicating the high dispersion and small sizes of the SnO₂ particles. The morphology of the SnO₂/BNMB was further investigated by TEM (inset in Fig. 6a). It can be seen that SnO₂ particles with sizes varying from 40 to 150 nm (the large particles may be aggregates of some small ones) are highly dispersed on BNMB surfaces. The UV-Vis diffuse reflectance spectrum of SnO₂/BNMB is revealed in Fig. 6b, with SnO₂ and conventional SnO₂/Al₂O₃ as references. It can be seen that the absorption edge of pure SnO₂ is determined to be 340 nm (E_g = 3.6 eV). For the conventional SnO₂/Al₂O₃, the absorption edge shifts to the visible light region at around 400 nm. The absorption edge of SnO₂/BNMB is further red-shifted to 470 nm, implying its photoresponse to visible light irradiation. The indirect band gap energies (E_g) were also derived from the intercept of plots of (ahν)^1/2versusphoton energy (hν). As shown in the inset of Fig. 6b, the indirect band gap energies of SnO₂/Al₂O₃ and SnO₂/BNMB photocatalysts were measured to be approximately 2.9 and 2.4 eV, respectively. It is worth noting that the above samples have colour differences which originated from different energy levels and widths of their energy bands.⁴¹ Therefore, the as-formed SnO₂/BNMB with a yellow colour indicates band gap narrowing consistent with its absorption spectrum. As revealed by previous reports, the reduced band gap energy may be ascribed to the imperfect crystallization of SnO₂ particles,²³ which may be related to the properties of the supports.

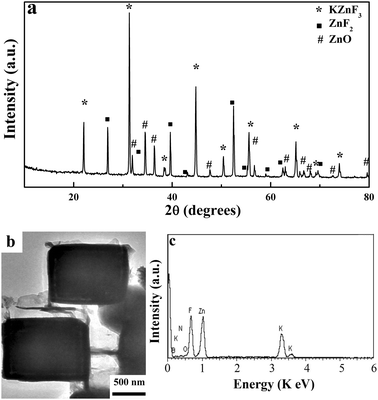

Fig. 5 (a) Typical XRD patterns of the crude products without any post treatment. (b) A typical TEM image of the intermediate solid cubes in crude sample and its (c) corresponding EDX spectrum.

Fig. 6 (a) XRD diffraction patterns of the SnO₂/BNMB. The inset is the corresponding TEM image. (b) The UV-Vis diffuse reflectance spectra of the SnO₂/BNMB, inset shows the plots of (ahν)^1/2versus the energy of light (hν).

With the aim of exploring the photocatalytic activity of the SnO₂/BNMB, the visible light-driven photocatalytic reaction was evaluated by photodegradation of the MO solution (25 mg L⁻¹). Photocatalytic behaviours of SnO₂, SnO₂/Al₂O₃ and Degussa P25 were also measured for comparison. Fig. 7a shows the absorption spectra of MO solution decomposed by SnO₂/BNMB under exposure to a 300 W xenon lamp (λ > 420 nm) for various irradiation times. The characteristic absorption of MO at 464 nm had a red-shift to a longer wavelength range during the degradation process, and it completely disappeared after irradiation for 30 min. Meanwhile, a new peak centering around 245 nm was emerged in accordance with a previous study.⁴² Plots of the removal efficiencies of MO with respect to decomposition time over different catalysts are shown in Fig. 7b. Owing to their relatively large band gap, P25 and pure SnO₂ are inactive for the degradation of MO under visible irradiation. The degradation efficiency of MO by SnO₂/BNMB reached 92.0% after 30 min irradiation, whereas the MO removal only reached 21.6% in the presence of SnO₂/Al₂O₃. Evidently, supports have significant influences on the catalytic activity of photocatalysts, and BNMB are more effective and supportive for SnO₂ to degrade MO in aqueous solutions compared to conventional Al₂O₃. Several reasons should be responsible for the prominent photocatalytic activity of SnO₂/BNMB. First, the absorption edge of the SnO₂/BNMB is located in the visible light region, which is a crucial factor that leads to enhanced visible light absorption and converts the excitation light to chemical energy to accelerate photocatalytic oxidation. Second, as a support, BNMB exhibits strong adsorption ability for MO due to its layered structure, hydrophobic property and high surface area, thus MO will concentrate around the loaded SnO₂ nanoparticles. The good contact between the MO and SnO₂ is beneficial to enhance the photocatalytic efficiency of SnO₂/BNMB. Moreover, layered BNMB in contact with SnO₂ also suppress the recombination of photogenerated electrons and holes at SnO₂/BNMB interfaces, allowing both of them to participate in the photocatalytic reaction. Third, SnO₂ particles loaded on BNMB, with improved dispersion and relatively small sizes, help to increase photocatalytic active sites through a great increase in the particles' surface areas. Thus, the SnO₂/BNMB successfully combines the catalytic and adsorptive properties of SnO₂ and BNMB, which lead to their prominent photoactivity.

Fig. 7 (a) The absorption spectral changes of MO solution over SnO₂/BNMB under visible light irradiation (λ > 420 nm), (b) MO photodegradation over SnO₂/BNMB, SnO₂, SnO₂/Al₂O₃ and P25 with irradiation times.

The mass spectrum (MS) analysis technique has been used to determine the degradation intermediates of MO and preliminary study on the possible mechanism of the photodegradation process. As shown in Fig. 8a, the MO solution before irradiation provides only a single MS signal at m/z = 304 (1.25 × 10⁵ counts) attributed to ionization of the parent MO molecule. After visible light irradiation for 30 min, the absorption peak intensity of m/z = 304 largely decreased (6.05 × 10² counts) and some new peaks appeared at m/z = 249, m/z = 173, m/z = 156, m/z = 121 and m/z = 113 corresponding to intermediates of the MO molecular structure (shown in Fig. 8b). As can be seen, MO has been decomposed but not mineralized completely after visible light irradiation (λ > 420 nm) for 30 min. Based on the m/z values of the intermediates and the structure of MO, the possible degradation pathway for MO is presented in Fig. 8c. Some fragment ions of m/z = 189 and m/z = 143 were not detected, probably because of their corresponding intermediate concentrations were very low or their unstable structure during the degradation of MO. On the basis of previous experimental reports,^23,29,43 we consider that free radicals ˙OH, ˙O₂^– and O₂ absorbed on the surface of SnO₂/BNMB as oxidation agents could degrade the organic dye through two primary processes of demethylation and hydroxylation. During the initial 30 min of irradiation, MO dye was degraded into lower molecular weight intermediates. As the irradiation time prolonged, these intermediates would finally be degraded to final non-toxic inorganic products.

Fig. 8 Mass spectrum of MO without visible-light irradiation (a) and its degradation intermediates after 30 min of irradiation (b). (c) Proposed photodegradation process on the basis of MS analysis during photodegradation of MO.

4 Conclusions

In conclusion, hexagonal BNMB were prepared from KBH₄, NHF₄ and Zn powder at 450 °C for 30 h. The as-prepared BNMB with excellent thermal stability, optical and chemical properties, and a high surface area of ∼86.9 m² g⁻¹ are considered an ideal catalyst support. Thus, SnO₂ was loaded using a wet chemistry method on surfaces of BNMB for photocatalytic application. The result indicates that the as-formed SnO₂/BNMB has the highest photocatalytic activity compared with common photocatalysts, and its degradation rate is nearly 92% within 30 min towards MO under visible light irradiation (λ > 420 nm). The excellent photocatalytic performance is related to the narrow band gap of SnO₂/BNMB, the improved dispersion and relatively small size of loading SnO₂ particles, the hydrophobicity, large specific surface area and the layered structure of the BNMB support. Moreover, the MS analysis technique has been used to determine the main degradation intermediates and the possible photodegradation process of an MO molecule. The effective in situ template approach for synthesizing BNMB may be extended to synthesize other box-like inorganic compounds. The excellent photocatalytic performance of SnO₂/BNMB indicates that BNMB are a promising support, which should be used as an important guide to further design more useful photocatalytic systems.

Acknowledgements

This work was supported by the National Nature Science Found of China (Grant Nos. 20871075 and 20971079), the 973 Project of China (No. 2011CB935901), and the Independent Innovation Foundations of Shandong University (Grant Nos. 2009TS017, 2009JC019).
