Preparation of 1-D nanoparticle superstructures with tailorable thicknesses using gold-binding peptide conjugates

Abstract

We describe the preparation of new 1-D gold nanoparticle superstructures with tailorable thicknesses formed using a self-assembled gold-binding peptide conjugate template and examine how the synthesis and assembly mechanism impacts the organization of the superstructures.

---

Ensembles of inorganic nanoparticles exhibit unique assembly-dependent physical properties which depend largely on the local order of the nanoparticles.¹ To control these properties, methods must be developed to precisely control the assembly of nanoparticles.^1a Short oligopeptides have emerged as promising molecules for directing nanoparticle assembly.² However, many peptide-based assembly methods yield nanoparticle superstructures with poor local nanoparticle order.^2a

We recently introduced methodology that utilizes a new class of peptide^2a,3 conjugate molecules designed for directing both the synthesis andassembly of nanoparticles to yield nanoparticle superstructures with unprecedented structural complexity and excellent local nanoparticle order.⁴ We specifically showed that C₁₂-PEP_Au, a gold-binding peptide⁵ (PEP_Au = AYSSGAPPMPPF) modified at its N-terminus with an aliphatic 12-carbon chain, could be used to expeditiously prepare 1-D double-helical nanoparticle assemblies in a single preparative step.^4a Further, we demonstrated that various synthetic parameters could be systematically modified to carefully tailor the structure and metrics of these assemblies.^4b

This unique one-step synthetic approach and the integrity and structural complexity of the nanoparticle superstructures it produces prompted us to explore how structural modifications to the peptide conjugate molecule impact the synthesis and assembly process. We reasoned that these studies would provide insight into the mechanism of nanoparticle assembly and illuminate specific factors which distinguish this methodology from other peptide-based nanostructure assembly methods. In this communication, we specifically investigate both how the identity of the organic moiety appended to the PEP_Au terminus and how amino acid additions to the PEP_Au sequence impact the formation of nanoparticle superstructures.

Several observations from our previous studies using C₁₂-PEP_Au serve as important precedent for the studies reported herein. In those studies, 1-D double-helical nanoparticle superstructures were produced upon addition of a gold salt to a solution of C₁₂-PEP_Au in HEPES buffer (HEPES = 4-(2-hydroxyethyl)-piperazineethanesulfonic acid). HEPES serves as the principal reducing agent for forming the gold nanoparticles.^4a,5,6 We found that addition of the gold salt significantly promotes C₁₂-PEP_Au self-assembly into nanofibers. We also discovered that filtering the C₁₂-PEP_Au/HEPES solution to remove any assembled structures prior to adding the gold salt was important in order to produce gold nanoparticle double helices as product.^4a This indicates that dispersed, non-assembled peptide conjugates are required at the initial stages of reaction. Collectively, these observations suggested that nanofiber self-assembly and nanoparticle synthesis are coupled into a simultaneous process. We note that this one-step process is markedly different from typical peptide-based nanoparticle assembly methods which consist of two or more independent preparative steps, including (i) peptide self-assembly into a template and (ii) either nucleation of nanoparticles or assembly of pre-synthesized nanoparticles onto the template.² We hypothesize that a simultaneous synthesis and self-assembly process is critical for the formation of well-ordered nanoparticle superstructures.

To test this hypothesis, we aimed to prepare a peptide conjugate that, unlike C₁₂-PEP_Au, self-assembles rapidly in the absence of gold salt; we expected that such a peptide conjugate would direct nanoparticle assemblyvia a different mechanism than C₁₂-PEP_Au. We first prepared C₁₂H₉CO-PEP_Au, hereafter referred to as BP-PEP_Au (BP = biphenyl), reasoning that the BP moiety would promote π–π interactions and facilitate rapid self-assembly. BP-PEP_Au was synthesized by coupling succinimide-activated 4-phenylbenzoic acid to the N-terminus of PEP_Au (see Supporting Information for details). We studied the self-assembly of BP-PEP_Au in HEPES buffer (pH = 7.3). However, neither transmission electron microscopy (TEM) nor tapping-mode atomic force microscopy (AFM) indicated formation of self-assembled BP-PEP_Au structures. Our previous studies of C₁₂-PEP_Au self-assembly^4a suggested that the amino acids at the N-terminus of PEP_Au, in particular AYSS, played a key role in directing the assembly of nanofibers, possibly because they promote the formation of β-sheets.⁷ We therefore decided to modify the N-terminus of PEP_Au with an additional ‘AYSS’ segment which could promote self-assembly.

Accordingly, we prepared BP-AYSS-PEP_Au (C₁₂H₉CO-AYSSAYSSGAPPMPPF). In contrast to BP-PEP_Au, BP-AYSS-PEP_Au rapidly self-assembles (within 30 min) in HEPES buffer to yield short 1-D fibers (Scheme 1; Fig. 1a, S3a,b) with regular width (5.2 ± 0.1 nm, Fig. S4d). Further, BP-AYSS-PEP_Au assembles into fibers much more rapidly than C₁₂-PEP_Au. The rapid self-assembly of BP-AYSS-PEP_Au into fibers precluded dispersion of individual BP-AYSS-PEP_Au conjugates. Therefore, we suspected that gold nanoparticle superstructures prepared using BP-AYSS-PEP_Au would form via a two step mechanism (Scheme 1) similar to that of typical peptide-based nanoparticle assembly methods² rather than the one step synthesis and assembly process observed for C₁₂-PEP_Au.^4a

Scheme 1 Illustration of nanoparticle assembly process.

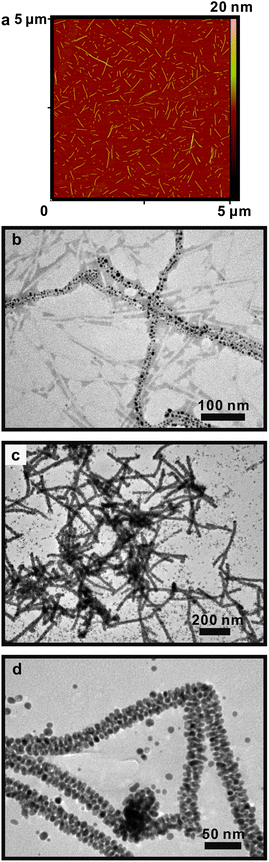

Fig. 1 (a) AFM height image of self-assembled BP-AYSS-PEP_Au fibers after 30 min incubation in HEPES buffer; (b) negative-stained TEM image of 1-D gold nanoparticle superstructures formed 30 min after adding HAuCl₄ to BP-AYSS-PEP_Au fibers from (a); (c) and (d) TEM images of 1-D gold nanoparticle superstructures formed 24 h after adding HAuCl₄ to BP-AYSS-PEP_Au fibers from (a).

We proceeded to prepare 1-D nanoparticle superstructures to determine whether a two step mechanism for BP-AYSS-PEP_Au would impact the structural integrity and precision of organization of the gold nanoparticles. BP-AYSS-PEP_Au fibers were incubated in HEPES buffer (30 min), and then gold nanoparticle synthesis was initiated by adding a solution of chloroauric acid (HAuCl₄) (see Supporting Information for details). The resulting mixture was allowed to stand at room temperature (30 min), after which a small sample was removed and characterized using TEM. Examination of multiple TEM images (Fig. 1b; Fig. S4) revealed 1-D gold nanoparticle superstructures, fibers, and free, non-assembled gold nanoparticles. The width of the superstructures (7.9 ± 0.1 nm, Fig. S4e) suggests that a single BP-AYSS-PEP_Au self-assembled fiber serves as a template for their assembly. While the superstructures possess long-range order, their local nanoparticle order is poor. The structures consist of irregularly positioned nanoparticles ranging in size from ∼3 nm to ∼13 nm. The structures do not exhibit the same structural regularity, precision of nanoparticle placement, and narrow nanoparticle size distribution exhibited by the nanoparticle superstructures produced using C₁₂-PEP_Au.⁴ Rather, they more closely resemble structures formed using typical multi-step peptide templating methods.^2a The reaction was also sampled after 24 h, and, again, the structures exhibit excellent long range order yet poor local nanoparticle order (Fig. 1c,d).

In order to probe the range of structures which can be assembled using BP-AYSS-PEP_Au self-assembled fibers, we allowed BP-AYSS-PEP_Au to incubate for 6 days in HEPES buffer prior to adding gold salt. TEM (Fig. S3c–f) and AFM (Fig. 2a) images reveal that BP-AYSS-PEP_Au self-assembled fibers begin to align and stack together in either 2 or 3 fiber bundles with widths of 9.5 ± 0.1 nm and 15.5 ± 1.7 nm, respectively (Fig. S5). When a solution of HAuCl₄ was added to this mixture of fibers, we again observed 1-D gold nanoparticle superstructures, fibers, and free, non-assembled gold nanoparticles (Fig. 2b–d; Fig. S6). A distribution of 1-D nanoparticle superstructures formed with widths of either 12.2 ± 0.2 nm or 17.6 ± 0.2 nm, suggesting that they were templated by either the 2 or 3 fiber bundles, respectively (Fig. 2c,d, Fig. S6).

Fig. 2 (a) 3-D AFM image of self-assembled BP-AYSS-PEP_Au fibers after 6 d incubation in HEPES buffer; (b)–(d) various degrees of nanoparticle assembly and 1-D nanoparticle superstructures formed 15 min after adding HAuCl₄ to BP-AYSS-PEP_Au fibers which had been incubated for 6 d.

In conclusion, we have shown that BP-AYSS-PEP_Au first assembles into a fiber template and then nanoparticles either nucleate directly on the template or are deposited onto the template from solution to yield 1-D nanoparticle superstructures having tailorable widths of either 7.9 nm, 12.2 nm, or 17.6 nm. These structures exhibit long range order but limited local order. These results suggest that nanoparticle assembly directed by BP-AYSS-PEP_Au conjugates operates by a different mechanism than C₁₂-PEP_Au. Importantly, these studies reveal the fundamental importance of a simultaneous synthesis and assembly process which is necessary for producing well-ordered nanoparticle superstructures. To produce high-quality nanoparticle superstructures using this new methodology, the peptide conjugate should not self-assemble into a template structure prior to the addition of gold salt, as this precludes a one step process in which the nanoparticles and peptide conjugates self-assemble simultaneously.

NLR acknowledges the University of Pittsburgh and and the National Science Foundation (DMR-0954380) for funding this work. The authors also thank the Peterson NFCF and the MEMS Department for provision of access to AFM and TEM, respectively.
