‘Isothermal’ phase transitions and supramolecular architecture changes in thermoresponsive polymers via acid-labile side-chains

Abstract

Polymers designed to change their conformation via a phase transition triggered by acidic cleavage of a hydrophobic side-chain have been synthesized and characterised. The new materials were prepared by co-polymerising N-isopropylacrylamide with an acetal-containing pH-sensitive monomer N-(2-(2,4,6-trimethoxyphenyl)-1,3-dioxan-5-yl)acrylamide (TMPDA) and then grafting the resultant linear co-polymers to branched poly(ethyleneimine). The final three-component polycations exhibited Lower Critical Solution Temperature (LCST) behaviour. The structures of these polymers, their solution behaviour and their self-association were characterized by DLS and TEM in water and buffer solutions. The acid-triggered hydrolysis of trimethoxybenzeneacetal side-chains on the poly(N-isopropylacrylamide-co-TMPDA) grafts resulted in changes in lower critical solution temperatures and in solution self-assembly; thus in effect creating an ‘isothermal’ phase transition. The changes in polymer conformation, at acidity levels corresponding to those in cell endosomes, offer promise for these polymers to act as controlled release materials.

---

Introduction

Materials that respond to external stimuli have been a focus of research for many applications, including sensing, diagnostics, computation, actuation and controlled release.^1–8 Within the biomedical sector, responsive polymers have been considered as ‘smart’ therapeutic agents,⁹ as carriers for drugs¹⁰ and as supports for tissue engineering.^11–13 For optimal use in the biological environment, responsive materials must change their properties, for example to protect a delicate biopolymer or cell cargo then release it at the target site, under as mild a stimulus as possible. Many groups have reported the use of thermoresponsive materials, based on co-polymers of N-isopropylacrylamide for drug delivery applications, wherein the coil-to-globule phase transition of the polymer at its Lower Critical Solution Temperature (LCST) alters its solution properties and ability to encapsulate a drug.^14–17 For biopolymer drugs such as nucleic acids, enhanced transgene expression has been reported when cells incubated with cationic poly(N-isopropylacrylamide) (PNIPAm) co-polymer complexes with nucleic acids experienced a temperature below that of the polymer LCST.^18–24 Although the detailed mechanisms by which PNIPAm co-polymers change transfection efficiency through a temperature change are not fully understood, the studies suggest that a change in hydrophilicity and polymer architecture is an important contributory factor. However, the use of temperature stimuli to invoke changes in polymer behaviour is sub-optimal for many applications and is not easily executed in vivo. Therefore, we have been developing strategies to cause phase transitions and supramolecular architecture modifications in polymers without a temperature change. In this paper we report the synthesis and characterization of PNIPAm-based cationic co-polymers that associate into micellar-like assemblies under normal physiological conditions but undergo a change in LCST triggered by side-chain hydrolysis that perturbs the overall supramolecular architecture—in effect an ‘isothermal’ temperature response. The overall effect is a loss of self-association behaviour and a disruption of micellar assembly at pH values around those occurring in the endosomal compartments of cells and in certain areas of solid tumours. The ability to change polymer properties through external or biologically relevant stimuli^25,26 is potentially advantageous for many materials applications including logic operations, sensing, actuation as well as controlled release.^27–30

Results and discussion

We based our strategy for changing the phase-transition temperature of a polymer on the well-known properties of PNIPAm co-polymers, whereby incorporating a hydrophilic co-monomer raises the LCST while co-polymerisation with a hydrophobic co-monomer reduces the LCST. We further refined the approach to utilise a biologically relevant trigger for the phase change, in this case the drop in pH from 7.4 in the cytosol to pH 5–6 in the late endosome/lysosome.³¹ The intention was to cleave a hydrophobic group from a PNIPAm co-polymer side-chain, leaving a hydrophilic moiety, which in turn would increase the LCST and change the self-association of the polymer without requiring a temperature shock. We also intended to attach the PNIPAm chains to a second component, that could bind biopolymers via charge–charge interactions, and chose for this section poly(ethyleneimine) (PEI), which is widely used for in vitro and in vivo gene delivery experiments.^32,33 Overall, we intended that the resultant terpolymer should assemble into micellar or vesicular structures above an initial LCST in order to present a positively charged outer surface, suitable for binding negatively charged biopolymers. However, at pH values ∼ 5 to 6, as postulated to occur in endosomal compartments, the LCST should be changed through side-chain cleavage, such that the micelles disassemble to smaller fragments with no supramolecular structure. The schematic of the polymer design, utilising a cationic PEI block and acid-labile PNIPAm segments grafted onto it, is shown in Fig. 1.

Fig. 1 Schematic of phase transition temperature changes with pH-cleavable side-chain functionality. Association of hydrophobic side-chains above LCST 1 drives self-assembly: loss of hydrophobic groups at pH 5.6 changes polymer association behaviour such that LCST of the hydrolysed polymer is greater than the LCST of the non-hydrolysed polymers (LCST 2 > LCST 1).

The concept of a change in the properties of a co-polymer side-chain leading to an increase in LCST was first reported by the Hennink group^34,35 but had not previously been used to change association behaviour of terpolymers. We accordingly designed a new monomer that could be co-polymerised with NIPAm and which should lose a hydrophobic aromatic moiety and become water-soluble at pH 5–6. Acetal chemistry offers many advantages for controlled release and drug delivery applications^36–39 as the stability of this link is considerably lower at lower pH values e.g. 5–6 compared to normal physiological pH. The synthesis of the pH-sensitive acetal-containing monomer, N-(2-(2,4,6-trimethoxyphenyl)-1,3-dioxan-5-yl)acrylamide (I), was based on the methodology developed by Gillies and Frechet⁴⁰ for degradable main-chain polymers, and is shown in Fig. 2.

Fig. 2 Synthesis of monomer and polymers: (a) pH-sensitive monomer N-(2-(2,4,6-trimethoxyphenyl)-1,3-dioxan-5-yl)acrylamide (I) (TMPDA) and (b and c) polymer preparation routes.

Polymerisation of monomer TMPDA (I) with NIPAm in different co-monomer ratios yielded polymers P2, P3 and P5. The homopolymer, PNIPAm, was synthesised as a control thermo-sensitive polymer (P1) and polymer P4 was synthesized through the co-polymerisation of (I) with NIPAm and N-(1,3-dihydroxypropan-2-yl)methacrylamide (DHPMA) (Table 1). In all cases 2-aminoethanethiol was used as a chain transfer agent to control molecular mass and to provide an amine-terminus for further grafting.

Table 1 Properties of linear polymers and co-polymers

	Polymer	M n (GPC)^a/kDa	PDI^a	M n (NMR)/kDa^b	Cloud point at pH 7.4^c/°C
a Eluent: DMAc and 0.1% LiBr. b End-group analysis in DMSO-d6. c Cloud points determined at 5 mg mL^−1, except for P5 (2 mg mL^−1) due to solubility constraints.
P1	PNIPAm	13.7	3.2	13.8	32
P2	PNIPAm-co-TMPDA (99 : 1)	6.1	2.7	9.5	33
P3	PNIPAm-co-TMPDA (95 : 5)	6.0	2.6	8.9	23
P4	PNIPAm-co-TMPDA-co-DHPMA (88 : 6 : 6)	34.0	2.8	7.1	21
P5	PNIPAm-co-TMPDA (91 : 9)	11.1	2.9	12.2	16

---

Primary characterisation of the molar mass of the polymers was carried out by ¹H NMR in DMSO-d₆ using end-group integral analysis comparing the isopropylamide methyl signals at δ = 1.18–0.88 ppm to trimethoxyphenyl protons at δ = 6.2 ppm and aminoethanethioether protons centred at 2.95 and 2.7 ppm. Gel Permeation Chromatography (GPC) was used as a secondary method of molar mass analysis: chromatography was carried out in organic solvents on account of the difficulties in obtaining accurate molar masses for PNIPAm materials in water.⁴¹ Agreement in molar masses via the two different methods was good for the homopolymer P1, with a variation of less than 5% but less so for the co-polymers most likely due to the poorer correlation in GPC compared to PMMA standards.

The primary phase transition responses for these materials were evaluated through cloud-point determinations at pH 7.4, i.e. normal physiological pH. As expected, substitution of the hydrophobic TMPDA co-monomer lowered the LCST (as determined by cloud point at constant concentration) compared to PNIPAm homopolymer P1. The phase transitions were then assessed as the pH was changed from 7.4 to 5.6, to reflect the expected pH values for plasma and endosomal compartments, respectively. In all cases where the acid-labile TMPDA co-monomer was included, the cloud point increased over time at pH 5.6. Representative temperature–turbidity graphs for TMPDA-substituted co-polymers P3 and P5 are shown in Fig. 3.

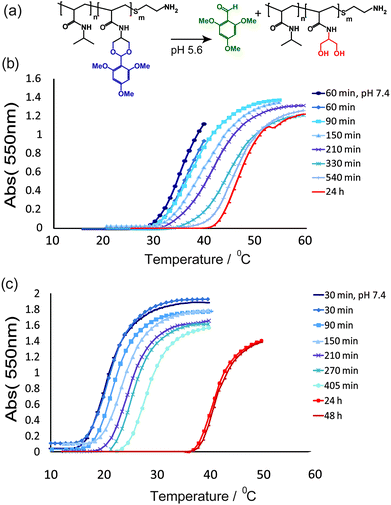

Fig. 3 (a) Scheme showing the hydrolysis of acetal polymer side-chains at pH 5.6. Change in UV absorption at 550 nm with temperature for linear polymers P3 (b) and P5 (c) over increasing times at pH 5.6. In (b) and (c) multiple aliquots of each polymer (1 mg mL⁻¹) in PBS (10 mM, pH 5.6) were incubated at 37 °C. An aliquot of each polymer was taken for analysis at each time point and quenched with sodium hydroxide (20 µL, 1 M) to stop further hydrolysis before UV spectrophotometric analysis.

The extent of cloud point change through TMPDA cleavage in acidic media was, as expected, dependent on co-monomer ratio as measured by NMR. For P3, with 5 mol% TMPDA, the cloud point changed from 27 °C at pH 7.4 to 42 °C at pH 5.6, whereas for P5 with 9 mol% TMPDA the corresponding change was from 16–37 °C.^42,43

In order to evaluate materials with a change in LCST in and around normal physiological temperature (37 °C) we selected polymers P1 (non-acid-labile), and P4 and P5 (both acid-labile and with the greatest change in LCST over the pH range). These were used to graft to branched 25 kDa poly(ethyleneimine) (PEI) as a representative polycation widely used in nucleic acid delivery systems. We adapted our prior method¹⁹ of end-grafting via the heterobifunctional linker EMCS, giving P1-graft PEI, P4-graft PEI and P5-graft PEI in 52%, 35% and 21% yields, respectively, after extensive dialysis to remove excess free PEI (Fig. 4).

Fig. 4 Synthetic route to responsive graft terpolymers from linear polymers P1, P4, and P5 via 2-stage heterobifunctional linker coupling.

The resultant polymers were characterised by NMR as before. Graft contents were calculated from NMR integrals and molar masses obtained by GPC with triple detection. As a third method of determining molar mass and to confirm grafting densities, titration of amine end-groups using 2,4,6-trinitrobenzenesulfonic acid was performed.⁴⁴

While PNIPAm-g-PEI (P1-g-PEI) showed essentially invariant cloud points at pH 7.4 and 5.6, polymers P4-g-PEI and P5-g-PEI exhibited different cloud points at the different pH values: these and other key properties of the polymers are given in Table 2.

Table 2 Properties of graft co-polymers

Polymer	M w/kDa	M n/kDa	Cloud point at pH 7.4/°C	Cloud point at pH 5.6/°C
P1-g-PEI	69	24	31	31
P4-g-PEI	174	44	22	36
P5-g-PEI	57	21	22	40

---

The observation that the cloud point of P1-g-PEI was very similar to the parent PNIPAm P1 suggested the PNIPAm and PEI blocks within the same co-polymer chains were not strongly interacting with each other. However, for the acetal-containing polymers P4-g-PEI and P5-g-PEI the cloud points at pH 7.4 were not the same as for linear polymers P4 and P5, indicating a change in supramolecular order through introduction of the aromatic 2,4,6-(trimethoxyphenyl)-1,3-dioxan-5-yl side-chains. At pH 5.6, P4-g-PEI exhibited a cloud point just below normal physiological temperature, whereas P5-g-PEI displayed a cloud point of 40 °C.

As the pH-mediated variations in cloud point were most manifest for P5-g-PEI, experiments were carried out to monitor the rate of change of phase transition for this polymer.

The shapes of the time–temperature curves at pH 7.4 and 5.6 implied a difference in intermolecular association over this range for P5-g-PEI, whereas P1-g-PEI did not change cloud point under the same conditions and this latter polymer exhibited the same sharp time–temperature curve over both pH values (Fig. 5).

Fig. 5 (a) Chemical structure of P5-g-PEI both before (top structure) and after hydrolysis (lower structure). Temperature–turbidity profiles with time at pH 5.6 for (b) non-hydrolysable side-chain polymer P1-g-PEI (1 mg mL⁻¹) and (c) hydrolysable side-chain polymer P5-g-PEI (1 mg mL⁻¹).

Based on the temperature–turbidity profiles, we estimate the hydrolysis of the acetal side-chains in the terpolymer to have been essentially complete within 210 minutes, which is faster than that observed for 5-membered acetals of similar chemistries⁴⁵ but slower than the 6-membered acetals originally reported by Gillies and Frechet.⁴⁰ Interestingly, the hydrolysis of side-chains appeared to take place faster for the block co-polymers compared to the linear co-polymers from which they were derived, suggesting perhaps a role for the PEI, as a highly soluble component, in accelerating the acetal degradation.

The changes in temperature–turbidity curves with pH for P5-g-PEI but not P1-g-PEI, combined with our prior observation of supramolecular association in PNIPAm-g-PEI systems,²² implied the formation of micellar structures for the non-hydrolysable polymers at pH 7.4 and 5.6, but less order for the hydrolysed TMPDA-containing graft-PEI polymer at pH 5.6.

Dynamic light scattering measurements of aqueous grafted copolymer solutions, at body temperature and pH 7.4, confirmed the formation of supramolecular assemblies for P1-g-PEI, P4-g-PEI and P5-g-PEI. Importantly, there were different DLS profiles with temperature following a pH change for 8 hours across the different co-polymers (Table 3).

Table 3 Dynamic light scattering analysis of graft co-polymers^a

Polymer	R H at 25 °C, pH 7.4/nm	R H at 37 °C, pH 7.4/nm	R H at 37 °C, pH 5.6/nm
a Figures in parentheses are the percentage of the overall population for the particle size quoted. Data are number distributions (calculated from recorded intensity distributions) obtained from CONTIN analysis.
P1-g-PEI	7 ± 0.8 (59)	132 ± 20 (100)	73 ± 16 (100)
P4-g-PEI	13 ± 0.7 (100)	73 ± 12 (100)	52 ± 17 (100)
P5-g-PEI	18 ± 1.3 (100)	69 ± 14 (100)	5 ± 0.5 (98)

---

Experiments carried out over room temperature and physiological temperature ranges and the two pH values indicated that for P1-g-PEI polymers at room temperature and pH 7.4 the predominant fractions (59%) ranged between R_H = 2–7 nm. These were likely to have been loosely associated polymer chains rather than well-structured micelles.²² The remaining fractions were made up of species 2 nm or less in size (36% by mass)⁴⁶ with the residual 4% of the mass being particles of R_H = 97 nm. Increasing the temperature to 37 °C (i.e. above the LCST of P1-g-PEI) resulted in complete conversion to higher-order structures of R_H ≈ 132 nm in hydrodynamic radius. Changing the pH of the solution to pH 5.6 reduced the apparent particle size (R_H = 73 nm), but these species were again likely to have been micellar or vesicular in nature. The reduction in volume was probably caused by increased curvature of the PEI domains at the exterior as they were increasingly protonated and a compaction of the PNIPAm core. P4-g-PEI formed slightly larger particles than P1-g-PEI at 25 °C (13 nm) but smaller supramolecular assemblies at 37 °C at both pH 7.4 and 5.6 (radius R_H ≈ 73 nm and 52 nm, respectively) compared to P1-g-PEI. This suggested some higher order structures were present for this polymer across the whole pH and temperature range, albeit with much larger particle sizes at 37 °C.

By contrast, while P5-g-PEI formed particles with similar radii (18 nm) to P4-g-PEI at 25 °C and 37 °C (R_H ≈ 69 nm), a marked change in DLS profile was observed at pH 5.6 and 37 °C. After the same length of time at pH 5.6 as the other polymers, P5-g-PEI polymers were present as much smaller species, with a very low proportion (2.1% by number) of >50 nm particles, and most of the sample (98% by number) centred around 5 nm. This indicated that supramolecular assemblies in P5-g-PEI formed above an initial LCST at pH 7.4, but that loss of the hydrophobic side-chains through hydrolysis at pH 5.6 resulted in an increase of LCST to above the assay temperature of 37 °C. In turn, the increase of polymer LCST resulted in loss of associative order, and micellar/vesicular disassembly as the PNIPAm-co-TMPDA chains expanded from collapsed globules to extended hydrophilic chains.

We selected polymer P5-g-PEI for further studies and carried out proton NMR experiments across temperature and pH ranges (Fig. 6). The ¹H NMR spectrum of P5-g-PEI at 37 °C showed diminished signals (see arrows, Fig. 6a) for protons (a, d, e, f, j, k, and l) from the thermo-sensitive part of the polymer (P5) when raised from 25 °C to 37 °C, which we attribute to a chain collapsed conformation at this temperature.

Fig. 6 NMR spectra for polymer P5-g-PEI. In (a) are overlaid ¹H NMR of P5-g-PEI in D₂O at different temperatures: 25 °C (blue), a temperature before a complete phase transition has occurred and at 37 °C (red), a temperature above the polymer LCST. In (b) the polymer solutions (P5-g-PEI in D₂O) are shown before and after acidification with DCl (75 µL, 2 M) and incubated at 37 °C. Spectra were recorded at 37 °C before hydrolysis (lower spectrum in red) and after hydrolysis (top spectrum in green). * indicates peaks from DSS standard.

There was also peak broadening, which, combined with the reduced signal intensity, was indicative of the sequestration of this portion of the polymer into a hydrophobic micellar core surrounded by more hydrophilic PEI. After hydrolysis of P5-g-PEI under acidic conditions (Fig. 6b), sharp signals appeared in the spectrum due to the presence of free 2,4,6-trimethoxybenzaldehyde (a and z) released from the polymer. The methyl protons from the thermo-sensitive part of the polymer (peak “l”, Fig. 6b) were much increased in intensity after hydrolysis and were also less broad. After complete hydrolysis, the LCST of P5-g-PEI was above 37 °C (see Fig. 5c), thus the polymer would have adopted a chain extended conformation. Accordingly, hydrolysed P5-g-PEI was more hydrophilic in nature and an increase in signal intensity for this polymer indicated enhanced dissolution and possibly disassembly of any micellar structures that were present before hydrolysis at 37 °C.

In order to confirm that the associative properties of this polymer, once hydrolysed, were still a function of the side-chain LCST we carried out a time course experiment at pH 5.6, at temperatures below and above the LCST of the non-hydrolysed and the hydrolysed polymer. As apparent from Fig. 7(vi), higher-order structures could still be formed from the hydrolysed polymer, but only at temperatures above the LCST of the hydrolysed side-chain polymer graft, which was significantly above the LCST of the non-hydrolysed graft.

Fig. 7 Change in cloud point of P5-g-PEI (5 mg mL⁻¹) with time at pH ≈ 5.6 at (a) early time points and (b) after complete hydrolysis; (i–vi) DLS of P5-g-PEI solutions at different stages of hydrolysis to show the sizes of species present after 100 minutes at pH 5.6, at temperatures (i) 15 °C, (ii) 25 °C, (iii) 37 °C, and after complete hydrolysis at temperatures (iv) 25 °C, (v) 37 °C, and (vi) 50 °C.

Further indications of polymer behaviour with changes in temperature and pH were obtained by Transmission Electron Microscopy (TEM) (Fig. 8). While no evidence for >30 nm species was obtained for P1-g-PEI and P5-g-PEI when samples were prepared below LCST (data not shown), supramolecular aggregates were apparent in TEM micrographs of P1-g-PEI and P5-g-PEI prepared and rapidly dehydrated above LCST. Micelle-like aggregates of P1-g-PEI were visible (Fig. 8(i) and (ii)) at both pH 7.4 and pH 5.6.

Fig. 8 Transmission electron micrographs of P1-g-PEI and P5-g-PEI from solutions originally at 37 °C and rapidly dehydrated at 37 °C. (i) and (ii) show P1-g-PEI at pH 7.4 and pH 5.6 respectively. (iii) and (iv) show P5-g-PEI at pH 7.4 and pH 5.6 respectively. Images (v) and (vi) are also of P5-g-PEI at pH 7.4 and pH 5.6, respectively, at 37 °C at higher magnification. Micellar-like structures present in images (i–iii and v) are shown in cartoons to depict postulated species present from TEM and DLS analysis at the pH ranges. Note—aggregates and crystals of buffer salts present in (iv and vi) lacking similar order to structures in (i–iii and v).

Fig. 8 (plates (iii) and (v)) shows vesicle-like particles of P5-g-PEI prepared above LCST, at pH 7.4, clearly indicating polymer self-assembly. Comparison of P5-g-PEI samples prepared under neutral pH conditions (Fig. 8(iii) and (v)) and under acidic conditions (Fig. 8(iv) and (vi)) confirmed the loss of association as suggested by DLS analysis, with very few micellar-like structures visible in Fig. 8(iv) and (vi) following the pH change.

Higher magnification TEM images of P5-g-PEI species (Fig. 8(v)) showed some variation in species present at pH 7.4 and 37 °C which may have been a function of the polydispersity of the graft co-polymer. In addition, lower diameters of particles were apparent in TEM compared to DLS. This was likely a consequence of dehydration under TEM sample preparation conditions as has been reported before.⁴⁷ In addition, the non-spherical nature of aggregate species would have exaggerated particle size in DLS but not in TEM: inspection of Fig. 8(v) indicates that many particles were not spherical, implying variations in the packing parameters during self-assembly.

Taken together, the data from cloud-point determinations, light scattering, NMR and TEM were strongly indicative of changes in supramolecular architecture and self-assembly driven by a pH-mediated loss of hydrophobic side-chains and consequent polymer phase transition. This process occurred at a constant temperature, thus transforming the phase transition from what is conventionally a temperature-driven process to an ‘isothermal’ one. This suggests that the materials might act as switchable release systems wherein functional components such as drugs or signalling molecules could be encapsulated under one set of conditions and released under another without a potentially difficult thermal transition.

Conclusions

In this paper we have demonstrated the concept of utilising a pro-drug type strategy to invoke changes in polymer LCST, using a new pH-sensitive monomer in combination with N-isopropylacrylamide. Through the grafting of the pH-sensitive component to a pre-formed polycation, a block terpolymer was generated which exhibited changes in supramolecular order dependent on the phase transition state of the grafted polymeric block. Our primary goal for this work was to establish proof-of-principle rather than work with pharmaceutical grade materials, but PEI-based polymers and PNIPAm systems have shown promise for in vitro biomedical assays^48–51 and are being evaluated for in vivo use.⁵² It should also be noted that the behaviour of synthetic polymers in vivo can be rather different to the behaviour of the same materials in vitro, due to the effects of complexation with biopolymers and other cellular components. However, the finding that these polymers were able to change their association from supramolecular aggregates with physiologically relevant pH stimuli is promising for biomedical applications. We are currently investigating the effects of phase changes in these pH- and ‘isothermal’ responsive terpolymers for endosomally triggered nucleic acid release and will report the biological data in a future manuscript.

Experimental

Chemicals

Reagents, monomers and solvents for synthesis were obtained in the highest available purity and were used as received. Serinol (2-amino-1,3-propanediol) and dimethylsulfoxide (DMSO) were obtained from Alfa Aesar; ethyl trifluoroacetate, methanol, N-isopropylacrylamide (NIPAm), 2,4,6-trimethoxybenzaldehyde, dry tetrahydrofuran (THF), acryloyl chloride, 2-aminoethanethiol hydrochloride and poly(ethyleneimine) (PEI) from Aldrich; triethylamine and p-toluene sulfonic acid (pTSA) from Fluka Biochemika; and azo-iso butyronitrile (AIBN) and phosphate buffered saline (PBS) were from Fisher Scientific. N-(ε-Maleimidocaproyloxy)succinimide ester (EMCS) was obtained from Pierce. PEI (FW ∼25 kDa, Aldrich) was dialysed (3 kDa cut-off) against deionised water (5 × 1000 mL) and lyophilized prior to use. Inhibitors were removed from N-isopropylacrylamide (NIPAm) by recrystallisation from hexane.

Synthesis of monomers

N-(2-(2,4,6-Trimethoxyphenyl)-1,3-dioxan-5-yl)acrylamide (TMPDA) (I). 2-(2,4,6-Trimethoxyphenyl)-1,3-dioxan-5-amine (1.18 g, 4.4 mmol), prepared by the method of Gillies,⁴⁰ was dissolved in anhydrous THF (10 mL). Anhydrous triethylamine (2.2 mL, 15.8 mmol) was added and the solution cooled on ice before addition of acryloyl chloride (0.43 mL, 5.29 mmol). The cream coloured reaction mixture was stirred in an ice bath for 45 minutes before bringing to room temperature and stirring for a further 4 hours. THF (15 mL) was added to dilute the reaction mixture before filtering off the white solid. The solution was concentrated under vacuum to yield a brown oil. The crude product was purified by column chromatography using eluent: hexane : acetone : triethylamine, 70 : 30 : 2. An off white solid was obtained 0.563 g (40%).

Melting point: 102.4–119 °C.

IR ν_max (KBr)/cm⁻¹: 3356 (NH), 3002 (CH), 2975 (CH₃), 2925 (CH₂), 2877 (OCH₃), 2846 (CH₂), 1660 (aromatic), 1629 (C=C), 1606 (CO), 1591 (aromatic C=C), 1533 (NH), 1124 (ether CO).

¹H NMR δ_H (399.8 MHz, CDCl₃ 7.28) 7.11 (1H, br d, NH), 6.37 (1H, dd, ³J 17, ²J 1.5, CHH=), 6.22 (1H, dd, ³J 10.2, ²J 17, CH=), 6.14 (2H, s, aromatic CH), 6.10 (1H, s, OCH), 5.71 (1H dd, ³J 10.2, ²J 1.5, CHH=), 4.13 (1H, dq, NHCH(CH₂)₂), 4.07 (2H, dd, ³J 1.7, ²J 11.3, CHHO), 4.04 (2H, dd, ³J 1.7, ²J 11.3, CHHO), 3.86 (6H, s, 2(OCH₃)), 3.81 (3H, s, OCH₃).

¹³C NMR δ_C (100.5 MHz, CDCl₃ 77.07) 164.8 (CHC=ONH), 162.0 (aromatic C), 159.5 (aromatic C), 131.1 (CH=), 126.5 (CH₂=), 107.2 (aromatic C), 96.6 (aromatic C), 91.3, 70.6 (CH(CH₂)₂(O)₂), 56.2 (OCH₃), 55.4 (OCH₃), 43.9 (NHCH(CH₂)₂). ¹³C DEPT NMR (CDCl₃ 77.07) 131.2↓ (CH₂=CH), 126.5↑ (CH₂=CH), 96.6↓ (aromatic C), 91.3↓, 70.6↑ (CH(CH₂)₂(O₂)), 56.2↓ (OCH₃), 55.4↓ (OCH₃), 43.9↓ (NHCH(CH₂)₂).

MS ES⁺ TOF: (calculated mass 323.14) 346.131 (100% MNa⁺), 214.068 (59% arylCH(OH)₂⁺), 197.079 (47% arylCH₂O⁺).

N-(1,3-Dihydroxypropan-2-yl)methacrylamide (DHPMA, II). The synthesis was adapted from the method of Huang et al.⁵³ 2-Amino-1,3-propanediol (4.825 g, 0.053 mol) was dissolved in an aqueous solution of sodium carbonate (50 mL, 10 wt%) and the solution cooled on an ice bath. Methacryloyl chloride (4.5 mL, 0.045 mol) was added dropwise over 1 hour and the reaction stirred at 0 °C for 5 hours. Alcohol (250 mL) was then added to the mixture and the precipitated salt filtered off. The filtrate was then concentrated in vacuo (30 °C) and the resulting oil like product was purified by column chromatography using an eluent of ethanol and ethyl acetate (1 : 5, v/v). A pale yellow solid was obtained, 7.05 g, 90% yield. Characterisation data agreed with that in the prior report.⁵³

IR: ν_max (KBr)/cm⁻¹: 3307 (OH), 2951, 2921 and 2889 (CH), 1655 (C=O), 1607 (–C=C–).

¹H NMR δ_H (399.8 MHz, DMSO-d₆) 7.32 (1H, br d, NH), 5.66 (1H, m, CHH=), 5.62 (1H, m, CHH=), 4.61 (2H, t, OH, ³J 5), 3.78 (1H, dtt, NHCH(CH₂)₂, ³J 5.8, 2.2, 8.12), 3.44 (4H, m, CH(CH₂)₂(OH)₂), 1.86 (3H, dd, =CCH₃⁴J 1, 1.5).

¹³C NMR δ_C (100.5 MHz, CDCl₃ 77.07) 167.97 (C=O), 140.54 (COC(CH₃)=), 119.44 (H₂C=), 60.68 (2(CH₂OH)), 53.76 (NHCH(CH₂)₂), 19.11 (CH₃). ¹³C DEPT NMR (DMSO-d₆) 119.44↑ (H₂C=), 60.68↑ (2(CH₂OH)), 53.76↓ (NHCH(CH₂)₂), 19.11↓ (CH₃).

MS ES⁻ TOF: (calculated mass 159.18) 158.043 (M − H).

Synthesis of polymers

Polymer P1. N-Isopropylacrylamide (1.126 g, 9.95 mmol) was dissolved in THF (5 mL). 2-Aminoethanethiol hydrochloride (8 mg, 0.074 mmol) was added, followed by AIBN (17 mg, 0.104 mmol). The solution was purged with nitrogen for ∼10 minutes before sealing the schlenk tube reaction vessel and heating (65 °C) the mixture for 24 hours. The reaction mixture was then cooled to room temperature and diluted with THF (5 mL), before adding dropwise to a large excess of cold diethyl ether (500 mL). The precipitate was filtered before re-dissolving in THF (10 mL) and re-precipitating in diethyl ether a further two times. A white solid material was recovered as product (0.8195 g, yield 73%).

IR: ν_max (KBr)/cm⁻¹: 3436br and 3305br (NH), 2973, 2935 and 2876 (CH), 1651 (CO), 1546 (NH), 1459 (CH), 1387 and 1368 (CH₃).

¹H NMR δ_H (399.8 MHz, DMSO-d₆) 7.87–6.74 (1H, NH), 4.05–3.68 (1H, CH(CH₃)₂), 3.02–2.91 (2H, SCH₂CH₂NH₂), 2.75–2.64 (2H, SCH₂CH₂NH₂), 2.28–1.82 (1H, CH backbone), 1.71–1.27 (2H, CH₂ backbone), 1.18–0.92 (6H, br, CH(CH₃)₂).

¹³C NMR δ_C (100.5 MHz, D₂O) 175.4, 42.2, 41.8, 34.4, 21.6.

Polymer P2, P3, and P5. Similar methods to the synthesis of P1 were followed for P2, P3 and P5 co-polymers, using N-isopropylacrylamide (1.75 g, 15.46 mmol) and proportionate molar amounts of monomer TMPDA, AIBN and 2-aminoethanethiol hydrochloride. Monomer solutions were purged with nitrogen for ∼10 minutes before sealing and heating (65 °C) the mixtures for 24 hours. Reaction mixtures were cooled to room temperature and diluted with THF (5 mL), before adding dropwise to a large excess of cold diethyl ether (500 mL). Precipitated polymers were filtered before re-dissolving in THF (10 mL) and re-precipitating in diethyl ether a further two times. The resulting polymers were recovered all as white powdery solids (P2: 0.381 g, yield 62%, P3: 0.357 g, yield 48%, P4: 0.230 g, yield 30%, and P5: 0.308 g, yield 41%).

Diagnostic peak positions were very similar for polymers P2, P3 and P5 as these differed only in co-monomer content, with only variations in integral ratios in ¹H NMR for the respective co-monomer ratios.

Polymer P2: IR: ν_max (KBr)/cm⁻¹: 3433 and 3313 (NH), 2971, 2933 and 2833 (CH), 1650 (CO), 1541 (NH), 1459 (CH₂), 1386 and 1366 (CH₃), 1229 (CO).

¹H NMR δ_H (399.8 MHz, DMSO-d₆) 7.55–7.01 (1H, NH), 6.19–6.15 (2H, 2CH aromatic), 5.10–4.7 (2H, 2OH (partial hydrolysis of polymer)), 4.05–3.95 (1H, NHCH(CH₂)₂), 3.94–3.7 (1H, CH(CH₃)₂), including peaks for 6H, 2(COCH₃) and 3H, OCH₃ (too small to detect), 2.9–2.8 (2H SCH₂CH₂NH₂), 2.25–1.8 (1H, CH backbone), 1.65–1.25 (2H, CH₂ backbone), 1.15–0.86 (6H, CH(CH₃)₂).

Polymer P3: IR: ν_max (KBr)/cm⁻¹: 3303 (NH), 2972, 2935 and 2876 (CH), 1648 (CO), 1544 (NH), 1459 (CH₂), 1387 and 1367 (CH₃), 1229 (CO), 1057 (CO).

¹H NMR δ_H (399.8 MHz, DMSO-d₆) 7.75–7.0 (1H, NH), 6.25–6.08 (2H, 2CH aromatic), 5.95–5.85 (1H, OCHO), 5.75–5.68 (1H, OCHO), 5.05–4.6 (2H, 2OH (partial hydrolysis of polymer)), 4–3.95 (1H, NHCH(CH₂)₂), 3.95–3.6 (1H, CH(CH₃)₂), 3.76 (6H, 2(COCH₃)–polymer) 3.73 (3H, COCH₃–polymer), 3.11–3.06 (2H, SCH₂CH₂NH₂), 2.87–2.8 (2H, SCH₂CH₂NH₂), 2.2–1.8 (1H, CH, backbone), 1.7–1.25 (2H, CH₂ backbone), 1.15–0.88 (3H, CH(CH₃)₂).

Polymer P4: synthesis and characterisation. N-Isopropylacrylamide (0.497 g, 4.39 mmol) was added to DMSO (3 mL), followed by N-(2-(2,4,6-trimethoxyphenyl)-1,3-dioxane-5-yl)acrylamide (0.198 g, 0.61 mmol) and N-(1,3-dihydroxypropan-2-yl)methacrylamide (0.101 g, 0.64 mmol). Aminoethanethiol hydrochloride (9 mg, 0.08 mmol) was then added as chain transfer agent, followed by the initiator, AIBN (11 mg, 0.07 mmol). The solution was purged with argon for 10 minutes, then sealed and heated to 65 °C for 24 hours. The mixture was then allowed to cool to room temperature, before being added dropwise to a large excess of diethyl ether (400 mL). The solvent was decanted and the remaining oily gum was dissolved in THF (5 mL) and added dropwise to diethyl ether (400 mL). The precipitated material was collected by filtration before redissolving in THF and reprecipitating in diethyl ether two further times. The product was isolated as a pale yellow solid 0.230 g, yield 30%.

Polymer P4: IR: ν_max (KBr)/cm⁻¹: 3316 (NH), 2972, 2934 and 2875 (CH), 1651 (CO), 1544 (NH), 1459 (CH₂), 1386 and 1367 (CH₃), 1229 (CO), 1059 (CO).

¹H NMR δ_H (400 MHz, DMSO-d₆) 10.24 (s, 1H, COH (residual aldehyde)), 7.96–6.86 (1H, NH), 6.27 (2H, CH aromatic-residual 2,4,6-trimethoxybenzaldehyde), 6.26–6.12 (2H, 2CH aromatic), 5.94–5.84 (1H, OCHO), 5.79–5. 67 (1H, OCHO), 5–4.64 (2H, 2OH (partial hydrolysis of polymer)), 4.03–3.98 (1H, NHCH(CH₂)₂), 3.98–3.64 (1H, CH(CH₃)₂), 3.79–3.74 (6H, 2(COCH₃)), 3.74–3.7 (3H, OCH₃), 3.0–2.91 (2H, SCH₂CH₂NH₂), 2.77–2.67 (2H, SCH₂CH₂NH₂), 2.17–1.76 (1H, CH backbone), 1.76–1.23 (2H, CH₂ backbone), 1.18–0.88 (3H, CH(CH₃)₂).

δ _C (100.5 MHz, DMSO-d₆) 173.81, 159.73, 56.31, 55.67, 35.9, 22.74.

Polymer P5: IR: ν_max (KBr)/cm⁻¹: 3301br (NH), 2972, 2935, 2876 (CH), 1649 (CO), 1545 (NH), 1459 (CH), 1387 and 1368 (CH₃), 1230 (CO), 1059 (CO).

¹H NMR δ_H (399.8 MHz, DMSO-d₆), 7.91–6.54 (br s, 1H, NH), 6.24–6.07 (2H, 2CH aromatic), 5.95–5.81 (1H, OCHO), 5.78–5.68 (1H, OCHO), 5.01–4.6 (2H, 2OH (partial hydrolysis of polymer)), 4.03–3.96 (1H, NHCH(CH₂)₂), 3.96–3.63 (1H, CH(CH₃)₂), 3.79–3.74 (6H, 2(COCH₃)), 3.74–3.7 (3H, OCH₃), 3.1–3 (2H, SCH₂CH₂NH₂), 2.9–2.8 (2H SCH₂CH₂NH₂), 2.28–1.79 (1H, CH backbone), 1.73–1.23 (2H, CH₂ backbone), 1.18–0.82 (6H, CH(CH₃)₂).

¹³C NMR (100.5 MHz, DMSO-d₆) 186.1, 173.8, 166.5, 163.9, 159.7, 108.4, 91.2, 60.8, 56.5, 55.7, 42.0, 34.5, 22.7.

In some NMR spectra of polymers on standing or after dialysis for prolonged periods against distilled water, small peaks at 11.1, 10.24, 6.2–6.4 and 3.82–3.85 ppm were apparent indicative of aldehyde protons arising from hydrolysis of the acetal side-chain and generation of 2,4,6-trimethoxybenzaldehyde.

Grafted polymer P1-g-PEI: synthesis and characterisation. EMCS (16 mg, 0.05 mmol), dissolved in DMSO (40 µL), was added dropwise to a solution of polymer P1 (142 mg, 0.01 mmol) in PBS (1 mL, 0.01 M, pH 7.4) with rapid stirring. The solution was stirred for 30 minutes at room temperature and then diluted with PBS (10 mL, 0.01 M, pH 7.4). This solution was then added to centrifugal concentrators (Millipore Ultra 15, 3 kDa cut-off) and washed through with PBS (3 × 5 mL, 0.01 M, pH 7.4) to remove un-reacted EMCS. Washes were carried out at 4 °C in order to maintain polymer solubility. The activated polymer was then added to branched PEI (0.205 g, 0.0082 mmol) in water (6 mL) and the pH was adjusted to 9 prior to overnight reaction at room temperature. The polymer solution was dialysed (50 kDa cut-off) extensively (5 days) against water (∼13 × 3.5 L), at alternating temperatures above (at 35 °C) and below (at 25 °C) the polymer LCST, to remove both unreacted PEI and PNIPAm-g-EMCS.⁵⁴ The solution was then lyophilised to yield a white solid.

Polymer P1-g-PEI: yield 202 mg. IR ν_max (KBr)/cm⁻¹: 3419br (NH), 2971, 2935 and 2841 (CH), 1651 (CO), 1557 (NH), 1470, 1387 and 1367 (CH).

¹H NMR δ_H (399.8 MHz, D₂O) 7.95–7.84 (1H, NH), 3.84–3.72 (1H, CH(CH₃)₂), 3.19–3.00 (2H, NH₂CH₂CH₂NH–), 3.00–2.5 (581H, CH₂CH₂, PEI), 2.15–1.82 (1H, CH, backbone), 1.67–1.2 (2H, CH₂ backbone), 1.15–0.95 (6H, CH(CH₃)₂).

¹³C NMR δ_C (100.5 MHz, D₂O) 175.3, 52.5, 51, 47.0, 45.5, 41.8, 38.8, 37.3, 23.4, 21.6.

Grafted terpolymer P4-g-PEI and P5-g-PEI: synthesis and characterisation. EMCS (16 mg, 0.05 mmol), dissolved in DMSO (40 µL), was added dropwise to a solution of P4 (120 mg, 0.004 mmol) or P5 (96 mg, 0.009 mmol) in PBS (1.1 mL, 0.01 M, pH 7.4) with rapid stirring at 4 °C. The solution was stirred for 2 hours at a temperature below the polymer LCST (4 °C) in order to maintain solubility of the polymer and then diluted with PBS (15 mL, 0.01 M, pH 7.4). The diluted solution was filtered (0.2 µm) at 4 °C and then added to centrifugal concentrators (Millipore Ultra 15, 3 kDa cut-off). The activated polymer was washed through with water (3 × 5 mL, pH 9) at 4 °C and the resulting concentrated polymer solution was added to PEI (268 mg, 0.01 mmol, for P4 reaction) (204 mg, 0.008 mmol for P5 reaction). The total reaction volume was 6 mL and the reaction solution was stirred at 4 °C overnight. The polymer solution was then dialysed (50 kDa cut-off) extensively (5 days) against PBS (0.005 M, pH 8.5, ∼14 × 3.5 L), at alternating temperatures above (at 25 °C) and below (at 4 °C) the polymers LCST, to remove both unreacted PEI and activated linear polymers.⁵⁴ The solution was then lyophilised to yield a pale yellow, gum-like, solid.

Spectroscopic data for P4-g-PEI and P5-g-PEI were very similar, with IR bands and NMR resonances varying only in differential intensities, as expected based on their close structural similarity. The presence of the extra methyl groups in the polymer backbone from DHPMA were overlapped by other backbone protons, but the raised cloud point of the polymer indicated the presence of polymerised DHPMA in the structure.

Polymer P4-g-PEI: yield 286 mg. IR ν_max (KBr)/cm⁻¹: 3392br (NH), 2964 and 2838 (CH), 1645 (CO), 1552 (NH), 1469, 1386 and 1367 (CH), 1305 and 1071 (CO).

¹H NMR δ_H (600 MHz, D₂O, 10 °C), 7.80–7.66 (1H, NH), 6.07–5.85 (2H, CH, aromatic), 5.85–5.75 (1H, OCHO), 5.75–5.63 (1H, OCHO), 3.7–3.4 (1H CH(CH₃)₂ and 9H, 3(COCH₃)), 3.13–2.9 (2H, NH₂CH₂CH₂NH–), 2.85–1.9 (581H, CH₂CH₂, PEI), 1.85–1.5 (1H, CH, backbone), 1.5–1.02 (2H, CH₂ backbone), 1.0–0.6 (6H, CH(CH₃)₂).

¹³C NMR δ_C (500.132 MHz, D₂O, 10 °C) 174.9, 164.2, 158.9, 125.13, 104.94, 104.05, 96.76, 91.03, 69.1, 60.11, 55.77, 55.46, 55.07, 54.59, 52.56, 50.67, 49.44, 49.27, 48.34, 47.29, 45.23, 41.51, 39.94, 39.13, 38.15, 37.18, 34.45, 27.37, 21.25.

Polymer P5-g-PEI: yield 108 mg (21%). IR ν_max (KBr)/cm⁻¹: 3423 (NH), 2941 and 2837 (CH), 1647 (CO), 1557 (NH), 1464, 1385, and 1367, 1306 (CH).

¹H NMR δ_H (500.132 MHz, D₂O, 10 °C) 7.8–7.68 (1H, NH), 6.02–5.86 (2H, CH, aromatic), 5.86–5.73 (1H, OCHO), 3.73–3.61 (1H, OCH₂CHCH₂CO), 3.61–3.34 (1H CH(CH₃)₂ and 9H, 3(COCH₃)), 2.88–2.7 (2H, NH₂CH₂CH₂NH–), 2.7–1.95 (CH₂CH₂ PEI), 1.81–1.54 (1H, CH, backbone), 1.54–1.45 (2H, CH₂ backbone), 0.98–0.6 (6H, CH (CH₃)₂).

¹³C NMR δ_C (125.772 MHz, D₂O, 10 °C) 176.6 (CO), 164.2 (COCH₃, aromatic), 158.9 (2C(OCH₃) aromatic), 96.8 (CH aromatic), 91.03 (2(O)CHC), 69.9 (NHCH(CH₂)₂), 60.1 (2(CH₂)OCH), 55.7 and 55.1 3(OCH₃), 52.3 ([double bond splayed left]NCH₂CH₂NH–), 50.6 ([double bond splayed left]NCH₂CH₂N[double bond splayed right]), 48.3 (–NHCH₂CH₂NH₂), 47.1 (–NHCH₂CH₂NH–), 45.1 (–NHCH₂CH₂N[double bond splayed right]), 41.5 (CH(CH₃)₂), 38.7 (NH₂CH₂CH₂NH–), 36.9 (NH₂CH₂CH₂N[double bond splayed right]), 35 (CH₂ backbone), 21.2 (2(CH₃)).

Evaluation of lower critical solution temperatures (LCSTs) via cloud point

Cloud points of all the polymers (P1–P5) were measured at pH 7.4 and 5.6. The polymers were dissolved in PBS solutions (adjusted to pH 7.4 and 5.6) to a concentration of 5 mg mL⁻¹. Solutions of grafted copolymers (P1-g-PEI, P4-g-PEI and P5-g-PEI) were adjusted to pH 7.4 or 5.6 using aliquots of HCl (1 M). These solutions were heated from about 10 °C to about 65 °C at a rate of 0.5 °C min⁻¹ in a UV spectrometer. The UV absorbance at 550 nm was measured at every 0.5 °C increase in temperature against the blank. The LCST was taken to be the temperature at which a sharp increase in absorption at 550 nm occurred.

Dynamic light scattering measurements

Stock solutions of polymers P1-g-PEI, P4-g-PEI and P5-g-PEI (5 mg mL⁻¹) in PBS solution (adjusted to pH 7.4 or pH 5.6 with HCl (1 M)) were diluted to 0.88 mg mL⁻¹. Sample solutions were allowed to equilibrate to the temperature of measurement for 4 minutes prior to commencing measurement. Hydrodynamic radii of the polymeric species were measured via scattered light recorded at 90° angle to incident radiation in a Viscotek 802 dynamic light scattering (DLS) instrument equipped with a 50 mW internal laser operating at a wavelength of 830 nm. Particle sizes reported are averages from 10 measurements per sample. Each measurement lasted 3 seconds.

Change in LCST with acetal hydrolysis

Polymers P2–P5 were dissolved in PBS solution (adjusted to pH 7.4 and 5.6) to a concentration of 1 mg mL⁻¹. Immediately after dissolution, the polymer solutions were heated starting at 15 °C at a rate of 1 °C min⁻¹ in a UV spectrometer. The UV absorbance at 550 nm was measured at every 1 °C increase against the blank. The solutions were incubated at 37 °C, in between measurements.

Instrumentation

Infrared spectroscopy. Infrared spectra were obtained with a Perkin Elmer Paragon 1000 FT-IR spectrophotometer, in transmittance mode, at a resolution of 4 cm⁻¹.

NMR spectroscopy. ¹H and ¹³C NMR spectra were recorded on Bruker spectrometers at 400 MHz and 600 MHz (¹H) and 100 MHz and 125 MHz (¹³C), respectively, in D₂O, DMDO-d₆ or CDCl₃ solutions. The ¹³C NMR spectrum for P5-g-PEI was obtained using a cryoprobe, and the sample was measured at 10 °C. All chemical shifts are reported in ppm relative to TMS or DSS and J values are given in Hz.

Gel permeation chromatography. Molecular weights and molecular weight distributions were determined using conventional gel permeation chromatography with a Polymer Laboratories GPC120 instrument with PLgel guard and PLgel 2× mixed bed-B, 30 cm, 10 micron columns. Data capture and subsequent data handling were carried out using Polymer Laboratories “Cirrus” software. The solvent system used N,N′-dimethylacetamide with LiBr (0.01 M) at 1.0 mL min⁻¹ (nominal). A single solution of each sample was prepared by adding the polymer (30 mg) to solvent (15 mL) with shaking and warming to 80 °C to dissolve. The solutions were then filtered (1 µm cut-off) and part of each filtered solution transferred to glass sample vials. The vials were then placed in the instrument sample compartment and after an initial delay of fifteen minutes to allow the samples to equilibrate to 80 °C, injection of part of the contents of each vial was carried out automatically. Molecular weights were calculated relative to PMMA calibrants, ranging in M_w from 690 to 1 944 000.

Transmission Electron Microscopy (TEM). Samples were examined from aqueous solutions rapidly evaporated on TEM grids at temperatures above and below LCST using an FEI Tecnai 12 Biotwin. Staining in Fig. 8(i)–(iv) was carried out with phosphotungstic acid solution (0.01%, w/v, adjusted to pH 7.4 with KOH).
