Improved structural and electrochemical performances of LiNi_0.5Mn_1.5O₄ cathode materials by Cr³⁺ and/or Ti⁴⁺ doping

Abstract

High voltage LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) cathode materials were synthesized by solid-state method, and the effects of Cr/Ti doping alone and co-doping on the crystalline structure, Mn³⁺ content, particle morphology and electrochemical performance of LiNi_0.5Mn_1.5O₄ cathode materials were systematically investigated. The as-prepared samples were characterized by XRD, FT-IR, SEM, CV, EIS and galvanostatic charge/discharge cycling tests. XRD results show that both pristine and doped materials have cubic spinel structure with Fd3m space group, and the Cr and/or Ti doping can effectively prevent the formation of Li_yNi_1−yO impurity phase. FT-IR spectra indicate that the Cr and/or Ti doping increases the disordering degree of Ni/Mn ions in 16d octahedral sites. SEM observation discloses that the Cr and/or Ti doping increases the particle size distribution homogeneity and decreases the average primary particle size. EIS analysis illustrates that the Cr and/or Ti doping decreases the charge transfer resistance and increases the Li⁺ ion diffusion coefficient. All of the above-mentioned factors are believed to be advantageous to the cycling stability and rate capability. Among which, the Cr and Ti co-doped sample LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ exhibits optimal cycling performance with a capacity retention rate of 102.1% after 100 cycles at 1C rate, and optimal rate capability with a discharge capacity of 118.7 mA h g⁻¹ at 10C rate, which is 96.1% of its capacity at 0.2C rate. The excellent electrochemical performance of LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ cathode material may be mainly attributed to the presence of appropriate Mn³⁺ content and higher Li⁺ ion diffusion coefficient.

---

Introduction

High voltage LiNi_0.5Mn_1.5O₄ spinel is now a very promising cathode material for lithium ion batteries that can be applied in electric vehicles (EV), hybrid electric vehicles (HEV) and plug-in hybrid electric vehicles (PHEV),¹ due to the advantages of low cost, good rate capability, high energy density and safety characteristics.^2–4 However, the electrochemical properties of LiNi_0.5Mn_1.5O₄ are strongly influenced by Mn³⁺ concentration, Mn dissolution and impurities,⁵ which make the synthesis of LiNi_0.5Mn_1.5O₄ with superior performances a challenge.

Up to now, various synthesis methods producing LiNi_0.5Mn_1.5O₄ with different morphologies and electrochemical performances have been reported, such as solid-state,^6,7 sol–gel,⁸ co-precipitation,^9,10 molten salt,¹¹ hydrothermal route,^12,13 etc. Among the above methods, the solid-state method is simple, cheap, and more importantly, easy to realize industrialization. But the high temperature calcination often results in oxygen loss, accompanied with the co-existence of Li_yNi_1−yO as an impurity phase, which is disadvantageous to the discharge capacity and cycling stability.¹⁴ In addition, the oxygen loss is usually accompanied with the formation of Mn³⁺ to maintain charge neutrality, whose presence plays double roles. On one hand, Mn³⁺ can increase the electronic and ionic conductivity due to its electrochemical activity.^15,16 On the other hand, part of Mn³⁺ may form Mn²⁺ via the disproportionation reaction, causing significant capacity loss during cycling.¹⁷ Therefore, controlling the appropriate Mn³⁺ content is critical for LiNi_0.5Mn_1.5O₄ cathode material to achieve superior electrochemical performance. To eliminate the Li_yNi_1−yO impurity and control the Mn³⁺ content, one of the commonly adopted approaches is to partially substitute Mn and/or Ni with other cations, such as Cu,¹⁸ Zn,^8,18 Fe,¹⁹ Co,¹⁹ Mg,²⁰ Ru,²¹ Cr²² and Ti.^23,24 The elements Cr and Ti are typical doping ions to modify the LiNi_0.5Mn_1.5O₄ spinel. Zhang et al.²² have found that Cr³⁺-doping could effectively eliminate the Li_yNi_1−yO impurity phase and improve structural stability. Wang et al.²⁴ have synthesized LiNi_0.4Ti_0.1Mn_1.5O₄ by solid-state reaction and found that LiNi_0.5Mn_1.5O₄ has higher crystallinity, discharge capacity and cycling retention rate after Ti doping. Although the substitution of them can improve the performance of LiNi_0.5Mn_1.5O₄, it is hard to identify which is the most effective from these literatures due to the different synthesis methods and test standards from group to group. Therefore, in this study, we have systematically investigated the effects of doping Cr and Ti alone or both for Ni element on the crystalline structure, Mn³⁺ content, particle morphology and electrochemical performance of LiNi_0.5Mn_1.5O₄ cathode materials prepared by the same solid-state method, to gain a further insight into the impacts of cation doping.

Experimental

Material synthesis

Pristine LiNi_0.5Mn_1.5O₄ was synthesized by ball milling the mixture of stoichiometric Li₂CO₃ (1.5221 g), NiO (1.4938 g) and Mn₃O₄ (4.5764 g) for 1 h followed by calcination at 500 °C for 5 h and 850 °C for 8 h under air atmosphere with a heating rate of 5 °C min⁻¹, and the thus obtained cathode material was labelled as LNMO. Cr₂O₃ and TiO₂ were used as the sources of doping ions and added in the starting materials to give the final compositions of LiNi_0.45Cr_0.05Mn_1.5O₄ (Cr₂O₃: 0.1535 g, NiO: 1.3444 g), LiNi_0.45Ti_0.05Mn_1.5O₄ (TiO₂: 0.1614 g, NiO: 1.3444 g) and LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ (Cr₂O₃: 0.0767 g, TiO₂: 0.0807 g, NiO: 1.3444 g), which were named as LNMO-Cr, LNMO-Ti and LNMO-CrTi, respectively. To compensate for the lithium loss during high temperature calcination, 3 mol% extra amount of lithium source was used in all the starting materials.

Characterization and electrochemical measurements

A powder X-ray diffractometer (D8-FOCUS, Bruker, Germany) equipped with a Cu Kα radiation source (λ = 0.15406 nm) was used to study the structural properties. The morphology and particle size distribution of the materials were analyzed by scanning electron microscopy (Nova Nano SEM450, FEI, USA) and Laser Particle Sizer (LS800, OMEC, China). Fourier Transformation Infrared Spectrometer (V80, Bruker, Germany) was used to identify the Ni/Mn ordering distribution in LiNi_0.5Mn_1.5O₄ material with a wavenumber scale of 400–700 cm⁻¹.

To fabricate the positive electrode, the as-prepared cathode materials were mixed with ethylene black and polytetrafluoroethylene (PTFE) in a mass ratio of 80 : 15 : 5. The CR2032 test coin cells were assembled in an argon-filled glove box using lithium foil as the counter electrode, polypropylene microporous membrane as the separator and 1 M LiPF₆ dissolved in ethylene carbonate (EC)–dimethyl carbonate (DMC)–ethyl methyl carbonate (EMC) (1 : 1 : 1, v/v/v) as the electrolyte. The cells were charged and discharged galvanostatically at different current densities (1C = 147 mA h g⁻¹) using the battery test system CT2001A (Land, Wuhan, China) in a voltage range of 3.5–4.95 V (vs. Li/Li⁺). Cyclic voltammetry and electrochemical impedance spectroscopy (EIS) were conducted using an electrochemical workstation (CHI660, Shanghai, China). The CV curves were recorded in the voltage range of 3.3–5.0 V (vs. Li/Li⁺) at a scanning rate of 0.1 mV s⁻¹. The electrochemical impedance spectra were recorded by applying an ac amplitude of 5 mV over a frequency range from 10 mHz to 100 kHz at fully-discharged state after rate capability test.

Results and discussion

Fig. 1 shows the XRD patterns of the pristine and doped LiNi_0.5Mn_1.5O₄ samples. All the diffraction peaks can be ascribed to cubic spinel structure (JCPDS card no. 80-2162) with a space group of Fd3m, in which lithium ions occupy the tetrahedral (8a) sites, transition metals (Ni, Cr, Ti and Mn) are located at the octahedral (16d) sites, and oxygen atoms reside in the 32e sites. The sharp and narrow peaks imply high crystallinity of the materials. But for the pristine LNMO sample, in addition to the major spinel phase, there also exist weak reflections at ∼37.6, 43.8 and 63.4°, corresponding to the impurity phase Li_yNi_1−yO with rock salt structure, due to the oxygen loss during high temperature calcination.²⁵ However, the three doped samples exhibit higher phase purity with lower impurity content, as shown in Fig. S1 (ESI†), which is consistent with earlier reports that the cation doping could effectively suppress the formation of Li_yNi_1−yO impurity phase and stabilize the spinel crystal structure.^26,27 The high phase purity is believed to be advantageous to the enhancement of discharge capacity and cycling stability. In addition, from the magnified pattern of (111) peak, it can be clearly seen that compared to pristine LNMO sample, the diffraction peak of Cr-doped sample LNMO-Cr shifts slightly to lower degree direction, while those of Ti-doped and Cr/Ti co-doped samples shift to higher degree direction. This phenomenon can be explained by the different ionic radii of Ni²⁺ (0.69 Å, four-coordination), Cr³⁺ (0.76 Å, six-coordination), Ti⁴⁺ (0.56 Å, four-coordination) based on Bragg equation 2d sin θ = nλ. To further investigate the structural change, lattice parameters calculated from XRD are summarized in Table 1. It can be seen that the lattice parameters of LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 8.1652, 8.1712, 8.1328 and 8.1590 Å, respectively. The increase of lattice parameter after Cr-doping may be due to that the substitution of Cr³⁺ for Ni²⁺ leads to the partial reduction of smaller Mn⁴⁺ (0.67 Å) to larger Mn³⁺ (0.72 Å) for the sake of charge compensation. Additionally, the larger ionic radii of Cr³⁺ compared to Ni²⁺ also lead to its larger lattice parameter. However, both Ti-doped and Cr/Ti co-doped samples show decreased lattice parameters, which may be due to the smaller values of r_Ti⁴⁺ and (r_Cr³⁺ + r_Ti⁴⁺)/2 (0.66 Å) compared to r_Ni²⁺. In the meantime, the difference in lattice parameters also demonstrates the incorporation of Cr and/or Ti into the spinel crystal lattice.

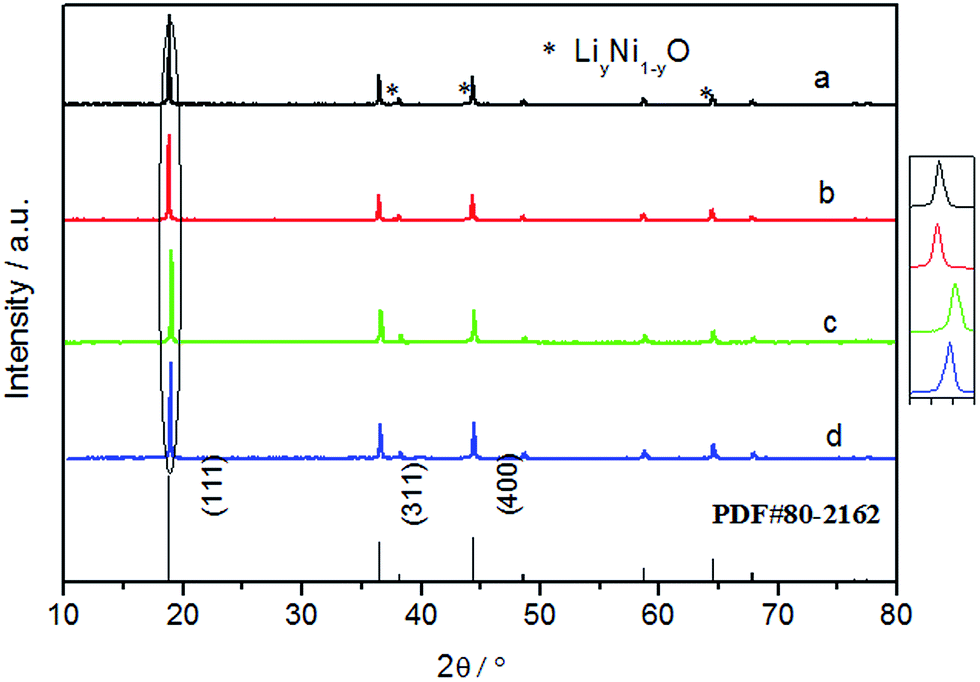

Fig. 1 XRD patterns of (a) LiNi_0.5Mn_1.5O₄; (b) LiNi_0.45Cr_0.05Mn_1.5O₄; (c) LiNi_0.45Ti_0.05Mn_1.5O₄; (d) LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄. The right graph is the magnified image of (111) peak.

Table 1 Lattice parameters (a, V), crystallite sizes (D) and I₄₀₀/I₃₁₁ values of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples

Sample	a (Å)	V (Å)	D (nm)	I400/I311
LNMO	8.1652	544.38	69.48	1.038
LNMO-Cr	8.1712	545.58	65.79	1.141
LNMO-Ti	8.1328	537.92	64.28	1.183
LNMO-CrTi	8.1590	543.13	64.83	1.147

---

Based on Scherrer equation D = kλ/β cos θ, where k is 0.89, λ is 0.15406 nm and β is the full-width-at-half-maximum (FWHM) of the diffraction peak on a 2θ scale, we can get the crystallite size (D) of the pristine and doped LiNi_0.5Mn_1.5O₄ cathode materials according to D₁₁₁, D₄₀₀ and D₃₁₁ values, which are also listed in Table 1. From the table we can see that the crystallite sizes of LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 69.48, 65.79, 64.28 and 64.83 nm, respectively, illustrating that the doped samples have a smaller crystallite size, which may be due to the inhibition of crystallite growth by the doping ions. The smaller crystallite size is believed to be advantageous to the rate capability due to the shortened Li⁺ ion diffusion length, which can be verified by the following SEM observation.

Many researchers^28–30 have reported that the integrated intensity ratio of (400)/(311) peak reflects the extent of occupancy of the heavier ions in the 8a lithium sites, which would lead to unfavorable electrochemical characteristics. From Fig. 1 we can get the integrated intensity ratios of (400)/(311) for LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 1.038, 1.141, 1.183 and 1.147, respectively, as listed in Table 1, and the lower intensity ratio of (400)/(311) for the pristine LNMO sample suggests that the transition metal ions show a propensity to occupy the 8a lithium sites in LiNi_0.5Mn_1.5O₄ due to the Li_yNi_1−yO impurity, that is, the pristine LNMO sample has a higher cation mixing degree, and the presence of transition metal ions with larger ionic radii in the Li site will hamper the Li⁺ ion diffusion, which is believed to be detrimental to electrochemical performance.

LiNi_0.5Mn_1.5O₄ spinel has two different space groups, disordered Fd3m and ordered P4₃32, which are characterized by the random distribution of Ni and Mn in octahedral 16d sites and the ordered occupation of Ni and Mn in octahedral 4a and 12d sties, respectively. It is difficult to observe the structural difference between these two space groups by XRD, due to the similar scattering factors of Ni and Mn. Instead, FT-IR has been proven to be an effective technique for analyzing the cation ordering.^15,31–33 LiNi_0.5Mn_1.5O₄ with P4₃32 space group typically produces a fingerprint FT-IR spectrum consisting of eight well-defined bands at 432, 468, 478, 503, 557, 594, 621 and 648 cm⁻¹,³⁴ whereas disordered Fd3m phase gives a rather broad spectrum with only five bands.³¹ As shown in Fig. 2, the spectra of the pristine and doped samples between 700 and 400 cm⁻¹ are very similar. The two bands at 621 and 501 cm⁻¹ are more intensive than those at 586 and 475 cm⁻¹, respectively. In addition, the two bands at 648 and 432 cm⁻¹, characteristic for P4₃32 phase, are absent or undefined. These features indicate that all the four samples have disordered structure with Fd3m space group,³² in good consistence with the XRD results.

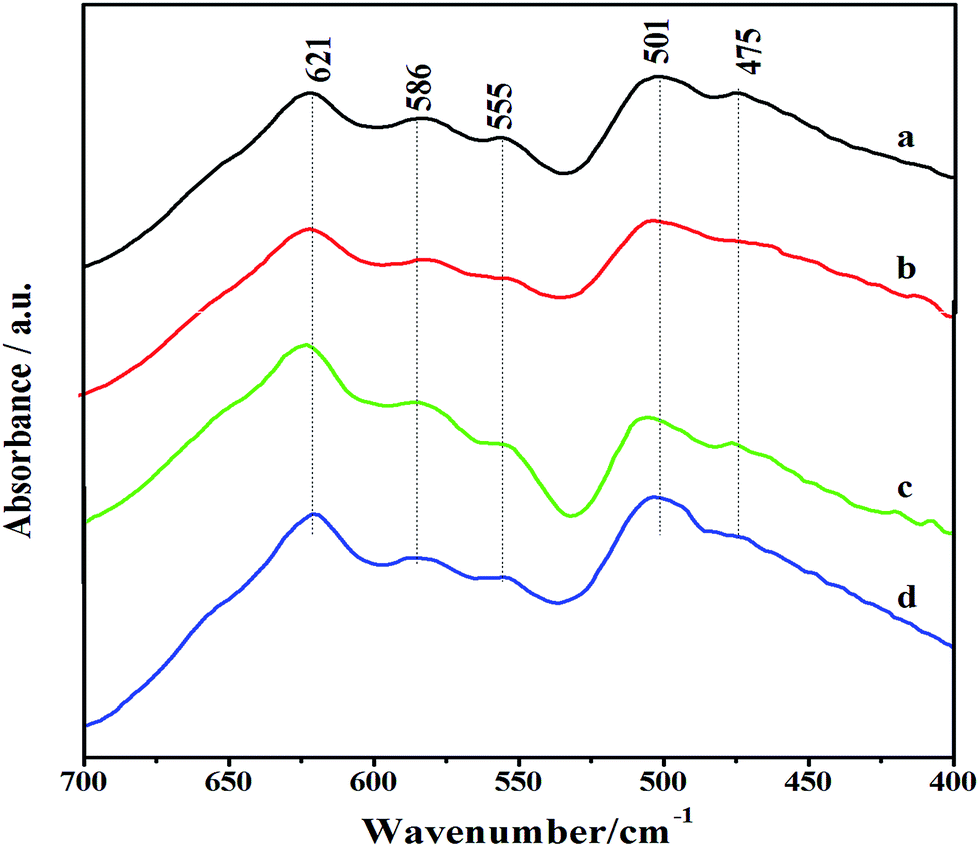

Fig. 2 FT-IR spectra of (a) LiNi_0.5Mn_1.5O₄; (b) LiNi_0.45Cr_0.05–Mn_1.5O₄; (c) LiNi_0.45Ti_0.05Mn_1.5O₄; (d) LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄.

Additionally, it has been reported that the ordering in 16d octahedral sites can be qualitatively determined by the intensity ratio between the peaks at 586 and 621 cm⁻¹.³¹ Specifically, the intensity of the 586 cm⁻¹ Ni–O band increases compared to that of the 621 cm⁻¹ Mn–O band as the degree of ordering in the 16d sites increases. As we can see in Fig. 2, the relative intensity of the 586 cm⁻¹ Ni–O band decreases after doping, indicating a decrease in the cation ordering degree in the 16d octahedral sites. According to ref. 19, the difference in the cation disordering degree can be attributed to the size difference between doping cation and Mn⁴⁺. Therefore, the different cation disordering degree of the doped samples may be attributed to the cation radius difference between Cr³⁺, Ti⁴⁺ and Mn⁴⁺. To some extent, the decrease of cation ordering degree may be due to the presence of Mn³⁺, and the lower the cation ordering degree, the higher the Mn³⁺ content. Based on the FT-IR spectra, we can get the intensity ratios between 586 cm⁻¹/621 cm⁻¹ for LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 0.883, 0.880, 0.693 and 0.859, respectively, that is, the cation disordering degree and relative Mn³⁺ content decrease in the following order: LNMO-Ti > LNMO-CrTi > LNMO-Cr > LNMO. The relative Mn³⁺ content in the product is relevant to the valence of doping ions under the conditions of the same doping amount. The higher the valence of doping ions, the more Mn³⁺ ions will be formed in order to maintain charge neutrality. The increase of Mn³⁺ content of the Cr-doped sample in this study is consistent with ref. 19 and 35, but contrary to ref. 28, which may be due to the different synthesis method and doping amount.

In addition to the superstructure reflections in XRD and the FT-IR bands normally used to assess the cation ordering, it has been reported in ref. 19 that an examination of the charge/discharge behavior below 3 V involving the insertion/extraction of Li⁺ ions into/from the empty 16c sites is an effective way to assess precisely the cation ordering degree in the 5 V spinels. The first discharge and second charge profiles, along with the differential capacity plots of the pristine and doped LiNi_0.5Mn_1.5O₄ samples at 0.2C rate are shown in Fig. 3. Due to the higher polarization at low voltages below 2.5 V, those samples were discharged below 2 V until the discharge capacity reached twice the value of the discharge capacity at 3.5 V to equally utilize both the 8a tetrahedral sites and 16c octahedral sites of the spinel lattice.^19,36 From the first discharge curves in Fig. 3(a), it can be seen that all samples show distinct plateaus at ∼4.7 V and ∼4.0 V, corresponding to the Li⁺ ion insertion into the 8a tetrahedral sites,^36,37 which can be clearly seen in dQ/dV curves in Fig. 3(c). From Fig. 3(a) we can also see that all doped samples exhibit a longer ∼4.0 V plateau compared to that of the pristine sample due to an increase in Mn³⁺ content resulting from the substitution of Cr³⁺ and/or Ti⁴⁺ for Ni²⁺.³⁸ Besides that, the two plateaus at ∼2.7 V and ∼2.1 V can be attributed to the reduction of Mn⁴⁺ to Mn³⁺ involving Li⁺ ion insertion into empty 16c octahedral sites, which is associated with the evolution of two tetragonal phases from the cubic phase.³⁶ Manthiram et al. demonstrated that the relative capacity variation at the ∼2.7 V and ∼2.1 V can be used to determine qualitatively the relative cation ordering degree in the spinels,^19,36 and the capacity at the ∼2.7 V plateau increases at the expense of the capacity at the ∼2.1 V plateau as the cation ordering degree increases. The first discharge capacity variations of all the samples between the ∼2.7 V to ∼2.1 V plateaus are compared in Table 2. From Fig. 3(a) and Table 2 we can see that the pristine LNMO sample shows the longest plateau at ∼2.7 V, indicating its higher cation ordering degree. As for the doped samples, the relative ordering degree varies in the following order: LNMO-Cr > LNMO-CrTi > LNMO-Ti, which is in consistence with the above FT-IR results.

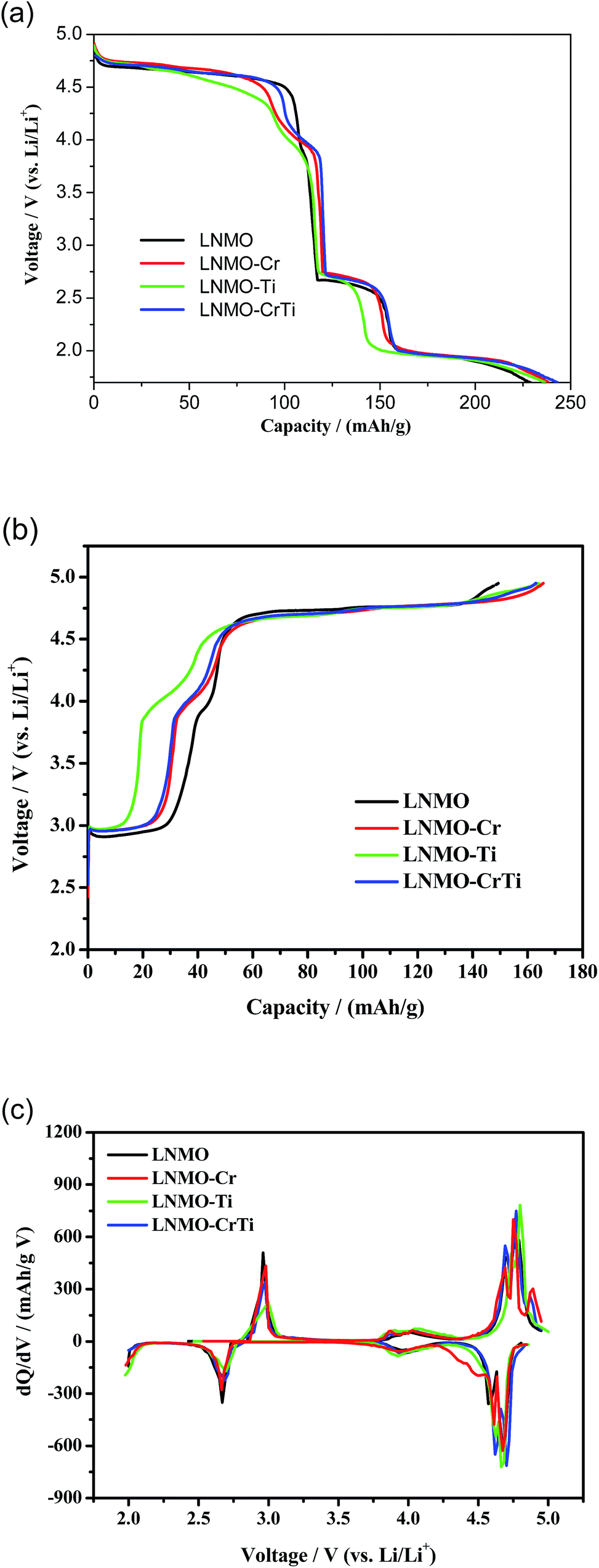

Fig. 3 (a) First discharge profiles, (b) second charge profiles, and (c) differential capacity (dQ/dV) plots of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples between 5 and 2 V at 0.2C rate.

Table 2 Comparison of the first discharge capacities of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples

Sample	First discharge capacity (mA h g^−1)
	Total	Capacity above 3.5 V	Capacity below 3 V
			Total	∼2.7 V plateau	∼2.1 V plateau
LNMO	229.0	115.9	113.1	41.8	71.3
LNMO-Cr	238.3	119.5	118.8	33.8	85.0
LNMO-Ti	236.5	116.5	120.0	26.6	93.4
LNMO-CrTi	242.9	120.9	122.0	33.6	88.4

---

As for the second charge curves, as shown in Fig. 3(b), two plateaus (∼2.9 and ∼3.8 V) appear when Li⁺ ions are removed from the 16c octahedral sites,³⁶ and the capacity at the ∼3.8 V plateau increases as the cation ordering degree decreases. Therefore, it can be concluded that the cation ordering degree varies in the order of LNMO > LNMO-Cr > LNMO-CrTi > LNMO-Ti, well consistent with the FT-IR results. The increase of cation disordering degree after Cr and/or Ti doping is mainly caused by the presence of more Mn³⁺ ions in the product. Additionally, from the dQ/dV curves in Fig. 3(c) it can be clearly seen that LNMO-Cr and LNMO-CrTi samples show a small peak at ∼4.9 V during Li⁺ ion insertion due to the reduction of Cr⁴⁺ to Cr³⁺,³⁰ and the sample doped with Cr³⁺ alone exhibits a higher peak intensity at ∼4.9 V due to more Cr³⁺ in the product.

Fig. 4 shows the SEM images of the pristine and doped LiNi_0.5Mn_1.5O₄ cathode materials. It can be seen that the pristine and doped samples exhibit similar particle morphology, which are secondary aggregates composed of octahedral primary particles. The surface facets of the octahedrons correspond to (111) crystal planes, which is thermodynamically more stable.³⁹ From Fig. 4(b) we can see that the pristine LNMO sample shows various crystallite sizes with incomplete crystal growth. However, the Cr and/or Ti doping obviously improves the uniformity of crystal morphology, including fine, uniform crystallite size and reduced agglomeration, which is well consistent with the crystallite size obtained from XRD. The particle size distribution curves of pristine LNMO and co-doped LNMO-CrTi samples are shown in Fig. S2 (ESI†), whose D₁₀, D₅₀, D₉₀ values are listed in Table S1 (ESI†). It is generally accepted that the smaller the (D₉₀–D₁₀)/D₅₀ value is, the narrower the particle size distribution is. From the table it can be seen that the co-doped sample (LNMO-CrTi) exhibits smaller D₅₀ and (D₉₀–D₁₀)/D₅₀ values than the pristine sample (LNMO), confirming its smaller average primary particle size with narrower particle size distribution, which is believed to be advantageous to the electrochemical performance due to the reduced Li⁺ ion diffusion distance and enlarged active specific surface area.

Fig. 4 SEM images of (a and b) LiNi_0.5Mn_1.5O₄; (c and d) LiNi_0.45Cr_0.05Mn_1.5O₄; (e and f) LiNi_0.45Ti_0.05Mn_1.5O₄; (g and h) LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄.

High rate performance is one of the most important electrochemical properties of lithium ion batteries for high power applications.^40–42 Therefore, the rate capabilities of the pristine and doped LiNi_0.5Mn_1.5O₄ samples are evaluated at different rates of 0.2C, 1C, 5C and 10C, as shown in Fig. 5. From the figure we can see that with increasing current density, the discharge capacities of all samples gradually decrease because of the high polarization caused by kinetic limitations. From Fig. 5(a) it can be seen that the rate capability is improved to different extent by the Cr³⁺ and/or Ti⁴⁺ doping. The ratio of discharge capacity at 10C rate to that at 0.2C rate increases from 86.2% for LNMO to 88.7% for LNMO-Cr, 91.1% for LNMO-Ti and 96.1% for LNMO-CrTi, respectively. Furthermore, from the discharge curves in Fig. 5(b) we can also see that the discharge voltage platforms of the doped samples are enhanced compared with that of the pristine one, especially at high current densities of 5C and 10C, indicating that the polarization is effectively suppressed and the rate capability is obviously improved by the Cr³⁺ and/or Ti⁴⁺ doping, which can also be verified from the charge curves at 5C rate, as shown in Fig. S3 (ESI†), for that the charge voltage plateau decreases to different extent after Cr and/or Ti doping. It has been reported that the polarization at high current density is usually caused by limited electronic conductivity and slow Li⁺ ions transfer rate.⁴³ Therefore, the decreased polarization of the doped samples may be due to the reduced particle size and enhanced electronic conductivity resulting from the presence of more Mn³⁺ in the products.

Fig. 5 Rate performance (a) and discharge curves at different rates (b) of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples.

The lower discharge capacity at 0.2C rate may be due to the incomplete dispersion of electrolyte into the electrode at the beginning, or more side reactions between electrode and electrolyte resulting from longer charge/discharge time. Additionally, from the discharge curves at 0.2C rate, we can see that all samples exhibit large discharge plateaus at 4.7 V, which can be ascribed to the Ni²⁺/Ni⁴⁺ redox couple. And the presence of small plateaus at 4.0 V is caused by the Mn³⁺/Mn⁴⁺ redox couple. The capacity of this plateau can be qualitatively used to evaluate the relative Mn³⁺ content in the spinels, which can be calculated from the discharge capacity between 3.8 and 4.25 V divided by the total discharge capacity.⁵ Therefore, based on the discharge curves at 0.2C rate, we can get that the relative Mn³⁺ contents of LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 11.27, 13.65, 18.92 and 15.87%, respectively. It has been reported that the presence of appropriate Mn³⁺ content is critical to accelerate the Li⁺ ion transport within the crystalline structure, which is beneficial to enhance the electrochemical properties of LiNi_0.5Mn_1.5O₄ cathode material. LiNi_0.5Mn_1.5O₄ with an appropriate amount of disordered phase offers high rate capability and excellent cycling performance.¹⁴ Therefore, the optimal rate capability of LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ sample may be partly attributed to the presence of appropriate Mn³⁺ content.

Fig. 6 shows the cyclic voltammograms of the cells with the LiNi_0.5Mn_1.5O₄ and LiNi_0.45M_0.05Mn_1.5O₄ (M = Cr, Ti, Cr_0.5Ti_0.5) spinels as the working electrodes. On both cathodic and anodic runs, two peaks are observed at around 4.6–4.8 V, corresponding to the redox reactions of Ni²⁺/Ni³⁺ and Ni³⁺/Ni⁴⁺ couples. Generally, LiNi_0.5Mn_1.5O₄ with P4₃32 space group shows only a strong oxidation peak around 4.7 V, but the oxidation peak splits into two separate peaks in the Fd3m spinel because the voltage difference between Ni²⁺/Ni³⁺ and Ni³⁺/Ni⁴⁺ redox couples is enhanced in the nonstoichiometric spinel.^44–46 This reveals that both pristine and doped samples are with dominant Fd3m space group, in consistence with the XRD and FT-IR data. In addition, the separation between the Ni redox couples is determined to be 57, 70, 60 and 62 mV for LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi, respectively. As the reported values for peak separation in LiNi_0.5Mn_1.5O₄ samples with disordered and ordered structures are 60 and 20 mV, respectively,^39,47 the results further confirm the disordered structure of the as-prepared samples. The peak at ∼4.0 V is related to the Mn⁴⁺/Mn³⁺ redox couple, whose peak intensity can roughly represent the relative Mn³⁺ content in the spinel structure. From the magnified graph in the inset of Fig. 6 it can be concluded that the relative Mn³⁺ contents increase in the order of LNMO < LNMO-Cr < LNMO-CrTi < LNMO-Ti, in good accordance with FT-IR result and first discharge behavior below 3 V. In addition, the CV profile of LNMO-CrTi exhibits higher peak current density and more symmetrical redox peaks than other three samples, indicating the enhanced electrode reactivity,⁴⁸ which leads to its better electrochemical performance.

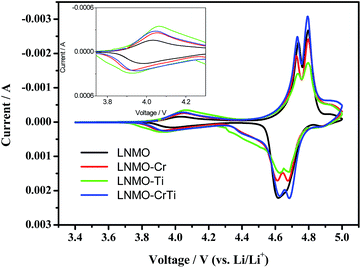

Fig. 6 Cyclic voltammograms of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples. The inset is the magnified image of ∼4.0 V peak.

It is generally accepted that the polarization degree can be measured by the potential difference (Δϕ) between the anodic (ϕ_a) and cathodic (ϕ_c) peaks of LiNi_0.5Mn_1.5O₄, which is listed in Table 3. From Table 3 we can see that the voltage differences between the oxidation and reduction peaks for both Ni²⁺/Ni³⁺ and Ni³⁺/Ni⁴⁺ redox couples decrease in the order of LNMO > LNMO-Cr > LNMO-Ti > LNMO-CrTi, that is, the doped samples have smaller oxidation/reduction voltage differences, implying faster Li⁺ ion transfer and higher reversibility of the electrochemical reactions,¹⁶ thus leading to their higher discharge capacity and rate capability, as shown in Fig. 5.

Table 3 Values of anodic peak (ϕ_a), cathodic peak (ϕ_c) and potential difference (Δϕ) for LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples

Sample		ϕa/V	ϕc/V	Δϕ/mV
LNMO	Ni^2+/Ni^3+	4.739	4.618	121
	Ni^3+/Ni^4+	4.796	4.665	131
LNMO-Cr	Ni^2+/Ni^3+	4.727	4.612	115
	Ni^3+/Ni^4+	4.797	4.676	121
LNMO-Ti	Ni^2+/Ni^3+	4.734	4.629	109
	Ni^3+/Ni^4+	4.794	4.681	113
LNMO-CrTi	Ni^2+/Ni^3+	4.731	4.627	104
	Ni^3+/Ni^4+	4.793	4.684	109

---

Fig. 7 shows the cycling performance curves of the pristine and doped LiNi_0.5Mn_1.5O₄ samples at 1C rate for 100 cycles, whose discharge capacities at 1^st and 100^th cycle and corresponding retention rates are listed in Table 4. From Table 4 we can see that the capacity retention rates of LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 90.5, 95.6, 97.8 and 102.1% after 100 cycles, respectively, indicating the better electrochemical reversibility and structural stability of the doped samples. The excellent cycling performance of the doped samples may be explained by the following two reasons. On one hand, it has been reported that Cr element may readily segregate to the particle surface,^19,49 leading to the enrichment of Cr on the surface, which could minimize the contact of Mn³⁺ with the electrolyte and thereby suppress the disproportionation reaction of Mn³⁺ (Mn³⁺ = Mn⁴⁺ + Mn²⁺) and Mn²⁺ dissolution, although the substitution of Cr³⁺ for Ni²⁺ increases Mn³⁺ content in the spinel structure. And Kim et al.⁵⁰ showed that Ti substitution for Mn could reduce electrolyte oxidation and retard some of the degradative parasitic reactions at electrode/electrolyte interface during battery operation. On the other hand, because the Gibbs energy of the formation of NiO, Cr₂O₃ and TiO₂ is −211.7, −1058.1 and −888.8 kJ mol⁻¹, respectively, the bonding strength between the transition metal elements and oxygen can be strengthened by the incorporation of Cr³⁺ and/or Ti⁴⁺, thus reinforcing the spinel framework during cycling.^51,52

Fig. 7 Cyclic performance curves of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples at 1C rate.

Table 4 Discharge performance data of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples

Sample	Discharge capacity (mA h g^−1)		Capacity retention rate (%)
	1^st cycle	100^th cycle
LNMO	122.0	110.4	90.5
LNMO-Cr	124.9	119.4	95.6
LNMO-Ti	123.2	120.5	97.8
LNMO-CrTi	124.3	126.9	102.1

---

It is generally accepted that the electrochemical performance of high voltage LiNi_0.5Mn_1.5O₄-based spinels depends on many factors, such as phase purity, crystallinity, morphology, particle size and distribution, cation ordering degree, Mn³⁺ content and surface planes in contact with the electrolyte.^53,54 Due to the similar particle morphology with (111) crystallographic planes in contact with the electrolyte, the better rate capability and cycling stability of the doped samples may be attributed to the following reasons: (1) higher phase purity with lower impurity content. On one hand, the existence of impurity phase without electrochemical activity in the pristine LNMO sample may decrease the amount of active materials. On the other hand, the impurity phase is reported to be more readily to react with the electrolyte.⁵⁵ (2) More homogeneous particle size distribution with smaller particle size. This could provide larger specific surface area and shorter Li⁺ ion diffusion distance. (3) More disordered Fd3m crystal structure induced by the increased Mn³⁺ content. It has been reported that the disordered spinels have higher electronic conductivity and Li⁺ ion diffusion coefficient.^11,56 Additionally, the disordered Fd3m phase only undergoes a one-step phase transition between two cubic phases during electrochemical cycling, whereas the ordered spinel undergoes two-step phase transitions between three cubic phases.¹¹ A larger number of phase transformation steps can lead to a higher strain energy during cycling, thus resulting in the worse structural stability of ordered phase. Among the three doped samples, the Cr and Ti co-doped sample LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ exhibits the optimal electrochemical performance, which may be partly due to the appropriate cation disordering degree, that is, the presence of appropriate Mn³⁺ content. It is generally accepted that the presence of Mn³⁺ ions has dual functions.^57,58 On one hand, the presence of Mn³⁺ could increase both the electronic conductivity and Li⁺ ion transportation,^58,59 which is conductive to the rate capability. On the other hand, too many Mn³⁺ ions would lead to disproportionation reactions that produce soluble Mn²⁺ in the electrolyte, which may cause severe capacity fading, especially when full cells are used.⁶⁰ Therefore, the presence of appropriate Mn³⁺ content is necessary to the excellent electrochemical performance, which is also reported in ref. 14, 16 and 61. From the above FT-IR and first discharge behavior below 3 V we know that the co-doped sample LNMO-CrTi has an appropriate cation disordering degree or Mn³⁺ content between the Cr-doped sample LNMO-Cr and Ti-doped sample LNMO-Ti, thus leading to its better overall electrochemical performance.

The electrochemical Li⁺ ion insertion/extraction kinetics of LiNi_0.5Mn_1.5O₄ cathode materials were also investigated by means of EIS. Nyquist plots and fitting curves of the as-prepared samples are shown in Fig. 8(a). The equivalent circuit used to fit impedance spectra is shown in the inset. From Fig. 8(a) we can see that all the Nyquist plots are composed of a depressed semicircle in the medium-frequency region followed by a straight line in the low-frequency region. The intercept impedance on the real axis corresponds to the solution resistance (R_e), which is almost the same because of the same electrolyte used in this study. The semicircle in the medium-frequency region represents the charge transfer resistance (R_ct). The straight line in the low-frequency region is attributed to the Li⁺ ion diffusion into the bulk electrode material or so-called Warburg diffusion. As shown in Fig. 8(a), the fitting line is well coincident with the original data, proving the high credibility of the fitting curve. Table 5 lists the R_ct values obtained based on the equivalent circuit, which are 36.81, 23.83, 34.87 and 15.21 Ω for LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi, respectively. It can be seen that the Cr and/or Ti doping leads to the obvious decrease of charge transfer resistance, which may be caused by two factors. One is that the presence of more Mn³⁺ ions in the doped sample increases the electronic and ionic conductivity. The other is that the three doped samples have a more uniform particle size distribution with smaller particle size, which increases the contact surface area between the electrode and electrolyte. The decrease of charge transfer resistance is believed to be conductive to the electrochemical performance, especially rate capability and cycling stability.⁶²

Fig. 8 Nyquist plots and fitting curves (a) and variations and fittings between Z′ and the reciprocal square root of the angular frequency in the low-frequency region (b) of LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples.

Table 5 Charge transfer resistance (R_ct), σ values and Li⁺ ion diffusion coefficients (D_Li) for LiNi_0.45M_0.05Mn_1.5O₄ (M = Ni, Cr, Ti, Cr_0.5Ti_0.5) samples obtained by EIS

Sample	Rct (Ω)	σ (Ω s^−1/2)	DLi (cm^2 s^−1)
LNMO	36.81	62.798	8.807 × 10^−11
LNMO-Cr	23.83	59.143	1.353 × 10^−10
LNMO-Ti	34.87	39.155	2.012 × 10^−10
LNMO-CrTi	15.21	14.945	5.736 × 10^−10

---

Previous studies have demonstrated that the apparent chemical diffusion coefficient of Li⁺ ions is inversely proportional to the Warburg factor, which can be obtained from the straight line in the low-frequency region using the following equation:^63,64

D_Li = R²T²/2A²n⁴F⁴C²σ² (1)

where R is the gas constant, T is the absolute temperature, A is the surface area of the electrode, n is the number of electrons per molecule during oxidation, F is the Faraday constant, C is the concentration of Li⁺ ions, and σ is the Warburg factor, which has a relationship with Z′:

Z′ = R_ct + R_e + σω^−1/2 (2)

After linear fitting the relation plot between Z′ and ω^−1/2, as shown in Fig. 8(b), to estimate the Warburg factor σ, the apparent Li⁺ ion diffusion coefficient D_Li can be obtained from eqn (1). The D_Li values of LNMO, LNMO-Cr, LNMO-Ti and LNMO-CrTi are 8.807 × 10⁻¹¹, 1.353 × 10⁻¹⁰, 2.012 × 10⁻¹⁰ and 5.736 × 10⁻¹⁰ cm² s⁻¹, respectively, that is, the apparent Li⁺ ion diffusion coefficient follows the order of LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ > LiNi_0.45Ti_0.05Mn_1.5O₄ > LiNi_0.45Cr_0.05Mn_1.5O₄ > LiNi_0.5Mn_1.5O₄, which is different from that of the R_ct values but is in good consistence with the rate capability, indicating that the Li⁺ ion diffusion process in the solid phase is the rate-determining step of the discharge process of LiNi_0.5Mn_1.5O₄ cathode materials in this study. The larger Li⁺ ion diffusion coefficient indicates that the Cr and/or Ti doping is favorable to fast Li⁺ ion intercalation kinetics, resulting in their better rate capability.

Conclusions

The pristine LiNi_0.5Mn_1.5O₄ and doped LiNi_0.45M_0.05Mn_1.5O₄ (M = Cr, Ti, Cr_0.5Ti_0.5) spinels were synthesized by a solid-state method. The effects of doping Cr/Ti alone or both for Ni element on the crystalline structure, Mn³⁺ content, particle morphology and electrochemical performance of LiNi_0.5Mn_1.5O₄ cathode materials were systematically investigated. XRD results show that the Cr and/or Ti doping can effectively inhibit the formation of Li_yNi_1−yO impurity phase, leading to higher phase purity of the product. FT-IR results illustrate that the Cr and/or Ti doping increases the cation disordering degree to different extent, which may be caused by the different Mn³⁺ contents resulting from the different valence of the doping ions. SEM observations find that the Cr and/or Ti doping increases the particle size distribution uniformity and decreases the average particle size. The electrochemical results show that the Cr and/or Ti doping can significantly improve the rate capability and cycling stability of the LiNi_0.5Mn_1.5O₄ electrode. The 1C capacity retention rates after 100 cycles increase from 90.5% for the pristine sample to 95.6%, 97.8% and 102.1% for the Cr-, Ti-doped alone and co-doped samples, respectively. When discharged at 10C rate, the LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄, LiNi_0.45Ti_0.05Mn_1.5O₄, LiNi_0.45Cr_0.05Mn_1.5O₄ maintain 96.1%, 91.1% and 88.7% of their capacity at 0.2C rate, higher than 86.2% of the pristine LiNi_0.5Mn_1.5O₄ material. EIS analysis also indicates that the Cr and/or Ti doping decreases the charge transfer resistance and increases the Li⁺ ion diffusion coefficient, thus leading to the improved electrochemical performance. Among the doped samples, the Cr and Ti co-doped sample LiNi_0.45Cr_0.025Ti_0.025Mn_1.5O₄ exhibits the optimal overall electrochemical properties, which may be mainly ascribed to the presence of appropriate Mn³⁺ content and higher Li⁺ ion diffusion coefficient.

Acknowledgements

The authors are grateful to the Natural Science Foundation of Hebei Province (Grant number E2015202356), Science & Technology Correspondent Project of Tianjin (Grant number 14JCTPJC00526), Technology Innovation Foundation Project for Outstanding Youth of Hebei University of Technology (Grant number 2013009) and Science & Technology Project of Hebei Province (Grant number 14214902D) for the financial support of this work.

References

1. J. M. Tarascon and M. Armand, Nature, 2001, 414, 359.
2. H. M. Wu, I. Belharouak, A. Abouimrane, Y.-K. Sun and K. Amine, J. Power Sources, 2010, 195, 2909.
3. E. Lee and K. A. Persson, Energy Environ. Sci., 2012, 5, 6047.
4. J. Hassoun, K.-S. Lee, Y.-K. Sun and B. Scrosati, J. Am. Chem. Soc., 2011, 133, 3139.
5. Y.-P. Zeng, X. Wu, P. Mei, L.-N. Cong, C. Yao, R.-S. Wang, H.-M. Xie and L.-Q. Sun, Electrochim. Acta, 2014, 138, 493.
6. G. Wang, J. Xie, C. Wu, S. Zhang, G. Cao and X. Zhao, J. Power Sources, 2014, 265, 118.
7. C. Jiao, L. Wang, Y. Zuo, P. Ni and G. Liang, Solid State Ionics, 2015, 277, 50.
8. Z. Yang, Y. Jiang, J.-H. Kim, Y. Wu, G.-L. Li and Y.-H. Huang, Electrochim. Acta, 2014, 117, 76.
9. W. Luo, J. Alloys Compd., 2015, 636, 24.
10. J. Gao, J. Li, F. Song, J. Lin, X. He and C. Jiang, Mater. Chem. Phys., 2015, 152, 177.
11. J.-H. Kim, S.-T. Myung, C. S. Yoon, S. G. Kang and Y.-K. Sun, Chem. Mater., 2004, 16, 906.
12. Y. Liu, M. Zhang, Y. Xia, B. Qiu, Z. Liu and X. Li, J. Power Sources, 2014, 256, 66.
13. X. Zhu, X. Li, Y. Zhu, S. Jin, Y. Wang and Y. Qian, J. Power Sources, 2014, 261, 93.
14. J. Zheng, J. Xiao, X. Yu, L. Kovarik, M. Gu, F. Omenya, X. Chen, X.-Q. Yang, J. Liu, G. L. Graff, M. S. Whittingham and J.-G. Zhang, Phys. Chem. Chem. Phys., 2012, 14, 13515.
15. X. Zhang, J. Liu, H. Yu, G. Yang, J. Wang, Z. Yu, H. Xie and R. Wang, Electrochim. Acta, 2010, 55, 2414.
16. J. Xiao, X. Chen, P. V. Sushko, M. L. Sushko, L. Kovarik, J. Feng, Z. Deng, J. Zheng, G. L. Graff, Z. Nie, D. Choi, J. Liu, J.-G. Zhang and M. S. Whittingham, Adv. Mater., 2012, 24, 2109.
17. J. Song, D. W. Shin, Y. Lu, C. D. Amos, A. Manthiram and J. B. Goodenough, Chem. Mater., 2012, 24, 3101.
18. K. R. Chemelewski and A. Manthiram, J. Phys. Chem. C, 2013, 117, 12465.
19. E.-S. Lee and A. Manthiram, J. Mater. Chem. A, 2013, 1, 3118.
20. J.-J. Shiu, W. K. Pang and S. Wu, J. Power Sources, 2013, 244, 35.
21. J. S. Chae, M. R. Jo, Y.-I. Kim, D.-W. Han, S.-M. Park, Y.-M. Kang and K. C. Roh, J. Ind. Eng. Chem., 2015, 21, 731.
22. X. Yang, T. Yang, S. Liang, X. Wu and H. Zhang, J. Mater. Chem. A, 2014, 2, 10359.
23. M. Lin, S. H. Wang, Z. L. Gong, X. K. Huang and Y. Yang, J. Electrochem. Soc., 2013, 165, A3036.
24. Y.-Z. Jin, Y.-Z. Lv, Y. Xue, J. Wu, X.-G. Zhang and Z.-B. Wang, RSC Adv., 2014, 4, 57041.
25. X. Y. Feng, C. Shen, X. Fang and C. H. Chen, J. Alloys Compd., 2011, 509, 3623.
26. J. Liu and A. Manthiram, J. Phys. Chem. C, 2009, 113, 15073.
27. R. D. Shannon, Acta Crystallogr., Sect. A: Cryst. Phys., Diffr., Theor. Gen. Crystallogr., 1976, 32, 751.
28. T.-F. Yi, C.-Y. Li, Y.-R. Zhu, J. Shu and R.-S. Zhu, J. Solid State Electrochem., 2009, 13, 913.
29. T. Ohzuku, K. Ariyoshi, S. Takeda and Y. Sakai, Electrochim. Acta, 2001, 46, 2327.
30. T. Ohzuku, S. Takeda and M. Iwanaga, J. Power Sources, 1999, 81–82, 90.
31. M. Kunduraci and G. G. Amatucci, J. Electrochem. Soc., 2006, 153, A1345.
32. M. Kunduraci, J. F. Al-Sharab and G. G. Amatucci, Chem. Mater., 2006, 18, 3585.
33. L. P. Wang, H. Li, X. J. Huang and E. Baudrin, Solid State Ionics, 2011, 193, 32.
34. K. Ariyoshi, Y. Iwakoshi, N. Nakyama and T. Ohzuku, J. Electrochem. Soc., 2004, 151, A296.
35. D. W. Shin, C. A. Bridges, A. Huq, M. P. Paranthaman and A. Manthiram, Chem. Mater., 2012, 24, 3720.
36. E.-S. Lee, K.-W. Nam, E. Hu and A. Manthiram, Chem. Mater., 2012, 24, 3610.
37. E.-S. Lee, A. Huq, H.-Y. Chang and A. Manthiram, Chem. Mater., 2012, 24, 600.
38. M. Kunduraci and G. G. Amatucci, J. Power Sources, 2007, 165, 359.
39. B. Hai, A. K. Shukla, H. Duncan and G. Chen, J. Mater. Chem. A, 2013, 1, 759.
40. B. Kang and G. Ceder, Nature, 2009, 458, 190.
41. H. Ji, L. Zhang, M. T. Pettes, H. Li, S. Chen, L. Shi, R. Piner and R. S. Ruoff, Nano Lett., 2012, 12, 2446.
42. X. Yu, Q. Wang, Y. Zhou, H. Li, X.-Q. Yang, K.-W. Nam, S. N. Ehrlich, S. Khalid and Y. S. Meng, Chem. Commun., 2012, 48, 11537.
43. T. Ohzuku, R. Yamato, T. Kawai and K. Ariyoshi, J. Solid State Electrochem., 2008, 12, 979.
44. G. B. Zhong, Y. Y. Wang, Y. Q. Yu and C. H. Chen, J. Power Sources, 2012, 205, 385.
45. X. Zhang, F. Cheng, J. Yang and J. Chen, Nano Lett., 2013, 13, 2822.
46. Z. Chen, S. Qiu, Y. Cao, X. Ai, K. Xie, X. Hong and H. Yang, J. Mater. Chem., 2012, 22, 17768.
47. H. Duncan, B. Hai, M. Leskes, C. P. Grey and G. Chen, Chem. Mater., 2014, 26, 5374.
48. C. Zhu and T. Akiyama, RSC Adv., 2014, 4, 10151.
49. K. R. Chemelewski, W. Li, A. Gutierrez and A. Manthiram, J. Mater. Chem. A, 2013, 1, 15334.
50. J.-H. Kim, N. P. W. Pieczonka, Y.-K. Sun and B. R. Powell, J. Power Sources, 2014, 262, 62.
51. A. D. Robertson, S. H. Lu and W. F. Howard Jr, J. Electrochem. Soc., 1997, 144, 3505.
52. G. B. Zhong, Y. Y. Wang, X. J. Zhao, Q. S. Wang, Y. Yu and C. H. Chen, J. Power Sources, 2012, 216, 368.
53. S.-K. Hong, S.-I. Mho, I.-H. Yeo, Y. Kang and D.-W. Kim, Electrochim. Acta, 2015, 156, 29.
54. A. Manthiram, K. Chemelewski and E.-S. Lee, Energy Environ. Sci., 2014, 7, 1339.
55. H. Liu, G. Zhu, L. Zhang, Q. Qu, M. Shen and H. Zheng, J. Power Sources, 2015, 274, 1180.
56. M. Kunduraci and G. G. Amatucci, Electrochim. Acta, 2008, 53, 4193.
57. J. Yang, X. Han, X. Zhang, F. Cheng and J. Chen, Nano Res., 2013, 6, 679.
58. J. Wang, W. Lin, B. Wu and J. Zhao, J. Mater. Chem. A, 2014, 2, 16434.
59. J. Cabana, M. Casas-Cabanas, F. O. Omenya, N. A. Chernova, D. Zeng, M. S. Whittingham and C. P. Grey, Chem. Mater., 2012, 24, 2952.
60. G. B. Zhong, Y. Y. Wang, Z. C. Zhang and C. H. Chen, Electrochim. Acta, 2011, 56, 6554.
61. L. Wan, Y. Deng, C. Yang, H. Xu, X. Qin and G. Chen, RSC Adv., 2015, 5, 25988.
62. P. Arora, B. N. Popov and R. E. White, J. Electrochem. Soc., 1998, 145, 807.
63. X.-L. Wu, Y.-G. Guo, J. Su, J.-W. Xiong, Y.-L. Zhang and L.-J. Wan, Adv. Energy. Mater., 2013, 3, 1155.
64. A. L. Bard and L. R. Faulkner, Electrochemical Methods, Wiley, 2nd edn, 2001.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra20003b

---
