During inflammation neutrophils rapidly migrate to the site of tissue damage or infection by following complex gradients of bacterial peptides and host-derived chemokines. The efficiency and speed of neutrophil migration is critically dependent upon the ability of neutrophils to sense new gradients and utilize only those that provide the most direct path to the damaged or infected site. Receptor desensitization plays an important role in migration efficiency and is most commonly studied using bath application of chemotactic factor solutions instead of presenting cells with gradients analogous to those they would experience in vivo. Here we describe a new method for examining gradient-induced neutrophil desensitization using a previously-developed open-chamber microfluidic gradient generator.
Heterologous desensitization occurs when intracellular signaling induced by one chemotactic factor interferes with the receptor activity of or number of receptors for another.4In vitro studies have shown that neutrophils use heterologous desensitization to prioritize the chemotactic factor gradients to which they are exposed and respond preferentially to those that help them find the damaged or infected sites most efficiently. For example, neutrophils preferentially migrate up gradients of formyl-methionine-leucine-phenylalanine (fMLF) (a peptide analogous to those found in bacteria) even when presented with competing gradients of host-derived chemokines such as leukotriene B4 or CXCL8.5 In fact, neutrophil exposure to fMLF above threshold concentrations can completely abolish responsiveness towards other chemokine gradients.6 Prioritization of fMLF over all other chemokines allows neutrophils to follow gradients of proteins released directly by bacteria instead of chemokine gradients released by host cells in response to bacteria.
Homologous desensitization occurs when neutrophils are exposed to the same chemotactic factor repeatedly or for a prolonged period of time and progressively lose their responsiveness. For example, repeated or long-term exposure of neutrophils to CXCL8 results in decreased responsiveness7–9 caused by negative feedback that reduces the activity and number of CXCL8 receptors at the cell surface.4,8–10 Homologous desensitization provides a way for neutrophils to maintain their sensitivity to new gradients while actively migrating in response to others. However, long-term chemotactic factor exposure does not always induce homologous desensitization. When neutrophils are exposed to chemotactic factors below threshold concentrations an enhancement in sensitivity and responsiveness to subsequent exposures of the same signaling molecule can occur.11
In vitro neutrophil desensitization studies have deciphered much of the chemotactic factor hierarchy obeyed by neutrophils and some of the threshold concentrations at which desensitization occurs.4,7–9,11,12 The primary method used in desensitization studies is to pre-expose neutrophils to chemotactic factor solutions at known concentrations and measure the level of activation induced when the neutrophils are subsequently placed in a second chemotactic factor solution. The degree of neutrophil activation has been assessed by measuring the magnitude of the respiratory burst,11 the mobilization of intracellular calcium,7,8 neutrophil transmigration through a monolayer of endothelial cells,12 and neutrophil adhesion to laminin-coated substrates.7
However, during inflammation neutrophils are exposed to gradients and not uniform distributions of chemotactic factors. Because most studies utilize homogeneous solutions to desensitize cells little is known about desensitization in response to gradients, whether additional complexity is encoded in the spatial or temporal characteristics of the gradient, and whether the information gleaned from homogeneous bath desensitization studies accurately reflects the in vivo response. Two studies have examined the effects of heterologous desensitization on neutrophil chemotaxis by either exposing neutrophils to competing chemotactic factor gradients,5 or pre-exposing neutrophils to chemotactic factor solutions and assaying their ability to subsequently respond to chemotactic gradients.6 Both studies utilized the under-agarose chemotaxis assay which cannot be used to correlate individual neutrophil behavior with specific gradient characteristics (e.g. slope, concentration range, timing of exposure) due to an inability to track individual neutrophils as well as create gradients that do not change over space and time. To our knowledge, no study has addressed gradient-induced homologous desensitization or how it affects the cell's ability to respond to other chemotactic factor gradients.
Microfluidic technology has played an increasingly prominent role in shaping our understanding of neutrophil chemotaxis.13–26 Unlike traditional methods (reviewed in 27), microfluidic gradient generators allow researchers to expose cells to reproducible, user-defined chemical microenvironments and directly quantify individual cell responses. The newest evolution of gradient generators19,28,29 offer researchers significant spatial and temporal control over the chemical environment leading to entirely new understandings30 of how neutrophils migrate to sites of inflammation and infection. It is the advent of these latest devices, which allow dynamic tuning of the shape and/or position of chemical gradients, that finally allows the many advantages of microfluidic technology to extend to studies of neutrophil desensitization. Here we describe a novel method for studying gradient-induced homologous and heterologous neutrophil desensitization using a previously-described microfluidic gradient generator termed the “Microjets Device” (Fig. 1).29
![]() | ||

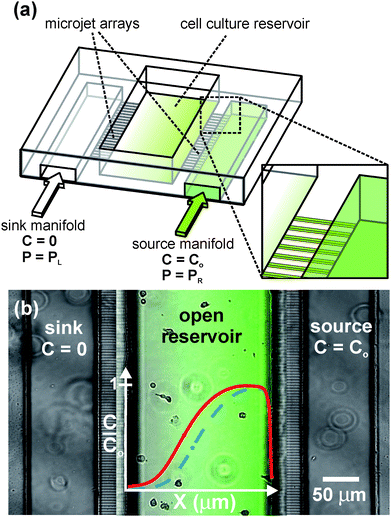

Fig. 1 Open-chamber “Microjets” device. (a) 3D schematic of the device showing the open architecture of the cell culture/gradient chamber. (b) Top-view phase contrast image of human neutrophils within the device with a fluorescence image overlay of an Alexa 488 gradient. Adjusting the driving pressure delivered to each gradient fluid manifold (PL, PR) causes the concentration profile (solid line) to shift in position with no change in gradient slope (dashed line). |
Using the time-lapse phase-contrast image sequences the position of each neutrophil is tracked using an object tracking program such as the Object Tracking Module provided with MetaMorph 5.0 software. The resulting (X,Y) coordinates for each cell in each frame of the time lapse sequence along with the fluorescence time lapse image sequence are then passed to the MATLAB program (provided in the supplementary information†). Using the fluorescence time-lapse image sequence the MATLAB program calculates the concentration profile of the chemotactic factor based on the fluorescence intensity of the corresponding fluorophore. Due to the bilateral symmetry of the device the program uses the mean fluorescence intensity for each pixel column orthogonal to the gradient axis to calculate the concentration profile at each time point. To determine the concentration gradient to which each cell was exposed the program performs a linear regression analysis on the calculated concentration profile using a user-defined number of pixels upstream and downstream of the cell position for each time point. The program prompts the user to define the transition points between major stages of the desensitization scenario and specify which cells should be included in the subsequent analyses. Once the transition points and cells have been specified the program outputs an overlay image of the migration traces for the selected cells during each stage, a plot of the concentration and gradient slope to which each cell was exposed over the course of the experiment, a comparison of both the overall cell velocity and the velocity of the cell along the gradient axis for each stage of the desensitization experiment, and a table of those velocities for statistical evaluation.
The demonstration desensitization scenario was divided into five stages (Fig. 2). In Stage I the right manifold was filled with 10 nM CXCL8 (8 kDa) (Sigma-Aldrich, St. Louis, MO) + 5 μM Alexa 647-Dextran (10 kDa) (Invitrogen, Carlsbad, CA) in HBSS + 0.1% BSA. The left manifold was filled with HBSS in 0.1% BSA. Neutrophils were allowed to migrate randomly for 5 min without exposure to any chemoattractant enabled by the lack of manifold pressurization. This stage serves as a control for migration behavior in the absence of a chemotactic gradient. In Stage II a linear gradient of CXCL8 was established in the cell culture reservoir using a right manifold driving pressure of 3.0 psi and a left manifold driving pressure of 2.0 psi. The neutrophils were allowed to migrate in response to the gradient for 20 min. During Stage III the gradient was shifted towards the CXCL8 source without changing the gradient shape by reducing the source driving pressure to 2.0 psi and increasing the sink driving pressure to 3.0 psi (i.e. equal magnitude pressure offsets). The neutrophils were allowed to migrate for another 15 min. In Stage IV the fluid in the right manifold was replaced with the sink fluid (HBSS + 0.1% BSA) and the fluid in the left manifold was replaced with 10 nM fMLF (438 Da) (Sigma-Aldrich, St. Louis, MO) in deoxygenated RPMI (HyClone, Logan, UT). Alexa 488 (570 Da) (Invitrogen, Carlsbad, CA) was added to the fMLF solution as an indirect indicator of fMLF concentration. During Stage V a linear fMLF gradient, oriented in the opposite direction of the CXCL8 gradients, was established in the cell culture chamber by applying 3.0 psi to the left manifold and 2.0 psi to the right manifold. Cells were allowed to migrate for 26.5 min.
![]() | ||
Fig. 2 (a) The demonstration desensitization scenario was conducted in 5 stages. Cells were first allowed to migrate without CXCL8 exposure for 5 min. A gradient was then applied for 20 min. The gradient was then shifted towards the CXCL8 source and cells were allowed to migrate in the new gradient for 15 min. The gradient fluids were then exchanged to expose cells to an fMLF gradient in the opposite orientation for 26.5 min. (b–c) Overlayed migration paths show clear migration bias to the CXCL8 gradients (Stage II and III) and the subsequent fMLF gradient (Stage V). |
Overlays of the neutrophil migration paths output by the MATLAB program show clear migratory bias when cells were exposed to the two CXCL8 gradients (Fig. 2a) and the subsequent fMLF gradient (Fig. 2a). Close examination of the morphology and behavior of individual cells revealed three distinct migratory behaviors when neutrophils were exposed to the CXCL8 gradients. Five of the cells (13%) exhibited no migratory response at all and were classified as “Sessile” (Fig. 3a). The cells continually altered their shape and were viable but did not respond in any way to the CXCL8 gradients. Eighteen of the cells (49%) polarized and migrated up the CXCL8 gradient with a wide lamellopod forming on the side of the cell nearest the CXCL8 source and a narrow uropod forming at the opposite side. These cells were classified as “Motile” (Fig. 3b and 3d). Six motile cells contacted the cell culture reservoir wall nearest the CXCL8 source and continued to migrate orthogonal to the gradient axis along the Microjet outlets. To prevent the migration paths of these cells from confounding subsequent analyses, we truncated their paths at the first frame of cell-wall contact.
![]() | ||
Fig. 3 Different types of neutrophil migration behaviors. (a) “Sessile” neutrophils failed to polarize and did not migrate up the chemotactic gradient. (b) “Motile” neutrophils polarized and made appreciable progress across the cell culture surface. (c) “Tethered” neutrophils polarized but failed to move from their initial positions seemingly tethered by their uropod (white arrowhead). (d) Position traces for two motile cells show processive migration during the CXCL8 gradients (Stage II – blue, Stage III – red) and the fMLF gradient (green). (e) Similar position traces for two tethered cells shows their oscillatory migration paths that never exceed 20 μm from the original cell position. |
Interestingly, 14 of the cells (38%) adopted a polarized morphology but failed to make appreciable progress across the cell culture surface. The lamellopodia and somas of the cells extended toward the CXCL8 source but their uropods remained tethered to the cells' initial positions (Fig. 3c, arrowhead). We classified these cells as “Tethered”. Unlike motile cells which made progress across the cell culture surface during all three chemotactic gradients, tethered cells never extended more than ∼20 μm from their initial position resulting in an oscillatory migration path (Fig. 3e).
During the exchange of gradient fluids the vast majority of neutrophils lost their polarized morphology. When the fMLF gradient was initiated neutrophils polarized in the opposite direction. Eighteen of the neutrophils migrated productively towards the fMLF source. One of the motile cells had previously been sessile and four had been tethered cells during CXCL8 gradient exposure. Three of the five cells that were sessile under CXCL8 gradients remained sessile during fMLF with a fourth dying. Of the remaining 10 cells that were tethered during CXCL8 gradients three became sessile and seven reversed their morphological polarity but remained tethered to the surface. From the 37 cells originally seeded in the cell culture reservoir nine (24%) responded to all three chemotactic gradients and at no time came in contact with one of the cell culture reservoir walls.
Examples of the concentration and gradient slope histories output by the MATLAB program are shown in Fig. 4 for one of the motile cells from the demonstration study. Because the method described here allows gradient characteristics to be correlated with individual neutrophil responses we can see that the cell position for this cell changes little until the first CXCL8 gradient is turned on at t = 5 min. The CXCL8 concentration and gradient slope to which the cell is exposed increases greatly and after a short delay the cell begins to migrate up the gradient towards the CXCL8 source. At t = 25 min the cell experiences a significant drop in gradient concentration (Fig. 4a) as it transitions from Stage II to III with little to no variation in the gradient slope (Fig. 4b) due to the linearity of the gradient. The cell continues to migrate towards the CXCL8 source in the shifted gradient until t = 40 min when the gradient fluids are exchanged. When the fMLF gradient is initiated at t = 42.5 min the cell migrates in the opposite direction towards the fMLF source.
![]() | ||
Fig. 4 Correlating migration behavior with gradient history. (a) Concentration history of a neutrophil that responded to all three chemotactic gradients showing the chemotactic factor concentration to which the cell was exposed at each time point (solid black line) and the cell's x-position in the cell culture reservoir (dashed green line). Dotted lines indicate transitions between different desensitization scenario stages. (b) Gradient slope history of the same neutrophil showing the slope of the gradient to which the cell was exposed at each time point (solid black line) and the cell's x-position in the cell culture reservoir (dashed green line). |
Examples of the neutrophil velocity comparisons output by the MATLAB program are shown in Fig. 5. For our demonstration study overall cell velocities were greater during gradient exposure, regardless of the chemotactic agent, than in the absence of a chemotactic gradient (Fig. 5a). However, no individual chemotactic gradient induced higher overall cell velocities than any other.
![]() | ||
Fig. 5 Neutrophil velocity analysis. (a) A comparison of the average overall velocities during each stage for neutrophils responsive to all three gradients. (b) A comparison of the average X-velocity (along gradient axis) during each stage for neutrophils responsive to all three gradients. |
When we compared the x-velocities of motile cells (i.e. velocity along the gradient axis) during the different desensitization assay stages (Fig. 5b) we discovered that the cell velocities during the initial and shifted CXCL8 gradients were significantly greater than the cell velocities measured when there was no gradient or when the cells were exposed to fMLF. However, a statistical analysis performed on the tabulated velocities output by the MATLAB program showed no statistically significant difference in the x-velocities between the two CXCL8 gradients (Stage II vs. Stage III). The x-velocities during fMLF gradient exposure were also not significantly different from those measured in the absence of any chemotactic gradient despite the clear migratory bias shown in Fig. 2c.
Although only used to demonstrate one way in which the new method could be used, the wide variability in cell responses during the demonstration study hints at the challenges of studying neutrophil desensitization and the need for tools that can provide more chemically-complex and physiologically-relevant in vitro environments. The unexpected presence of “tethered cells” and the fact that many cells responded to the second CXCL8 and/or fMLF gradients but not the first CXCL8 gradient provides evidence that neutrophils indeed have initial activation states, and long-term chemical sensitivities that differ dramatically. The population-based approaches and analyses provided by traditional methods are simply ineffective at parsing out how specific complements of chemotactic factor receptors and their relative activation states influence neutrophil migratory behavior when presented with specific sets or sequences of chemotactic factor gradients.
One could easily extend the demonstration study described here to further characterize the nature of any desensitization by varying the time neutrophils were exposed to each gradient, or altering the slope and concentration range of the secondary gradients to see if equivalent levels of chemotaxis can be elicited by steeper gradients and/or higher concentrations of the respective factors. Using molecular biology tools one could influence the expression levels of different receptors and co-factors to explore how they influence the desensitization response. Although the exchange of manifold fluids to create gradients in the opposite orientation were used here to demonstrate the possibility of conducting heterologous desensitization studies, they could equally be applied to examining receptor turnover and neutrophil repolarization using a CXCL8 gradient oriented in the opposite direction as the first.
Given the number of factors known to induce chemotaxis in human neutrophils and the number of receptors and co-factors involved in transducing the gradient signal, one can clearly see that a nearly limitless number of permutable desensitization scenarios are possible, each of which yielding significant insight into our understanding of neutrophil chemotaxis.
