We previously developed a lymphocyte microwell-array system, which effectively detects antigen-specific B-cells by monitoring intracellular Ca2+ mobilization at the single-cell level with a fluorescent Ca2+ indicator, fluo-4. However, it is difficult for the system to perform time-lapse monitoring. Here, we developed a novel method, a lymphocyte microwell-array chip system equipped with a charge-coupled device (CCD) time-lapse scanner (MAC-CCD system), for monitoring intracellular Ca2+ mobilization. The MAC-CCD system is able to monitor intracellular Ca2+ mobilization of more than 15,000–20,000 individual live B-cells every 10 s. In addition, we adopted a correlation method in a MAC-CCD system, which enabled us to detect B-cells with a frequency of as few as 0.046%. Furthermore, we succeeded in obtaining six influenza nucleoprotein-specific human monoclonal antibodies from the peripheral blood of influenza-vaccinated volunteers. These results demonstrate that the MAC-CCD system with a correlation method could detect very rare antigen-specific B-cells.
B-cells play an important role in the immune response. Each B-cell clone expresses an antibody as an antigen receptor (B-cell receptor, BCR) with a unique antigen-binding structure on the cell surface. When an individual encounters microbes, B-cells that express antibodies specific to the microbes capture them with BCR. Engagement of BCR with the microbes triggers intracellular signal transduction, which finally initiates the proliferation and differentiation of the B-cells into antibody-secreting cells whose antibodies capture the microbes to get rid of them from the bodies.11,12 In any individual, it is estimated that 107 or more different B-cell clones exist.13 Thus, the B-cell population consists of tremendously heterogeneous cells.
Calcium signaling is important for signal transduction in the growth, death, differentiation, and function of immune cells.11,12,14–17 Measurements of intracellular Ca2+ concentration ([Ca2+]i) are significant for the immunological, physiological, and biological research of immune cells, and can also be used for detecting antigen-specific B-cells.3 In order to detect antigen-specific B-cells in a large number of B-cells with diverse antigen specificity by analyzing [Ca2+]i, it is necessary to measure it on a single-cell basis. To date, intracellular Ca2+ mobilizations in individual cells are monitored by flow cytometry or fluorescence microscopy using a fluorescent Ca2+ indicator. Flow cytometry can rapidly analyze intracellular Ca2+ mobilizations in a large number of cells, but cannot track the time course of Ca2+ mobilizations in individual cells. In contrast, fluorescence microscopy can track the time course of Ca2+ mobilizations in up to 5,000 cells at single cell levels,18 but it is difficult to monitor fluorescence signals of a large number of cells. We have previously reported that microwell-array chips that have an array of 45,000 to 234,000 microwells each of which has a size and shape that just fit a single cell.3,8 We could track the time course of Ca2+ mobilization of a large number of individual cells that were arrayed on a microwell-array chip using a cell scanner.3,8 However, it took 2 min for the scanner to scan all the cells. Because intracellular Ca2+ mobilizations reach their peak within 30 s and then gradually decrease to a basal level in about 5 min, a cell scanner is not ideal for monitoring the time course of Ca2+ mobilization in detail.
Moreover, intracellular Ca2+ mobilization in B-cells is induced not only by BCR-mediated signals but by other stimuli (e.g., stimuli viaryanodine receptors,19,20 or mechanical stress21) as well. We have noticed that [Ca2+]i in a few percent of the B-cell population increases in the absence of antigen stimulation. Such noises made it difficult to detect a rare antigen-specific B-cell population with frequencies of 0.01 to 0.1% in all the B-cells.22–31 To overcome the difficulties, we have developed a novel cell microwell-array chip system equipped with charge-coupled device (CCD) time-lapse scanner (MAC-CCD system). The system can monitor the alteration of [Ca2+]i in individual cells every 10 s. To distinguish the BCR-mediated Ca2+ mobilizations from the non-specific Ca2+ mobilizations, we applied a correlation method32 that is a robust and general technique for pattern recognition. Here we show that the MAC-CCD system with the correlation method is useful for comprehensive analysis of intracellular Ca2+ mobilizations of more than 15,000–20,000 individual cells and demonstrate that the system can detect a rare cell population. This system may contribute to high throughput and comprehensive analysis of a large number of cells on a single-cell basis.
Fig. 1 Overview of MAC-CCD system. Protocols for detecting antigen-specific B-cells and producing antigen-specific antibodies with MAC-CCD system is depicted schematically. |
where σi is the normalized fluo-4 fluorescence intensity at the i-th scanning point of a cell of interest and Ti is the average of normalized fluo-4 fluorescence intensity at the i-th scanning point of the cells that responded to antigen. The C value is ≤1. If the C value of a cell of interest is above a preset criterion and close to 1, the observed fluorescence alteration of the cell was matched with that of the template and we selected the cell as a B-cell that responded to antigen.
Fig. 2 Time-lapse analysis of antigen-induced intracellular Ca2+ alteration with the MAC-CCD system. MD4 B-cells (A, C) or normal B-cells (B, D) on a microwell-array chip were stimulated with 10 µg/ml HEL. Fluo-4 fluorescence intensities of individual cells were monitored with the MAC-CCD system. Fluorescence alterations of 100 representative cells are shown in a graph (A, B) or that of each cell is separately shown in each graph (C, D). Arrowheads indicate the point of stimulation with HEL. The vertical axis indicates fluorescence intensity; the horizontal axis indicates scanning points 1 to 40. |
For the selection of antigen-responding B-cells with intracellular Ca2+ mobilization, we have employed a correlation method.32 For preparing the template that shows the typical intracellular Ca2+ mobilization of the B-cells activated with antigen, we used the data of fluo-4 fluorescence intensities of MD4 B-cells that were stimulated with HEL. As shown in Fig. 2A, some MD4 B-cells did not respond to HEL. In order to exclude the data of those non-responding cells, we evaluated the fluorescence data from various points of view. First, we defined the resting intensity (Srest) of each cell as the mean fluo-4 fluorescence intensity before stimulation (at 1 to 5 scanning points). We then defined the maximum intensity (Smax) for each cell as the maximum fluorescence intensity during scanning points 11 to 13 just after stimulation with HEL. Fig. 3A and B show the histogram of Srest and Smax for each cell, respectively. Srest and Smax for the major cell population were 1.79 ± 1.46 and 12.27 ± 8.08, respectively. Next, we calculated the ratio of Smax to Srest (r = Smax/Srest) for each cell, whose histogram is shown in Fig. 3C. The value of r for the major cell population was 5.66 ± 3.82. From these results, we arbitrarily defined the B-cells responding to antigen as those whose Smax is > 4 and r > 2. Furthermore, we excluded the data of the cells whose fluorescence intensity became smaller than that before stimulation, Si <Sresti ≥ 13. 84.6 ± 7.3% of MD4 B-cells stimulated with HEL fell in these criteria. We used the data of those cells for preparing the template. To that end, we normalized the fluorescence data of cells after stimulation as follows:
Fig. 3 Analysis of fluo-4 fluorescence intensities of MD4 B-cells stimulated with HEL and definition of the template for the correlation method. MD4 B-cells on a microwell-array chip were stimulated with HEL and the fluo-4 fluorescence was monitored with the MAC-CCD system. (A) Histogram analysis of fluo-4 fluorescence in MD4 B-cells before stimulation with HEL. The X-axis shows the mean fluorescence intensity of scanning points 1 to 5 (Srest) in logarithmic scale. (B) Histogram analysis of fluo-4 fluorescence in MD4 B-cells after stimulation with HEL. The X-axis shows the maximum fluorescence intensity during scanning points 11 to 13 (Smax) in logarithmic scale. The cutoff value for arbitrary definition of the B-cells responding to HEL is indicated with a dotted line. (C) Histogram analysis of the ratio of Smax to Srest for single MD4 B-cells. The cutoff value for arbitrary definition of the B-cells responding to HEL is indicated with a dotted line. (A-C) Representative data of four separate experiments are shown. (D) Template of intracellular Ca2+ response of HEL-activated MD4 B-cells. The arrow indicates the point of antigen stimulation. The X-axis shows the scanning points and the Y-axis shows the normalized mean fluorescence of HEL-activated MD4 B-cells. The template was prepared from four separate experiments. |
and we set the values before stimulation to zero as follows:
σ i = 0, i = 1 to 10.
Then, Ti was defined as the average of σi of all B-cells responding to HEL as follows:
where n is the number of HEL-responding B-cells. Ti was used as the template of the MD4 B-cells for analyzing intracellular Ca2+ response with the correlation method (Fig. 3D).
To evaluate the efficiency of the correlation method for selecting antigen-specific B-cells, we prepared B-cell preparations that contained 100%, 3.7%, 1.2%, 0.41%, 0.14%, and 0.046% MD4 B-cells by mixing them with normal B-cells, loaded them with fluo-4, and stimulated them with HEL. B-cells that responded to HEL were determined by the correlation method using the template prepared as described above (Fig. 3D). Supplementary Fig. 1† demonstrates the fluo-4 fluorescence alteration of 100 representative cells that showed high C values of more than 0.99 in 100% MD4 B-cell preparation. Those cells showed the typical alteration of fluo-4 fluorescence. We then analyzed 3.7%, 1.2%, 0.41%, 0.14%, and 0.046% MD4 B-cells using MAC-CCD system and correlation method. When we analyzed the alteration of fluo-4 fluorescence of 100%, 3.7%, and 1.2% MD4 B-cells, the number of positively detected cells with the MAC-CCD system and correlation method (C value > 0.875) decreased proportionally according to the percentage of MD4 B-cells (Fig. 4A and ESI Table 1).† When we analyzed MD4 B-cells of a frequency less than 0.41%, the number of positively detected cells did not decrease proportionally, indicating that the system might be detecting background noise (false-positive cells). When the C value was set to 0.975, the number of positively detected cells decreased proportionally to the 0.41% MD4 B-cells, although the number of detected cells was less than that in the analysis with the C value of 0.875 (Fig. 4A). To confirm whether the positively detected cells were MD4 B-cells, we retrieved the cells that showed top 16 highest C values with a micromanipulator and amplified the HyHEL10 antibody cDNA from the individual cells by single-cell RT-PCR. When the cells were selected from the 100%, 0.41%, 0.14%, and 0.046% MD4 B-cells, HyHEL10 antibody cDNA was amplified from 95%, 62%, 41%, and 24% of the retrieved cells, respectively (Fig. 4B). These results demonstrated that the MAC-CCD system with the correlation method could detect a very rare population, as few as 0.046%.

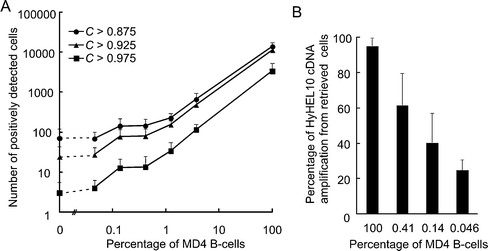

Fig. 4 Analysis of fluo-4 fluorescence intensities of MD4 B-cells with correlation method. Mixtures of MD4 and normal B-cells that consisted of 100%, 3.7%, 1.2%, 0.41%, 0.14%, and 0.046% MD4 B-cells were prepared and stimulated with HEL on a microwell-array chip. The fluo-4 fluorescence of individual cells was monitored with the MAC-CCD system as in Fig. 3. The pattern of fluorescence alteration was then analyzed with the correlation method. (A) Number of positively detected cells in various percentages of MD4 B-cell preparations with the correlation method using different C values (> 0.875, closed circle; > 0.925, closed triangle; > 0.975, closed rectangle). The typical example shown is representative of four separate experiments. (B) Efficiency of HyHEL10 antibody cDNA amplification from selected and retrieved MD4 B-cells. MD4 B-cell preparations with various percentages of MD4 B-cells were stimulated and analyzed with the MAC-CCD system using the correlation method. Cells with a high C value were selected and transferred to each reaction tube. HyHEL10 antibody cDNA was amplified with RT-PCR from single cells and analyzed with agarose gel electrophoresis. The frequencies of HyHEL10 antibody cDNA amplification selected from various percentages of MD4 B-cell preparations are shown. The result represents three or four separate experiments. |
Next, we examined the feasibility of the system for detecting antigen-specific B-cells from human peripheral blood. We attempted to find type A influenza nucleoprotein (A-NP)-specific B-cells in peripheral blood lymphocytes from four healthy influenza-vaccinated volunteers and produce human monoclonal antibodies to A-NP. B-cells were prepared from the peripheral blood, loaded with fluo-4, applied on microwell-array chips, and stimulated with A-NP (10 µg/ml) on the chips. Fluorescence intensity alterations were monitored with the CCD scanner, and analyzed by the correlation method using the template shown in Fig. 3D. Because C values of MD4 B-cells from which we could amplify HyHEL10 antibody cDNA were ranged from 0.90 to 0.99 (data not shown), we selected B-cells whose C value was more than 0.90 as candidates of A-NP specific B-cells. Among them, we retrieved 95 cells with a high C value and amplified IgG antibody cDNA from individual cells with the single-cell 5′-RACE method.33 We obtained 16 recombinant IgG antibody proteins. Competitive ELISA showed that six of them (1–2A, 4–7A, 6–8A, 7–2A, 9–4A and 8–5A) specifically bind to A-NP (Fig. 5). These results demonstrate that the MAC-CCD system with the correlation method could be used to detect the B-cells that produce antigen-specific antibodies from human peripheral blood lymphocytes.
Fig. 5 Antigen specificity of human recombinant antibodies to influenza A-NP obtained with the MAC-CCD system. B-cells from peripheral blood of influenza-vaccinated volunteers were analyzed for reactivity of influenza A-NP using the MAC-CCD system and the correlation method. Cells with a high C value were recovered and antibody cDNAs were amplified with the single-cell 5′-RACE method. Amplified antibody cDNAs were transfected into 293T cells and antigen specificity of the recombinant antibodies were examined with ELISA. Thereafter, antigen specificities of the antibodies that positively reacted to A-NP (1–2A, 4–7A, 6–8A, 7–2A, 9–4A, and 8–5A) were confirmed with competitive ELISA. Binding of the antibodies to plate-coated influenza A-NP was examined in the presence of various doses (0, 1, or 5 µg/ml) of A-NP. |
