Real-time detection of the early event of cytotoxicity of herbal ingredients on single leukemia cells studied in a microfluidic biochip

Abstract

A microfluidic approach has been developed for the real-time detection of drug effects, based on the quantitative measurement of calibrated cytosolic calcium ([Ca²⁺]_i) on single cancer cells. This microfluidic method is rapid by detecting the early event of cytotoxicity of drug candidates on cancer cells, without waiting for a couple of days needed for cell seeding and drug treatment by conventional assays. The miniaturized biochip consists of a V-shaped structure for the single-cell selection and retention. Various test reagents such as the chemotherapy drug (daunorubicin), an ionophore (ionomycin), and herbal ingredients from licorice (isoliquiritigenin or IQ) were investigated for their abilities to stimulate sustained cellular [Ca²⁺]_i elevations. The microfluidic results obtained in hours have been confirmed by conventional cytotoxicity assays which take days to complete. Moreover, any color or chemical interference problems found in the conventional assays of herbal compounds could be resolved. Using the microfluidic approach, IQ (50 μM) has been found to cause a sustained [Ca²⁺]_i elevation and cytotoxic effects on leukemia cells. The microfluidic single-cell analysis not only reduces reagent cost, and demands less cells, but also reveals some phenomena due to cellular heterogeneity that cannot be observed in bulk analysis.

---

Insight, innovation, integration

There is a need for rapid testing of drug candidates obtained from various sources, such as herbal compounds. There is also an increasing demand for drug testing using the cell-based method. The direct testing of chemotherapeutic drugs on patient cancer cell samples before treatment may open a new avenue for personalized medicine. We invented a microfluidic chip for the real-time detection of cytotoxicity of drug candidates. This is based on the quantitative measurement of cytosolic calcium ([Ca²⁺]_i) on single cancer cells. Such a single-cell method is rapid because it readily detects the early event of drug cytotoxicity based on the sustained increase in [Ca²⁺]_i. This method is faster than the conventional MTT assays that usually take a few days to complete. Moreover, any color or chemical interference problems interfering conventional assays for herbal compounds could be resolved. The microfluidic single-cell method not only reduces reagent cost and demands less cells, but also reveals some phenomena due to cellular heterogeneity that cannot be observed in bulk analysis.

Introduction

Although medicinal herbs have been widely used in folk medicine with a long history, only recently has the screening of natural anticancer drugs from herbs gained much interest.^1–4 Microtiter plate-based cytotoxicity assays, such as the one using MTT (3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide), are widely used for drug screening.⁵ These cell-based colorimetric assays have been used to test the cytotoxic effects of drug candidates on cancer cells.^6–8 However, these conventional assays usually require large amounts of herbal ingredients which are often expensive and limited in amount. In addition, these assays are time-consuming, usually taking ∼4 days for each experiment.^6,7 Moreover, when screening for herbal compounds, the reliability and sensitivity of some assays, e.g., MTTassay , are sometimes affected by the presence of antioxidants and colored substances that may lead to chemical and color interferences.⁹ Therefore, there is a need to develop new cell-based techniques to test the bioactivity of herbal compounds.

It is well-known that intracellular calcium acts as a universal second messenger to regulate a diverse range of cellular functions (e.g., cell death and myocyte contraction).¹⁰ Moreover, the elevation of cytosolic Ca²⁺ concentration or [Ca²⁺]_i is associated with the activation of cell membrane-bound G-protein-coupled receptors (GPCRs), which represent the drug targets of 50–60% of current therapeutic agents.^10–12 Consequently, the cytosolic Ca²⁺ measurement is now one of the most important cell-based assays in screening for new drug candidates.^13,14

The intracellular Ca²⁺ homeostasis is tightly regulated by the combined effects from different Ca²⁺ channels and pumps residing on the cell membrane, endoplasmic reticulum (ER) and mitochondria.¹⁵ Various stimuli (e.g., anti-cancer drugs) can cause sustained [Ca²⁺]_i elevations, which disrupt the Ca²⁺ homeostasis and result in cytotoxicity,^8,15–17 and even cell death.^15,18,19 These [Ca²⁺]_i elevations can lead to Ca²⁺ overload in mitochondria,^15,20–22 resulting in cell death either via the release of cytochrome c from mitochondria to trigger apoptosis (programmed cell death),^15,20,23,24 or via necrosis (another mode of cell death).^25–27 On the other hand, cytotoxicity or cell death can be prevented by suppressing [Ca²⁺]_i elevations using the mitochondrial Ca²⁺ uptake inhibitors,¹⁵Ca²⁺ channel antagonist (e.g.verapamil, nifedipine),^28–30 and Ca²⁺chelators.^16,17 Therefore, the [Ca²⁺]_i elevations are believed to be an early event of cytotoxicity.^{15,17,31–33} The [Ca²⁺]_i measurement on cells as stimulated by antitumor herbal compounds can be rapidly achieved, thus alleviating the need of waiting for 4 days in conventional assays.

Recently, it is shown that the use of miniaturized microfluidic devices leads to low reagent consumption when compared with the traditional microtiter plate-based assays. In addition, the small dimensions of microfluidic devices, which are compatible with the sizes of biological cells and also allow for the study of a small number of cells,³⁴ have made the cell-based assay a popular micro total analysis system (μTAS) application.³⁵ Among the microfluidics-based cellular applications, much emphasis has been placed on single-cell analysis, as summarized by recent review articles.^36,37 Microfluidic single-cell analysis is preferred to traditional bulk cellular analysis, because the former does not overlook cellular heterogeneity and can provide information about cell-to-cell variations.^38,39 Using microfluidic single-cell analysis approaches, Wheeler et al.,³⁹ Mathies and et al.,⁴⁰ Peng and Li,⁴¹ Yin et al.,^42,43 Yang et al.,⁴⁴ and Zhang et al.⁴⁵ have measured the [Ca²⁺]_i flux of spherical cells. Furthermore, [Ca²⁺]_i flux of single cylindrically shaped cardiomyocytes (heart muscle cells) have been measured by Li et al.,^46–48 Kaji et al.,⁴⁹ Klauke and Cooper et al.^50–53 Among these microfluidic studies on [Ca²⁺]_i flux, we have for the first time quantified [Ca²⁺]_i to study the contraction of cardiac myocytes,⁴⁶ showing that only [Ca²⁺]_i, but not the fluorescence intensity, can accurately represent the [Ca²⁺]_i variations of muscle cells in response to drug stimulations.

In this paper, we apply our previously developed microfluidic [Ca²⁺]_i measurement method to single cancer cells to study the cytotoxicity of drug candidates for drug discovery. This method is rapid because it quickly detects the sustained [Ca²⁺]_i increase, which is an early event of cytotoxicity, caused by different reagents on leukemia cancer cells. These reagents tested in this work include chemotherapy drugs and ionophores as positive controls, and herbal licorice compounds.

Experimental

Chip layout and fabrication

The layout of the microfluidic chip is shown in Fig. 1A. It consists of three channels, three reservoirs and one chamber containing a V-shaped cell retention structure with a central stretch. The right reservoir is the cell inlet, the left one is the waste outlet, and the reagent reservoir (reservoir 3) is used for drug delivery. The glass chip was fabricated by Canadian Microelectronic Corporation (CMC, Protolyne® Chip) by the standard microfabrication procedure. The etch depth was 20 μm on the bottom plate, and through-holes (2 mm in diameter) were drilled on the 600-μm thick cover plate to serve as solution reservoirs. The cell retention structure was shown in the inset of Fig. 1A.

Fig. 1 Layout of the microfluidic chip and the instrument setup. (A) The schematic of the microfluidic chip consisting of three solution reservoirs and a cell retention structure, which is zoomed out as shown in the inset. (B) An image of the instrument setup. (C) A single RAW 264.7 cell was retained in the cell retention structure. The scale bar is 50 μm. The inset shows the fluorescence image of a RAW cell (diameter, 7 μm) after the stimulation by 10 μg mL⁻¹ionomycin.

Reagents

A fluorescent calcium probe, Fluo-4 AM ester (50 μg, special packaging) was purchased from Molecular Probes (Eugene, OR). It was first dissolved in 50 μL of dimethyl sulfoxide (DMSO, >99.9%, Sigma-Aldrich, St. Louis, MO) to make a stock solution (1 μg μL⁻¹). It was freshly diluted in Hanks’ balanced salt solution (HBSS, Invitrogen Corp., Grand Island, NY) to make a 5-μM working solution. Ionomycin (IM), daunorubicin (DNR), isoliquiritigenin (IQ), glycyrrhizin (GL), 3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide (MTT) and penicillin were also obtained from Sigma-Aldrich. Both IM and IQ were dissolved in DMSO to make stock solutions. DNR, GL and IQ were finally diluted in HBSS containing 1 mM CaCl₂ to make working solutions. DMEM (Dulbecco’s modified eagle’s medium) cell culture medium and fetal bovine serum (FBS) were purchased from ATCC (Manassas, VA). Note that Fluo-4 AM is light-sensitive and must be stored in the dark at −20 °C. The MTT solution is also light-sensitive and must be stored in the dark at 4 °C. All reagents were of analytical grade.

Cell culture

The mouse leukemic monocytemacrophagecell line (RAW 264.7) was obtained from ATCC. The RAW cells were maintained in the DMEM medium, supplemented with 10% FBS and 50 U mL⁻¹penicillin in a 5% CO₂ atmosphere at 37 °C. The cells were passaged twice a week.

Instrument

An inverted microscope (TE300, Nikon, Mississauga, ON, Canada), equipped with a photometric system (PTI International, London, ON, Canada), was used for the optical measurement. This optical detection system was employed for simultaneous fluorescence measurement and bright-field observation, as previously described.^34,46 A photo of the instrumentation setup is shown in Fig. 1B. A digital camera (Nikon, D50) was employed to obtain fluorescent cell images. A microplate reader (Sunrise, Tecan, Austria) was used to conduct the MTT cytotoxicity assay .

Procedures

Single-cell selection and retention. A single RAW cell was selected and retained in the cell retention structure using a previously reported procedure.^34,46 Briefly, after 5 μL of a cell suspension (∼1 × 10⁵ cells mL⁻¹) was introduced into the cell inlet, the cells flowed from the right to the left across the cell retention structure. The cell medium was added to the waste and reagent reservoirs. By adjusting the liquid levels of the left (waste reservoir) and the right (cell inlet) reservoirs, a desired cell was slowed down near the entrance of the cell retention structure. Then a flow at the central reagent channel was introduced to push the cell into the retention structure. The cell was allowed to settle further for ∼15 min before the fluorescence measurement started. Fig. 1C shows the image of a single RAW cell retained in the cell retention structure.

On-chip dye loading

Once a cell was retained in the cell retention structure, the cell medium in all the reservoirs was removed. Then the reagent reservoir and cell inlet were topped up with the Fluo-4 AM (5 μM) solution for on-chip loading of the dye into the cell, for ∼30 min in the dark. The loaded Fluo-4 AM dissociated after hydrolysis by cellular esterases to give Fluo-4, which would form a fluorescent complex with the Ca²⁺ ion. The inset of Fig. 1C shows the fluorescence image of a RAW cell after the stimulation by ionomycin. Afterwards, the Fluo-4 AM solution was washed away by HBSS introduced from the cell inlet and reagent reservoir. This on-chip dye loading method has been proven to minimize the cell damage that would result from the use of a centrifuge in the conventional off-chip dye loading procedure.⁴⁶

Fluorescent measurement and calibration of [Ca²⁺]_i of a single cell

After Fluo-4 loading, fluorescent measurement was started to monitor [Ca²⁺]_i in the cell at room temperature. The chip was translated back and forth so that the detection aperture window observed the cell or its surrounding region in turn. When the cell was inside or outside of the detection aperture, the cellular fluorescence signal or the background was measured, respectively. The test compounds were continuously introduced through the reagent reservoir to stimulate the retained cell. At the end of each experiment, a 10 μg mL⁻¹ionomycin solution containing 50 μM CaCl₂ was introduced to saturate the cellular fluorescence. The maximum fluorescence, F_max, resulted from 10 μg mL⁻¹ionomycin addition, was used in eqn (1) for [Ca²⁺]_i calibration, as previously described.⁴⁶ As defined by eqn (1),⁵⁴ [Ca²⁺]_i was quantified as follows,where F is the fluorescence intensity; F_min is the background fluorescence determined from a cell-free area in a calcium-free solution; F_max is the maximum fluorescence acquired after ionomycin addition; K_d is the dissociation constant of Fluo-4 and a value of 0.35 μM was used.⁵⁵

MTT cytotoxicity assay

The cytotoxic effects of various test compounds on RAW cells were also determined by conventional 96-well microtiter plate assay .⁸ First, 100 μL cell suspension at a density of ∼5 × 10⁴ cells mL⁻¹ was added to seed each well which was then incubated at 37 °C. After 1 day of cell seeding, 100 μL of test compounds prepared in the medium at various concentrations were separately introduced in each well. After the cells were further incubated for 3 days, 40 μL of MTT(5 mg mL⁻¹) was added to each well and incubated at 37 °C for 3 h. Then the supernatant solution was removed by an aspirator, and the purple formazan product formed inside the cells was solubilized by adding 100 μL of DMSO into each well. Finally, the absorbance of each well was measured at 570 nm with a microplate reader. Administrations of the medium without test compounds and of DMSO alone were used as the negative control and the positive control, respectively. All tests were carried out in triplicate.

Results and discussion

Real-time monitoring of [Ca²⁺]_i dynamics of single RAW cells

Real-time monitoring of the temporal changes of cytosolic calcium or [Ca²⁺]_i was carried out on single RAW cells. It was observed that [Ca²⁺]_i of most untreated RAW cells did not vary greatly, with a typical measurement shown in Fig. 2A. After calibration, [Ca²⁺]_i at the resting status was determined to be ∼74 ± 14 nM (n = 9), consistent with the literature value of ∼100 nM.^56–58 However, in some experiments, several Ca²⁺ spikes up to ∼400–500 nM were observed even before the test compound was added (Fig. 2B). These kinds of Ca²⁺ spikes may be related to some intracellular processes, such as the activation of mitochondrial Ca²⁺-sensitive enzymes.⁵⁹ Since the traditional endpoint analysis on the bulk cell population often overlooks such information, the real-time monitoring of individual cells is necessary to reveal the dynamic and temporal changes of intracellularCa²⁺ among cellular heterogeneity. Therefore, we have employed such a method to study the [Ca²⁺]_i mobilization of single cells induced by different stimuli (e.g.drug candidates).

Fig. 2 Real-time monitoring of [Ca²⁺]_i of two different single RAW cells in a microchip. At the end of each experiment, a 10 μg mL⁻¹ionomycin (IM) solution containing 50 μM CaCl₂ was added for the calibration of [Ca²⁺]_i

Ionomycin-stimulated [Ca²⁺]_i flux

Ionomycin has been reported to elicit cytosolic Ca²⁺ elevation in a variety of cells.^39,60–62 Because of the ionophore property of ionomycin, high concentrations of ionomycin are often used to obtain F_max for calcium calibrations. On the other hand, ionomycin has been reported to cause cytotoxic effects on cancer cells. For instance, ionomycin has also been found to induce apoptosis in the human prostate cancer cell line LNCaP,⁶¹ bladder cancer cell line HT1376,⁶ and leukemia cell line HL-60.⁶² In this work, we use the microfluidic method to study the effect of ionomycin on [Ca²⁺]_i flux of single mouse leukemia cells of RAW 264.7.

Fig. 3A shows the [Ca²⁺]_i flux from different single live cells as stimulated by two different concentrations of ionomycin. In the experiment of the low concentration of ionomycin (cell 1; 2 μg mL⁻¹), an obvious transient peak (850 nM) was observed, and the transient peak was followed by a sustained level of [Ca²⁺]_i (∼150 nM). This sustained level was lower than the transient peak, but was higher than the resting [Ca²⁺]_i of ∼79 nM. However, in the experiment of a higher ionomycin concentration (cell 2; 10 μg mL⁻¹), the transient peak was not observed, and a quick increase followed by a higher sustained level were seen instead (see Fig. 3A inset). What’s more, the sustained level of [Ca²⁺]_i was higher than the first increase in cell 2, which was different from cell 1 that the sustained level was lower than the transient peak. We explain this observation using the theory that ionomycin-stimulated [Ca²⁺]_i flux occurs through a biphasic process.⁶¹ The occurrence of the first transient peak is due to the Ca²⁺ release from the internal store ER, as observed in the lower concentration of ionomycin (2 μg mL⁻¹). This release in turn triggers the Ca²⁺ influx through the cell membrane, thus resulting in a subsequent sustained [Ca²⁺]_i increase, based on the mechanism called store-regulated Ca²⁺ uptake (SRCU).^60,61 However, this sustained increase will be modest if the ionomycin concentration is not high enough, as observed in cell 1. In cell 2, the use of 10 μg mL⁻¹ of ionomycin induced a faster and more substantial Ca²⁺ influx through cell membrane, thus resulting in a higher sustained [Ca²⁺]_i plateau following the first increase, which has veiled the appearance of the first transient peak (see curve 2′ in Fig. 3 inset). The second Ca²⁺ increase demands the presence of sufficient extracellularCa²⁺, and if there is none, only a transient Ca²⁺ peak (curve 4 in Fig. 4), rather than a subsequent sustained Ca²⁺ increase (curve 2′ in Fig. 3A inset), is observed.

Fig. 3 Effects of ionomycin (IM) on cancer cells. (A) [Ca²⁺]_i flux stimulated by different concentrations of IM solutions containing 50 μM CaCl₂. Curve 1, 2 μg mL⁻¹IM; Curve 2, 10 μg mL⁻¹IM; their corresponding fluorescence intensity traces are shown in the inset. For easy comparison, the fluorescence intensities have been normalized and vertically offset, as shown in the inset. The image in the inset shows that the cell was stained by Trypan Blue, which confirmed the cell death. (B) Dose-dependent cytotoxicity of IM on cancer cells by the MTTassay . Treatment by DMSO alone, and cell culture medium alone (without test compounds) were used as the positive and negative controls, respectively.

The first transient Ca²⁺ release from ER due to ionomycin can result in ER stress. In addition, the sustained cytosolic Ca²⁺ increase can also lead to Ca²⁺ overload in mitochondria. Both processes can result in cell death.¹⁵ For instance, 10 μg mL⁻¹ of ionomycin quickly caused the sustained [Ca²⁺]_i increase of more than 1 μM. The rapid sustained cytosolic Ca²⁺ increase is highly cytotoxic to cells, especially when [Ca²⁺]_i reaches above 1 μM which could promptly trigger cell death.^20,63 In Fig. 3A, the cell death was manifested as the disintegration of the cell membrane, and a sharp fluorescence decrease due to the loss of the intracellularFluo-4-Ca²⁺ complex, as observed at the latter parts of the curves of 10 μg mL⁻¹ionomycin, in Fig. 3A inset (curve 2′) and in Fig. 4. The loss of the intracellular Fluo-4-Ca²⁺ complex from a RAW cell due to the disintegration of the cell membrane was imaged in Fig. 4 inset. Cell death was also confirmed by Trypan Blue staining, as shown in Fig. 3A inset.

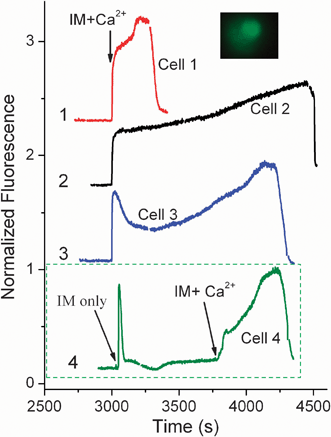

Fig. 4 Different patterns of [Ca²⁺]_i flux from different cells stimulated by the same concentration of IM (10 μg mL⁻¹). Curves 1–3, different [Ca²⁺]_i patterns elicited by IM solutions containing 50 μM CaCl₂ which were introduced at 2998 s separately to three different cells. The fluorescence image in the inset shows the occasion when the intracellularFluo-4-Ca²⁺ complexes were released into the extracellular solution due to the disintegration of the cell membrane. In Curve 4 of another inset, cell 4 was treated with a 10 μg mL⁻¹IM solution without 50 μM of CaCl₂ at 3050 s, and then with another 10 μg mL⁻¹IM solution containing 50 μM of CaCl₂ at 3786 s. The fluorescence intensities have been normalized and vertically offset for comparison.

To examine the cytotoxicity of ionomycin to cancer cells, the conventional MTT cytotoxicity was carried out on RAW cells. Fig. 3B shows that ionomycin has a dose-dependent antiproliferative effect on the RAW 264.7 cells. As the ionomycin concentration increased, more cytotoxicity occurred to cells, resulting in less live cells, as indicated by the low measured absorbance as shown in Fig. 3B. The IC₅₀ (the half maximal inhibitory concentration) of ionomycin was found to be ∼2 μg mL⁻¹ (or 2.7 μM). It was observed that 10 μg mL⁻¹ionomycin led to a similar absorbance as the positive control (DMSO-treated cells). On the other hand, the absorbance obtained from 0.8 μg mL⁻¹ was similar to the negative control (no drug treatment), thus indicating this concentration was not cytotoxic to RAW cells, which is consistent with a previous report that a concentration of ionomycin lower than 1 μM neither induced apoptosis nor produced the biphasic increase in [Ca²⁺]_i in prostate cancer cells.⁶¹

Our microfluidic results show that the possible antiproliferative effect of ionomycin on RAW 264.7 cells was determined using only a 1 h single-cell measurement of the disruptive [Ca²⁺]_i elevation, as compared to the conventional 4 day MTT cytotoxicity assay . In addition, in the testing of antioxidants or colored reagents, these compounds would interfere chemically or colorimetrically with the MTTassay . Nevertheless, these problems could be readily resolved by the microfluidic [Ca²⁺]_i measurement method that we present here.

During the single-cell experiments, it was found that different cells responded to the stimulus of 10 μg mL⁻¹ionomycin differently, as shown by the different patterns of [Ca²⁺]_i flux in Fig. 4. Cell 1 shows a ‘two-step stair’ pattern, while cell 3 shows a pattern of a transient peak followed by a slow sustained increase. Although the patterns are different, we can still tell they are biphasic increases. Nevertheless, cell 2 shows a different pattern of [Ca²⁺]_i flux, and it is hard to discern the biphasic feature from curve 2. We believe these different patterns are resultant from the time lag between the two phases of ionomycin-stimulated [Ca²⁺]_i flux, i.e. (1) the transient Ca²⁺ release from ER and (2) the sustained influx from extracellularCa²⁺ through the cell membrane.⁶¹ If the sustained Ca²⁺ influx through the cell membrane occurs very quickly, the time lag between the two phases is very short, a pattern like curve 2 will be observed, i.e. without obvious biphasic changes. If the Ca²⁺ influx through the cell membrane occurs more slowly, the first transient Ca²⁺ peak will be well separated from the second sustained Ca²⁺ increase, resulting in a pattern like curve 3. If extracellularCa²⁺ was intentionally removed, but was added in a much later time to allow Ca²⁺ influx to occur, the two phases were even more spread out, as depicted by curve 4. These different cellular responses are the different manifestations of the biphasic Ca²⁺ flux process due to cellular heterogeneity, which is overlooked in the conventional bulk analysis. Therefore, we believe that the microfluidic single-cell measurement can help reveal cellular heterogeneity, and help identify the underlying mechanism of the biphasic cell responses.

Daunorubicin-induced [Ca²⁺]_i mobilization

Daunorubicin (DNR) is a highly effective chemotherapy drug of the anthracycline family that is used to treat a variety of cancers (e.g. leukemia, breast cancer, and small-cell lung cancer).⁶⁴ For example, it has been reported that DNR caused apoptosis in leukemic cell lines, such as U937 and HL60,^65,66 but there are no reports about the effect of DNR on RAW cells. Again, monitoring the [Ca²⁺]_i mobilization may provide a fast way to measure the drug candidate’s cytotoxic effect. Moreover, since the [Ca²⁺]_i mobilization precedes the caspase activation in the apoptosis pathway,⁶⁶ this measurement method will reveal the early-stage information of cell death.

Fig. 5 shows the [Ca²⁺]_i mobilization of a single live RAW cell (cell 1) by the DNR treatment. It can be seen that once DNR was added, [Ca²⁺]_i did not increase much at the first 1200 s (see curve 1). Then a sustained [Ca²⁺]_i increase up to ∼420 nM was observed after ∼3800 s of the DNR treatment. A control experiment on another individual cell (cell 2) without Fluo-4 loading was performed to ensure that the cellular accumulation of DNR, which is intrinsically fluorescent,³⁴ did not interfere with the fluorescent measurement of [Ca²⁺]_i. It could be seen that there was no obvious cellular fluorescence increase observed due to the DNR (3.5 μM) accumulation into the cell as shown in curve 2, which confirmed that 3.5 μM DNR did not interfere with the fluorescent measurement of [Ca²⁺]_i. This is mainly due to the different emission wavelengths of DNR (585 nm) and Fluo 4-Ca²⁺ (525 nm).^34,46 At a higher concentration of DNR (35 μM), the [Ca²⁺]_i increase was even higher, and it was observed that some RAW cells died within ∼4500 s, confirmed by Trypan Blue staining (data not shown).

Fig. 5 DNR-induced [Ca²⁺]_i mobilization on single leukemia RAW cells. Curve 1, [Ca²⁺]_i flux induced by DNR solution (3.5 μM). Curve 2, the fluorescence intensity versus time curve due to DNR accumulation without Fluo-4 loading (control experiment). At 2361 s, DNR solutions were introduced to these two different cells separately.

The MTT assay results shown in Fig. 6A confirmed the effect of DNR on RAW cells. There is no obvious antiproliferative effect observed on RAW cells when DNR concentration is lower than ∼0.10 μM. When its concentration increased above ∼ 1 μM, DNR killed all the RAW cells during the 3-day drug treatment time, resulting in a similar absorbance with that of DMSO. The IC₅₀ of DNR on RAW cells is ∼0.35 μM, which is similar to the value on U937 cells (IC₅₀ = 0.20 μM).⁶⁵

Fig. 6 Dose-dependent cytotoxicity on RAW cells by (A) DNR, (B) GL and (C) IQ using the conventional MTTassay .

Effects of licorice compounds on RAW 264.7 cancer cells

Glycyrrhizin (GL), which is a major ingredient of licorice, has various desirable pharmacological properties such as anti-viral,^67,68 anti-inflammatory.⁶⁹ Therefore, we studied to see whether this ingredient has anticancer or cytotoxic effects on leukemia cells.

Similarly, the effect of GL on the [Ca²⁺]_i level was measured. However, the increase of [Ca²⁺]_i on single RAW cells from GL was not observed, see Fig. 7A. From the conventional MTTassay (Fig. 6B), it can seen that GL does not show antiproliferative effect on RAW cells. This is consistent with the microfluidic results, indicating that GL does not cause a sustained [Ca²⁺]_i increase on RAW cells.

Fig. 7 [Ca²⁺]_i mobilization by licorice compounds on single leukemia RAW cells. (A) The effect of GL on [Ca²⁺]_i. At 2913 s, 100 μM GL was added. IM was added at the end of the experiment to quantify [Ca²⁺]_i values (B) IQ-induced [Ca²⁺]_i mobilization as shown as Curve 1: At 3006 s, 50 μM of IQ was introduced to a single RAW cell after dye loading. Curve 2: fluorescence intensity of IQversus time. At 3006 s, IQ was introduced to another RAW cell without dye loading (a control experiment). The fluorescence increase upon the introduction of IQ (100 μM) in curve 2 is attributed to the fluorescence background increase due to the intrinsic fluorescence of IQ, not cellular fluorescence due to the IQ accumulation in the cell, as confirmed by checking the difference between cellular fluorescence and the background (see ESI† ).

Isoliquiritigenin (IQ), a flavonoid ingredient from licorice, was found to exhibit cytotoxic effects on human gastric,⁷⁰ prostate,² heptoma⁷¹ and breast cancer cells,⁷² and also on mouse renal⁷³ and melanoma cells.⁷⁴ However, as far as we know, there are no reports about its effect on leukemia cells. As it was reported that the cytotoxic effect of IQ on gastric cancer cells may involve a calcium-dependent pathway,⁷⁰ we decided to monitor [Ca²⁺]_i mobilization of leukemia RAW cells as induced by IQ.

Fig. 7B shows IQ has caused a sustained [Ca²⁺]_i increase which represents an early cytotoxic event on a single RAW cell (curve 1). However, during the first 2000 s after introducing 50 μM IQ, the [Ca²⁺]_i increase was slow. Thereafter, the increase of [Ca²⁺]_i became faster, and finally it reached a level of ∼370 nM after 1.5 h. More experiments show that the maximum [Ca²⁺]_i due to IQ within 1.5 h are 342 ± 39 nM (n = 3). Since IQ has an intrinsic fluorescence at λ_em = 525 nm as well, a control experiment was performed on a RAW cell without Fluo-4 loading, as shown in curve 2 in Fig. 7B. It was found, even at a high concentration of IQ (100 μM), no cellular fluorescence increase due to IQ accumulation in the single cell was observed, using a previously described procedure,⁴¹ see Fig. S1, ESI.† This was further confirmed by checking cellular fluorescence after washing away the IQ solution (see Fig. S2, ESI† ). So the intrinsic fluorescence of IQ did not interfere with the fluorescent measurement of IQ-induced [Ca²⁺]_i elevation. This can be attributed to the fact that IQ cannot permeate the cell membrane because IQ is a polar molecule (See IQ chemical structure in the inset of Fig. 7B). Accordingly, the sustained [Ca²⁺]_i increase induced by IQ may go through the interaction of IQ with cell membrane receptors, like the GPCR activation process.¹⁰

Similarly, the MTT assay confirmed the dose-dependent effect of IQ on RAW cells, see Fig. 6C. A low concentration of 5 μM IQ did not inhibit growth of RAW cells. When IQ was above 10 μM, it began to show substantial toxicity. At 100 μM of IQ, most of the cells did not survive as the absorbance of IQ was very close to that of DMSO (positive control). The IC₅₀ value of IQ on RAW 264.7 cells is ∼35 μM, which is comparable to the IC₅₀ value (∼11 μM) on human prostate cancer cells.²

From the microfluidic [Ca²⁺]_i measurement and MTTassay data, we report for the first time that IQ has an antiproliferative effect on leukemia cells, suggesting that IQ would be a candidate agent for the treatment of leukemia. Although DNR is widely used in treatment of leukemia, the use of DNR is unfortunately limited by its potentially fatal cardiotoxicity.^75,76 Previously, we reported that IQ has less effect on [Ca²⁺]_i of heart muscle cells, and hence less cardiotoxicity, as compared with DNR.⁴⁷ Therefore, IQ can be a potential drug candidate for the treatment of leukemia with less cardiotoxicity. But the findings of these cell-based in vitro tests are subject to the confirmation by in vivo assays.

Conclusion

A microfluidic approach of single-cell analysis on cancer cells has been developed for drug discovery. This is based on the real-time measurement of the sustained increase in [Ca²⁺]_i, which could be rapidly measured, without the 4 day wait when using the conventional assays. Therefore, this approach is suitable for preliminary drug screening of traditional medicinal herbs using less reagents to reduce the cost in drug discovery, and especially for colored compounds and antioxidants that usually interfere with the cytotoxicity assay . Using this approach, IQ, a herbal ingredient of licorice has been found to have an antiproliferative effect on leukemia cells, suggesting it is a drug candidate for leukemia. This microfluidic method with the real-time measurement also has great potentials in the dynamic study of drug actions on rare cells (e.g. cancer stem cells) or patient samples because of only a small number of cells needed, and in the mechanistic study of cellular functions at the single-cell analysis level.

Acknowledgements

Financial support from Natural Science and Engineering Research Council of Canada (Idea-to-Innovation) and Canadian Microelectronic Corporation (Protolyne) is acknowledged. We are also grateful to Dr Joseph Tai (UBC Child and Family Research Institute, Vancouver, BC, Canada) for providing the cell samples, and Michael Sung, Derek Chew and Peter Chou for the help in cell culture and MTT assay procedure. We also thank Samar Haroun for the help in the manuscript preparation.
