Functionalized alkyne bridged dendron based chromophores for dye-sensitized solar cell applications

Abstract

We report the results of an investigation on the preparation, spectral and photoelectrochemical properties of alkyne bridged dendron chromophores with carboxylic acid anchoring group, which adhere effectively to nanocrystalline (anatase) TiO₂ surfaces yielding incident photon-to-current conversion efficiency values of up to 76% in their photocurrent action spectra, suggesting that the alkyne π-bridge functional moiety is an effective bridging group between chromophore and conduction band of the semiconductor.

---

Broader context

We report an interesting class of novel sensitizers that contain an alkyne/alkene bridge between the anchoring carboxylic acid group and the donor dendron moiety. These sensitizers anchor effectively onto nanocrystalline (anatase) TiO₂ surfaces yielding incident photon-to-current conversion efficiency values of up to 76% in their photocurrent action spectra, suggesting that the alkyne and alkene groups are an effective communicating bridge. Under standard global AM 1.5 solar conditions, the alkyne bridged sensitized cell gave an overall conversion efficiency of 1.55%, while the alkene bridge sensitized cell gave an overall conversion efficiency of 1.20%, demonstrating the influence of electronic coupling between the chromophore and the TiO₂ semiconductor on device performance. Density functional calculations interpreted a tunability of band gap by π-conjugation and better electron coupling in the alkyne π-bridged chromophore, which were consistent with the experimental results.

Introduction

Ruthenium(II) polypyridine complexes,¹ organic sensitizers,² phthalocyanines³ and porphyrins⁴ are well established as photosensitizers for use in photovoltaic cells based on nanocrystalline TiO₂ films. For high efficiency, several characteristics of the photosensitizer need to be optimized, such as the absorption spectrum which should match as far as possible the solar emission spectrum up to 900 nm (panchromatic response); a high electron-injection efficiency from the chromophore to the conduction band of the semiconductor; good electronic coupling between the chromophore and conduction band of the TiO₂ semiconductor; and high affinity for the TiO₂ surface. Strong anchoring immobilizes the sensitizer on the nanocrystalline TiO₂ surface resulting in efficient electronic communication between the light-harvesting center and the semiconductor substrate, and ascertaining stable cell operation. The immobilization of the sensitizer on the surface of mesoporous TiO₂ nanoparticle is achieved by anchoring groups such as carboxylate,⁵ phosphonate,⁶ salicylate,⁷ sulfonate,⁸ acetyl acetonate⁹ and catechol.¹⁰ Though various anchoring groups have been applied in dye-sensitized solar cells (DSSCs), systematic studies of the influence of the bridging group on electronic coupling between the chromophore and the TiO₂ surface are still lacking. This is an important factor to consider in dye design and future organic sensitizer development. The conducting alkyne bridge has been utilized for conjugated donor–acceptor (D–A) systems¹¹ because it is rigid and straight for conducting electrons and at the same time reduces charge recombination.¹² In this work, we report the influence of a conducting alkyne bridge on incident photon-to-current and power conversion efficiency of the dye-sensitized solar cell (DSSC).

Experimental

Measurements

1H-NMR spectra were recorded using Varian Oxford 300 MHz spectrometers; chemical shifts were reported in ppm units with tetramethylsilane as an internal standard. Infrared spectra were measured on KBr pellets using a Perkin-Elmer Spectrometer. The mass spectra were taken by a JEOL JMS-AX505WA mass spectrometer. MALDI-TOF mass spectrometry was performed with Voyager-DETM STR Biospectrometry. The elemental analyses were carried out by means of EA1110 (CE Instrument). Steady-state absorption spectra were recorded on a Shimadzu UV-2401PC spectrophotometer and photoluminescence spectra were measured by a steady-state fluorimeter (Edinburgh FS920) with 450W Xe lamp. The excitation light from a 300 mm focal length monochromator was focused on the sample. The fluorescence from the sample was collected and refocused to the emission monochromator with 300 mm focal length. Visible emission spectra were taken by a PMT system (Hamamatsu R955).

Material synthesis

Palladium(II) acetate (Pd(OAc)₂), tri-o-tolylphosphine (TOP), triethylamine, 2-methyl-3-butyn-2-ol, 4-iodobenzoic acid, and bis(triphenylphosphinepalladium(II) dichloride were obtained from Aldrich Chemical Co. and used without further purification. The third generation aryl–ether dendron ([G3]–Br) was synthesized according to the procedure described in the literature¹³ and the detailed synthetic procedure for [G3–An]–Br has been described elsewhere.¹⁴ The starting material, 4-vinylbenzoic acid methyl ester (1) was prepared by the literature method,¹⁵ and the general synthetic strategy for π-extended dendritic anthracene ligands is Heck reaction¹⁶ and Sonogashira cross-coupling protocol.¹⁷ The vinyl-bridged anthracene derivative ([G3–AnD]–CO₂H) was synthesized by the well-known Heck reaction of 4-vinylbenzoic acid methyl ester with [G3–An]–Br and then hydrolyzed. The acetyl-bridged anthracene derivative [G3–AnT]–CO₂H was prepared by Sonogashira cross-coupling of 2-methyl-3-butyn-2-ol with [G3–An]–Br. The protecting group was removed with NaOH/toluene, and the resulting alkyne ([G3–AnT]–H) was coupled with 4-iodobenzoic acid to give [G3–AnT]–CO₂H as a yellow powder. Chemical structures and the synthesis of π-conjugated anthracene ligands bearing the G3–aryl–ether dendron are shown in Scheme 1.

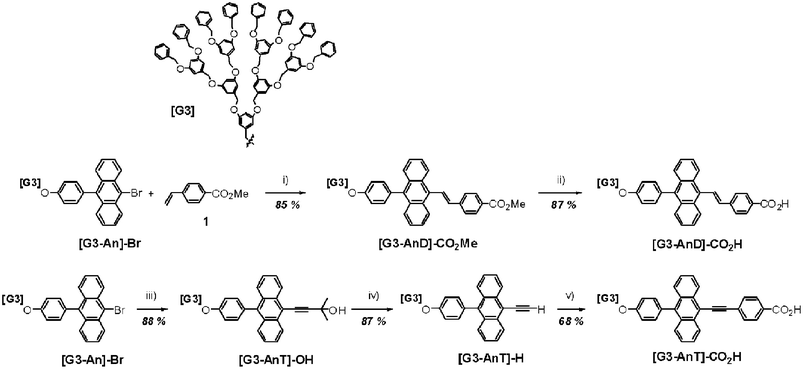

Scheme 1 Chemical structures and synthesis of π-conjugated anthracene ligands bearing the G3–aryl–ether dendron.

Synthesis of [G3–AnD]–CO₂H. KOH (0.5 g, 9.17 mmol) was added to a solution of [G3–AnD]–CO₂Me (2.3 g, 1.15 mmol) in 20 mL of ethanol/THF (7 : 3 v/v). The reaction mixture was stirred for 12 h at reflux temperature. The reaction mixture was evaporated to dryness in vacuo. The residual was dissolved with water and then acidified with HCl. This solid was washed sequentially with water, and hexane, giving a yellowish solid (1.98 g, 87%). ν_max(KBr pellet)/cm⁻¹ 3029, 2867, 1687, 1595, 1449, 1293, 1153, 1049, 831, and 735; δH (300 MHz, CDCl₃, Me₄Si) 8.37 (d, 2H), 8.22 (d, 2H), 7.79 − 7.70 (m, 4H), 7.40 − 7.26 (m, 46H), 7.18 (d, 2H), 7.05 − 6.99 (m, 2H), 6.78 (d, 2H), 6.69 − 6.66 (m, 12H), 6.61 (t, 1H), 6.55 (m, 6H), 5.11 (s, 2H), 4.99 (d, 20H), 4.96 (s, 8H); MALDI-TOF-MS: m/z calcd for C₁₃₄H₁₁₀O₁₇ 1990.7743, found (M + 2H)⁺ 1992.5470.

Synthesis of [G3–AnT]–CO₂H. The mixture of [G3–AnT]–H (2.20 g, 1.180 mmol), CuI (0.02 g, 0.118 mmol), PdCl₂(PPh₃)₂ (0.01 g, 0.118 mmol), PPh₃ (0.03 g, 0.118 mmol), and 4-iodobenzoic acid (0.38 g, 1.530 mmol) in 50 mL NEt₃/toluene was refluxed for 12 h. After cooling to room temperature, the crude mixture was filtered and purified by column chromatography (1.60 g, 68%). ν_max(KBr pellet)/cm⁻¹ 3030, 2986, 2192, 1687, 1596, 1450, 1293, 1154, 1050, 831, and 734; δH (300 MHz, CDCl₃, Me₄Si) 8.71 (d, 2H), 8.22 (d, 2H), 7.88 (d, 2H), 7.75 (d, 2H), 7.62 (m, 2H), 7.41 − 7.25 (m, 44H), 7.17 (d, 2H), 6.77 (d, 2H), 6.69 − 6.66 (m, 12H), 6.61 (t, 1H), 6.55 (m, 6H), 5.10 (s, 2H), 4.99 (s, 20H), 4.95 (s, 8H); MALDI-TOF-MS: m/z calcd for C₁₃₄H₁₀₈O₁₇ 1988.7587, found (M + H)⁺ 1989.8315.

Dye-sensitized solar cells. The detailed fabrication procedure for dye-sensitized solar cells was described in a previous publication.¹⁸ A paste composed of ellipsoidal TiO₂ particles for the transparent nanocrystalline layer was coated on the TiCl₄ treated FTO glass plates (Nippon Sheet Glass, 4 mm thickness) by repetitive screen printing to obtain the required thickness, 12 µm. The TiO₂ electrodes were immersed into the [G3–AnD]–CO₂H and [G3–AnT]–CO₂H solutions composed of 0.1 mM in ethanol and kept at room temperature for 15 h. The electrolyte (A6986) composed of 0.6 M BMII (butylmethylimidazolium iodide), 0.1 M LiI, 0.05 M I₂, 0.05 M tert-butylpyridine, in valeronitrile and acetonitrile (15 : 85) ratio used. The current–voltage characteristics were measured using a 450 W Xenon light source that was focused to give 100 mW cm⁻², the equivalent of one sun at AM 1.5, at the surface of the test cell. In order to reduce scattered light from the edge of the glass electrodes of the dyed TiO₂ layer, a light-shading mask was placed onto the DSCs, so the active area of DSCs was fixed at 0.2 cm².

Results and discussion

The chemical structures of all dendritic ligands were identified by FT-IR, 1H-NMR, MALDI-TOF mass spectrometry, elemental analysis, absorption and emission spectroscopy. In particular, the observed δ values for methyl protons in [G3–AnT]–OH and for terminal alkyne proton (–C≡CH) in [G3–AnT]–H are 1.85 and 4.08 ppm, respectively. Moreover, in the FT-IR spectrum, a vibrational band at 3278 cm⁻¹, corresponding to the –C≡C–H stretch vibration of the terminal alkyne, was clearly visible, together with a band at 1595 cm⁻¹ which may be attributed to the aromatic C=C stretch vibration (see Fig. 1).

Fig. 1 FT-IR spectra of a series of [G3-AnX]-CO₂H (X = D and T).

Fig. 2 1H-NMR spectra of ethynyl-brigded anthracene derivatives.

After coupling of the terminal alkyne with 4-iodobenzoic acid, yielding the [G3–AnT]–CO₂H, the terminal alkyne proton had clearly disappeared in 1H-NMR (see Fig. 2) and the –C≡C– and C=O stretch vibrations for the corresponding ethynyl-bridged anthracene derivative ([G3–AnT]–CO₂H) were observed at 2192 and 1685 cm⁻¹, respectively. In FT-IR spectra, the carboxylic acid of all dendritic ligands ([G3–AnX]–CO₂H) exhibit around 1690 cm⁻¹. In the case of π-extended anthracene ligands, the dihedral angle between π-extended phenyl group and the anthracene unit is estimated to be 63.6 ∼ 66.5°, using a semi-empirical method (AM1), due to large steric hindrance between the π-extended phenyl group and the anthracene unit (see Fig. 3).

Fig. 3 The anthracene ligands ([CH₃O–AnX]–CO₂H, X = D and T), derived from a semi-empirical method (AM1).

UV-vis absorption and photoluminescence (PL) spectra of π-extended anthracene ligand bearing G3–aryl–ether dendron ([G3–AnX]–CO₂H, X = D and T) in solution and as solid state are shown in Fig. 4 and Fig. 5, respectively. The absorbance of the aryl–ether typed dendrons in dendritic π-extended anthracene ligands appeared at 285 nm and the anthracene units absorbed in the range from 350 nm to 480 nm. The introduction of the aryl–ether dendron into π-extended anthracene ligands does not influence the rotation barrier between adjacent π-extended phenyl ring and anthracene ring hydrogens (see Fig. 3). This restrictive rotation barrier leads to π-extended anthracene ligands with the aryl–ether dendron which have well-resolved structures, similar to that of the 9,10-DPA derivative.¹⁹ Also, similar UV-vis absorption behavior of π-extended anthracene ligand ([G3–AnX]–CO₂H, X = D and T) was observed in THF solutions. Recently, Bhaskar et al. reported that the absorption maxima of alkyne π-bridged chromophores are blue-shifted relative to their alkene counterparts in donor–π–acceptor molecules.²⁰ By contrast, the alkyne π-bridging centered anthracene ligand shows a red-shifted absorption, since the alkyne π-bridge has a more effective and directional π-conjugation than an alkene π-bridge, as illustrated in Fig. 3.

Fig. 4 Effect of solvent polarity on absorption and emission spectra of [G3–AnX]–CO₂H (X = D (top) and T (bottom)).

Fig. 5 Normalized UV-vis absorption and emission spectra of π-extended anthracene ligands (solid state).

The fluorescence of the G3–aryl–ether dendron, which appeared at the maximum wavelength of 345 nm, was totally quenched when it was excited at 285 nm of the dendron absorption band, but this significant decrease in fluorescence of the aryl–ether dendron was accompanied by a strong increase in the fluorescence intensity of the π-extended anthracene moiety. These results show that a highly efficient energy transfer from the aryl–ether dendron to the π-extended anthracene moiety takes place.

Fig. 6 Photocurrent density–voltage characteristics (top) and incident monochromatic photon-to-current conversion efficiency (bottom) of a 12 µm TiO₂ film derivatized with [G3–AnD]–CO₂H and [G3–AnT]–CO₂H.

The photovoltaic performance characteristics of [G3–AnD]–CO₂H and [G3–AnT]–CO₂H sensitized solar cells are shown in Fig. 6. The incident monochromatic photon-to-current conversion efficiency (IPCE) of the [G3–AnT]–CO₂H sensitized DSSC plotted as a function of excitation wavelength exhibit a high value, 76% at 460 nm. The IPCE of the [G3–AnD]–CO₂H sensitized solar cell shows 73% at 400 nm and a blue-shifted response when compared to [G3–AnT]–CO₂H, which is consistent with the absorption spectra shown in Fig. 3. Under standard global AM 1.5 solar conditions, the [G3–AnT]–CO₂H sensitized cell gave a short circuit photocurrent density (J_SC) of 3.70 mA cm⁻², an open circuit voltage (V_OC) of 631 mV and a fill factor (FF) of 0.67, corresponding to an overall conversion efficiency η²¹ of 1.55%. The J_SC from the integrated IPCE of 3.65 mA cm⁻² shows that the spectral mistmatch is less than 2%. Under the same conditions, the [G3–AnD]–CO₂H sensitized cell yields a lower J_SC of 2.90 mA cm⁻² due to a blue-shifted light harvesting which leads to a lower η of 1.20%.

Further density functional B3LYP/3-21G* calculations were also performed for these three compounds. Corresponding orbital energy levels from HOMO-4 to LUMO+4 are shown in Fig. 7. It can be found that the HOMO levels of these three compounds are similar, while the LUMO levels decrease from [G3–AnS]–CO₂H (S: single bond), [G3–AnD]–CO₂H to [G3–AnT]–CO₂H, which causes the HOMO–LUMO gaps also decrease in the same order. This order corresponds well with the red-shift from [G3–AnD]–CO₂H to [G3–AnT]–CO₂H in the UV-vis spectra shown in Fig. 4, Fig. 5 and the IPCE of the corresponding solar cells shown in Fig. 6.

Fig. 7 Orbital energy levels from HOMO-4 to LUMO+4 of [G3–AnS]–CO₂H, [G3–AnD]–CO₂H to [G3–AnT]–CO₂H.

It is also noted that the HOMO, LUMO and LUMO+1 are separated from the other orbital, while the other orbitals are very close to each other. Molecular orbital distribution from HOMO-2 to LUMO+2 of [G3AnT]–CO₂H are shown in Fig. 8. It is obvious from this that LUMO and LUMO+1 are localized on the moiety from the anthracene to carboxylic acid group, which is appropriate to inject photo-excited electrons into the conduction band of the TiO₂ semiconductor. HOMO-1 and HOMO-2 are mainly localized on the dendron moiety. Electrons excited from these orbitals to LUMO and LUMO+1 indicate effective oriented electron transfer from the dendron moiety to the anchoring group, which to some extent demonstrates the validity of the strategy to connect the dendron to the anthracene. Molecular orbital distribution from HOMO-2 to LUMO+2 of [G3AnD]–CO₂H is shown in Fig. 9. LUMO and LUMO+1 are also localized on the moiety from the anthracene to the carboxylic acid group, like [G3AnT]–CO₂H. The HOMO-1 and HOMO-2 are mainly localized on the dendron moiety, which are similar to those of [G3AnT]–CO₂H. However, the dihedral angle between the anthracene plane and the plane of the alkene group as well as the carboxylphenyl group, about 57° according to the DFT calculations, decreases the conjugation between these two moieties compared with those of [G3AnT]–CO₂H, which are almost in the same plane. This may be one of the reason that [G3AnT]–CO₂H performs better than [G3AnD]–CO₂H as described above.

Fig. 8 Molecular orbital distribution from HOMO-2 to LUMO+2 of [G3AnT]–CO₂H.

Fig. 9 Molecular orbital distribution from HOMO-2 to LUMO+2 of [G3AnD]–CO₂H.

To the best of our knowledge, these results represent a breakthrough in the design and development of alkyne bridged dendron chromophores, and therefore we believe that the data and findings of this study should spark broad interest in the field of dendron-based sensitized solar cells, useful for photovoltaic windows that transmit part of the visible light and harvest in the blue part of the spectrum.

Conclusions

We have established that alkyne π-bridged chromophores exhibit superior incident monochromatic photon-to-current conversion efficiency and enhanced red response compared to alkene π-bridged chromophores. Under standard global AM 1.5 solar conditions the former (alkyne π-bridged) sensitized cell gave an overall conversion efficiency of 1.55%. On the other hand, the alkene π-bridge sensitized cell gave an overall conversion efficiency of 1.20% demonstrating the influence of electronic coupling between the chromophore and the TiO₂ semiconductor on device performance. Density functional calculations interpreted a tunability of band gap by π-conjugation and better electron coupling in the alkyne π-bridged chromophore which was consistent with the experimental results.

Acknowledgements

This research was supported by the Korea Foundation for International Cooperation of Science & Technology through the Global Research Lab (GRL) Program funded by the Ministry of Science and Technology, and MKE (The Ministry of Knowledge Economy), Korea, under the ITRC support program supervised by IITA (Institute for Information Technology Advancement) (IITA-2008-C1090-0804-0013). JHY, MKN and MG thank the Swiss National Science Foundation for financial support.
