Nucleic acids in two dimensions: layers of base pairs linked by carboxylate

Abstract

The formation of a planar 2D hydrogen-bonded network between DNA bases and formate residues is reported, leading to unprecedented parallel sheets of DNA analogues.

---

Nucleic acids, such as DNA, RNA and their fragments, occur naturally in 3D chain-based structures derived from the double chain structure first described by Watson and Crick in 1953.¹ The principal forces holding this spatial organization together are the Watson–Crick base pairing and the stacking between the bases; the chains being built of sugar–phosphate links. Several deviations from these structures are known to naturally occur. These abnormalities are the subject of intense studies, and in some cases they have been provoked in a search for therapeutic applications.^2–5 Bends and kinks usually arise because of the presence of special sequences or mismatching, for instance in some RNAs.^6–8 Triple helix chains are also known,^4,5 as well as some quadruplex structures,^3,9–12 knots and features such as hammerhead and other junctions.² In all cases, the 1D organisation is one of the factors that determine the structure.

Much work has been done to go beyond these derivations and create new artificial base associations. Different approaches, such as metal-assisted hydrogen bonding^13,14 and incorporation of artificial bases into DNA,^15,16 have been used to develop new DNA base pairs or duplexes, many of which can be enzymatically replicated in the search for possible new biological applications.¹⁷

More recently, research has been reported on the synthesis of ion channels that consist of self-assembled supramolecular rosettes. These rosettes contain nucleic acids and other DNA-based artificial nucleosides that associate with each other in unusual ways. The rosettes pile up due to π-stacking.^18–20

Following these lines of investigation, some supramolecular helical,²¹ linear,²² and macrocyclic structures^23–25 have also been obtained.

To date, a complete, 2D-organized flat structure of nucleic acid bases has never been achieved by the self-assembly of nucleobases in solution, and it has been questioned whether such a structure, with hydrogen bonding within the plane only, would be possible. In fact, when looking closely at the common nucleic acid bases, it is not difficult to imagine that such structures should be possible, either with neutral bases, or with cationic or anionic bases in combination with small cations or flat anions, respectively.

To explore this possibility in detail, a simple DNA model base that resembles a nucleotide and which has been used in many model systems, namely 9-ethylguanine,^26–28 was selected, in combination with the smallest bifunctional flat anion, i.e.formate. Simple model building shows that, in this case, all strong hydrogen bond donors and hydrogen bond acceptors would match. Indeed when 9-ethylguanine (eg) was crystallised from a formic acid solution at rt, crystals of (Heg)(HCOO) could be isolated (see Fig. 1).

Fig. 1 PLATON projection of (Heg)(HCOO) showing the hydrogen bonds.

The asymmetric unit contains two (Heg)(HCOO) ion pairs. The packing environment of these pairs is virtually identical. The formate anion plays an indispensable role in the formation of a hydrogen bond network (see Table 1 and Fig. 2), in which the 9-ethylguaninium residues are associated to each other by the unusual so-called 12-trans sugar edge/sugar edge interactions, as described in the common Leontis/Westhof classification.^29,30 These base pairs belong to the so-called class IV of the Saenger classification,³¹ which a more recent designation classifies as GG N3-amino, symmetric.³² To the best of our knowledge, only one example is known of an organism containing this kind of base pairing in a cellular organelle, the Haloarcula marismortuiribosome in its pairs G315:G336 and G2428:G2466.³³ This base pair association has never before been achieved artificially without a simultaneous inclusion of metal atoms in the structure, such as gold¹³ or cadmium,³⁴ or the blockage of the N7 of the purine ring with a metal atom or a methyl group.^14,35

Table 1 Selected distances (Å) and angles (°) in the crystal structure of (Heg)(HCOO). Only data for one of the independent ion pairs is given. The atom numbering is indicated in Fig. 2

Interatomic distances		Angles/°
Donor-H⋯Acceptor	D⋯A/Å
a Subscripts: I = (1 – x, 1 – y, 1 – z), II = (1 – x, –y, 1 – z), III = (1 – x, 1 – y, –z).
N(24)–H(24)⋯O(31II)	2.545(3)	N(21)–C(21)–N(22)	117.0(2)
N(21)–H(21)⋯O(41I)	2.776(3)	N(22)–C(21)–N(23)	119.4(2)
N(22)–H(22A)⋯O(42I)	2.883(3)	O(41I)–N(21)–C(21)	116.09(16)
N(22)–H(22B)⋯N(23III)	3.026(3)	N(22)–O(42I)–C(41I)	112.04(17)
		O(42I)–N(22)–H(22B)	115.5 (2)

---

Fig. 2 Detail from Fig. 1, with numbering of the major atoms. The subscripts in atom labels are the same as in Table 1.

The nucleoside–formate sheets described herein were found to allow a very close base pair stacking, with a distance between parallel layers of only 3.288(1) Å (see Fig. 3) (the distance between base pair planes in B-DNA is 3.46 Å).

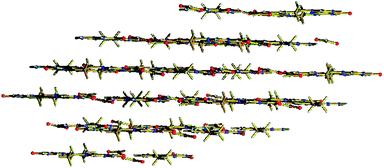

Fig. 3 Packing of (Heg)(HCOO), forming parallel layers.

The structure described in this paper is not the only possible example of 2D nucleobase packing that could be imagined. Current work is focusing on such systems by changing both the nucleic acid bases and the counterions. Formate has proved to be a valid example of a counterion which, due to its simplicity as much as to its planar geometry, could help to build these systems. Although, in principle, nitrate could also be considered suitable to yield a planar crystal structure, it does not have a hydrophobic part in proximity to the ethyl group and cannot form such a lattice. However, the formate hydrogen fits perfectly into the gap, while the corresponding nitrate oxygen atom would provoke repulsion forces that would distort the 2D structure.

The self-organisation of organic molecules into non-covalently bonded nanostructures, such as flat solid surfaces, gives structures with a high degree of order. This opens up a wide range of applications, for example in electronic and optical devices,³⁶ in corrosion inhibition³⁷ and in supramolecular chemistry.³⁸ In molecular electronics, gold nanoparticles are embedded in ultrathin organic films, which could be used to interconnect gold nanoelectrodes in a molecular scale electronic device, as suggested by Samori and co-workers.³⁹

The possible uses of these nucleoside layers in nanotechnology are only just starting to emerge,⁴⁰ and much research is currently being done in fields such as DNA computation. DNA biosensors could be made by taking advantage of the specificity in the binding of the base pairs.^41,42

Ribbon-like architectures have been described, which are formed by the self-assembly of guanosines in both solution and the solid state.^43–45 Different applications of these ribbon structures in fields such as surface chemistry and photochemistry are being studied.^46–49 The exploitation of DNA fragments and their mutual hydrogen bonding interactions for material purposes was extensively reviewed by Seeman.⁵⁰

From a theoretical point of view, this kind of structure is of interest in studies on the emergence of life.⁵¹ It has been suggested that purine and pyrimidine monolayers could be candidates for a stationary phase in organic molecule separation systems and as templates for the assembly of higher ordered polymers at the prebiotic solid–liquid interface.^52,53

In conclusion, a new type of arrangement of DNA bases in layers by hydrogen bonding is reported; this provides insights of novel templates for nanotechnology based on the 2D structures of nucleosides linked by a very simple carboxylate-containing molecule.

Experimental

Materials and reagents

9-Ethylguanine was purchased from Sigma and used as supplied. All other chemicals and solvents were reagent grade commercial materials and used as received without further purification.

Physical measurements

C, H and N determinations were performed on a Perkin-Elmer 2400 Series II analyzer. NMR spectra were recorded on a Bruker DPX-300 spectrometer operating at a frequency of 300 MHz. Chemical shifts were calibrated against tetramethylsilane (TMS).

Experimental procedure

9-Ethylguanine was crystallized as a white solid from a 0.014 M solution in formic acid–benzyl alcohol (1 : 1). The crystals obtained were found to be suitable for X-ray diffraction measurements. The product was collected by filtration, washed with a little (about 3 mL) ice cold water and dried in vacuo over silica. Anal. found: C, 42.4; H, 5.0; N, 30.8. C₇H₁₀N₅O·CHO₂ requires: C, 42.7; H, 4.9; N, 31.1%. δ_H (300 MHz, DMSO-d₆,Me₄Si) 10.46 (1 H, s, NH), 8.12 (1 H, s, HCOO), 7.67 (1 H, s, C(8)H), 6.37 (2 H, s, NH₂), 3.94 (2 H, dd, J₁ = 7.3, J₂ = 14.5, CH₂), 1.31 (3 H, t, J = 7.3, CH₃).

X-ray structural determination

Crystal data. C₇H₁₀N₅O·CHO₂, M = 225.22, triclinic, space group P1̄ (no. 2), a = 7.4575(12), b = 11.6882(12), c = 12.8664(15) Å, α = 114.651(10), β = 94.767(11), γ = 101.729(10)°, V = 980.1(2) ų, Z = 4, D_c = 1.5263(3) g cm^–3, µ(Mo-Kα) = 0.120 mm^–1, T = 150 K, 23598 reflections measured, 3550 independent, R_int = 0.1231 (before de-twinning), R_σ = 0.0559. The measured crystal was a twin, with a two-fold rotation around the b–c plane as the twin operation. Data were de-twinned using PLATON.⁵⁴ Refinement of 356 parameters converged at a final wR² value of 0.1540 (all data), R1 = 0.0515 (for 2847 reflections with I > 2σ(I)), S = 1.085, –0.29 < Δρ < 0.27 e Å^–3. CCDC 612070. For crystallographic data in CIF or other electronic format see DOI: 10.1039/b613845d

Acknowledgements

The authors would like to thank the Graduate Research School HRSMC, a joint activity of Leiden University and the two Universities in Amsterdam. This research has been financially supported by the Council for Chemical Sciences of the Netherlands Organisation for Scientific Research (CW-NWO). The support and sponsorship concerted by COST Actions D20/0001/00, D20/0002/00 and D20/003/01 is kindly acknowledged.
