Formation of a discrete helical assembly and packing pattern through charged hydrogen bonds and van der Waals interactions

Ho Yong Lee a, Hae-Jo Kim a, Kyoung Jae Lee b, Myoung Soo Lah b and Jong-In Hong *a
aDepartment of Chemistry, College of Natural Sciences, Seoul National University, Seoul, 151-747, Korea. E-mail: jihong@snu.ac.kr; Fax: +82-2-889-1568; Tel: +82-2-880-6682
bDepartment of Chemistry and Applied Chemistry, College of Science and Technology, Hanyang University, Ansan, Kyunggi, Do 426-791, Korea. E-mail: mslah@hanyang.ac.kr

Received 21st July 2006 , Accepted 24th October 2006

First published on 6th November 2006


Abstract

We report the selective formation of a self-assembled discrete helical assembly with handedness through charged hydrogen bonds in aqueous solution and solid state. A helical assembly is obtained by simply mixing tris(imidazoline) (1) and (rac)-trans-cyclohexane-1,2-dicarboxylic acid (2) in a 2[thin space (1/6-em)]:[thin space (1/6-em)]3 ratio in water and methanol. The formation of an ion aggregate is fully supported by NMR, MALDI-TOF mass spectroscopy , and X-ray analysis. Helicity of the 2[thin space (1/6-em)]:[thin space (1/6-em)]3 complex is determined by the chirality of 2. For example, (1R,2R)-trans-cyclohexane-1,2-dicarboxylic acid (2RR) induces Mhelicity in [12·23] and vice versa. Each complex is enantiomerically pure as equal amounts of the P and M helical complexes are formed with racemic 2. P- and M-helical assemblies are stacked by turns because PMPM stacking is denser than PP or MM stacking.


Introduction

In the area of supramolecular chemistry, various types of interactions such as hydrogen bonds, metal coordination, π–π stacking, electrostatic and van der Waals forces , and hydrophobic interactions have been utilized for the construction of desired supramolecular structures. Recently, charged hydrogen bonds have been widely used in molecular recognition,1 construction of self-assembled capsules in polar solvent,2 and crystal engineering.3

Helicity is a fundamental aspect of the structure of natural biomolecules, such as the DNA double helix4 and proteins.5 Many artificial systems have been constructed for the purpose of mimicking natural helical structures using hydrogen bonds,6 metal coordination,7 and non-directional aromatic interaction.8 However, there are few reports about helical structures using charge-assisted hydrogen bonds. Herein we report the selective formation of a self-assembled helical discrete structure with handedness through charged hydrogen bonds in aqueous solution and solid state.

Recently, we reported the formation of a discrete ion aggregate in aqueous solvent composed of two tris(imidazoline) (1) bases9 and three tartaric acid units.10 However, it is likely that a 2:3 mixture of 1 and tartaric acid in aqueous solution can form not only a discrete dimeric assembly but also higher oligomeric species because the two carboxylate groups of tartaric acid salt exist not only in trans but also in gauche conformations.11Molecular modeling shows that any chiral dicarboxylic acid having the two acid groups only in a gauche relationship would serve as a discrete 2[thin space (1/6-em)]:[thin space (1/6-em)]3 assembly inducing unit with handedness . Thus, we chose trans-cyclohexane-1,2-dicarboxylic acid (2) as the helicity inducing unit instead of tartaric acid because 2 with the two acid groups in diequatorial positions has the two carboxylic acid groups in a gauche relationship which are more or less aligned in the same direction. Therefore, 2 is expected to be better suited to the formation of a discrete 2[thin space (1/6-em)]:[thin space (1/6-em)]3 assembly. The pKa value (9.88) of protonated 1 is high enough for 1 to play a role as base. Thus, 1 can abstract protons from carboxylic acid. Strongly charged, directional hydrogen bonds between protonated 1 and deprotonated 2 would force both components to spontaneously form a discrete 2[thin space (1/6-em)]:[thin space (1/6-em)]3 aggregate.

Results and discussion

Characterization of solution structure of 12·23

Compound 1 has threefold symmetry and compound 2 twofold symmetry. An ion aggregate is obtained by simply mixing 1 and 2 in a 2[thin space (1/6-em)]:[thin space (1/6-em)]3 ratio in water. Helicity of the 2[thin space (1/6-em)]:[thin space (1/6-em)]3 assembly is determined by the chirality of 2. For example, (1R,2R)-trans-cyclohexane-1,2-dicarboxylic acid (2RR) induces Mhelicity in [12·23] and vice versa (Scheme 1, vide infra). Each complex is enantiomerically pure as equal amounts of the P and M helical complexes are formed with racemic 2 (vide infra).
scheme, filename = b610512b-s1.gif
Scheme 1

Both 1 and 2 are poorly soluble in H2O. However, upon mixing with each other in H2O, the mixture becomes highly soluble. 1H NMR spectrum in D2O shows a highly symmetric one-set signal, suggesting the formation of a symmetric structure. The upfield shift of a chiral proton of 2 (2.65–2.37 ppm) and downfield shifts of aromatic and ethylene proton signals of 1 (8.25–8.60 ppm, 3.87–4.23 ppm) indicate that proton transfer has taken place between 1 and 2 (Fig. 1). The 1H NMR spectrum of the complex between racemic 2 and 1 is identical to that obtained from the 2RR complex (Fig. 2). This suggests that the complex from the racemic carboxylic acid ligand is a racemate of the chiral assembled structures. The stoichiometry of 1 and 2 was determined by the continuous variation plot (Job's plot, Fig. 3).12 Job's plot analysis in D2O indicates a 2[thin space (1/6-em)]:[thin space (1/6-em)]3 stoichiometry between 1 and 2.



            1H NMR spectra in D2O at 298 K: (a) 1, (b) 2, (c) 12·23.
Fig. 1 1H NMR spectra in D2O at 298 K: (a) 1, (b) 2, (c) 12·23.


            1H NMR of 12·23 in D2O (5 mM) at 298 K: (a) with rac-2 (b) with (1R,2R)-2.
Fig. 2 1H NMR of 12·23 in D2O (5 mM) at 298 K: (a) with rac-2 (b) with (1R,2R)-2.

Job's plot between 1 and 2. Aromatic protons of 1 were monitored in 1H NMR spectra under the condition of [1] + [2] = 5.0 mM in D2O at 298 K.
Fig. 3 Job's plot between 1 and 2. Aromatic protons of 1 were monitored in 1H NMR spectra under the condition of [1] + [2] = 5.0 mM in D2O at 298 K.

Complex [12·23] is also characterized by MALDI-TOF–MS spectrometry. The signals at m/z 1081.7 and 1105.1 are assigned to be [12·23·CO2]+ and [12·23·CO2·Na]+, respectively.

Evidence for the induced unidirectional helical structure comes from circular dichroism (CD) spectroscopy. The mixture of racemic 2 and 1 does not show any CD signal. Since 2RR has an intrinsic CD spectrum near the maxima of UV-vis absorbance of 1, an effective CD spectrum was obtained by subtracting the CD of 2RR from that of a 1 + 2 mixture. The CD intensity of 12·2RR3 at [2]/[1] = 8 shows about 1.1-fold enhancement (ΔA209nm = 33.0 mdeg cm–1) compared to 2RR only (ΔA209nm = 30.0 mdeg/cm). Thus, we can assume that this effective CD signal results solely from the induced helicity . We were not able to observe appreciable induced CD intensity above 250 nm because the extinction coefficient of 1 above 250 nm is relatively small.13

Crystal structure of 12·23

Crystals suitable for X-ray diffraction analysis were obtained by slow diffusion of ether into methanol solution of 1 and racemic mixture of 2 in a 2[thin space (1/6-em)]:[thin space (1/6-em)]3 ratio. We obtained the same 12·23 crystal with different ratios of 1 and 2 both in 1[thin space (1/6-em)]:[thin space (1/6-em)]3 and 1[thin space (1/6-em)]:[thin space (1/6-em)]1 ratios. This constitutes additional evidence that 12·23 complex is much more stable than other complicated forms. The racemic mixture of helicity inducing ligand (2) forms equal amounts of enantiomeric complex with 1 (P and M helical complex). The crystal structure clearly shows that 2RR induces left-handed complex in [12·23] and vice versa (Fig. 4).

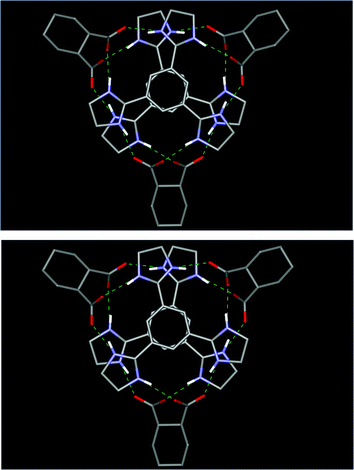

Crystal structure of M-[12·2RR3] (top) and P-[12·2SS3] (bottom). C (grey); O (red); N (blue); H (white). Hydrogen bonds are indicated in green dotted lines. All hydrogen atoms except for two hydrogen atoms in the imidazolinium group are omitted for clarity.
Fig. 4 Crystal structure of M-[12·2RR3] (top) and P-[12·2SS3] (bottom). C (grey); O (red); N (blue); H (white). Hydrogen bonds are indicated in green dotted lines. All hydrogen atoms except for two hydrogen atoms in the imidazolinium group are omitted for clarity.

Diastereomers of each complex were not observed. Once a chiral dicarboxylic acid binds two tris(imidazoline) ligands, a second dicarboxylic acid with the same chirality can easily bind because the two tris(imidazoline) ligands have already been twisted in one direction. Modeling structure of the arbitrary M-[12·2SS3] suggests a possible reason for the unidirectional helicity . The energy-minimized structure of M-[12·2SS3] forms only 9 hydrogen bonds between 1 and 2SS whereas P-[12·2SS3] forms 12 hydrogen bonds because of the unfavorable directionality of M-[12·2SS3] for hydrogen bonding interactions (Fig. 5).


Energy-minimized structure of M-[12·2SS3]. Conformational search was carried out with MacroModel 7.0 under Amber* force field in water.
Fig. 5 Energy-minimized structure of M-[12·2SS3]. Conformational search was carried out with MacroModel 7.0 under Amber* force field in water.

The two central benzene rings lie nearly parallel to each other with an interplane distance of 3.78 Å which results in an aromatic stacking interaction. One central benzene ring is unidirectionally twisted about 23° with respect to the adjacent ring. Two imidazolinium substructures are held together by three cyclohexane dicarboxylic acid (2) through twelve Coulombic hydrogen bonds. Bond length and angle of hydrogen bonding atoms are listed in Table 1. Presumably, π–π stacking of the central phenyl rings and the charged hydrogen bonds between carboxylate and imidazolinium are the major driving force for a spontaneous assembly of the 2[thin space (1/6-em)]:[thin space (1/6-em)]3 mixture of 1 and 2 into a discrete helical assembly.

Table 1 Hydrogen bonds for 12·23 (distance in Å and angle in °)
D–H⋯A d(D–H) d(H⋯A) d(D⋯A) ∠(DHA)
a Symmetry transformations used to generate equivalent atoms: #4 –x + y, –x + 1, z – 1 #5 –y + 1, xy + 1, z – 1.
N(1)–H(1N)⋯O(2)#4 0.89(4) 1.78(4) 2.643(4) 162(3)
N(2)–H(2N)⋯O(1)#5 0.83(4) 1.90(4) 2.715(4) 169(3)
O(1S)–H(1S)⋯O(2) 0.84 2.25 2.927(9) 137.4
O(2S)–H(2S)⋯O(2) 0.84 1.93 2.744(9) 162.8


In addition to the crystal structure of the assembly itself, there are other interesting features resulting from its crystal-packing mode (Fig. 6). P-and M-helical assemblies are stacked by turns because PMPM stacking is denser than PP or MM stacking. For more efficient and energetically favorable packing of discrete assemblies, each imidazolinium ring of one assembly must be located in the center of two imidazolinium rings of the other assembly to minimize electrostaic repulsion and steric repulsion. And an imidazolinium ring is unidirectionally out of phase toward the central benzene ring because of the helicity of the assembly. PMPM stacking results in more efficient packing without steric repulsion between methylene hydrogens of the imidazolinium rings, while PP or MM stacking should lead to more steric repulsion. Therefore, while the formation of a discrete aggregate itself is a chiral self-recognition process, stacking of the 2[thin space (1/6-em)]:[thin space (1/6-em)]3 assembly is a spontaneous hetero-recognition process. Crystals of 1 and 2RR mixture were obtained by diffusion of ether into ethanol solution. However, it is too unstable for performing X-ray analysis because MM stacking is less favored than MP stacking. Adjacent aggregates are distorted by 60° and separated by 3.57 Å which results in strong π–π stacking between discrete assemblies. Discrete aggregates with the same chirality exactly overlap, albeit there is no overlap between aggregates with opposite chirality. The PMPM type π–π stacking interaction of the 12·23 complex results in one-dimensional columnar structure with hydrophobic cyclohexyl groups at the columnar surface as shown in Fig. 6.


Crystal packing pattern of rac-[12·23] (010 view (left), 001 view (right)). C (grey); O (red); N (blue); H (white). Hydrogen bonds are indicated in green dotted lines. All hydrogen atoms except for two hydrogen atoms in the imidazolinium group are omitted for clarity.
Fig. 6 Crystal packing pattern of rac-[12·23] (010 view (left), 001 view (right)). C (grey); O (red); N (blue); H (white). Hydrogen bonds are indicated in green dotted lines. All hydrogen atoms except for two hydrogen atoms in the imidazolinium group are omitted for clarity.

The hexagonal packing of the columns via inter-columnar hydrophobic interactions through cyclohexyl groups forms solvent channels along the crystallographic c-axis (Fig. 7). The disordered solvent methanols are packed in this solvent channel.


Crystal packing pattern of rac-[12·23] packing pattern without solvents (top), packing pattern with solvents (bottom)). C (grey); O (red); N (blue); H (white). Hydrogen bonds are indicated in green dotted lines. All hydrogen atoms except for two hydrogen atoms in the imidazolinium group are omitted for clarity.
Fig. 7 Crystal packing pattern of rac-[12·23] packing pattern without solvents (top), packing pattern with solvents (bottom)). C (grey); O (red); N (blue); H (white). Hydrogen bonds are indicated in green dotted lines. All hydrogen atoms except for two hydrogen atoms in the imidazolinium group are omitted for clarity.

Conclusions

We have demonstrated a discrete helical assembly through charged hydrogen bonds in aqueous solvent and solid state structure. Handedness of the supramolecular assembly is controlled by a chiral dicarboxylic acid unit. Unidirectional helicity of the assembly in solution is supported by the Cotton effect of the M-[12·2RR3] and X-ray analysis. The absolute configuration of the induced helicity is fully characterized by X-ray diffraction analysis . Current research is aimed at constructing more extended chiral helical capsules and stacked helical capsules by modifying the chiral dicarboxylic acid unit.

Experimental

General methods

Deuterated solvents were acquired from Cambridge Isotopic Laboratories and used as such for the complexation studies and NMR measurements. All NMR spectra were recorded on a Bruker Avance DPX-300. 1H NMR spectra were recorded at 300 K and the chemical shifts were reported in parts per million. MALDI-TOF–MS was measured with spectrometry Voyager-DETM STR Biospectrometry Workstation of Applied Biosystem Inc. The CD spectra were obtained on a Jasco (Tokyo) J-715 spectropolarimeter. Quartz cells of 1-cm path length were used. Ligand 1 was synthesized following previous report and ligand 2 was purchased from Aldrich. Modeling structure was obtained by MacroModel 7.0, Monte Carlo conformational search using Amber* force field in water.

Characterization of 12·23

1H NMR (300 MHz in D2O): 8.60 (s, 6H, Ha of 1), 4.23 (s, 24H, Hb of 1), 2.37 (broad m, 6H, Hc of 2), 1.99 (broad m, 6H, Hd of 2), 1.97 (broad m, 6H, He of 2), 1.34 (broad m, 12H, Hf of 2).

13C NMR (60 MHz in D2O): 185.6 (carbonyl), 164.6 ((NH)2C–Ar of 1), 132.2 (aromatic), 126.3 (aromatic), 104.9 (aliphatic), 49.8 (aliphatic), 45.9 (aliphatic), 30.0 (aliphatic), 25.8 (aliphatic).

Acknowledgements

Financial support from the MOCIE (Grant No. 10024945) is gratefully acknowledged. We are also grateful to the Seoul R&BD. H.Y.L. thanks the Ministry of Education for the award of the BK 21 fellowship.

References

  1. (a) M. E. Huston, E. U. Akkaya and A. W. Czarnik, J. Am. Chem. Soc., 1989, 101, 8735 CrossRef; (b) D. H. Vance and A. W. Czarnik, J. Am. Chem. Soc., 1994, 116, 9397 CrossRef CAS; (c) S. Nishizawa, Y. Kato and N. Teramae, J. Am. Chem. Soc., 1999, 121, 9463 CrossRef CAS; (d) L. A. Cabell, M. D. Best, J. J. Lavigne, S. E. Schneider, D. M. Perreault, M.-K. Monahan and E. V. Anslyn, J. Chem. Soc., Perkin Trans. 2, 2001, 315 RSC; (e) H. Aït-Haddou, S. L. Wiskur, V. M. Lynch and E. V. Anslyn, J. Am. Chem. Soc., 2001, 123, 11296 CrossRef CAS.
  2. (a) S. B. Lee and J.-I. Hong, Tetrahedron Lett., 1996, 37, 8501 CrossRef CAS; (b) R. Zadmard, M. Junkers, T. Schrader, T. Grawe and A. Kraft, J. Org. Chem., 2003, 68, 6511 CrossRef CAS; (c) C. Schmuck and W. Wienand, J. Am. Chem. Soc., 2003, 125, 452 CrossRef CAS; (d) F. Corbellini, R. Fiammengo, P. Timmerman, M. Crego-Calama, K. Versluis, A. J. R. Heck, I. Luyten and D. N. Reinhoudt, J. Am. Chem. Soc., 2002, 124, 6569 CrossRef CAS; (e) D. R. Turner, A. Pastor, M. Alajarin and J. W. Steed, Struct. Bonding, 2004, 108, 97–168 CAS.
  3. (a) M. D. Ward, Chem. Commun., 2005, 5838 RSC; (b) V. A. Russell, C. C. Evans, W. Li and M. D. Wark, Science, 1997, 276, 575 CrossRef CAS; (c) K. T. Holman, A. M. Pivovar, J. A. Swift and M. D. Ward, Acc. Chem. Res., 2001, 34, 107 CrossRef CAS; (d) N. J. Burke, A. D. Burrows, M. F. Mahon and S. J. Teat, CrystEngComm, 2004, 6, 429 RSC; (e) O. Félix, M. W. Hosseini, A. D. Cian and J. Fischer, Angew. Chem., Int. Ed. Engl., 1997, 35, 102 CrossRef CAS; (f) O. Felix, M. W. Hosseini, A. De Cian and J. Fischer, New J. Chem., 1998, 1389 RSC; (g) S. Ferlay, V. Bulach, O. Felix, M. W. Hosseini, J.-M. Planeix and N. Kyritsakas, CrystEngComm, 2002, 4, 447 RSC; (h) D. Braga, L. Maini, F. Grepioni, A. De Cian, O. Felix, J. Fischer and M. W. Hosseini, New J. Chem., 2000, 24, 547 RSC; (i) C. Paraschiv, S. Ferlay, M. W. Hosseini, V. Bulach and J.-M. Planeix, Chem. Commun., 2004, 2270 RSC; (j) P. C. Crawford, A. L. Gillon, J. Green, A. G. Orpen, T. J. Podesta and S. V. Pritchard, CrystEngComm, 2004, 6, 419 RSC; (k) P. Dapporto, P. Paoli and S. Roelens, J. Org. Chem., 2001, 66, 4930 CrossRef CAS.
  4. (a) R. E. Dickerson, H. R. Drew, B. N. Conner, R. M. Wing, A. V. Fratini and M. L. Kopka, Science, 1982, 216, 475 CrossRef CAS; (b) N. C. Seeman, Nature, 2003, 421, 427 CrossRef.
  5. (a) T. E. Creighton, Proteins; structures and molecular properties, W. H. Freeman and Company, New York, 1993 Search PubMed; (b) Prediction of protein structure and the principles of protein conformation, ed. G. D. Fasman, Plenum Press, New York, 1990 Search PubMed.
  6. (a) J. H. K. K. Hirschberg, L. Brunsveld, A. Ramzi, J. A. J. M. Vekemans, R. P. Sijbesma and E. W. Meijer, Nature, 2000, 407, 167 CrossRef CAS; (b) T. Giorgi, S. Lena, P. Mariani, M. A. Cremonini, S. Masiero, S. Pieraccini, J. P. Rabe, P. Samori, G. P. Spada and G. Gottarelli, J. Am. Chem. Soc., 2003, 125, 14741 CrossRef CAS; (c) S. R. Nam, H.-J. Kim, S. Sakamoto, K. Yamaguchi and J.-I. Hong, Tetrahedron Lett., 2004, 45, 1339 CrossRef CAS; (d) S. G. Telfer, T. Sato and R. Kuroda, Angew. Chem., Int. Ed., 2004, 43, 581 CrossRef CAS.
  7. (a) B. Hasenknopf, J.-M. Lehn, G. Baum and D. Fenske, Proc. Natl. Acad. Sci. U. S. A., 1996, 93, 1397 CrossRef CAS; (b) M. Scherer, D. L. Caulder, D. W. Johnson and K. N. Raymond, Angew. Chem., Int. Ed., 1999, 38, 1588 CAS; (c) M. Albrecht, Chem. Rev., 2001, 101, 3457 CrossRef CAS; (d) S. Hiraoka, K. Harano, T. Tanaka, M. Shiro and M. Shionoya, Angew. Chem., Int. Ed., 2003, 42, 5182 CrossRef CAS; (e) H.-J. Kim, D. H. Moon, M. S. Lah and J.-I. Hong, Angew. Chem., Int. Ed., 2002, 41, 3174 CrossRef CAS.
  8. D. J. Hill, M. J. Mio, R. B. Prince, T. S. Hughes and J. S. Moore, Chem. Rev., 2001, 101, 3893 CrossRef CAS.
  9. (a) A. Kraft and F. Osterod, J. Chem. Soc., Perkin Trans. 1, 1998, 1019 RSC; (b) A. Kraft, F. Osterod and R. Fröhlich, J. Org. Chem., 1999, 64, 6425 CrossRef CAS.
  10. H.-J. Kim, S. Sakamoto, K. Yamaguchi and J.-I. Hong, Org. Lett., 2003, 5, 1051 CrossRef CAS.
  11. It has been known that the trans conformation of tartaric acid is much more favorable than the gauche conformation: J. Gawronski, K. Gawronska, P. Skowronek, U. Rychlewska, B. Warzajtis, J. Rychlewski, M. Hoffmann and U. Szarecka, Tetrahedron, 1997, 53, 6113 Search PubMed.
  12. K. A. Conners, Binding Constants: The Measurement of Molecular Complex Stability, John Wiley and Sons, New York, 1987 Search PubMed.
  13. J. Gawronski and J. Grajewski, Org. Lett., 2003, 5, 3301 CrossRef CAS.

Footnotes

Electronic supplementary information (ESI) available: Further spectroscopic and crystallographic details (Fig. S1–S3, Tables S1–S6). See DOI: 10.1039/b610512b
Crystal data for rac-[12·23]: C60H96N12O18, Mr = 3041.80, colorless crystal 0.40 × 0.25 × 0.20 mm3, trigonal, I41/a, a = b = 27.5164(19) Å, c = 14.645(2) Å, V = 9629.2(17) Å3, Z = 6, ρcalcd = 1.318 Mg cm–3, F(000) = 4104, µ(Mo Kα, λ = 0.71073 Å) = 0.098 mm–1, T = 173(2) K, 2θmax = 56.60°. Structure solution and refinement of the structure were carried out using the SHELXTL-PLUS (5.03) software package (Sheldrick, G. M., Brukers Analytical X-Ray Division, Madison, WI, 1997). The structure was solved by a direct method and refined successfully in the space group R[3 with combining macron]c. Full matrix least-squares refinement was carried out by minimizing (Fo2 – Fc2)2. All non-hydrogen atoms were refined anisotropically. The two hydrogen atoms of the imidazolinium group involved in hydrogen bonding were located and refined isotropically, and the remaining hydrogen atoms were also located but assigned with isotropic displacement coefficients U(H) = 1.2U(C) or 1.5U(Cmethyl). A disordered solvent methanol site was treated with statistical disorder model and the hydrogen atoms were treated using appropriate riding model. The final refinement converged with R1 = 0.0729, wR2 = 0.2045 (I > 2σ(I)); R1 = 0.1472, wR2 = 0.2573 (all data). CCDC reference number 262127. For crystallographic data in CIF or other electronic format see DOI: 10.1039/b610512b
