Soft-to-hard transformation of the mechanical properties of dynamic covalent polymers through component incorporation

Abstract

The mechanical properties of acylhydrazone dynamic polymers may be converted from soft to hard by the incorporation of rigid monomeric components into the original soft polymer backbone, taking advantage of acylhydrazone bond exchange.

---

Dynamic polymers, dynamers,^1,2 are polymeric entities of either molecular or supramolecular nature that are capable of undergoing exchange, incorporation or decorporation of their monomeric subunits, linked together by respectively reversible covalent bonds or labile non-covalent interactions. Dynamers implement constitutional dynamic chemistry,^1,3 the chemistry of molecular and supramolecular entities capable of dynamically modifying their constitution by exchanging/incorporating molecular components.

On the molecular level, dynamic covalent chemistry^1,3–7 has recently attracted considerable attention as a powerful methodology for discovering biologically active substances,^5,7 as well as for developing new functional materials^3,5,8 such as dynamic covalent polymers.^1,8–13 In addition to conventional polymeric properties such as stability and strength, these dynamic polymers present the distinctive ability to exchange, incorporate and/or decorporate monomeric components linked by reversible covalent bonds, for example acylhydrazone functions,^6,7,10,11,14 alkoxyamine units¹² or imine metathesis ,¹³ depending on the external conditions. This feature offers to polymer science perspectives towards a functional plasticity that involves modification and control of the intrinsic properties of polymeric entities from within.^1,10–12 Because the mechanical behavior of polymers plays a most important role in materials science, the ability to mutate the mechanical properties of polymers would be of much interest, giving access to a new class of functional polymeric materials. We now report that dynamic covalent polymers based on an acylhydrazone backbone can undergo a progressive change in their mechanical properties through the introduction of other monomeric components into their main chain.

The bis-hydrazide monomers M1 and M2 were formed by treatment of the corresponding methyl or ethylesters with hydrazine monohydrate in alcohol. The dialdehydes M3 and M4 were obtained, respectively, from 4-allyloxybenzaldehyde and hexamethyltrisiloxane using Karstedt catalyst, and from 4-hydroxy-2-methoxybenzaldehyde and 2-chloroethyl ether in presence of K₂CO₃ (Fig. 1).

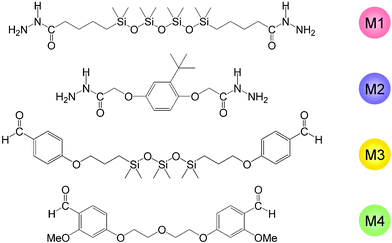

Fig. 1 Structures of the bis-hydrazides M1 and M2, and of the dialdehydes M3 and M4.

Polycondensation ‡ in CHCl₃ between the monomers M1 and M3, both containing a highly flexible siloxane-derived spacer unit as soft components, yielded the alternating homopolymer P1 as a very soft and quite stretchy film F1 (of about 0.057 mm thickness) after solvent evaporation (Fig. 2). Gel permeation chromatography (GPC) gave a molecular weight M_n = 41 000 and a distribution M_w/M_n = 1.6 (with polystyrene calibration). Differential scanning calorimetry (DSC) yielded a glass transition temperature T_g = 1 °C, respectively. Viscoelasticity measurements revealed that the storage elastic modulus E′ of F1 was 0.015 GPa at 25 °C, indicating that it possessed rubber elasticity at room temperature (Fig. 3). The profile of the loss elastic modulus, E″, gave T_g = 10 °C. These results are in line with the soft and stretchy behavior of F1, as shown in Fig. 2. The small decrease of E″ between –80 °C and –40 °C must arise from the siloxane units of the polymer P1.

Fig. 2 The soft and stretchy polymer film F1.

Fig. 3 Temperature dependence of the storage elastic modulus E′ of the films (a) F1, (b) F8, (c) F6, (d) F7 and (e) F9, and the loss elastic modulus E″ of the films (f) F1, (g) F8, (h) F6, (i) F7, and (j) F9.

On the other hand, polycondensation between the monomers M2 and M4, containing rigid spacer groups as hard components, gave the alternating homopolymer P2 as a hard but very fragile film F2 with M_n = 14 000, M_w/M_n = 1.8 and T_g = 100 °C (determined by GPC and DSC, respectively). It was impossible to further study the mechanical properties of F2 as it was not strong enough for such experiments.

The homopolymers P3 and P4, and the random copolymer P5 were also prepared as reference materials, respectively, from monomers M1 and M4, M2 and M3, and all four kinds of monomer in equal molar ratio in the same manner. ¹H NMR analyses in 1 : 1 DMSO-d₆/CD₂Cl₂ solution (ca. 8 mg ml^–1) allowed identification of the four different connections between hydrazides and aldehydes by the signals of the N=C–H protons of the acylhydrazone functions between 7.8–8.7 ppm (Fig. 4).

Fig. 4 Part of the ¹H NMR spectra of the homopolymers (a) P1, (b) P2, (c) P3 and (d) P4, and (e) the random copolymer P5 in a 1 : 1 mixture of DMSO-d₆/CD₂Cl₂ (ca. 8 mg ml^–1) showing the C–H proton signals of the acylhydrazone functions (signal of CHCl₃ remaining in the polymers is at around 8.1 ppm).

Changes to the mechanical properties of acylhydrazone polymers induced by bond interchange and component incorporation was demonstrated by introducing hard components, that is M2 and M4, into the soft homopolymer structure P1. Equimolar amounts of P1, on the basis of its repeating unit, M2 and M4 were dissolved in CHCl₃ in the presence of acid, followed by heating the solution to accelerate the exchange reaction. Solvent evaporation then gave the transparent film F6.§ The film F6 was distinctly harder than the parent film F1, quite enough to stand by itself (Fig. 5). The ¹H NMR spectrum of F6 (in 1 : 1 DMSO-d₆/CD₂Cl₂) showed that there were four kinds of signals of nearly equal area, which were assigned to the C–H protons of the acylhydrazone connections between M1 and M3, M1 and M4, M2 and M3, and M2 and M4 (Fig. 6). This observation indicated that monomers M2 and M4 were introduced into the main chain of the homopolymer P1, generating a random copolymer P6, obtained as the film F6, which should be similar to the random copolymer P5, obtained from the mixture of the four components M1–M4. GPC gave M_n = 59 000 and M_w/M_n = 1.5 (with polystyrene calibration) for P6, of the same order as the parent homopolymer P1. However, determining how random the sequences are is not possible from the NMR spectra.

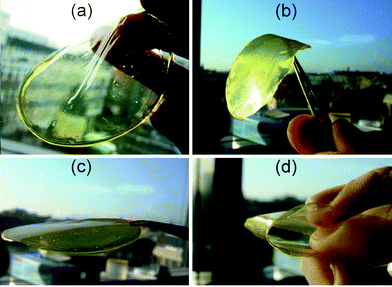

Fig. 5 Evolution in appearance of the mechanical properties of the polymer films (a) F1, (b) F8, (c) F6 and (d) F7.

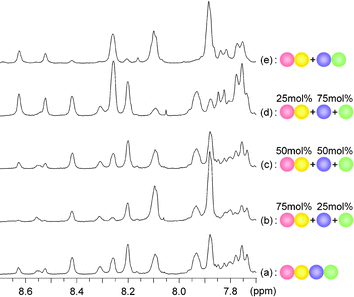

Fig. 6 Part of the ¹H NMR spectra of (a) the random copolymer P5, the modified polymers (b) P8, (c) P6 and (d) P7, and (e) the polymer blend P9 in a 1 : 1 mixture of DMSO-d₆/CD₂Cl₂ (ca. 8 mg ml^–1) showing the C–H proton signals of the acylhydrazone functions (the signal of CHCl₃ remaining in the polymers at around 8.1 ppm).

Introduction of M2 and M4 into homopolymer P1 led to a striking evolution in its mechanical properties. The glass transition temperature, T_g, of P6 increased to 56 °C, beyond room temperature, compared to 10 °C for P1 (based on the loss elastic modulus E″). This increment nicely reflected the difference in film hardness at room temperature between F1 and F6, illustrated in Fig. 5. The E′ profile of F6 indicated that it had a typical glass state up to around 50 °C and rubber elasticity around 70 °C.

The degree of evolution in mechanical properties was correlated with the ratio of M2 and M4 incorporated into the resulting polymers (Table 1). Three molar equivalents of M2 and M4, on the basis of P1 units, led to a film F7 (harder than F6), whereas one third of both M2 and M4 gave film F8 (softer than F6) (Fig. 5). The ¹H NMR spectra of F7 and F8 showed that both were also random copolymers P7 and P8, respectively, consisting of M1, M2, M3 and M4 in approximately the expected ratios. In the case of P7, for instance, the ratio of the peak areas assigned to the connections between M1 and M3, M1 and M4, M2 and M3, and M2 and M4 was about 1 : 3 : 3 : 9, whereas P7 was a random copolymer made of M1, M2, M3 and M4 in about a 1 : 3 : 1 : 3 molar ratio, as expected. T_g and viscoelasticity values were in accordance with the proportion of M2 and M4 in the polymers. The mechanical properties of these resulting polymers were thus markedly different from those of the parent homopolymer P1 or P2, implying that the mechanical properties of the acylhydrazone polymers are adjustable via the nature and/or the proportion of the different components incorporated.

Table 1 Evolution in mechanical properties of the dynamic acylhydrazone polymer films F1–F7 as a function of the incorporation of monomers M2 and M4 into polymer P1^a

Film	Ratio of M2 and M4 to P1 (mol%)^b	Thickness/mm	M n ^c	M w/Mn^c	T g (DSC)/°C^d	T g (E″)/°C^e	E′/GPa^f
a In presence of 2.5 mol% acid per acylhydrazone unit for F6–F8; no acid added for F9. b Total molar ratio of M2 and M4 in the resulting polymers on the basis of monomer units. c Molecular weight Mn and distribution Mw/Mn determined by GPC with polystyrene calibration. d Glass transition temperature determined by DSC. e Glass transition temperature determined by the profile of the loss elastic modulus E″. f Storage elastic modulus E′ at 25 °C. g Not determined.
F1	0	0.057	41 000	1.6	1	10	0.015
F2	100	—^g	14 000	1.8	100	—^g	—^g
F8	25	0.049	47 000	1.5	—^g	32	0.48
F6	50	0.049	59 000	1.5	46	56	1.1
F7	75	0.055	75 000	1.5	—^g	88	1.3
F9	50	0.039	34 000	2.1	19	30	0.59

---

In contrast, lack of incorporation did not bring evolution in mechanical properties, leading only to the behavior expected for a blend of the parent polymers P1 and P2. Thus, a slightly cloudy film, F9, was obtained from an equimolar ratio mixture of P1 and P2 heated in CHCl₃ solution for 24 h in the absence of acid, followed by solvent evaporation. The ¹H NMR spectrum of F9 showed that it was just a polymer blend, P9, of P1 and P2 with only a very small amount of exchange (<5%). The film F9 seemed to be softer than F6, although both F9 and F6 consisted originally of the same segments. Single glass transition temperatures for P9 were observed based on both DSC and the loss elastic modulus E″, respectively, and were about 20 °C higher than those of P1. The profile of the storage elastic modulus, E′, showed that P9 possessed a glass state up to around 30 °C, and that E′ itself decreased with relative moderation above T_g as the temperature increased. These observations implied that P2 was microdispersed in a P1 matrix at a nanometer scale in the polymer blend P9.

In conclusion, the present results show that the mechanical properties of polyacylhydrazone dynamers can be varied through incorporation of other components into the main chain of the original polymer, making use of the reversible nature of the acylhydrazone bond. This feature provides a very useful methodology for modifying the mechanical properties of polymers, giving access to smart and adaptive dynamic materials^1,8 such as self-strengthening polymeric materials controlled-by and responding-to external stimuli. Such behavior by dynamers is thus a result of the application of the principles of constitutional dynamic chemistry^1,3 to polymer science.
