A paramagnetic contrast agent with myeloperoxidase-sensing properties

Abstract

Myeloperoxidase (MPO) is an essential component of inflammatory response in norm and pathology. With an ultimate goal of non-invasive imaging of MPO we used a gadolinium-chelating bis(5-hydroxytrytamide) derivative of diethylenetetraamine pentaacetic acid (L₁–Gd³⁺salt) as a paramagnetic sensor of enzymatic activity. We tested whether L₁–Gd³⁺ is active in reducing the oxidized form of myeloperoxidase, generated as a result of hydrogen peroxide reduction by the enzyme. We expected that upon activation by MPO/H₂O₂ L₁–Gd³⁺ would not only oligomerise but also bind to other macromolecules present in the media and that the overall process will give rise to a net T₁-weighted MRI signal increase.

---

Introduction

It is widely anticipated that magnetic resonance imaging (MRI) would benefit from the use of “MR-responsive” contrast agents (CAs) for specific visualization of molecules in vivo.^1,2 Imaging at the molecular level would eventually lead to a better understanding of biological processes in intact living systems and, ultimately, would lead to an improvement in diagnostic techniques.

To pursue the goal of MR imaging at the molecular level, CAs with specific molecule targeting and/or specific “in situ” activation are ultimately required.^3,4 The need of such CAs is dictated by a relatively low sensitivity of MRI to the presence of Gd in tissue. Specific targeting and/or specific “in situ” activation are expected to provide means of site-specific signal enhancement either by CA controlled local accumulation and/or as a result of site-specific relaxivity increase and concomitant site-specific signal amplification. Several applications of the above CAs have already been reported.^5–8 Recently, CAs with biologically relevant targeting moieties^9–11 as well as “pseudo-biotic” nanoparticles¹² were developed to gain MR signal intensity (SI) enhancement due to specific delivery in vivo.

The most well-studied approaches enabling MRI SI enhancement to be achieved involve either a change in CA water coordination (q value), i.e. increasing the number of molecules directly interacting with the paramagnetic center^13,14 or decreasing the rotational correlation times (τ_R) by increasing the size of the CA.^11,15 In the current study, we combined the above approaches to obtain an enzyme-specific Gd-based CA enabling MRI SI enhancement due to a synergism of two effects: 1) enzyme-mediated structural changes; 2) specific site accumulation upon enzyme activation. The driving force behind the aforementioned MR SI enhancement is based on the ability of oxidoreductases to generate phenolic radicals that, once formed, can undergo various permutations including: a) oligomerisation^16–20 and b) protein attachment via covalent bond formation with aromatic amino acids present in the protein.^21–27 This effect is not limited to small molecules (tyrosine, tyramine, serotonin, etc.) but also includes macromolecules (e.g. proteins), either directly, or via intermolecular radical transfer mechanisms (Fig. 1).

Fig. 1 a) Phenyl radical resonance forms; b) phenyl radical reactivity in the presence of other phenols and phenol-containing proteins.

We have previously demonstrated that DOTA-based gadolinium (DOTA = 1,4,7,10-tetra(carboxymethyl)-1,4,7,10-tetraazacyclododecane) CAs bearing a phenolic group (Fig. 2a) can interact “in situ” with oxidoreductases generating oligomers as a result. The oligomerisation process has been shown to produce a net increase in MRI signal. Initially, a Gd–DOTA derivative mono-functionalized with a catechol moiety was shown to reduce oxidized horseradish peroxidase (HRP). In this experiment, MR imaging detected picomolar concentrations of HRP. The same system also allowed imaging of E-selectin on the surface of endothelial cells.²⁸ Later, the catechol unit was substituted by a serotonin moiety (Fig. 2b).²⁹ Serotonin is a naturally occurring neuromediator that also functions as a donor-substrate of inflammation-related enzyme myeloperoxidase (EC 1.11.1.7).^30,31 It is also known that monocytes and macrophages present in atherosclerotic lesions in the arterial intima secrete catalytically active myeloperoxidase (MPO) in plaques. Ample clinical data suggest that MPO is a biomarker that can serve as a predictor of acute coronary events.^31–33 Since MPO catalyzed a 1.7-fold increase in relaxivity of serotonin–DOTA(Gd), we proposed a concept of vulnerable plaque detection that is based on enzymatic activity. Recently, MPO-mediated chemical bond formation concept has been adapted for a radioactive ⁶⁷Ga probe for single photon computed tomography (SPECT, Fig. 2c).³⁴ Initially we tested the extent of probe attachment to protein upon MPO activation in order to assess the possibility of site-specific accumulation. Preliminary results confirmed site-specific targeting/accumulation within MPO rich areas.

Fig. 2 Oxidoreductase sensitive chelating compounds: a, b) chelating units for Gd(III),^28,29 c) chelating unit for ⁶⁷Ga.³⁴

In this research, to achieve further improvement in enzyme-mediated MRI SI enhancement, we linked two groups³⁵ prone to oligomerisation onto each chelate in order to increase the possibility of oligomerisation/protein attachment. For the above purpose, DTPA (diethylenetriaminepentaacetic acid) was chosen as a chelate since its bis(anhydride) derivative is easily available and DTPA–bis(monomethyl)amides were shown to have no toxicity and are approved for clinical use. The goals of this work were: a) to assess the possibility of enzyme-mediated MRI signal amplification; b) to estimate the possibility of site-specific CA protein attachment; c) to test the combined effect of CA oligomerisation/protein attachment for MPO detection and potential atherosclerotic vulnerable plaque imaging.

Results

Preliminary oligomerisation formation and relaxometry

Characterization. Scheme 1 shows the synthesis of compounds L₁ and L₂. The synthesis was carried out as described previously.³⁵ The relaxivity value for compounds L₁–Gd³⁺ and L₂–Gd³⁺, measured at pH = 7.4 (PBS buffer), were 4.3 mM⁻¹ s⁻¹ at 40 °C, 0.47 T in both cases. R₁ (relaxation rate = 1 T⁻¹) values were higher if measured at 1.5 T and 25 °C (5.3 and 5.1 mM⁻¹ s⁻¹, respectively). After the purification of L₁–Gd³⁺ and L₂–Gd³⁺ we investigated the possibility of oligomer formation. Solutions of 50 mM L₁–Eu³⁺ and L₂–Eu³⁺ were incubated in the presence of 20 iU of either HRP or MPO and 10 mM of H₂O₂, at 40 °C for 2 hours. With the exception of the grouping L₂–Eu³⁺–MPO, all samples showed the formation of oligomers as monitored by MALDI-TOF. Our previous experiments with HRP showed the formation of oligomers consisting of up to 9 monomeric units in the case of L₂–Eu³⁺. The compound L₁–Eu³⁺ showed the formation of oligomers with 8 and 5 units, depending on the enzyme used (see ESI†). No signal could be obtained with L₂–Eu³⁺–MPO, possibly, due to the poor solubility.

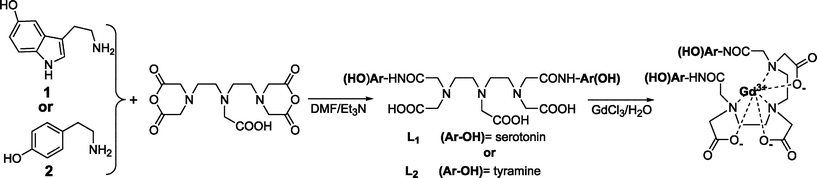

Scheme 1 Synthetic scheme for the preparation of the CAs used in the present work: 5-hydroxytrytamide (5-HT, serotonin) or tyramine were reacted with DTPA–bis(anhydride) in the presence of Et₃N to afford either L₁ (di-5HT–DTPA) or L₂ (di-tyramido–DTPA). Reaction of the previous ligands with an excess of GdCl₃ afforded the corresponding Gd–CAs.

Further, compound L₁–Gd³⁺ in a concentration of 0.5 mM was incubated with 5 iU of MPO and a large excess of H₂O₂ for two hours. After incubation, the mixture was analyzed with C18-HPLC. Fig. 3 shows the chromatogram before and after the enzyme addition. The sharp peak assigned to L₁–Gd³⁺ disappeared giving rise to a broad band that can be assigned to oligomerisation products. Intensities, in arbitrary units, for the peaks at 21.6 min (top) and 21.5 min (bottom), were 1 and 0.05, respectively, suggesting a conversion degree that exceeded 90% (Fig. 3).

Fig. 3 Chromatograms of compound L₁–Gd³⁺. Starting material (top), after reaction with MPO in the presence of H₂O₂ (bottom).

Further, we tested the effect of molecular weight increase over the relaxometric properties of these complexes (Table 1).

Table 1 Relaxometric results obtained at various reaction conditions at 40 °C and 0.47 T

Compound	Buffer components	Enzyme (iU^e)	Peroxide source	r 1o ^d/mM^−1 s^−1	r 1o Increase	K ^f/s^−1
a Buffer contained 5.5 mM glucose. b Different R1o values taken at different time-points. c Relative to a reference buffer containing HSA in the absence of MPO and GOX. d Atomic relaxivity values were obtained by using linear fitting of observed R1ovs. initial gadolinium concentration, 4 points/fitting. The concentration range 0.07 mM^−1 mM. e International units. f Obtained by fitting R1oversus time from samples containing initial concentration of CA in the range: 0.10–0.13 mM.
L1–Gd^3+	PBS	—	—	4.3	—	—
L2–Gd^3+	PBS	—	—	4.3	—	—
L1–Gd^3+	PBS	+HRP (4)	10 mM	10.5	2.4-fold	4.50 × 10^−3
L2–Gd^3+	PBS	+HRP (4)	10 mM	15.9	3.7-fold	5.00 × 10^−3
L1–Gd^3+	PBS	+MPO (4)	10 mM	5.9	37%	0.70 × 10^−3
L2–Gd^3+	PBS	+MPO (4)	10 mM	5.3^b	23%^b	na
L1–Gd^3+	PBS	+MPO (0.5)	GOX^a	6.2	44%	0.43 × 10^−3
L1–Gd^3+	PBS	+HRP (0.5)	GOX^a	9.1	2.1-fold	5.60 × 10^−3
L2–Gd^3+	PBS	+MPO (0.5)	GOX^a	5.1^b	18%^b	na
L2–Gd^3+	PBS	+HRP (0.5)	GOX^a	11.8	2.7-fold	4.83 × 10^−3
L1–Gd^3+	HSA (40 mg per mL PBS)	—	—	5.5	27%	—
L1–Gd^3+	Lys (40 ng per mL PBS)	—	—	5.5	27%	—
L1–Gd^3+	HSA (40 mg per mL PBS)	+MPO (0.5)	GOX^a	6.6	54% (20%^c)	—

---

Relaxometric experiments at 0.47 T and 40 °C. First we tested the effect of 4 iU of HRP in the presence of an excess of H₂O₂ (10 mM) in L₁–Gd³⁺ and L₂–Gd³⁺ solutions after a 90 min incubation (Table 1). In all cases r₁ (relaxivity = R₁ normalized to 1 mM concentration) changes ranged from 3.7-fold in L₂–Gd³⁺ to 2.4-fold in L₁–Gd³⁺ solutions, respectively. If MPO was used instead of HRP, a value of 5.9 mM⁻¹ s⁻¹ (apparent 37% increase in relaxivity) was reached for L₁–Gd³⁺. Compound L₂–Gd³⁺ did not show enzymatic conversion during the 90 min incubation. When T₁ kinetics of this compound were followed in the presence of MPO, anomalous behaviour was detected. The values for T₁ kept decreasing for a period ranging from 5 to 25 min (depending upon concentration) followed by an increase of T₁ due to apparent precipitation of reaction products. At minimum T₁, r₁ was equal to 5.3 mM⁻¹ s⁻¹ (apparent 23% relaxivity increase). At longer incubation times, no linear correlation between R_1o and Gd concentration was observed due to the precipitation of CA oligomerisation products. Pseudo-first order kinetic analysis of R_1o at 0.1 mM gave K values of 4.5 × 10⁻³ s⁻¹, 5.0 × 10⁻³ s⁻¹ and 0.7 × 10⁻³ s⁻¹ for the pairs L₁–Gd³⁺ + HRP, L₂–Gd³⁺ + HRP and L₁–Gd³⁺ + MPO, respectively.

Oligomerisation conditions of controlled H₂O₂ production. We showed above not only the possibility of enzyme-mediated relaxivity increase but also that related enzymes interacted with the same substrates rather differently with very different results. Based on the above results, compound L₁–Gd³⁺ was used in further experiments as a suitable donor-substrate of MPO. In the following set of experiments two main modifications have been introduced to better mimic physiological conditions. First, the amount of enzyme has been reduced to 0.5 iU, second, H₂O₂ required by the enzyme catalytic cycle has been provided via a more controlled mechanism and at lower concentrations by using glucose oxidase (GOX)/glucose system.^36–39 Hydrogen peroxide concentration plays a very important role in the complex catalytic cycle of oxidoreductases and especially in the catalytic cycle of MPO since the excess of H₂O₂ renders the enzyme inactive towards the reaction with phenolic donor-substrates.⁴⁰ The use of the glucose oxidase/glucose system allowed H₂O₂ to be generated at pseudo-zero order rate under saturation conditions. Therefore, H₂O₂ is formed at a constant rate given the GOX concentration. Variation of GOX concentration from 0.25 iU to 12.5 iU did not show any remarkable differences.

Initially we studied the effect of 0.5iU of MPO at 0.13 mM of compound L₁–Gd³⁺ in PBS buffer containing 5.5 mM of glucose (Table 1). Myeloperoxidase-mediated reactions were studied under four conditions by keeping MPO and L₁–Gd³⁺ concentrations constant and testing sources of hydrogen peroxide: a) 10 mM H₂O₂, b) 10 µg GOX, c) 1 µg GOX, d) 50 µg GOX. The corresponding T₁ values of these test reactions were: 1150 ms, 832 ms, 815 ms and 825 ms, respectively. A value of 831 ms was also obtained when a solution 0.13 mM L₁–Gd³⁺ in 5.5 mM glucose, 10 mM of H₂O₂ was treated with a 10-fold amount of MPO (5 iU). To further validate the experiment, the same conditions were chosen if HRP was used instead of MPO and this resulted in a similar T₁ value around 664 ± 20 ms in all four cases. When 1.1 mM L₁–Gd³⁺ solutions were combined with GOX in the presence of glucose with no HRP or MPO present, no changes in T₁ were seen. These results suggest that the use of the GOX/glucose H₂O₂ generating system results in higher levels of relaxivity enhancement. When the effect of this system was measured at several different concentrations of L₁–Gd³⁺, the relaxivity at 0.47 T (40 °C) was 6.2 mM⁻¹ s⁻¹ that corresponds to a relaxivity increase of 44% over that of the control. Glucose alone has no effect on relaxivity. Furthermore, the GOX/glucose system resulted in stable reaction products for at least 24 h as opposed to H₂O₂ and 5 iU of MPO that resulted in the early formation of insoluble reaction products. By replacing MPO with HRP, a relaxivity of 9.1 mM⁻¹ s⁻¹ was obtained suggesting that HRP is not affected by H₂O₂ concentration. When the MPO–GOX/glucose system was assayed using L₂–Gd³⁺, partial insolubility of the product did not allow further characterization. As before, T₁ changes at various concentrations were continuously monitored until a T₁ descending trend was reversed. The final relaxivity value of 5.1 mM⁻¹ s⁻¹ has to be interpreted with caution because of inhomogeneity of the system.

In order to estimate the pseudo-first order kinetics constant of reactions in the presence of GOX/glucose, T₁ kinetics of 0.13 mM of compound L₁–Gd³⁺ using MPO and 0.10 mM L₂–Gd³⁺ in the presence of HRP were continuously monitored (Fig. 4). The apparent kinetic constants were 0.43 × 10⁻³ s⁻¹, 5 × 10⁻³ s⁻¹ and 4.83 × 10⁻³ s⁻¹, respectively. HRP catalysis resulted in kinetics that were10-fold faster than MPO-mediated catalysis. This allowed 90% conversion after approximately 90 min. The catalytic conversion of the substrate in the presence of MPO took up to 4 hours with precipitation of oligomeric products.

Fig. 4 Kinetics of T₁ changes. a: 1) L₁–Gd³⁺ + MPO–GOX, 2) L₁–Gd³⁺ + HRP–GOX, 3) L₂–Gd³⁺ + HRP–GOX. b: 1) L₁–Gd³⁺ + MPO–GOX. Graph a shows a time-span of 120 minutes, graph b shows a time-span of 1000 minutes for situation 1.

Changes in composition were detected by using spectrophotometry when solutions of both L₁–Gd³⁺ and L₂–Gd³⁺ were reacted with enzymes under various conditions at 40 °C. Fig. 5 shows several representative spectra obtained using L₁-Gd³⁺. In the case of L₂–Gd³⁺ all spectra showed the presence of insoluble products after ∼5 min. Insolubility resulted in spectra showing a continuous increase of absorbance in the far-red range (800 nm) due to insoluble particles of polymerized product. In general, the UV/Vis spectrum of compound L₁–Gd³⁺ reacted in the presence of either MPO or HRP, showed a shift of the bands into the visible range. While in the case of MPO–H₂O₂ the spectral changes were comparatively slow and continuous, the rest of the reaction mixtures showed a new band at 440 nm, which emerged within 1 min of enzyme addition. While the overall absorbance kept increasing for a period of at least 4 h, the major change took place within the first hour. In general, the band corresponding to the serotonin aromatic ring that shows a maximum at 275 nm with a shoulder at 315 nm in the absence of enzyme transformed into a broader band with two maxima if hydrogen peroxide was provided by the GOX/glucose system.

Fig. 5 UV/Vis spectra of L₁–Gd³⁺ in the presence of: a) MPO–GOX, b) HRP–GOX, c) MPO–H₂O₂, d) HRP–H₂O₂. Insets show the time evolution of the newly formed band at 440 nm.

Interaction with proteins

It is widely accepted that in the presence of peroxidases serotonin or tyrosine do not exclusively oligomerise but either transfer the radical to other aromatic groups present in the media, or get covalently attached to other macromolecules or molecular aggregates. If the above holds true for the systems described in this paper, two main effects are to be expected: 1) attachment to other macromolecules, i.e. proteins, should result in a relaxivity increase due to the increase in the overall size of the paramagnetic system with a concomitant change of the tumbling rate; 2) the formation of large aggregates should change the pharmacokinetics of the compounds transforming them into products with longer retention times. These points are further exemplified below.

HSA interactions. It is well known that Gd-based CAs bearing aromatic groups interact with human serum albumin (HSA) with the formation of non-covalent adducts showing drastic relaxivity improvements due to the size increase.¹¹ To test whether this was true in the case of L₁–Gd³⁺ we titrated 1.3 mM solution of this compound with increasing amounts of either HSA (M_w = 66 000 Da) or lysozyme (M_w = 15 000 Da). T₁ in both cases increased from 0.83 s⁻¹ in the absence of protein to 1.25 s⁻¹ and 1.17 s⁻¹ at 40 mg mL⁻¹ of HSA or lysozyme (0.6 mM HSA; 2.6 mM lysozyme), respectively. These values suggest the absence of non-covalent binding between L₁–Gd³⁺ and proteins used (effective K_D < 200 M⁻¹; binding efficiency <1%).^41–43 Further, we titrated solutions containing 40 mg protein mL⁻¹ with various amounts of L₁–Gd³⁺. The relaxivity of compound L₁–Gd³⁺ was estimated as 5.5 mM⁻¹ s⁻¹ in both cases. Identical relaxivities suggested no true interaction with the proteins but rather could be attributed to the differences in relaxivity caused by high protein concentration in the solutions.

Further, HSA titration experiments were conducted in the presence of 0.5 iU MPO using the GOX/glucose system as a source of H₂O₂ that resulted in relaxivity of 6.6 mM⁻¹ s⁻¹. This value reflects a 54% relaxivity increase if compared with the relaxivity of compound L₁–Gd³⁺ in PBS alone, or a 20% increase for compound L₁–Gd³⁺ in the presence of 40 mg HSA per mL. The presence of HSA (r_1o = 6.6 mM⁻¹ s⁻¹) also resulted in a further increase of 8% when compared with MPO effects in the absence of HSA (r_1o = 6.2 mM⁻¹ s⁻¹). It should be noted that in the absence of HSA and in the presence of MPO–GOX/glucose, R_1o keeps increasing over a period of approximately 3 hours, whereas the presence of albumin results in maximum relaxivity in 15–20 min.

In another experiment we set a goal to determine whether pre-formed oligomers bind HSA and also if those preformed oligomers are adequate substrates for MPO. We used 5.6 mM L₁–Gd³⁺ solution and incubated it with 2 iU of MPO in the presence of GOX/glucose. After 40 °C incubation for 18 hours, the solution was sonicated to produce a clear solution of “oligomerised L₁–Gd³⁺” with relaxivity r_1o = 10.1 mM⁻¹ s⁻¹. This product was used to titrate HSA solutions either in the absence, or in the presence of MPO–GOX/glucose. The relaxivity values obtained where similar in both experiments −13.1 and 12.4 mM⁻¹ s⁻¹, respectively. The obtained results suggested that although the pre-formed oligomers could have some affinity for albumin, further addition of the enzyme does not play any significant role, which means that oligomers are poor substrates of MPO at best. The observed high relaxivity values are associated with the use of larger enzyme activities (i.e. 10-fold) during longer periods of time (18 h). Finally, we estimated the overall size of the oligomerisation products. Solutions of L₁–Gd³⁺ were prepared as follows: solution A contained MPO–GOX/glucose, solution B contained 40 mg mL⁻¹ HSA and solution C had all components above present (i.e. HSA–MPO–GOX/glucose). The solutions were incubated at 40 °C overnight followed by exhaustive dialysis using membranes with a 10 000 Da cut-off.

The dialysis experiment (see Table 2) suggested that compound L₁–Gd³⁺ does not interact with HSA in the absence of MPO. Furthermore, the presence of the MPO–GOX system lead to a population of oligomers that contained 40% of molecules with masses exceeding 10 000 Da. If HSA was additionally present, the amount of retained oligomers post dialysis increased to 65%. The observed differences can be assigned to the covalent binding of L₁–Gd³⁺ to HSA.

Table 2 [Gd] values pre and post-dialysis^a

Composition	[Gd], pre-dialysis/mM	[Gd], post-dialysis/mM	Gd loss (%)
a Values are average of two independent experiments. Error, defined as the observed difference/average, was below 5% in all cases.
L1–Gd^3+–HSA + MPO + GOX	0.18	0.07	60
L1–Gd^3+ + HSA	0.35	0.02	95
L1–Gd^3+ + HSA + MPO + GOX	0.29	0.19	35

---

Radioisotope labelling study. To test the potential attachment of MPO reaction products to proteins, we labelled L₁ with ¹¹¹In by trans-chelation from a ¹¹¹In–oxiquinoline complex. trans-Chelation and purity of the resultant product was controlled by HPLC (Fig. 6). The labelled complex was incubated with MPO to test the effect of oligomerisation. Chromatography revealed various radioactive products of MPO catalysis. L₁–¹¹¹In was subsequently tested in experiments performed in the presence of complete human plasma. In these experiments, size exclusion columns with a cut-off of 6000 Daltons were used. Under these conditions, only molecules bound to plasma proteins would appear in the void volume of the columns. After activation with MPO in the presence of plasma, a much larger fraction of radioactivity was eluted, an observation consistent with the increased binding to plasma proteins. The difference in eluted radioactivity measured in the presence or in the absence of MPO was more than 3-fold.

Fig. 6 L₁–¹¹¹In chromatograms: Labeling (top), after incubation with MPO–H₂O₂ (bottom). Chromatograms show both radioactivity (upper) and UV (lower) traces.

In vivo model studies

To further evaluate the combined effect of oligomerisation and protein attachment of CA we devised an in vivo experiment that included mice harbouring implants containing human MPO. The animal model used for MPO imaging was obtained by injecting subcutaneously 0.4 mL of Matrigel™ (Beckton–Dickinson) in both right and left thighs of a mouse. Matrigel™ when injected subcutaneously undergoes a gelation thereby creating a permeable and dynamic reservoir within the interstitium allowing extravasation of CA while keeping the enzyme trapped in the implant due to the higher molecular mass. The experimental implant contained 6 iU of human MPO (final concentration 1.5 iU mg⁻¹ protein; for comparison, MPO concentration in human atherosclerotic plaques ranges between 71 and 511 U mg⁻¹ protein⁴⁴) and 10 µL GOX, whereas the left thigh was injected with Matrigel™ only. We subsequently performed T₁-weighted MR imaging after intravenous injection of L₁–Gd³⁺ at a dose of 0.3 mmol kg⁻¹ (Fig. 7a). The comparison of contrast-to-noise ratio MR signal intensities measured in the right (MPO-containing) and the left (control) extremities of animals increased 1.6–1.9-times during the 3 h of in vivo monitoring (Fig 7b). The same kinetic experiment performed using Gd–DTPA–dimeglumine (Magnevist™, Schering) did not result in any appreciable signal difference between MPO-containing and control Matrigel™ implants.

Fig. 7 a) MR image of Matrigel™ implants obtained at 2 hours after the addition of CA. The right extremity contains exogenous-MPO, the left one contains only Matrigel™ and works as an internal control. b) MRI signal evolution along the time-span of the experiment.

The possibility of in vivo accumulation due to the ability of the MPO reaction product to bind to the proteins was assessed by injecting L₁–¹¹¹In at a tracer dose (80–100 µCi) into a mouse using the above Matrigel™ implant model and performing SPECT/CT imaging (Fig. 8). Monitoring of the radioactivity levels for 3 hours after injection revealed a 2.3-fold difference between the right and the left extremities of the animals. Excision of the implants after 6 hours followed by radioactivity measurements showed a 4-times higher radioactivity for the MPO-containing implant.

Fig. 8 Fused SPECT-CT image of Matrigel™ implants 3 hours after the injection of L₁–¹¹¹In imaging agent. Red colour indicates the hot-spot of radioactivity.

Discussion

Mammalian oxidoreductases are multifunctional enzymes, involved in the biosynthesis of thyroid hormones (thyroid peroxidase) and in antimicrobial defence (myeloperoxidase). The mature form of myeloperoxidase is found in secretory azurophilic granules of polymorphonuclear leukocytes and monocytes. Usually, MPO secretion is associated with oxidative burst where NADPH-oxidase generates superoxide and hydrogen peroxide. MPO amplifies the oxidative power of hydrogen peroxide by using it as a substrate for hypochlorous acid synthesis from chloride anion. Activated MPO is also capable of further reacting with various organic substrates producing undesirable chemical reactions with proteins that contribute to atherosclerosis plaque formation and rupture, i.e. LDL oxidation,^45,46 HDL inactivation⁴⁷ and metalloproteinase activation.^48,49

To develop MPO activity sensing probes, we investigated the ability of peroxidases to generate reactive organic species. The concept of such probes is based on tyrosine reactivity patterns in the presence of oxidoreductases, especially MPO (see Fig. 1). We synthesized paramagnetic prototype probes L₁–Gd³⁺ and L₂–Gd³⁺ that in the presence of either HRP or MPO and peroxide showed a formation of complex mixtures containing oligomers of various lengths. MALDI-TOF of these oligomers showed the formation of 9-mer molecules. This qualitative preliminary evidence suggested a complex MPO-catalyzed reaction. Importantly, striking differences between relaxivities of reaction products were observed when MPO was compared to HRP. While HRP resulted in 2.4- to 3.7-fold relaxivities of paramagnetic products compared to the initial monomers, MPO yielded a net relaxivity increase close to 23–37%. Furthermore, pseudo-first order kinetic constants used to compare bulk oligomerisation were 10-times lower in the case of L₁–Gd³⁺ in the presence of MPO if compared with the corresponding constants of HRP-mediated reactions. The above differences suggested fundamental differences between MPO and HRP. Percent homology analyses and X-ray data suggested two superfamilies of peroxidases: superfamily I found in prokaryotes, fungi and higher plants, and superfamily II found in mammals.^50,51 In general, the peroxidase catalytic cycle is a feature shared by both superfamilies (shown in Fig. 9).^40,52–55 The rate of formation of enzyme intermediates I and II with the different substrates and, hence, native enzyme regeneration, depends on several characteristics of electron donors⁵¹ including not only redox potentials (E), but also molecular structure. HRP has very similar E values for compounds I and II (0.9 V). The existing literature data suggest that MPO theoretically is better suited for radical formation than HRP (compound I has E > 1.015 V, and compound II has E = 0.97 V).^51,56–59 However, the main feature determining selectivity to a substrate is the accessibility to the active site of the enzyme. While HRP shows very similar and exposed geometries for compounds I and II in a single 40 kDa subunit, the MPO active site is located in a narrow hydrophobic cleft within a larger 60 kDa subunit. This hinders MPO reactivity towards bulky and/or hydrophilic compounds and could eventually restrict the enzyme regeneration cycle.^27,50,60 It is now accepted that HRP can interact directly with phenolic compounds in proteins. Some data suggest that this is also a possibility with MPO although at much lower rates and probably with surface-exposed residues only. MPO mediated protein cross-linking is postulated to occur via radical transfer catalysts, e.g. tyrosine in the range 100–200 µM in plasma.²² Therefore, though MPO is electrochemically better suited for the formation of radicals and covalent protein modification, steric restriction in its active site shortens the catalytic cycle turn-over as higher molecular weight substrates replace small, more suitable, substrates from the catalytic cycle. Consequently, the step-wise formation of oligomers exhausts MPO regeneration far more effectively than HRP regeneration sources since oligomers can still react efficiently with HRP-II but not with MPO-II.

Fig. 9 MPO catalytic cycle. Boxes show the different MPO oxidation states along the cycle.⁴⁰

In view of the above, our preliminary experiments showed that: a) enzyme mediated oligomerisation of reducing substrates results in a net increase in MRI signal, and b) L₁–Gd³⁺ is a better substrate for MPO than L₂–Gd³⁺ (see also reference 29). Under physiological conditions the following factors are of prime importance: 1) the presence of macromolecules (e.g. serum albumin) due to covalent and non-covalent binding of the substrate and the reaction products; 2) enzyme concentration (0.5 iU MPO was used, which is lower than 71–511 iU mg⁻¹ of human atherosclerotic plaques⁴⁴); 3) the amount of hydrogen peroxide: the production of peroxide in vivo from O₂via NADPH-oxidase in humans proceeds at the rate of 0.2 µM s⁻¹ (although leukocytes can yield micromolar concentrations in inflammation).⁶¹ Importantly, the excess of peroxide can render MPO inactive via two pathways (Fig. 9).

An excess of peroxide results in a transformation of native enzyme into MPO-II that reacts very slowly with small organic substrates and is nearly inactive in the presence of medium or large organic substrates. A large excess of hydrogen peroxide transforms MPO-I and MPO-II into inactive MPO-III,⁴⁰ attainable also in the presence of considerable amounts of superoxide (Fig. 9). Unlike the glucose oxidase/glucose system (see Results section), manual addition of hydrogen peroxide always resulted in lower R_1o values. Conversely, HRP catalysis did not show differences associated with H₂O₂ administration confirming that compound II reactivity differs in the case of MPO if compared to HRP. The use of enzymatic hydrogen peroxide production vs. peroxide administration resulted in higher relaxivities although the levels achieved with the use of HRP where still unattainable.

As mentioned previously, tyrosyl radicals interact with proteins resulting in protein cross-linking and covalent attachment of tyrosine to proteins. Experiments performed using MPO, L₁–Gd³⁺, HSA or lysozyme (a protein with no known affinity to indole) suggested that the presence of the enzyme always afforded a net increase in relaxivity. Although relaxivity increased in the presence of proteins and in the absence of MPO, the magnitude of this increase was not sufficient to cause high levels of non-covalent binding of L₁–Gd³⁺ to proteins. The lack of changes in R_1o upon titration of the substrate with proteins and similarity to GdDTPA titrations suggested that the degree of non-covalent binding was negligible (i.e. below 1% at physiological levels of albumin concentrations). Overall, albumin not only produced an increase in relaxivity but also resulted in substantial stabilization of the oligomerisation products in solution. The presence of protein molecules in solution could result in either diffusion-limited quenching of radicals, and, therefore, hindering of the oligomerisation process, or, in accelerating competing reactions, i.e. protein cross-linking or an increase in the rate and patterns of oligomerization and protein attachment. Furthermore, we assessed whether: 1) the pre-formed oligomers could interact non-covalently with HSA, and 2) if oligomers could host radicals and therefore covalently react with HSA. We found that covalent binding of preformed oligomers to HSA can be ruled out. The above results suggest that enzyme mediated relaxivity increase in the presence of HSA is mainly associated with the covalent attachment of monomers to proteins.

Dialysis experiments were aimed not only at assessing oligomer size but also as a final probe of covalent attachment to proteins. The results showed that a large proportion of the monomeric starting material (i.e. 40% and 65% in the presence of HSA) is incorporated into the aggregates with the masses exceeding 10 000 Da. The above result has been confirmed using MALDI, which often shows under-representation of high-mass components.⁶²

In the absence of HSA and MPO HSA solutions did not retain any gadolinium. In the presence of MPO higher amounts of gadolinium were associated with HSA, suggesting enzyme-mediated covalent attachment which agrees with the gel-permeation chromatography study that used ¹¹¹In-labeled substrate. The assessment of the above combined effect on signal enhancement in vivo showed that systemic administration of L₁–Gd³⁺ and Gd–DTPA demonstrated similar initial signal increases as could be expected due to similarities in molecular mass. However, the use of non-reactive Gd–DTPA in conjunction with MPO did not show any lasting signal intensity after the initial period. The same was true when L₁–Gd³⁺ enhancement of MPO-free implants was studied.

We believe that the above mechanistic study could potentially result in methods enabling early detection and staging of vulnerable atherosclerotic plaque.

Conclusions

1. The MRI signal amplification/accumulation effects observed after catalytic conversion of reducing 5-HT-containing substrates of peroxidase is a combined result of: a) enzyme-mediated increase in contrast agent size; b) covalent attachment of the contrast agent to macromolecular species present in MPO rich areas.

2. Imaging at clinical magnetic field strength can identify MPO rich zones even when the MPO activities are far below the actual values reported in the literature for MPO vulnerable plaque contents.

Further experiments that use realistic animal models i.e. lipopolysaccharide-induced inflammation in mice and direct imaging of atherosclerotic aorta in rabbits, are currently being performed and the obtained animal imaging results will be submitted for publication in the future.

Acknowledgements

This study was supported in part by a National Institute of Biomedical Imaging and BioEngineering grant (AAB) and the Radiological Society of North America Research and Education Foundation (JWC).
