Laboratory and field comparison of measurements obtained using the available diffusive samplers for ozone and nitrogen dioxide in ambient air

Abstract

This study presents an evaluation of the extent of differences between measurements performed by O₃ and NO₂ diffusive samplers and by the reference methods for diffusive samplers commercially available. The tests were performed in an exposure chamber under extreme conditions of controlling factors and under field conditions. For NO₂, the results of the laboratory experiments showed that most of the diffusive samplers were affected by extreme exposure conditions. The agreement between the samplers and the reference method was better for the field tests than for the laboratory ones. The estimate of the uptake rate for the exposure conditions using a model equation improved the agreement between the diffusive samplers and the reference methods. The agreement between O₃ measured by the diffusive samplers and by the reference method was satisfactory for 1-week exposure. For 8-hour exposures, the diffusive samplers with high uptake rates quantifiyed better the O₃ concentration than the samplers with low uptake rates. As for NO₂, the results of the O₃ field tests were in better agreement with the reference method than the ones of the laboratory tests. The field tests showed that the majority of diffusive samplers fulfils the 25% uncertainty requirement of the NO₂ European Directive and the 30% uncertainty requirement of the O₃ European Directive for 1-week exposure.

---

Michel Gerboles

Michel Gerboles was born in France, in 1964. He received his Master of Science in Analytical Chemistry from the University of Bordeaux (France). In 1990, he joined the Joint Research Centre of the European Commission. Currently he has been the quality officer of the Emissions and Health unit at the Institute for Environment and Sustainability of the JRC. His current research interests are: the development of primary methods of calibration and indicative methods like diffusive samplers for the measurement of ambient air pollution, the organisation of proficiency testing and intercomparison exercises for indicative methods in support to the implementation of European Directives on air quality.

Introduction

The diffusive sampling technique is largely used as an indicative method for monitoring concentrations of pollutants in ambient air. According to the European Daughter Directives 1999/30/EC¹ and 2002/3/EC² indicative methods can be used to assess the level of nitrogen dioxide (NO₂) and ozone (O₃) in ambient air provided that they meet the data quality objective for uncertainty of 25% for NO₂ and 30% for O₃. In recent years, several diffusive sampler designs have been implemented for the determination of NO₂ and O₃ in ambient air.^3–7 However, the quality of the results from these samplers has been often criticized. In fact, several inter-comparisons^8–10 have been performed, none of which included experiments under controlled conditions in an exposure chamber, under field conditions and including all commercially available diffusive samplers.

In this study, the extent of differences between measurements performed by diffusive samplers and the reference methods defined in the European Directives are evaluated under extreme conditions of controlling factors and according to the CEN protocol¹¹ for the validation of diffusive samplers. The inter-comparison consisted of laboratory and field experiments. First, experiments were carried out in an exposure chamber so that the parameters affecting the performance of the diffusive samplers could be controlled. Second, field tests were performed in order to evaluate the consistency of the results of the laboratory tests.

The objective of this paper is to present, to potential users of diffusive samplers, useful results about the whole range of diffusive samplers commercially available for measuring NO₂ and O₃ in ambient air.

Experimental procedure

Inter-comparison protocol

Several laboratories were involved in the inter-comparison exercise. They were asked to send their own diffusive samplers to the JRC Ispra. The JRC Ispra was responsible for exposing the samplers and sending them back to the participants for analysis. Seven diffusive samplers (six exposure samplers and one travel blank) were supplied by each laboratory. Travel blanks accompanied the exposure samplers to and from the sampling site. They were isolated in sealed bags and refrigerated throughout the exposure period. Small protective boxes gathering six samplers to limit the effect of wind velocity on the response of the samplers were installed in the exposure chamber. Larger rain shields and shelters could not fit in the chamber. For field tests, the samplers were installed inside a shelter as requested by each participant (Table 1). Upon completion of exposure, the samplers were closed and returned to the participants for analysis.

Table 1 Description of diffusive samplers used in the inter-comparison

		NO2			O3
			Shelter			Shelter
Samplers	Lab	Preparation^a	Lab	Field	Preparation^a	Lab	Field
a Preparation refers to the cleaning and assembly of the samplers and the coating of the absorbent.
Gradko	1	Lab 1 (membrane)	No	No	—	—	—
	2	Lab 2	Yes	Yes	—	—	—
	3	Lab 3	Yes	Yes	—	—	—
	4	Manufacturer	No	No	Manufacturer (membrane)	Yes	Yes
	5	Lab 5	No	No	—	—	—
	6	—	—	—	Lab 6 (membrane)	No	No
Passam	7	Manufacturer	Yes	Yes	Manufacturer	Yes	Yes
	8	Manufacturer	Yes	Yes	—	—	—
	9	—	—	—	Lab 9	Yes	Yes
Passam badge	10	—	—	—	Manufacturer	—	Yes
Radiello	11	Manufacturer	No	Yes	Manufacturer	No	Yes
	12	Manufacturer	No	Yes	Manufacturer	No	Yes
	13	—	—	—	Lab 13	No	Yes
Ogawa	14	Manufacturer	No	Yes	Manufacturer	Yes	Yes
	15	Lab 15/manufacturer	No	Yes	Lab 15	Yes	Yes
IVL badge	16	Manufacturer	No	Yes	Manufacturer	No	Yes
Analyst®	17	Manufacturer	No	Yes	Manufacturer	—	Yes

---

Material and methods

There are basically 3 types of diffusive samplers: longitudinal tube (Palmes tube), radial and badge type. A summary of the diffusive samplers and protective boxes or shelters used by the laboratories are shown in Table 1. They are not associated with individual laboratories to ensure confidentiality. The materials used for the preparation of the samplers (Fig. 1) were manufactured by Gradko International Ltd (UK), Passam ag (CH), the National Research Council (CNR-I), Fondazione Salvatore Maugeri (I), Ogawa & Co Inc. (USA) and the IVL Swedish Environmental Research Institute (S). It is important to notice that several participants did not use samplers prepared by the manufacturer but did their own preparation (Table 1). Some did not implement the shelter specified by the manufacturer (Table 1) or did not use the advised analytical method. The type of samplers is presented in the following paragraphs. Their uptake rate value¹¹ used for the calculation of concentrations is discussed as this is the major characteristic of each sampler.¹¹

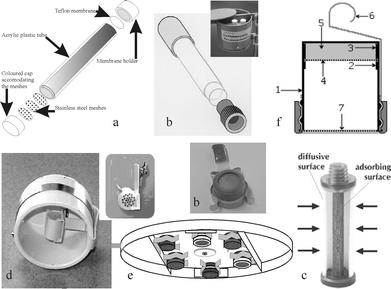

Fig. 1 Diffusive samplers: (a) Gradko samplers (with or without membrane), (b) Passam samplers (Palmes tube and badge), (c) Radiello sampler, (d) Ogawa sampler, (e) IVL badge, (f) Analyst.

Gradko sampler. The Gradko sampler is based on the Palmes tube design¹² (Fig. 1a). It collects O₃ or NO₂ to an absorbent by molecular diffusion along an inert tube. The sampler consists of a tube which may be closed or not by a membrane and installed or not inside a protective box (Table 1). For NO₂, the uptake rate used by Lab 1 was estimated using an empirical model developed through laboratory experiments.¹³ Lab 2 initially used the theoretical uptake rate of 72.8 cm³ h⁻¹ and then a model equation.¹⁴ Labs 3, 4 and 5 used an uptake rate of 72 cm³ h⁻¹. For O₃, both Labs 4 and 6 used a membrane closed tube for which information on preparation, analysis and uptake rate was not available. (http://www.gradko.co.uk.)

Passam sampler. Two types of samplers were used: for 1-week exposure, the sampler is based on the design of Palmes tube¹⁵ and was implemented by Labs 7, 8 and 9 while for 8-hour exposure an O₃ badge sampler was implemented by Lab 10¹⁶ (Fig. 1b). For NO₂, the uptake rate used by Lab 7 was 0.8536 cm³ h⁻¹ (estimated at 9 °C) while Lab 8 used a value of 0.9017 cm³ h⁻¹ (estimated at 20 °C). For O₃, Lab 7 used the Palmes tube with an uptake rate of 0.0255 mg m⁻³ h⁻¹ while Lab 10 used the badge sampler with an uptake rate of 0.2805 mg m⁻³ h⁻¹. The O₃ uptake rates used by Lab 9 were derived from a model equation.¹⁷ (http://www.passam.ch.)

Radiello. The Radiello sampler is a radial diffusive sampler where the pollutant diffuses through the porous membrane to a cartridge where it is trapped (Fig. 1c). For the NO₂ field tests, the uptake rate was calculated using a model equation given in the Radiello operating manual version 01/2003.¹⁸ For the NO₂ laboratory exposures, the uptake rate was calculated using the model equation found in the previous operating manual (2002²³). This applies to both laboratories 11 and 12. For O₃, the uptake rate of Labs 11 and 12 was given in the Radiello operational manual (24.6 cm³ min⁻¹) while Lab 13 used a model equation¹⁹ developed by experiments. (www.radiello.com.)

Ogawa. The sampler is a double face badge type. Lab 14 used samplers prepared by Ogawa (Fig. 1d). The samplers were implemented according to the operational procedure laid down by Ogawa²⁰ for the determination of the NO₂ and O₃ uptake rates. For NO₂, the samplers were not protected by a shelter during the laboratory experiments. This is not in agreement with the instructions of the manufacturer that requires that a shelter be used for outdoor environmental monitoring. Two filters were placed in each Ogawa samplers on which NO₂ was determined and averaged. Lab 15 used its own method of preparation/analysis and an uptake rate of 0.031 ng ppb⁻¹ min⁻¹ determined through laboratory experiments. For the O₃ analysis, the uptake rate used by Labs 14 and 15 was 21.8 cm³ h⁻¹. Lab 14 used a capillary electrophoresis method based on a protocol developped by Waters while Lab 15 used ion chromatography, both methods being not publicly available. (http://www.ogawausa.com.)

IVL^4,5. The IVL sampler has a badge design (Fig. 1e) and is fully based on diffusion theory to calculate of the uptake rate²¹ but information regarding the preparation, analysis and uptake rate was not available.

Analyst^6,22. The Analyst sampler is a modification of the open-Palmes-tube design (Fig. 1f). For the NO₂ laboratory experiments the device was exposed without shelter (Table 1) while the manufacturer required the use of a rain shield to protect the sampler. The uptake rate used for NO₂ was 0.0232 ng ppb⁻¹ min⁻¹ and it was 0.01267 ng ppb⁻¹ min⁻¹ for O₃.

More details on the implementation of these samplers are available.^23,24

Laboratory experiments

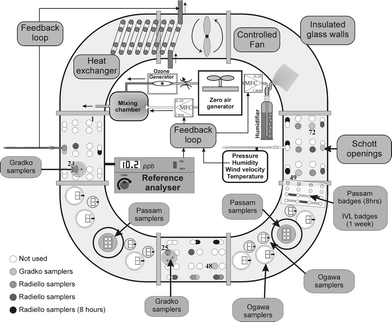

The laboratory experiments were performed in an exposure chamber²⁵ that allowed controlling of concentration level, temperature, relative humidity and wind velocity (Fig. 2). The exposure chamber was an “O”-shaped ring-tube system, covered with dark insulation material. A permeation system²⁶ was used to generate NO₂. The exposure chamber could hold up to 72 samplers installed on the wall of the chamber and some samplers with their protective box inside the chamber. NO₂ was monitored by a nitrogen oxides analyser (Thermo Environmental Instruments TEI 42 C) based on the chemiluminescence method.²⁷ The analyser was checked before and after each experiment with a NO-in-nitrogen cylinder certified using the permeation method and crosschecked with the static volumetric method.²⁸ The NO₂ concentrations measured by the continuous analyser were corrected for the humidity interference and for the drift, assuming linear drift between calibration adjustments.²⁹

Fig. 2 Example of implementation of the exposure chamber for the O₃ tests.

For generating O₃, a MicroCal 5000 Umwelttechnik MCZ Gmbh O₃ generator was used instead of the NO₂ permeation system (Fig. 2). O₃ was monitored using a TEI 49C. The analyser was calibrated before and after the inter-comparison with an O₃ primary standard (TEI Model 49 C Primary Standard, Thermo Environmental Instruments) cross-checked against a long-path UV photometer (UMEG, GmbH). During the inter-comparison, the analyser was submitted to several multi-point calibration checks using a portable O₃ generator SYCOS KTO 3 (Ansyco, GmbH) certified against the primary standard.

Previous experiments in the exposure chamber^13,30 suggested the combination of environmental parameters that would lead to one low and high uptake rate. This is in accordance with the requirements of the protocol for diffusive samplers.¹¹ The conditions were also chosen to match the yearly limit value of the European Directives of 40 μg m⁻³ for NO₂ and the 8-hour limit value of 120 μg m⁻³ for O₃. The conditions of the experiments in the exposure chamber are given in Table 2.

Table 2 Conditions of the laboratory tests

Pollutant	Test no	Uptake rate	Concentration/μg m^−3	Wind speed/m s^−1	Temperature/°C	Relative humidity (%)	Exposure time
NO2	1	High level	80	2.5	25	75	1 week
	2	Low level	40	1.0	5	30	2 weeks
O3	5	High level	80	2.0	15	80	1 week
	6	Low level	40	0.5	25	40	1 week
	9	High level	180	2.0	15	80	8 hours
	10	Low level	120	0.5	32	40	8 hours

---

Field tests

For NO₂, two monitoring stations of the automatic network of AIRPARIF in Paris (F), one urban at Genevilliers and one rural at Fointainebleau were used. AIRPARIF is accredited under ISO 17025³¹ for the measurement of several pollutants including NO_x and O₃ at the automatic stations of its monitoring network. NO₂ was measured continuously using a NO_x analyser (an Environment s.a model AC 32 M at the urban site and a TEI model 42C at the rural site). The measurements were corrected to the exact value of the NO₂-to-NO converter efficiency, for humidity and for the calibration drifts.²⁹

For O₃, the urban site was also situated at Genevilliers. A TEI 49 analyser was used for the continuous monitoring of O₃. The zero and span of the instrument were checked every 14 days. The measurements are traceable to the UV primary standard (long-path UV NIST photometer) of the Laboratoire National d’Essais (F). The rural test was performed at one of the NABEL monitoring stations (Swiss Air Pollution Monitoring Network), situated in Cadenazzo (CH). A TEI 49C instrument was used for the ozone continuous measurements. The zero and span of the instrument were automatically checked every 25 hours; every 14 days a manual calibration (zero and one span point) was performed. The analyser was compared to the Swiss Federal Laboratories for Materials Testing and Research (EMPA) transfer standard (TEI 49C-PS) every three months. EMPA has been designated by the World Meteorological Organisation to operate the World Calibration Centre for Surface Ozone, Carbon Monoxide and Methane (WCC–EMPA). EMPA is also the Quality Assurance/Scientific Activity Centre in Switzerland. For both monitoring sites, the measurements were not corrected for calibration drifts, the drifts being up to 1.5%. The conditions of exposure during the field experiments are shown in Table 3. All samplers, protective boxes and rain shields were installed on the roof of the monitoring stations at about 2 metres far from the inlet of the sampling heads.

Table 3 Conditions for the field tests

Pollutants	Test no	Site type	Concentration/μg m^−3	Wind speed/m s^−1	Temperature/°C	Relative humidity (%)	Exposure time
NO2	3	Urban	41.6	2.8	10	74	2 weeks
	4	Rural	14.1	4.2	9	79	2 weeks
O3	11	Urban	62	21.4	68.5	2	8 hours
	7		98	26.2	57.1	2.3	1 week
	12	Rural	122	26.9	40.9	3.2	8 hours
	8		92	23.2	63.1	2.8	1 week

---

Results and discussion

Table 4 shows the average concentration of the 6 samplers analysed by each laboratory for each test together with their standard deviation. The blank values were substracted. In the last column of the table, the reference value of each test is given. It corresponds to the measurement by the reference method. The expanded uncertainty of the O₃ and NO₂ reference values for the laboratory tests is given in Table 4 under each reference value. The NO₂ expanded uncertainty of the laboratory tests was evaluated using the GUM method:²⁹ conversion efficiency, repeatability and linearity of the analyser, uncertainty of standard and zero air for calibration and of zero/span drift were the factors taken into account. For the laboratory O₃ tests, the method by Zucco et al.³²was implemented with a small modification²⁴ to add the calibration drift and the linearity of the analyser. Gas chromatographic analysis showed that the zero air generator was free of organic compounds which could create an interference to the UV-photometry O₃ measurement. It was also checked that water vapour did not interfere with the O₃ measurements under the exposure conditions of the inter-comparison by connecting a nafion dryer at the inlet of the analyser. For all field tests, the data quality objective of the European Directive, 25% for NO₂ and 30% for O₃ of uncertainty, are used instead of an uncertainty estimation. Fig. 4 shows the ratio of NO₂ and O₃ measured by the diffusive samplers versus the reference methods for all the laboratories. The closer this ratio is to 1.0 the better the agreement between diffusive samplers and the reference methods.

Table 4 Concentration of O₃ and NO₂ in μg m⁻³ measured by diffusive samplers and standard uncertainty of all inter-comparison tests and for each sampler and laboratory. The last column gives the reference values with their expanded uncertainty

		Gradko samplers						Passam samplers			Passam badge	Radiello			Ogawa		IVL	Analyst	Reference values
		1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17
a The conditions of the tests are defined in Tables 2 and 3.
NO2	Lab high level (1)	76	97	97	126	139		92	87			54	58		132	188	77	111	77
		±1.9	8.9	±11	±17	±11		±12	±13			±3.7	±7.2		±19	±44	±1.3	13	±5.1
	Lab Low level (2)	43	33	36	46	37		37	37			30	27		47	44	31	43	44
		±1.7	±1.8	±2.3	±4.2	±2.1		±1.6	±1.3			±2.4	±1.5		±2.5	±2.0	±0.9	2.4	±4.8
	Urban (3)	42	47	41	45	42		50	47			45	41		41	68	65	56	42
		±1.1	±2.3	±1.3	±2.6	±1.1		±0.6	±1.3			±3.2	±2.8		±0.9	±2.4	±8.0	3.5	±10
	Rural (4)	13	12	12	13	12		15	15			12	13		13	32	15	15.0	14
		±0.4	±0.9	±0.3	±0.6	±0.4		±0.8	±1.0			±2.2	±1.4		±0.3	±4.9	±3.1	1.2	±3.5
O3-1 week	Lab high level (5)				94		60	132		137		60	59		84	93	88		85
					±11		±4.5	±7.2		±23		±2.5	±4.1		±2.8	±5.7	±2.6		±5.9
	Lab Low level (6)				24		18	35		30		56	53		28	38	37		40
					±1.7		±3.1	±1.7		±1.7		±4.0	±3.1		±3.7	±1.7	±1.3		±5.2
	Urban (7)				108		175	51		87		114	115		100	73	91	83	98
					±11		±49	±4.7		±4.6		±2.8	±3.4		±2.9	±4.2	±1.5	±3.6	±29
	Rural (8)				98		<6.9	100		119		98	98		104	78	87	86	92
					±11			±8.2		±11		±4.5	±5.3		±5.5	±5.5	±1.6	±4.7	±28
O3-8 hours	Lab high level (9)				166		<80				253	250	215	197	<40	ND			180
					±37						±8.5	±16	±8.5	±11					±5.4
	Lab Low level (10)				149		<80				185	190	131	146	<40	ND			123
					±52						±20	±16	±4.3	±8.3					±4.9
	Urban (11)				266		678					67	57	54	64	38			63
					±172							±6.3	±13	±4.9	±9.3	±12			±19
	Rural (12)				265		2553					100	99	170	144	84			122
					±172		±506					±4.9	±18	±13	±38	±14			±37

---

Nitrogen dioxide

The majority of diffusive samplers overestimated the reference value of test no 1 when NO₂, temperature, humidity and wind speed are set to the highest level (Table 4). On the contrary when NO₂, temperature, humidity and wind speed were set to the lowest level, the majority of diffusive samplers underestimated the reference value of the laboratory experiment (test no 2).

The Fondazione S. Maugeri changed the model equation used to estimate the NO₂ uptake rate of the sampler in between the laboratory and field tests. At the same time, the manufacturing process and method of analysis of the sampler did not change. By applying the equation of the operational manual vs. 1/2003¹⁸ to the laboratory tests, the bias changed from −30 and −31% for Lab 11 and −25 and −39% for Lab 12 to −5.6 and −1.6% for Lab 11 and +1.0 and −13.3% for Lab 12 (values shown in Table 4 and Fig. 3). The corrected concentrations were in closer agreement with the reference values than with those calculated with the previous model of uptake rate.

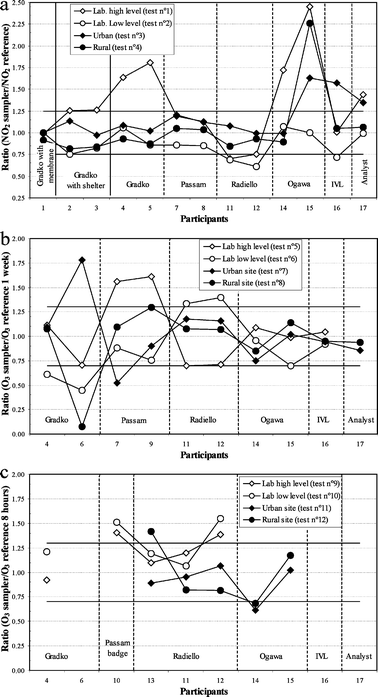

Fig. 3 Ratio of concentrations measured by diffusive samplers to the measured by reference methods for laboratory and field tests. (a) NO₂, (b) O₃, one-week exposure and (c) O₃, 8-hour exposure. The horizontal solid lines show the data quality objectives: 25% of uncertainty for NO₂ and 30% for O₃.

For the Gradko sampler with a protective box, Lab 2 initially calculated NO₂ for the laboratory experiments using the theoretical uptake rate of 72.8 cm³ h⁻¹. By using the model equation elaborated by the laboratory¹⁴ to estimate the uptake rate, the bias changed from +26%, −25%, +13% and −18% to +14%, −17%, +18%, and −13%. The corrected concentrations agreed better with the reference values. The correction using the model is especially necessary for the exposure under extreme conditions, as show tests no 1 and 2.

Initially, Lab 7 intended to use an uptake rate of 0.9047 cm³ min⁻¹ estimated at 20 °C. However, Lab 7 has been monitoring NO₂ since 1986 using an uptake rate of 0.8536 cm³ h⁻¹. In order to remain consistent with previous measurements and to retain the possibility to evaluate long-term trend of air pollution level without a sudden correction of the uptake rate, Lab 7 decided to use the uptake rate estimated at 9 °C. The use of an uptake rate estimated at 9 °C instead of 20 °C worsened the agreement of test no 1 (at 25 °C). It has also improved the agreement of test no 2 (at 5 °C). It is therefore anticipated that with an uptake rate determined for the experimental conditions, the response of the sampler would agree better with the reference values.

For some samplers, the uptake rate can be corrected (for example using a model equation) according to exposure conditions, mainly temperature and humidity. For example, subsequent calculation of the uptake rate was applied by Lab 7 for the Passam sampler, Lab 2 for the Gradko diffusion tube, Labs 11 and 12 for the Radiello sampler, Labs 14 and 15 on a Ogawa sampler. The changes of Lab 7 for the Passam sampler showed a relative deviation between reference values and sampler measurements of about 10%. For the Passam sampler the agreement would be better if the uptake rate was estimated at the actual temperature conditions of exposure. The correction of the Radiello sampler by Labs 11 and 12 using a model developed by the Fondazione S. Maugeri gave an agreement within about 10%. Although showing an improvement, the correction of Lab 15 on Ogawa results still gave a relative deviation of about 35%. However, Lab 14 obtained much better agreement with the model equation developed by Ogawa. The correction using a model developed by Lab 1 gave bias lower than 10%. The correction of Lab 2 on the Gradko diffusion tube with open end placed in a protective box allowed to limit the deviation between reference values and Gradko measurements to about 15%. This was a lower bias than the one of Lab 3 using the same sampler without correction. Therefore it is possible to improve the agreement between the diffusive sampler response and the reference method by calculating an uptake rate for each condition of exposition. The Gradko sampler were implemented by several laboratories (1, 2, 3, 4 and 5) with and without protective box and membrane. Like the majority of samplers, all the implementations of Gradko diffusion tubes gave satisfactory results in the field experiments. Test no 1 showed that under high wind velocities a protective box improves the agreement between sampler response and the reference value.

Lab 16 using the IVL badge obtained good results apart for test no 3 for which the laboratory reported an error in the analytical instrument, which could not be detected at once.

Lab 17, using the Analyst sampler, overestimated test no 1 with high wind speed. The sampler was exposed without using any shelter while the manufacturer requires to use a simple rain shield. The lack of agreement with the reference value for test no 1 may be explained by the lack of rain shield.

Ozone

Overall, for the laboratory tests, the diffusive samplers gave a better quantification of O₃ concentration for the 1-week experiments than for the 8-hour experiments. In fact, for the 1-week experiments all samplers quantifyed the O₃ concentration, while for the 8-hour laboratory experiments 3 out of 8 samplers were not able to quantify the O₃ concentration (Table 4).

The 1-week field experiments showed that the majority of measurements by diffusive samplers are in good agreement with the reference method and fulfil the 30% accuracy requirement of the European Directive² for monitoring O₃ (about 9 out of 10 times, the results lie within 30% of the reference value in Fig. 3b). On the other hand, for the 8-hours field experiments the agreement with the reference method was worse (only about 4 out of 7 results lie within 30% of the reference value).

The concentrations measured with the IVL sampler were in good agreement with the reference value (within 8%) and lie within 30% of the UV photometric values for all inter-comparison experiments. Good results were also obtained with the Analyst sampler, which was involved only in the field tests. These samplers however were used only for the 1-week exposures.

The Radiello sampler was implemented by several laboratories (11, 12, 13). Similar results were obtained for 1-week exposure by Labs 11 and 12. No obvious improvement of the agreement with the reference value of the results of Lab 13 was observed by applying its model equation.¹⁴ For test no 12, Lab 13 noticed an increase in the blank value and therefore did not substract any blank value for this test. This resulted in a high positive bias (Fig. 3c). Labs 11 and 12 also reported anomalous blank values in test nos 11 and 12 (Table 3 and Fig. 3c). Lab 11 used the actual blank value and obtained better results than Lab 12 which used a statistical blank based on previous values. It can be noticed that the use of a constant uptake rate by Labs 11 and 12 on tests nos 5 and 6 gave once a positive bias and once a negative bias (Fig. 3b). This suggests that the uptake rate might not be constant and that a correction according to exposure conditions could be appropriate.

The results obtained by the laboratories using Gradko samplers (4 and 6) are quite different. The relative biases obtained by Lab 4 were less than 30% for 1-week exposure apart from test no 6, while for the 8-hour exposures Lab 4 obtained much better agreement for the laboratory tests than for the field ones (Fig. 3). Lab 4 indicated that the standard deviation values for some sets of exposed tubes were more variable than it would have been expected from previous tests. The results obtained by Lab 6 for the 1-week laboratory exposure underestimated the O₃ concentration. The samplers of Lab 6 did not work properly during the field tests and the 8-hour laboratory experiments. The preparation and analysis of the samplers were performed according to the procedure of each laboratory, which could explain the difference in the results. In Table 4, it can also be noticed that for the 8-hour exposure for which the Gradko sampler could quantify O₃, their standard deviations are at least 3 times bigger than the standard deviations obtained for the Radiello, Passam badge and Ogawa samplers.

The Passam diffusive sampler was implemented by Labs 7 and 9 for the 1-week experiments. The temperature correction applied by Lab 9 did not improve significantly the results comparing with Lab 7 which did not correct its results. Lab 7 suggested that high temperatures during sampling could have been the source of the underestimation of O₃ for test no 7.³³ The Passam badge was used for the laboratory tests with exposure of 8 hours and gave overestimation of O₃ with respect to the reference method.

O₃ measured by Ogawa sampler were in good agreement with the reference method for the field tests and the 1-week laboratory experiments. The sampler did not measure properly O₃ during the 8-hour tests in the exposure chamber independently of the methods of preparation and analysis.

Conclusions

Some participants used their own preparation of samplers instead of using the samplers prepared by the manufacturers, implemented their own analytical method or did not use the shelter as specified by the manufacturer (see Table 1). Therefore, the results of this study can be either characteristic of the participants’ own implementations of the diffusive samplers or typical of the implementation requested by the manufacturer.

Using the NO₂ results of tests 1 and 2, it would be possible to evaluate the contribution of the controlling factors on the uncertainty for diffusive samplers according to the CEN protocol.¹¹ However, the lack of shelters for Ogawa and Analyst samplers, may have been responsible for the bias between the sampler responses and the reference values rather than the performance of these samplers. In fact, during tests 1 and 2, high wind speed combined with the presence of protective boxes may have created turbulence, hence creating bias for the Ogawa and Analyst samplers. However, the absence of rain shield did not give an increase of the IVL badge, the Gradko diffusion tube with membrane and Radiello responses for the laboratory exposure at high exposure condition (see Table 4). It is believed that by using a thick membrane, samplers could remain unaffected by the conditions in the exposition chamber, in particular by wind velocity.

For O₃, the experiments of the inter-comparison showed that no general statement could be given about the performance of each diffusive sampler. The agreement between diffusive sampler measurements and the reference methods was satisfactory for the 1-week exposure. For the 8-hour experiments, the diffusive samplers with high uptake rates quantified better the O₃ concentration than the samplers with low uptake rates.

The NO₂ and 1-week O₃ field tests, carried out under conditions of exposure which were a mixture of the laboratory experiments, show better agreement between the reference values and the response of samplers. This is probably due to the lower scattering of the exposure parameters under field conditions as compared to laboratory conditions. The difference between field and laboratory agreements also indicates the presence of unknown factors that affected the exposure environment during the laboratory tests. Even though it is not possible to compare field and laboratory experiments for the obvious lack of correspondence in temperature and humidity conditions, the overall results suggest the usefulness of some further investigation in order to identify all the factors that could affect the exposure environment of the chamber. The results of the field tests showed that the majority of diffusive samplers fulfils the 25% uncertainty requirement of the European Directive¹ and the 30% accuracy requirement of the European Directive² for the averaging time of 1 week.

In the future, a solution must be found in order to accommodate several diffusive samplers using large shelters and rain shields in exposition chamber to run inter-comparison. The number of inter-comparison proposed to participants should be extended in order to draw conclusions based on a higher number of exposure conditions, reflecting more accurately the range of values expected for the controlling factor all the year long.

Acknowledgements

The authors wish to acknowledge the participation of the following laboratories in the inter-comparison: Consiglio Nazionale della Ricerca (I)—Dr Franco De Santis; Ecole des Mines de Douai (F)—Dr Hervé Plaisance; Fondazione Salvatore Maugeri (I) Dr Paolo Sacco and Vincenzo Cocheo; Gradko Ltd (UK)—Dr Gerry Stuchburry; Harwell Scientifics (UK)—Dr Andy Parish; Instituto Carlos III (S)—Dr Rosalia Fernandez Patier; IVL Swedish Environmental Research Institute (S)—Dr Martin Ferm; Laboratoire d’Hygiène de la ville de Paris (F)—Dr Yvon Le Moullec; Passam A. G. (CH) Dr Markus Hangartner; Surveillance de la Qualité de l’air en Ile-de-France, (F)—Dr Esthel Le Bronnec.

The authors would like to thank Dr Hélène Marfaing, Dr Patrick Garnoussi, Laurent Gauvin and Christophe Ampe, of the laboratory Surveillance de la Qualité de l’air en Ile-de-France (AIRPARIF) and Dr Cristoph Hueglin, Mr. Mario Bertozza of the Swiss Federal Laboratories for Material Testing and Research (EMPA) for the installation of diffusive samplers and for providing reference measurements of the monitoring stations of the automatic network of AIRPARIF and Dr Ioannis Drossinos of the Institute of Environment and Sustainability (EC, DG—Joint Research Centre) for the language revision of the manuscript.
