New members of the [Ru(diimine)(CN)4]2− family: structural, electrochemical and photophysical properties

Harry Adams a, Wassim Z. Alsindi b, Graham M. Davies a, Martin B. Duriska a, Timothy L. Easun a, Hazel E. Fenton a, Juan-Manuel Herrera a, Michael W. George *b, Kate L. Ronayne c, Xue-Zhong Sun b, Michael Towrie c and Michael D. Ward *a
aDepartment of Chemistry, University of Sheffield, Sheffield, UK S3 7HF. E-mail: m.d.ward@Sheffield.ac.uk
bSchool of Chemistry, University of Nottingham, University Park, Nottingham, UK NG7 2RD. E-mail: mike.george@Nottingham.ac.uk
cCCLRC Rutherford Appleton Laboratory, Chilton, Didcot, Oxon, UK OX11 0QX

Received 27th June 2005 , Accepted 5th September 2005

First published on 14th September 2005


Abstract

A series of complexes of the type K2[Ru(NN)(CN)4] has been prepared, in which NN is a diimine ligand, and were investigated for both their structural and photophysical properties. The ligands used (and the abbreviations for the resulting complexes) are 3-(2-pyridyl)pyrazole (Ru-pypz), 2,2′-bipyrimidine (Ru-bpym), 5,5′-dimethyl-2,2′-bipyridine (Ru-dmb), 1-ethyl-2-(2-pyridyl)benzimidazole (Ru-pbe), bidentate 2,2′:6′,2‴-terpyridine (Ru-tpy). The known complexes with NN = 2,2′-bipyridine (Ru-bpy) and 1,10-phenathroline (Ru-phen) were also included in this work. A series of crystallographic studies showed that the [Ru(NN)(CN)4]2− complex anions form a range of elaborate coordination networks when crystallised with either K+ or Ln3+ cations. The K+ salts are characterised by a combination of near-linear Ru–CN–K bridges, with the cyanides coordinating to K+ in the usual ‘end-on’ mode, and unusual side-on π-type coordination of cyanide ligands to K+ ions. With Ln3+ cations in contrast only Ru–CN–Ln near-linear bridges occurred, affording 1-dimensional helical or diamondoid chains, and 2-dimensional sheets constituted from linked metallamacrocyclic rings. All of the K2[Ru(NN)(CN)4] complexes show a reversible Ru(II)/Ru(III) couple (ca. +0.9 V vs. Ag/AgCl in water), the exception being Ru-tpy whose oxidation is completely irreversible. Luminescence studies in water showed the presence of 3MLCT-based emission in all cases apart from Ru-bpym with lifetimes of tens/hundreds of nanoseconds. Time-resolved infrared studies showed that in the 3MLCT excited state the principal C–N stretching vibration shifts to positive energy by ca. 50 cm−1 as a consequence of the transient oxidation of the metal centre to Ru(III) and the reduction in back-bonding to the cyanide ligands; measurement of transient decay rates allowed measurements of 3MLCT lifetimes for those complexes which could not be characterised by luminescence spectroscopy. A few complexes were also examined in different solvents (MeCN, dmf) and showed much weaker emission and shorter excited-state lifetimes in these solvents compared to water.


Introduction

The luminescent metal complex [Ru(bpy)(CN)4]2−,1–3 introduced by Bignozzi and co-workers in 1986,3 has received much less attention than [Ru(bpy)3]2+ as a component of polynuclear assemblies in the general field of supramolecular photochemistry, despite its many desirable properties. Like [Ru(bpy)3]2+ and related complexes,4 it is luminescent from a relatively long-lived Ru → bpy 3MLCT excited state, which is capable of effecting photoinduced energy- or electron-transfer to appropriate quenching molecules. There are however three significant properties of the [Ru(bpy)(CN)4]2− unit which are of particular additional value but have been scarcely exploited.

Firstly, the strong solvatochromism of [Ru(bpy)(CN)4]2−, which arises from interaction of the externally-directed electron lone pairs on the cyanide ligands, means that its 3MLCT energy and its ground and excited state redox potentials are highly solvent dependent; for example the 3MLCT luminescence maximum varies from 640 nm in water to 818 nm in dmf, and the Ru(II)/Ru(III) redox potential varies from +0.77 V to −0.28 V (vs. ferrocene/ferrocenium) between the same solvents.1 This also applies in the solid state: Mann and co-workers showed how a crystalline salt of [Ru(bpy)(CN)4]2− could act as a humidity sensor because of its reversible colour change from purple to yellow in the presence of humidity, which is associated with water molecules forming hydrogen-bonds to the externally-directed lone pairs of the cyanide ligands.5 We6 and others7 have exploited this effect by using changes in solvent to alter the ability of [Ru(bpy)(CN)4]2− to act as an energy-donor in simple dyad molecules: changing the solvent alters the energy available to the [Ru(bpy)(CN)4]2− energy-donor unit without significantly affecting the receiving energy level on the acceptor component, so the gradient for photoinduced energy-transfer can be finely controlled.

Secondly, the cyanide ligands can act as bridging ligands to additional metal ions, allowing formation of Ru–CN–M bridged coordination oligomers and polymers by simple combination of [Ru(bpy)(CN)4]2− with other metal cations. We have recently described coordination polymers based on combination of [Ru(bpy)(CN)4]2− with lanthanide(3+) salts8,9 in which excitation of the Ru-based MLCT transition results in energy-transfer to, and sensitised luminescence from, lanthanide cations such as Yb(III), Nd(III), Er(III) and Pr(III) which have low-lying emissive levels and display sensitised near-infrared luminescence.9 Scandola and co-workers described a while ago energy-transfer between [Ru(bpy)2(CN)2] and a Cr(III)-macrocycle unit which were connected by Ru–CN–Cr bridges in a similar way.10

Thirdly, the IR-active cyanide ligands of [Ru(bpy)(CN)4]2− allow the movement of excitation energy and electrons in polynuclear complexes to be monitored by transient IR spectroscopy, since the CN vibrations are sensitive to redistribution of electron density in the complex; this technique is well known for carbonyl ligands in complexes such as [Re(bpy)(CO)3Cl] and its derivatives,11 but has been applied to luminescent cyanometallate complexes in very few cases.12

Despite these advantages, analogues and derivatives of [Ru(bpy)(CN)4]2− have been scarcely studied, beyond simple replacement of bpy by phenanthroline or addition of methyl substituents.13 This is in marked contrast to the vast number of analogues of [Ru(bpy)3]2+ that have been investigated in the last few decades.4 As part of a program of research into the photophysical properties of complexes of this type we have prepared a series of analogues in which the bpy ligand is replaced by other diimines. In the course of this work we have found that these [Ru(NN)(CN)4]2− complexes (NN is a diimine ligand) form a varied and attractive series of coordination networks with s- and f-block metal counter-ions, and the structural chemistry of these complexes is of as much interest as their photophysics. Heterometallic coordination networks based on cyanometallates have of course been of enduring interest for many years. In many cases the cyanometallate anion on which the network is based is an octahedral hexacyanometallate;14 however cyanometallates with different structures such as octadentate [W(CN)8]3–/4−,15C2v-symmetric tetradentate [Fe(bpy)(CN)4] and [Fe(phen)(CN)4],16 square planar [M(CN)4]2− (M = Ni, Pd),17 and linear bidentate [M(CN)2] (M = Ag, Au)18 have also been used recently as the basis of 1-, 2- or 3-dimensional networks based on cyanide bridges spanning two different metal ions.

This paper, therefore, describes the syntheses and structural characterisation of several coordination networks based on [Ru(NN)(CN)4]2− species with either potassium or lanthanide cations. We note that structural studies on [Ru(bpy)(CN)4]2− and its relatives are almost unknown, with the only examples currently on the Cambridge Structural Database being those referred to above.5,8,9 In addition, this paper describes the solution spectroscopic, redox and photophysical properties of the new [Ru(NN)(CN)4]2− species, including time-resolved IR studies of the 3MLCT states of some members of the series.

Results and discussion

Syntheses of new diimine–tetracyanoruthenate complexes

The new complexes prepared, together with their abbreviations, are listed in Scheme 1. All were prepared in the same basic way, by reaction of the diimine ligand with potassium hexacyanoruthenate in an aqueous acidic medium followed by ion-exchange chromatography to give the complexes as their dipotassium salts. All complexes were characterised by 1H NMR spectroscopy and negative-ion electrospray mass spectrometry; elemental analyses always indicated the presence of several water molecules, as subsequently borne out by the crystallographic studies. Routine characterisation data are summarised in the Experimental section.
scheme, filename = b509042c-s1.gif
Scheme 1

Of the complexes, Ru-bpy and Ru-phen are already known.1,13Ru-pypz, Ru-dmb and Ru-PBE are simple analogues of [Ru(bpy)(CN)4]2− but based on different diimine ligands available from the literature.19,20Ru-bpym was prepared to see how the presence of a vacant bipyrimidine-based coordination site, in addition to the cyanide-based coordination sites, would alter the structural properties. Ru-terpy was the unexpected result of an attempt to prepare [Ru(terpy)(CN)3], a known compound21 but whose synthesis requires the use of potassium cyanide. We were interested to see if a more user-friendly synthesis could be achieved from hexacyanoruthenate and terpyridine; however this yielded Ru-terpy in which the NMR spectrum clearly showed that the terpyridine was asymmetrically coordinated as a bidentate ligand, with all 11 protons inequivalent—something which terpyridine is known to do in other complexes.22 Under the conditions of the reaction we found no evidence for formation of [Ru(terpy)(CN)3] by this route.

Structures of potassium salts

The complex K2[Ru(phen)(CN)4] is known13 but has not previously been structurally characterised; the structure of K2[Ru(phen)(CN)4]·4H2O turns out to show some interesting features. The complex anion itself has an unremarkable pseudo-octahedral geometry, as it does an all of the structures reported in this paper, with typical Ru–N and Ru–C bond distances. Each of the potassium cations is coordinated in a side-on manner by a pair of cis-related cyanide ligands from the [Ru(phen)(CN)4]2− unit (Fig. 1); the K–N and K–C separations in this interaction average 3.01 and 3.08 Å respectively, with C–K–N angles being 21.9° (Fig. 1). This type of interaction between cyanides and alkali metal ions has recently been observed by Rauchfuss et al. in numerous cyanometallate cages, where bridging cyanides along the edges of a cage are also interacting in a side-on manner with an alkali metal cation trapped in the centre of the cavity, and is presumably a weak electrostatic interaction.23 Gokel has demonstrated similar side-on interactions between alkene/alkyne units and alkali metal cations,24 and we recently observed it in complexes of [Ru(bpy)(CN)4]2− such as [{Ru(bpy)(CN)4}2{Ln(H2O)m}{K(H2O)n}]·xH2O (Ln = Pr, Er, Yb).8 In K2[Ru(phen)(CN)4] the K–C and K–N separations are comparable to those observed in the few other examples of K+ cyanide23/alkyne24 complexes of this type. The K+ ions are also coordinated by two [K(2)] or three [K(3)] water molecules, as well as the N atoms from two ‘end-on’ cyanides. Thus, K(2) is coordinated by two side-on cyanides, two water molecules, and two additional cyanide ligands via the N atoms only; K(3) is similar but with an additional water molecule. It is notable that two of the cyanide ligands (the ones in the same plane as the phenanthroline ligand) have an extensively bridging coordination mode, being C-bound to the Ru atom, CN side-on bound to a K+ ion, and having the N-terminal lone pair shared between an additional two K+ ions. This bridging behaviour of the cyanide ligands, as well as bridging of K+ ions by water molecules [O(101) and O(103)], results in formation of a one-dimensional polymeric chain which propagates along the crystallographic c axis (Fig. 2).
ORTEP diagram of the asymmetric unit of K2[Ru(phen)(CN)4]·4H2O, with some additional symmetry-equivalent atoms included to complete the coordination spheres around the metal atoms.
Fig. 1 ORTEP diagram of the asymmetric unit of K2[Ru(phen)(CN)4]·4H2O, with some additional symmetry-equivalent atoms included to complete the coordination spheres around the metal atoms.

View of the coordination chain in K2[Ru(phen)(CN)4]·4H2O (Ru = brown; K = purple; N = blue, O = red, C = black).
Fig. 2 View of the coordination chain in K2[Ru(phen)(CN)4]·4H2O (Ru = brown; K = purple; N = blue, O = red, C = black).

K2[Ru(bpym)(CN)4]·3H2O has an entirely different structure. The [Ru(bpym)(CN)4]2− complex anion has a K+ cation occupying the second NN-chelating site of the bipyrimidine ligand. This atom [K(2)] is further coordinated by three water molecules, all of which are involved in bridging interactions to other K+ ions, and the N atoms of two cyanide ligands from separate [Ru(bpym)(CN)4]2− complex anions (Fig. 3). The coordination geometry about K(2) is approximately pentagonal bipyramidal, with N(8C) and O(3) being the axial ligands [N–K–O angle, 172.7°] and the sum of the five angles in the plane being 360.2°. K(1) in contrast is coordinated in a side-on manner by five cyanide ligands from two different [Ru(bpym)(CN)4]2− complex anions, in addition to three water molecules (which are all involved in bridging to another K+ ion). These interactions are slightly longer than in the structure of K2[Ru(phen)(CN)4], with the K–N and K–C side-on interactions averaging 3.22 and 3.25 Å respectively; the coordination environment of K(1) is included in Fig. 3. The combination of multiply bridging cyanide ligands, as well as bridging water ligands between K+ ions, results in propagation of the structure into a three-dimensional network. This consists of 2-D sheets, as shown in Fig. 4, which are connected in the third dimension by water ligands [O(1)] which cross-link the sheets by connecting K(1) in one sheet with K(2) in the next. In addition, the bipyrimidine ligands of sheets interpenetrate such that there is an alternating π-stacking interaction between them. It is noticeable from Fig. 4 how some of the cyanide ligands can interact with four different metal ions, being C-bound to the ruthenium centre, involved in side-on binding with two different K+ ions, and also acting as a terminal N-donor ligand to a third K+ centre.


ORTEP diagram of the asymmetric unit of K2[Ru(bpym)(CN)4]·3H2O, with some additional symmetry-equivalent atoms included to complete the coordination spheres around the metal atoms.
Fig. 3 ORTEP diagram of the asymmetric unit of K2[Ru(bpym)(CN)4]·3H2O, with some additional symmetry-equivalent atoms included to complete the coordination spheres around the metal atoms.

View of the two-dimensional sheet structure of K2[Ru(bpym)(CN)4]·3H2O (Ru = brown;, K = purple; N = blue, O = red, C = black).
Fig. 4 View of the two-dimensional sheet structure of K2[Ru(bpym)(CN)4]·3H2O (Ru = brown;, K = purple; N = blue, O = red, C = black).

The structure of K2[Ru(κ2-terpy)(CN)4]·MeOH·0.5H2O, in which the terpy ligand is bidentate, is likewise dominated by side-on cyanide⋯K+ interactions (Fig. 5, 6). K(2) is coordinated in this manner by two cyanide ligands from each of two {Ru(CN)4}2− units, with average K⋯C and K⋯N distances of 3.18 and 2.96 Å respectively; it also has one coordinated methanol ligand and a pyridyl ligand, which is the pendant 2-pyridyl group from a terpyridine whose other two donors are coordinated to ruthenium. K(1) in contrast is coordinated by two O atoms from (bridging) methanol ligands and the N atoms from three end-on cyanide ligands (Fig. 5). The combination of the bridging interactions involving cyanide and methanol ligands results in formation of a two-dimensional network. This is made up from 1-D chains which are based on alternating [Ru(terpy)(CN)4]2− and K(2) units, which are disposed such that the Ru⋯K⋯Ru⋯K sequence forms a zig-zag chain (Fig. 6) which is held together principally by the side-on cyanide⋯K(2) bonding interactions. These chains are linked side-by-side to make a two-dimensional sheet by the K(1) centres which interact with the externally-directed O and N(cyanide) donors, as shown in Fig. 5. As with the other two structures of potassium salts, the cyanide bridges are both simultaneously side-on coordinated and terminally coordinated to different K+ ions.

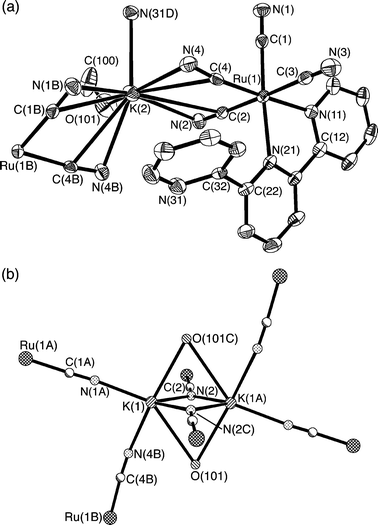

(a) ORTEP diagram of part of the asymmetric unit of K2[Ru(κ2-terpy)(CN)4]·MeOH·0.5H2O, emphasising the interaction of the cyanoruthenate anions with K(2)
						via side-on π-type cyanide coordination to K(2); (b) diagram of the coordination environment around K(1).
Fig. 5 (a) ORTEP diagram of part of the asymmetric unit of K2[Ru(κ2-terpy)(CN)4]·MeOH·0.5H2O, emphasising the interaction of the cyanoruthenate anions with K(2) via side-on π-type cyanide coordination to K(2); (b) diagram of the coordination environment around K(1).

View of the one-dimensional coordination network K2[Ru(κ2-terpy)(CN)4]·MeOH·0.5H2O formed by interaction of the cyanoruthenate anion with K(2); these chains are connected side-by-side by bridging cyanide interactions with K(1)
						(as in Fig. 5a)
						(Ru = brown; K = purple; N = blue, O = red, C = black).
Fig. 6 View of the one-dimensional coordination network K2[Ru(κ2-terpy)(CN)4]·MeOH·0.5H2O formed by interaction of the cyanoruthenate anion with K(2); these chains are connected side-by-side by bridging cyanide interactions with K(1) (as in Fig. 5a) (Ru = brown; K = purple; N = blue, O = red, C = black).

Structures of lanthanide salts

Slow evaporation of aqueous solutions containing the potassium salts of the [Ru(diimine)(CN)4]2− units and a lanthnide nitrate afforded, in some cases, new coordination networks based on Ru–CN–Ln bridges, of which three have been structurally characterised.

The crystal structure of KEr[Ru(PBE)(CN)4]2·10H2O (Fig. 7, 8) shows a combination of the side-on cyanide⋯K+ interactions seen in the earlier structures, as well as terminal Ru–CN–Er bridges. The structure is a one-dimensional chain consisting of Ru2Er2(μ-CN)4 diamonds in which the Er centres are shared between successive diamonds (Fig. 7). Each Er(III) centre is 8-coordinate, from four cyanide N atoms and four water ligands. The situation is more complex than is apparent from Fig. 7 because two of the water ligands [O(3), O(7)] are disordered over two sites with 50% occupancy in each; only one component of the disorder is shown in the figure. The Er–N and Er–O distances average 2.37 and 2.42 Å respectively, and the Ru⋯Er separations across the cyanide bridges are 5.417 and 5.498 Å. Given the disorder in the coordination sphere of Er(1) a description of its coordination geometry is inappropriate. The propensity of the K+ ions to become involved in side-on interactions with cyanide ligands is demonstrated by the environment of K(1) (Fig. 8). These ions are located above and below the Ru2Er2(μ-CN)4 diamonds, with 50% occupancy in each site, such that they interact approximately equally with all four cyanide ligands in the diamond; the average K–C and K–N distances are 3.22 and 3.10 Å. Each K+ ion also has a terminal water ligand [O(4); K(1)–O(4), 2.39 Å] and two additional water molecules [O(3) and O(7); 50% site occupancy each; K–O separations 2.90 Å] which are bridging to Er(1).


View of the one-dimensional diamondoid chain of KEr[Ru(PBE)(CN)4]2·10H2O, with potassium atoms omitted for clarity (Ru = brown, Er = green; N = blue, O = red, C = black).
Fig. 7 View of the one-dimensional diamondoid chain of KEr[Ru(PBE)(CN)4]2·10H2O, with potassium atoms omitted for clarity (Ru = brown, Er = green; N = blue, O = red, C = black).

A view of part of the structure of KEr[Ru(PBE)(CN)4]2·10H2O illustrating the disorder of the potassium atom and its associated water ligands (Ru = brown, Er = green; K = purple; N = blue, O = red, C = black).
Fig. 8 A view of part of the structure of KEr[Ru(PBE)(CN)4]2·10H2O illustrating the disorder of the potassium atom and its associated water ligands (Ru = brown, Er = green; K = purple; N = blue, O = red, C = black).

The structure of KEu[Ru(pypz)(CN)4]2·10.5H2O (Fig. 9, 10) is quite different from this [and from the earlier-described complexes of [Ru(bpy)(CN)4]2− with lanthanide cations].8 It is a remarkably elaborate structure whose two main structural motifs are shown in Fig. 9 and 10. The tetracyanoruthenate anions and Eu(III) cations form a 24-membered ring based on four of each unit linked in a {Ru–CN–Eu–NC–}4 cyclic sequence. Pendant from each Eu vertex is an additional [Ru(pypz)(CN)4]2− unit which is connected to the Eu(III) by a single cyanide bridge. Accordingly, the [Ru(pypz)(CN)4]2− units in the ring [based on Ru(2) and Ru(3)] have two cyanides involved in bridging interactions to adjacent Eu(III) sites, whereas the ‘exocyclic’ [Ru(pypz)(CN)4]2− units [based on Ru(1) and Ru(4)] have only one cyanide involved in bridging to Eu(III). Each Eu(III) centre is accordingly eight-coordinate, from three bridging cyanides (two within the macro-ring and one from outside it) and five water ligands. The Ru⋯Eu separations across the cyanide bridges are in the range 5.32–5.58 Å. These rings are associated by cyanide bridging interactions to the K+ ions, as shown in Fig. 10, which illustrates how four [Ru(pypz)(CN)4]2− units, each from a different Ru–Eu ring, are associated by a combination of end-on Ru–CN–K+ and side-on cyanide/K+ interactions. K(1) is coordinated by four cyanides in a side-on manner, as well as one end-on cyanide [N(28)] and one water molecule [O(11)]. K(2) has three side-on cyanides, two of which are ‘end-on’ (although the C–N–K angles are far from linear) and two water molecules.


A view of the large metallamacrocyclic ring in KEu[Ru(pypz)(CN)4]·10.5H2O, showing only the Ru and Eu atoms and the bridging cyanide ligands and the terminal water ligands (Ru = brown, Eu = green; N = blue, O = red, C = black).
Fig. 9 A view of the large metallamacrocyclic ring in KEu[Ru(pypz)(CN)4]·10.5H2O, showing only the Ru and Eu atoms and the bridging cyanide ligands and the terminal water ligands (Ru = brown, Eu = green; N = blue, O = red, C = black).

A view of part of the lattice of KEu[Ru(pypz)(CN)4]·10.5H2O showing how four cyanoruthenate units which are ‘spokes’ from the Ru4Eu4 rings (see Fig. 9) are connected by a combination of end-on and side-on cyanide coordination to K+ ions (Ru = brown, Eu = green; K = purple; N = blue, O = red, C = black).
Fig. 10 A view of part of the lattice of KEu[Ru(pypz)(CN)4]·10.5H2O showing how four cyanoruthenate units which are ‘spokes’ from the Ru4Eu4 rings (see Fig. 9) are connected by a combination of end-on and side-on cyanide coordination to K+ ions (Ru = brown, Eu = green; K = purple; N = blue, O = red, C = black).

In complete contrast, the structure of [Eu(NO3)(H2O)5][Ru(bpym)(CN)4] is a relatively simple one-dimensional helical chain (Fig. 11, 12). In this case there is a 1 : 1 ratio of Eu(III) and [Ru(bpym)(CN)4]2− centres, with charge balance being provided by a nitrate ion attached to Eu(III). The Eu(III) centres are 9-coordinate from five water ligands, a bidentate nitrate [although one Eu–O bond from the nitrate is considerably longer than the other: Eu(2)–O(5), 2.477 Å; Eu(2)–O(6), 2.774 Å] and two N-donor cyanide ligands, each from a separate [Ru(bpym)(CN)4]2− unit. The inset to Fig. 12 shows how the ⋯Ru–CN–Eu–NC–Ru⋯ sequence forms a spiral, with a pitch of 12.45 Å. The space group is chiral (Pna21) so this complex has spontaneously resolved on crystallisation to give optically pure individual crystals.

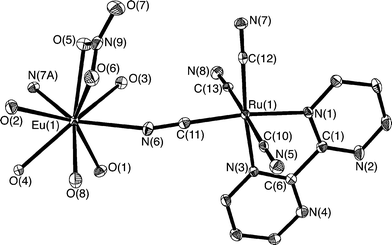

ORTEP diagram of the asymmetric unit of [Eu(NO3)(H2O)5][Ru(bpym)(CN)4], with some additional symmetry-equivalent atoms included to complete the coordination spheres around the metal atoms.
Fig. 11 ORTEP diagram of the asymmetric unit of [Eu(NO3)(H2O)5][Ru(bpym)(CN)4], with some additional symmetry-equivalent atoms included to complete the coordination spheres around the metal atoms.

Two views of [Eu(NO3)(H2O)5][Ru(bpym)(CN)4] illustrating formation of a one-dimensional helical coordination polymer; the top view shows all atoms, whereas the lower shows only Ru, Eu and the bridging cyanide ligands (Ru = brown, Eu = green; N = blue, O = red, C = black).
Fig. 12 Two views of [Eu(NO3)(H2O)5][Ru(bpym)(CN)4] illustrating formation of a one-dimensional helical coordination polymer; the top view shows all atoms, whereas the lower shows only Ru, Eu and the bridging cyanide ligands (Ru = brown, Eu = green; N = blue, O = red, C = black).

Electrochemistry

Cyclic voltammetric studies of the potassium salts of the cyanoruthenate complexes in water showed that all but one of the complexes show a reversible, one-electron process. By analogy with the known behaviour of [Ru(bpy)(CN)4]2−,1 we assign this as a metal-centred Ru(II)/Ru(III) couple; with our experimental setup the Ru(II)/Ru(III) couple of [Ru(bpy)(CN)4]2− occurs at +0.89 V vs. Ag/AgCl, close to the values for the new complexes. The redox potentials are listed in Table 1. In most cases the process is reversible (peak–peak separation 60–80 mV, equal cathodic and anodic peak currents, peak current proportional to square root of scan rate) on the voltammetric timescale. For Ru-tpy however the process is completely irreversible with no return wave. A possible explanation for this is that following oxidation the pendant pyridyl group displaces a cyanide ligand and becomes coordinated to the metal centre; there is no other apparent reason why this alone of all the complexes should show irreversible behaviour on oxidation. The strong π-accepting effects of 2,2′-bipyrimidine are apparent, with the Ru(II)/Ru(III) redox potential being at a more positive potential (+1.05 V vs. Ag/AgCl) than all the others (+0.7 to +0.89 V) because the metal centre is more electron-deficient.
Table 1 UV/Vis spectroscopic and photophysical data for the new complexes, measured in D2O except where stated otherwise
Complex UV/Vis absorptions λmax/nm (10−3ε/M−1 cm−1) λ em/nm τ/ns Φ E d/V
a Figures in square brackets refer to measurements made in MeCN; extinction coefficients of absorption spectra not measured due to poor solubility. b Lifetime determined from transient IR spectra rather than luminescence as luminescence in solution was very weak. c Figures in square brackets refer to measurements made in dmf from transient IR spectra. d Redox potential for Ru(II)/Ru(III) couple in water/0.1 M KCl. For comparison the known complexes [Ru(bpy)(CN)4]2− and [Ru(phen)(CN)4]2− have redox potentials (measured with the same experimental setup) of +0.89 and +0.88 V vs. Ag/AgCl. e Irreversible (no return wave); the quoted potential is the peak potential on the outward sweep. f Reversibility difficult to judge as this process is very close to the rapidly-rising background associated with the solvent cutoff.
Ru-dmb 261 (9.6), 291 (15), 393 (2.1) [372, 514]a 621 [758]a 370 [36]a 0.03 [0.002]a +0.85
Ru-tpy 296 (22), 411 (2.7) 647 106 0.025 +0.70e
Ru-bpym 342 (5.8), 437 (2.2) [415, 575]a 3.4b[0.25]a,b +1.05f
Ru-PBE 242 (15), 313 (17), 404 (3.6) 665 471 [4.5]c 0.007 +0.79
Ru-pypz 229 (23), 272 (20), 353 (6.9) 554 17 0.001 +0.83


The expected ligand-centred reductions were not accessible within the limits of the potential window provided by water as solvent.

Absorption and luminescence properties

In aqueous solution all of the complexes (as their potassium salts) display a band attributed to a Ru → diimine MLCT transition in the region around 400 nm (Table 1). For Ru-bpym, uniquely in the series, there are two clearly-resolved transitions in water, at 342 and 438 nm. In two cases the complexes were also slightly soluble in MeCN, and in these cases comparison with the spectra recorded in water shows the strong solvatochromic behaviour,1 with the 1MLCT absorption resolved into two components of which one moves to much lower energy. Thus, for example, in Ru-dmb the MLCT absorption maximum in water occurs at 393 nm, whereas in MeCN there are two clearly-resolved transitions at 372 and 514 nm. For Ru-bpym the two transitions apparent in water (342, 437 nm) are both red-shifted to 415 and 575 nm respectively in MeCN.

In every case, in D2O solution, excitation into the 1MLCT absorption results in luminescence in the range 550–670 nm which is believed to originate from the 3MLCT excited state. Kovács and Horváth recently showed that using D2O as solvent afforded considerably longer-lived luminescence from complexes of this type than H2O due to attenuation of non-radiative decay pathways in D2O, a consequence of hydrogen-bond formation with the cyanide lone pairs.13 In addition to examining all of the new complexes, for comparison purposes we also re-measured the properties of Ru-bpy and Ru-phen and found a satisfactory agreement between our measurements and those published previously.1,13 A few effects are worth pointing out.

Firstly, for Ru-tpy the 1MLCT absorption and 3MLCT luminescence are red-shifted compared to Ru-bpy, despite the donor set being nominally identical. This we ascribe to the long bond Ru(1)–N(8) [2.190(5) Å], involving the central ring of the terpyridyl ligand, which is lengthened by virtue of having a sterically bulky group—the pendant pyridyl residue—at its C2 position, ortho to the site of coordination. Lengthening this bond will weaken the ligand field of the coordinated bipyridyl fragment compared to normal un-encumbered bpy (Ru–N separation ca. 2.10 Å), which will slightly raise the d(π) orbital set and hence reduce the MLCT absorption and emission energies. This phenomenon has been observed in derivatives of [Ru(bpy)3]2+ in which the bpy ligands have a bulky substituent at the C2/C6 position.25

Secondly, variation in the nature of the diimine ligand results in significant changes to the 1MLCT absorption and 3MLCT luminescence energies for electronic reasons. The highest-energy absorption and luminescence in the series come from Ru-pypz (luminescence in water at 554 nm), implying that the pypz ligand has a higher-energy LUMO than the other diimines. [The alternative possible explanation, that the d(π) orbitals are lower in energy than in the other complexes, is not borne out by the electrochemical studies, as the Ru(II)/Ru(III) couple is not at an unusually positive potential compared to the other complexes]. This is also borne out by the short luminescence lifetime (17 ns) which is a consequence of the high-lying 3MLCT state being close in energy to the metal-centred d–d state, which would provide a facile thermally-activated route for radiationless deactivation. Despite the relatively short luminescence lifetime, the high 3MLCT energy of Ru-pypz will make it of particular value as an energy-donor in polynuclear assemblies.26

Thirdly, the luminescence of Ru-bpym is too weak to allow the excited-state lifetime to be measured by luminescence methods. Replacement of bpy by bipyrimidine has been shown in other complexes to result in much weaker, shorter-lived emission: for example [Re(bpy)(CO)3Cl] has λem = 642 nm, τ = 39 ns and ϕ = 3 × 10−3 (2-methyl-thf, fluid solution)27 whereas [Re(bpym)(CO)3Cl] has λem = 689 nm, τ = 2.1 ns and ϕ = 10−4 (CH2Cl2, fluid solution).28 A similar effect is seen when bpy is replaced by bipyrimidine in Pt-diimine-diacetylides [Pt(NN)(CCR)2],28,29 and is a consequence of the energy-gap law; the lower energy of the 3MLCT excited state of Ru-bpym, arising from the lower energy of the bpym π* orbitals compared to bpy, means that the excited state is more efficiently quenched by molecular vibrations.

Finally, we note that for Ru-dmb, which is slightly soluble in MeCN, the emission maximum (like the lowest-energy MLCT absorption maximum) is substantially red-shifted compared to the situation in water, from 621 to 758 nm, and is much weaker—actually barely detectable—and short lived (see Table 1), in keeping with expectations based on the known solvatochromic behaviour of complexes of this type.1

Time-resolved infrared studies

All of these complexes should theoretically have four IR-active CN vibrations. In the solid state these are apparent as three closely-spaced strong peaks between about 2030 and 2060 cm−1 (sometimes not all three components are resolved), and a weaker peak at around 2090 cm−1 (see Table 2).
Table 2 Infrared spectroscopic data in the ground and excited states
Complex ν CN (ground state)a/cm−1 Main bleach in TRIRb/cm−1 Main new transient in TRIRb/cm−1 Δ/cm−1
a Solid-state spectra measured on powdered sample using diamond-ATR cell. b Figures in square brackets refer to measurements made in D2O unless stated otherwise. c Measured in MeCN.
Ru-bpy 2032(s), 2047(s), 2056(s), 2089(m) 2051 2103 52
Ru-dmb 2034(s), 2040(s), 2054(s), 2090(m) 2049 [2068]c 2095 [2104]c 46 [36]c
Ru-phen 2032(s), 2038(s), 2047(s), 2088(m) 2051 2098 47
Ru-tpy 2041(s), 2047(s), 2091(m) 2051 2100 49
Ru-bpym 2046(s), 2057(s), 2065(s), 2102(m) 2057 [2068]c 2105 [2098]c 48 [30]c
Ru-PBE 2028(s), 2044(s), 2085(m) 2048 2095 47
Ru-pypz 2028(s), 2045(s), 2052(s), 2092(m) 2050 2098 48


In aqueous solution these are not all resolved; the three closely-spaced peaks merge to give a strong peak at 2050–2060 cm−1, and a weaker one appearing as a shoulder about 20–30 cm−1 higher. Fig. 13 shows the time-resolved difference IR spectrum of Ru-bpym obtained 100 ps after 400 nm excitation into the 1MLCT absorption band. The parent ν(CN) vibrations are bleached, and weaker new bands appear at higher energy. Assuming that the most intense new transient corresponds to the most intense peak in the ground-state spectrum, there is a shift to higher energy of 52 cm−1 of this ν(CN) vibration when the complex is in the 3MLCT excited state, as a consequence of loss of electron density on the Ru centre [which is transiently oxidised to Ru(III)] and the concomitant decrease in Ru(dπ) → CN(π*) back-bonding. The weakness of the transient ν(CN) vibration compared to the ground state vibration is consistent with our previous observations12b and suggests that the dipole of the C–N bonds is reduced in the 3MLCT excited state. This is reasonable, as cyanide ligands formally have the negative charge on the C atom: transient oxidation of Ru(II) to Ru(III) will reduce the partial negative charge on the coordinated C atom and hence diminish the C–N dipoles, leading to weaker IR absorptions. The inherent weakness of the transient ν(CN) signals is exacerbated by the fact that the transient signal at ≈ 2100 cm−1 will be partially overlapping with the bleach of the weak, highest-energy ν(CN) vibration in the ground state which will reduce the apparent intensity of the transient peak still further. A consequence of this is that only the most intense ν(CN) transient peak can clearly be seen in the difference spectra.


IR difference spectrum of K2[Ru(bpym)(CN4)] in D2O obtained 100 ps after 400 nm excitation into the 1MLCT absorption manifold. Inset are kinetic traces showing decay of the transient (top) and recovery of the bleach (below) from which excited-state lifetimes were derived.
Fig. 13 IR difference spectrum of K2[Ru(bpym)(CN4)] in D2O obtained 100 ps after 400 nm excitation into the 1MLCT absorption manifold. Inset are kinetic traces showing decay of the transient (top) and recovery of the bleach (below) from which excited-state lifetimes were derived.

Analogous behaviour is shown by all of the complexes in D2O, with a shift to higher energy of the most intense ν(CN) vibration of between 46 and 52 cm−1 in the 3MLCT excited state, as shown by a bleach of the ground-state vibrations and appearance of a much weaker transient peak at higher energy (Table 2). These values are the same within the limits of accuracy of the experiment, given a combination of 4 cm−1 resolution for the spectra and the low intensity of the transients. The fast timescale of this technique allowed us to determine accurately the lifetime of Ru-bpym, which could not be determined by luminescence methods as the luminescence was too weak and short-lived. Fig. 13 shows the IR difference spectrum for this complex and the kinetics of transient decays and parent recovery. The rates derived from these data match closely and give τ = 3.4 ns for the 3MLCT excited state in D2O.

Two of the complexes were sufficiently soluble in MeCN to allow study of the effect of changing solvent on their transient IR behaviour. Ru-dmb and Ru-bpym showed similar difference spectra shortly (picoseconds) after excitation to those seen in water, with the exception that the shift to higher energy of the main ν(CN) vibration was less, being 36 cm−1 for Ru-dmb (cf. 46 cm−1 in D2O) and 30 cm−1 for Ru-bpym (cf. 48 cm−1 in D2O). This appears to be principally a consequence of the fact that the most intense ν(CN) vibration in the ground state is at higher energy in MeCN than in water [for Ru-dmb, 2068 vs. 2049 cm−1; for Ru-bpym, 2068 vs. 2057 cm−1], an effect which must arise from differences in hydrogen-bonding with the solvent. By observing transient IR spectra at a range of delays after excitation we measured the lifetime of the 3MLCT excited state of Ru-bpym in MeCN to be 250 ps, an order of magnitude shorter than the value observed in water, in keeping with the general trend expected for complexes of this series.1 Similarly, the 3MLCT lifetime of Ru-PBE plummeted from 471 ns (measured by luminescence) to 4.5 ns (measured from decay of the transients in the excited-state IR spectrum) on changing the solvent from D2O to dmf (Table 1).

Conclusions

It is clear that this small family of new analogues of [Ru(bpy)(CN)4]2− is of interest for a range of distinct reasons. The combination of their ability to form coordination networks in the solid state, their solvent-dependent photophysical properties, and the presence of the IR-active cyanide groups to monitor excited-state processes, makes this family of complexes exceptionally valuable for both the preparation and the spectroscopic characterisation of polynuclear photophysically-active assemblies.

Experimental

General details

The following compounds were prepared using previously described methods: 3-(2-pyridyl)pyrazole,19 1-ethyl-2-(2-pyridyl)benzimidazole,20 K2[Ru(bpy)(CN)4] (Ru-bpy)1 and K2[Ru(phen)(CN)4] (Ru-phen).13 Other organic ligands were purchased from Aldrich and used as received. Potassium hexacyanoruthenate trihydrate was provided on loan by Johnson Matthey plc. 1H NMR spectra were recorded on a Bruker AC 250 or Bruker AMX2 400 spectrometer, and all mass spectra (FAB and EI) on a VG AutoSpec magnetic sector instrument. IR spectra were recorded on a Perkin-Elmer Spectrum One instrument, and UV/Vis spectra on a Cary-50 spectrometer. Cyclic voltammetric measurements were performed with an Ecochimie Autolab-100 potentiostat using a conventional three-electrode configuration (Pt working and auxiliary electrodes, Ag/AgCl reference electrode); the solvent was distilled water containing 0.1 M KCl as base electrolyte. Using this system the redox potential of the [Fe(CN)6]3−/4− couple was +0.27 V.

Preparations

K2[Ru(bpym)(CN)4] (Ru-bpym). 2,2′-Bipyrimidine (0.16 g, 1 mmol) and K4[Ru(CN)6]·3H2O (0.42 g, 0.9 mmol) were added to a solution of distilled water (30 cm3) acidified with a few drops of HCl (pH = 1.3). The resulting light yellow solution was heated to reflux with stirring for 24 h and then cooled to room temperature. The resulting dark red-brown solution was neutralised with KOH and the solution was evaporated to dryness. The solid residue was dissolved in the minimum quantity of water, and MeOH was added to precipitate unreacted K4[Ru(CN)6]·3H2O which was filtered off. The residue was again evaporated to dryness, dissolved in the minimum quantity of water; addition of acetone precipitated the complex which was filtered off and washed with acetone. The product was purified by column chromatography on SEPHADEX QAE-25, eluting with aqueous KI (0.15 M). The fraction containing the light orange product was colleted and reduced in volume to 5 cm3. The complex was precipitated by the addition of acetone and further recrystallized from H2O/acetone and dried in vacuo to give an orange solid that is soluble in water, slightly soluble in MeOH and insoluble in other common organic solvents. Yield: 76%. X-Ray quality crystals were grown by slow evaporation of an aqueous solution of the complex. 1H NMR (D2O): δ (ppm) 9.45 (2H, dd; bpym H6,6′), 9.05 (2H, dd; bpym H4,4′), 7.75 (2H, t; bpym H5,5′). MS (MALDI-TOF): m/z 365 {HRu(bpym)(CN)4}, 338 {Ru(bpym)(CN)3}. Found: C, 30.4; H, 2.1; N, 23.2%. K2[Ru(bpym)(CN)4]·2H2O requires C, 30.2; H, 2.1; N, 23.5%.
K2[Ru(Me2bpy)(CN)4] (Ru-dmb). A solution of 5,5′-dimethyl-2,2′-bipyridine (120 mg, 0.65 mmol) and K4[Ru(CN)6]·3H2O (320 mg, 0.69 mmol) in aqueous MeOH (1 : 1, 50 cm3), acidified to pH 3.5 with a few drops of H2SO4, was stirred and heated to reflux under N2 for 48 h. The resulting deep yellow solution was cooled and neutralised with K2CO3. The solution was evaporated to dryness, redissolved in the minimum quantity of water, and MeOH was added to precipitate unreacted K4[RuCN)6]·3H2O which was filtered off. The yellow filtrate was again evaporated to dryness and the solid was recrystallised from water/acetone to give K2[Ru(Me2bpy)(CN)4] in 58% yield; its appearance varies between deep red and bright yellow depending on how dry it is. 1H NMR (D2O): δ (ppm) 8.97 (2H, s; pyridyl H6/H6′), 7.93 (2H, d; pyridyl H3/H3′ or H4/H4′), 7.62 (2H, d; pyridyl H4/H4′ or H3/H3′). ES MS (negative ion mode): m/z 391 {Ru(Me2bpy)(CN)4H}. Found: C, 36.3; H, 3.6; N, 16.2%. K2[Ru(Me2bpy)(CN)4]·3H2O requires C, 36.8; H, 3.5; N, 16.1%.
K2[Ru(pypz)(CN)4] (Ru-pypz). This was made in an identical manner to the preparation of Ru-dmb above, using 3-(2-pyridyl)pyrazole as the diimine ligand; the reaction mixture was refluxed for 3 days before cooling and workup. The product was isolated in 61% yield as a green powder. 1H NMR (D2O): δ (ppm) 9.04 (1H, d; pyridyl H6), 7.87 (2H, m; pyridyl H3 and H4), 7.81 (1H, d; pyrazolyl), 7.35 (1H, m; pyridyl H5), 6.96 (1H, d; pyrazolyl). ES MS (negative ion mode): m/z 352 {Ru(pypz)(CN)4H}. Found: C, 30.1; H, 2.5; N, 20.5%. K2[Ru(pypz)(CN)4]·3H2O requires: C, 29.9; H, 2.7; N, 20.3%.
K2[Ru(PBE)(CN)4] (Ru-PBE). This was made in an identical manner to the preparation of Ru-dmb above, using 1-ethyl-2-(2-pyridyl)benzimidazole as the diimine ligand; the product was isolated in 85% yield as dark orange flakes. 1H NMR (D2O): δ (ppm) 9.23 (1H, dd; pyridyl H6), 8.44 (1H, d; bn H3), 7.95 (1H, d; pyridyl H3), 7.80 (1H, t; pyridyl H4), 7.36 (3H, m; pyridyl H5 and bn H4/H6), 7.23 (1H, t; bn H5), 4.19 (2H, br q; CH2), 1.21 (3H, br t; CH3) (here ‘bn’ denotes the benzyl ring of the benzimidazolyl fragment). ES MS (negative ion mode): m/z 468 {KRu(PBE)(CN)4}, 429 {HRu(PBE)(CN)4}. Found: C, 38.3; H, 3.2; N, 16.9%. K2[Ru(PBE)(CN)4]·3.5H2O requires: C, 38.0; H, 3.5; N, 17.2%.
K2[Ru(κ2-terpy)(CN)4] (Ru-terpy). This was made in an identical manner to the preparation of Ru-dmb above, using 2,2′:6′,2″-terpyridine as the diimine ligand; the product was isolated in 52% yield as deep red flakes. 1H NMR (D2O): δ (ppm) 9.12 (1H, dd; terpy H6″), 8.50 (1H, d; terpy H6), 8.16 (1H, dd; terpy H3′), 8.11 (1H, d; terpy H3″), 7.95 (1H, d; terpy H3), 7.90 (1H, t; terpy H4′), 7.85 (1H, td; terpy H4), 7.81 (1H, td; terpy H4″), 7.46 (2H, m; terpy H5 and H5′), 7.37 (1H, dd; terpy H5″). Found: C, 40.0; H, 2.6; N, 16.8%. K2[Ru(κ2-terpy)(CN)4]·3H2O requires C, 40.0; H, 3.0; N, 17.2%.
KEu[Ru(pypz)(CN)4]·10.5H2O. Solutions of Ru-pypz (40 mg, 0.093 mmol) in water (2 cm3) and EuCl3·6H2O (17 mg, 0.046 mmol) in MeOH (2 cm3) were mixed in a sample vial; the initially-generated precipitate of KCl was filtered off. Slow evaporation of the residual solution over several weeks afforded green single crystals of KEu[Ru(pypz)(CN)4]·10.5H2O in 26% yield (13 mg). The yield was not optimised as we had found in earlier studies that allowing such solutions to evaporate too near to dryness resulted in a mixture of crystalline materials.8 Found: C, 26.7; H, 3.3; N, 18.1%. KEu[Ru(pypz)(CN)4]·10.5H2O requires: C, 26.7; H, 2.9; N, 18.1%.
KEr[Ru(PBE)(CN)4]2·10H2O. Solutions of Ru-PBE (40 mg, 0.072 mmol) in water (2 cm3) and ErCl3·6H2O (13.7 mg, 0.036 mmol) in MeOH (2 cm3) were mixed in a sample vial; the initially-generated precipitate of KCl was filtered off. Slow evaporation of the residual solution over several weeks afforded orange single crystals of KEr[Ru(PBE)(CN)4]2·10H2O in 22% yield (10 mg). The yield was not optimised as we had found in earlier studies that allowing such solutions to evaporate too near to dryness resulted in a mixture of crystalline materials.8 Found: C, 36.5; H, 3.4; N, 16.3%. KEr[Ru(PBE)(CN)4]2·7H2O requires: C, 36.4; H, 3.4; N, 16.5%. The crystals lost solvent rapidly after removal from the mother liquor as is clear from the elemental analysis (≈ 7 H2O present in the isolated crystals after drying compared to 10 in the crystal structure).
[Eu(NO3)(H2O)5][Ru(bpym)(CN)4]. Solutions of Ru-bpym (0.020 g, 40 µmol) in water (1 cm3) and Eu(NO3)3·6H2O (0.086 g, 0.25 mmol) in water (2 cm3) were mixed to give a deep orange solution which was stirred for 10 min. Slow evaporation of the solution afforded orange platelike crystals suitable for X-ray diffraction which were filtered off and washed with methanol. Yield: 77%. Found: C, 21.4; H, 2.1; N, 18.5%. Required for [Eu(NO3)(H2O)5][Ru(bpym)(CN)4]: C, 21.6; H, 2.4; N, 18.9%.

Luminescence measurements

Emission measurements were performed on an Edinburgh Instruments FLS920 combined fluorescence lifetime and steady state spectrometer. The optical density was adjusted to ca. 0.2–0.5 at the excitation wavelength. Steady state emission and excitation spectra were obtained with a xenon arc lamp as the excitation source and were corrected for detector sensitivity. Lifetimes were determined using the time-correlated single photon counting method with a hydrogen lamp as the excitation source. Emission quantum yields, Φem, were determined using a solution of [Ru(bpy)3]Cl2 in D2O as the emission standard.

Time-resolved infrared spectroscopy

TRIR experiments were carried out using the PIRATE apparatus at the Central Laser Facility of the CCLRC Rutherford Appleton Laboratory. This apparatus has been described in detail previously.30 Part of the output from a 1 kHz, 800 nm, 150 fs, 2 mJ Ti-sapphire oscillator/regenerative amplifier (Spectra Physics Tsunami/Spitfire) was used to pump a white light continuum seeded β-BaB2O4 (BBO) optical parametric amplifier (OPA). The signal and idler produced by this OPA were difference frequency mixed in a type I AgGaS2 crystal to generate tuneable mid-infrared pulses (ca. 150 cm−1 FWHM, 1 µJ), which were split to give probe and reference pulses. Second harmonic generation of the residual 800 nm light provided 400 nm pump pulses. Both the pump and probe pulses were focused to a diameter of 200–300 µm in the sample. Changes in infrared absorption at various pump–probe time delays were recorded by normalising the outputs from a pair of 64-element MCT infrared linear array detectors on a shot-by-shot basis.

X-Ray crystallography

X-Ray crystallographic data are summarised in Tables 3–9. For each compound a suitable crystal was coated with hydrocarbon oil and attached to the tip of a glass fibre and transferred to Bruker-SMART diffractometer with an Oxford Cryosystems low temperature system. Data were collected using graphite-monochromated Mo-Kα radiation, λ = 0.71073 Å. The data were corrected for Lorentz and polarisation effects. Absorption corrections were applied in each case using SADABS,31 and structure solution and refinement was carried out using SHELXS-97 and SHELXL-97 respectively.32,33 The structures were solved by direct methods or heavy atom Patterson methods and refined by full matrix least squares methods on F2. Hydrogen atoms were placed geometrically and refined with a riding model and with Uiso constrained to be 1.2 (1.5 for methyl groups) times Ueq of the carrier atom. All non-hydrogen atoms were refined anisotropically. The only structural determination that presented any problems was KEr[Ru(PBE)(CN)4]2·10H2O, for which the crystals were thin and poorly-diffracting plates and which also suffered from extensive disorder. The K+ ion K(1), which lies in a general position, has only 50% site occupancy such that it is effectively disordered above and below the diamondoid Ru–CN–Er chain; this is shown in more detail in Fig. 8. Accordingly the water molecules coordinated to K(1) [O(3), O(4), O(7)], and some of the lattice water molecules [O(2), O(5), O(6), O(8), O(9)] likewise have only 50% site occupancy. The final R1 value of 9.15% reflects these problems but the gross structure of the diamondoid chain is perfectly clear.

CCDC reference numbers 276244–276249.

See http://dx.doi.org/10.1039/b509042c for crystallographic data in CIF or other electronic format.

Table 3 Bond distances to the K+ ions in K2[Ru(phen)(CN)4]·4H2Oa,b
a The bond lengths and angles around the Ru(II) centre unit are unremarkable [Ru–C, 1.98–2.06 Å; Ru–N, 2.10–2.11 Å]. b Symmetry operations for generating equivalent atoms: A: x, −y + 1, z − 1/2. B: x, −y + 1, z + 1/2. C: x, y, z + 1.
K(2)–O(103) 2.716(8) K(3)–N(6C) 2.775(11)
K(2)–O(103B) 2.751 (8) K(3)–N(6B) 2.788(13)
K(2)–N(5A) 2.791(11) K(3)–N(3) 3.017(14)
K(2)–N(5) 2.908(13) K(3)–N(5) 3.029(12)
K(2)–N(6B) 2.983(13) K(3)–C(13) 3.077(14)
K(2)–N(2B) 3.005(13) K(3)–C(15) 3.133(15)
K(2)–C(16B) 3.046(16) K(3)–O(100) 3.229(7)
K(2)–C(14B) 3.073(14) K(3)–O(101B) 3.025(9)
K(2)⋯K(3A) 4.367(6) K(3)–O(101) 2.714(8)
K(2)⋯K(2A) 3.968(4) K(3)⋯K(3A) 3.923(4)


Table 4 Bond distances to the K+ ions in K2[Ru(bpym)(CN)4]·3H2Oa,b
a The bond lengths and angles around the Ru(II) centre unit are unremarkable [Ru–C, 1.98–2.05 Å; Ru–N, 2.11 Å]. b Symmetry operations for generating equivalent atoms: A: −x + 1, y − 1/2, −z + 3/2. B: x, −y + 3/2, z + 1/2. C: −x + 1, −y + 2, −z + 2. D: −x + 1, y + 1/2, −z + 3/2. E: −x + 2, −y + 2, −z + 2.
K(2)–O(3) 2.673(2) K(2)–O(1E) 2.914(2)
K(2)–O(2) 2.741(2) K(2)–N(2) 2.919(2)
K(2)–N(8C) 2.776(3) K(2)–N(3) 2.941(2)
K(2)–N(7D) 2.880(2)
K(1)–O(1) 3.235(2) K(1)–C(12) 3.214(3)
K(1)–O(3A) 2.727(2) K(1)–N(8) 3.320(3)
K(1)–O(2A) 2.910(2) K(1)–C(9B) 3.418(3)
K(1)–C(11B) 3.232(3) K(1)–N(5B) 3.277(2)
K(1)–N(7B) 2.938(3) K(1)–C(11) 3.284(3)
K(1)–C(10) 3.116(3) K(1)–N(7) 3.443(3)
K(1)–N(6) 3.133(3)
K(2)⋯K(1D) 4.0473(9) K(2)⋯K(1C) 4.2049(9)


Table 5 Bond distances in [Ru(κ2-terpy)(CN)4]·MeOH·0.5H2Oa
a Symmetry operations for generating equivalent atoms: A: x, y + 1, z. B: −x, y + 1/2, −z + 1/2. C: −x + 1/2, −y + 3/2, −z + 1/2. D: −x, y − 1/2, −z + 1/2.
Ru(1)–C(1) 1.970(7) Ru(1)–C(3) 2.057(7)
Ru(1)–C(4) 1.977(6) Ru(1)–N(11) 2.105(5)
Ru(1)–C(2) 2.045(7) Ru(1)–N(21) 2.190(5)
K(1)–N(1A) 2.681(6) K(1)–N(2C) 2.895(5)
K(1)–N(4B) 2.769(5) K(1)–O(101C) 3.176(8)
K(1)–N(2) 2.827(6) K(1)–O(101) 3.395(8)
K(2)–N(4) 2.866(6) K(2)–C(1B) 3.086(6)
K(2)–N(31D) 2.881(6) K(2)–C(4) 3.134(6)
K(2)–N(4B) 2.908(6) K(2)–N(2) 3.144(5)
K(2)–N(1B) 2.943(6) K(2)–C(4B) 3.168(6)
K(2)–O(101) 2.948(7) K(2)–C(2) 3.330(6)
K(1)⋯K(2) 4.238(2) K(1)⋯K(2C) 4.934(2)
K(1)⋯K(2B) 4.254(2) K(1)⋯K(1C) 3.454(3)


Table 6 Bond distances in KEr[Ru(PBE)(CN)4]2·10H2Oa,b
a Bond distances around K+ are not quoted due to extensive disorder involving both the K+ ions themselves and some of the coordinated water ligands. b Symmetry operations for generating equivalent atoms (A): −x, 1 − y, −z. c 50% site occupancy.
Ru(2)–C(13) 1.94(2) Ru(2)–C(7) 1.964(17)
Ru(2)–C(10) 1.93(2) Ru(2)–N(2) 2.104(12)
Ru(2)–C(14) 1.95(2) Ru(2)–N(8) 2.129(14)
Er(1)–N(4) 2.365(12) Er(1)–O(3)c 2.44(3)
Er(1)–N(6A) 2.370(18) Er(1)–O(7)c 2.51(3)
Er(1)–O(1) 2.374(12)


Table 7 Bond distances in KEu[Ru(pypz)(CN)4]·10.5H2Oa
a Symmetry operations for generating equivalent atoms: A 1 − x, 1 − y, 1 − z. B 1 − x, 1 − y, −z. C 1 − x, −y, −z. D x, −1 + y, z.
Eu(1)–O(4) 2.363(4) Eu(2)–O(10) 2.351(4)
Eu(1)–O(1) 2.382(4) Eu(2)–O(9) 2.359(4)
Eu(1)–O(3) 2.431(4) Eu(2)–O(7) 2.390(4)
Eu(1)–O(2) 2.432(4) Eu(2)–O(6) 2.473(4)
Eu(1)–O(5) 2.448(4) Eu(2)–O(8) 2.495(4)
Eu(1)–N(7) 2.467(5) Eu(2)–N(14) 2.496(4)
Eu(1)–N(21) 2.507(4) Eu(2)–N(20) 2.498(4)
Eu(1)–N(13A) 2.511(4) Eu(2)–N(27) 2.499(4)
Ru(1)–C(11) 1.966(5) Ru(3)–C(35) 1.969(5)
Ru(1)–C(12) 1.977(5) Ru(3)–C(36) 1.980(5)
Ru(1)–C(10) 2.034(5) Ru(3)–C(34) 2.036(5)
Ru(1)–C(9) 2.035(5) Ru(3)–C(33) 2.043(5)
Ru(1)–N(3) 2.112(4) Ru(3)–N(17) 2.107(4)
Ru(1)–N(1) 2.146(4) Ru(3)–N(15) 2.150(4)
Ru(2)–C(23) 1.973(5) Ru(4)–C(48) 1.968(5)
Ru(2)–C(24) 1.974(5) Ru(4)–C(47) 1.981(5)
Ru(2)–C(22) 2.019(5) Ru(4)–C(45) 2.022(5)
Ru(2)–C(21) 2.038(5) Ru(4)–C(46) 2.033(5)
Ru(2)–N(10) 2.114(4) Ru(4)–N(24) 2.115(4)
Ru(2)–N(8) 2.149(4) Ru(4)–N(22) 2.145(4)
K(1)–N(28C) 2.827(5) K(2)–N(6) 2.986(5)
K(1)–N(4D) 2.981(5) K(2)–N(19) 3.408(5)
K(1)–N(6D) 3.107(5) K(2)–N(21) 3.371(4)
K(1)–N(11) 3.141(5) K(2)–N(26B) 3.155(5)
K(1)–N(13) 3.025(5) K(2)–N(27B) 3.263(5)
K(1)–C(23) 3.193(5) K(2)–C(48B) 3.318(5)
K(1)–C(9D) 3.276(5) K(2)–C(46B) 3.322(5)
K(1)–C(21) 3.327(5) K(2)–C(11) 3.372(5)
K(1)–C(11D) 3.329(5) K(2)–O(12) 2.808(5)
K(1)–O(11) 2.733(5) K(2)–O(13) 2.730(5)


Table 8 Bond distances in [Eu(NO3)(H2O)5][Ru(bpym)(CN)4]a
a Symmetry transformations used to generate equivalent atoms: A: 1 − x, 2 − y, 1/2 + z.
Ru(1)–C(11) 1.968(4) Ru(1)–C(13) 2.052(4)
Ru(1)–C(12) 1.982(4) Ru(1)–N(1) 2.116(3)
Ru(1)–C(10) 2.037(4) Ru(1)–N(3) 2.117(3)
Eu(2)–O(2) 2.375(3) Eu(2)–O(5) 2.479(3)
Eu(2)–O(8) 2.407(3) Eu(2)–N(7A) 2.494(3)
Eu(2)–O(1) 2.438(3) Eu(2)–O(3) 2.577(3)
Eu(2)–O(4) 2.444(2) Eu(2)–O(6) 2.774(3)
Eu(2)–N(6) 2.449(3)


Table 9 Crystallographic data for the six crystal structuresa
Complex K2[Ru(phen)(CN)4]·4H2O K2[Ru(bpym)(CN)4]·3H2O [Ru(κ2-terpy)(CN)4]·MeOH·0.5H2O KEr[Ru(PBE)(CN)4]2·10H2O KEu[Ru(pypz)(CN)4]2·10.5H2O [Eu(NO3)(H2O)5] [Ru(bpym)(CN)4]
a All measurements made on a Bruker SMART diffractometer using Mo-Kα radiation. b PLATON suggests that C2/c is also possible but this results in a poorer refinement. The Flack parameter of 0.29(8) for this structure reflects the presence of racemic twinning. c R1 value is based on selected data [with I > 2σ(I)]; wR2 value is based on all data.
Formula C16H16K2N6O4Ru C12H12K2N8O3Ru C20H16K2N7O1.5Ru C36H46ErKN15O9Ru2 C48H70Eu2K2N28O21Ru4 C12H16EuN9O8Ru
M 535.62 495.57 557.67 1241.38 2161.72 667.37
T/K 150 150 173 173 150 150
Crystal system, space group Monoclinic, Ccb Monoclinic, P21/c Monoclinic, I2/a Monoclinic, C2/c Triclinic, P[1 with combining macron] Orthorhombic, Pna21
a 10.2914(16) 6.5658(7) 17.648(3) 28.636(6) 14.0042(16) 24.791(2)
b 30.116(5) 23.435(2) 8.9779(16) 14.487(3) 16.3639(19) 6.5425(6)
c 6.6628(11) 11.7021(12) 29.053(6) 15.487(3) 18.520(2) 12.4486(12)
α 90 90 90 90 113.599(2) 90
β 101.862(3) 93.836(2) 105.468(3) 103.05(3) 103.578(2) 90
γ 90 90 90 90 91.274(2) 90
V3 2020.9(6) 1796.6(3) 4436.5(14) 6259(2) 3748.2(7) 2019.1(3)
Z 4 4 8 4 2 4
D calc/Mg m−3 1.760 1.832 1.670 1.317 1.915 2.195
μ/mm−1 1.224 1.367 1.112 1.921 2.630 3.888
Reflections collected 11781 19966 14915 30015 42204 21936
Independent reflections 4359 (Rint = 0.0847) 4104 (Rint = 0.0587) 4950 (Rint = 0.0650) 5504 (Rint = 0.1580) 16650 (Rint = 0.0360) 4622 (Rint = 0.0299)
Data/restraints/parameters 4359/63/262 4104/0/235 4950/0/285 5504/0/331 16650/0/946 4622/1/281
Final R1, wR2 indicesc 0.0548, 0.1191 0.0297, 0.0671 0.0586, 0.1476 0.0915, 0.3235 0.0396, 0.0952 0.0185, 0.0425
Largest diff. peak and hole/ e Å−3 1.021, −0.983 0.636, −0.617 1.167, −0.916 1.877, −1.897 2.191, −0.967 0.808, −0.411


Acknowledgements

We thank the EPSRC for studentships to W. Z. A., T. L. E. and H. E. F., and the Spanish Ministry of Science for a post-doctoral grant (to J.-M. H.). We also thank Johnson Matthey for the loan of some potassium hexacyanoruthenate.

References

  1. C. J. Timpson, C. A. Bignozzi, B. P. Sullivan, E. M. Kober and T. J. Meyer, J. Phys. Chem., 1996, 100, 2915 CrossRef CAS.
  2. M. A. Rampi, M. T. Indelli, F. Scandola, F. Pina and A. J. Parola, Inorg. Chem., 1996, 35, 3355 CrossRef CAS; C. D. Borsarelli, S. E. Braslavsky, M. T. Indelli and F. Scandola, Chem. Phys. Lett., 2000, 317, 53 CrossRef CAS; N. R. M. Simpson, M. D. Ward, A. Farran Morales, B. Ventura and F. Barigelletti, J. Chem. Soc., Dalton Trans., 2002, 2455 RSC; G. Bergamini, C. Saudan, P. Ceroni, M. Maestri, V. Balzani, M. Gorka, S.-K. Lee, J. van Heyst and F. Vögtle, J. Am. Chem. Soc., 2004, 126, 16466 CrossRef CAS.
  3. C. A. Bignozzi, C. Chiorboli, M. T. Indelli, M. A. R. Scandola, G. Varani and F. Scandola, J. Am. Chem. Soc., 1986, 108, 7872 CrossRef CAS.
  4. A. Juris, V. Balzani, F. Barigeletti, S. Campagna, P. Belser and A. von Zelewsky, Coord. Chem. Rev., 1988, 84, 85 CrossRef CAS; V. Balzani, A. Juris, M. Venturi, S. Campagna and S. Serroni, Chem. Rev., 1996, 96, 759 CrossRef CAS; C. A. Bignozzi, J. N. Schoonover and F. Scandola, Prog. Inorg. Chem., 1997, 44, 1 CAS; M. D. Ward, Chem. Soc. Rev., 1997, 26, 365 RSC.
  5. J. K. Evku and K. R. Mann, Chem. Mater., 1999, 11, 1425 CrossRef CAS.
  6. N. R. M. Simpson, M. D. Ward, A. Farran Morales and F. Barigelletti, J. Chem. Soc., Dalton Trans., 2002, 2449 RSC.
  7. M. T. Indelli, M. Ghirotti, A. Prodi, C. Chiorboli, F. Scandola, N. D. McClenaghan, F. Puntoriero and S. Campagna, Inorg. Chem., 2003, 42, 5489 CrossRef CAS.
  8. T. A. Miller, J. C. Jeffery, M. D. Ward, H. Adams, S. J. A. Pope and S. Faulkner, Dalton Trans., 2004, 1524 RSC; G. M. Davies, S. J. A. Pope, H. Adams, S. Faulkner and M. D. Ward, Inorg. Chem., 2005, 44, 4656 CrossRef CAS.
  9. T. A. Miller, J. C. Jeffery and M. D. Ward, CrystEngComm, 2003, 5, 495 RSC.
  10. C. A. Bignozzi, C. Chiorboli, M. T. Indelli, F. Scandola, V. Bertolasi and G. Gilli, J. Chem. Soc., Dalton Trans., 1994, 2391 RSC.
  11. J. Dyer, W. J. Blau, C. G. Coates, C. M. Creely, J. D. Gavey, M. W. George, D. C. Grills, S. Hudson, J. M. Kelly, P. Matousek, J. J. McGarvey, J. McMaster, A. W. Parker, M. Towrie and J. A. Weinstein, Photochem. Photobiol. Sci., 2003, 2, 542 RSC; M. W. George, F. P. A. Johnson, J. R. Westwell, P. M. Hodges and J. J. Turner, J. Chem. Soc., Dalton Trans., 1993, 2977 RSC.
  12. (a) M. K. Kuimova, M. Y. Mel'nikov, J. A. Weinstein and M. W. George, J. Chem. Soc., Dalton Trans., 2002, 2857 RSC; (b) S. Encinas, A. F. Morales, F. Barigelletti, A. M. Barthram, C. M. White, S. M. Couchman, J. C. Jeffery, M. D. Ward, D. C. Grills and M. W. George, J. Chem. Soc., Dalton Trans., 2001, 3312 RSC.
  13. M. Kovács and A. Horváth, Inorg. Chim. Acta, 2002, 335, 69 CrossRef CAS.
  14. M. Ohba and H. Okawa, Coord. Chem. Rev., 2000, 198, 313 CrossRef CAS; M. Verdaguer, A. Bleuzen, V. Marvaud, J. Vaissermann, M. Seuleiman, C. Desplanches, A. Scuiller, C. Train, R. Garde, G. Gelly, C. Lomenech, I. Rosenman, P. Veillet, C. Cartier and F. Villain, Coord. Chem. Rev., 1999, 190–192, 1023 CrossRef CAS; K. R. Dunbar and R. A. Heintz, Prog. Inorg. Chem., 1997, 45, 283 CAS.
  15. T. Korzeniak, K. Stadnicka, M. Rams and B. Sieklucka, Inorg. Chem., 2004, 43, 4811 CrossRef CAS; J.-M. Herrera, A. Bleuzen, Y. Dromzee, M. Julve, F. Lloret and M. Verdaguer, Inorg. Chem., 2003, 42, 7052 CrossRef CAS; Z. J. Zhong, H. Seino, Y. Mizobe, M. Hidai, M. Verdaguer, S. Ohkoshi and K. Hashimoto, Inorg. Chem., 2000, 39, 5095 CrossRef CAS; T. Kashiwagi, S. Ohkoshi, H. Seino, Y. Mizobe and K. Hashimoto, J. Am. Chem. Soc., 2004, 126, 5024 CrossRef CAS.
  16. L. M. Toma, F. S. Delgado, C. Ruiz-Pérez, R. Carrasco, J. Cano, F. Lloret and M. Julve, Dalton Trans., 2004, 2836 RSC.
  17. C. E. Plecnik, S. Liu and S. G. Shore, Acc. Chem. Res., 2003, 36, 499 CrossRef CAS.
  18. M. A. Rawashdeh-Omary, C. L. Larochelle and H. H. Patterson, Inorg. Chem., 2000, 39, 4527 CrossRef CAS.
  19. P. L. Jones, A. J. Amoroso, J. C. Jeffery, J. A. McCleverty, E. Psillakis, L. H. Rees and M. D. Ward, Inorg. Chem., 1997, 36, 10 CrossRef CAS.
  20. L. Huang, K. Z. Wang, C. H. Huang, F. Y. Li and Y. Y. Huang, J. Mater. Chem., 2001, 11, 790 RSC.
  21. M. T. Indelli, C. A. Bignozzi, F. Scandola and J.-P. Collin, Inorg. Chem., 1998, 37, 6084 CrossRef CAS.
  22. R. Chotalia, E. C. Constable, M. J. Hannon and D. A. Tocher, J. Chem. Soc., Dalton Trans., 1995, 3571 RSC.
  23. (a) S. M. Contakes and T. B. Rauchfuss, Chem. Commun., 2001, 553 RSC; (b) S. M. Contakes and T. B. Rauchfuss, Angew. Chem., Int. Ed., 2000, 39, 1984 CrossRef CAS; (c) M. L. Kuhlman and T. B. Rauchfuss, J. Am. Chem. Soc., 2003, 125, 10084 CrossRef CAS.
  24. (a) J. X. Hu, L. J. Barbour and G. W. Gokel, Collect. Czech. Chem. Commun., 2004, 69, 1050 CrossRef CAS; (b) J. Hu and G. W. Gokel, Chem. Commun., 2003, 2537 Search PubMed; (c) G. W. Gokel, Chem. Commun., 2003, 2847 RSC; (d) J. Hu, L. J. Barbour and G. W. Gokel, J. Am. Chem. Soc., 2001, 123, 9486 CrossRef CAS.
  25. (a) R. H. Fabian, D. M. Klassen and R. W. Sonntag, Inorg. Chem., 1980, 19, 1977 CrossRef CAS; (b) J. M. Kelly, C. Long, C. M. O'Connell, J. G. Vos and A. H. A. Tinnemans, Inorg. Chem., 1983, 22, 2818 CrossRef CAS; (c) E. C. Constable, M. J. Hannon, A. M. W. Cargill Thompson, D. A. Tocher and J. V. Walker, Supramol. Chem., 1993, 2, 243 CrossRef CAS; (d) A. M. Barthram, M. D. Ward, A. Gessi, N. Armaroli, L. Flamigni and F. Barigelletti, New J. Chem., 1998, 22, 913 RSC; (e) D. A. Bardwell, F. Barigelletti, R. L. Cleary, L. Flamigni, M. Guardigli, J. C. Jeffery and M. D. Ward, Inorg. Chem., 1995, 33, 2438 CrossRef.
  26. (a) T. J. Meyer, Pure Appl. Chem., 1986, 58, 1193 CrossRef CAS; (b) A. Juris, V. Balzani, F. Barigelletti, S. Campagna, P. Belser and A. von Zelewsky, Coord. Chem. Rev., 1988, 84, 85 CrossRef CAS; (c) K. Kalyanasundaram, Coord. Chem. Rev., 1982, 46, 159 CrossRef.
  27. L. A. Worl, R. Duesing, P. Chen, L. Della Ciana and T. J. Meyer, J. Chem. Soc., Dalton Trans., 1991, 849 RSC.
  28. N. M. Shavaleev, G. Accorsi, D. Virgili, Z. R. Bell, T. Lazarides, G. Calogero, N. Armaroli and M. D. Ward, Inorg. Chem., 2005, 44, 61 CrossRef CAS.
  29. (a) E. C. Whittle, J. A. Weinstein, M. W. George and K. S. Schanze, Inorg. Chem., 2001, 40, 4053 CrossRef CAS; (b) M. Hissler, M. Connick, D. K. Geiger, J. E. McGarrah, D. Lipa, R. J. Lachiotte and R. Eisenberg, Inorg. Chem., 2000, 39, 447 CrossRef CAS.
  30. (a) M. Towrie, D. C. Grills, J. Dyer, J. A. Weinstein, P. Matousek, R. Barton, P. D. Bailey, N. Subramaniam, W. M. Kwok, C. S. Ma, D. Phillips, A. W. Parker and M. W. George, Appl. Spectrosc., 2003, 57, 367 CAS; (b) M. Towrie, A. Gabrielsson, P. Matousek, A. W. Parker, A. M. B. Rodriguez and A. Vlcek, Appl. Spectrosc., 2005, 59, 467 CrossRef CAS.
  31. G. M. Sheldrick, SADABS, A program for absorption correction with the Siemens SMART area-detector system, University of Göttingen, Germany, 1996 Search PubMed.
  32. G. M. Sheldrick, SHELXS-97, a Program for Automatic Solution of Crystal Structures, University of Göttingen, Germany, 1997 Search PubMed.
  33. G. M. Sheldrick, SHELX-97, A Program for crystal structure refinement, University of Göttingen, Germany, 1997 Search PubMed.

This journal is © The Royal Society of Chemistry 2006
Click here to see how this site uses Cookies. View our privacy policy here.
