Connecting cyclophosphazenes via ring N-centres with covalent linkers

Abstract

Two cyclotriphosphazene rings can be covalently linked via ring N-centres by a 2-butene-1,4-diyl unit and vice versa a cyclotriphosphazene molecule is able to bridge two cinnamyl groups via two ring N-centres yielding in either case dicationic assemblies which offers a route to novel polycations.

---

Polyphosphazenes have played an important role in the development of inorganic polymers due to the ease of introducing a wide variety of substituents onto P-centres.¹ Additionally, cyclophosphazenes can be used as building blocks for macromolecular and polymeric species. This is achieved by connecting two or more cyclophosphazene units via P-centres using di- or poly-functional linkers.² However, owing to the multitude of potential anchoring sites, linking cyclophosphazenes via P-centres is a rather unselective route.³

Herein we show that two cyclophosphazene molecules can be connected via ring N-centres with covalent linkers resulting in distinct products. So far only non-covalent linkages between phosphazenes have been described, in which ring N-centres play a role. These include hydrogen bonding⁴ and metal coordination.⁵ Nonetheless, it has been reported that cyclotriphosphazenes carrying electron-donating substituents are quaternised by methyl iodide at ring N-sites.⁶ We assumed that equivalent reactions with bifunctional electrophiles provide a convenient route to link phosphazenes in covalent fashion.

Both hexakis(iso-butylamino) cyclotriphosphazene, 1a,⁴ and dichloro tetrakis(cyclohexylamino) cyclotriphosphazene, 1b,⁷ were treated with 1,4-dibromo-2-butene yielding compounds 2a and 2b, which contain dications comprising two cyclophosphazenes linked by a 2-butene-1,4-diyl unit (Scheme 1). 2a is obtained after heating a freshly ground mixture of 1a and 1,4-dibromo-2-butene in a 2 ∶ 1 molar ratio to 90 °C for 1 h. The ³¹P NMR spectrum of 2a in chloroform displays an AX₂ signal {δ 12.9 (t), 16.8 (d), ²J_P–P = 45.3 Hz}. Single crystals for X-ray structure analysis† were obtained from slow evaporation of a methanol solution giving crystals of the solvate 2a·2CH₃OH.

Scheme 1

The dication in 2a (Fig. 1) exhibits inversion symmetry, thus both phosphazene rings are aligned in parallel; their mean planes are displaced by 2.15 Å. The phosphazene ring is slightly puckered, adopting a half-chair conformation. The quaternisation of one ring N-atom has a notable effect on the P–N bonds in the ring: the bonds associated with the quaternised N atom measure 1.688(5) and 1.689(5) Å. This is rather long for cyclophosphazene bonds, which are on average 1.60 Å in the parent phosphazene 1a.⁴ Fairly long bonds were also found in cyclophosphazenes featuring protonated ring N-centres (∼ 1.67 Å).⁸ On the other hand, the remaining ring P–N bonds in 2a range between 1.577(5) and 1.591(5) Å and are slightly shorter than those found in 1a.⁴ The supramolecular structure of 2a·2CH₃OH consists of a two-dimensional assembly held together by an extensive network of hydrogen bonds (Fig. 2). All six NH groups and two ring N-atoms of each phosphazene unit are involved in H-bonding either towards bromide ions or methanol molecules.

Fig. 1 Crystal structures of the dications in 2a (top) and 2b (bottom). H-atoms are omitted; the bridging 2-butene-1,4-diyl unit is highlighted in orange; blue: N, purple: P, green: Cl.

Fig. 2 Supramolecular structure of 2a·2CH₃OH in the solid state. H-bonds are drawn as dashed lines, H-atoms and Buⁱ-groups are omitted; red: O; green: Br.

The dichloro derivative 2b was obtained after refluxing a solution of 1b and 1,4-dibromo-2-butene (2 ∶ 1 ratio) in thf for 12 h. The ³¹P NMR spectrum of 2b shows an AX₂ signal pattern {δ 13.3 (d), 18.9 (t), ²J_P–P = 45.5 Hz}. The solvate 2b·2CHCl₃ crystallised from chloroform solution containing three molecules in the asymmetric unit. The X-ray crystal structure† reveals that the ring N-centre opposite the PCl₂ unit is quaternised exclusively (Fig. 1). Evidently, the electron withdrawing effect of the PCl₂ unit prevents quaternisation of the adjacent ring N-centres.

It is interesting to note that heating a 1 ∶ 1 mixture of 1a and 1,4-dibromo-2-butene to 90 °C produces exclusively 2a. There is no trace of the supposed monocationic species 3a apparent in the ³¹P NMR. However, reacting 1a in the presence of 10 equivalents of 1,4-dibromo-2-butene in refluxing chloroform leads to a product mixture that contains 2a and 3a in a 1 ∶ 2 molar ratio as inidcated by ³¹P NMR which exhibits a set of AX₂ signals for each species {3a resonates at δ 13.1 (t) and 16.0 (d), ²J_P–P = 43.3 Hz}. The cations of 2a and 3a were identified by electrospray mass spectrometry. We are currently investigating the mechanism leading to the preferential formation of 2a over 3a. The dicationic species 2a is stable towards mild nucleophiles such as water, alcohols and dilute mineral acids. However, in the presence of alkali metal hydroxides and alkoxides the bridging 2-butene-1,4-diyl unit slowly (t_½ ∼ 24 h) cleaves off the phosphazene rings yielding 1a.

In order to probe whether not only 2-butene-1,4-diyl, but also the cyclotriphosphazenes, can act as linkers, 1a was mixed with excess cinnamyl bromide and the mixture was heated to 90 °C yielding the mono- and the di-quaternised species 4 and 5, respectively (Scheme 2). The product ratio of 4 and 5 is 3 ∶ 1 after 2 h, however, 5 is the main product after heating for 24 h accompanied by only traces of 4. Solutions of both 4 and 5 in chloroform display AX₂ signals in the ³¹P NMR spectrum {4: δ 12.7 (t), 17.6 (d), ²J_P–P = 40.5 Hz; 5: δ 15.6 (d), 32.1 (t), ²J_P–P = 29.3 Hz}. While 4 shows ³¹P NMR shifts similar to 2a and 3a, the triplet signal of 5 appears at lower field owing to the direct neighbourhood of two quaternised N-centres. Correspondingly, the P–P coupling constant in 5 is lower, since coupling occurs across a quaternised N-atom.

Scheme 2

Single crystals of 5 for X-ray structure analysis† were obtained from hexane/thf. The crystal structure confirms that the phosphazene ring binds two cinnamyl groups via two ring N-atoms (Fig. 3). There are two dications in the asymmetric unit, one of which contains a disordered phosphazene core. In the following only the bonding parameters of the non-disordered dication are discussed. The quaternisation of the two ring N-centres results in elongation of the adjacent P–N bonds. The P–N bonds between quaternised N-atoms and the two chemically equivalent P-atoms are longer (av. 1.684 Å) than the P–N bonds associated with the quaternised N-atom and the chemically unique P-atom (av. 1.635 Å). In contrast, the P–N bonds involving the unreacted N-atom are short (av. 1.573 Å). 5 forms an extensive network of hydrogen bonds in the solid state. The supramolecular structure consists of a double sheet arrangement of dications, which are connected by hydrogen bonding across bromide ions (Fig. 4). Again, all NH-units engage in hydrogen bonding. The phenyl groups of the cinnamyl groups are facing towards the inside of the double sheet arrangement.

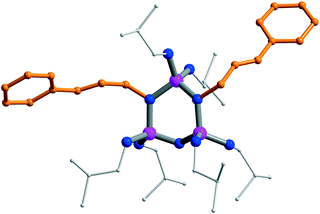

Fig. 3 Crystal structure of the dication in 5. H-atoms are omitted; cinnamyl groups are highlighted in orange; blue: N, purple: P.

Fig. 4 Fraction of the supramolecular structure of 5 in the solid state. H-bonds drawn as dashed lines, H-atoms and Buⁱ groups omitted.

Polycations find applications in many areas including polyelectrolytes, membranes, drug delivery and there is an on-going search for new and improved systems.⁹ The potential to link phosphazenes with alkylene groups and to use phosphazenes as linkers via ring N-sites offers a route towards novel polycations consisting of alternating arrangements of phosphazenes and alkylene groups.

We greatly acknowledge EPSRC for financial support.
