Jian
Zheng‡
and
Holger
Hintelmann
*
Department of Chemistry, Trent University, 1600 West Bank Drive, Peterborough, Ontario, Canada K9J 7B8. E-mail: hhintelmann@trentu.ca
First published on 16th December 2003
We describe a hyphenation technique between HPLC and ICP-SFMS for ultra-trace arsenic speciation analysis. Exceptional analytical performance was achieved using a MicroMist nebulizer preceded by a high-pressure splitter. Despite a 1∶
7.5 flow splitting, the detection limits in the range of 1.2 to 2.4 pg mL−1 were about two times lower than those obtained with a concentric nebulizer without any flow splitting, demonstrating the applicability of coupling conventional HPLC system (1.5 mL min−1 eluent flow) with microflow nebulizer for ultra-trace arsenic speciation analysis. This set-up offers an advantage for on-line fraction collection for either multidimensional chromatographic separation of co-eluting As compounds or for structural identification of unknown compounds without sacrificing analytical sensitivity. In addition, this system showed good accuracy and repeatability. The method was applied to the determination of arsenic compounds in freshwater fish samples from an arsenic-rich lake, Moira Lake, Canada. Using cation-exchange chromatography, tetramethylarsonium ion (Tetra) was detected in freshwater fish samples for the first time. Moreover, in pumpkinseed, Tetra was found to be the major arsenic species, indicating that the biomethylation pathway in freshwater ecosystems may include the tetramethyl stage.
Double focusing sector field ICP-MS (ICP-SFMS) can be operated at low mass resolution (LMR) or at high mass resolution (HMR), providing a general method to overcome limitations from spectroscopic interferences. In addition, in the low resolution mode, the sensitivity is about two orders of magnitude better than that of quadrupole ICP-MS.4 Therefore, the combination of HPLC with ICP-SFMS should be an ideal avenue for interference-free arsenic speciation at trace or ultra-trace level. However, very little work has been published for this combination.5
Given the large number of arsenic compounds present in the environment, it is difficult to separate all As compounds existing in a given sample. It is often necessary to collect the fractions of either unknown peaks or co-eluted As containing peaks for further chromatographic separation or for structural identification with electrospray mass spectrometry (ES-MS). Off-line fraction collection is time-consuming or even inaccurate in case of matrix induced retention time shift. Therefore, on-line fraction collection is preferred, which can be done by connecting a splitter between the HPLC column outlet and the inlet of ICP-MS nebulizer. However, the split of sample mass could result in the deterioration of sensitivity.
In this work, we report the coupling of a conventional HPLC system to ICP-SFMS for the speciation of eight of the most commonly encountered arsenic compounds, arsenite, arsenate, monomethylarsonic acid (MMA), dimethylarsinic acid (DMA), arsenobetaine (AB), arsenocholine (AC), trimethylarsine oxide (TMAO) and tetramethylarsonium ion (Tetra). The purpose of this study is to develop a sensitive and accurate analytical method for ultra-trace arsenic speciation in terrestrial environmental samples, which will also enable the on-line fraction collection of As containing peaks for multidimensional chromatographic separation or ES-MS detection. For this purpose, three nebulizers, namely, conventional concentric nebulizer, MicroMist nebulizer and an Aridus sample introduction system were investigated and compared in terms of the detection limits, precision and the band dispersion of the chromatographic peak. The developed method was applied to the study on arsenic species distribution in fresh water fish in an arsenic-rich lake, Moira Lake, in Canada.
Plasma parameters | |
Rf power | 1250 W |
Carrier gas flow rate | 0.93 l min−1 |
Measurement parameters | |
Acquisition mode | Escan |
Monitored isotopes | 75As, 77Se, |
Mass window | 10% for low resolution; 120% for high resolution |
Sample time | 150 ms for low resolution; 20 ms for high resolution |
Samples per peak | 100 for low resolution; 30 for high resolution |
Passes | 1 |
Integration type | Average for low resolution; integral for high resolution |
Resolution (m/Δm) | 300, 10000 |
HPLC | |
1. Anion-exchange column | Hamilton PRP-X100 (25 cm × 4.6 mm, 10 µm) 20 mM ammonium dihydrogenphosphate, pH 5.6 |
Mobile phase | 1.5 ml min−1 |
2. Cation exchange column | Zorbax 300-SCX (15 cm × 4.1 mm, 5 µm) |
Mobile phase | 20 mM pyridine, pH 2.31, 1.5 ml min−1 |
Injection volume | 100 µl |
Column temperature | Ambient |
Species | Common name | Composite samples | Length/cm | Weight/g | As in mg kg−1 (range) | Extraction yield (%) |
---|---|---|---|---|---|---|
Esox lucius | Northern pike | 2 | 48–51 | 750–1000 | 0.41 (0.38–0.45) | 70.5 ± 8.1 |
Micropterus salmoides | Largemouth bass | 1 | 29 | 650 | 0.20 (---) | 88.7 ± 7.6 |
Perca flavescens | Yellow perch | 4 | 12–16 | 19.8–50.1 | 0.09 (0.05–0.14) | 77.8 ± 7.2 |
Lepomis gibbosus | Pumpkinseed | 4 | 12–15 | 45.3–50.3 | 0.39 (0.35–0.43) | 66.8 ± 5.9 |
![]() | ||
Fig. 1 Separation and determination of anionic and cationic arsenic compounds (0.5 ng ml−1) by HPLC-ICP-SFMS (with conventional concentric nebulizer) at low resolution (m/Δm = 300). A: anion-exchange chromatography; B: cation-exchange chromatography. Chromatographic conditions are summarized in Table 1. |
Eventually, a high efficiency nebulizer was evaluated as an interface between HPLC and ICP-SFMS. The reduced sample uptake rate of the MicroMist micro-uptake nebulizer (0.2 ml min−1) necessitated a solvent split of the HPLC mobile phase flow (1.5 mL min−1) at a 1∶
7.5 split ratio. The nebulizer gas flow was re-optimized and set to a flow rate of 0.93 L min−1, identical to that established for the concentric nebulizer. Analytical figures of merit for the MicroMist nebulizer set-up are shown in Table 3. Excellent detection limits, ranging from 1.2 to 2.4 pg ml−1
(or 0.12 to 0.24 pg absolute) were obtained in peak area mode. These detection limits are approximately two times lower than those obtained with the concentric nebulizer (electronic supplementary information),† suggesting that the superior nebulization efficiency of the MicroMist nebulizer more than compensates for the analyte loss from the 1
∶
7.5 flow splitting. This set-up proved to be very stable and dependable. Excellent repeatability was found with RSDs of less than 2%
(peak area mode) and 2.5%
(peak height mode) for a standard solution at a concentration of 0.5 ng mL−1. Calibration curves were linear with correlation factors close to 1 for each arsenic compounds over the investigated work concentration range (0.05–20 ng mL−1).
Analyte | LOD/pg mL−1 | LOD/pg | Repeatability (%) | Range/ng ml−1 | R 2 | ||||
---|---|---|---|---|---|---|---|---|---|
Ab | Hc | A | H | A | H | A | H | ||
a Detection limits were determined by making 6 repetitive injections (100 µl) of standards in the lower linear concentration range (0.05 ng mL−1 each) and were calculated from the standard deviations of the peak areas and peak heights (3σ), respectively. Repeatability was determined from peak areas and peak heights by calculating the relative standard deviation (RSD) of four successive analysis of a standard solution containing 0.5 ng mL−1 of each analyte. b Peak area. c Peak height. | |||||||||
As(III) | 1.5 | 3.8 | 0.15 | 0.38 | 0.9 | 2.1 | 0.05–20 | 0.99998 | 0.99999 |
DMA | 2.1 | 2.7 | 0.21 | 0.27 | 1.5 | 1.9 | 0.05–20 | 1.00000 | 1.00000 |
MMA | 2.4 | 3.5 | 0.24 | 0.35 | 1.6 | 2.1 | 0.05–20 | 0.99999 | 0.99881 |
As(V) | 2.2 | 3.8 | 0.22 | 0.38 | 1.1 | 1.8 | 0.05–20 | 0.99979 | 0.99992 |
AB | 1.2 | 1.5 | 0.12 | 0.15 | 0.9 | 1.1 | 0.05–20 | 0.99992 | 0.99963 |
TMAO | 1.3 | 1.8 | 0.13 | 0.18 | 1.1 | 1.3 | 0.05–20 | 0.99967 | 0.99963 |
AC | 1.6 | 3.3 | 0.16 | 0.33 | 1.2 | 2.3 | 0.05–20 | 0.99982 | 0.99968 |
Tetra | 1.6 | 1.9 | 0.16 | 0.19 | 1.2 | 1.3 | 0.05–20 | 1.00000 | 0.99960 |
As chloride may potentially interfere with the determination of As(V) using anion exchange chromatography, it may be necessary to determine some species in high resolution mode (m/Δm = 10,000) to resolve 40Ar35Cl+ from the 75As signal. To assess the value of high resolution acquisition, the cation-exchange and anion-exchange chromatographic systems were combined with ICP-SFMS operated in high resolution mode. The resulting analytical figures of merit can be found in the electronic supplementary information.† Compared with low resolution mode, the detection limits were ca. 30 to 80 times (with an average of 50 times) higher, but still at the sub-ppb level, which is comparable with most of the LODs reported for quadrupole ICP-MS. Therefore, this combination provides a viable and sensitive method for interference free trace level As speciation analysis.
Employing a MicroMist nebulizer has notable advantages. The use of conventional HPLC columns allows the injection of relatively large sample volumes (100 µl in this study), resulting in excellent concentration detection limits at the 1–2 pg mL−1 level, demonstrating that the necessary flow splitting does not compromise detection limits. This is, so far, the lowest detection limit reported for As speciation using HPLC based hyphenated techniques5,7–15 (details in electronic supplementary information),† allowing the speciation of As in terrestrial environmental samples at ultra-trace level without any sample pre-concentration. Due to the flow splitting, the solvent loading on the plasma was dramatically reduced, resulting in a better stability of the plasma, which makes it possible to use higher contents of organic solvent as the HPLC mobile phase, if needed. Another significant benefit using the solvent split is the possibility of on-line fraction collection. Only ca. 15% of the injected sample is diverted to the ICP-MS and 85% can be collected for further analysis, e.g., multidimensional chromatography or structure elucidation using ESI-MS/MS.
Results of the speciation analysis are presented in Table 4. The percentage of each species represents the fraction of the total arsenic extracted with the methanol–water mixture. Representative chromatograms obtained from the extract of pumpkinseed were shown in Fig. 2. A variety of arsenic compounds, including As(III), As(V), MMA, DMA, AB, AC, TMAO and Tetra, are detected in the freshwater fish samples. Two unknown As containing species, one (U1) eluted after As(V) in AEC chromatogram, and the other (U2) eluted right after As(III) in CEC chromatogram, showing as a shoulder of As(III) peak, were also observed. Their identities remain unknown in the present study. Since As(III) and AB have the same retention time on the anion-exchange HPLC system (AEC) used, the first two peaks (cationic As and As(III)/AB) in the AEC chromatogram were collected employing the developed on-line fraction collection technique and subjected to a subsequent cation-exchange chromatography (CEC) analysis. The HPLC on-column recovery of the extracted arsenic, defined as the sum of individual arsenic compounds divided by the total arsenic in the extract ranged from 85 to 110% in the investigated fish samples.
![]() | ||
Fig. 2 Chromatograms obtained from the extract of fresh water fish tissue (muscle), pumpkinseed, Lepomis gibbosus (Linnaeus). (A) Anion-exchange chromatography; (B) cation-exchange chromatography. The first two peaks in the anion-exchange chromatogram (A) were collected and subjected to a subsequent cation-exchange chromatography (B). |
Species | As(III) | As(V) | MMA | DMA | AB | TMAO | AC | Tetra | Unknown |
---|---|---|---|---|---|---|---|---|---|
Esox lucius | 9.9 (9.3–10.4) | 2.4 (1.3–3.5) | 0.08 (0–0.17) | 46.0 (42.3–49.6) | 25.3 (21.4–29.1) | 0.25 (0–0.5) | 0.07 (0–0.14) | 10.2 (5.5–14.7) | 5.8 (1.6–10) |
Micropterus salmoides | 16.5 | 8.8 | nd | 11.6 | 16.1 | 6.6 | 0.38 | 24.4 | 15.8 |
Perca flavescens | 33.5 (28–39) | 39.6 (7.9–56.3) | 0.8 (0.16–1.2) | 4.1 (1.3–7.2) | 3.9 (0.6–8.2) | 5.0 (1.0–9.3) | 0.2 (0–0.7) | 6.6 (0.3–20.7) | 6.3 (0.8–18.2) |
Lepomis gibbosus | 19.8 (17.1–22.4) | 18.9 (9.2–32.3) | 0.7 (0–2.2) | 4.6 (1.4–7.1) | 6.0 (4.0–9.4) | 6.9 (5.4–8.7) | 0.9 (0.8–1.1) | 34.9 (21.4–44.9) | 7.2 (3.2–11.6) |
It was found that the arsenic compound distribution patterns in Moira Lake fish were quite different from that in marine fish. In addition, differences are also shown among the investigated freshwater fish species. In contrast to the situation in marine organisms, where AB is the predominant species, in freshwater fish samples from Moira Lake, AB accounted for less than 10% of the total As in the muscle extracts of Yellow perch and Pumpkinseed. The distribution of As compounds in Largemouth bass is fairly even and although AB accounted for 16% of the total As in muscle extract, it cannot be regarded as a major species, because inorganic As [As(III)
+ As(V)], DMA, Tetra and the unknown species, respectively, accounted for 25.3, 11.6, 24.4 and 15.8% of the total As in the extract. In the yellow perch and Pumpkinseed, most of the extracted arsenic was present as inorganic arsenic compounds (39–73%). Interesting results are obtained with the predatory fish, Northern pike. It was found that DMA was the predominant As species (46%), although a relatively high concentration of AB (25.3%) was also detected. To shed more light in this unusual As distribution pattern, the distribution of arsenic species in different tissues (liver, kidney, heart and brain) of Northern pike was also investigated (electronic supplementary information).† It was shown that DMA was present as the major arsenic species not only in muscle tissue, but also in liver, kidney, heart and brain. A lower concentration of AB was detected in kidney, heart and brain tissues, compared with that in muscle and liver tissues. The ratio of liver∶
muscle As concentration has been used to indicate the degree to which an organism is under As stress.17 In this work, we observed a ratio of 0.55 in Northern pike from Moira Lake, suggesting a relatively low level of As stress. Therefore, it seems that the extremely high content of DMA in Northern pike tissues is a result of natural metabolism, rather than an indication of detoxification. Fig. 3 shows the representative chromatograms obtained from the extract of kidney of Northern pike.
![]() | ||

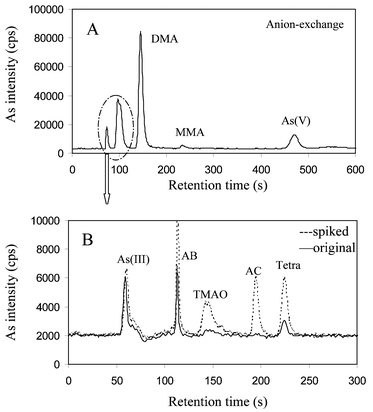

Fig. 3 Chromatograms obtained from the extract of fresh water fish tissue (kidney), Esox lucius (Linnaeus). (A) Anion-exchange chromatography; (B) cation-exchange chromatography. The first two peaks in the anion-exchange chromatogram (A) were collected and subjected to a subsequent cation-exchange chromatography (B). For a clear identification of detected As compounds, a spike experiment with AB, TMAO, AC and Tetra (100 pg mL−1 each) was performed. |
As can be seen from Table 4, in addition to the common methylated arsenic compounds, such as MMA, DMA and TMAO, a per-methylated arsenic compound, the tetramethylarsinium ion (Tetra) was detected in all fish samples investigated. In particular, a high Tetra content was observed in the muscle tissue of pumpkinseed (34.9%) and largemouth bass (24.4%). To our best knowledge, this is the first report about the presence of Tetra in freshwater fish. In the published studies on arsenic compounds in freshwater fish,20–24 the As methylation pathway is only discussed up to trimethylated arsenic compounds. However, the results of the present study indicate that fresh water fish accumulated the inorganic arsenate from the lake water and transformed it into the tetramethylarsonium ion. Recently, a similar biotransformation of arsenate to the tetramethylarsonium ion in the marine polychaetes nereis diversicolor and nereis virens was reported by Geiszinger et al.25 Although there is a possibility that the observed Tetra may result from decarboxylation of arsenobetaine, it is more likely that the biosynthesis of Tetra in freshwater fish involves sequential reduction and oxidative methylation steps,26via MMA, DMA, and TMAO, because all these intermediates were detected. Definitely, more research is needed to completely understand the unusual arsenic distribution pattern, especially the widespread occurrence of tetramethylarsonium ion in freshwater fish.
Footnotes |
† Electronic Supplementary Information (ESI) available: analytical figures of merit obtained with a standard set-up, the LOD for the high resolution mode, LODs reported by other authors and tissue concentrations for the Northern pike. See http://www.rsc.org/suppdata/ja/b3/b304890j/ |
‡ Current address: Nakaminato Laboratory of Radioecology, National Institute of Radiological Sciences, 3609 Isozakicho, Hitachinaka, Ibaraki, 311-1202, Japan (jzheng@nirs.go.jp). |
