Marijn Van Hulle*a, Koen De Cremera, Rita Cornelisa and Norbert Lameireb
aLaboratory for Analytical Chemistry, Gent University, Proeftuinstraat
86, B-9000, Gent, Belgium. E-mail: marijn.vanhulle@rug.ac.be
bUniversity Hospital, Renal
Department, Gent University, De Pintelaan 185, B-9000, Gent, Belgium
First published on 20th November 2000
Five Wistar rats were given an intraperitoneal injection of [114mIn]InCl3 during four consecutive days. One hour after the last injection the rats were sacrificed. The in vivo distribution of 114mIn was studied in the blood and in different organs. Differential centrifugation was used to study the distribution in liver, kidney and spleen homogenate. Rat serum, packed cell lysate, urine and the cytosol of liver, kidney and spleen homogenate were examined by size exclusion fast protein liquid chromatography. The results showed that serum accounts for 90% of the indium activity in whole blood. Indium is preferentially accumulated within the liver, spleen and kidney, the highest amount of 114mIn being localised in the cytosolic fraction followed by the mitochondria. Size exclusion experiments showed that, in rat serum, indium is exclusively bound to transferrin. These results differed from earlier in vitro incubation experiments of human serum with 114mIn. It was not possible, from the experiments described herein, to conclude unequivocally whether indium is bound to haemoglobin of packed cell lysate or to another high molecular mass compound. Indium is associated with the high molecular mass fraction in liver, kidney and spleen cytosol; only in kidney are small amounts of 114mIn found in the low molecular mass fraction. The in vivo inhibitory effect of indium on the δ-aminolaevulinic acid dehydratase (ALAD) enzymatic activity in red blood cells and kidney tissue, well documented by other researchers, could not be attributed to direct binding of indium with this enzyme.
Depending on the amount of 114mIn and the mass of the organ, the total organ or a portion of it was transferred into polyethylene counting vials and its radioactivity was measured with a NaI(Tl) scintillation detector for 5 min.
Blood was centrifuged twice at 2000g and 4°C for 20 min.
The packed cells were washed twice with 0.9% NaCl solution. Both the
serum fraction and the packed cell fraction were diluted to the same volume
and their 114mIn activity was measured with a Ge(Li)
detector. The measurement time was set to keep the relative standard deviation
below 1%.
Organs were minced and a 1 + 4 suspension in 0.25 M
sucrose solution containing 15 mM HEPES, pH 7.4 was lysed in
a borosilicate Potter–Elvehjem type homogeniser fitted with a Teflon
pestle. For the intracellular fractionation of 114mIn in liver,
kidney and spleen, the following five step centrifugation programme was used:
300g, 10 min, 4°C for the removal of intact cells
and plasma membrane; 1000g, 10 min, 4
°C for the
precipitation of nuclei, cytoskeleton (A); 10
000g,
20 min, 4
°C for the precipitation of mitochondria (B);
30
000g, 30 min, 4
°C for the precipitation
of lysosomes, peroxisomes (C); and 100
000g, 75 min,
4
°C for the precipitation of ribosomes and small vesicles (D);
the filtrate consists of the cytosolic fraction (E). After centrifugation,
all pellets and homogenates were diluted to the same volume and the 114mIn
activity was measured with a Ge(Li) detector. The counting time
was set variable in order to keep the relative standard deviation below 2%.
The chromatographic separations were performed with a fast protein liquid chromatography system (Äkta Purifier 10, Amersham Pharmacia Biotech, Uppsala, Sweden). Before injection into the system, all samples were filtered through 0.22 µm syringe filters (Acrodisc LC PVDF, Gelman Sciences, Ann Arbor, MI, USA). All buffers were filtered through a 0.22 µm surfactant-free cellulose acetate (SFCA) filter (Nalgene, New York, USA) and degassed. The detection of proteins was obtained by UV/visible absorption at 254, 280 and 410 nm. The detection and quantification of albumin, transferrin and immunoglobulins were performed by means of nephelometry (Behring Nephelometer 100 Analyser, Behringwerke, Marburg, Germany).
Rat serum was diluted 1 + 2 in elution buffer and 200 µl
was injected on a Superose 12 HR (Amersham Pharmacia Biotech, Uppsala,
Sweden) size exclusion (range, 5000–300
000 Da)
column and on an Asahipak 520-GS 7G (Showa Denko, Tokyo, Japan)
multimode (exclusion limit, 30
000 Da) column. The
latter column separates molecules on the basis of their molecular mass, but
also shows an affinity for albumin. As a result, albumin is separated from
the high molecular mass fraction. The Asahipak column has been successfully
applied for metal speciation in serum.23 A
10 mM HEPES + 5 mM NaHCO3 + 0.15 M
NaCl, pH 7.4 elution buffer was used. Fractions of 0.5 or 1 ml
were collected and the 114mIn activity was measured by NaI(Tl)
scintillation counting.
Packed cells were lysed prior to elution. After successive thawing and
freezing, the partially lysed cells were diluted 1 + 5 in
elution buffer and further disrupted in a Potter–Elvehjem homogeniser.
Afterwards, the homogenate was centrifuged at 13000g and
4
°C for 40 min to remove the remaining cell membranes.
No separation was made between red (>99%) and white (<1%)
blood cells. A volume of 200 µl was injected on a Superose 12
HR; 1 ml was brought onto a self-packed Sephacryl S-200 HR
size exclusion (range, 5
000–250
000 Da)
column. Fractions of 1 and 2 ml, respectively, were measured for their 114mIn
activity with an NaI(Tl) scintillation detector. Elution was performed
with 15 mM HEPES + 0.15 M NaCl, pH 7.2
buffer.
Undiluted urine (200 µl) was injected on a Superdex
Peptide HR (Amersham Pharmacia Biotech, Uppsala, Sweden) size exclusion
column. The working range of this column covers the low molecular mass fraction (100–7000 Da).
Fractions of 1 ml were taken and the activity was measured with an
NaI(Tl) scintillation detector. Elution was performed with 15 mM
HEPES + 0.15 M NaCl, pH 6.5 buffer.
Liver, kidney and spleen were minced and homogenised as described above
and the soluble fraction was obtained after centrifugation at 100000g
and 4
°C for 100 min. A volume of 200 µl of
1 + 1 diluted or undiluted solution was injected on a Superose
12 HR column. Fractions of 0.5 or 1 ml were taken and the activity
was measured with an NaI(Tl) scintillation detector. Elution was
performed with 15 mM HEPES + 0.15 M NaCl, pH 7.2
buffer.
Organ | % g−1 organ | % per organ |
---|---|---|
a Total bone mass not measured. | ||
Liver | 16.5 ± 4.5 | 69.2 ± 7.3 |
Kidney | 17.1 ± 2.8 | 10.8 ± 2.8 |
Heart | 2.7 ± 0.5 | 0.7 ± 0.3 |
Testes | 2.8 ± 0.6 | 2.3 ± 0.6 |
Thyroid glands | 3.7 ± 0.5 | 0.5 ± 0.1 |
Lung | 4.4 ± 1.1 | 2.0 ± 0.9 |
Spleen | 21.8 ± 2.1 | 4.2 ± 0.6 |
Stomach | 6.6 ± 2.1 | 3.0 ± 1.1 |
Bladder | 13.4 ± 5.6 | 0.9 ± 0.3 |
Small intestine | 6.1 ± 2.9 | 6.4 ± 3.1 |
Bone | 4.9 ± 1.0 | a |
Table 2 shows the results of the in vivo intracellular distribution of 114mIn in kidney, liver and spleen. In all cases, the cytosolic fraction accounts for the highest activity of 114mIn, followed by the mitochondrial fraction. Fowler et al.26 found that after rats were given a single intraperitoneal injection of InCl3 in doses up to 40 mg kg−1, an increased number of In-containing autophagic lysosomes could be observed. This finding could not be confirmed. However, the difference might be due to the fact that, in our study, non-toxic tracer doses of indium were used.
Kidney | Liver | Spleen | |
---|---|---|---|
% in A | 9.7 ± 4.1 | 6.3 ± 0.3 | 3.4 ± 1.4 |
% in B | 22.5 ± 1.0 | 14.1 ± 2.2 | 18.7 ± 2.9 |
% in C | 5.7 ± 2.6 | 1.7 ± 0.5 | 7.7 ± 1.6 |
% in D | 15.3 ± 1.0 | 4.6 ± 0.4 | 11.8 ± 1.5 |
% in E | 46.8 ± 3.6 | 73.3 ± 3.3 | 58.4 ± 5.3 |
Serum carries the major share of 114mIn activity in the blood. About 90.2 ± 1.8% (n = 4) of total blood 114mIn could be found in serum. One rat did not absorb the last injected dose. In that case the amount of 114mIn in serum was only 75.0%. This is possibly due to the fact that the clearance of indium from blood cells is slower than the clearance of indium from serum.
The results of the chromatographic separation of rat serum are shown in Fig. 1. In contrast to earlier in vitro incubation experiments of indium in human serum,19 only one peak at the retention time of transferrin can be seen. It seems that, in vivo, indium is bound exclusively to transferrin. In vitro, there is a varying amount of indium bound to transferrin and to a low molecular mass compound; a negligible amount of indium might be bound to albumin.
![]() | ||
Fig. 1 Elution profile of [114mIn]InCl3 in rat serum separated by size exclusion chromatography on Asahipak 520-GS 7G; buffer: 10 mM HEPES + 5 mM NaHCO3 + 0.15 M NaCl, pH 7.4; UV absorption at 280 nm. |
The chromatogram of the in vivo speciation of 114mIn
in blood cell lysate is shown in Fig. 2.
The indium elutes slightly ahead of haemoglobin. Therefore, further investigations
are needed to determine whether haemoglobin is the main carrier of indium
in red blood cells, the dislocation of In from haemoglobin occurs during elution,
or indium is bound to another high molecular mass compound. It is unlikely
that traces of serum transferrin account for the high activity at that retention
volume. Serum was removed from the packed cells by centrifugation in two consecutive
steps, followed by washing of the packed cell fraction twice with 0.9%
NaCl solution. Indium is said to influence haem biosynthesis in red blood
cells by inhibiting the enzymatic activity of δ-aminolaevulinic
acid dehydratase (ALAD).10 ALAD
catalyses the second step of the pathway, i.e. the condensation of
aminolaevulinic acid to form the monopyrrole, porphobilinogen.27
From the chromatogram it can be seen that there is no major association between
indium and the enzyme (M = 290000 Da),
which must be eluted at the retention volume of 7–9 ml. It could
be postulated that the influence of indium on the haem biosynthetic pathway
is caused by an indirect interaction, rather than by direct binding to the
enzyme, as has been stated for lead.28 In
the latter case, lead displaces zinc from its SH-mediated binding site,
thereby producing an inhibitory effect. In order to confirm the finding regarding
no association between ALAD and indium, the experiments were repeated on a
Sephacryl S-200 HR column. The results were the same.
![]() | ||
Fig. 2 Elution profile of [114mIn]InCl3 in rat blood cell lysate separated by size exclusion chromatography on Superose 12 HR; buffer: 15 mM HEPES + 0.15 M NaCl, pH 7.2; UV absorption at 280 nm. |
The separation of rat urine by size exclusion chromatography is shown in Fig. 3. In urine, indium is mostly bound to the low molecular mass fraction, with a maximum at the retention volume of 16.5–17.5 ml, corresponding to a molecular mass of 300–1000 Da; only a small amount of 114mIn can be found in the void volume (>7000 Da). In previous studies of the binding of indium to the low molecular mass fraction in serum (unpublished work), we have postulated that indium occurs as In(OH)3, although possibly complexed by the buffer (HEPES and TRIS). Taillefert et al.29 have reported a similar behaviour for soluble Fe3+ solutions complexed to TRIS buffer. In urine, similar complexation between free indium and elution buffer might also occur.
![]() | ||
Fig. 3 Elution profile of [114mIn]InCl3 in rat urine separated by size exclusion chromatography on Superdex Peptide; buffer: 15 mM HEPES + 0.15 M NaCl, pH 6.5; UV absorption at 280 nm. |
The results of the separation of liver, kidney and spleen cytosol by size exclusion chromatography are shown in Figs. 4, 5 and 6, respectively. In all cases, it appears that indium preferentially (kidney) or exclusively (liver, spleen) binds to the high molecular mass fraction. This large amount of 114mIn might be partly due to the presence of serum transferrin in the organs after homogenisation. However, the activity peak in both cases is much broader than in the case of rat serum and the concentration of the residual transferrin in the organs should be much lower than in serum. Thus, it is expected that another high molecular mass compound is capable of binding indium, leading to an unresolved 114mIn activity peak. Only in the case of kidney cytosol does a considerable amount of indium appear in the low molecular mass fraction. Indium influences hepatic and renal ALAD activity in vitro; however, indium inhibits only renal ALAD in vivo.30 Woods and Fowler postulated that this tissue-specific effect is due to the preferential accumulation of indium by the kidney proximal tubule cell with selective localisation in the cytosol. Zinc reverses the indium-induced inhibition of renal ALAD in vitro and in vivo, suggesting that indium acts by binding groups on the enzyme. Although we also found that indium preferentially accumulates in the cytosolic fraction, the chromatogram shows no direct binding of indium with ALAD and thus replacement of zinc. Therefore the inhibition may rather be due to some other indirect interaction. Again, the fact that background levels far below toxic doses have been used throughout these experiments might be the cause of the differences between the two sets of findings.
![]() | ||

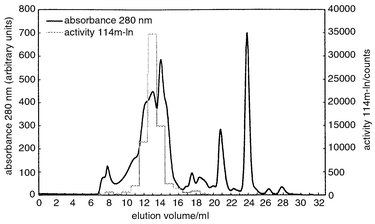

Fig. 4 Elution profile of [114mIn]InCl3 in rat liver cytosol separated by size exclusion chromatography on Superose 12 HR; buffer: 15 mM HEPES + 0.15 M NaCl, pH 7.2; UV absorption at 280 nm. |
![]() | ||
Fig. 5 Elution profile of [114mIn]InCl3 in rat kidney cytosol separated by size exclusion chromatography on Superose 12 HR; buffer: 15 mM HEPES + 0.15 M NaCl, pH 7.2; UV absorption at 280 nm. |
![]() | ||
Fig. 6 Elution profile of [114mIn]InCl3 in rat spleen cytosol separated by size exclusion chromatography on Superose 12 HR; buffer: 15 mM HEPES + 0.15 M NaCl, pH 7.2; UV absorption at 280 nm. |
Footnote |
† Presented at the Whistler 2000 Speciation Symposium, Whistler Resort, BC, Canada, June 25–July 1, 2000. |
This journal is © The Royal Society of Chemistry 2001 |
