Chirality control of a Cu(I)·(phenanthroline)₂ complex by a sugar–boronic acid interaction. A preliminary step toward the total chain helicity control by a chain-end sugar-binding

Abstract

Compounds 1a and 1b which have a 1,10-phenanthroline moiety, were synthesized in order to form a helical structure in the presence of Cu(I), and a boronic acid moiety with which to bind a saccharide at the chain end. When saccharides were added, the Cu(I) complexes (as 1a₂·Cu(I) and 1b₂·Cu(I)) gave the CD-active species reflecting the absolute configurational structure of saccharides. Thus, the P versus M helicity of the complexes can be controlled by the boronic acid–saccharide interaction. The results show that the terminal boronic acid group is useful to create the chiral helical structure and the total helicity is governed by the chirality of the boronic acid-bound saccharide.

---

Introduction

Helical complexes have been of great interest as examples of self-assembled supramolecular structures in artificial systems and as models for DNA and RNA structures in nature.¹ One important characteristic which differentiates the helical structure from other supramolecular structures is the ‘chirality’ generated by the twisting direction along the one-dimensional chain.^2–15 In general, the ‘chirality’ is created by the introduction of chiral substituents into ‘helicates’. Meanwhile, Hamilton et al.¹⁶ have demonstrated that self-assembled helical metal complexes with terminal hydrogen-bonding sites are useful for the recognition of dicarboxylic acid guests. The results imply that the host–guest-type interaction at the helical chain end may crucially control the twisting direction of the total chain helicity. Recently, it has been shown that boronic acid–saccharide covalent interactions, which form readily and reversibly in aqueous media, represent an important alternative binding force for the recognition of saccharides and related molecular species.^17–30 Here, it occurred to us that the chirality of the helical metal complexes created from helicates bearing a terminal boronic acid group may be reversibly controlled by the boronic acid–saccharide interaction. If this working hypothesis is correct, it follows that a saccharide library, containing abundant chirality resources, would be useful to create a variety of helical structures. As the first step to test this intriguing working hypothesis, we designed compounds 1a and 1b which have a 1,10-phenanthroline moiety with which to constitute the helical metal complex and an o-aminomethylphenyl boronic acid moiety with which to bind saccharides at the helical chain end. Compound 1a was mainly used for the absorption and CD spectroscopic studies whereas compound 1b was used for the ¹H NMR spectroscopic studies because the p-anisyl group gives well-split peaks which are useful as a marker to detect configurational changes. Interestingly, we have found that, as shown in Scheme 1, added saccharides can influence the equilibrium between plus (P) and minus (M) enantiomers, reflecting their absolute configurational structure.³¹

Scheme 1

Results and discussion

Molecular design and synthesis of ligands (1a and 1b)

To test the working hypothesis we chose the chiral induction in a Cu(I)·(1,10-phenanthroline) complex. Examination with CPK molecular models and computational tools suggested that introduction of a boronic acid group into the 9-position of 1,10-phenanthroline via a phenyl group would satisfy the requirements: that is, the metal-binding 1,10-phenanthroline site is moderately insulated by the phenyl group from the saccharide-binding boronic acid site whereas the chirality in the Cu(I) complex seems sterically controllable by the boronic acid–saccharide interaction. The o-aminomethyl group interacts intramolecularly with the boronic acid group and stabilises the saccharide complex.^9,10 Thus, compounds 1a (mp 174–179 °C) and 1b (mp 179–183 °C) were synthesised from 2-phenyl-9-p-tolyl-1,10-phenanthroline (2a) and 2-p-anisyl-9-p-tolyl-1,10-phenanthroline (2b), respectively, according to Scheme 2 and identified by ¹H NMR and IR spectral evidence and elemental analyses (see Experimental section).

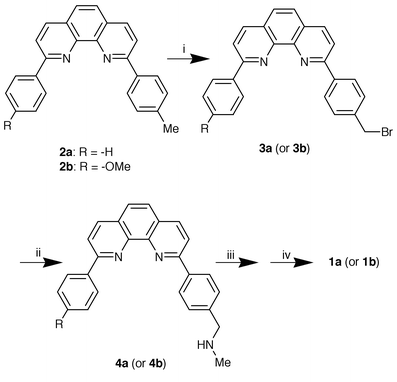

Scheme 2 Reagents and conditions (yield): i, NBS, AIBN, CCl₄, reflux; ii, MeNH₂, CCl₄ (62%, calculated from 2a or 46%, calculated from 2b); iii, K₂CO₃, MeCN, reflux; iv, H₂O (46%, calculated from 4a or 34%, calculated from 4b).

Absorption spectra of the Cu(I) complexes

The spectral patterns of both absorption and fluorescence spectroscopies changed with the concentration of 1a in 100% aqueous solution. This implies that 1a tends to aggregate in 100% aqueous solution. To avoid this complexity, the spectroscopic measurements were carried out in MeOH–MeCN = 1∶1 (v/v) at 25 °C. In this medium both absorption and fluorescence intensities showed a linear relationship with respect to the concentration of 1a.

Fig. 1 shows the absorption spectral change induced by the Cu(I) addition (added as [Cu(MeCN)₄]ClO₄). The λ_max at 309 nm decreased while that at 439 nm increased (as shown in an inserted figure) with tight isosbestic points at 364 and 292 nm. The plots of the absorbances against [Cu(I)]/[1a] (Fig. 2) afforded a clear break-point at 0.5, indicating that the complex consists of one Cu(I) and two 1a ligands (as illustrated in Scheme 1). In the subsequent CD measurements we enhanced the concentrations up to [1a] = 0.200 mmol dm⁻³ and [Cu(I)] = 0.100 mmol dm⁻³ because the CD spectral change was not so sensitive as the absorption spectral change. Judging from the sharp break-point in Fig. 2, one can assume that 1a and Cu(I) are fully converted to the 1a₂·Cu(I) complex under these CD measurement conditions.

Fig. 1 Absorption spectral change of 1a (0.100 mmol dm⁻³) with increasing Cu(I) concentration.

Fig. 2 Plots of absorbance versus [Cu(I)]/[1a]: •; 439.0 nm, ○; 309.0 nm.

Stoichiometry of the 1a₂·Cu(I)·D-glucose complex

In order to estimate the chiral twisting ability of monosaccharides for the 1a₂·Cu(I) complex we primarily tested D-glucose as a representative monosaccharide. When D-glucose was added to the 1a₂·Cu(I) complex solution, the CD bands appeared gradually at 250–350 nm region and 400–600 nm region (MLCT region: Fig. 3). This slow CD appearance implies that D-glucose is bound to the boronic acid groups rather slowly in the organic medium and/or D-glucose-induced conversion of one enantiomer to other occurs slowly. The appearance of the CD bands means that one enantiomer of the ternary complex has become in excess of the other. A plot of the CD intensity vs. time revealed that the CD intensity becomes constant after 6–7 h. In the following experiments, therefore, we measured the final CD spectra after 12 h. The continuous variation plots of the CD intensity vs. [1a₂·Cu(I)]/([1a₂·Cu(I)] + [D-glucose]) provided a maximum at 0.5, indicating that the ternary complex consists of 1∶1 stoichiometric 1a₂·Cu(I) and D-glucose (Fig. 4). This finding was also supported by mass spectrometry (ESI-MS). To a MeCN–MeOH = 1∶1 (v/v) solution containing the 1a₂·Cu(I) complex (1.00 × 10⁻⁴ mol dm⁻³) was added D-glucose (5.00 × 10⁻⁴ or 7.50 × 10⁻⁴ mol dm⁻³) and the solution was incubated at 25 °C for 12 h. This solution was subjected to the ESI-MS measurement. One strong peak (m/z = 1189) and several weak accompanying peaks with Δm/z = 1.0 were observed. The results indicate that the major species under the ESI-MS measurement conditions is [1a₂·Cu(I)·D-glucose]⁺. These spectroscopic data consistently support the complexation mode as illustrated in Scheme 1: that is, the 1₂·Cu(I) complex binds one D-glucose molecule with two boronic acid–diol interactions to form a macrocyclic structure.

Fig. 3 Time dependence of the CD appearance after the addition of D-glucose (0.100 mmol dm⁻³) to the solution containing 1a₂·Cu(I) (0.100 mmol dm⁻³): cell length 0.1 cm; (inserted) cell length 1.0 cm.

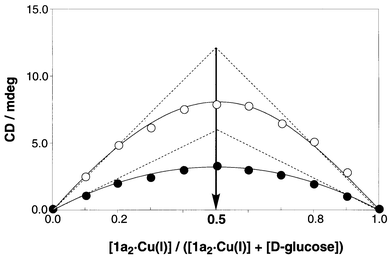

Fig. 4 Continuous variation plots: the [1a₂·Cu(I)] + [D-glucose] concentration was maintained constant (0.200 mmol dm⁻³): •; 463.0 nm, ○; 318.5 nm.

Possible correlation between the saccharide structure and the CD sign

The CD spectra were measured as a function of the D- and L-glucose concentrations while the concentration of 1a₂·Cu(I) was maintained constant (1.00 × 10⁻⁴ mol dm⁻³). The CD spectra changed with a few tight isosbestic points. As expected, the CD spectra obtained in the presence of L-glucose were symmetrical to those obtained in the presence of D-glucose (Fig. 5). Plots of the CD intensities at 319 and 464 nm vs. the D- and L-glucose concentrations are shown in Fig. 6. From analysis of the plots in Fig. 6 by computational curve fitting one can estimate the binding constant (K_b) to be 4800 ± 400 dm³ mol⁻¹ for both D- and L-glucose.³²

Fig. 5 CD spectra of 1a₂·Cu(I) (0.100 mmol dm⁻³) in the presence of D- or L-glucose (7.50 mmol dm⁻³).

Fig. 6 Plots of CD intensities (319 and 464 nm) vs. D- and L-glucose concentrations: [1a₂·Cu(I)] = 0.100 mmol dm⁻³, D-glucose (•; 319 nm, ○; 464 nm), L-glucose (▲; 319 nm, △; 464 nm).

Fig. 5 indicates that at the MLCT region (400–600 nm) D-glucose gives the positive CD sign whereas L-glucose gives the negative CD sign. The past CD studies on chiral bipyridine-based helicate–Cu(I) complexes have established that the positive CD sign is generated from the P-isomer whereas the negative CD sign is generated from the M-isomer:^6,7,9 that is, D-glucose twists the 1a₂·Cu(I) complex into the P chirality motif (clockwise direction around the central axis connecting Cu(I) with glucose) whereas L-glucose twists it into the M chirality motif (anti-clockwise direction around the central axis connecting Cu(I) with glucose). The exciton-coupling CD bands at around 300 nm reflect the π–π* transition in the phenanthroline moieties. Examination of the CD sign reveals that the positive exciton-coupling interaction is observed for D-glucose whereas the negative exciton-coupling interaction is observed for L-glucose (Fig. 5): that is, P-isomer and M-isomer in the MLCT region are always correlated with the positive exciton-coupling interaction and the negative exciton-coupling interaction, respectively, in the phenanthroline moieties.

To obtain a possible correlation between the saccharide structure and the CD sign we measured the CD spectra of 1a₂·Cu(I) for seven D-saccharides in addition to D-glucose. The structures are illustrated in Scheme 3 (mainly, as their pyranose forms).

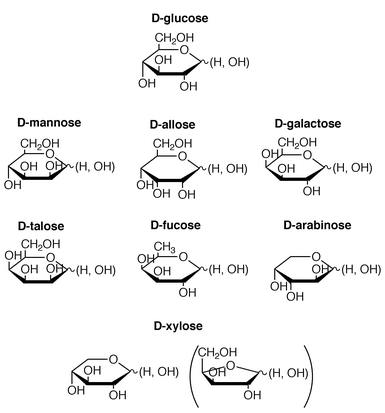

Scheme 3

Firstly, we compared the CD spectra of D-mannose, D-allose and D-galactose which are classified into epimers of D-glucose. The typical concentration-dependent CD spectra and the typical plots of the CD intensity at the exciton-coupling band versus [D-saccharide] are shown in Figs. 7 and 8. Examination of these figures, together with that of Figs. 5 and 6, reveals that (i) D-mannose and D-galactose give the positive CD sign for the MLCT region and the positive exciton-coupling band for the phenanthroline region like D-glucose whereas D-allose gives the negative CD sign for the MLCT region and the negative exciton-coupling band for the phenanthroline region like L-glucose, (ii) the plus–minus in the MLCT region is always correlated with the plus–minus in the phenanthroline π–π* transition region and (iii) the absolute CD intensities in the MLCT region and the phenanthroline region both appear in the order of D-glucose > D-galactose > D-mannose > D-allose. Most interesting is the finding that the CD signs for D-allose are inverted from those for other three saccharides.

Fig. 7 CD spectra of 1a₂·Cu(I) (0.100 mmol dm⁻³) in the presence of saccharide; ▼; D-fucose (7.50 mmol dm⁻³), •; D-galactose (1.50 mmol dm⁻³), ✦; D-mannose (3.00 mmol dm⁻³).

Fig. 8 Plots of the CD intensity vs. [saccharide]: ▼; D-fucose, •; D-galactose, ✦; D-arabinose, ■; D-mannose.

The spectroscopic data are summarised in Table 1. Eight saccharides tested herein all afforded the CD-active species with 1a₂·Cu(I) and the plus–minus in the MLCT region is correlated with the plus–minus in the phenanthroline π–π* transition region (except D-talose, which did not give a clear exiton-coupling band). Very interestingly, we noticed that the plus–minus in the MLCT region is predictable from the absolute configuration of the 3-OH: when the 3-OH group is ‘up’, the MLCT region becomes plus whereas when it is ‘down’, the MLCT region becomes minus. The origin of this intriguing correlation is not yet explicable. We now consider that when the 1,2-diol group forms a complex with the boronic acid group,^21,22 the absolute configuration of the neighboring 3-OH affects the twisting direction of the 1a₂·Cu(I)·saccharide complexes. On the other hand, 1-methyl-α-D-glucopyranoside, in which the 1-OH group useful for the complexation is protected by the methyl group, was CD-silent. This suggests an idea that as already reported in related system,^21,22,25 the 1,2-diol in monosaccharides acts as an essential boronic acid-binding site.

Table 1 CD spectroscopic data obtained in the presence of various monosaccharides ^a

					Structure of monosaccharide
Monosaccharide	π–π* band ^bλmax or min/nm (CDmax or min intensity/mdeg)		MLCT band ^cλmax or min/nm (CDmax or min intensity/mdeg)	Helicity	1,2-diol	3-OH
a [1a2·Cu(I)] = 0.100 mmol dm^−3, [monosaccharide] = 7.50 mmol dm^−3 ([D-galactose] = 1.50 mmol dm^−3 [D-mannose] = 3.00 mmol dm^−3), MeOH–MeCN = 1∶1 (v/v), 25 °C. b Cell length: 0.1 cm. c Cell length: 1.0 cm.
D-Glucose	319.0	295.0	463.5	P	down	up
	(25.61)	(−20.34)	(10.23)
D-Fucose	322.0	299.5	480.5	P	down	up
	(5.25)	(−3.38)	(2.31)
D-Galactose	321.5	290.0	498.0	P	down	up
	(3.06)	(−1.97)	(1.38)
D-Xylose	318.0	297.5	458.0	P	down	up
	(1.85)	(−0.51)	(0.64)
D-Mannose	319.0	296.0	463.5	P	up	up
	(0.89)	(−0.86)	(0.50)
D-Talose	317.5		511.5	P	up	up
	(1.01)	(0.56)
D-Arabinose	319.5	295.0	490.5	M	up	down
	(−2.12)	(1.51)	(−1.03)
D-Allose	319.5	290.0	491.0	M	down	down
	(−1.00)	(0.56)	(−0.47)
Methyl-α-D-glucoside	CD silent		CD silent

---

As a summary of the foregoing findings, one can now regard that the chirality in D-saccharides is transmitted to the helicity in the metal complex.

Estimation of the binding constants (K_b)

From plots of the CD intensity at the π–π* transition band against [D-saccharide] (Fig. 8) the K_b values were estimated assuming the formation of 1a₂·Cu(I)∶D-saccharide = 1∶1 complexes. The band for D-talose was too weak to estimate the K_b accurately. The plot for D-mannose was biphasic. It has been established through the CD spectroscopic studies that the complex becomes CD-active only when the saccharide is recognised by the host at least at two points, forming a 1∶1 stoichiometric cyclic structure whereas it becomes CD-silent when it is converted into a 1∶2 host/saccharide noncyclic structure in the high saccharide concentration region.^{22,23,25,33,34} This plot suggests, therefore, a shift of a 1a₂·Cu(I)∶D-mannose = 1∶1 cyclic complex to a 1a₂·Cu(I)∶D-saccharide = 1∶2 noncyclic complex (CD-silent) ²⁵ with increasing D-mannose concentration.^22–25 Hence, both the K_b for the 1∶1 complex with seven saccharides and the K_b′ for the 1∶2 complex with D-mannose were estimated by analysing these plots with a nonlinear least-squares method.^32–34 The results are summarised in Table 2.

Table 2 Association constants for saccharides with 1a₂·Cu(I) ^a

Monosaccharide	K b/dm^3 mol^−1	K b′/dm^3 mol^−1
a [1a2·Cu(I)] = 0.100 mmol dm^−3, [monosaccharide] = 0–7.50 mmol dm^−3 ([D-galactose] = 0–1.50 mmol dm^−3 [D-mannose] = 0–3.00 mmol dm^−3), MeOH–MeCN = 1∶1 (v/v), 25 °C.
D-Glucose	4800 ± 400	—
D-Fucose	760 ± 120	—
D-Galactose	1300 ± 320	—
D-Xylose	1700 ± 200	—
D-Mannose	2100 ± 800	150
D-Talose	—	—
D-Arabinose	1500 ± 200	—
D-Allose	700 ± 100	—

---

It is seen from Table 2 that (i) the K_b values appear in the order of D-glucose > D-mannose > D-xylose > D-arabinose > D-galactose > D-fucose > D-allose, (ii) six D-saccharides (except D-mannnose) show a single saturation curve, indicating that the cyclic 1a₂·Cu(I)∶D-mannose = 1∶1 complex is more stable than the noncyclic 1a₂·Cu(I)∶D-saccharide = 1∶2 complex and (iii) only in the binding of D-mannose, the formation of the noncyclic 1∶2 complex can compete with that of the cyclic 1∶1 complex although the K_b is still greater by 14-fold than the K_b′. The order of the K_b values is approximately coincident with the order of the CD intensity (D-glucose > D-galactose > D-mannose > D-allose: vide supra). This implies that the more stable is the cyclic 1∶1 complex, the more stronger becomes the CD intensity. On the other hand, it is not clear yet why the K_b′ for the D-mannose complex is exceptionally large compared with others in spite of the large K_b next to D-glucose.

Why does 1a₂·Cu(I) generally tend to form P-isomers with D-monosaccharides (except D-arabinose and D-allose)? In the present system, it is not yet clear which form of furanose vs. pyranose is immobilised by the 1a₂·Cu(I) complex.^21,24,35 We thus energy-minimised the structure of the ternary 1a₂·Cu(I)∶ D-glucose complex using the ESFF forcefield with molecular mechanics (see Experimental section) assuming both the furanose form and the pyranose form for the D-glucose moiety.³⁶ For the 1a₂·Cu(I)∶D-glucofuranose complex, there was no significant difference between the P-isomer and the M-isomer. On the other hand, the energy-minimised structure for the P-isomer of 1a₂·Cu(I)∶D-glucopyranose is more or less symmetrical whereas that for the M-isomer is sterically distorted (Fig. 9). Careful examination of the D-glucopyranose moiety reveals that (i) in the Newman projection of the 1C–2C bond, the P-isomer can adopt an energetically-favourable staggered conformation whereas the M-isomer is enforced to adopt an energetically-unfavourable eclipsed conformation and (ii) the pyranose ring in the P-isomer is a chair form whereas that in the M-isomer is a twisted boat form. These lines of conformational difference should be effective to stabilise the P-isomer in preference to the M-isomer.

Fig. 9 Energy-minimised structures for the P-isomer and the M-isomer for 1a₂·Cu(I)·D-glucopyranose.

On the ‘optical purity’ of the 1b₂·Cu(I)·D-glucose complex

The 1a₂·Cu(I) complex is an interconvertible racemic mixture of the P- and M-isomer. The complexation with the D-saccharide results in a diastereomeric mixture of 1a₂·Cu(I)·D-saccharide. Since the P∶M ratio is changed by the D-saccharide binding, we tried to estimate the ‘optical purity’ of the P- or M-isomer induced by the binding of the D-saccharide. It seemed to us that ¹H NMR spectroscopy is the sole tool able to solve this problem. To obtain clear ¹H NMR spectra we chose D-glucose, as this gave the largest K_b value.³⁷ As shown in the CD spectral measurements, the reaction rate for D-glucose binding is fairly slow. We therefore left the samples for 6 h at room temperature and then started the ¹H NMR measurements.

Basically, the 1a₂·Cu(I)·D-glucose complex involves two chiral centers, one in the (phenanthroline)₂·Cu(I) moiety (P versus M) and the other in the bound D-glucose moiety. As a result, it provides a diastereomeric mixture, which should give the split ¹H NMR peaks. In the ¹H NMR spectrum of the 1a₂·Cu(I)·D-glucose complex, however, we could find no such sharp peak that would be conveniently useful as a marker for peak splitting. We thus synthesised 1b, expecting that the p-anisyl group would be useful as a marker. Compound 1b showed complexation properties (as in Figs. 1 and 2) similar to 1a and the 1b₂·Cu(I) complex showed binding properties for D-glucose (as in Figs. 3, 4 and 5) similar to the 1a₂·Cu(I) complex. The 1∶1 stoichiometry between 1b₂·Cu(I) and D-glucose was corroborated not only by a Job plot (as in Fig. 5) but also by ESI-MS spectrometry (m/z = 1250, which is assignable to [1b₂·Cu(I)·D-glucose]⁺). From plots of the CD intensity at 322 nm and 459 nm vs. [D-glucose] the K_b was estimated to be 3900 ± 200 dm³ mol⁻¹.

As shown in Fig. 10, the ortho-protons in the anisole moieties appeared as a doublet peak due to the coupling with the meta-protons in the absence of D-glucose. In the presence of D-glucose it changed into a pair of doublets. This change can be explained in two different ways: that is, (i) as mentioned above, the racemic mixture of 1b₂·Cu(I) becomes a diastereomeric mixture after binding of D-glucose (Rationale A) or (ii) binding of D-glucose changes the interconvertible racemic mixture into the P-isomer of 1b₂·Cu(I)·D-glucose and the two anisole moieties become inequivalent because of the unsymmetrical structure induced by the bound D-glucose (Rationale B). We believe that this splitting pattern should be attributed to Rationale B because (i) strong CD spectra were observed for both 1a₂·Cu(I)·D-glucose and 1b₂·Cu(I)·D-glucose, the θ values (1.03 × 10⁴ deg cm² dmol⁻¹ at 464 nm and 1.06 × 10⁴ deg cm² dmol⁻¹ at 459 nm, respectively) of which are comparable with those of optically-pure, bipyridine-based helicate–Cu(I) complexes (ca. 1.5 × 10⁴ deg cm² dmol⁻¹ at 450–475 nm,⁶ 1.73 × 10⁴ deg cm² dmol⁻¹ at 479.3 nm ⁹), (ii) large [α]²⁵_D values were observed for 1a₂·Cu(I)·D-glucose and 1b₂· Cu(I)·D-glucose [+2520 and +1300°, respectively: c = 0.048 g/100 ml (1a₂·Cu(I)·D-glucose), 0.062 g/100 ml (1b₂·Cu(I)· D-glucose), solvent: MeCN–MeOH = 1∶1 (v/v)], which are sufficiently greater than those of optically-pure, bipyridine-based helicate–Cu(I) complex (+361,⁶ +501° ⁹) and (iii) the absorption spectral change which reflects the binding of D-glucose to 1a₂·Cu(I) or 1b₂·Cu(I) was completed in a few minutes after the D-glucose addition ³⁸ whereas the CD spectral change which reflects the P–M isomerisation took several hours. Points (i) and (ii) clearly rule out the possibility that 1b₂·Cu(I)·D-glucose is a diastereomeric mixture. Point (iii) is observable only when the P–M isomerisation proceeds within the 1a₂·Cu(I)·D-glucose and 1b₂·Cu(I)·D-glucose complexes. These lines of evidence clearly support the view that the 1b₂· Cu(I)·D-glucose complex is not the diastereomeric mixture (Rationale A) but the P-isomer with the high optical purity. Judging from the sensitivity of the present 600 MHz ¹H NMR apparatus, 5% of the isomer should be easily detectable (if it exists). We thus believe that the optical purity is higher than 95%.

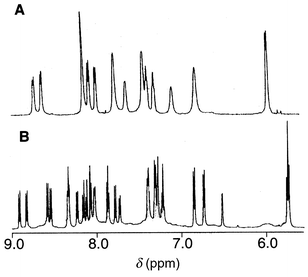

Fig. 10 ¹H NMR spectra [600 MHz, CD₃CN–CD₃OD = 1∶1 (v/v)] of 1b₂·Cu(I) (5.00 × 10⁻³ mol dm⁻³) at −15 °C in the absence (A) and the presence (B) of D-glucose (12.5 × 10⁻³ mol dm⁻³).

Experimental

Materials

2-Phenyl-9-p-tolyl-1,10-phenanthroline (2a) and 2-anisyl-9-p-tolyl-1,10-phenanthroline (2b) were prepared according to the method of Goodman et al.³ and identified by IR and ¹H NMR spectral evidence and elemental analysis.

2-( p-Methylaminomethylphenyl)-9-phenyl-1,10-phenanthroline (4a).. Compound 2a (2.22 g, 6.4 mmol) was treated with N-bromosuccinimide (NBS) (1.37 g, 7.7 mmol) and α,α′-azobisisobutyronitrile (0.14 g, 10 wt% of NBS) in CCl₄ at the reflux temperature for 50 min. The progress of the reaction was followed by ¹H NMR spectroscopy [250 MHz, CCl₄–CDCl₃ = 1∶1 (v/v)] with the disappearance of δ_CH3 2.47 ppm and the appearance of δ_CH2Br 4.60 ppm. After cooling, the insoluble materials were removed by filtration, the filtrate being dried over Na₂SO₄. This solution containing 3a was used for the synthesis of 4a without further purification. Into the CCl₄ solution cooled with an ice-bath was introduced methylamine gas for 4 h. The progress of the reaction was followed by a TLC method [silica gel, CH₂Cl₂–MeOH = 10∶1 (v/v)]. After 4 h when the spot for 3a (R_f = 0.90) disappeared, the reaction was finished by the addition of aqueous 5% NaHCO₃ solution. The mixture was stirred for one day and then the insoluble materials were removed by filtration. The CCl₄ layer was washed three times with aqueous 5% NaHCO₃ solution and then dried over Na₂SO₄. The solution was concentrated to dryness, the solid residue being further purified through chromatography [silica gel, column φ 2.5 × 17 cm, CH₂Cl₂–MeOH = 10∶1 (v/v)] to yield 4a, 1.55 g (62%, calculated from 2a), slightly yellow powder, mp 83–87 °C; ¹H NMR (CDCl₃, 600 MHz, 27 °C) δ 2.60 (3H, s, NH-CH₃), 4.04 (2H, s, Ar-CH₂-NH), 7.52 (1H, t (7.2 Hz), 9-phenyl-H_p), 7.60 (2H, d (7.6 Hz), 2-phenyl-H_m), 7.61 (2H, t (7.6 Hz), 9-phenyl-H_m), 7.70, 7.74 (2H, d × 2 (8.6 Hz), phen-H_5,6), 7.98 (1H, d (8.3 Hz), phen-H₃), 8.11 (1H, d (8.3 Hz), phen-H₈), 8.23 (3H, d (7.9 Hz), phen-H₄, 2-phenyl-H_o), 8.29 (1H, d (8.3 Hz), phen-H₇), 8.36 (2H, d (7.6 Hz), 9-phenyl-H_o); Anal. Calcd. for C₂₆H₂₁N₃: C, 83.18; H, 5.64; N, 11.19%. Found: C, 83.14; H, 6.06; N, 11.20%.

1-{N-Methyl-N-[2-(dihydroxyboryl)phenylmethyl]aminomethyl}-4-(9-phenyl-1,10-phenanthrolin-2-yl)benzene (1a).. Compound 4a (1.30 g, 3.5 mmol) and 2-(2-bromomethylphenyl)-1,3-dioxaborinane (1.15 g, 4.5 mmol) were treated in refluxing acetonitrile (100 ml) in the presence of K₂CO₃ (0.96 g, 6.9 mmol). The progress of the reaction was followed by a TLC method [silica gel, CH₂Cl₂–MeOH = 5∶1 (v/v)]. After 17 h when the spot for 1a (R_f = 0.45) disappeared, the reaction was finished. After cooling, the insoluble materials were filtered off, the filtrate being evaporated to dryness. The solid residue was taken with a mixture of dichloromethane and aqueous 5% NaHCO₃ solution and the phase-separated mixture was stirred for 30 min. The organic layer was separated, washed with water and dried over Na₂SO₄. The solution was concentrated to dryness, the solid residue being further purified through chromatography [silica gel, column φ 2.5 × 15 cm, CH₂Cl₂–MeOH = 5∶1 (v/v)] to yield 1a, 0.93 g (46%), slightly yellow powder, mp 174–179 °C; IR (KBr) ν_B-O 1340 cm⁻¹; ¹H NMR (600 MHz, CDCl₃, 27 °C) δ 2.19 (3H, s, N-CH₃), 3.80, 3.83 (4H, s × 2, -CH₂-NMe-CH₂-), 7.25 (1H, d (6.7 Hz), borylphenyl-H₆), 7.38 (2H, t (7.1 Hz), borylphenyl-H_4,5), 7.50 (1H, t (8.2 Hz), 9-phenyl-H_p), 7.51 (2H, t (8.1 Hz), benzene-H₂), 7.60 (2H, t (7.6 Hz), 9-phenyl-H_m), 7.80 (2H, s, phen-H_5,6), 7.97 (1H, d (6.7 Hz), borylphenyl-H₃), 8.13, 8.15 (2H, d × 2 (8.4 Hz), phen-H_3,8), 8.32 (2H, d (8.3 Hz), 9-phenyl-H_o), 8.46 (4H, m, phen-H_4,7, benzene-H₃); Anal. Calcd. for C₃₃H₂₆N₃BO + 0.3H₂O: C, 79.91; H, 5.50; N, 8.31%. Found: C, 79.79; H, 5.40; N, 8.46%.

2-( p-Methylaminomethylphenyl)-9-p-anisyl-1,10-phenanthroline (4b).. Compound 2b (4.11 g, 10.9 mmol) was treated with N-bromosuccinimide (NBS) (2.33 g, 13.1 mmol) and α,α′-azobisisobutyronitrile (0.23 g, 10 wt% of NBS) in CCl₄ at the reflux temperature for 40 min. The progress of the reaction was followed by ¹H NMR spectroscopy [250 MHz, CCl₄–CDCl₃ = 1∶1 (v/v)] with the disappearance of δ_CH3 2.47 ppm and the appearance of δ_CH2Br 4.59 ppm. After cooling, the insoluble materials were removed by filtration, the filtrate being dried over Na₂SO₄. This solution containing 3b was used for the synthesis of 4b without further purification. Into the CCl₄ solution cooled with an ice-bath was introduced methylamine gas for 6 h. The progress of the reaction was followed by a TLC method [silica gel, toluene–MeOH = 10∶1 (v/v)]. After 4 h when the spot for 3b (R_f = 0.67) disappeared, the reaction was finished by the addition of aqueous 5% NaHCO₃ solution. The mixture was stirred for one day and then the insoluble materials were removed by filtration. The CCl₄ layer was washed three times with aqueous 5% NaHCO₃ solution and then dried over Na₂SO₄. The solution was concentrated to dryness, the solid residue being further purified through chromatography [silica gel, column φ 5 × 8 cm, CHCl₃–MeOH = 5∶1 (v/v)] to yield 4b, 1.99 g (46%, calculated from 2b), slightly yellow powder, mp 42–48 °C; ¹H NMR (CDCl₃, 250 MHz, 27 °C) δ 2.51 (3H, s, NH-CH₃), 3.87 (2H, s, Ar-CH₂-NH), 3.92 (3H, s, -OCH₃), 7.11 (2H, d (8.8 Hz), 2-phenyl-H_m), 7.41 (2H, d (8.1 Hz), 9-phenyl-H_m), 7.76 (2H, s, phen-H_5,6), 8.09 (1H, d (8.5 Hz), phen-H₃), 8.13 (1H, d (9.8 Hz), phen-H₈), 8.26 (1H, d (7.2 Hz), phen-H₄), 8.29 (1H, d (8.3 Hz), phen-H₇), 8.44 (4H, d (7.6 Hz), 2-phenyl-H_m, 9-phenyl-H_o); Anal. Calcd. for C₂₇H₂₃N₃O + 0.4H₂O: C, 78.57; H, 5.81; N, 10.18%. Found: C, 78.65; H, 5.70; N, 10.09%.

1-{N-Methyl-N-[2-(dihydroxyboryl)phenylmethyl]aminomethyl}-4-(9-p-anisyl-1,10-phenanthrolin-2-yl)benzene (1b).. Compound 4b (1.80 g, 4.4 mmol) and 2-(2-bromomethylphenyl)-1,3-dioxaborinane (1.47 g, 5.8 mmol) were treated in refluxing acetonitrile (100 ml) in the presence of K₂CO₃ (1.23 g, 8.9 mmol). The progress of the reaction was followed by a TLC method [silica gel, CHCl₃–MeOH = 5∶1 (v/v)]. After 6 h when the spot for 4b (R_f = 0.13) disappeared, the reaction was finished. After cooling, the insoluble materials were filtered off, the filtrate being evaporated to dryness. The solid residue was taken with a mixture of dichloromethane and aqueous 5% NaHCO₃ solution and the phase-separated mixture was stirred for 30 min. The organic layer was separated, washed with water and dried over Na₂SO₄. The solution was concentrated to dryness, the solid residue being further purified through chromatography [silica gel, column φ 5 × 10 cm, CHCl₃–MeOH = 5∶1 (v/v)] to yield 1b, 0.81 g (34%), slightly yellow powder, mp 178–183 °C; IR (KBr) ν_B-O 1344 cm⁻¹; ¹H NMR (600 MHz, CDCl₃, 27 °C) δ 2.20 (3H, s, N-CH₃), 3.69, 3.79 (4H, s × 2, -CH₂-NMe-CH₂-), 3.93 (3H, s, -OCH₃), 7.13 (2H, d (8.5), 9-phenyl-H_m), 7.25 (1H, d (6.9 Hz), borylphenyl-H₆), 7.38 (2H, t (7.1 Hz), borylphenyl-H_4,5), 7.51 (2H, d (8.0 Hz), benzene-H₂), 7.77 (2H, d × 2 (8.9 Hz), phen-H_5,6), 7.97 (1H, d (6.4 Hz), borylphenyl-H₃), 8.10, 8.12 (2H, d × 2 (8.4 Hz), phen-H_3,8), 8.27 (2H, d (8.4 Hz), phen-H_4,7), 8.43 (4H, d (8.0 Hz), phen-H_4,7, 9-phenyl-H_o, benzene-H₃); Anal. Calcd. for C₃₄H₃₀N₃BO₂ + 0.5H₂O: C, 76.98; H, 5.51; N, 7.92%. Found: C, 77.12; H, 5.36; N, 7.94%.

Miscellaneous

¹H NMR, absorption spectra, optical rotation, ESI-MS spectra and CD spectra were measured with Bruker DMX 600, JASCO V-570 , HORIBA SEPA-300, Perseptive Mariner and JASCO J-720 WI, respectively. The energy minimisation of the 1a₂·Cu(I)·D-glucose complexes was performed using the ESFF forcefield with molecular mechanics as implemented by Discover (MSI).

Acknowledgements

This work was supported by a Grant-in-Aid for COE Research ‘Design and Control of Advanced Molecular Assembly Systems’ from the Ministry of Education, Science and Culture, Japan (#08CE2005).

References

1. For a recent comprehensive review see: E. C. Constable , in Comprehensive Supramolecular Chemistry, ed. J.-M. Lehn, Pergamon, Oxford, 1996, vol. 9, p. 213;; A. F. Williams, Chem. Eur. J., 1997, 3, 15; C. Piguet, G. Bernardinelli and G. Hopfgartner, Chem. Rev., 1997, 97, 2005; A. E. Rowan and R. J. M. Nolte, Angew. Chem., Int. Ed. Engl., 1998, 37, 63.
2. C. J. Carrano and K. N. Raymond, J. Am. Chem. Soc., 1978, 100, 5371; B. Kersting, M. Meyer, R. E. Powers and K. N. Raymond, J. Am. Chem. Soc., 1996, 118, 7221.
3. J. Libman, Y. Tor and A. Shanzer, J. Am. Chem. Soc., 1987, 109, 5880; L. Zelikovich, J. Libman and A. Shanzer, Nature, 1995, 374, 790; C. Bianchini, A. Meli, V. Patinec, V. Sernau and F. Vizza, J. Am. Chem. Soc., 1997, 119, 4945.
4. S. Christie, I. F. Fraser, A. McVitie and R. D. Peacock, Polyhedron, 1986, 5, 35; P. Agaskar, F. A. Cotton, I. F. Fraser and R. D. Peacock, J. Am. Chem. Soc., 1984, 106, 1851; P. A. Agasker, F. A. Cotton, I. F. Fraser, L. Manojlovic-Muir, K. W. Muir and R. D. Peacock, Inorg. Chem., 1986, 25, 2511.
5. M. Gerards, Inorg. Chim. Acta, 1995, 229, 101.
6. W. Zarges, J. Hall and J.-M. Lehn, Helv. Chim. Acta, 1991, 74, 1843.
7. E. C. Constable, T. Kulke, M. Neuburger and M. Zehnder, Chem. Commun., 1997, 489; G. Baum, E. C. Constable, D. Fenske and T. Kulke, Chem. Commun., 1997, 2043; G. Baum, E. C. Constable, D. Fenske, C. E. Housecroft and T. Kulke, Chem. Commun., 1998, 2659.
8. C. Provent, S. Hewage, G. Brand, G. Bernardinelli, L. J. Charbonniere and A. F. Williams, Angew. Chem., Int. Ed. Engl., 1997, 36, 1287.
9. C. R. Woods, M. Benaglia, F. Cozzi and J. S. Siegel, Angew. Chem., Int. Ed. Engl., 1996, 35, 1830; C. R. Woods, M. Benaglia, P. Blom, A. Fuchicello, F. Cozzi and J. S. Siegel, Polym. Prepr., 1996, 37, 480.
10. A. L. Airey, G. F. Swiegers, A. C. Willis and S. B. Wild, J. Chem. Soc., Chem. Commun., 1995, 695.
11. T. Suzuki, H. Kotsuki, K. Isobe, N. Moriya, Y. Nakagawa and M. Ochi, Inorg. Chem., 1995, 34, 530.
12. J. F. Modder, G. van Koten, K. Vrieze and A. L. Spek, Angew. Chem., Int. Ed. Engl., 1989, 28, 1698; J. F. Modder, K. Vrieze, A. L. Spek, G. Challa and G. Van Koten, Inorg. Chem., 1992, 31, 1238.
13. Y. Dai, T. J. Katz and D. A. Nichols, Angew. Chem., Int. Ed. Engl., 1996, 35, 2109.
14. E. J. Enemark and T. D. P. Stack, Angew. Chem., Int. Ed. Engl., 1995, 34, 996.
15. M. Albrecht, Synlett., 1996, 565.
16. M. S. Goodman, A. D. Hamilton and J. Weiss, J. Am. Chem. Soc., 1995, 117, 8447.
17. J. Yoon and A. W. Czarnik, J. Am. Chem. Soc., 1992, 114, 5874; L. K. Mohler and A. W. Czarnik, ibid., 1993, 115, 2998.
18. P. R. Westmark and B. D. Smith, J. Am. Chem. Soc., 1994, 116, 9343 and references cited therein..
19. Y. Nagai, K. Kobayashi, H. Toi and Y. Aoyama, Bull. Chem. Soc. Jpn., 1993, 66, 2965.
20. G. Wulff, S. Krieger, B. Kubneweg and A. Steigel, J. Am. Chem. Soc., 1994, 116, 409 and references cited therein..
21. J. C. Norrild and H. Eggert, J. Am. Chem. Soc., 1995, 117, , 1479.
22. For comprehensive reviews on boronic acid-based saccharide receptors, see: T. D. James, K. R. A. S. Sandanayake and S. Shinkai, Supramol. Chem., 1995, 6, 141; T. D. James, P. Linnane and S. Shinkai, Chem. Commun., 1996, 281; T. D. James, K. R. A. S. Sandanayake and S. Shinkai, Angew. Chem., Int. Ed. Engl., 1996, 35, 1911; K. R. A. S. Sandanayake, T. D. James and S. Shinkai, Pure Appl. Chem., 1996, 68, 1207; S. Shinkai and M. Takeuchi, Trends Anal. Chem., 1996, 15, 188.
23. K. Tsukagoshi and S. Shinkai, J. Org. Chem., 1991, 56, 4089; Y. Shiomi, M. Saisho, K. Tsukagoshi and S. Shinkai, J. Chem. Soc., Perkin Trans. 1, 1993, 2111.
24. T. D. James, K. R. A. S. Sandanayake and S. Shinkai, Angew. Chem., 1994, 106, 2287; T. D. James, K. R. A. S. Sandanayake and S. Shinkai, Angew. Chem., Int. Ed. Engl., 1994, 22, 2207; T. D. James, K. R. A. S. Sandanayake and S. Shinkai, J. Chem. Soc., Chem. Commun., 1994, 477.
25. M. Takeuchi, T. Imada and S. Shinkai, J. Am. Chem. Soc., 1996, 118, 10658; M. Takeuchi, T. Imada and S. Shinkai, Bull. Chem. Soc. Jpn., 1998, 71, 1117; M. Takeuchi, T. Mizuno, H. Shinmori, M. Nakashima and S. Shinkai, Tetrahedron, 1996, 52, 1195; M. Takeuchi, S. Yoda, T. Imada and S. Shinkai, Tetrahedron, 1997, 53, 8335; H. Shinmori, M. Takeuchi and S. Shinkai, J. Chem. Soc., Perkin Trans. 2, 1998, 847.
26. T. Imada, H. Kijima, M. Takeuchi and S. Shinkai, Tetrahedron, 1996, 52, 2817; M. Yamamoto, M. Takeuchi and S. Shinkai, Tetrahedron, 1998, 54, 3125; M. Takeuchi, M. Taguchi, H. Shinmori and S. Shinkai, Bull. Chem. Soc. Jpn., 1996, 69, 2613.
27. S. Arimori, M. Takeuchi and S. Shinkai, J. Am. Chem. Soc., 1996, 118, 245; T. Kimura and S. Shinkai, Chem. Lett., 1998, 1035; T. Kimura, M. Takeuchi and S. Shinkai, Bull. Chem. Soc. Jpn., 1998, 71, 2197.
28. M. Mikami and S. Shinkai, J. Chem. Soc., Chem. Commun., 1995, 153; M. Mikami and S. Shinkai, Chem. Lett., 1995, 603; M. Takeuchi, Y. Chin, T. Imada and S. Shinkai, Chem. Commun., 1996, 1867.
29. T. Mizuno, M. Takeuchi, I. Hamachi, K. Nakashima and S. Shinkai, J. Chem. Soc., Perkin Trans. 2, 1998, 2281; G. Nuding, K. Nakashima, R. Iguchi, T. Ishi-i and S. Shinkai, Tetrahedron Lett., 1998, 39, 9473.
30. M. Takeuchi, K. Koumoto, M. Goto and S. Shinkai, Tetrahedron, 1996, 52, 12931.
31. Preliminary communication: M. Yamamoto, M. Takeuchi and S. Shinkai, Tetrahedron Lett., 1998, 39, 1189.
32. J. A. Nelder and R. Mead, Comput. J., 1965, 7, 308; S. L. Morgan and S. N. Deming, Anal. Chem., 1974, 46, 1170.
33. T. D. James, K. R. A. S. Sandanayake, R. Iguchi and S. Shinkai, J. Am. Chem. Soc., 1995, 117, 8982; T. D. James, K. R. A. S. Sandanayake and S. Shinkai, Nature, 1995, 374, 345.
34. K. Kondo, Y. Shiomi, M. Saisho, T. Harada and S. Shinkai, Tetrahedron, 1992, 48, 8239; T. D. James and S. Shinkai, Chem. Commun., 1995, 1483.
35. M. Bielecki, H. Eggert and J. C. Norrild, J. Chem. Soc., Perkin Trans. 2, 1999, 449.
36. Here, we take only the α-anomer into consideration, because it has a 1,2-cis-diol group that can bind a boronic acid group by forming a cyclic ester, whereas the β-anomer, having a 1,2-trans diol group, cannot or finds it very difficult to form such a cyclic ester.Here, we take only the α-anomer into consideration, because it has a 1,2-cis-diol group that can bind a boronic acid group by forming a cyclic ester, whereas the β-anomer, having a 1,2-trans diol group, cannot or finds it very difficult to form such a cyclic ester..
37. To simplify the ¹H NMR spectral pattern C₂-symmetrical saccharides such as D-threitol and D-mannitol-3,4-carbonate would be more suitable for the present system than C₂-unsymmetrical D-glucose. Unfortunately, the affinity of these C₂-symmetrical saccharides with the 1a₂·Cu(I) complex was not as high and the resultant ¹H NMR spectra were very complex because of overlap with uncomplexed saccharides..
38. The concentrations used for the ¹H NMR measurements ([1b₂· Cu(I)] = 5.00 mmol dm⁻³ and [D-glucose] = 12.5 mmol dm⁻³ in Fig. 10) are much higher than those used for the CD measurements ([1a₂·Cu(I)] = [D-glucose] = 0.100 mmol dm⁻³ in Fig. 3). This is why the equilibrium is attained much faster in ¹H NMR measurements than in the CD measurements..

---
