Peculiar reactivity of face to face biscorrole and porphyrin–corrole with a nickel(II) salt. X-Ray structural characterization of a new nickel(II) bisoxocorrole

Abstract

New nickel(II) bisoxocorrole complexes have been synthesized and characterized. Two nickel bisoxocorrole isomer complexes are formed in a 1:1 ratio when a biscorrole, where an anthracenyl bridge links the two macrocycles in a face to face arrangement, is metallated by nickel in air. Evidence for the insertion of an oxo group at one of the meso positions is given by the X-ray structural characterization of the Ni₂(BOCA) “cis” isomer where BOCA is a bisoxocorrole with an anthracenyl spacer. Conversely, under the same reaction conditions no nickel bisoxocorrole is obtained when biphenylene is the linker of the biscorrole system, the major product of the reaction being a bisnickel bisradical species. Only a small amount of a bisnickel hydrooxobiscorrole is isolated in this reaction. A reaction mechanism for both series (anthracenyl and biphenylenyl) is given and a comparison of the behavior of the biscorrole system with related derivatives is proposed.

---

Introduction

Numerous researches have been devoted to the molecular structure, spectroscopy and electronic properties of metallocorroles.^1–5 Although nickel complexes were among the first metallocorroles reported,⁶ their structure was not clearly defined for a long time.^6–11 Indeed, until 1997, the structure of the nickel corrole was uncertain due to its paramagnetic nature.^8,11–15 Furthermore, the low intensity of the Soret band led the authors to conclude that the corrole complex was not totally aromatic and they postulated a nickel(II) complex with an “extra” hydrogen atom at one of the three meso positions. In 1997 the electrochemistry data¹⁶ and a crystal structure determination¹⁷ demonstrated that no such hydrogen atom was present at this position. Conversely a distorted square planar geometry indicated an interruption of the corrole ring aromaticity. Magnetic measurements and the unusual low intensity of the double band in the Soret region of the electronic spectrum were in accordance with a radical nature for the nickel complex.^1,17 The authors pointed out that the formal nickel(III) complex was in fact a nickel(II) one with a delocalized electron in the π orbital of the ligand. However, they assumed that the nickel(II) radical came from the loss of an hydrogen radical from an intermediate nickel(II) complex with a free imine not coordinated to the nickel.¹³ This intermediate was in equilibrium by an hydrogen radical migration with a nickel(II) complex with an “extra” hydrogen atom at one of the meso positions.

We recently reported the synthesis of four “ face to face” bismacrocycles containing either two corrole rings⁵ or a porphyrin and a corrole unit,⁴ rigidly linked by two different bridges such as anthracenyl and biphenylenyl spacers. Here, we show an interesting behaviour of these bismacrocycles when metallated with a nickel salt. Indeed, the insertion of nickel into these “face to face” bismacrocycles leads to the formation of a novel family of macrocycles, named “bisoxocorroles ”, similar to the oxophlorins observed in porphyrin chemistry (Scheme 1).^18–22

Scheme 1

These bisoxocorroles are characterized by the presence of an oxygen atom at one of the meso positions, precisely at the C-15 and C-15′ or C-5′ positions (′ is given for the second macrocycle). So far to our knowledge, this is the first example of such a bismacrocycle ever described. The synthesis, the X-ray characterization and ¹H NMR studies of the nickel bisoxocorrole Ni₂(BOCA) (BOCA is a bisoxocorrole with an anthracenyl spacer) as well as related derivatives are reported in this article. A probable mechanism for this peculiar reaction is given and reference is made to the different behaviour of monomeric nickel corroles.

Results

Synthesis

A standard procedure was employed to metallate the anthracenyl bridged biscorrole 1 with nickel(II). The biscorrole was heated at 80°C in pyridine in the presence of an excess of nickel(II) acetate under air, the metallation reaction being monitored by UV-visible spectroscopy. After purification, the ¹H NMR and mass spectrometry data led us to postulate the formation of a nickel bisoxocorrole. In contrast to monomeric corroles, the formation of radical species was not observed and the isolated compounds were found diamagnetic indicating the presence of low spin nickel(II). The formation of two bisoxocorrole isomers 2a and 2b occurred in 38% yield, the oxygen atoms being either on the same side of the bismacrocycle (2a) or on opposite sides (2b) (Scheme 2).

Scheme 2

The two bisoxocorrole isomers were easily separated by column chromatography on silica gel. 2b was first collected indicating that isomer 2b was less polar than 2a. Both isomers were isolated in the same quantity (19% yield). Mass spectrometry measurements indicated a single ion at m/z 1688 ([M]^+•) for both derivatives in accordance with the presence of two oxygen atoms on the bismacrocycle.

Contrary to the anthracenyl derivative, using the same metallation reaction conditions, the formation of a bisoxocorrole was not observed in the case of the biphenylenyl derivative 3, the major product being the bisradical species 4 along with a small amount of a mixed-ligand complex 5. Spectroscopic data of 5 were consistent with the presence of both oxocorrole and hydrocorrole moieties. Mass spectrometry analysis confirmed the probable structure of 5 with a peak at m/z 1648 compared to 1632 for the bisradical 4 (Scheme 3).

Scheme 3

Characterization of the nickel bisoxocorroles 2a and 2b

Nickel bisoxocorroles were characterized by ¹H NMR, UV-visible, infrared, mass spectrometry and by X-ray crystallography.

During the metallation reaction, a typical change in the UV-visible spectrum is observed (Table 1). A decrease in intensity of the Soret band is noted which indicates a breakdown of the aromaticity in the macroring. For instance, the ε value for the Soret band of the anthracenyl biscorrole free base 1 is 1.31 × 10⁵ whereas ε is close to 0.80 × 10⁵ (dm³ mol⁻¹ cm⁻¹) for the nickel bisoxocorroles 2a and 2b. Moreover, the Soret band is extremely broad due to the superposition of three bands between 379 and 416 nm. A single Q band appears at 635 nm with a low ε value of ca. 8.0 × 10³ dm³ mol⁻¹ cm⁻¹ (Fig. 1). It is noteworthy that the shape of the UV-visible spectra of 2a and 2b is nearly identical to that of the monomeric nickel corroles.

Table 1 UV-visible data of synthesized nickel(II) complexes and related derivatives

			λ max/nm (ε/10^−3 dm^3 mol^−1 cm^−1)
Spacer	Compound	Solvent	Soret band			Q bands
a Relative intensity. b TMEC = 7,8,12,13,-tetraethyl-2,3,17,18-tetramethylcorrolato.
Anthracenyl	1	CH2Cl2	—	416	—	—	572	608
				(131.5)			(35.4)	(29.0)
	7	Pyridine	—	417	—	524	582	605
				(100.0)^a		(27.3)^a	(29.9)^a	(33.3)^a
	7	CH2Cl2	—	420	—	546	578	—
				(100.0)^a		(26.5)^a	(26.5)^a
	2a	CH2Cl2	379	391	411	—	—	635
			(82.4)	(84.3)	(75.6)			(7.5)
	2b	CH2Cl2	380	394	416	—	—	635
			(78.7)	(85.3)	(79.2)			(8.5)
	12	CH2Cl2	402	—	—	524	558	—
			(170.2)			(30.1)	(34.2)
Biphenylenyl	3	CH2Cl2	—	404	—	—	578	607
				(129.0)			(39.5)	(31.0)
	4	Pyridine	—	420	—	517	591	614
				(79.4)		(44.7)	(37.6)	(43.4)
	4	CH2Cl2	—	417	—	543	571	—
				(73.1)		(37.5)	(30.7)
	5	CH2Cl2	350	386	420	—	—	672
			(60.3)	(62.4)	(58.3)			(6.8)
—	Ni(TMEC)^17^b	CH2Cl2	358	383	479	529	595	653
			(62.2)	(48.9)	(5.4)	(3.2)	(3.3)	(11.0)

---

Fig. 1 UV-visible spectra of H₆(BCA) and Ni₂(BOCA) species.

2a and 2b are diamagnetic indicating the lack of any radical species and the presence of a pure low spin nickel(II) complex. ¹H NMR allows one to locate the oxygen atom since only one proton is present at the meso positions. Moreover, the disruption of the macrocycle aromaticity decreases the ring current and therefore the signal of the remaining meso proton of the oxocorrole moiety appears around δ 4 compared to 9 for the starting biscorrole 1 (See Table 2 for resonances of meso protons and Experimental Section for δ of other proton sites). Furthermore, the ¹H NMR spectra of 2a and 2b clearly show the dissymmetry of the molecule (absence of C₂ symmetry) which confirms the presence of only one oxygen atom at one of the two available meso positions. For instance, one signal is observed for the four methyl groups of the symmetric biscorrole 1 compared to two signals at δ − 0.22 and − 0.19 for those of the bisoxocorrole 2b.

Table 2 ¹H NMR chemical shifts of nickel(II) bisoxocorrole and hydrooxobiscorrole meso protons

δ H meso
Spacer	Compound	H-5	H-15	H-5′	H-15′
Anthracenyl	1	8.86	8.86	8.86	8.86
2a	—	3.93	—	3.93
2b	—	4.05	4.05	—
12	—	2.87	—	—
Biphenylenyl	3	9.59	9.59	9.59	9.59
5	4.02(H-5 or 5′)	3.90(2H)	4.01(H-5 or 5′)	—

---

Side- and top-views of the molecular structure of Ni₂(BOCA) 2a are displayed in Fig. 2(a) and 2(b), respectively, with the labelling scheme used for all the non-hydrogen atoms. Fig. 3(a) and 3(b) show, respectively, in Å × 10⁻² units the perpendicular displacements of the nickel and the oxocorrole core atoms relative to the oxocorrole mean planes. Fig. 4 illustrates the orientation and position of the mean planes of the oxocorrole rings relative to that of the anthracenyl spacer. Table 3 lists selected bond distances and angles as well as some averages data for Ni₂(BOCA)·2CH₂Cl₂·2H₂O.

Fig. 2 (a) Side- and (b) top-views of the molecular structure and atom numbering of Ni₂(BOCA). Thermal ellipsoids enclose 30% probability. Hydrogen atoms are omitted for clarity.

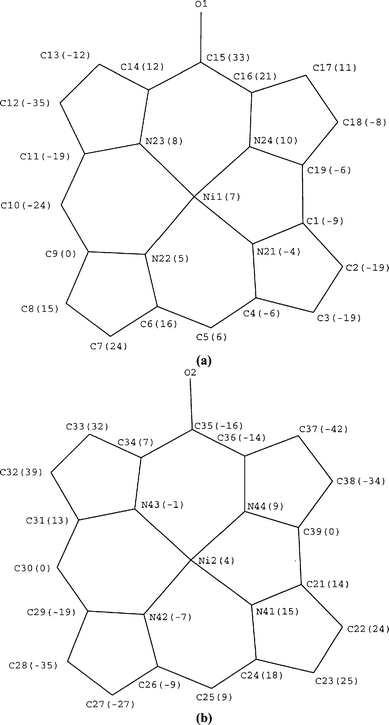

Fig. 3 Perpendicular displacements in Å × 10⁻² units of (a) Ni1 and the Ni1 oxocorrole-core atoms and (b) Ni2 and the Ni2 oxocorrole-core atoms relative to the corresponding oxocorrole mean planes.

Fig. 4 Orientation and position of the oxocorrole ring mean planes relative to the anthracenyl spacer.

Table 3 Selected bond lengths (Å) and angles (°) for compound 2a

Ni1–N21	1.861(6)	Ni2–N44	1.858(6)
Ni1–N22	1.880(6)	〈Ni–Np〉	1.871(13)
Ni1–N23	1.894(6)	〈Np–Cα〉	1.371(20)
Ni1–N24	1.859(6)	〈Cα–Cβ〉	1.431(25)
Ni2–N41	1.859(6)	〈Cβ–Cβ〉	1.381(19)
Ni2–N42	1.873(6)	〈Cm–Cα〉	1.417(36)
Ni2–N43	1.880(6)	〈Cα–Cα〉	1.441(7)
〈Np–Cα–Cβ〉	109.3(9)	〈Cα–Cm–Cα〉	123.8(9)
〈Cα–Np–Cβ〉	107.5(9)	〈Np–Cα–Cα〉	110.8(9)
〈Cα–Cβ–Cβ〉	106.8(9)

---

As shown in Fig. 2(a) and 2(b), both nickel atoms, Ni1 and Ni2, lie in a four-coordinate distorted square-planar environment. The average Ni1–N_p and Ni2–N_p bond distances are not significantly different, their mean value being 1.871(6) Å. The shortest Ni1–N_p and Ni2–N_p bond distances, Ni1–N_p(24) 1.859(6) and Ni1–N_p(21) 1.861(6), Ni2–N_p(41) 1.859(5) and Ni2–N_p(44) 1.858(6) Å, involve pyrrole nitrogens belonging to rings linked directly [italic v]ia the C_α–C_α bond. Similar features have been observed previously in the structures of other metallocorroles.^1,2 The average Ni–N_p bond distance in 2a is slightly longer than that of 1.844 Å in the nickel(II) derivative of the tetramethyltetraethylcorrole π-radical cation, Ni^II(TMEC^•+), in which the nickel(II) cation lies also in a distorted square-planar environment.¹⁷ However, the Ni–N_p bond distances present in Ni₂(BOCA) are shorter than the corresponding ones observed for the large number of reported structures of nickel(II) porphyrins,²³ the averages lying between 1.888 Å in Ni(TCHP) and 1.960 Å in Ni(DeutDME) (TCHP = tetracyclohexylporphyrinate and DeutDME = 2,4-diacetyldeuteroporphyrinate dimethyl ester).²³ This in 2a can be ascribed to the reduced hole size of the two oxocorrole rings occurring in [BOCA]⁴⁻ relative to the hole size of the porphyrin core. A similar decrease of the M–N_p bond lengths is observed in several metallocorroles as different as [Rh(OMC)(AsPh₃)], [Co(OMTPC)(PPh₃)] and Mn(OMC) (OMC = 2,3,7,8,12,13,17,18-octamethylcorrolate; OMTPC = 2,3,7,8,12,13,17,18-octamethyl-5,10,15-triphenylcorrolate).^24–26

As shown in Fig. 2(a) and 2(b), one oxygen atom is bonded to a meso-carbon of each ring and only the cis isomer of Ni₂(BOCA) is present in the studied crystals. The two meso-positions occupied by an oxygen atom are C15 and C35 giving two cis C_m[double bond, length half m-dash]O groups oriented in the same direction. The bond distances of 1.24(1) (C15–O1) and 1.26(1) Å (C35–O2) are in good agreement with expected C[double bond, length half m-dash]O bond lengths. C[double bond, length half m-dash]O bond distances of similar values have been observed in metallooxophlorin.²⁷ The C_α–C_m bond distances adjacent to the C_m[double bond, length half m-dash]O groups are not significantly different. Their mean value of 1.45(1) Å is slightly longer than the mean value of the four other C_α–C_m bond lengths of 1.40(1) Å of the two rings present in Ni₂(BOCA), but similar to the known distance for a single C_sp2–C_sp2 bond (1.44 Å). Moreover, both C[double bond, length half m-dash]O groups are not coplanar with the corrole mean planes, the dihedral angles between the C14-C15(O1)-C16 and C34-C35(O2)-C36 mean planes and the oxocorrole mean planes of both rings being 12.8(2) and 14.0(2)°, respectively. These structural features indicate that only a slight delocalization of the C[double bond, length half m-dash]O bond occurs across the π system of the corrole ring.

Although the core of the corrole π-cation radical ligand in Ni^II(7,8-TMEC^•+) is totally planar,¹⁷ the two rings of Ni₂(BOCA) are slightly distorted. Both oxocorrole core conformations correspond to a mixture of irregular saddle and ruffle and doming distortions. The saddle distortions may be characterized by the out of plane displacements of the geminal β-pyrrole carbons of + 0.106(7) and − 0.213(7) Å for the Ni1- and + 0.302(7) and − 0.346(7) Å for the Ni2-containing macrocycles above and below the oxocorrole mean planes. The doming of both rings may be described by the separation between the 4N_p mean plane and oxocorrole mean plane of each ring of 0.050(1) and 0.108(1) Å for the Ni1- and Ni2-containing macrocycles, respectively. The irregular ruffling may be characterized by the orientations of the C_β–C_β bonds relative to the oxocorrole mean plane of each ring, the corresponding angles having values close to 0 (C2–C3), 3.8(2) (C7–C8), 169.8(2) (C12–C13), 8.0(2) (C17–C18), 0(C22–C23), 176.9(2) (C27–C28), 3.3(2) (C32–C33) and 176.7(2)° (C37–C38).

The structure of Ni₂(BOCA) exhibits features similar to those reported for the nickel(II) bisporphyrin complex Ni₂(DPA) (DPA = diporphyrin anthracene) with the same rigid anthracenyl bridge.^28,29 The oxocorrole moieties in Ni₂(BOCA) are not stacked over one another, but are slightly slipped with respect to each other. A lateral shift of 1.535(2) Å occurs between Ni2 and the projection of Ni1 on the mean plane of the oxocorrole ring containing Ni2 (Fig. 4). This lateral shift leads to a Ni···Ni distance of 4.678(1) Å and a slip angle of 19.1(6)°. The distance between a virtual plane containing the meso-carbon C15 which is parallel to the mean plane of the Ni2 oxocorrole is 4.419(2) Å. The dihedral angle of this virtual plane and the mean plane of the Ni1 oxocorrole is 7.8(3)° (Fig. 4). In the case of the Pacman porphyrin, Ni₂(DPA), the lateral shift is 2.40 Å giving a Ni···Ni distance of 4.566 Å and an interring separation of 3.88 Å.

The anthracenyl spacer is almost planar; the largest deviation from its mean plane is 0.073(7) Å (C80), the mean deviation 0.041(7) Å. The nickel(II) bisoxocorrole molecules, Ni₂(BOCA), are stacked top to bottom in columns along the [011] crystal direction. The shortest intermolecular contact distances have values of 3.6 Å.

Spectroscopic characterization of the nickel hydrooxobiscorrole 5

The mixed-ligand nickel hydrooxobiscorrole complex 5 has been characterized by ¹H NMR (see Experimental section). The meso methylene group of the hydrocorrole moiety is evidenced as a double doublet resonance at δ 3.90. Two singlets appear at δ 4.01 and 4.02 corresponding to the single meso protons of the hydrocorrole and oxocorrole macrocycles. Likewise the lack of C₂ symmetry is enhanced by the presence of four different signals around δ 2.2 for the four methyl groups of the bismacrocycle. Interestingly, and in contrast to the anthracenyl derivative, only one isomer is detected by ¹H NMR. Hydrooxobiscorroles and bisoxocorroles have nearly the same UV-visible spectra indicating loss of ring aromaticity and a large Soret band centered at 386 nm is observed for 5 (Table 1).

Characterization of the bisradical species 7 and 4

In order better to understand the mechanism of formation of these bisoxocorroles and hydrooxobiscorrole, the same metallation reactions were carried out under an argon atmosphere to evaluate the role of dioxygen in this reaction. Under the same experimental conditions, but in the absence of dioxygen, we could isolate the bisradical nickel complex 4 (biphenylenyl spacer) and 7 (anthracenyl spacer) (Scheme 4). The UV-visible spectra are different from those described before for the bisoxocorrole, the hydrooxobiscorrole or the monomeric corrole nickel complexes (see Table 1). For example, in pyridine, the electronic absorption spectrum of 7 exhibits a Soret band at 417 nm and three Q bands at 524, 582 and 605 nm. A similar UV-visible spectrum is observed for 4 (Soret band 420 nm; Q bands 517, 591, 614 nm) (Table 1). Compound 7 is paramagnetic and very broad signals are observed on the ¹H NMR spectrum between δ − 2 and 30 while for the biphenylenyl derivative 4 broad signals appear between δ 0 and 9. The ESR spectrum of 7 shows a characteristic signal of a radical delocalized on the macrocycle and split into three lines (g₁ = 2.004, g₂ = 2.007, g₃ = 2.017) at 100 K as observed for monomeric nickel corroles.^16,17 The ESR spectrum of 4 exhibits a very low intensity signal in the same region as for 7, thus indicating a stronger interaction between the two radicals in 4 than in 7. ESR and ¹H NMR are together in accordance with the formulation as a nickel(II) bisradical for derivatives 4 and 7. Additional evidence supporting this hypothesis comes directly from the mass spectrum exhibiting a single ion at m/z 1658 for 7 and 1632 for 4. It should be noted that the bisradical species 7 is very unstable under dioxygen or air and decomposition occurs under these conditions only after a few minutes. Conversely, 4 is more stable and no extensive decomposition is observed after three days in solution. The direct oxygenation of these bisradical species does not lead to the formation of bisoxocorroles or mixed hydrooxobiscorroles respectively. This indicates that the bisradicals 4 and 7 are not the intermediates in the oxocorrole formation.

Scheme 4

Synthesis and characterization of the bisnickel porphyrin oxocorrole derivative 12

In order to dismiss an eventual chemical cooperativity between the two corrole macrocycles during the reaction, the porphyrin–corrole bismacrocycle 10 was metallated by a nickel salt. After three hours of reaction in pyridine under reflux only the corrole macrocycle was metallated as shown by mass spectrometry. Attempts to isolate this monometallated complex 11 were unsuccessful due to an extensive decomposition during the purification. This complex was only identified in the reaction medium by mass spectrometry by the presence of one peak at m/z 1353 corresponding to a nickel(II) oxocorrole face to face to a porphyrin free base. Taking into account the higher ε value for the porphyrin ring compared to corrole and oxocorrole ones, the nickel(II) oxocorrole–porphyrin free base 11 exhibits the same UV-visible spectrum as that of the starting porphyrin–corrole 10. Metallation of the porphyrin ring only occurs in benzonitrile under reflux leading to the formation of the bisnickel(II) derivative 12 (Scheme 5).

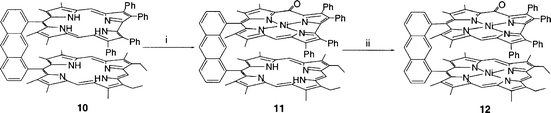

Scheme 5

The mass spectrum of complex 12 consists in a single peak at m/z 1410 and the ¹H NMR spectrum reveals the total dissymmetry. The meso proton of the oxocorrole moiety is shifted downfield (δ = 2.87) compared to that of the bisoxocorrole 2a or 2b (δ≈4) or the biscorrole (δ≈9) (see Table 2 and Experimental section). This results from the superposition of two phenomena. First, as in the case of bisoxocorroles, the ring current is lower than for monocorroles and therefore the signal appears downfield. Secondly, the addition of the strong ring current of the porphyrin over the oxocorrole moiety shifts this signal more downfield. It is interesting that this molecule is chiral and therefore two stereoisomers are formed during ring oxidation of the corrole.

Discussion

Proposed mechanism for formation of the bisoxocorroles 2a and 2b

From the results described, the characterization of the hydrooxobiscorrole 5, the difference in stability of the two bisradical species 4 and 7 in air, and the mechanism for metallation of corroles by nickel proposed in the literature, we can suggest a mechanism which corresponds to the physicochemical data obtained. A concerted mechanism implying a dioxygen molecule attack and a hydrogen radical migration from the imine to the meso position is proposed in Scheme 4.

The first step is analogous to that described in the literature for the monomeric corrole series; it consists in the formation of a bisnickel(II) biscorrole 6 with one imine group of each corrole ring not co-ordinated. Under a dioxygen atmosphere, the migration of the hydrogen radical from the remaining imine group to the meso position concerted with a dioxygen molecule attack (8) generates the transient bishydroperoxide 9a. This unstable intermediate immediately loses two water molecules to give the corresponding bisoxocorrole 2a. This mechanism perfectly explains the formation of only one oxo group per corrole ring. The formation of the bisoxocorrole is only due to a radical species generated by insertion of the nickel into the cavity of the corrole. The access to isomer 2b can be explained by the same mechanism if one takes into account the possible delocalization of the radical on the second meso position of 6.

Proposed mechanism for the formation of complexes 4 and 5

A radical interaction can account for the difference in reactivity of compounds 1 and 3. As described for “Pacman” porphyrins^30–36 or biscorroles⁵ and porphyrin–corroles,⁴ the spacer length (anthracenyl or biphenylenyl) is of major importance in the reactivity of the complex formed. For the anthracenyl derivative the two corrole rings behave as independent macrocycles since no interaction occurs due to the length of the bridge (4.9 Å). For the biphenylenyl analogue the shorter distance between the two corrole rings (3.8 Å) leads to a stronger interaction between the two macrocycles. Therefore, the major formation of the bisradical species 4 is observed and the hydrooxobiscorrole 5 is produced as a minor compound. Furthermore, no bisoxocorrole derivative, which is the main product in compound 1 metallation by nickel, is formed. The strong interaction between the two radicals in 4 is demonstrated by the ¹H NMR spectrum which exhibits signals in a diamagnetic region. However, the spacer is not short enough to observe a complete antiferromagnetic coupling between the two radicals and this can explain the broadness of the NMR signals. The formation in low yield of only one hydrooxobiscorrole isomer follows from this interaction. Conversely, for the anthracenyl compound, the distance between the two corrole rings is too large to observe a spin interaction between the two radicals and each radical is delocalized on each meso position and statistically the two isomers 2a and 2b are generated in the same amount.

It is worth pointing out that a monomeric corrole bearing a phenyl group at the C-10 position does not afford the nickel(II) oxocorrole but the nickel(II) radical. The formation of oxocorroles is observed only in the case of face to face bismacrocycles. This probably stems from a larger electron density at the meso position than at other carbon atoms, compared to the monomeric corroles, resulting from the superposition of the two corrole rings. Molecular modeling calculations currently underway will probably answer this question.

Finally, infrared spectra of all the derivatives were recorded and typical values for the carbonyl group stretching bands of bisoxocorroles were found. As in the case of oxophlorins (1560–1580 cm⁻¹)²² or dipyrroketones, the carbonyl vibration frequencies arise around 1600 cm⁻¹ (see Experimental section). This low value for a carbonyl group vibration indicates a certain degree of polarization of the C[double bond, length half m-dash]O bond. In comparison with metallated oxophlorins, a weaker polarization is found for the carbonyl group of the oxocorrole which seems to indicate a stronger delocalization of the C[double bond, length half m-dash]O group of the oxophlorins than that of the oxocorrole.²²

Experimental

Instrumentation

IR spectra were recorded on a Bruker IFS 66v FTIR spectrophotometer for samples prepared as 1% dispersions in KBr pellets, UV-visible spectra on a Varian Cary 5 spectrophotometer. EPR measurements were performed on a Bruker ESP 300 instrument at 100 K in toluene. The g values were measured relative to diphenylpicrylhydrazyl (dpph) (g = 2.0037 ± 0.002). Basic alumina (Merck; usually Brockmann Grade III, i.e. deactivated with 6% water) and silica gel (Merck; 70–120 μm) were used for column chromatography. ¹H NMR spectra were recorded on a Bruker AC 200 Fourier transform spectrometer of the “Centre de Spectrométrie Moléculaire de l’Université de Bourgogne”, chemical shifts are expressed in ppm relative to chloroform (7.258 ppm). Microanalyses were performed at the Université de Bourgogne on a Fisons EA 1108 CHNS instrument. Mass spectra were obtained on Bruker ProFLEX III MALDI/TOF (matrix assisted laser desorption ionization time of flight) spectrometer mode using dithranol as matrix. X-Ray diffraction data were collected on a Enraf-Nonius Kappa-CCD diffractometer (Mo-Kα radiation, λ = 0.71073 Å).

Chemicals

For all syntheses, chemicals were commercially available and used without further purification. Syntheses of face to face biscorroles and porphyrin–corroles were performed using a previously described procedure.^4,5

Syntheses

Complexes 2a and 2b. A suspension of 100 mg (0.06 mmol) of compound 1 and 80 mg (0.30 mmol) of nickel(II) acetate in 50 ml of pyridine was heated to 80°C for three hours in the dark with stirring then the solvent was evaporated under vacuum. The solid was dissolved in dichloromethane and chromatographed on silica gel. The isomer 2b was first collected using CH₂Cl₂–heptane (6:4) as eluent and 2a with neat CH₂Cl₂ as eluent. Both isomers were crystallized from CH₂Cl₂–CH₃OH (1:2) to give black crystals (2a: 20.7 mg, 19% 2b: 20.7 mg, 19%). 2a: ¹H NMR (200 MHz, CDCl₃, 25°C) δ − 0.29 (s, 6H, CH₃), − 0.13 (s, 6H, CH₃), 0.36 (t, 6H, CH₂CH₃), 0.46 (t, 6H, CH₂CH₃), 1.56 (m, 8H, CH₂CH₃), 3.93 (s, 2H, meso-CH), 6.13–7.83 (m, 46H, Ph, anthracene), 8.23 (s, 1H, anthracene) and 8.63 (s, 1H, anthracene); MS (MALDI/TOF) m/z = 1688 ([M]^+•); IR (KBr) [small nu, Greek, tilde] = 2960 (CH), 2930 (CH), 2857 (CH) and 1633 cm⁻¹ (CO); Calc. for C₁₁₂H₈₂N₈Ni₂O₂·(CH₃OH) C 78.85, H 5.04, N 6.51; found C 78.72, H 4.99, N 6.63%. 2b: ¹H NMR (200 MHz, CDCl₃, 25°C) δ − 0.22 (s, 6H, CH₃), − 0.19 (s, 6H, CH₃), 0.31 (t, 6H, CH₂CH₃), 0.39 (t, 6H, CH₂CH₃), 1.48 (m, 8H, CH₂CH₃), 4.05 (s, 2H, meso-CH), 6.08–7.81 (m, 46H, Ph, anthracene), 8.21 (s, 1H, anthracene) and 8.83 (s, 1H, anthracene); MS (MALDI/TOF) m/z = 1688 ([M]^+•); IR (KBr) [small nu, Greek, tilde] = 2956 (CH), 2930 (CH), 2860 (CH) and 1631 cm⁻¹ (CO); calc. for C₁₁₂H₈₂N₈Ni₂O₂·CH₃OH. C 78.85, H 5.04, N 6.51; found C 79.05, H 4.95, N 6.47%.

Complex 4. A suspension of 100 mg (0.06 mmol) of compound 3 and 80 mg (0.30 mmol) of nickel(II) acetate was heated at 80°C in 50 ml of pyridine under argon and stirred at this temperature for three hours in the dark. The solvent was evaporated and the solid dried under vacuum. The solid was dissolved in deoxygenated dichloromethane and chromatographed on silica gel under argon. The product was first collected with CH₂Cl₂ as eluent to give black crystals in 49% yield (47.9 mg) by slow evaporation of the solvent. MS (MALDI/TOF): m/z = 1632 ([M]^+•). Calc. for C₁₁₀H₈₂N₈Ni₂·H₂O: C 80.01, H 5.13, N 6.79. Found: C 79.89, H 5.24, N 6.86%.

Complex 5. This was prepared in 12% yield (13.0 mg), as described above for complexes 2a and 2b, starting from compound 3. ¹H NMR (200 MHz, CDCl₃, 25°C): δ 0.83 (t, 6H, CH₂CH₃), 0.85 (t, 6H, CH₂CH₃), 2.09 (s, 6H, CH₃), 2.18 (s, 6H, CH₃), 2.22 (s, 6H, CH₃), 2.29 (s, 6H, CH₃), 3.90 (dd, 2H, meso-CH₂), 4.01 (s, 1H, meso-CH), 4.02 (s, 1H, meso-CH), 6.98 (m, 15H, Ph, biphenylene), 7.08 (m, 14H, Ph, biphenylene) and 7.21 (m, 17H). MS (MALDI/TOF): m/z = 1648 ([M]^+•). IR (KBr): [small nu, Greek, tilde] = 3068 (CH), 3034 (CH), 2961 (CH), 2925 (CH), 2852 (CH) and 1624 cm⁻¹ (CO) Calc. for C₅₅H₄₁N₄NiO: C 80.11, H 5.01, N 6.79. Found: C 79.93, H 5.11, N 6.83%.

Complex 7. This was prepared in 45% (48.2 mg) yield, as described above for complex 4, starting from compound 1. MS (MALDI/TOF): m/z = 1658 ([M]^+•). Calc. for C₅₆H₄₂N₄Ni: C 81.07, H 5.10, N 6.75. Found: C 81.22, H 5.31, N 6.62%.

Complex 12. A solution of 150 mg (0.12 mmol) of compound 10 and 145 mg (0.58 mmol) of nickel(II) acetate was refluxed in benzonitrile for 1.5 hour. The solvent was evaporated under vacuum and the solid chromatographed on silica gel using CH₂Cl₂–heptane (6:4) as eluent. The crude product was crystallized from a CH₂Cl₂–CH₃OH mixture to give complex 12 in 12% yield (16.5 mg). ¹H NMR (200 MHz, CDCl₃, 25°C): δ − 0.48 (s, 3H, CH₃), − 0.42 (s, 3H, CH₃), 1.24 (s, 3H, CH₃), 1.43 (s, 3H, CH₃), 1.55 (s, 3H, CH₃), 1.59 (t, 3H, CH₂CH₃), 1.76 (t, 3H, CH₂CH₃), 2.06 (s, 3H, CH₃), 2.87 (s, 1H, meso-CH), 2.96 (s, 3H, CH₃), 3.27 (s, 3H, CH₃), 3.57 (s, 3H, CH₃), 3.67 (s, 3H, CH₃), 3.69 (m, 4H, CH₂CH₃), 4.69 (d, 1H, anthracene), 5.61 (d, 1H, anthracene), 5.84 (d, 1H, anthracene), 6.32 (m, 12H, Ph), 6.49–6.67 (m, 16H, Ph), 6.96 (m, 12H, Ph), 7.79–7.96 (m, 2H, anthracene), 8.38 (d, 1H, anthracene), 8.53 (s, 1H, anthracene), 8.65 (s, 1H, anthracene), 9.49 (s, 1H, meso-CH), 9.60 (s, 1H, meso-CH) and 11.92 (s, 1H, meso-CH). MS (MALDI/TOF): m/z = 1410 ([M]^+•). IR (KBr): [small nu, Greek, tilde] = 2962 (CH), 2926 (CH), 2861 (CH) and 1621 cm⁻¹ (CO). Calc. for C₉₁H₇₂N₈Ni₂O·(H₂O): C 76.49, H 5.22, N 7.84. Found: C 76.25, H 5.43, N 7.23%.

Crystal structure determination of complex 2a

Suitable single crystals of Ni₂(BOCA)·2CH₂Cl₂·2H₂O 2a were obtained by slow evaporation of a dichloromethane–methanol solution at room temperature. All experimental parameters used are given in Table 4. For all subsequent calculations the Enraf-Nonius OpenMoleN package was used.³⁷ The structure was solved using direct methods. Hydrogen atoms were introduced as fixed contributors in structure factor calculations by their computed coordinates (C–H 0.95 Å) and isotropic thermal parameters such as B(H) = 1.3 B_eqv(C) Ų but not refined. Water and CH₂Cl₂ protons were omitted. One of the CH₂Cl₂ and one of the water molecules are disordered over 2 sites in the ratio 1:1. Full least-squares refinements on F. A final difference map revealed no significant maxima. The scattering factor coefficients and anomalous dispersion coefficients come respectively from Tables 2.2b and 2.3.1 of ref. 38.

Table 4 X-Ray experimental data for complex 2a

Formula	C112H82N8Ni2O2·2CH2Cl2·2H2O
Molecular weight	1895.27
Crystal system	Triclinic
Space group	P1
a/Å	16.1351(7)
b/Å	16.3746(6)
c/Å	19.6653(7)
α/°	109.763(3)
β/°	93.411(3)
γ/°	90.830(3)
U/Å^3	4877.7(7)
Z	2
μ/mm^−1	0.554
T/K	173
Number of data measured	37354
Number of data with	8937
I>3σ(I)
R	0.073
Rw	0.107

---

CCDC reference number 440/223. See http://www.rsc.org/suppdata/nj/b0/b007623f/ for crystallographic files in .cif format.

Acknowledgements

We are grateful to the French Ministry of Research (MENRT) and CNRS (UMR 5633) for financial support. The “ Région Bourgogne” and “ Air Liquide” are acknowledged for scholarships (FJ). The authors are also grateful to M. Soustelle for assistance in the synthesis of pyrrole precursors.
