Formation and gas phase fragmentation reactions of ligand substitution products of platinum(II) complexes via electrospray ionization tandem mass spectrometry

Abstract

Solution phase ligand substitution reactions of [Pt(dien)Cl]⁺ and [Pt(Me₅dien)Cl]⁺ (Me₅dien = N,N,N′,N′′,N′′-pentamethyldiethylenetriamine) have been monitored using electrospray ionization mass spectrometry. The [Pt(Me₅dien)Cl]⁺ ion undergoes much slower ligand substitution than [Pt(dien)Cl]⁺, which is consistent with the crystal structure of [Pt(Me₅dien)Cl]⁺ determined, which suggests steric crowding (relative to the [Pt(dien)Cl]⁺ structure) induced by the buttressing methyl groups. In addition, the gas phase collision induced dissociation reactions of [Pt(dien)X]ⁿ⁺ ions (n = 1, X = bromide, iodide, thiocyanate, cyanate, azide or nitrite; n = 2, X = pyridine) formed via solution phase ligand substitution have been examined. In most cases the ligand is lost as HX, giving rise to the co-ordinatively unsaturated [Pt(dien) − H]⁺ ion. Noteable exceptions include n = 1, where X = N₃⁻ or NO₂⁻, which instead exhibit ligand fragmentation via loss of N₂ and NO respectively to yield the novel platinum species [Pt(dien)N]⁺ and [Pt(dien)O]⁺. The structures of these ions have been examined using density functional calculations at the B3LYP/LAV1S level of theory.

---

Introduction

There has been considerable interest in exploiting electrospray ionization (ESI) mass spectrometry as a means of examining various aspects of metal ion chemistry, ranging from analytical issues (such as do the gas phase ion abundances in the mass spectrum reflect the solution phase metal ion speciation?) ¹ to understanding the fundamental gas phase structure and reactivity of metal ions.² Our interest has been in the latter area, where we have been examining: (i) the collision induced dissociation (CID) fragmentation reaction mechanisms of [Pt(terpy)M]²⁺ and [Pt(terpy)M − H]⁺ ions (where terpy = 2,2′∶6′,2′′-terpyridine; M = protein, nucleic acid or simple model system); ³ (ii) the use of ion–molecule reactions as a means of probing co-ordinatively saturated versus co-ordinatively unsaturated platinum(II) ions.⁴ We found that CID of [Pt(dien)Cl]Cl A (dien = diethylenetriamine) results in HCl loss, eqn. (1), to yield the co-ordinatively unsaturated platinum ion B.⁴ Indirect evidence that the hydrogen atom lost was from one of the amino groups of the dien ligand comes from the CID spectrum of the related fully methylated system C, eqn. (2), which did not give facile HCl loss.

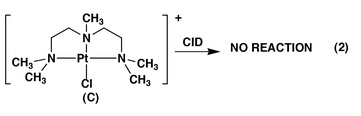

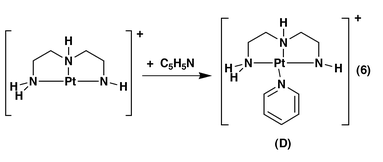

In addition, we found that complexes A and B exhibit completely different reactivity in gas phase ion–molecule reactions with neutral reagents such as water, methanol, acetonitrile and pyridine. For example, under our reaction conditions, A is unreactive towards pyridine in the gas phase, undergoing neither ligand substitution to give D, eqn. (3), deprotonation, eqn. (4), or formation of a hydrogen bonded adduct E, eqn. (5). In contrast, B reacts with Lewis bases such as pyridine to give the adduct D, eqn. (6).

Given that we have previously shown that complex A is unreactive towards ligand substitution, we herein address the following questions: (i) can we form new gas phase [Pt(dien)X]⁺ and [Pt(Me₅dien)X]⁺ ions (Me₅dien = pentamethyldiethylenetriamine) by carrying out ligand substitution reactions of A and B in the solution phase instead,⁵ and can we use ESI/MS to monitor these reactions; (ii) do gas phase [Pt(dien)X]⁺ ions fragment under CID conditions via HX loss to form B or can other novel platinum containing ions be formed? In this paper we also present details on the synthesis and characterization by single crystal X-ray diffraction of the platinum complex [Pt(Me₅dien)Cl]⁺. In addition, density functional calculations have been carried out on various [Pt(dien)X]⁺ ions and fragment neutrals and ions in order to gain insights into the gas phase CID processes.

Experimental

Materials

The complexes [Pt(dien)Cl]Cl and cis-[Pt(dmso)₂Cl₂] were prepared according to the reported procedures.^6,7

Chloro(N,N,N′,N′′,N′′-pentamethyldiethylenetriamine)platinum(II) perchlorate [Pt(Me₅dien)Cl][ClO₄].. A solution of N,N,N ′,N ′′,N ′′-pentamethyldiethylenetriamine (0.25 g, 1.42 mmol) in methanol (20 ml) was added with stirring to a suspension of cis-[Pt(dmso)₂Cl₂] in methanol (100 mL). The mixture was heated at reflux for 1 h to form a pale yellow solution. The solvent was removed and the residue dissolved in water (15 mL). A saturated aqueous solution of NaClO₄ (15 mL) was then added whereupon a pale yellow solid precipitated. The solid was redissolved by warming the mixture. On cooling overnight the product separated as pale yellow crystals which were collected and dried under high vacuum (0.54 g, 76%). Found: C, 21.65; H, 4.78; Cl, 14.13; N, 8.35. C₉H₂₃Cl₂N₃O₄Pt requires C, 21.48; H, 4.61; Cl, 14.09; N, 8.35%. ¹⁹⁵Pt NMR (D₂O): δ −2590.

Crystallography

A colourless plate approximately 0.36 × 0.34 × 0.06 mm was selected from crystals obtained from water.

Crystal data.. C₉H₂₃Cl₂N₃O₄Pt, M = 503.29, tetragonal, space group I4/m (no. 87), a = 13.125(2), c = 19.049(3) Å, V = 3281.5(9) ų, F(000) = 1936, Z = 8, D_c = 2.037 g cm⁻³, μ(Mo-Kα) = 8.89 mm⁻¹, T = 293(1) K, Enraf-Nonius CAD-4MachS diffractometer, ω–2θ scans, 4582/1842 measured/unique data, R_int = 0.039. Absorption corrections applied.⁸

Structure determination.. The structure was solved by a combination of Patterson, direct methods and difference synthesis.^9,10 All hydrogen atoms were included at geometrical estimates. The platinum, co-ordinated chlorine, and the central nitrogen of the triamine and its associated methyl carbon all lie on a mirror plane, giving 8 cations per unit cell. Four of the perchlorates lie on positions of 4 symmetry, while the other four are situated such that the chlorine and one oxygen lie on fourfold axes. A number of residual electron density peaks around both perchlorates indicated the anions were disordered: attempts to model this were unsuccessful. The perchlorates were constrained to tetrahedral geometry with a Cl–O distance of 1.44 Å. Anisotropic displacement factors were applied to each non-hydrogen atom, isotropic factors were used for hydrogens. Refinement against F ² using all data ¹⁰ gave final R1 [1632 data, I = 2σ(I)] 0.0356, wR2 (all data) 0.0994. Neutral atom scattering factors and anomalous scattering correction terms were taken from ref. 11. Fig. 1 was prepared from the output of ORTEP II.¹²

Fig. 1 An ORTEP diagram of the [Pt(Me₅dien)Cl]⁺ cation showing the labelling scheme; ellipsoids are at the 35% probability level.

CCDC reference number 186/1724.

See http://www.rsc.org/suppdata/dt/a9/a908536j/ for crystallographic files in .cif format.

Mass spectrometry

All experiments were performed using a commercially available quadrupole ion trap mass spectrometer (Finnigan-MAT model LCQ, San Jose, CA) equipped with electrospray ionization (ESI). For the experiments described, 71 μmol of inorganic salts or pyridine of reagent grade [specifically: potassium bromide (KBr) (Aldrich), sodium iodide (NaI) (Aldrich), potassium thiocyanate (KSCN) (Merck), sodium cyanate (NaOCN) (Merck), sodium azide (NaN₃) (Ajax Laboratory Chemicals), sodium nitrite (NaNO₂) (Ajax Laboratory Chemicals) and pyridine (C₅H₅N) (Ajax Laboratory Chemicals)] were each added to either [Pt(dien)Cl]Cl or [Pt(Me₅dien)Cl][ClO₄] in a 1∶1 ratio and dissolved in 1 mL of 1∶1 CH₃CN–water. The 14 samples were then incubated at room temperature (298 K), and their ESI/MS recorded at intervals of t = 4, 12 and 24 h.

Typically, samples were further diluted ((0.1 mg mL⁻¹) in 1∶1 CH₃CN–water) prior to being introduced to the mass spectrometer at a flow rate of 3.0 μL min⁻¹via electrospray ionization. The ESI conditions were: spray voltage, 5.0 kV; capillary temperature, 200 °C; nitrogen sheath gas pressure, 30 psi; and auxiliary gas flow rates, 20 (arbitrary units). The capillary voltage and tube lens offset voltage were both maintained at 0 V.

The three major isotopic ions from the [Pt(dien)X] or [Pt(Me₅dien)X] isotopic clusters were mass selected (with a 5 m/z window) and subjected to CID to investigate their fragmentation reactions. Typically CID conditions were: activation amplitude, 0.35–0.60 V; activation (Q), 0.25 V; and activation time 100 ms.

Density functional theory calculations

Structures of ions and neutrals were optimized using density functional theory at the B3LYP level using the Jaguar ¹³ program running on a Digital workstation. Given the “large size” of several of the systems calculated, the modest LAV1S basis set was used throughout.¹⁴ All optimized structures were then subjected to frequency calculations with the same basis set. Complete structural details and lists of vibrational frequencies for each of the optimized structures are available from the authors upon request.

Results and discussion

(A) Crystal structure of [Pt(Me₅dien)Cl][ClO₄]

An ORTEP diagram of the [Pt(Me₅dien)Cl]⁺ cation is shown in Fig. 1, while selected bond lengths and bond angles are listed in Table 1. The Pt atom is in a square planar environment, co-ordinated to the three nitrogens of the ligand and a chloride ion. The environment is tetrahedrally distorted, with the Pt atom lying 0.066(4) Å below the least squares planes of the four donor atoms; N1 and N1′ (where ′ refers to that atom related by the symmetry operator x, y, −z ) lie above the Pt atom, while N2 and the Cl are situated below the Pt atom. This is in contrast to the pyramidal distortion reported for [Pt(Me₅dien)(OMeC(O)NH₂)]^+ 15 but is similar to the tetrahedral distortion found for [Pt(dien)Cl]⁺, these minor distortions having been ascribed to packing effects.¹⁶ A comparison of our data in Table 1 with the data reported in refs. 15 and 16 reveals that the bond lengths and angles of the three complexes are similar. In particular, the bonds between the Pt atom and the terminal amines are significantly longer than the bond with the central amine, while the N1–Pt–N2 angles are significantly less than 90° and the N1–Pt–N1′ and N2–Pt–Cl angles are less than 180°. The main difference between the dien and the Me₅dien complexes is that in the latter the angles around the nitrogen atoms are smaller due to the presence of the more sterically demanding methyl groups, which leads to a slight change in the conformation of the dien moiety.

Table 1 Selected bond lengths [Å] and angles [°] for [Pt(Me₅dien)Cl]ClO₄

Symmetry transformation used to generate equivalent atoms: ′x,y,−z.
Pt–N2	2.013(8)	Pt–N1	2.067(6)
Pt–Cl1	2.302(3)	N1–C1	1.483(11)
N1–C2	1.493(10)	N1–C3	1.497(11)
C3–C4	1.504(12)	C4–N2	1.496(9)
N2–C5	1.509(13)
N2–Pt–N1	85.96(18)	N1′–Pt–N1	167.2(3)
N2–Pt–Cl1	177.6(2)	N1–Pt–Cl1	94.25(18)
C1–N1–C2	108.8(7)	C1–N1–C3	110.2(6)
C2–N1–C3	108.6(7)	C1–N1–Pt	108.1(5)
C2–N1–Pt	114.3(5)	C3–N1–Pt	106.8(5)
N1–C3–C4	109.6(7)	N2–C4–C3	108.1(6)
C4′–N2–C4	113.9(8)	C4–N2–C5	110.0(5)
C4–N2–Pt	105.0(5)	C5–N2–Pt	112.8(7)

---

(B) Monitoring ligand substitution of [Pt(dien)Cl]⁺ and [Pt(Me₅dien)Cl]⁺ by anionic inorganic nucleophiles and pyridine using ESI/MS

We have recently been examining the use of ESI-MS/MS to characterize the binding of platinum complexes of tridentate ligands such as terpyridine to biomolecules including amino acids and peptides.³ During the course of these studies we have observed that the formation of the platinum–biomolecule complexes is time dependent. We propose that the relative rates of substitution are strongly dependent on two factors: (a) the structure of the tridentate nitrogen ligands co-ordinated to the platinum atom and (b) the types of nucleophilic sites available for substitution on the amino acid or peptide. There are generally three or more different nucleophilic sites on any one amino acid or peptide and this indicated the need to study the ligand substitution reactions of simpler nucleophiles. Therefore, we became interested in monitoring the relative rates of substitution of the chlorine ligand of [Pt(dien)Cl]⁺, eqn. (7), and [Pt(Me₅dien)Cl]⁺, eqn. (8), by the simple anionic nucleophiles (X⁻) bromide, iodide, thiocyanate, cyanate, azide, nitrite as well as by the neutral nucleophile pyridine.

[Pt(dien)Cl]⁺ + X⁻ → [Pt(dien)X]⁺ + Cl⁻ (7)

[Pt(Me₅dien)Cl]⁺ + X⁻ → [Pt(Me₅dien)X]⁺ + Cl⁻ (8)

Thus the reactivity of [Pt(dien)Cl]⁺ and [Pt(Me₅dien)Cl]⁺ towards nucleophilic displacement of the chloride ligand by X to produce [Pt(dien)X]⁺ and [Pt(Me₅dien)X]⁺ ions was monitored over time by ESI/MS (Table 2, Fig. 2). After a period of 4 h significant differences in the ESI/MS spectra of ([Pt(dien)Cl]⁺ + X⁻) and ([Pt(Me₅dien)Cl]⁺ + X⁻) were observed (Table 2). Generally, [Pt(dien)X]⁺ was the major ion observed in the ESI/MS spectra for ([Pt(dien)Cl]⁺ + X⁻), whereas the initial [Pt(Me₅dien)Cl]⁺ ion was always the dominant ion observed in the ([Pt(Me₅dien)Cl]⁺ + X⁻) ESI/MS spectra, even after a period of 24 h (Table 2). This result suggests the methyl groups of the [Pt(Me₅dien)Cl]⁺ ion sterically hinder the access of even small nucleophiles to the platinum center, which is entirely consistent with the crystal structure described in section (A).

Table 2 Reactivity of platinum derivatives at t = 4, 12 and 24 h incubation time (T = 298 K)

	4 h		12 h		24 h
X^−	R = H	R = CH3	R = H	R = CH3	R = H	R = CH3
a  At longer times the ESI spectra become more complicated, with ions of higher mass appearing. b  Abundance of ion is less than 1%.
Br^−	(B) major	(A) major	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a
	(A) ^b	(B) ^b
I^−	(B) major	(A) major	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a
	(A) ^b	(B) ^b
NO2^−	(B) major	(A) major	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a
	no (A)	(B) ^b
OCN^−	(B) major	no (B)	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a
	(A) ^b	(A) major
SCN^−	(B) major	(A) major	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a
	(A) ^b	No (B)
N3^−	(B) major	(A) major	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a	Same as 4 h ^a
	No (A)	No (B)
C5H5N	(B) major	(A) major	(B) major	Same as 4 h ^a	Same as 12 h ^a	Same as 4 h ^a
	(A) ^b	(B) ^b	No (A)

---

Fig. 2 Electrospray ionisation ESI/MS of: (a) [Pt(dien)Cl]⁺ incubated with pyridine; (b) [Pt(Me₅dien)Cl]⁺ incubated with pyridine. In both cases the incubation conditions were: molar ratio (1∶1), incubation time 24 h, solvent 50∶50 acetonitrile–water, room temperature (24 °C).

So what products would be observed by ESI/MS by reaction of these platinum complexes with a larger neutral nucleophile such as pyridine? In a similar fashion to the behaviour observed for the anionic nucleophiles, the [Pt(Me₅dien)Cl] ⁺ ion is relatively unreactive towards pyridine (Fig. 2b). In contrast, three pyridine and platinum containing ions were observed in the ESI/MS spectrum of ([Pt(dien)Cl]Cl + pyridine) (Fig. 2a): the doubly charged [Pt(dien)(C₅H₅N)]²⁺, eqn. (9); the deprotonated singly charged [Pt(dien)(C₅H₅N) − H]⁺, eqn. (10); and the singly charged [Pt(dien)(C₅H₅N) + Cl]⁺ complex, eqn. (11). This latter ion may possess a number of different structures such as the ion–molecule complexes between [Pt(dien)Cl]⁺ and pyridine (i.e. structures such as E or F) or the ion pair complex ¹⁷ between [Pt(dien)(C₅H₅N)]²⁺ and Cl⁻ (i.e. structure G). In order further to investigate the structure of this complex, we have used CID as a probe, as described further in Section C.

(C) CID Reactions of [Pt(dien)X]⁺ (X = anionic ligand) under ESI-MS/MS conditions: competition between ligand loss and ligand fragmentation

Given that we are interested in using CID as both an analytical structural tool as well as a way of synthesizing novel platinum ions in the gas phase (for subsequent structure/reactivity studies using ion–molecule reactions), we sought to address some key issues regarding the CID process. In particular, for the CID fragmentation reactions of [Pt^II(L₃)X]⁺ ions: (i) what role does the tridentate ligand L₃ (where L₃ is a tridentate ligand such as dien, Me₅dien, terpy, etc.) have in controlling the fragmentation pathways available for the complex; (ii) what are the factors (e.g. bond strengths) which govern the competition between loss of the ligand X, e.g.eqn. (12) and fragmentation of the ligand X?¹⁸

Our previous studies have shown that the tridentate ligand structure can have a profound influence on the fragmentation reaction channels available. Thus, the dien ligand has acidic N–H protons which facilitate ligand loss as the neutral species HX to yield ion B. Indeed, 5 of the 7 [Pt(dien)X]⁺ ions fragment exclusively via loss of HX (HX = HBr, HI, HOCN, HSCN or [C₅H₅NH]⁺), eqn. (12) and Fig. 3a. Note that the product of these reactions is the highly reactive, co-ordinatively unsaturated ion B, cf.eqn. (1).⁴ We have previously demonstrated that B can readily undergo gas phase ion–molecule reactions with adventitious background gases present in the ion trap (such as water) to give adduct ions (e.g. the ions at m/z 314, 315 and 316 in Fig. 3(a) are due to the water adduct).‡ Only two of the ligands were observed to undergo ligand fragmentation: thus the [Pt(dien)(NO₂)]⁺ and [Pt(dien)(N₃)]⁺ ions fragment to yield novel platinum ions, eqns. (13)–(15), Fig. 3(b), (c).

Fig. 3 ESI-MS/MS of [Pt(dien)X]⁺ ions: X = NCO⁻ (a), N₃⁻ (b) or NO₂⁻ (c).

Can we observe any correlation between the types of CID products formed and gas phase thermochemistry? Unfortunately there is a dearth of thermochemical information on gas phase platinum complex ions. It seems reasonable to consider two accessible thermodynamic quantities: (i) the anion proton affinity of anionic ligand X⁻; ¹⁹ (ii) bond strengths within the ligand X. Most of the nucleophiles which are lost as HX from the [Pt(dien)X]⁺ (Cl⁻, Br⁻, I⁻ or SCN⁻) have proton affinities less than 1400 kJ mol⁻¹ (the exception is OCN which has a proton affinity of 1443 kJ mol⁻¹).¹⁹ The azide and nitrite ions which undergo ligand fragmentation have higher proton affinities (1418 and 1421 kJ mol⁻¹ respectively), and might bind more strongly to Pt.¹⁹ Unfortunately, we cannot discuss the effects of the bond strengths in the various ligands as there are no data for the systems of interest co-ordinated to platinum.

In an attempt to gain some insights into the competition between ligand loss versus ligand fragmentation for the nitrite and azide systems, we have carried out density functional theory calculations at the B3LYP/LAV1S level of theory and our results are shown in Fig. 4 and Table 3. Note that this is a very modest level of theory and its reliability for predicting energies of both co-ordinatively saturated and unsaturated systems as well as “exotic platinum species” has yet to be established. Also, we have only calculated the reactants and products, but not the transition states for the competing fragmentation reactions (note that CID reactions are likely to be under kinetic rather than thermodynamic control). Not withstanding these cautionary notes, a number of interesting points emerge from these calculations. Regarding ligand loss with concomitant deprotonation at the dien ligand, two isomers for [Pt(dien) − H]⁺ were found. These correspond to deprotonation at the NH₂ site (isomer 1, Fig. 4a) and the NH site (isomer 2, Fig. 4b). Isomer 1 shows a shortening of the Pt–N bond at the site of deprotonation and a lengthening of the trans Pt–N bond and is 49.5 kJ mol⁻¹ less stable than isomer 2 (Table 3). Note that the kinetically favoured ligand loss channel may very well arise from deprotonation at the NH₂ group since this is likely to have a lower transition state energy. This is because the NH₂ protons are likely to be in closer geometric contact (e.g. see structure in Fig. 4e). An examination of the DFT results for the [Pt(dien)(N₃)]⁺ system reveals the following points: (i) a bent structure is observed for the azide, as is expected for metal azides; (ii) the [Pt(dien)N]⁺ fragment ion has a considerably shortened Pt–N bond (Fig. 4g) consistent with multiple bonding and; (iii) the energetics of the two competing pathways (eqns. (12)) versus(14) indicates that the ligand fragmentation pathway resulting in formation of [Pt(dien)N]⁺ is thermodynamically favoured by over 20 kJ mol⁻¹. Turning to our DFT results for the [Pt(dien)(ONO)]⁺ system we note the following: (i) two rotamers were found (Fig. 4d and 4e), with the one involving hydrogen bonding between the nitro oxygen and a H atom of the NH₂ of the dien ligand being the most stable structure (Fig. 4e); (ii) the N bonded isomeric structure (Fig. 4f ) is less stable by over 90 kJ mol⁻¹; (iii) the [Pt(dien)O]⁺ fragment ion also has a considerably shortened Pt–O bond (Fig. 4h) consistent with multiple bonding, and (iv) the energetics of the two competing pathways (eqns. (12)versus(13) thermodynamically favours the ligand loss channel. This may indicate that the fragmentation reactions are under kinetic control, but further calculations at higher levels of theory may resolve this issue.

Table 3 Energies derived from DFT calculations (B3LYP/LAV1s)

Structure	B3LYP/LAV1s ^a	ZPVE ^b	Relative energy ^c/kJ mol^−1
a  Absolute energies are in Hartrees. b  ZPVE = Zero point vibrational energy, in kJ mol^−1, taken from the frequency calculations. c  Differences in energies are calculated using the absolute energies modified by the ZPVEs. d  Isomer 1, structure shown in Fig. 4(a). e  Isomer 2, structure shown in Fig. 4(b). f  Structure shown in Fig. 4(c). g  Rotamer 1, structure shown in Fig. 4(d). h  Rotamer 2, structure shown in Fig. 4(e). i  Structure shown in Fig. 4(f). j  Structure shown in Fig. 4(g). k  Structure shown in Fig. 4(h). l  Product is isomer 1, Fig. 4(a). m  Reactant is rotamer 2, Fig. 4(e).
[Pt(dien) − H]^+ ^d	−347.21481	492.2	0.0
^e	−347.23386	492.8	−49.5
[Pt(dien)(N3)]^+ ^f	−509.86559	558.1
[Pt(dien)(ONO)]^+ ^g	−550.18629	554.0	54.5
^h	−550.20765	555.6	0.0
[Pt(dien)(NO2)]^+ ^i	−550.17171	553.8	92.6
[Pt(dien)N]^+ ^j	−401.74647	537.7
[Pt(dien)O]^+ ^k	−421.82357	542.1
HN3	−162.57514	52.6
HONO (cis)	−202.89928	53.2
N2	−108.05604	13.4
NO	−128.13303	11.1

---

Energetics (at the B3LYP/LAV1s + ZPE level) for reactions (12), (13) and (14)
Eqn.	Energy ^c/kJ mol^−1	Eqn.	Energy ^c/kJ mol^−1
12, X = NO2 ^m	235.6	13 ^m	656.8
12, X = N3 ^l	185.4	14	158.7

---

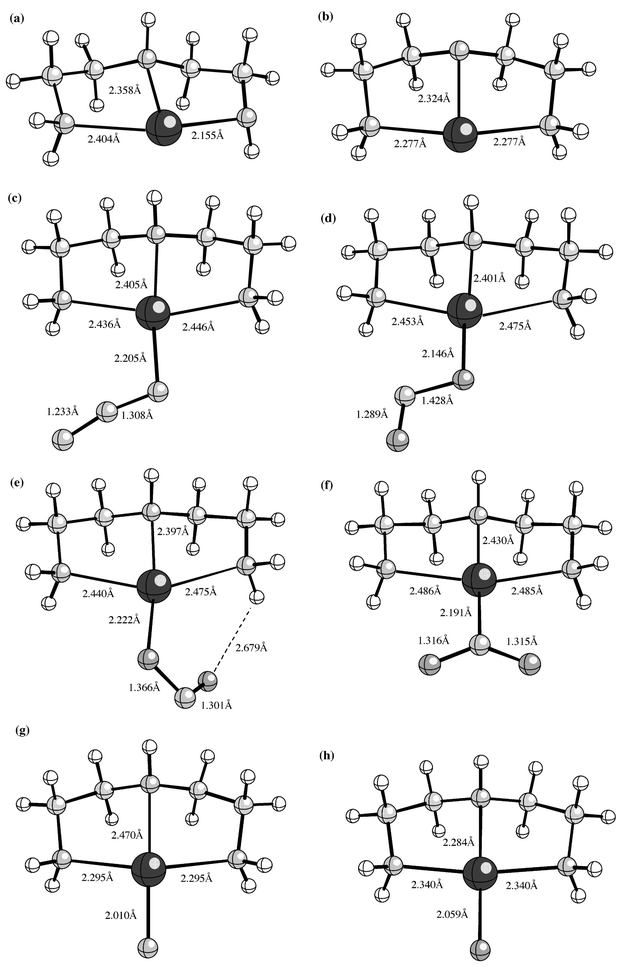

Fig. 4 B3LYP/LAV1S optimized structures of: (a) [Pt(dien) − H]⁺ isomer 1 (deprotonated at NH₂ group); (b) [Pt(dien) − H]⁺ isomer 2 (deprotonated at NH) group; (c) [Pt(dien)(N₃)]⁺; (d) [Pt(dien)(ONO)]⁺ rotamer 1 (no hydrogen bonding); (e) [Pt(dien)(ONO)]⁺ rotamer 2 (with hydrogen bonding); (f) [Pt(dien)(NO₂)]⁺; (g) [Pt(dien)N]⁺; (h) [Pt(dien)O]⁺.

In order experimentally to examine whether ligand fragmentation (e.g. via loss of CO or CS for the cases of OCN and SCN) could be induced by “switching off” the competing HX ligand loss channel through the use of the Me₅dien ligand, we have incubated [Pt(Me₅dien)Cl]⁺ with AgNO₃ in water (10 min at 100 °C, 6 h at 70 °C) to form [Pt(Me₅dien)(OH₂)]²⁺, which was then allowed to react with the appropriate nucleophile (OCN⁻ and SCN⁻) at 70 °C for 12 h to generate the desired OCN⁻ and SCN⁻ complexes. Ligand fragmentations of the complexes via losses of CO and CS are not observed under CID conditions. Indeed, the CID fragmentation reactions of [Pt(Me₅dien)X]⁺ (where X = N₃⁻, NO₂⁻, OCN⁻ or SCN⁻) are rather complex and appear to involve the Me₅dien ligand. Isotopic labelling studies are currently underway to unravel the mechanisms of these reactions.

Of the two ligand fragmentation channels observed for [Pt(dien)X]⁺, the loss of N₂, eqn. (14) is the least surprising as this type of fragmentation is a common phenomenon for both inorganic and organic azides under energetic conditions (either thermal or photochemical).²⁰ What is significant about the loss of N₂ is that there appears to be no literature precedent for platinum(II) systems. The resultant ion is also interesting in terms of its electronic structure as it could exist in either the platinum(II) nitrene form H or as Pt^IV–N triple bond I. The low level DFT calculations (Fig. 4g) show a shortened Pt–N bond, suggesting structure I.

(D) CID Reactions of [Pt(dien)(C₅H₅N)]²⁺, [Pt(dien)(C₅H₅N) − H]⁺ and [Pt(dien)(C₅H₅N) + Cl]⁺ under ESI-MS/MS conditions

In order to examine the effect of the neutral ligand pyridine on the fragmentation reactions, the CID spectra of the [Pt(dien)(C₅H₅N)]²⁺ doubly charged (Fig. 5a) and the [Pt(dien)(C₅H₅N) − H]⁺ singly charged (Fig. 5b) ions were measured. Both ions fragment via ligand loss, resulting in the formation of ion B. In the case of the doubly charged ion the ligand is lost as protonated pyridine (m/z 80), which is also observed in the MS/MS spectrum (Fig. 5a). Presumably in this case neutral pyridine abstracts a proton from the tridentate dien ligand prior to fragmentation.

Fig. 5 ESI-MS/MS of (a) [Pt(dien)(C₅H₅N)]²⁺; (b) [Pt(dien)(C₅H₅N) − H]⁺ and (c) [Pt(dien)(C₅H₅N) + Cl]⁺.

The structure of the [Pt(dien)(C₅H₅N) + Cl]⁺ ion was also probed via CID (Fig. 5c). We anticipate the type of neutral lost during the CID process will give some insight into the most stable gas phase structure of the [Pt(dien)(C₅H₅N) + Cl]⁺ ion (E, F, G). Thus, ion–molecule complexes between [Pt(dien)Cl]⁺ and pyridine (i.e. structures such as E or F) are likely to lose C₅H₅N, while the ion pair complex between [Pt(dien)(C₅H₅N)]²⁺ and Cl⁻ (i.e. structure G) is likely to lose HCl via a deprotonation reaction.¹⁷ An examination of Fig. 3(c) reveals the exclusive loss of HCl to generate D, eqn. (16). This loss indicates that the ion pair complex structure G is the most important gas phase isomeric structure of the [Pt(dien)(C₅H₅N) + Cl]⁺ ion in the CID reaction. Unfortunately molecular modeling (even at the modest B3LYP/LAV1S level of theory) to probe the structures and relative stabilities of E, F and G was not possible with existing computational resources.

Conclusion

ESI/MS is a powerful tool to monitor solution phase ligand substitution reactions of platinum(II) complexes. A major strength of this technique is that when used in conjunction with tandem mass spectrometry it allows for the analysis of the substituted products. This aspect has been demonstrated in this work. Furthermore, from a fundamental aspect, it now becomes possible to “synthesize” novel platinum species which are co-ordinatively unsaturated or which have novel bonding arrangements from readily available co-ordinatively saturated precursors using CID. As a result, we are currently examining the use of gas phase ion–molecule reactions as structural probes of these novel CID products and the possibility of forming these species (e.g. [Pt(dien)N]⁺) in the condensed phase.

Acknowledgements

R. A. J. O. thanks the Australian Research Council for financial support and the University of Melbourne for funds to purchase the LCQ spectrometer. W. D. McF. thanks the NHMRC for financial support. M. L. S. acknowledges the award of a Commonwealth Postgraduate Scholarship.

References

1. Electrospray ionization mass spectrometry: fundamentals, instrumentation and applications, ed. R. B. Cole, Wiley, New York, 1997;; R. Colton, A. D’Agostino and J. C. Traeger, Mass Spectrom. Rev., 1995, 14, 79; J. W. Olesik, J. A. Kinser and S. V. Olesik, Spectrochim. Acta, Part B, 1998, 53, 239; G. R. Agnes, I. I. Stewart and G. Horlick, Appl. Spectrosc., 1994, 48, 1347.
2. K. Eller and H. Schwarz, Chem. Rev., 1991, 91, 1121; Gas Phase Inorganic Chemistry, ed. D. H. Russell, Plenum, New York, 1989..
3. R. A. J. O’Hair, Eur. Mass Spectrom., 1997, 3, 390; M. L. Styles , R. A. J. O’Hair and W. D. McFadyenmanuscript in preparation..
4. G. E. Reid, R. A. J. O’Hair, M. L. S. Styles, W. D. McFadyen and R. J. Simpson, Rapid Commun. Mass Spectrom., 1998, 12, 1701.
5. J. P. Collman , L. S. Hegedus , J. R. Norton and R. G. Finke , Principles and Applications of Organotransition Metal Chemistry, University Science Books, Mill Valley, CA, 1987, pp. 241–243;; F. Basolo, H. B. Gray and R. G. Pearson, J. Am. Chem. Soc., 1960, 82, 4200; H. B. Gray, J. Am. Chem. Soc., 1962, 84, 1548.
6. G. Annibale, M. Brandolisio and B. Pitteri, Polyhedron, 1995, 14, 451.
7. J. H. Price, A. S. Williamson, R. F. Schramm and B. B. Wayland, Inorg. Chem., 1972, 11, 1280.
8. G. M. Sheldrick , SHELX 76, Program for Crystal Structure Determination, University of Cambridge, 1976..
9. G. M. Sheldrick , SHELXS 97, Program for Crystal Structure Solution, University of Göttingen, 1997..
10. G. M. Sheldrick , SHELXL 97, Program for Crystal Structure Refinement, University of Göttingen, 1997..
11. International Tables for X-Ray Crystallography, Kluwer, Dordrecht, 1993, vol. C, p. 219..
12. C. K. Johnson , ORTEP II, Fortran Thermal Ellipsoid Plot Program, Report ORNL-5138, Oak Ridge National Laboratories, Oak Ridge, TN, 1976..
13. Jaguar 3.0, Schrodinger, Inc., Portland, OR, 1997..
14. P. J. Hay and W. R. Wadt, J. Chem. Phys., 1985, 82, 270; W. R. Wadt and P. J. Hay, J. Chem. Phys., 1985, 82, 284.
15. R. Cini, F. P. Intini, L. Maresca, C. Pacifico and G. Natile, Eur. J. Inorg. Chem., 1998, 1305.
16. J. F. Britten, C. J. L. Lock and W. M. C. Pratt, Acta Crystallogr., Sect. B, 1982, 38, 2148.
17. D. S. Gross and E. R. Williams, Int. J. Mass Spectrom. Ion Proc., 1996, 157/158, 305.
18. A. B. Norbury, Adv. Inorg. Chem. Radiochem., 1975, 17, 231; J. L. Burmeister, R. L. Hassel, K. A. Johnson and J. C. Lim, Inorg. Chim. Acta, 1974, 9, 23; J. L. Burmeister in Chemistry and Biochemistry of Thiocyanic Acid and its Derivatives, ed. A. A. Newman, Acadmic Press, London, 1975, ch. 2..
19. Anion proton affinities are available from the NIST website http∶//webbook.nist.gov/chemistry..
20. A. L. Poznyak and V. I. Pavlovski, Angew. Chem., Int. Ed. Engl., 1988, 27, 789.

---

Footnotes

† Supplementary data available: rotatable 3-D crystal structure diagram in CHIME format. See http://www.rsc.org/suppdata/dt/a9/a908536j/

‡ A reviewer has asked whether these ions are due to gas phase or solution phase processes. Since the precursor ions are mass selected prior to dissociation any other ions due to solution phase processes are ejected. Thus any new ions in the MS/MS spectrum must arise from CID processes or gas phase ion–molecule reactions. Indeed if B is mass selected (i.e. a MS³ experiment) and allowed to react with background gases for extended times (up to 10 s) these adduct ions appear. Furthermore, if water is deliberately introduced into the ion trap the ions at m/z 314, 315 and 316 dominate.

---
