Development of a fluorescent distance-based paper device using loop-mediated isothermal amplification to detect Escherichia coli in urine

Abstract

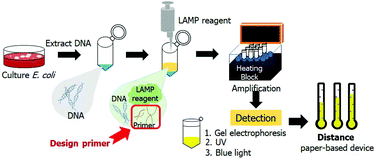

The highly sensitive and selective determination of Escherichia coli (E. coli) in urine was achieved using a SYBR™ safe loop-mediated isothermal amplification (LAMP) method with a distance-based paper device. New primers set specific to multi-copy the 16s rRNA gene of E. coli were designed and used in this study. The detection sensitivity of these primers was higher than in related work and they could be incorporated with a low-cost paper-based device to quantify E. coli in urine at a concentration lower than 10¹ CFU mL⁻¹. Regarding standard artificial urine, a linear range of a 10-fold dilution of E. coli concentration (10⁵–10⁰ CFU mL⁻¹) with an R-square value (R²) = 0.9823 was observed directly using a fluorescent migratory distance of the 4 μL reaction mixture in the detection zone under blue light without the need for postreaction staining process. Based on the device, E. coli infection could be significantly categorized into 3 groups; none, light, and heavy levels, which is beneficial for UTI diagnosis. Hence, this paper-based device is suitable for use with the SYBR™ Safe-LAMP assay to semi-quantify E. coli, especially in resource-limited settings due to advantages of low cost, simple fabrication and operation, and no requirement for sophisticated instruments, as well as its disposability and portability.
