Issue 7, 2015

Enhanced FTIR bench-top imaging of single biological cells


A new optical system has recently been developed that enables infrared images to be obtained with a pixel resolution of 1 micron on a bench-top instrument using a thermal source. We present here imaging data from two contrasting cellular systems that represent different challenges. Renal carcinoma cells cytospun onto CaF2 have a largely rounded morphology and thus suffer from strong resonant Mie scattering. Skin fibroblast cells, cultured onto CaF2 on the other hand are very spread out so scatter less strongly but are so thin they deliver extremely weak signals. Using suitable pre-processing methods, including PCA noise reduction and RMieS correction, we demonstrate that useful high resolution images can be obtained from either sample.

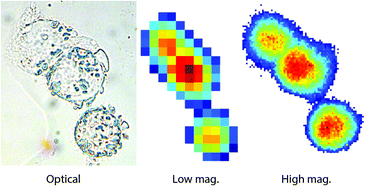

Graphical abstract: Enhanced FTIR bench-top imaging of single biological cells

Article information

Article type
07 Nov 2014
20 Feb 2015
First published
20 Feb 2015
This article is Open Access
Creative Commons BY license

Analyst, 2015,140, 2080-2085

Author version available

Enhanced FTIR bench-top imaging of single biological cells

C. Hughes, A. Henderson, M. Kansiz, K. M. Dorling, M. Jimenez-Hernandez, M. D. Brown, N. W. Clarke and P. Gardner, Analyst, 2015, 140, 2080 DOI: 10.1039/C4AN02053G

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.
