Super-resolution fluorescence imaging of biocompatible carbon dots

Abstract

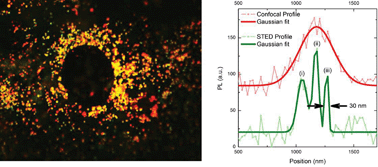

Carbon Dots (CDs) are a new promising type of small (5 nm), biocompatible and multicolor luminescent nanoparticle. Here, we demonstrate super-resolution imaging of CDs at the nanoscale through STimulated Emission Depletion (STED) microscopy. In addition, we report the application of STED for detection of CD localization in both fixed and living cells, achieving a spatial resolution down to 30 nm, far below the diffraction limit, showing great promise for high resolution visualization of cellular dynamics.
