In vitro and in vivo biolasing of fluorescent proteins suspended in liquid microdroplet cavities

Author affiliations

Abstract

Fluorescent proteins are indispensable for selective, quantitative visualization of localization, dynamics, and interactions of key molecular constituents of live cells. Incorporation of fluorescent proteins into an optical cavity can lead to a significant increase in fluorescence signal levels due to stimulated emission and light amplification in the cavity, forming a laser with biological gain medium. Utilization of lasing emission from fluorescent biological molecules can then greatly enhance the performance of fluorescence-based biosensors benefiting from the high sensitivity of non-linear lasing processes to small perturbations in the cavity and the gain medium. Here we study optofluidic biolasers that exploit active liquid optical resonators formed by surface-supported aqueous microdroplets containing purified yellow fluorescent protein or a suspension of live E. coli bacterial cells expressing the fluorescent protein. We first demonstrate lasing in fluorescent protein solutions at concentrations as low as 49 μM. Subsequently, we show that a single fluorescent bacterial cell of micrometre size confined in a droplet-based cavity can serve as a laser gain medium. Aqueous droplet microcavities allow the maintenance of the bacterial cells under conditions compatible with unimpeded growth. Therefore, our results also suggest a direct route to microscopic sources of laser light with self-regenerating gain media.

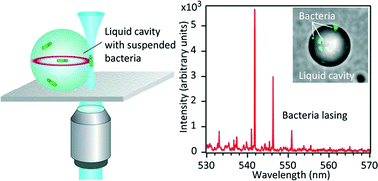

Graphical abstract: In vitro and in vivo biolasing of fluorescent proteins suspended in liquid microdroplet cavities

Back to tab navigation

Supplementary files

Publication details

The article was received on 24 Apr 2014, accepted on 12 Jun 2014 and first published on 12 Jun 2014


Article type: Paper
DOI: 10.1039/C4LC00485J
Author version
available:
Download author version (PDF)
Citation: Lab Chip, 2014,14, 3093-3100
  •   Request permissions

    In vitro and in vivo biolasing of fluorescent proteins suspended in liquid microdroplet cavities

    A. Jonáš, M. Aas, Y. Karadag, S. Manioğlu, S. Anand, D. McGloin, H. Bayraktar and A. Kiraz, Lab Chip, 2014, 14, 3093
    DOI: 10.1039/C4LC00485J
