Spiro-fluorene locked multi-resonance delayed fluorescence helical framework: efficient circularly polarized electroluminescent materials

Abstract

Due to their excellent optical properties, circularly polarized multiple resonance thermally activated delayed fluorescence (CP-MR-TADF) compounds are highly suitable for applications as chiral emitters with high efficiency and high color purity. However, challenges due to limited molecular design strategies often hinder their application in circularly polarized organic light-emitting diodes (CP-OLEDs). In this work, based on an intramolecular-locking strategy, a carbon bridge was introduced to fuse the tert-butyl carbazole moiety within the MR skeleton, merging the intrinsically helical chirality into the MR framework. The designed molecule was modified by incorporating a locking group with significant spatial hindrance, named Spiro-3TCzBN. Consequently, the optimized CP-OLEDs with (P/M)-Spiro-3TCzBN emitters achieved remarkable maximum external quantum efficiencies of 34.6% and 34.9%, respectively, accompanied by clear circularly polarized electroluminescence signals with electroluminescence dissymmetry factors of −3.51 × 10⁻⁴ and +4.26 × 10⁻⁴. Furthermore, the electroluminescence spectra of Spiro-3TCzBN-based OLEDs show a notably stable profile as the doping level increases from 1 to 10 wt%. These results indicate that the conformational locking strategy is a compelling design approach for helicene, which is expected to be a potential chiral optical material for next-generation high-resolution CP-OLED displays.

---

Introduction

Circularly polarized luminescent (CPL) materials have emerged as promising candidates for various optoelectronic applications, including optical data storage and security, chiral sensing, bio-responsive imaging, and CPL-responsive organic field-effect transistors.¹ The most notable applications are circularly polarized organic light-emitting diodes (CP-OLEDs) and 3D displays.² However, conventional OLEDs rely on a wire grid polarizer and a quarter-wave plate to generate circularly polarized electroluminescence (CPEL), resulting in increased absorption loss due to the polarizer and a more sophisticated device structure. Organic emitters featuring intrinsic CPL emissions are crucial for fabricating CP-OLEDs since they can effectively address these limitations. Based on excited-state relaxation dynamics, these materials can be categorized into fluorescent, phosphorescent, and thermally activated delayed fluorescent (TADF) types. In a bid to harness both singlet and triplet excitons through the reverse intersystem crossing (RISC) process, facilitating the conversion of non-radiative triplet excitons (T₁) into radiative singlet excitons (S₁), metal-free organic circularly polarized TADF (CP-TADF) materials are more promising alternatives for high-performance OLEDs with low-cost.³

A typical method to construct CP-TADF materials entails the incorporation of a chiral moiety, such as a stereogenic carbon center, axial chirality, or planar chirality, into the traditional TADF framework as a substituent.⁴ Although such chiral perturbation on TADF molecules provides a straightforward means to achieve CP-TADF properties, the corresponding materials suffer from broad emission governed by the inevitable strong intramolecular charge transfer (ICT) nature of the twisted donor–acceptor (D–A) structure. An additional optical filter or optical microcavity is needed to enhance the color purity of CP-TADF-based OLEDs, however, this approach inevitably leads to considerable energy loss and necessitates more intricate device architectures. Therefore, the development of luminescent materials capable of simultaneously exhibiting efficient CPL activity and narrowband emission has emerged as the most direct, economical, and promising solution.⁵

Addressing the critical challenge of high color purity in wide color gamut displays, Hatakeyama et al. pioneered the development of multiple resonance (MR) TADF emitters.⁶ Through suppressing the vibrational relaxation of S₁ states by virtue of their rigid planar structure, these materials exhibit highly efficient emission with an inherently narrow full width at half maximum (FWHM), providing excellent color purity and outstanding electroluminescent performance. Simultaneously, this exciting breakthrough has also spurred significant interest in CP-MR-TADF materials, leading to remarkable advancements in the field.⁷ In 2021, our group successfully developed the first CP-MR-TADF materials, (R/S)-OBN-2CN-BN and (R/S)-OBN-4CN-BN, by attaching chiral octahydro-binaphthol derivatives to the periphery of 2CN-BN and 4CN-BN, respectively.⁸ The CP-OLEDs with high color purity achieved maximum external quantum efficiencies (EQE_max) of 29.4% and 24.5%. However, this modification of the designed molecule at the periphery of the MR-TADF material leads to indiscernible circularly polarized photoluminescence (CPPL) and CPEL signals. Alternatively, helicenes demonstrate substantial potential as promising candidates to achieve more distinct CPPL and CPEL signals by allowing the fusion of chiral cores within the chromophoric skeletons.⁹ As shown in Fig. 1a, Duan et al. developed two enantiomers with bis-hetero-[n]helicene (n = 6 and 7) structures, namely M, M-RBNN and P, P-RBNN, by incorporating B–N bonds into the B–π–B framework. These enantiomers exhibited mirror-image pure red CPL emission in solution, and demonstrated excellent performance in CP-OLEDs, achieving an EQE_max of 36.6% and displaying significant CPEL signals with a g_EL of 10⁻³.¹⁰ Zheng et al. and our group reported a set of pure-green CP-MR-TADF materials, (P/M)-BN-Py, by harnessing an edge-topology molecular engineering strategy with the corresponding CP-OLEDs showing clear CPEL signals with a g_EL of 10⁻³.¹¹ Recently, a series of deep-blue hetero[6]helicene-based CPL emitters, DB-O and DB-S, have been strategically engineered by Yang et al. through the helical extension of an MR-TADF motif. The resulting CP-OLEDs achieved a record-breaking EQE of up to 29.3% and complied with the BT.2020 blue standard.¹² Although helically chiral derivatives exhibit important applications in this field, derivatives possessing adequate configurational stability under operational stimuli remain remarkably scarce. Besides, an important issue to be addressed for most MR-TADF OLEDs is the severe aggregation-caused quenching (ACQ) and spectral broadening at high doping concentrations due to intense π–π interactions. Therefore, to advance the utilization of helical architectures in CP-OLEDs, rational molecular design strategies for constructing helical CP-MR-TADF emitters with suppressed quenching are critically needed.

Fig. 1 (a) Reported molecular structures of CP-MR-TADF emitters with helical chirality and (b) conformation-locking strategy for high-performance CP-MR-TADF emitters.

In this contribution, an intramolecular conformation-locking strategy is proposed to construct a CP-MR-TADF emitter ((P/M)-Spiro-3TCzBN) featuring a twisted disk-like molecular structure with a seven-membered hetero-[7]helicene unit (Fig. 1b). Spiro-3TCzBN was designed and synthesized by using a carbon bridge (sp³ hybridized) to bond the tert-butylcarbazole (TCz) group from m-Cz-BNCz to the MR framework, which enables the introduction of intrinsically helical chirality into the MR-TADF framework. As the hetero-[7]helicene unit originates from the helical extension of the MR skeleton, (P/M)-Spiro-3TCzBN not only exhibits excellent CPL performance in both solution and film states but also inherits the MR-TADF characteristics with a narrow FWHM and high Φ_PL. In addition, the orthogonal arrangement of the bulky locking group relative to the MR framework endowed the emitter with the ability to mitigate emission quenching at high concentrations. The sensitized CP-OLEDs employing (P/M)-Spiro-3TCzBN as emitters demonstrated yellow circularly polarized electroluminescence peaking at 560 nm with an EQE_max approaching 35%. Moreover, the g_EL values of −4.26 × 10⁻⁴ and +3.51 × 10⁻⁴ were observed for (P)-Spiro-3TCzBN and (M)-Spiro-3TCzBN, respectively. These noteworthy EL properties not only underscore the potential of hetero-helicenes as promising chiral optical materials for next-generation high-definition CP-OLED displays but also demonstrate the significance of the conformation-locking strategy in designing CP-MR-TADF emitters.

Results and discussion

The synthetic route for Spiro-3TCzBN is depicted in Scheme S1.† An arylamine-based precursor with a defined electron-rich electrophilic borylation reactive site was employed in a bora-Friedel–Crafts reaction, facilitating the straightforward synthesis of compounds featuring MR characteristics (Fig. S1†). The precursor was obtained through a three-step reaction sequence from commercially available starting materials in good yields, involving nucleophilic substitution followed by tandem nucleophilic addition and acid-catalyzed intramolecular dehydration cyclization. To avoid over-borylation, the reaction conditions were rigorously regulated using 1 eq of BI₃ at 120 °C for 20 hours. Subsequently, the target molecule was purified by column chromatography, and then further purified by gradient sublimation under high vacuum to afford an orange solid with a yield of 36%. Using the same method, we also synthesized compounds DPh-3TCzBN and DMe-3TCzBN for comparison, employing diphenyl and dimethyl as the locking units (Scheme S2 and S3†). The target molecules were fully characterized by elemental analyses and by ¹H and ¹³C nuclear magnetic resonance (NMR) spectroscopy as shown in the ESI (Fig. S2–S21).† Since the properties of the enantiomers are almost identical, racemic compounds were chosen as the samples to investigate their thermal, electrochemical, and photophysical properties. Thermogravimetric analysis (TGA) measurements revealed that these rigid polycyclic compounds exhibit excellent thermal stability, with high decomposition temperatures (T_d, corresponding to 5% weight loss) of 479 °C for Spiro-3TCzBN, 486 °C for DPh-3TCzBN and 470 °C for DMe-3TCzBN (Fig. S22†). These properties are advantageous for fabricating stable OLEDs through the vacuum thermal deposition process. As shown in Fig. S23,† the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) energy levels were calculated to be −4.87 and −2.63 eV for Spiro-3TCzBN, −4.86 and −2.65 eV for DPh-3TCzBN and −4.87 eV and −2.65 eV for DMe-3TCzBN based on cyclic voltammetry (CV) measurements, respectively. The energy gaps (E_gs) of Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN were determined to be 2.24, 2.21 and 2.22 eV, respectively, all of which are smaller than that of m-Cz-BNCz (2.52 eV). This reduction in E_g suggests a red-shift in emission, which can be attributed to the enhanced conjugation introduced by donor fusion.

The geometrical configurations and electronic characteristics of the target molecules were simulated using density functional theory (DFT) and time-dependent DFT (TD-DFT) calculations. The calculated data, encompassing S₁, T₁, and energy gap (ΔE_ST, between the S₁ and T₁), as well as oscillator strength (f) are presented in Table S1.† In the ground state, all three molecules exhibit a comparable distribution pattern of frontier molecular orbitals (Fig. 2). Specifically, the HOMOs in these molecules were predominantly localized on the nitrogen atoms and the carbon atoms at the ortho/para-positions within the BNCz core, with notable contributions from the TCz moiety located at the meta-position relative to the boron atom. Meanwhile, the LUMOs were primarily located on the boron atom and the carbon atoms at the ortho/para-positions. The extension of the HOMOs introduced mild ICT character into the MR system, exerting minimal influence on its multiple resonance properties. The calculated E_g values are 2.907 eV for Spiro-3TCzBN, 2.879 eV for DPh-3TCzBN, and 2.899 eV for DMe-3TCzBN, respectively. These slight differences are likely attributed to minor perturbations in the electron cloud on the MR skeleton, caused by the substituents used for locking. As depicted in Fig. S24,† the spiro-fluorene was orthogonally aligned with the MR skeleton, forming a dihedral angle degree of 89.56°. Compared to DPh-3TCzBN and DMe-3TCzBN, a bulkier and more rigid unit was introduced to serve as an effective blocking group, which could significantly suppress intermolecular π–π stacking interactions. Natural transition orbital (NTO) calculations were also conducted to investigate the excited state properties of Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN (Fig. S25–S27†). According to the NTO analysis, no significant electron or hole distribution was observed on the carbon bridge in the target molecules. This is attributed to the sp³-hybridized carbon atoms, which do not provide p orbitals to participate in the delocalization of π electrons in the excited states of the molecules. Additionally, the electron and hole distributions in the S₁ state were alternately localized on the atoms within the BNCz core, while the TCz moiety only exhibited distinct hole distributions. These results confirm that the electron transitions in the target molecules arise from the synergistic effect of short-range charge transfer (SRCT) and long-range charge transfer (LRCT), which is favorable for enhancing TADF properties. Additionally, the second triplet state (T₂) exhibited different transition symmetries compared to the S₁ state, resulting in notably higher <S₁|Ĥ_SOC|T₂> values of 0.23 cm⁻¹ for Spiro-3TCzBN, 0.22 cm⁻¹ for DPh-3TCzBN and 0.25 cm⁻¹ for DMe-3TCzBN, indicating a pronounced contribution of the T₂ state to the RISC process (Fig. 2).

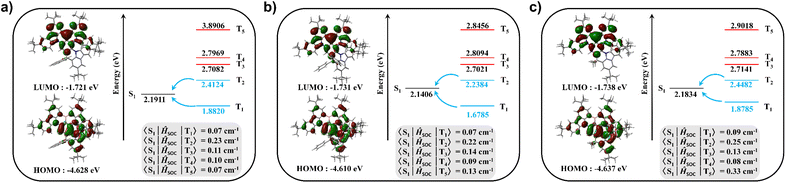

Fig. 2 Calculated HOMO and LUMO distributions, energy level gaps, oscillator strengths, excited state energies and associated SOC matrix elements for (a) Spiro-3TCzBN, (b) DPh-3TCzBN and (c) DMe-3TCzBN, respectively, at the B3LYP/6-311G (d, p) level.

The preliminary photophysical properties of the investigated compounds were characterized in dilute toluene solution (1 × 10⁻⁵ M) and the corresponding key photophysical data are shown in Fig. 3 and Table 1. The emitters exhibited prominent absorption bands peaking at 523, 529, and 526 nm for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN, respectively, corresponding to the HOMO to LUMO transitions, indicating the characteristic of the MR effect. The photoluminescence (PL) spectra of Spiro-3TCzBN, DPh-3TCzBN, and DMe-3TCzBN exhibit peak wavelengths at 556, 568, and 565 nm with bright yellow emission and high Φ_PLs of 92–96%, respectively. Both the absorption and PL spectral profiles exhibit excellent mirror symmetry, which can be attributed to the effective suppression of excited state structural deformation in the three molecules, in contrast to their ground state configurations. The FWHM values for Spiro-3TCzBN, DPh-3TCzBN, and DMe-3TCzBN are 44 nm (0.17 eV), 54 nm (0.18 eV), and 49 nm (0.19 eV), respectively. These values are slightly broader than those of traditional MR-TADF emitters, which may originate from the enhanced LRCT.¹³ The root mean square deviation (RMSD) values for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN were calculated to be 0.32238, 0.09931 and 0.08159, indicating the small geometry changes in molecular structures during the excitation process (Fig. S28†). Notably, Spiro-3TCzBN exhibited a larger RMSD value, which may result from the swinging of the spiro-fluorene group. However, it does not contribute to the frontier molecular orbital distributions, resulting in no significant broadening of the FWHM. By utilizing the S₁ energy levels (E_S1, 2.32 eV for Spiro-3TCzBN, 2.33 eV for DPh-3TCzBN and 2.32 eV for DMe-3TCzBN) along with the T₁ energy levels (E_T1, 2.24 eV for all three compounds), determined from the onset of fluorescence and phosphorescence spectra recorded in frozen toluene at 77 K (Fig. S29†), the ΔE_ST values of 0.08, 0.09 and 0.08 eV were obtained, respectively. As mentioned above, the relatively small values of ΔE_ST may be attributed to the contributions from LRCT, which could realize the up-conversion of the triplet states to singlet states, enhancing the delayed radiation. Additionally, the solvatochromic effects of these compounds were also investigated in various solvents. As the solvent polarity increased from cyclohexane to dichloromethane, the emission maxima (λ_PL) underwent gradual redshifts, accompanied by significant broadening of the FWHM (Fig. S30 and Table S2†). These observations highlight the pronounced LRCT properties of the molecules.

Fig. 3 UV/Vis absorption and fluorescence spectra of Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN in toluene at 298 K.

Table 1 Summary of the physical properties of the investigated compounds

Emitter	λabs^a [nm]	λem^b [nm]	FWHM^c [nm/eV]	ES1^d [eV]	ET1^e [eV]	ΔEST^f [eV]	Eg^g [eV]	HOMO^h [eV]	LUMO^h [eV]	ФPL^i [%]
a Peak wavelength of the lowest energy absorption band.b Peak wavelength of the PL spectrum in toluene (1 × 10^−5 M, 298 K).c Full width at half maximum of the spectra given in wavelength and energy.d Singlet energy estimated from the onset of the fluorescence spectrum in toluene (10^−5 M, 77 K).e Triplet energy estimated from the onset of the phosphorescence spectrum in a frozen toluene matrix (10^−5 M, 77 K).f ΔEST = ES1 – ET1.g Optical band gap estimated from the absorption edge of the UV-vis spectrum.h Determined from cyclic voltammetry using the formula: EHOMO = – (Eox + 4.8) eV, ELUMO = – (Ere + 4.8) eV.i Absolute photoluminescence quantum yield measured with an integral-sphere system in N2-bubbling toluene.
Spiro-3TCzBN	523	556	44/0.17	2.32	2.24	0.08	2.24	−4.87	−2.63	96
DPh-3TCzBN	529	568	54/0.18	2.33	2.24	0.09	2.21	−4.86	−2.65	92
DMe-3TCzBN	526	565	49/0.19	2.32	2.24	0.08	2.22	−4.87	−2.65	95

---

The thin-film properties of the investigated compounds were tested by doping into 9-(2-(9-phenyl-9H-carbazol-3-yl)phenyl)-9H-3,9′-bicarbazole (PhCzBCz) at a 3 wt% ratio.¹⁴ The doped films exhibited yellow emission, peaking at 560, 572 and 569 nm, with exceptional Φ_PL values of 96%, 93% and 90% for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN, respectively (Fig. S31†). To confirm the TADF properties, transient PL characteristics of the TADF emitters and their temperature-dependent behaviors were collected. The PL transient decay analyses were conducted for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN at 298 K under vacuum, consisting of a nanosecond-scale prompt component and a microsecond-scale delayed component, with corresponding prompt-to-delayed lifetime ratios (τ_F/τ_TADF) of 9.4 ns/92.9 μs, 11.3 ns/93.5 μs, and 11.8 ns/88.6 μs, respectively (Fig. S32†). Additionally, temperature-dependent transient PL decay spectra of the doped films were recorded (Fig. S33†). When the temperature increased from 80 to 320 K, the proportion of delayed fluorescence components gradually intensified, confirming the participation of triplet excitons in light emission via the endothermic RISC process. Based on the aforementioned Φ_PL and lifetimes, the key kinetic constants for radiative decay (k_r), non-radiative decay (k_nr), intersystem crossing (k_ISC), and reverse intersystem crossing (k_RISC) were further calculated and are listed in Tables S3–S5.† The k_r values of these emitters are over 10⁷ s⁻¹, due to the locking effect that further stiffens the MR skeleton. This results in minimal non-radiative decay energy loss and significantly improves the efficiency of the emitters. To quantify the spin-flipping exciton-transformation speed, the calculated k_RISC values were 1.7 × 10⁴ s⁻¹ for all three compounds, which may be attributed to the synergistic effect of small ΔE_ST and large <S₁|Ĥ_SOC|T₂> values. Moreover, as the dopant concentration increased from 1 to 10 wt%, the PL spectra of Spiro-3TCzBN-based doped films exhibited a more stable profile with a slight redshift and broadening. In contrast, the trend of change was significantly more pronounced for DPh-3TCzBN and DMe-3TCzBN-based doped films, as illustrated in Fig. S34.† Notably, a higher Φ_PL value for Spiro-3TCzBN (88%) was observed compared to DPh-3TCzBN (84%) and DMe-3TCzBN (72%) at a doping concentration of 10 wt%, which essentially stemmed from a mitigated exciton-related quenching process (Fig. S35†).

To evaluate the electroluminescent performances of the new emitters, OLEDs were initially fabricated using racemic Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN as guest materials followed by the optimized structures: indium tin oxide (ITO)/hole transport layer (HTL, 55 nm)/electron blocking layer (EBL, 5 nm)/emitting layers (EMLs, 30 nm)/electron transport layer (ETL, 30 nm)/electron injection layer (EIL, 1 nm)/Al (100 nm). In this device configuration, ITO and Al served as the anode and cathode, respectively; TAPC (1,1-bis[(di-4-tolylamino)phenyl]cyclohexane), TCTA (tris(4-carbazolyl-9-ylphenyl)amine), TmPyPB (3,3′–[5′–[3-(3-pyridinyl)phenyl][1,1′:3′,1′′-terphenyl]-3,3′′-diyl]bispyridine) and LiF functioned as the HTL, EBL, ETL and EIL, respectively; these emitters were doped into the PhCzBCz host with 1–10 wt% doping concentrations to serve as EMLs. The energy level diagrams, employed materials, and device performances are depicted in Fig. S36–S39† with the key device parameters summarized in Table S6.†

The low turn-on voltages (V_on at 1 cd m⁻²) of 3.3–3.4 V indicate efficient carrier injection and transport in the devices. The turn-on voltage gradually diminishes as the doping concentration increases, indicating that carriers are directly injected into the emitter to some extent. The electroluminescence (EL) spectra of OLEDs based on Spiro-3TCzBN, DPh-3TCzBN, and DMe-3TCzBN, within the concentration range of 1–10 wt%, demonstrate narrowband yellow emission with peak wavelengths at 560–564 nm, 574–578 nm, and 568–572 nm, respectively. The FWHM values for these devices were 50–52 nm (0.17–0.18 eV), 59–60 nm (0.21–0.22 eV), and 55–59 nm (0.20–0.22 eV), respectively, which are in good agreement with the film-state PL profile. As for Spiro-3TCzBN-based OLEDs, the corresponding Commission International de L'Eclairage (CIE) coordinates changed slightly from (0.460, 0.532) to (0.469, 0.525), while the CIE coordinates of the other two emitters changed significantly with increasing concentration. The improved stability of EL spectra and higher EQE of Spiro-3TCzBN at a high concentration of 10 wt% can be ascribed to the incorporation of the sterically hindered building block oriented outward to the MR core, which enlarges the intermolecular distance and inhibits the interchromophore aggregation and close interactions. All three devices achieve the best EL performance at 3 wt% doping concentration with optimized maximum EQE values of 33.8%, 35.4%, and 34.7%; maximum current efficiency (CE) values of 125.9, 126.8, and 119.9 cd A⁻¹; maximum power efficiency (PE) values of 113.1, 120.7, and 110.7 lm W⁻¹ for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN, respectively. Unfortunately, due to the disfavored RISC process caused by the intrinsically long τ_TADF, all devices based on the three emitters suffer from severe efficiency roll-offs at 100 and 1000 cd m⁻². We also fabricated non-doped OLEDs without the assistance of any host material; however, all three emitters exhibited low EQEs of around 3% and broadened spectra over 63 nm due to severe aggregation-caused quenching and intermolecular excitonic interactions (Fig. S40 and Table S7†).

To enhance the performance of OLED devices and mitigate efficiency roll-off for more practical applications, a TADF-sensitized device structure was implemented to optimize the energy transfer process and exciton utilization.¹⁵ In such a device, the generated triplet excitons could be harvested by the TADF-type sensitizer via the RISC process and then transferred to the dopant through efficient long-range Förster energy transfer (FET). To fabricate highly efficient TADF-sensitized OLEDs, a classic TADF material, namely DACT-II (9-(4-(4,6-diphenyl-1,3,5-triazin-2-yl)phenyl)-N³,N³,N⁶,N⁶-tetraphenyl-9H-carbazole-3,6-diamine), was selected as the sensitizer with high Φ_PL and large k_RISC.¹⁶ Furthermore, DACT-II exhibits a remarkable spectral overlap between its emission spectrum and the absorption spectra of MR-TADF emitters, which is advantageous for the efficient FET process (Fig. S41†). With the assistance of the sensitizer, the blend films composed of 25 wt% DACT-II and 3 wt% MR-TADF emitters in PhCzBCz exhibited bright yellow emissions with no residual emission of DACT-II, indicating effective FET in these films (Fig. S42†). Furthermore, the k_RISC values for the doped films with a sensitizer were significantly higher than those without a sensitizer (Fig. S43 and Tables S3–S5†).

The TADF-sensitized OLED devices maintained a similar structural configuration to the previously mentioned doped device, except for the EML, where a sensitized EML comprising PhCzBCz: 25 wt% DACT-II: 3 wt% emitters was employed. Compared to devices based on a single host, all sensitized devices exhibit lower turn-on voltages of 2.7 V, suggesting a more efficient carrier injection and transport process. As depicted in Fig. S44 and Table S8,† the EL spectra of all sensitized devices are similar to those of the single host-based devices, with peak wavelengths at 560, 568, and 572 nm. The corresponding FWHM values for Spiro-3TCzBN, DPh-3TCzBN, and DMe-3TCzBN are 53/0.18, 58/0.21, and 56/0.21 nm/eV, respectively. The sensitized devices outperformed their counterparts, with optimized maximum EQEs, CEs and PEs of 35.3%, 129.6 cd A⁻¹ and 136.5 lm W⁻¹ for Spiro-3TCzBN, 35.4%, 109.7 cd A⁻¹ and 116.3 lm W⁻¹ for DPh-3TCzBN, 34.8%, 115.5 cd A⁻¹ and 127.8 lm W⁻¹ for DMe-3TCzBN. Furthermore, they also show remarkable maximum luminance values of 142 450, 151 140 and 146 590 cd m⁻², and maintain high EQEs of 34.1%, 30.0% and 26.9% even at a luminance of 1000 cd m⁻² for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN, respectively. The higher EQE retention of Spiro-3TCzBN stems from its unique steric configuration that blocks intermolecular Dexter energy transfer (Fig. S45†). These results unambiguously demonstrate the superiority of TADF sensitized strategy in improving EL performance.

The intramolecular conformation-locking strategy successfully achieved CPPL by stabilizing the helical framework, while maintaining the high Φ_PL and emission stability inherited from m-Cz-BNCz (Fig. S46†). To further investigate the chiroptical properties of these compounds, the P/M racemization barriers of the corresponding enantiomers were first calculated to account for their remarkable configurational stability. The energy barriers of racemization were calculated to be 46.34, 47.42, and 43.18 kcal mol⁻¹ for Spiro-3TCzBN, DPh-3TCzBN, and DMe-3TCzBN, respectively, indicating that these chiral materials hold potential for the fabrication of CP-OLEDs. (Fig. S47–S49†). This high energy barrier of racemization arises from the strengthened intramolecular noncovalent interactions between the BNCz core and TCz moiety located at the meta-position relative to the boron atom, which can be characterized by the reduced density gradient (RDG) analysis. As shown in Fig. S50–S52,† these interactions are mainly located at the spatial overlap of head-to-tail rings of the hetero-[7]helicene in these compounds, attributed to the TCz moiety being locked by carbon bridges, thereby restricting their rotation and creating steric hindrance. Theoretically, the photoluminescence dissymmetry factors (g_PL) could be determined using the equation g_PL = 4×|μ_m|·|μ_e|·cos θ/(|μ_m|²+|μ_e|²), where μ_m represents the magnetic transition dipole moment, μ_e denotes the electrical transition dipole moment, and θ signifies the angle between μ_m and μ_e.¹⁷ Eventually, the theoretical g_PL values for Spiro-3TCzBN, DPh-3TCzBN and DMe-3TCzBN, were calculated to be 1.3 × 10⁻³, 4.0 × 10⁻³ and 1.6 × 10⁻³, respectively (Fig. S53†). All the aforementioned properties verify our design strategy for constructing efficient, concentration-independent CP-MR-TADF molecules.

To obtain chiral enantiomers, high-performance liquid chromatography (HPLC) was used with a chiral stationary phase to separate the racemates. Unfortunately, despite the slight structural differences among the three compounds, only the enantiomers of (P/M)-Spiro-3TCzBN were successfully separated (Fig. S54†). Despite extensive efforts, we were unable to identify suitable conditions for separating DPh-3TCzBN and DMe-3TCzBN enantiomers. Subsequently, the chiral properties of (P/M)-Spiro-3TCzBN were thoroughly characterized to demonstrate its great potential as a CPL material. The corresponding circular dichroism (CD) spectrum of (P)-Spiro-3TCzBN was recorded in toluene (1 × 10⁻⁵ M) and compared with the simulated spectrum of (P)-Spiro-3TCzBN to confirm the absolute configuration (Fig. S55†). From 350 to 420 nm, the alternating positive and negative peaks can be attributed to the Cotton effect, which is caused by the chiral nature of the electronic excited states (Fig. 4a).^8,18 As shown in Fig. 4a and b, (P/M)-Spiro-3TCzBN exhibited almost mirror-image CPL spectra at 550 nm with g_PL values of −2.99/+4.08 × 10⁻⁴ in solution, respectively, signifying the chiral nature of the S₁ state. Before investigating the potential of (P/M)-Spiro-3TCzBN as CPL emitters in OLEDs, it is crucial to verify the optical purity of the enantiomers, (P/M)-Spiro-3TCzBN, to ensure that no racemization occurs during the device fabrication process through vacuum thermal deposition (170 °C, < 5.0 × 10⁻⁴ pa). According to chiral HPLC analysis, the remaining samples showed that their enantiomeric excess (ee) values were slightly reduced compared to the as-synthesized samples, indicating minimal racemization (Fig. S56†). Consequently, (P/M)-Spiro-3TCzBN exhibited g_PL values of −4.20/+3.17 × 10⁻⁴ in doped films, which are comparable to those measured in solution, indicating their impressive configurational stability (Fig. 4c and d). Given the comparable EL performance of both racemates and enantiomers, devices incorporating the enantiomers (P/M)-Spiro-3TCzBN were constructed to showcase their CPEL properties with an optimized device structure, showing the following configurations: ITO/TAPC (55 nm)/TCTA (5 nm)/EMLs (3 wt% (P/M)-Spiro-3TCzBN: 25 wt% DACT-II: PhCzBCz, 30 nm)/TmPyPb (30 nm)/LiF (1 nm)/Al (100 nm). The EL characteristics are illustrated in Fig. 5, and the key EL data are summarized in Table 2. The devices achieved the maximum EQEs of 34.6% and 34.9%, maximum CEs of 127.1 and 128.3 cd A⁻¹, and maximum PEs of 134.5 and 135.8 lm W⁻¹ for (P)-Spiro-3TCzBN and (M)-Spiro-3TCzBN, respectively. Furthermore, given the obvious CPPL characteristics observed in doped films, the (P/M)-Spiro-3TCzBN-based devices also displayed mirror symmetric CPEL signals with g_EL factors of −3.51 × 10⁻⁴/+4.26 × 10⁻⁴, respectively. Additionally, the CP-OLEDs demonstrated excellent spectral stability over a wide range of operating voltages from 3 to 8 V, indicating the efficient FET process (Fig. S57†). Consequently, a conformation-locking strategy was successfully proposed for constructing CP-MR-TADF materials with suppressed aggregation-caused quenching, enabling the fabrication of highly efficient CP-OLEDs.

Fig. 4 (a) CD and CPPL spectra and (b) g_PL curves of (P/M)-Spiro-3TCzBN (measured in toluene solution (1 × 10⁻⁵ M, 298 K)). (c) CPPL spectra and (d) g_PL curves of (P/M)-Spiro-3TCzBN;measured in doped films (3 wt% Spiro-3TCzBN:25 wt% DACT-II: PhCzBCz, 298 K).

Fig. 5 EL characteristics of the devices with a sensitizer based on (P/M)-Spiro-3TCzBN. (a) EL spectra. (b) J–V–L curves. (c) EQE-L curves. (d) CE-L, PE-L curves. (e) CPEL curves. (f) g_EL curves.

Table 2 Summary of the EL data for the (P/M)-Spiro-3TCzBN-based devices with a sensitizer

Device	λem^a [nm]	FWHM^b [nm/eV]	Von^c [V]	Lmax^d [cd m^−2]	CEmax^e [cd A^−1]	PEmax^f [lm W^−1]	EQE^g [%]	gEL^h [10^−4]	CIE^i (x, y)
a EL peak wavelength at 100 cd m^−2.b Full width at half maximum of the spectra given in wavelength and energy.c Turn-on voltage at 1 cd m^−2.d Maximum luminance.e Maximum current efficiency.f Maximum power efficiency.g Maximum external quantum efficiency, and values at 100 and 1000 cd m^−2, respectively.h Electroluminescence asymmetry factor.i Value taken at 100 cd m^−2.
(M)-Spiro-3TCzBN	560	53/0.18	2.7	134 054	128.3	135.8	34.9/34.8/33.5	+4.26	(0.443, 0.546)
(P)-Spiro-3TCzBN	560	53/0.18	2.7	139 700	127.1	134.5	34.6/34.3/32.5	−3.51	(0.442, 0.546)

---

Conclusions

In conclusion, we have successfully developed a MR-TADF emitter, Spiro-3TCzBN, through an intramolecular conformation-locking design strategy. The synthesis of the proof-of-concept MR-TADF containing a seven-membered hetero-[7]helicene unit could be straightforwardly achieved through a lithium-free one-shot borylation approach with satisfactory yields. The corresponding enantiomers, (P)-Spiro-3TCzBN and (M)-Spiro-3TCzBN, exhibited outstanding chiroptical properties, including high color purity with an FWHM of 44 nm (0.17 eV), a high Φ_PL of 96%, sufficient configurational stability, and mirror image CPL spectra with a g_PL factor of 10⁻⁴. The exceptional performance was further evidenced by their impressive electroluminescence efficiencies and stable CPEL properties, achieving EQE_max values of 34.6% and 34.9% for (P)-Spiro-3TCzBN and (M)-Spiro-3TCzBN, respectively, along with g_EL values of −3.51 × 10⁻⁴ and +4.26 × 10⁻⁴. As a result, this work offers a unique pathway and a promising strategy for the development of helicene-based emitters for advanced optoelectronic applications.

Data availability

The data supporting the findings of this study are available within the paper and the ESI.†

Author contributions

Xinliang Cai conducted the synthesis of compounds and OLED fabrication. Xinliang Cai also wrote the original draft of the manuscript. Jinbei Wei and Yue Wang co-supervised Xinliang Cai and co-wrote the manuscript. Zhiqiang Li, Yexuan Pu and Youwei Wu participated in the discussion of the photo-physical properties. Zhiqiang Li helped with the corresponding theoretical calculations and co-wrote the manuscript.

Conflicts of interest

The authors declare no conflict of interest.

Acknowledgements

This work was supported by the Jilin Provincial Science and Technology Development Plan Project (SKL202402010 and 20240602058RC) and the National Natural Science Foundation of China (523B2031 and 52303230).
