Porphyrinoid rotaxanes: building a mechanical picket fence

T. H. Ngo *ab, J. Labuta bc, G. N. Lim d, W. A. Webre d, F. D'Souza *d, P. A. Karr e, J. E. M. Lewis f, J. P. Hill b, K. Ariga b and S. M. Goldup *f
aInternational Center for Young Scientists (ICYS), WPI Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science, Namiki 1-1, Tsukuba, Ibaraki 305-0044, Japan. E-mail: NGO.Huynhthien@nims.go.jp
bWPI Center for Materials Nanoarchitectonics, National Institute for Materials Science, Namiki 1-1, Tsukuba, Ibaraki 305-0044, Japan
cInternational Center for Young Scientists (ICYS-SENGEN), National Institute for Materials Science, Sengen 1-2-1, Tsukuba, Ibaraki 305-0047, Japan
dDepartment of Chemistry, University of North Texas, 1155 Union Circle, 305070, Denton, TX 76203, USA. E-mail: Francis.Dsouza@unt.edu
eDepartment of Physical Sciences and Mathematics, Wayne State College, 111 Main Street, Wayne, Nebraska 68787, USA
fDepartment of Chemistry, University of Southampton, University Road, Highfield, Southampton, SO17 1BJ, UK. E-mail: s.goldup@soton.ac.uk

Received 19th July 2017 , Accepted 3rd August 2017

First published on 4th August 2017


Building on recent progress in the synthesis of functional porphyrins for a range of applications using the Cu-mediated azide–alkyne cycloaddition (CuAAC) reaction, we describe the active template CuAAC synthesis of interlocked triazole functionalised porphyrinoids in excellent yield. By synthesising interlocked analogues of previously studied porphyrin–corrole conjugates, we demonstrate that this approach gives access to rotaxanes in which the detailed electronic properties of the axle component are unchanged but whose steric properties are transformed by the mechanical “picket fence” provided by the threaded rings. Our results suggest that interlocked functionalised porphyrins, readily available using the AT-CuAAC approach, are sterically hindered scaffolds for the development of new catalysts and materials.


Introduction

The copper-mediated alkyne–azide cycloaddition (CuAAC)1 reaction has been widely applied in the synthesis of functionalised porphyrinoid macrocycles,2 including multi-porphyrinoid arrays,3 for applications in biology,4 energy transfer,5 catalysis,6 self-assembly,7 and sensing.8 Indeed, the broad functional group tolerance, mild conditions and readily available starting materials of this archetypal “click”9 reaction make it an ideal tool for the synthesis of complex non-natural products.

The CuAAC reaction has also been widely applied in the synthesis of interlocked molecules,10 including examples of rotaxanes and catenanes containing porphyrin sub-units.11,12 To achieve this, triazole formation is often the final step that captures the interlocked structure by introducing a stopper unit in the case of rotaxanes or closing a macrocycle in the case of catenanes. A general feature of such “passive template” syntheses,13 in which non-covalent interactions pre-organise the covalent subcomponents in a threaded architecture prior to the CuAAC reaction, is that additional functionality must be included in the covalent structure of both components to provide the required pre-organisation. These functional groups remain in the interlocked product and, although the inter-component interactions they often engender can be exploited in the design of molecular machines,13 this approach imposes structural limitations on the products available for study.

The active template (AT) approach to interlocked molecules,14–16 removes the need for such templating units in the sub-components of the interlocked molecule. The potential of this methodology for the synthesis of porphyrin-containing architectures was demonstrated by Anderson and co-workers in the synthesis of diyne-linked porphyrin rotaxanes and catenanes using an AT-Glaser17 methodology.18 Furthermore, by reducing the size of the macrocycle employed, we have demonstrated that Leigh's active template modification of the CuAAC reaction (AT-CuAAC),15 in which a copper centre bound in the cavity of a bipyridine macrocycle mediates the formation of the triazole, is a general approach to functionalised and functional rotaxanes in excellent yield.19 Thus, although it has yet to be applied in this context,20 the AT-CuAAC reaction appears particularly appropriate for the synthesis of triazole functionalised porphyrin rotaxanes without altering their otherwise desirable properties.

Here we demonstrate the utility of the AT-CuAAC reaction in the synthesis of mechanically interlocked analogues of previously studied triazole-linked porphyrin–corrole conjugates,21 and that, because the covalent structure of the chromophores is not altered, photo-induced electron transfer between the tetrapyrrole chromophores is unaffected by mechanical bond formation.22 Conversely, the threaded macrocycles significantly modify the steric properties of the system, creating a “mechanical picket fence” motif that suppresses aggregation and ligand driven self-assembly.

Results and discussion

Synthesis and characterisation 43, 532 and 634

Porphyrin–corrole diad 43 was synthesised in excellent yield (98% after size exclusion chromatography) by reaction of azide 1, alkyne 2 and macrocycle 3 in the presence of a CuI salt (Scheme 1). The extremely high efficiency of the AT-CuAAC reaction allowed this approach to be extended to triad [3]rotaxane 532 and pentad [5]rotaxane 634 in 96% and 70% yield, respectively after size exclusion chromatography, (98% and 91% yield per mechanical bond forming step).
image file: c7sc03165c-s1.tif

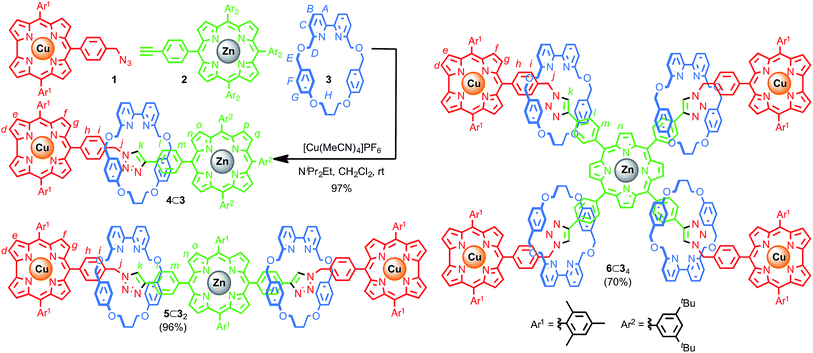

Scheme 1 Synthesis of dyad 43 and structures of triad [3]rotaxane 532 and pentad [5]rotaxane 634.

The mass spectrum (MS) of [2]rotaxane dyad 43 shows a molecular ion at m/z = 1123.5 consistent with [M + H]2+. Comparison of the 1H NMR spectra (Fig. 1) of [2]rotaxane 43 with non-interlocked thread 4 and macrocycle 3 further confirmed the formation of the mechanical bond; although many of the resonances associated with the axle remain unaffected by mechanical bond formation (Hn, Ho, Hp, Hq, and protons associated with Ar1 and Ar2), which is in keeping with their location away from the threaded region of the axle, triazole proton Hk is shifted considerably to lower field (Δδ ∼ 1.8 ppm). This is consistent with previous observations of C–H·N hydrogen bonding between the polarised triazole-Hk and the Lewis basic pyridine nitrogen donors19 and suggests that the macrocycle is largely localised over the triazole unit. Conversely, benzylic protons Hj appear at higher field in the interlocked structure (Δδ ∼ 1.2 ppm) due to the close proximity of the induced magnetic field of the electron rich aromatic units of the macrocycle.


image file: c7sc03165c-f1.tif

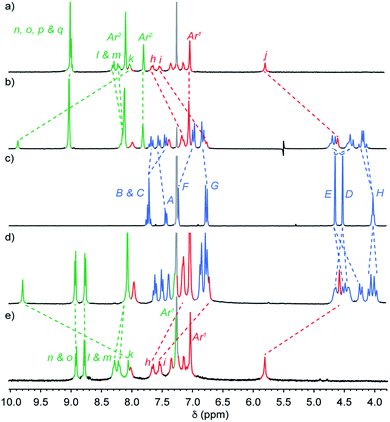

Fig. 1 Partial 1H NMR (CDCl3, 300 MHz, 298 K) of (a) dyad axle 4, (b) [2]rotaxane 43, (c) macrocycle 3, (d) [3]rotaxane 532 and (e) triad axle 5. Peak assignments as shown in Scheme 1. Residual solvent signals are indicated in light grey.

Resonances assigned to the macrocycle component also exhibit the expected changes on mechanical bond formation including the dispersion of bipyridine protons HA, HB, HC, shielding of protons HF, and HG of the flanking aromatic units and the splitting of HD and HE into diastereotopic pairs due to the non-centrosymmetric axle desymmetrising the faces of the macrocycle on mechanical bond formation. Analysis of triad [3]rotaxane 532 and pentad [5]rotaxane 634 by MS also confirmed the presence of the corresponding molecular ions (m/z = 1614.1 [M + H]2+ and 1870.7 [M + 3H]3+, respectively). Their 1H NMR spectra (Fig. 1d and 3a) compared with the non-interlocked components display broadly similar changes to that of 43.

Electronic properties of interlocked corrole–porphyrin conjugates 43, 532 and 634

Pleasingly, the electronic properties of 43, 532 and 634 revealed no significant differences compared with the non-interlocked axles.21 The interlocked and non-interlocked compounds all display electronic absorption bands at ∼428, 557 and 598 nm associated with the ZnII-porphyrin unit, and a band at 413 nm accompanied by broad features between 500 and 660 nm assigned to the CuIII-corrole units (Fig. S17). Furthermore, in all cases the emission associated with the excited singlet state of a 1ZnII-porphyrin* core was efficiently quenched in the interlocked corrole–porphyrin conjugates.

Femtosecond transient absorption spectroscopy of 43, 532 and 634 confirmed that, as in the case of the corresponding non-interlocked axles,21 the quenching of ZnII-porphyrin luminescence is due to efficient and rapid electron transfer from the 1ZnII-porphyrin* excited state to the CuIII-corrole moieties; transient peaks were observed corresponding to the reduced CuII-corrole moiety, and a broad peak appeared corresponding to the ZnII-porphyrin˙+ radical cation.23 Using the transient signal of the CuII-corrole moiety, the rate constant for the charge separation process was evaluated to be kCS ∼ 1011 s−1 for 43, 532 and 634 with subsequent charge recombination rates of kCR = 2.1 × 1010 s−1, 3.4 × 109 s−1, and 3.9 × 109 s−1 respectively (c.f. kCS = 1.1 × 1011 s−1 and kCR = 5.0 × 1010 s−1 for 4).21

These results clearly demonstrate that, as proposed, threading of the macrocycles around the arms of the porphyrin core does not significantly affect the electronic properties of the system.

Effect of threading on the steric properties of pentad 634

Although the electronic properties of the interlocked products are unchanged compared with the axle moiety, rotaxanes 43, 532 and 634 clearly have very different steric properties; encircling the triazole moieties with macrocycle 3 significantly increases the steric demand of the linker units. This difference is particularly striking in the case of pentad 634 which lacks sterically bulky aryl groups on the central porphyrin unit; the space filling model of 634 (Fig. 2a) shows that the ZnII-porphyrin unit is significantly encumbered by the threaded macrocycles. This steric hindrance was quantified by determining the % buried volume (% Vbur) of spheres centered on the central ZnII ion (Fig. 2b).24 At low sphere radii (r < 3 Å), the values of % Vbur for 6 and 634 are identical suggesting that the ZnII center is still accessible to small molecules, as required for catalysis or ligand binding. However, as r increases, the values diverge as the threaded macrocycles lead to a higher excluded volume. The comparison between the variation in % Vbur of 634 and 6 suggests that although the interlocked macrocycles do not affect the accessible volume immediately around the ZnII center, they provide a steric wall at higher radii similar to covalent picket fence porphyrinoids that have been developed for catalytic and photochemical applications.25,26
image file: c7sc03165c-f2.tif

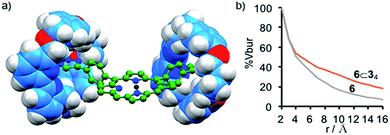

Fig. 2 (a) Truncated model (corrole moieties, two arms and axle protons removed for clarity) showing the steric influence of the threaded macrocycles; (b) variation of % Vbur of a sphere of radius r centered on Zn with respect to r.

An obvious consequence of the difference in steric demand of 634 compared with 6 can be found in their 1H NMR spectra; non-interlocked axle 6 displays resonances that are broadened considerably compared with that of [5]rotaxane 634 under the same experimental conditions (Fig. S31 and S32). This difference is exacerbated as the concentration of the sample is increased; the signals of rotaxane 634 remain sharp while those of non-interlocked axle 6 broaden and shift. The effect of concentration on the 1H NMR spectrum of non-interlocked pentad 6 is consistent with aggregation of the ZnII-porphyrin unit through π-stacking interactions, as has been widely reported previously.27 Conversely, in the case of [5]rotaxane 634, the macrocycles encircling the four arms of the porphyrin unsurprisingly appear to prevent the close approach of the ZnII-porphyrin cores.

To further probe the steric effect of the threaded macrocycles we turned our attention to the well-established ability of the ditopic ligand DABCO (L) to direct the formation of [(ZnII-porphyrin)2L] dimers.29,30 The 1H NMR spectra (Fig. S36) of non-interlocked pentad 6 displayed behaviour consistent with that previously reported as the quantity of L was varied: (i) at L[thin space (1/6-em)]:[thin space (1/6-em)]6 ratios up to 0.5[thin space (1/6-em)]:[thin space (1/6-em)]1 a signal was observed at −4.92 ppm in the 1H NMR spectrum, along with a new signal corresponding to Hn′ which is consistent with the formation of a [62L] dimer in slow exchange on the NMR timescale; (ii) once the ratio of L[thin space (1/6-em)]:[thin space (1/6-em)]6 exceeded 0.5[thin space (1/6-em)]:[thin space (1/6-em)]1 the signal at −4.92 ppm disappeared and Hn′ moved to progressively lower field as further ligand was added, stabilising once L[thin space (1/6-em)]:[thin space (1/6-em)]6 = 1[thin space (1/6-em)]:[thin space (1/6-em)]1, consistent with fast ligand exchange once excess L is present and the formation of monomeric complex [6L] in competition with [62L]. This was further confirmed by cooling the equimolar solution of 6 and L; at 273 K a broad signal was observed at −2.96 ppm alongside the reappearance of the signal at −4.92 ppm, consistent with the monomeric species [6L] in equilibrium with [62L] at low temperature. Thus, the speciation of 6 (Fig. 4a) varies as expected with the ratio L[thin space (1/6-em)]:[thin space (1/6-em)]6. Non-linear regression analysis (see ESI for details) allowed the association constants for the stepwise association of 6 to ditopic guest DABCO to be determined as K1 ≥ 5 × 106 M−1 and K2 ≥ 4 × 107 M−1, albeit with relatively large associated errors of 30% and 27% respectively.31,32

The behavior of [5]rotaxane 634 is significantly different (Fig. S34). At 298 K progressive addition of L did not lead to the appearance of a signal around −5 ppm corresponding to [(634)2L] but instead the resonances corresponding to triazole proton Hk and porphyrin β-protons Hn underwent monotonic changes that continued until 1 equivalent of L had been added. Alongside these changes, a new broad signal appeared at −2.94 ppm (Fig. 3b) and increased in intensity until 1 equivalent L had been added at which point it disappeared. These changes are consistent with the formation of [(634)L] that undergoes slow exchange with free porphyrin 634 on the 1H NMR timescale, progressing to fast exchange once excess L is present. Consistent with this, cooling an equimolar mixture of 634 and L to 223 K (Fig. 3d) to reduce the rate of ligand exchange resulted in a spectrum consistent with [(634)L]. Thus, the speciation diagram of 634 with respect to equivalents of L (Fig. 4b) is significantly different to that of 6. Non-linear regression analysis (see ESI for details) allowed us to determine K1 to be ≥ 2 × 105 M−1 at 298 K.


image file: c7sc03165c-f3.tif

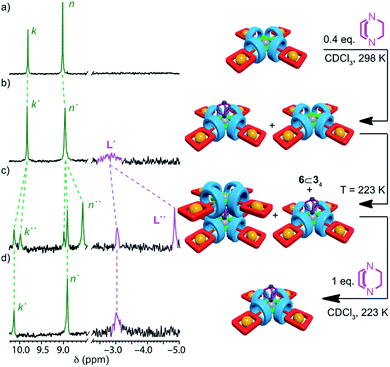

Fig. 3 Partial 1H NMR (CDCl3, 300 MHz) of (a) pentad [5]rotaxane 634 (298 K); (b) 634 + DABCO (0.4 equiv., 298 K); (c) 634 + DABCO (0.4 equiv., 223 K); (d) 634 + DABCO (1 equiv., 223 K). Peak assignments as shown in Scheme 1. Primed (“′”) and doubly primed labels refer to signals attributed to [(634)L] and [(634)2L] respectively. Cartoon representations have been included to aid clarity but are not intended to be representative of the structures of the complexes formed.28

image file: c7sc03165c-f4.tif

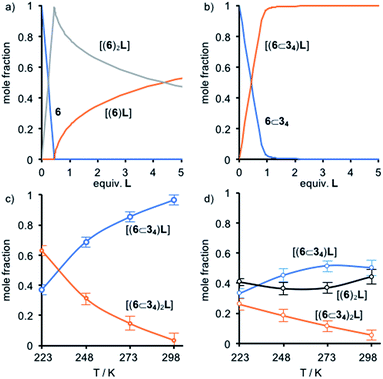

Fig. 4 Speciation diagrams for (a) 6 with respect to equiv. L; (b) 634 with respect to equiv. L; (c) L in a 634 + 0.4 L mixture with respect to T; (d) L in a 6 + 634 + L (1[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1) mixture with respect to T.

To further examine this unusual observation, we performed a variable temperature 1H NMR study of 634 in the presence of 0.4 equiv. L (Fig. S38). As expected, reducing the temperature to 273 K led a sharpening of the signal at −2.94 ppm, consistent with [(634)L]. However, surprisingly, a small signal was also observed at −4.62 ppm. Reducing the temperature further to 248 K led to a number of significant changes consistent with the formation of [(634)2L] alongside [(634)L] and unbound 634, including the appearance of resonances at −4.62 and 8.6 ppm attributed respectively to L and the porphyrin β protons Hn of the dimeric complex. Reducing the temperature further to 223 K (Fig. 3c) led to an increase in intensity of signals corresponding to [(634)2L] at the expense of [(634)L]. Thus, as the temperature is decreased, the mixture of [(634)L] and 634 present at 298 K is converted to a mixture of [(634)2L], [(634)L] and 634 until an approximately equimolar mixture of [(634)2L] and [(634)L] is produced at 223 K (Fig. 4c).

That the [(634)2L] complex forms at all is remarkable given the sterically hindered environment provided by the macrocycles. The effect of temperature suggests that the balance between negative steric interactions and the positive binding interaction between the ZnII center and the N donors of the DABCO ligand are finely balanced. Ultimately, the entropic cost of forming the ternary complex, along with the restrictions to conformational freedom associated with forming such a crowded structure, appear finely balanced against the enthalpic benefit of maximising Zn–N interactions, leading to a strongly temperature dependent self-assembly process.

Finally, we examined the speciation of mixtures of L, 6 and 634. In contrast to previous reports in which mixtures of different ZnII-porphyrins in the presence of L led to statistical mixtures of dimeric complexes, at low equivalents of L there is a high selectivity for formation of [62L] (Fig. S38). Furthermore, this selectivity is maintained in a 1[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1 mixture of L, 6 and 634 as the temperature is varied; 6 is selectively consumed in formation of [62L] in keeping with the higher stability constant for dimerisation of the non-interlocked axle and we did not observe any evidence of hetero-complex formation. Thus, the mechanical picket fence provided by the macrocycles leads to self-sorting in a mixture of ZnII-porphyrin hosts.

Conclusions

In conclusion, we have demonstrated that the ease and utility of the CuAAC reaction, which has led to its widespread use in the design of functional porphyrinoids for various applications,2 is maintained when the active template modification of this reaction is used to produce interlocked analogues. As the covalent structure of the axle is unaffected by mechanical bond formation, the electronic properties of the porphyrin–corrole dyad, triad and pentad reported here are not affected by threading through bipyridine macrocycles, suggesting that the macrocycle provides an alternative, electronically neutral site for structural diversification. Studies comparing the self-assembly behaviour of pentad [5]rotaxane and the corresponding non-interlocked axle component demonstrate that the mechanical bond provides a sterically hindered environment that can modulate intermolecular interactions including π-stacking-driven aggregation and ligand-driven dimerisation. This ability to engineer the steric environment around triazole-functionalised porphyrinoids, an important variable in determining their utility,25 without modifying their covalent structure, suggests that such readily available rotaxanes may play a role in the development of novel types of “picket fence” systems. In the longer term, by combining the steric properties demonstrated here with the well-developed chemistry of rotaxane molecular shuttles,13 it should be possible to extend these results to produce stimuli responsive systems in which the steric environment around the porphyrin core can be modulated to produce “smart” materials and catalysts.

Acknowledgements

THN and JL thank the International Center for Young Scientists (ICYS) for support. This work was partly supported by the World Premier International Research Center Initiative (WPI Initiative), MEXT and JST CREST, Japan. THN thanks the Alexander von Humboldt Foundation and Institut für Chemie und Biochemie, Freie Universität Berlin for the continued support. SMG thanks the University of Southampton, EPSRC (EP/L016621/1) and Royal Society for financial support. JEML is an EU Marie Skłodowska-Curie Fellow, receiving financial support from the European Union's Horizon 2020 research and innovation programme under Marie Sklodowska-Curie grant agreement No 660731. SMG is a Royal Society Research Fellow. SMG acknowledges funding from the European Research Council (Consolidator Grant Agreement no. 724987). The authors are also grateful to the US-National Science Foundation (Grant No. 1401188 to FD) for support of this work.

Notes and references

  1. (a) C. W. Tornøe, C. Christensen and M. Meldal, J. Org. Chem., 2002, 67, 3057 CrossRef ; (b) V. V. Rostovtsev, L. G. Green, V. V. Fokin and K. B. Sharpless, Angew. Chem., Int. Ed., 2002, 41, 2596 CrossRef CAS .
  2. For a recent review on the synthesis and applications of triazole-functionalised porphyrins see: K. Ladomenou, V. Nikolaou, G. Charalambidis and A. G. Coutsolelos, Coord. Chem. Rev., 2016, 306, 1 CrossRef CAS .
  3. (a) D.-M. Shen, C. Liu and Q.-Y. Chen, Eur. J. Org. Chem., 2007, 1419 CrossRef CAS ; (b) M. Severac, L. L. Pleux, A. Scarpaci, E. Blart and F. Odobel, Tetrahedron Lett., 2007, 48, 6518 CrossRef CAS ; (c) S. Punidha, J. Sinha, A. Kumar and M. Ravikanth, J. Org. Chem., 2008, 73, 323 CrossRef CAS PubMed ; (d) V. S. Shetti and M. Ravikanth, Eur. J. Org. Chem., 2010, 494 CrossRef CAS .
  4. (a) A. Nierth and M. A. Marletta, Angew. Chem., Int. Ed., 2014, 53, 2611 CrossRef CAS PubMed ; (b) G. T. Mukosera, T. P. Adams, R. F. Rothbarth, H. Langat, S. Akanda, R. G. Barkley, R. D. Dolewski, J. V. Ruppel and N. L. Snyder, Tetrahedron Lett., 2015, 56, 73 CrossRef CAS .
  5. (a) M. A. Fazio, O. P. Lee and D. I. Schuster, Org. Lett., 2008, 10, 4979 CrossRef CAS PubMed ; (b) C. Maeda, P. Kim, S. Cho, J. K. Park, J. M. Lim, D. Kim, J. Vura-Weis, M. R. Wasielewski, H. Shinokubo and A. Osuka, Chem.–Eur. J., 2010, 16, 5052 CrossRef CAS PubMed ; (c) L. C. Le Pleux, Y. Pellegrin, E. Blart, F. Odobel and A. Harriman, J. Phys. Chem. A, 2011, 115, 5069 CrossRef CAS PubMed ; (d) S. M. Aly, H. Guernon, B. Guérin and P. D. Harvey, J. Porphyrins Phthalocyanines, 2011, 15, 871 CrossRef CAS ; (e) A. Eggenspiller, A. Takai, M. E. El-Khouly, K. Ohkubo, C. P. Gros, C. Bernhard, C. Goze, F. Denat, J. M. Barbe and S. Fukuzumi, J. Phys. Chem. A, 2012, 116, 3889 CrossRef CAS PubMed ; (f) A. Krawicz, J. Palazzo, G.-C. Wang and P. H. Dinolfo, RSC Adv., 2012, 2, 7513 RSC ; (g) D. K. Singh and M. Nath, RSC Adv., 2015, 5, 68209 RSC ; (h) V. Nikolaou, K. Karikis, Y. Farré, G. Charalambidis, F. Odobel and A. G. Coutsolelos, Dalton Trans., 2015, 13473 RSC ; (i) A. Bukreev, K. Mikhailov, I. Shelaev, F. Gostev, Y. Polevaya, V. Tyurin, I. Beletskaya, S. Umansky and V. Nadtochenko, J. Phys. Chem. A, 2016, 120, 1961 CrossRef CAS PubMed ; (j) W.-D. Quan, A. Pitto-Barry, L. A. Baker, E. Stulz, R. Napier, R. K. O'Reilly and V. G. Stavros, Chem. Commun., 2016, 52, 1938 RSC .
  6. (a) A. R. McDonald, N. Franssen, G. P. M. van Klink and G. van Koten, J. Organomet. Chem., 2009, 694, 2153 CrossRef CAS ; (b) J. Nakazawa, B. J. Smith and T. D. P. Stack, J. Am. Chem. Soc., 2012, 134, 2750 CrossRef CAS PubMed ; (c) T. Chinnusamy, V. Rodionov, F. E. Kühn and O. Reiser, Adv. Synth. Catal., 2012, 354, 1827 CrossRef CAS .
  7. (a) C. Maeda, P. Kim, S. Cho, J. K. Park, J. M. Lim, D. Kim, J. Vura-Weis, M. R. Wasielewski, H. Shinokubo and A. Osuka, Chem.–Eur. J., 2010, 16, 5052 CrossRef CAS PubMed ; (b) D. A. Roberts, T. W. Schmidt, M. J. Crossley and S. Perrier, Chem.–Eur. J., 2013, 19, 12759 CrossRef CAS PubMed ; (c) D. A. Roberts, M. J. Crossley and S. Perrier, Polym. Chem., 2014, 5, 4016 RSC ; (d) W.-D. Quan, A. Pitto-Barry, L. A. Baker, E. Stulz, R. Napier, R. K. O'Reilly and V. G. Stavros, Chem. Commun., 2016, 52, 1938 RSC .
  8. (a) C. H. Lee, S. Lee, H. Yoon and W. D. Jang, Chem.–Eur. J., 2011, 17, 13898 CrossRef CAS PubMed ; (b) L. C. Gilday, N. G. White and P. D. Beer, Dalton Trans., 2012, 41, 7092 RSC ; (c) D. Yim, J. Sung, S. Kim, J. Oh, H. Yoon, Y. M. Sung, D. Kim and W.-D. Jang, J. Am. Chem. Soc., 2017, 139, 993 CrossRef CAS PubMed .
  9. H. C. Kolb, M. G. Finn and K. B. Sharpless, Angew. Chem., Int. Ed., 2001, 40, 2004 CrossRef CAS PubMed .
  10. K. D. Hänni and D. A. Leigh, Chem. Soc. Rev., 2010, 39, 1240 RSC .
  11. (a) D. Tuncel, N. Cindir and Ü. Koldemir, J. Inclusion Phenom. Macrocyclic Chem., 2006, 55, 373 CrossRef CAS ; (b) J. A. Faiz, V. Heitz and J.-P. Sauvage, Chem. Soc. Rev., 2009, 38, 422 RSC ; (c) J.-S. Marois, K. Cantin, A. Desmarais and J.-F. Morin, Org. Lett., 2008, 10, 33 CrossRef CAS PubMed ; (d) J. D. Megiatto, D. I. Schuster, G. de Miguel, S. Wolfrum and D. M. Guldi, Chem. Mater., 2012, 24, 2472 CrossRef CAS PubMed ; (e) H. Zhang, Q. Liu, J. Li and D. H. Qu, Org. Lett., 2013, 15, 338 CrossRef CAS PubMed .
  12. For examples of porphyrin pseudo-rotaxanes see: (a) K. Kano, R. Nishiyabu, T. Asada and Y. Kuroda, J. Am. Chem. Soc., 2002, 124, 9937 CrossRef CAS PubMed ; (b) K. Kano, R. Nishiyabu, T. Yamazaki and I. Yamazaki, J. Am. Chem. Soc., 2003, 125, 10625 CrossRef CAS PubMed ; (c) R. Nishiyabu and K. Kano, Eur. J. Org. Chem., 2004, 4985 CAS .
  13. For recent reviews on the synthesis of interlocked molecules and molecular machines see: (a) M. S. Vickers and P. D. Beer, Chem. Soc. Rev., 2007, 36, 211 RSC ; (b) J. F. Stoddart, Chem. Soc. Rev., 2009, 38, 1802 RSC ; (c) E. A. Neal and S. M. Goldup, Chem. Commun., 2014, 50, 5128 RSC ; (d) S. Erbas-Cakmak, D. A. Leigh, C. T. McTernan and A. L. Nussbaumer, Chem. Rev., 2015, 115, 10081 CrossRef CAS PubMed ; (e) M. Xue, Y. Yang, X. Chi, X. Yan and F. Huang, Chem. Rev., 2015, 115, 7398 CrossRef CAS PubMed ; (f) C. J. Bruns and J. F. Stoddart, The Nature of the Mechanical Bond: From Molecules to Machines, Wiley, 2016 Search PubMed ; (g) J. E. M. Lewis, P. D. Beer, S. J. Loeb and S. M. Goldup, Chem. Soc. Rev., 2017, 46, 2577 RSC .
  14. (a) J. D. Crowley, S. M. Goldup, A.-L. Lee, D. A. Leigh and R. T. McBurney, Chem. Soc. Rev., 2009, 38, 1530 RSC ; (b) M. Denis and S. M. Goldup, Nat. Rev. Chem., 2017 DOI:10.1038/s41570-017-0061 .
  15. (a) V. Aucagne, K. D. Hänni, D. A. Leigh, P. J. Lusby and D. B. Walker, J. Am. Chem. Soc., 2006, 128, 2186 CrossRef CAS PubMed ; (b) V. Aucagne, J. Berna, J. D. Crowley, S. M. Goldup, K. D. Hänni, D. A. Leigh, P. J. Lusby, V. E. Ronaldson, A. M. Z. Slawin, A. Viterisi and D. B. Walker, J. Am. Chem. Soc., 2007, 129, 11950 CrossRef CAS PubMed .
  16. For selected recent examples of the application of the AT-CuAAC reaction see ref. 19 and: (a) B. Lewandowski, G. De Bo, J. W. Ward, M. Papmeyer, S. Kuschel, M. J. Aldegunde, P. M. E. Gramlich, D. Heckmann, S. M. Goldup, D. M. D'Souza, A. E. Fenrandes and D. A. Leigh, Science, 2013, 339, 189 CrossRef CAS PubMed ; (b) G. De Bo, S. Kuschel, D. A. Leigh, B. Lewandowski, M. Papmeyer and J. W. Ward, J. Am. Chem. Soc., 2014, 136, 5811 CrossRef CAS PubMed ; (c) A. Noor, S. C. Moratti and J. D. Crowley, Chem. Sci., 2014, 5, 4283 RSC ; (d) A. Noor, W. K. C. Lo, S. C. Moratti and J. D. Crowley, Chem. Commun., 2014, 50, 7044 RSC ; (e) M. J. Langton, Y. Xiong and P. D. Beer, Chem.–Eur. J., 2015, 21, 18910 CrossRef CAS PubMed ; (f) J. Y. C. Lim, I. Marques, A. L. Thompson, K. E. Christensen, V. Félix and P. D. Beer, J. Am. Chem. Soc., 2017, 139, 3122 CrossRef CAS PubMed .
  17. (a) S. Saito, E. Takahashi and K. Nakazono, Org. Lett., 2006, 8, 5133 CrossRef CAS PubMed ; (b) Y. Sato, R. Yamasaki and S. Saito, Angew. Chem., Int. Ed., 2009, 48, 504 CrossRef CAS PubMed L. D. Movsisyan, D. V. Kondratuk, M. Franz, A. L. Thompson, R. R. Tykwinski and H. L. Anderson, Org. Lett., 2012, 14, 3424 CrossRef CAS PubMed ; (c) Y. Yamashita, Y. Mutoh, R. Yamasaki, T. Kasama and S. Saito, Chem.–Eur. J., 2014, 21, 2139 CrossRef PubMed ; (d) R. Hayashi, K. Wakatsuki, R. Yamasaki, Y. Mutoh, T. Kasama and S. Saito, Chem. Commun., 2014, 50, 204 RSC ; (e) L. D. Movsisyan, M. D. Peeks, G. M. Greetham, M. Towrie, A. L. Thompson, A. W. Parker and H. L. Anderson, J. Am. Chem. Soc., 2014, 136, 17996 CrossRef CAS PubMed ; (f) R. Hayashi, Y. Mutoh, T. Kasama and S. Saito, J. Org. Chem., 2015, 80, 7536–7546 CrossRef CAS PubMed ; (g) M. Franz, J. A. Januszewski, D. Wendinger, C. Neiss, L. D. Movsisyan, F. Hampel, H. L. Anderson, A. Görling and R. R. Tykwinski, Angew. Chem., Int. Ed., 2015, 54, 6645 CrossRef CAS PubMed ; (h) L. D. Movsisyan, M. Franz, F. Hampel, A. L. Thompson, R. R. Tykwinski and H. L. Anderson, J. Am. Chem. Soc., 2016, 138, 1366 CrossRef CAS PubMed .
  18. (a) M. J. Langton, J. D. Matichak, A. L. Thompson and H. L. Anderson, Chem. Sci., 2011, 2, 1897 RSC ; (b) D. R. Kohn, L. D. Movsisyan, A. L. Thompson and H. L. Anderson, Org. Lett., 2017, 19, 348 CrossRef CAS PubMed .
  19. (a) H. Lahlali, K. Jobe, M. Watkinson and S. M. Goldup, Angew. Chem., Int. Ed., 2011, 50, 4151 CrossRef CAS PubMed ; (b) J. Winn, A. Pinczewska and S. M. Goldup, J. Am. Chem. Soc., 2013, 135, 13318 CrossRef CAS PubMed ; (c) R. J. Bordoli and S. M. Goldup, J. Am. Chem. Soc., 2014, 136, 4817 CrossRef CAS PubMed ; (d) E. A. Neal and S. M. Goldup, Chem. Sci., 2015, 6, 2398 RSC ; (e) M. Galli, J. E. M. Lewis and S. M. Goldup, Angew. Chem., Int. Ed., 2015, 54, 13545 CrossRef CAS PubMed ; (f) J. E. M. Lewis, R. J. Bordoli, M. Denis, C. J. Fletcher, M. Galli, E. A. Neal, E. M. Rochette and S. M. Goldup, Chem. Sci., 2016, 7, 3154 RSC ; (g) E. A. Neal and S. M. Goldup, Angew. Chem., Int. Ed., 2016, 55, 12488 CrossRef CAS PubMed ; (h) J. E. M. Lewis, J. Winn, L. Cera and S. M. Goldup, J. Am. Chem. Soc., 2016, 138, 16329 CrossRef CAS PubMed ; (i) J. E. M. Lewis, J. Winn and S. M. Goldup, Molecules, 2017, 22, 89 CrossRef PubMed .
  20. During the preparation of this manuscript an example of an AT-CuAAC reaction leading to a threaded strapped porphyrin rotaxane was disclosed: Y. Miyazaki, C. Kahlfuss, A. Ogawa, T. Matsumoto, J. A. Wytko, K. Oohora, T. Hayashi and J. Weiss, Chem.–Eur. J., 2017, 4 DOI:10.1002/chem.201702553 .
  21. T. H. Ngo, D. Zieba, W. A. Webre, G. N. Lim, P. A. Karr, S. Kord, S. Jin, K. Ariga, M. Galli, S. Goldup, J. P. Hill and F. D'Souza, Chem.–Eur. J., 2016, 22, 1301 CrossRef CAS PubMed .
  22. Conceptually this is similar to the stabilisation of dye molecules, conjugated polymers and other reactive species in threaded architectures. For selected examples see ref. 17b, e, g, h, 19b and: (a) J. E. H. Buston, J. R. Young and H. L. Anderson, Chem. Commun., 2000, 905 RSC ; (b) T. Oku, Y. Furusho and T. Takata, Org. Lett., 2003, 5, 12384 CrossRef PubMed ; (c) E. J. F. Klotz, T. D. W. Claridge and H. L. Anderson, J. Am. Chem. Soc., 2006, 128, 15374 CrossRef CAS PubMed ; (d) M. J. Frampton, G. Sforazzini, S. Brovelli, G. Latini, E. Townsend, C. C. Williams, A. Charas, L. Zalewski, N. S. Kaka, M. Sirish, L. J. Parrott, J. S. Wilson, F. Cacialli and H. L. Anderson, Adv. Funct. Mater., 2008, 18, 3367 CrossRef CAS ; (e) C. M. S. Yau, S. I. Pascu, S. A. Odom, J. E. Warren, E. J. F. Klotz, M. J. Frampton, C. C. Williams, V. Coropceanu, M. K. Kuimova, D. Phillips, S. Barlow, J.-L. Brédas, S. R. Marder, V. Millar and H. L. Anderson, Chem. Commun., 2008, 2897 RSC ; (f) F. E. Oddy, S. Brovelli, M. T. Stone, E. J. F. Klotz, F. Cacialli and H. L. Anderson, J. Mater. Chem., 2009, 19, 2846 RSC ; (g) J. Terao, S. Tsuda, Y. Tanaka, K. Okoshi, T. Fujihara, Y. Tsuji and N. Kambe, J. Am. Chem. Soc., 2009, 131, 16004 CrossRef CAS PubMed ; (h) C. B. Caputo, K. Zhu, V. N. Vukotic, S. J. Loeb and D. W. Stephan, Angew. Chem., Int. Ed., 2013, 52, 960 CrossRef CAS PubMed ; (i) J. Terao, Y. Konoshima, A. Matono, H. Masai, T. Fujihara and Y. Tsuji, Beilstein J. Org. Chem., 2014, 10, 2800 CrossRef PubMed .
  23. In the case of 532 and 634 a transient signal at 690 nm corresponding to 3CuIII-corrole was also observed due to direct excitation of the corrole unit. See ESI for full details.
  24. Percent buried volume (% Vbur) is defined as proportion of the volume of a sphere occupied by ligand atoms. It is typically used in the context of catalysis to determine the steric demand of phosphine and N-heterocyclic carbene ligands (A. Poater, B. Cosenza, A. Correa, S. Giudice, F. Ragone, V. Scarano and L. Cavallo, Eur. J. Inorg. Chem., 2009, 1759). Here we use it to compare the steric environments of the interlocked and non-interlocked pentad.
  25. For selected examples of the applications of picket fence porphyrins see: (a) J. P. Collman, R. R. Gagne, C. Reed, T. R. Halbert, G. Lang and W. T. Robinson, J. Am. Chem. Soc., 1975, 97, 1427 CrossRef CAS PubMed ; (b) J. Li, B. C. Noll, A. G. Oliver, C. E. Schulz and W. R. Scheidt, J. Am. Chem. Soc., 2013, 135, 15627 CrossRef CAS PubMed ; (c) L. C. Gilday, N. G. White and P. D. Beer, Dalton Trans., 2013, 42, 15766 RSC ; (d) B. He, C. E. Schulz and J. Li, Dalton Trans., 2015, 44, 13651 RSC ; (e) D. Intrieri, D. Carminati and E. Gallo, Dalton Trans., 2016, 45, 15746 RSC .
  26. It should be noted that aggregation due to π–π stacking is observed by 1H NMR at significantly higher concentration (1 to 5 mM) than that at which the absorption and emission spectra are collected (2.5 μM). Thus, the observed suppression of aggregation and the unchanged electronic properties of 634 compared with 6 are consistent with one another.
  27. For selected examples of aggregation in porphyrinoid systems see: (a) R. J. Abraham, B. Evans and K. M. Smith, Tetrahedron, 1978, 34, 1213 CrossRef CAS ; (b) U. Siggel, U. Bindig, C. Endisch, T. Komatsu, E. Tsuchida, J. Voigt and J.-H. Fuhrhop, Ber. Bunsenges. Phys. Chem., 1996, 2075, 2070 CrossRef ; (c) S. Will, J. Lex, E. Vogel, H. Schmickler, J.-P. Gisselbrecht, C. Haubtmann, M. Bernard and M. Gorss, Angew. Chem., Int. Ed., 1997, 36, 357 CrossRef CAS ; (d) N. C. Maiti, S. Mazumdar and N. Periasamy, J. Phys. Chem. B, 1998, 102, 1528 CrossRef CAS ; (e) R. van Hameren, J. A. A. W. Elemans, D. Wyrostek, M. Tasior, D. T. Gryko, A. E. Rowan and R. J. M. Nolte, J. Mater. Chem., 2009, 19, 66 RSC ; (f) A. Jana, H. B. Gobeze, M. Ishida, T. Mori, K. Ariga, J. P. Hill and F. D'Souza, Dalton Trans., 2015, 44, 359 RSC ; (g) S. Cantekin, A. J. Markvoort, J. A. A. W. Elemans, A. E. Rowan and R. J. M. Nolte, J. Am. Chem. Soc., 2015, 137, 3915 CrossRef CAS PubMed .
  28. In particular, it is reasonable to expect that the corrole arms and macrocycles of the porphyrin sub-units will twist relative to and bend away from one another in dimeric complex 634. Simple molecular modelling suggests this is indeed the case (see ESI).
  29. For selected examples of DABCO-mediated assembly of ZnII-porphyrin dimers see: (a) C. A. Hunter, M. N. Meah and J. K. M. Sanders, J. Am. Chem. Soc., 1990, 112, 5773 CrossRef CAS ; (b) H. L. Anderson, Inorg. Chem., 1994, 33, 972 CrossRef CAS ; (c) C. C. Mak, N. Bampos and J. K. M. Sanders, Angew. Chem., Int. Ed., 1998, 37, 3020 CrossRef CAS ; (d) P. N. Taylor and H. L. Anderson, J. Am. Chem. Soc., 1999, 121, 11538 CrossRef CAS ; (e) C. C. Mak, N. Bampos, S. L. Darling, M. Montalti, L. Prodi and J. K. M. Sanders, J. Org. Chem., 2001, 66, 4476 CrossRef CAS PubMed ; (f) C. A. Hunter and R. Tregonning, Tetrahedron, 2002, 58, 691 CrossRef CAS ; (g) L. Baldini, P. Ballester, A. Casnati, R. M. Gomila, C. A. Hunter, F. Sansone and R. Ungaro, J. Am. Chem. Soc., 2003, 125, 14181 CrossRef CAS PubMed ; (h) M. C. Lensen, S. J. T. van Dingenen, J. A. A. W. Elemans, H. P. Dijkstra, G. P. M. van Klink, G. van Koten, J. W. Gerritsen, S. Speller, R. J. M. Nolte and A. E. Rowan, Chem. Commun., 2004, 762 RSC ; (i) P. G. Plieger, A. K. Burrell, S. B. Hall and D. L. Officer, J. Inclusion Phenom., 2005, 53, 143 CrossRef CAS ; (j) P. Ballester, A. I. Oliva, A. Costa, P. M. Deyà, A. Frontera, R. M. Gomila and C. A. Hunter, J. Am. Chem. Soc., 2006, 128, 5560 CrossRef CAS PubMed ; (k) T. Kishida, N. Fujita, O. Hirata and S. Shinkai, Org. Biomol. Chem., 2006, 4, 1902 RSC ; (l) L. Flamigni, B. Ventura, A. I. Oliva and P. Ballester, Chem.–Eur. J., 2008, 14, 4214 CrossRef CAS PubMed .
  30. Given that non-interlocked axle 6 exhibits the changes by 1H NMR and simple binding equilibrium expected for a ZnII-porphyrin in the presence of DABCO, any interaction between the CuIII-corrole moiety and DABCO is assumed to be negligible. This is in keeping with the lack, to our knowledge, of any previous report of a DABCO–CuIII-corrole complex.
  31. The errors in the determination of K1 and K2 are relatively large due to the limitations of 1H NMR analysis. Unfortunately, it was not possible to use UV-vis analysis, which has been shown to be more precise in such measurements, to determine the association constants as the strong absorbance of the corrole units mask the expected changes in the porphyrin Soret band.29a–d.
  32. With the caveat of the large errors associated with K1 and K2, these values suggest a significant degree of positive cooperativity (α = 4K2/K1 ≈ 15), which is unusual in the DABCO mediated self-assembly of ZnII-porphyrin units.29a–d The origin of this effect is uncertain and work is ongoing to establish the cause, but, if it is correct, may be due to interactions between the Cu corrole units that stabilise the dimeric complex.

Footnote

Electronic supplementary information (ESI) available: Full synthetic procedures and characterisation of all novel compounds. See DOI: 10.1039/c7sc03165c
