Three-dimensional network of coaxial carbon nanotube/manganese oxides electrode for supercapacitors

Abstract

A three-dimensional network of carbon nanotubes (3DNC) coaxially coated with manganese oxides (MnO_x) is used as an electrode for supercapacitors. 3DNC serves as a stable and conductive framework for controlled electrochemical deposition (ECD), and provides sufficient voids for fast ionic transport and diffusion. The coated thin layer MnO_x reduces ion diffusion and electron transport distance, enabling fast reversible faradic reactions.

---

As one of the most promising electrochemical energy storage materials, manganese oxides have been studied extensively as supercapacitor electrode materials due to their low cost, non-toxicity and theoretically high capacity of about 1370 F g⁻¹.^1–10 In particular, low dimensional nanostructured MnO_x with different morphologies has been developed as an electrode material and showed its advantages in charge storage capability.^4,9,11–15 However, its intrinsic poor electrical conductivity is a current drawback to utilize MnO_x as a high-rate performance supercapacitor.^1,3–5,7 To overcome this problem, an effective way is to incorporate MnO_x with other metal elements (Ni, Ru, Al, Sn and Pb etc.)^6,7 or porous, high surface area and conductive nanostructures such as carbonaceous sphere,¹⁶ carbon nanotubes,¹⁷ graphene¹⁸ and conductive polymers.¹⁹ Among those for advanced metal oxide-based hybrid nanostructure design, coaxial thin layer structure with ordered nanostructure arrays is considered as one of promising approaches for achieving the goal. Previous research has shown only a very thin layer of metal oxide material (several tens of nanometers from the surface) participated in the redox reaction.²⁰ Hence, coaxial thin layer structure could allow cations to intercalate into entire active materials and shorten electron transport distance inside the active materials. Yamauchi Y. et al.¹⁷ reported on the development of multi-walled carbon nanotube–manganese oxide core–shell structures utilized for asymmetric supercapacitor applications which shows a specific capacitance (C_sp) of 185 F g⁻¹ at a scan rate of 5 mV s⁻¹. Ordered nanostructure array is also an excellent candidate in aspect of providing a conductive path way not only for electron transport but also for resolving the ionic diffusion and transportation issues of supercapacitor electrodes. Zhu S. J. et al.²¹ reported the development of coaxial mesoporous manganese dioxide/amorphous carbon nanotubes arrays for advanced asymmetric supercapacitors which exhibit the optimized pseudocapacitance performance (362 F g⁻¹) with good cycling stability, and ideal rate capability. Ionic diffusion and transportation are critical points to improve superior energy density, power density and charge efficiency due to shorter diffusion length in void volume.^22,23 Longer life cycle and stronger volume retention during the charge and discharge process can be obtained through the nanostructures. Here, we demonstrate a coaxial thin layer MnO_x hybrid nanostructure array for high performance MnO_x supercapacitors.

In our previous research works, three-dimensional network of carbon nanotubes (3DNC) on pillar structures have been developed.^24–29 As demonstrated, 3DNC has a hierarchically arrayed structure with interconnected CNTs between ordered arrays of Si pillars.²⁸ Because of its unique structural properties, 3DNC has been applied to many applications such as catalysis,²⁶ colorimetric sensor,²⁵ gas sensor,²⁷ strain sensor,³⁰ microfluidic platform,²⁸ cell seeding platform,²⁴ and surface-enhanced Raman scattering.^29,31 The CNTs interconnected between ordered Si pillars are stable during electrochemical reactions and the 3DNC structure provides controlled voids for ionic diffusion onto the surface of active materials. It would be significant to study the capacitance performance by incorporating energy storage materials like MnO_x.

In this work, 3DNC coaxially coated with MnO_x is used as an electrode for supercapacitor. The 3DNC structure is not only served as a stable and conductive framework for controlled electrochemical deposition (ECD) of MnO_x and a current collector for charge/discharge, but also provides sufficient voids for fast ionic transport between CNTs and ionic diffusion onto the surface of active materials. Simultaneously, the coated thin layer MnO_x reduces the distance of ion diffusion and electron transport, enabling fast and reversible faradic reactions.

The schematic diagram of a fabrication process of 3DNC/MnO_x and its corresponding scanning electron microscope (SEM) images are presented in Fig. 1. Amorphous carbon nanotubes on bare Si wafer (2DNC) was synthesized under the same condition for comparison and their SEM images are shown in Fig. S1.† The pristine Si pillars shown in Fig. 1a have a diameter of 1.0 μm and height of 3.0 μm, respectively. Fig. 1b describes that most CNTs were tangled on both the sides and tops of pillars, and some CNTs were suspended between pillars after synthesizing CNTs. The insert image of TEM in Fig. 1b verifies the multi-walled carbon nanotube grown on the Si pillar structure with average diameter of 25.1 nm. Before coating MnO_x, a thin layer of Pt was firstly coated on the synthesized 3DNC using ion sputter. The Pt plays an important role in combining CNTs and target MnO_x. As demonstrated in previous work,²⁶ Pt coating is an essential step to improve the mechanical strength and maintaining the morphology of the 3DNC structures as well as enhancing electron transportation and adhesion between 3DNC and MnO_x. Fig. 1c shows the SEM image of 3DNC coated with MnO_x. After 3 min deposition of MnO_x, the original 3D network morphology is still preserved and the diameter of CNTs is increased obviously. The inset TEM image clearly presents CNTs as a backbone were well coated with Pt and another thin layer which is composed of amorphous MnO_x with a thickness of 5–10 nm. The average diameter of the CNT and MnO_x coaxial composite bundles is around 43.1 nm. EDX elemental mapping is introduced for confirming the coaxial structure. In Fig. 2a a 3DNC/MnO_x bundle is selected as the mapping area and then O, C, Pt and Mn elements are scanned. Fig. 2b and c clearly show that Mn and Pt elements are distributed at the bundle outside layer and inner core, respectively. However, C element from CNT is hardly to be detected in the bundle as shown in Fig. 2d. The reason could be that the covered Pt layer blocks or disturbs the signals from inner CNT. By comparing different MnO_x deposition time, 3 min coating shows best performance. Details are explained in Fig. S2 and S3.†

Fig. 1 Schematic illustration of 3DNC/MnO_x fabrication process and SEM images of (a) pristine Si pillar substrate, (b) as synthesized 3DNC and (c) 3DNC/MnO_x.

Fig. 2 (a) EDX elemental mapping of 3DNC/MnO_x coaxial bundle; (b) Mn element, (c) Pt element and (d) C element mapping at the selected area.

For a better understanding of the chemical composition and oxidation state of Mn, 3DNC/MnO_x was characterized by X-ray photoelectron spectroscopy (XPS) as shown in Fig. 3a. Peaks of Mn 2p, O 1s, and C 1s are observed and the insert shows two peaks located at 654.2 eV and 642.6 eV, which are attributed to Mn 2p_1/2 and Mn 2p_3/2, respectively. Those results are in good agreement with previously reported data.^1,2,32 Beyond coaxial and uniform coating, the oxidation state and electrochemical performance of MnO_x can be controlled by changing pulse intervals in deposition. The pseudocapacitance value of MnO_x is affected by Mn oxidation number. Since one alkali ion reacts with one MnO_x molecule, MnO₂(IV) has the highest ideal pseudocapacitance (1370 F g⁻¹). Because MnO_x is produced by reducing a permanganate ion in this experiment, the deposition of MnO_x with higher oxidation number requires lower voltage.³³ During constant current deposition, the applied voltage increases automatically as deposition time increases. This is because permanganate ion consumption occurs near the electrode, and higher voltage is required to deposit MnO_x constantly. To refill consumed ions, the ECD process is carried out with intervals of zero current for free diffusion of permanganate ions. Ion diffusion is more considerable for three-dimensional structures due to larger diffusion voids. Three samples are prepared with 1 s deposition time and diffusion times of 15, 30, 60 s, per cycle. The oxidation state of MnO_x is calculated using the peak height ratio of XPS spectra. The oxidation number of deposited MnO_x is determined by the peak height ratio of Mn 2p_3/2 versus O 2p (Table S1†). The peak height ratios of each sample are 1.03, 1.01 and 0.99 (Fig. S4†), with C_sp of 190, 248 and 294 F g⁻¹, respectively, at a scan rate of 10 mV s⁻¹. Thus, 60 s diffusion time shows the best C_sp value. While the peak height ratio approaching 0.95, more and more manganese dioxide is produced and the pseudo-capacitance of MnO_x could be improved.³⁴

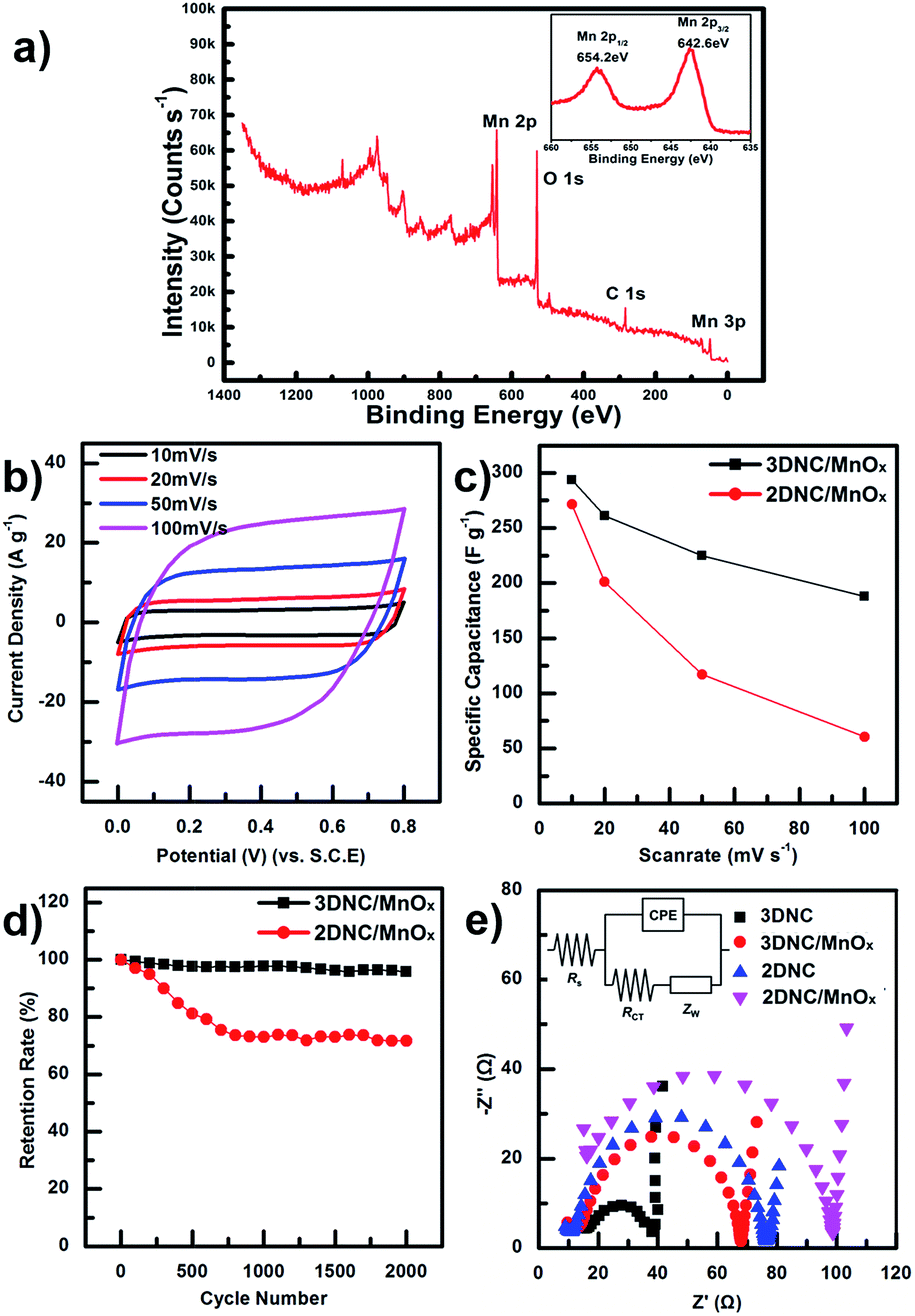

Fig. 3 (a) XPS spectrum of 3DNC/MnO_x; (b) CV curves of 3DNC/MnO_x at scan rate of 10, 20, 50 and 100 mV s⁻¹ in 1 M Na₂SO₄ solution; (c) C_sp of 3DNC/MnO_x and 2DNC/MnO_x at different scan rates; (d) cycling stability of 3DNC/MnO_x and 2DNC/MnO_x at scan rate of 100 mV s⁻¹ for 2000 cycles; (e) Nyquist plots of 3DNC, 3DNC/MnO_x, 2DNC, and 2DNC/MnO_x.

To verify the electrochemical performance of 3DNC/MnO_x, CV was conducted. The CV curves of 3DNC/MnO_x (Fig. 3b) are closer to a rectangular shape and a mirror image at each scan rate than those of 2DNC/MnO_x (Fig. S1c†). For 3DNC/MnO_x, the shape of MnO_x CV curves did not change significantly with the increase of scan rate, indicating the better capacitive behavior. Fig. 3c shows C_sp values at different scan rates. The calculated C_sp values of 3DNC/MnO_x are 294, 261, 225 and 188 F g⁻¹ at scan rates of 10, 20, 50 and 100 mV s⁻¹, respectively, which are larger than those of 2DNC/MnO_x at the same scan rate (Fig. S1c†). At low scan rate 10 mV s⁻¹, the C_sp values of these two materials show a small difference. However, when scan rate increases, the C_sp value of 2DNC/MnO_x is decreased more dramatically than 3DNC/MnO_x. By comparing the SEM images of 3DNC/MnO_x (Fig. 1c), the CNTs in 2DNC/MnO_x (Fig. S1a†) are tightly connected or touched with adjacent ones. In this case, the large amount of voids obtained in 3DNC/MnO_x structure promoted the ion diffusion and transfer speed between electrolyte and electrode and finally the capacitive performance was improved.

The cycle stability was confirmed for 2000 cycles at scan rate of 100 mV s⁻¹. Fig. 3d shows the life cycle test of 3DNC/MnO_x and 2DNC/MnO_x. The C_sp of 3DNC/MnO_x retains about 96% of its initial capacitance even after 2000 cycles while 2DNC/MnO_x retains only 72%. Fig. S5† compares the morphology of 3DNC/MnO_x coaxial bundles before and after 2000 cycles test. There are no significant change could be observed except after life cycle test the 3DNC/MnO_x surface becomes rougher which could be attributed to the intercalation and deintercalation of electrolyte cations. Hence, 3DNC/MnO_x shows better stability and reversible capacitive behavior.

In addition, electrochemical impedance spectroscopy (EIS) was also carried out to understand the electrode resistance and ion-transfer behavior of the electrode materials (Fig. 3f). The proposed equivalent circuit for the measured impedance data is shown in the inset of Fig. 3f, where R_s is the internal resistance, R_ct is faradic charge transfer resistance, CPE is the double-layer capacitance, and Z_w is the electrolyte resistance.^2,9,20,35 Typically the semi-circle in medium frequency regions reflects the R_ct. Before coating MnO_x, the R_ct value of 3DNC (23.6 Ω) was much smaller than that of the 2DNC electrode (65.5 Ω). It should be attributed to the 3D network of 3DNC, which benefits the charge transfer between the electrode surface and the electrolyte. After coating MnO_x, the R_ct of 3DNC/MnO_x and 2DNC/MnO_x increased to 54.9 Ω and 82.8 Ω due to the poor conductivity of MnO_x. However, the R_ct value of 3DNC/MnO_x was still much smaller than that of the 2DNC/MnO_x electrode.

In the low frequency region, the slope of the curve represents the Z_w, which is related to electrolyte diffusion in the porous electrode and proton diffusion in the active materials.³⁵ As shown in Table 1, the Z_w value of 3DNC (11.7 Ω) and 3DNC/MnO_x (11.9 Ω) were smaller than those of the 2DNC (15.3 Ω) and 2DNC/MnO_x (20.3 Ω) electrode, respectively. Those results were attributed to the unique hierarchical 3D structure based on Si pillar structure, which provided better electrolyte ion diffusion during fast charge and discharge processes.

Table 1 Fitting values of the equivalent circuit elements of faradic charge transfer resistance (R_ct) and electrolyte resistance (Z_w)

Parameter	Fitting value [Ω]
	3DNC	3DNC/MnOx	2DNC	2DNC/MnOx
Rct	23.6	54.9	65.5	82.8
Zw	11.7	11.9	15.3	20.3

---

In conclusion, we coaxially deposited MnO_x on a silicon pillar assisted 3DNC using an ECD process for supercapacitor application. The C_sp of 3DNC/MnO_x is about 294 F g⁻¹ at 10 mV s⁻¹ and the capacitance retention after 2000 cycles is as high as 96%. The 3DNC structure provides not only a better ion and electron transfer pathway but also larger contact area and voids for electrolyte ion diffusion during fast charge and discharge processes. This unique nanostructure contributes to fast and reversible supercapacitor applications.
