Novel photoacid generators for cationic photopolymerization

Nicolas Klikovits a, Patrick Knaack a, Daniel Bomze a, Ingo Krossing b and Robert Liska *a
aInstitute of Applied Synthetic Chemistry, TU-Wien, Vienna, Austria. E-mail: robert.liska@tuwien.ac.at
bInstitute of Inorganic and Analytical Chemistry, University Freiburg, Freiburg, Germany

Received 24th May 2017 , Accepted 29th June 2017

First published on 29th June 2017


Cationic photopolymerization is a powerful method for UV-curing of epoxy, vinyl ether and oxetane monomers. Little attention has been paid to it over the last few decades compared to the corresponding free radical applications due to unsuitable and inefficient photo-acid generators (PAGs) used for photoinitiation. We introduce a novel type of PAG based on the tetrakis(perfluoro-t-butyloxy)aluminate anion. In facile preparations, diphenyliodonium and triarylsulfonium salts were synthesized, followed by characterization of absorbance and thermal stability. Comparative photo-differential scanning calorimetry (photo-DSC) studies with common onium salt PAGs showed the advantageous reactivity of the novel alkoxyaluminate-based cationic photoinitiators. The novel diphenyliodonium PAG was also examined in photosensitization studies for potential use in higher wavelength applications.


Introduction

The great potential of photoinduced cationic polymerization was pointed out by Crivello in the early 1990s and subsequently also covered in many review articles.1–3 Cationic photopolymerization is applied most importantly for epoxy monomers, which offer special material properties such as excellent adhesion, mechanical strength and chemical resistance. These features cannot be attained by the predominant free radical photopolymerization and the corresponding monomers and they are mostly used for the production of adhesives, inks, films and coatings.4,5 Furthermore, vinyl ethers and oxetanes extend the applicability of cationic photopolymerization due to high reactivity, as well as environmental benefits and low toxicity, respectively.6–11

The advantages of cationic polymerization are high reaction rates, insensitivity towards oxygen and the huge variety of different polymer backbone structures.12 The practical absence of termination processes during polymerization ensures high efficiency in curing. One additional advantage of its use in industrial curing applications is the so-called “dark reaction”.13–15 Once initiated, the relatively long-lived protonic acid, formed by the initiator, continues the polymerization also in the absence of light. As disadvantages one must mention the inhibition by bases, and chain transfer resulting from impurities of water. Still the cationic photopolymerization is a niche technique compared to the omnipresent free radical photopolymerization moreover due to the lack of efficient cationic photoinitiators.

Generally, cationic photopolymerization is initiated by photoacid generators (PAGs), which liberate carbo-cations and protons upon a light stimulus. Although there also exist non-ionic PAGs, the onium salts, introduced by Crivello in the 1970s,6 represent the most efficient cationic photoinitiators to date. For this class of PAGs, Crivello assigned different roles to the cation and the anion part of the salt.1

Cations. The cation determines the photochemistry (λmax, molecular absorption coefficient, quantum yield), thermal stability and usually also the photosensitization behaviour of the onium salt. As major classes of photoinitiators for cationic polymerization, diaryliodonium salts,6 triarylsulfonium salts,16 and also ferrocenium-based salts17 and diazonium salts18 were reported. The most widespread are diaryliodonium and triarylsulfonium salts because of their easy synthesis, their inherent thermal and storage stability even in highly reactive monomers, as well as their highly efficient photodecomposition.

Anions. The anions used for PAGs determine the strength of the acid formed upon photochemical decomposition of the onium cation. The kinetics of the polymerization is in direct relation to the non-nucleophilicity of the anion due to decreased ion-pairing. Low nucleophilicity and ion-pairing are provided by a series of weakly coordinating anions (WCA) developed over the last few decades.19,20 Superacid-forming perfluorinated compounds, such as BF4, PF6, AsF6 and SbF6, are classically used anions for PAGs, of which hexafluoroantimonate exhibits the lowest nucleophilicity (Fig. 1, -Sb)1,21 As fluorine abstraction not only leads to termination processes during curing, but also to the formation of toxic hydrofluoric acid, the sensitivity of these compounds towards hydrolysis is a crucial issue. Also the content of toxic heavy metals such as antimony and arsenic greatly limits the applicability of these compounds as cationic photoinitiators.


image file: c7py00855d-f1.tif

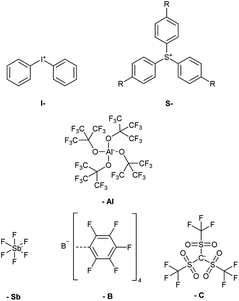

Fig. 1 Structures of cations and anions of novel and benchmark PAGs: diphenyliodonium (I-) and triarylsulfonium (S-, R = S–Ph–COCH3) cations; tetrakis(perfluoro-t-butyloxy) aluminate (-Al), hexafluoroantimonate (-Sb), tetrakis(pentaflurophenyl)borate (-B) and tris((trifluoromethyl)sulfonyl)methanide (-C) anions.

Based on the preparation of perfluorinated alkylsulfonylmethanides by Turowsky et al. in the 1980s, the tris((trifluoromethyl)sulfonyl)methanide anion (Fig. 1, -C) was introduced as one of the strongest known carbon acids.22 Further investigations revealed that the strong Brønsted acidity was contributed by the delocalized nature of the charge in these anions.23 Furthermore, these anions provide improved solubility and subsequently found application in PAGs for the coating industry due to their enhanced resistance towards hydrolysis and liberation of hydrofluoric acid.

Castellanos et al. introduced the so-called BARF-anions (BArF4) in the 1990s (Fig. 1, -B), which promoted the development of a new generation of PAGs.24 This type of borate-based WCA is able to suppress strong cation–anion interactions by electronic shielding of the center ion with phenyl groups. Furthermore, high fluorination leads to the covering of the ion surface with poorly polarizable atoms. The combination of these properties causes improved solubility in even non-polar solvents and very low ion-pairing, approaching the requirements of an ideal anion for cationic photoinitiators.25 These borates, however, bear the disadvantage of difficult synthesis which cannot be up-scaled easily. The state-of-the-art synthesis of the most important tetrakis(pentafluorophenyl)borate makes usage of the, even at low temperatures, explosion-prone lithium pentafluorobenzene.26,27

Here we report a novel type of PAG for cationic photopolymerization based on the most recent class of WCAs, namely perfluorinated alkoxyaluminates. In the 1990s, preceding polyfluorinated alkoxyaluminate species, such as Al(OC(Ph)(CF3)2)4, Al(OCH(CF3)2)4, and Al(OC(CH3)(CF3)2)4, were introduced with the most important aim to enhance the catalytic activity of metal cations.28,29 Krossing et al. firstly established the here covered perfluorinated alkoxyaluminate anion Al(OC(CF3)3)4 (Fig. 1, -Al), which provides outstandingly low nucleophilicity and ion-pairing, as well as high stability against hydrolysis, ligand abstraction and electrophilic decomposition. Empirically, the inherent stability of Al(OC(CF3)3)4 even in 6N HNO3 was confirmed.30 Resulting from basicity studies, this class of alkoxyaluminates has been found to exhibit their low nucleophilicity in correlation with the pKa value of the corresponding alcohol.31 Most significantly, the use of Al(OC(CF3)3)4 as the counterion in iridium-catalysts already showed enhanced reaction rates, in comparison to BArF4 and PF6.32 Also the facile and easily up-scalable preparation of LiAl(OC(CF3)3)4 based on LiAlH4 and the corresponding alcohol was reported.30 Therefore, this superacid-forming WCA was expected to provide excellent properties for use in PAGs.

As diaryliodonium and triarylsulfonium salts (Fig. 1, I- and S-) are the most stable, most efficient and easiest to prepare cations with the highest abundance in industrial applications, these components were selected for the preparation of novel cationic photoinitiators. Diphenyliodonium and tris(4-((4-acetylphenyl)thio)phenyl)sulfonium salts of tetrakis(perfluoro-t-butyloxy)aluminate were prepared (Fig. 1, I-Al and S-Al) and subsequently investigated in comparative studies. The novel class of PAGs based on alkoxyaluminate was examined by UV-Vis spectroscopy, simultaneous thermal analysis (STA) and photo-DSC measurements to compare the reactivity to benchmark onium salts. The diphenyliodonium PAGs I-Al, I-B and I-Sb, as well as the triarylsulfonium PAGs S-Al, S-B and S-C were investigated.

Experimental

Materials

All reagents were purchased from Sigma-Aldrich, Fluka and ABCR and were used without further purification. Solvents were purchased and distilled prior usage. Thin Layer Chromatography (TLC) was carried out with silica gel 60 F254 aluminum foils from Merck. The monomers 2,2′-(((propane-2,2-diylbis(4,1-phenylene))bis(oxy))bis(methylene))bis(oxirane) (BADGE; Araldite MY 790-1, Huntsman) and 1,4-bis(((3-ethyloxetan-3-yl)methoxy)methyl)benzene (BOB, Ivoclar Vivadent) were kindly provided as a gift. The monomers 4-cyclohexanedimethanol divinylether (BVC, ABCR), 2-(phenoxymethyl)oxirane (PGE, Fluka), and 1-(vinyloxy)dodecane (DVE, Sigma-Aldrich) and the sensitizer 2-isopropylthioxanthone (ITX, Speedcure, Lambson) were purchased and used as received. The monomer 3-(butoxymethyl)-3-ethyloxetane (BEO) was synthesized according to the literature.33

The photoinitiators tris(4-((4-acetylphenyl)thio)phenyl)-sulfonium tetrakis(perfluorophenyl)borate (Irgacure PAG290, S-B) and tris(4-((4-acetylphenyl)thio)phenyl)sulfonium tris((trifluoromethyl)sulfonyl)methanide (Irgacure GSID-26-1, S-C) were kindly donated by BASF. Diphenyliodonium hexafluoroantimonate (I-Sb) and diphenyliodonium tetrakis(perfluorophenyl)borate (I-B) were synthesized according to the literature.6,24

Synthesis

Diphenyliodonium tetrakis(perfluoro-t-butyloxy)aluminate. The synthesis was conducted in an orange light room under an argon atmosphere. In a 1000 mL 3-necked round bottom flask equipped with a reflux condenser, a septum, a glass fitting and a magnetic stirring bar, 14.28 g (14.66 mmol, 1.0 eq.) of lithium tetrakis(perfluoro-t-butyloxy)aluminate were dispersed in 320 mL of CH2Cl2. A solution of 4.64 g (14.66 mmol, 1.0 eq.) of diphenyliodonium chloride in 230 mL of CH2Cl2 was added slowly. The immediate precipitation of a white solid was observed. Another 180 mL of CH2Cl2 were added and the reaction was stirred overnight at room temperature. Even after 24 hours of reaction control by TLC, no total conversion of the educts was observed, so an excess of 5% of diphenyliodonium chloride (0.23 g, 0.73 mmol) was added. After another hour of stirring, 350 mL of deionized water were added to dissolve the solid. The phases were separated and the organic phase was extracted another two times with 350 mL of deionized water each. To separate the residual starting materials from the product, the combined organic phases were filtered through a short plug of silica. The solvent was evaporated in vacuo and the residue was dried under a high vacuum yielding 15.66 g (12.56 mmol, 85%) of a white solid. Mp 172–174 °C. TLC (CH2Cl2): Rf = 0.41. 1H-NMR (400 MHz, CD2Cl2) δ (ppm): 7.94–8.03 (m, 2H), 7.79–7.89 (m, 1H), 7.58–7.70 (m, 2H). 13C-NMR (100 MHz, CD2Cl2) δ (ppm): 111.8 ([C with combining low line]-I), 121.7 (q, C([C with combining low line]F3), J = 291.5 Hz), 134.4 (m), 135.1 (p), 135.5 (o). 27Al-NMR (104 MHz, CD2Cl2) δ (ppm): 34.7. ATR-IR: 1470, 1449, 1351, 1296, 1273, 1239, 1205, 1165, 966, 831, 735, 724, 673, 548, 571, 560, 536 cm−1. Elem. anal. calcd: C 26.94%, H 0.81%, F 54.79%, I 10.17%. Found: C 27.19%, H 0.82%, F 53.04%, I 9.86%.
Tris(4-((4-acetylphenyl)thio)phenyl)sulfonium tetrakis(perfluoro-t-butyloxy)aluminate. The synthesis was conducted in an orange light room under an argon atmosphere. In a 20 mL test tube equipped with a septum and a magnetic stirring bar and closed by a metal lid, 77 mg (0.08 mmol, 1.0 eq.) lithium tetrakis(perfluoro-t-butyloxy)aluminate were dissolved in 9 mL of CH2Cl2. A solution of 60 mg (0.08 mmol, 1.0 eq.) of tris(4-((4-acetylphenyl)thio)phenyl)sulfonium chloride in 3 mL of CH2Cl2 was added dropwise under vigorous stirring. The immediate precipitation of a white solid was observed. The reaction mixture was stirred overnight and the conversion was checked by TLC. 5 mL of deionized water were added to dissolve the solid and the organic phase was extracted another two times with 5 mL of deionized water each. To separate the residual starting materials from the product, the combined organic phases were filtered through a short plug of silica. The solvent was evaporated in vacuo and the residue was dried under a high vacuum yielding 106 mg (0.06 mmol, 80%) of a white solid. Mp 174–176 °C. TLC (CH2Cl2): Rf = 0.15. 1H-NMR (400 MHz, CDCl3) δ (ppm): 8.00 (d, 6H, J = 8.60 Hz, Ar), 7.59 (d, 6H, J = 8.60 Hz, Ar), 7.34 (d, 6H, J = 8.56 Hz, Ar), 7.26 (d, 6H, J = 9.00 Hz, Ar), 2.62 (s, 9H, C[H with combining low line]3). ATR-IR: 1685, 1572, 1478, 1398, 1352, 1298, 1276, 1239, 1213, 1166, 1089, 1067, 972, 814, 727, 620 cm−1. Elem. anal. calcd: C 41.44%, H 1.98%, S 7.63%. Found: C 41.77%, H 1.91%, S 7.38%.

Characterization

1H and 13C NMR spectra were recorded on a Bruker Avance 400 MHz FT-NMR-spectrometer. Deuterated chloroform (CDCl3) and dichloromethane (CD2Cl2) were used as solvent. FTIR-ATR spectra were recorded on a Spectrum 65 FTIR-ATR spectroscope from PerkinElmer. Melting points were determined with an OptiMelt automated melting point system from SRS Stanford Research Systems. Elemental microanalysis was carried out with an EA 1108 CHNS-O analyzer from Carlo Erba at the microanalytical laboratory of the Institute for Physical Chemistry at the University of Vienna.
UV-Vis spectroscopy. For UV-Vis spectrometry, the photoinitiators I-Al, I-B and I-Sb were dissolved in methanol, and S-Al, S-B and S-C were dissolved in acetonitrile, respectively, under light protection (orange light room). From stock solutions of 1 × 10−4 mol L−1, dilutions of 5 × 10−5 mol L−1 and 1 × 10–5 mol L−1 were prepared. The measurements were performed using a Lambda 950 device from PerkinElmer equipped with a PMT detector for the UV/Vis area. Quartz cuvettes were used for all measurements.
Thermal analysis. For STA measurements, about 4 mg of the cationic photoinitiators were weighed into standard aluminium DSC crucibles and closed with appropriate aluminium lids. A STA 449 F1 Jupiter from Netzsch was used. All analyses were performed at a heating rate of 20 °C min−1 from 25 °C to 300 C° under air.

Photo-DSC

Photo-DSC studies were conducted with a photo-DSC 204 F1 from Netzsch. Filtered UV-Vis light (320–500 nm, 400–500 nm) was applied using an Omnicure 2000 in combination with a glassfiber filled double-core lightguide (3 mm fiber diameter). For comparative studies, the light intensity was measured by using an Omnicure R2000 radiometer and set to 1 W cm−2 or 3 W cm−2 at the tip of the light guide, respectively. All measurements were conducted under an inert atmosphere (nitrogen flow of 20 mL min−1). The measurements were carried out in isothermal mode at 50 °C. The heat flow of the reaction was recorded as a function of time.

Formulations of 1 mol% of the PAGs in BADGE, BOB and BVC were prepared for comparative photo-DSC studies of cationic photoinitiators in difunctional monomers. The formulations were weighed into 3 mL brown glass vials and subsequently stirred magnetically for 2 hours. After this time, the initiator has been dissolved completely. The triarylsulfonium photoinitiators could not be dissolved in the divinylether BVC, so 25 molar equivalents of propylene carbonate were added to all mixtures. For sensitization experiments, ITX was mixed with BADGE in concentrations of 0.01, 0.05 and 0.1 mol%, followed by analogous sample preparation with 1 mol% of diphenyliodonium PAGs.

The sample mass in the aluminium crucibles was 14 ± 0.5 mg. All measurements were performed in triplicate. Important data for the determination of the conversion (Cphoto-DSC), the time to reach 95% of conversion (t95), and the rate of polymerization (Rp) are the molecular weight, density and the theoretical enthalpy per mol of the functional group (ΔH0P) of the monomer. To determine the enthalpies ΔH0P of the different functional groups, photo-DSC and 1H-NMR of structurally analogous monofunctional monomers of BADGE, BOB and BVC were carried out. On the assumption that the polymerization enthalpy per reactive group is equal for monofunctional and difunctional monomers, the theoretical polymerization enthalpies ΔH0P for 100% conversion could be calculated according to eqn (1), where ΔHP is the overall heat evolved in photo-DSC analysis, CNMR is the conversion determined by 1H-NMR, mtot is the total mass of the formulation, MW is the molecular weight and m is the mass of the monomer.

Calculation of theoretical functional group enthalpy ΔH0P.


image file: c7py00855d-t1.tif(1)

Results and discussion

Synthesis

The synthesis of the novel photoinitiators comprising the tetrakis(perfluoro-t-butyloxy)aluminate, I-Al and S-Al, was conducted in simple metathesis reactions in analogy to the already reported preparations of onium salts.6 The ion exchange was performed using the chloride salts of the cations and the lithium tetrakis(perfluoro-t-butyloxy)aluminate as the anion source (Fig. 2). With the precipitation of lithium chloride, the products were obtained in dichloromethane solution and purified by extraction with water and filtration over silica. No further purification of the metathesis products was necessary. The purity was confirmed by TLC and elementary analysis and the products were obtained in good yields of 85% for I-Al, and 80% for S-Al, respectively.
image file: c7py00855d-f2.tif

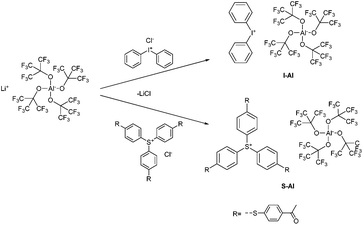

Fig. 2 Synthesis of novel diphenyliodonium and triarylsulfonium PAGs.

UV-Vis spectroscopy

UV-Vis absorption spectra were obtained from 1 × 10−4 mol L−1, 5 × 10−5 mol L−1 and 1 × 10−5 mol L−1 of the PAGs in methanol (diphenyliodonium salts) and acetonitrile (triarylsulfonium salts). By these measurements, the wavelengths of absorption maxima (λmax) as well as molar extinction coefficients (ε) were determined. As the diphenyliodonium and triarylsulfonium cations contain the chromophores, no differences in absorption were expected for photoinitiators comprising the same cation. It was confirmed that the novel WCA has no influence on the absorption behaviour of the initiators. Only for the borate-based PAGs, I-B and S-B, the expected increase of absorption in far UV was observed due to the phenyl substituents. For diphenyliodonium PAGs, an absorption maximum at 227 nm (ε227 = 17[thin space (1/6-em)]800 L mol−1 cm−1) was determined, whereas the substituted triarylsulfonium PAGs exhibit a local absorption maximum at 318 nm (ε318 = 60[thin space (1/6-em)]900 L mol−1 cm−1) (Fig. 3).
image file: c7py00855d-f3.tif

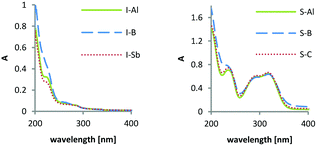

Fig. 3 Absorption spectra of diphenyliodonium and triarylsulfonium PAGs.

Simultaneous thermal analysis

Simultaneous thermal analysis (STA), comprising thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), was used to determine the thermal stability of the new PAGs. The solid photoinitiator samples were heated to 300 °C. Thereby, mass losses and phase transitions during heating can be followed simultaneously from one sample. The analysis showed a thermal stability until 220 °C for all three diphenyliodonium PAGs. The triarylsulfonium PAGs did not decompose within the measurement range until 300 °C, thus confirming the high thermal stability formerly reported.1

Photo-DSC studies for the effect of anion nature on photochemical reactivity

Photo-DSC is a unique method for obtaining a fast and accurate indication of the PAG performance. With a single measurement, various significant parameters are accessible. From the height of the exothermic peak, the Rp (mol L−1 s−1) can be calculated as described in earlier publications of this group.34 The overall heat evolved (ΔHP) serves as a measure of the total conversion, which is also the basis for the determination of the time of 95% conversion (t95).
Selection of cationically polymerizable monomers. As the reactivity of the compared PAGs may depend on the type of polymerizable group, photo-DSC studies were carried out in three difunctional monomers comprising the most important functionalities, namely glycidylether, oxetane and vinyl ether. Therefore, the diepoxide BADGE, the dioxetane BOB and the divinylether BVC (Fig. 4) were used in these studies, as they represent the most common classes of cationically polymerizable monomers. To determine the theoretical polymerization enthalpies ΔH0P for these functional groups, monofunctional monomers were first investigated in preceding measurements. On the assumption that the enthalpy per reactive group is equal for analogous monofunctional and difunctional monomers, the monofunctional glycidylether PGE, the 1,3-disubstituted oxetane BEO and the vinyl ether DVE were used (Fig. 4). 1H-NMR analyses of samples cured in photo-DSC experiments (1 W cm−2 irradiation intensity) with the novel PAG I-Al were used to calculate ΔH0P of each functional group based on the ΔHP (photo-DSC) and the corresponding conversion (CNMR) (eqn (1), Table 1).
image file: c7py00855d-f4.tif
Fig. 4 Monofunctional and difunctional monomers for photo-DSC studies.
Table 1 Molecular weight (MW), molar functional group enthalpy (ΔH0P) and density (ρ) of difunctional monomers
Monomers MW [g mol−1] ΔH0P [kJ mol−1] ρ [g L−1]
BADGE 340.42 80.6 1160
BOB 334.46 83.6 1070
BVC 196.29 75.0 920


Deviation of these photocalorimetric results from commonly cited literature values (e.g. phenyl glycidyl ether, lit. 92 kJ mol−1;35 3,3-disubstituted oxetane, lit. 84 kJ mol−1;36,37 vinyl ether, lit. 60 kJ mol−1 (ref. 37 and 38)) is reasoned by the dependence on the method of determination, such as combustion, calorimetry or calculation. Still the results were reproducible under the set conditions and thus considered as representative measures for further evaluations.

Comparative analysis of diphenyliodonium initiators. The novel photoinitiator I-Al and the benchmark photoinitiators I-B and I-Sb were tested in three difunctional monomers BADGE, BOB and BVC in a concentration of 1 mol% (corresponding to 0.5 mol% per reactive group as for monofunctional monomers). The irradiation intensity was chosen to be 3 W cm−2 at the tip of the light guide. The high reactivity of the divinylether BVC did not allow for a measurement at high energy input as it led to exceeding the detector limit. Thus, it was analyzed at 1 W cm−2 instead. As a typical example, Fig. 5 shows the conversion curves of the tested diphenyliodonium PAGs in BADGE. The benefits of the novel I-Al are apparent and are also displayed in Table 2 in detail. The comparison in BADGE shows a clearly advantageous initiation ability and polymerization behaviour of the novel I-Al in the majority of tests. In particular, RP is greatly increased for I-Al, whereas t95 is decreased in comparison to the benchmark PAGs in BADGE formulations. As the rate of polymerization (RP) displays the most representative result parameter for reactivity, it is seen that I-Al exhibits 1.4 times higher RP in BADGE, compared to both benchmark PAGs. In the dioxetane BOB also significant benefits are apparent in the parameters RP and t95, whereas the conversion generally reaches around 70% for all diphenyliodonium PAGs. In BOB, a ranking is displayed where I-Al has 7% higher RP than I-B, and 15% higher RP than I-Sb. Only the highly reactive divinylether BVC exhibits extraordinarily high RP, low t95 values and increased conversions of over 80% for all tested PAGs. I-Al reaches the same order of reactivity as I-Sb, which is 5% lower than I-B.
image file: c7py00855d-f5.tif

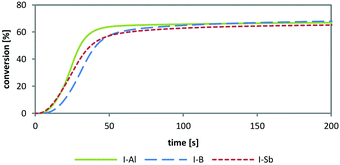

Fig. 5 Comparative photo-DSC conversion curves of diphenyliodonium PAGs (1 mol%) in BADGE.
Table 2 Photo-DSC result parameters of diphenyliodonium and triarylsulfonium PAGs (1 mol%) in BADGE, BOB and BVC
  R p [mmol L−1 s−1] t 95 [s] C photo-DSC [%]
Monomer BADGE BOB BVC BADGE BOB BVC BADGE BOB BVC
I-Al 108 178 517 56 46 24 70 73 84
I-B 73 166 543 134 50 24 72 73 88
I-Sb 76 155 516 98 50 24 69 71 78

S-Al 49 43 134 240 307 52 64 72 68
S-B 46 42 143 243 274 63 62 70 66
S-C 42 42 135 237 286 55 54 73 68


Comparative analysis of triarylsulfonium initiators. In analogy to the diphenyliodonium photoinitiators, the substituted triarylsulfonium species were compared with each other within a photo-DSC measurement sequence. The novel PAG S-Al was compared with commercially available high-performance photoinitiators S-B and S-C in the monomers BADGE, BOB and BVC in a concentration of 1 mol%. Also the triarylsulfonium photoinitiators were tested with an irradiation intensity of 3 W cm−2 at the tip of the light guide, and 1 W cm−2 for BVC. Fig. 6 shows the typical conversion curves of the tested triarylsulfonium PAGs in BADGE. In contrast to diphenyliodonium PAGs in BADGE (Fig. 5), one can see the rapid and steep increase of conversion at the beginning of irradiation. This is reasoned by the better overlap of the absorption bands of the triarylsulfonium cation (S-) and the emission provided by the light source (320–500 nm).
image file: c7py00855d-f6.tif

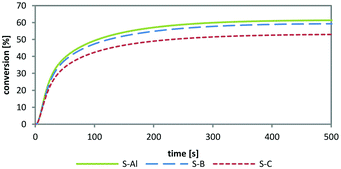

Fig. 6 Comparative photo-DSC conversion curves of triarylsulfonium PAGs (1 mol%) in BADGE.

The results in Table 2 show only marginal differences between the PAGs in the three monomers. The novel S-Al matches up to the provided triarylsulfonium high-performance initiators. No clear trend is achieved and the results show only dependence on the respective monomer. The overall deviations allow no prediction on the advantageous behaviour of any of the PAGs, making them equally potent cationic photoinitiators under these conditions.

Comparative analysis of diphenyliodonium with higher wavelength sensitization. Cationic UV-curing is usually initiated using UV lamps that provide radiation in the near UV region above 350 nm, thus exceeding the absorption regions of common PAGs. To meet the requirements of industrial light sources, much effort has been put into the development of visible light photoinitiators over the past few years. The application of visible light LEDs further pushes the investigation on new solutions to this issue. To enable the use of common PAGs with higher wavelength radiation sources, the absorption properties of the photosensitive formulation have to be changed. The recent research focused on the development to redshift the absorption by enlarged π-conjugated systems and was applied mostly on sulfonium salts.39–43 For diphenyliodonium salts, however, the predominant approach for visible light applications is the use of photosensitization. Sensitizers absorb the light energy in their specific absorption range in the visible region. By the dominant electron transfer mechanism, the cationic photoinitiator initiates the polymerization without being directly excited. Iodonium salts are generally more easily sensitized due to their rather high redox potential (−0.2 eV), whereas sulfonium salts are only sensitized by compounds with high singlet energies, such as anthracenes, due to the low redox potential (−1.2 eV).12 Thus, photosensitization is still considered as a current method for diphenyliodonium PAGs and was examined here.

The typical sensitizer 2-isopropylthioxanthone (ITX) was selected for the comparison of alkoxyaluminate- and antimonate-based diphenyliodonium initiators in BADGE formulations. Fig. 7 depicts the low overlap of diphenyliodonium species with the emission of an Omnicure 2000 UV lamp and the well-fitting absorption of the used sensitizer. A concentration of 1.0 mol% PAG was used in combination with concentrations of 0.01, 0.05 and 0.1 mol% of ITX. Photo-DSC measurements with 400–500 nm irradiation with 3 W cm−2 intensity were performed to investigate the differences in the sensitization ability of the novel initiator I-Al compared to the benchmark compound I-Sb. At this wavelength, hardly any reaction was observed for diphenyliodonium salts without the sensitizer. However, with the use of ITX the cationic photopolymerization of BADGE was facilitated distinctively.


image file: c7py00855d-f7.tif

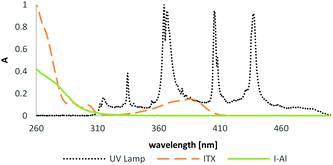

Fig. 7 Emission spectrum of an Omnicure 2000 series UV lamp; absorption spectra of sensitizers ITX and diphenyliodonium PAG I-Al.

Considering that the sensitization process is determined by the cation of the PAGs, the measurement depicts the overall ability to effectively generate an acid after photodecomposition. Thus, a different reactivity is contributed by the acid forming WCA after photosensitization. The sensitization by ITX enables the activation of both tested diphenyliodonium PAGs in a BADGE matrix. Using the lowest concentration of 0.01 mol% ITX, generally sluggish polymerization was observed with low Rp, long t95 times and low conversions. The aluminate based PAG I-Al still shows better results under these conditions. A higher concentration of 0.1 mol% causes distinctively more efficient polymerization behaviour with the novel I-Al. The beneficial reactivity is also displayed in the typical conversion curve in Fig. 8. From the result parameters in Table 3, it can be seen that the highest final conversions are reached by the novel PAG I-Al.


image file: c7py00855d-f8.tif

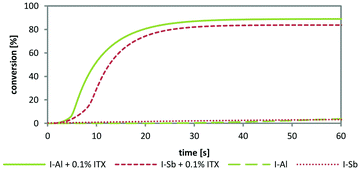

Fig. 8 Comparative photo-DSC conversion curves of I-Al and I-Sb (1 mol%) in BADGE with ITX sensitization (0.1 mol%) at 400–500 nm.
Table 3 Polymerization parameters of diphenyliodonium photoinitiators (1 mol%) in BADGE with ITX-sensitization
Photoinitiator ITX [mol%] R p [mmol L−1 s−1] t 95 [s] C photo-DSC [%]
I-Al 0.01 0.011 316 59
I-Sb 0.010 347 55
I-Al 0.10 0.393 30 92
I-Sb 0.344 30 85


Conclusions

In this paper, the preparation and investigation of a novel class of cationic photoinitiators is shown. The synthesis of two new compounds, I-Al and S-Al, was performed by straight-forward metathesis reactions based on lithium tetrakis(perfluoro-t-butyloxy)aluminate in 85% and 80% yield, respectively. In preceding studies it was confirmed that the absorbance and thermal stability of the onium salts are not affected by the novel anion, and shows equal properties to benchmark substances, including expectedly beneficial results for the triarylsulfonium PAG S-Al. Photo-DSC studies revealed the superior reactivity in comparison to benchmark substances in several monomers. In particular, the diphenyliodonium species I-Al demonstrates a greatly advantageous ability to initiate cationic polymerization, where the efficient photopolymerization of the usually low reactive BADGE is of prime importance. Also the photosensitization experiments of I-Al using ITX showed convincing results in comparison to the benchmark substance, which demonstrates the possible usage in photoinitiators systems with visible light irradiation. On the one hand, the novel photoinitiators provide enhanced reactivity for classical use in the coating industry, on the other hand, the novel class of PAGs offers access to new applications, where reactivity and stability are the limiting factors to date.

Acknowledgements

This work was funded by the Austrian Government and the state Governments of Styria, Lower- and Upper Austria within the FFG PolyComp project (project number: 836647). The authors acknowledge the TU Wien University Library for financial support through its Open Access Funding Program.

Notes and references

  1. J. V. Crivello, J. Polym. Sci., Part A: Polym. Chem., 1999, 37, 4241–4254 CrossRef CAS .
  2. J. V. Crivello, Des. Monomers Polym., 2002, 5, 141–154 CrossRef CAS .
  3. M. Sangermano, Pure Appl. Chem., 2012, 84, 2089 CrossRef CAS .
  4. H. Q. Pham and M. J. Marks, in Ullmann's Encyclopedia of Industrial Chemistry, Wiley-VCH Verlag GmbH & Co. KGaA, 2000,  DOI:10.1002/14356007.a09_547.pub2 .
  5. W. A. Green, Industrial Photoinitiators: A Technical Guide, Taylor & Francis, 2010 Search PubMed .
  6. J. V. Crivello and J. H. W. Lam, Macromolecules, 1977, 10, 1307–1315 CrossRef CAS .
  7. M. Sangermano, G. Malucelli, F. Morel, C. Decker and A. Priola, Eur. Polym. J., 1999, 35, 639–645 CrossRef CAS .
  8. C. Decker, C. Bianchi, D. Decker and F. Morel, Prog. Org. Coat., 2001, 42, 253–256 CrossRef CAS .
  9. Y.-M. Kim, L. K. Kostanski and J. F. MacGregor, Polym. Eng. Sci., 2005, 45, 1546–1555 CAS .
  10. U. Bulut and J. V. Crivello, J. Polym. Sci., Part A: Polym. Chem., 2005, 43, 3205–3220 CrossRef CAS .
  11. M. Sangermano, G. Malucelli, R. Bongiovanni and A. Priola, Eur. Polym. J., 2004, 40, 353–358 CrossRef CAS .
  12. J. V. Crivello, K. Dietliker and G. Bradley, Photoinitiators for Free Radical Cationic & Anionic Photopolymerisation, Wiley, 1999 Search PubMed .
  13. V. Sipani and A. B. Scranton, J. Polym. Sci., Part A: Polym. Chem., 2003, 41, 2064–2072 CrossRef CAS .
  14. C. Decker and K. Moussa, J. Polym. Sci., Part A: Polym. Chem., 1990, 28, 3429–3443 CrossRef CAS .
  15. H. Ito, N. Kidokoro and H. Ishikawa, J. Photopolym. Sci. Technol., 1992, 5, 235–246 CrossRef CAS .
  16. J. V. Crivello and J. H. W. Lam, J. Polym. Sci., Polym. Chem. Ed., 1979, 17, 977–999 CrossRef CAS .
  17. A. Roloff, K. Meier and M. Riediker, Pure Appl. Chem., 1986, 58, 1267 CrossRef CAS .
  18. S. I. Schlesinger, Polym. Eng. Sci., 1974, 14, 513–515 CAS .
  19. T. A. Engesser, M. R. Lichtenthaler, M. Schleep and I. Krossing, Chem. Soc. Rev., 2016, 45, 789–899 RSC .
  20. I. Krossing and I. Raabe, Angew. Chem., Int. Ed., 2004, 43, 2066–2090 CrossRef CAS PubMed .
  21. G. A. Olah, G. K. S. Prakash and J. Sommer, Superacids, Wiley, 1985 Search PubMed .
  22. L. Turowsky and K. Seppelt, Inorg. Chem., 1988, 27, 2135–2137 CrossRef CAS .
  23. S. Z. Zhu and D. D. DesMarteau, Inorg. Chem., 1993, 32, 223–226 CrossRef CAS .
  24. F. Castellanos, J. P. Fouassier, C. Priou and J. Cavezzan, J. Appl. Polym. Sci., 1996, 60, 705–713 CrossRef CAS .
  25. I. Krossing, in Comprehensive Inorganic Chemistry II, ed. K. Poeppelmeier, Elsevier, Amsterdam, 2nd edn, 2013, pp. 681–705,  DOI:10.1016/B978-0-08-097774-4.00126-1 .
  26. A. G. Massey and A. J. Park, J. Organomet. Chem., 1964, 2, 245–250 CrossRef CAS .
  27. Y. Ikeda, T. Yamane, E. Kaji and K. Ishimaru, US Pat., 5493056 (A), 1996 Search PubMed .
  28. T. J. Barbarich, S. T. Handy, S. M. Miller, O. P. Anderson, P. A. Grieco and S. H. Strauss, Organometallics, 1996, 15, 3776–3778 CrossRef CAS .
  29. T. J. Barbarich, S. M. Miller, O. P. Anderson and S. H. Strauss, J. Mol. Catal. A: Chem., 1998, 128, 289–331 CrossRef CAS .
  30. I. Krossing, Chem. – Eur. J., 2001, 7, 490–502 CrossRef CAS .
  31. S. M. Ivanova, B. G. Nolan, Y. Kobayashi, S. M. Miller, O. P. Anderson and S. H. Strauss, Chem. – Eur. J., 2001, 7, 503–510 CrossRef CAS .
  32. S. P. Smidt, N. Zimmermann, M. Studer and A. Pfaltz, Chem. – Eur. J., 2004, 10, 4685–4693 CrossRef CAS PubMed .
  33. T. Matsumoto and H. Mazaki, US Pat., 2004173773 (A1), 2004 Search PubMed .
  34. G. Ullrich, B. Ganster, U. Salz, N. Moszner and R. Liska, J. Polym. Sci., Part A: Polym. Chem., 2006, 44, 1686–1700 CrossRef CAS .
  35. C. H. Klute and W. Viehmann, J. Appl. Polym. Sci., 1961, 5, 86–95 CrossRef .
  36. F. S. Dainton, K. J. Ivin and D. A. G. Walmsley, Trans. Faraday Soc., 1960, 56, 1784–1792 RSC .
  37. J. Brandrup, E. H. Immergut and E. A. Grulke, Polymer Handbook, Wiley, 4th edn, 1999 Search PubMed .
  38. M. F. Shostakovskii and I. F. Bogdanov, Russ. J. Appl. Chem., 1942, 15, 249–259 CAS .
  39. X. Wu, J.-p. Malval, D. Wan and M. Jin, Dyes Pigm., 2016, 132, 128–135 CrossRef CAS .
  40. M. Jin, X. Wu, J. Xie, J. P. Malval and D. Wan, RSC Adv., 2015, 5, 55340–55347 RSC .
  41. M. Jin, H. Hong, J. Xie, J.-P. Malval, A. Spangenberg, O. Soppera, D. Wan, H. Pu, D.-L. Versace, T. Leclerc, P. Baldeck, O. Poizat and S. Knopf, Polym. Chem., 2014, 5, 4747–4755 RSC .
  42. M. Jin, H. Xu, H. Hong, J.-P. Malval, Y. Zhang, A. Ren, D. Wan and H. Pu, Chem. Commun., 2013, 49, 8480–8482 RSC .
  43. W. Zhou, S. M. Kuebler, K. L. Braun, T. Yu, J. K. Cammack, C. K. Ober, J. W. Perry and S. R. Marder, Science, 2002, 296, 1106–1109 CrossRef CAS PubMed .

Footnote

Electronic supplementary information (ESI) available: Simultaneous thermal analysis (STA). See DOI: 10.1039/c7py00855d
