Enantioselective synthesis of substituted α-aminophosphonates catalysed by D-glucose-based crown ethers: pursuit of the origin of stereoselectivity

Son Truong Pham a, Zsolt Rapi a, Péter Bakó a, Imre Petneházy a, András Stirling *b and Zsuzsa Jászay a
aDepartment of Organic Chemistry and Technology, Budapest University of Technology and Economics, PO Box 91, Budapest 1521, Hungary
bInstitute of Organic Chemistry, Research Centre for Natural Sciences, Hungarian Academy of Sciences, Budapest, Hungary. E-mail: stirling.andras@ttk.mta.hu

Received 4th September 2017 , Accepted 28th October 2017

First published on 30th October 2017


Several monoaza-15-crown-5 type macrocycles annelated to phenyl-β-D-glucopyranoside were applied as chiral catalysts in enantioselective Michael addition of an N-protected aminomethylenephosphonate onto acrylic acid derivatives and trans-β-nitrostyrene. Among these crown ethers, three are new. Michael adducts were formed with good to excellent enantio- and diastereoselectivities. Combined MM and QM calculations have revealed that suitable side arms on the crown ether beneficially affect the position of the central sodium cation, which in turn helps enhance the stereocontrol by allowing a closer contact between substrate and catalyst.


1. Introduction

The development of efficient methods for the enantioselective synthesis of α-aminophosphonates has recently received much attention as these compounds are structural analogues of α-amino acids.1 As enzyme inhibitors, they may be useful as novel herbicides, antibacterial, antihypertensive, anti-cancer, and anti-HIV agents.2 Cyclic α-aminophosphonates have found promising applications as organocatalysts.3 Moreover, due to their chelate forming potency, aminobisphosphonic acids have become important in the treatment of osteoporosis and bone metastases.4 In addition, the practical importance of studying this class of compounds, beyond widening of basic knowledge of the reaction, is a viable research proposition as yields and enantiomeric purities can be efficiently translated into the price of pharmaceuticals.

Since biological activity is basically dependent on the configuration of the carbon atom adjacent to phosphorus, access to non-racemic α-aminophosphonic acids by stereoselective synthesis has been the subject of intense study and has been reviewed recently.5 Reported strategies include the use of both chiral auxiliaries6 as well as catalytic P–C7 and C–C8 coupling.

Chiral catalysis in conjugate additions of macrocycles annelated to various carbohydrate units has also been studied9 and reviewed in the last few decades.10 Tőke et al. were the first, who published the derivation of monoaza-15-crown-5 type crown ethers (lariat ethers) from glucose, which had substituents (side arms) on the nitrogen atom of the crown ring.11 These macrocycles derived from D-glucose are particularly attractive because of the simplicity and variability of both the chiral support and the possible side arms of the ring that hereby provide a whole family of chiral catalysts. The synthetic potential of both α- and β-methyl and phenyl substituted D-glucose annelated to azacrown ethers has been demonstrated in enantioselective Michael additions, Darzens condensations and epoxidations of α,β-enones in the first time by our group.12 Itoh and co-workers synthesised differently bridged azacrown ethers derived from α-D-glucose and also proved their selectivity in Michael reaction.13 We also studied the effect of the monosaccharide moieties on the chiral induction and optimized the side arm of the crown ring according to the reaction types.14

Herein, we report the application of chiral crown ethers containing a phenyl-β-D-glucopyranoside unit as phase transfer catalysts. These monoaza-15-crown-5 type macrocycles, s.c. lariat (lasso) ethers have various side arms (with a heteroatom at its terminal) at the nitrogen atom of the crown ring. Such compounds show unique guest specificity due to cooperativity of the macrocyclic side arm.

As a part of our research program on catalytic enantioselective Michael addition in general and, in particular, concerning α- and β-aminophosphonates, we reported alkali base promoted Michael addition of N-protected aminomethylenephosphonate 1 onto acrylic acid derivatives 2 catalysed by D-glucose-based monoaza-15-crown-5 lariat ethers8d3a–d and 1,1′-bi-2-naphthyl-appended azacrown ethers.8e In these studies, we found that both types of macrocycles catalysed the addition reaction, but the stereoselectivity was only good when the Michael acceptors contained a cyano group. It also turned out that regarding selectivity, the character of the side arm of lariat ether overrides the importance of chiral support.8d,e Herein, we report in detail the findings described in our preliminary communication on the aforementioned addition reaction. In addition, we present new results and complete experiment with theoretical modeling to understand the origin of stereoselectivity.

2. Results and discussion

To have a better insight into the catalytic process operative in the above-mentioned Michael addition of N-protected aminomethylenephosphonate 1 we wished to obtain additional information concerning the role of the side arm of our catalysts 3 and also of the Michel acceptor 2 on the stereochemical outcome of the reaction (Scheme 1).
image file: c7nj03345a-s1.tif

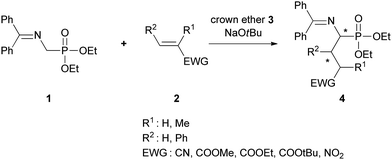

Scheme 1 Michael addition of N-protected aminomethylenephosphonate 1 to acrylic acids and trans-nitrostyrene 2 catalyzed by the crown ethers 3.

In the present study, the synthesis and application of 3em is reported. Among them, 3km are new members of this series. The present catalyst set is completed by including 3ad compounds, which were developed earlier.8

The new azacrowns 3k–m were synthesized using our previously elaborated method.11d Vicinal hydroxyl groups of a partially protected D-glucose were transformed into 2-chloroethoxyethyl derivative. Next, chlorine was exchanged for iodine using NaI. Finally, bisiodo podand, our key-intermediate 5 was submitted to Na2CO3 promoted ring closure with the appropriate primary amines (Fig. 1, Scheme 2).


image file: c7nj03345a-f1.tif

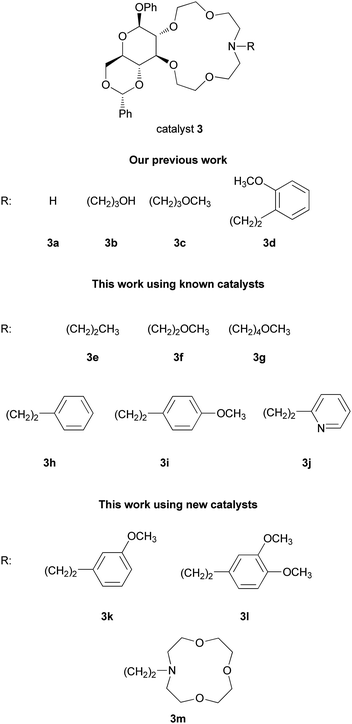

Fig. 1 D-Glucose-based azacrown ethers 3a–m.

image file: c7nj03345a-s2.tif

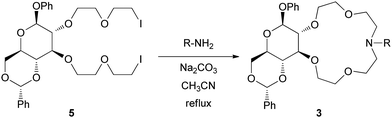

Scheme 2 Synthesis of lariat ethers 3.

2.1. Synthesis of aminophosphonates 4 (Scheme 1)

We found that all of the crown ethers tested (3a–m), in fact, catalysed the Michael addition of N-protected aminomethylenephosphonate 1 onto acrylic acid derivatives 2. However, those with no side arm at all (3a) or with a hydroxypropyl side arm (3b) showed poor selectivity. Significant improvement of both catalytic activity and enantioselectivity was brought about by replacing the hydroxypropyl side chain by a methoxypropyl chain (3c).8d As a result of previous optimization of reaction conditions in terms of solvent, temperature, and amount of base, catalyst8d additions were carried out (if not otherwise stated) at −75 °C in toluene in the presence of solid NaOtBu (1.5 equiv.) as a base and with 10 mol% catalyst loading.

Results are summarized in Table 1.

Table 1 Enantioselective Michael addition of N-protected aminomethylenephosphonate 1 to Michael acceptors 2a–i using NaOtBu and catalyst 3d–m
Entry R1 R2 EWG 2 Catalyst 3 Time (min) Conv.a (%) Yield of 4b (%) Dra,d ee (%)d,e
Major Minor
a Determined by 31P NMR. b Isolated products after column chromatography. c See ref. 8d. d Diastereomer ratio; determined by chiral HPLC. e Enantiomer excess; for the absolute configuration see Fig. 2 and ref. 8e.
1 H H COOEt 2a 3d 15 100 88 (4a) 30 (S)
2 H H COOtBu 2b 3d 30 100 89 (4b)c <5 (S)
3 H H CN 2c 3d 60 95 84 (4c)c 75 (S)
4 Me H COOMe 2d 3d 60 81 67 (4d) 4[thin space (1/6-em)]:[thin space (1/6-em)]1 12 (1R,3R) 8 (1S,3R)
5 Me H COOtBu 2e 3d 60 60 93 (4e)c 3[thin space (1/6-em)]:[thin space (1/6-em)]1 20 9
6 H Ph COOMe 2f 3d 10 100 91 (4f)c 4[thin space (1/6-em)]:[thin space (1/6-em)]1 <5 24
7 Me H CN 2g 3d 60 85 76 (4g)c 6[thin space (1/6-em)]:[thin space (1/6-em)]1 86 (1S,3R) 60 (1R,3R)
8 Me H CN 2g 3d 240 91 76 (4g) 9[thin space (1/6-em)]:[thin space (1/6-em)]1 91 (1S,3R) 30 (1R,3R)
9 Me H CN 2g 3e 60 70 65 (4g) 3[thin space (1/6-em)]:[thin space (1/6-em)]1 33 (1S,3R) 10 (1R,3R)
10 Me H CN 2g 3f 60 80 71 (4g) 4[thin space (1/6-em)]:[thin space (1/6-em)]1 67 (1S,3R) 44 (1R,3R)
11 Me H CN 2g 3f 240 84 77 (4g) 5[thin space (1/6-em)]:[thin space (1/6-em)]1 85 (1S,3R) 45 (1R,3R)
12 Me H CN 2g 3g 60 84 72 (4g) 7[thin space (1/6-em)]:[thin space (1/6-em)]1 84 (1S,3R) 59 (1R,3R)
13 Me H CN 2g 3h 60 53 40 (4g) 3[thin space (1/6-em)]:[thin space (1/6-em)]1 41 (1S,3R) 29 (1R,3R)
14 Me H CN 2g 3i 60 81 74 (4g) 7[thin space (1/6-em)]:[thin space (1/6-em)]1 88 (1S,3R)

49 (1R,3R)

15 Me H CN 2g 3i 240 89 82 (4g) 9[thin space (1/6-em)]:[thin space (1/6-em)]1 92 (1S,3R) 45 (1R,3R)
16 Me H CN 2g 3k 60 88 80 (4g) 13[thin space (1/6-em)]:[thin space (1/6-em)]1 90 (1S,3R)

58 (1R,3R)

17 Me H CN 2g 3k 240 94 85 (4g) 18[thin space (1/6-em)]:[thin space (1/6-em)]1 96 (1S,3R) 54 (1R,3R)
18 Me H CN 2g 3l 60 89 86 (4g) 12[thin space (1/6-em)]:[thin space (1/6-em)]1 91 (1S,3R) 52 (1R,3R)
19 Me H CN 2g 3l 240 94 89 (4g) 16[thin space (1/6-em)]:[thin space (1/6-em)]1 95 (1S,3R) 57 (1R,3R)
20 Me H CN 2g 3j 60 84 79 (4g) 5[thin space (1/6-em)]:[thin space (1/6-em)]1 79 (1S,3R) 62 (1R,3R)
21 Me H CN 2g 3m 60 75 66 (4g) 3[thin space (1/6-em)]:[thin space (1/6-em)]1 51 (1R,3R) 43 (1S,3R)
22 H Ph CN 2h 3k 60 48 36 (4h) 4[thin space (1/6-em)]:[thin space (1/6-em)]1 74 61
23 H Ph CN 2h 3k 240 84 77 (4h) 6[thin space (1/6-em)]:[thin space (1/6-em)]1 78 63
24 H Ph NO2 2i 3k 60 79 70 (4i) 3[thin space (1/6-em)]:[thin space (1/6-em)]1 71 57
25 H Ph NO2 2i 3k 240 89 81 (4i) 5[thin space (1/6-em)]:[thin space (1/6-em)]1 74 59


As demonstrated earlier, esters of both acrylic acid and trans-cinnamic acid reacted fast, providing the expected adduct. However, the enantioselectivity was poor (Table 1, entries 1, 2, 4–6), whereas while using acrylonitrile or methacrylonitrile as Michael acceptors in a 60 min reaction (entries 3 and 7), the enantioselectivity was considerably higher.8d After identification of 2g as the optimal Michael acceptor and 3d bearing 2-methoxyphenylethyl side-arm as our best catalyst so far, we screened a variety of further azacrown catalysts (3e–m) differing in their complex forming potential. We found that the n-butyl side arm (in 3e) did not enhance stereoselectivity (entry 9). The utilization of crown ethers with a methoxyethyl (3f) or a methoxybutyl substituent (3g) enhanced both enantio- and diastereoselectivity (entries 10 and 12). With the phenylethyl derivative (3h) (entry 13), both catalytic activity and selectivity were poor. Best results were obtained on using catalysts bearing p-methoxyphenylethyl, m-methoxyphenylethyl and 2,3-dimethoxyphenylethyl groups as side arms (3i, k and l) (entries 14, 16 and 18). A catalyst having pyridinoethyl substituent (3j) exhibited high catalytic activity but only medium stereoselectivity (entry 20). Selectivity dropped considerably in case of 3m, a crown ether with a side chain containing three oxygen atoms (entry 21).

Our experiments have clearly shown that the presence of an oxygen atom at a certain distance (5–6 atoms) in the side arm is essential for high selectivity, presumably by providing a three-dimensional binding site for the cation. Note that all of the D-glucose appended crown ethers, except 3m, favoured the formation of the 1S,3R-enantiomer of the adducts 4g–i. Catalyst 3m is a special ligand characterized by a bulky macrocyclic group at the terminal of the side arm. Therefore, it is likely to alter the mode of complexation of the catalyst resulting in an unfavourable three-dimensional intermediate complex.

To obtain more data on the scope of the stereoselectivity of the Michael reaction, trans-cinnamonitrile (2h) (entry 22) and trans-nitrostyrene (2i) (entry 24) were also examined as acceptors. These reactions were slightly slower and of lower selectivity than those with methacrylonitrile (2g).

Next, in order to improve yields, reaction time was extended to 240 min. Interestingly, apart from higher conversion, in every case (entries 7/8, 10/11, 14/15, 16/17, 18/19, 22/23, 24/25) enrichment of the diastereomer (1S,3R)-4 could also be noticed, presumably due to epimerization of (1R,3R)-4. Longer reaction times, e.g. 360 minutes, resulted in a partial decomposition, and therefore a lower yield of the product.

Michael addition of methacrylonitrile (2g) using solid KOtBu as a base catalysed by crown ethers 3c and 3k produced the adduct (4g) with lower diastereo- and enantioselectivity (Table 2). This may be attributed to the larger size of the K+ ion resulting in looser binding with the crown ether ring. Furthermore, the configuration of the major and minor diastereomers reversed compared to the one obtained with NaOtBu (major: 1S,3R → 1R,3R).

Table 2 Enantioselective Michael addition of N-protected aminomethylenephosphonate 1 to methacrylonitrile 2 using KOtBu and catalyst 3c and 3k
Entry R1 R2 EWG Catalyst 3 Time (min) Conv.a (%) Yield of 4b (%) Dra,c eec,d (%)
Major Minor
a Determined by 31P NMR. b Products isolated by column chromatography. c Diastereomer ratio; as determined by chiral HPLC. d Enantiomer excess; for the absolute configuration see Fig. 2 and ref. 8e.
1 Me H CN 3c 60 100 71 (4g) 2[thin space (1/6-em)]:[thin space (1/6-em)]1 61 (1R,3R) 53 (1S,3R)
2 Me H CN 3k 60 100 73 (4g) 1.5[thin space (1/6-em)]:[thin space (1/6-em)]1 70 (1R,3R) 57 (1S,3R)


2.2 Calculations

Force-field and ab initio DFT calculations were performed to rationalize stereochemical outcome of the reactions. We considered two typical catalysts combined with two reactants leading to products 4d and 4g configured either R or S at the Michael-donor moiety thus analysing a total of eight conceivable reaction channels.

The catalysts used are rather similar to 3h and 3i with a difference that the anomeric hydroxyl group is terminated to form α-methoxy group in both catalysts. Since our goal was to qualitatively analyse the catalytic behaviour and the origin of stereocontrol, this simplification did not affect our final conclusions but saved computational time. We have investigated a total of 8 possible reaction channels: formation of products 4d and 4g with R and S configuration at the Michael-donor moiety in the presence of two different catalysts (2 × 2 × 2 = 8). The structural formulae of the major products are displayed in Fig. 2.


image file: c7nj03345a-f2.tif

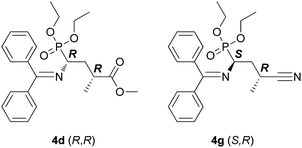

Fig. 2 The major stereoisomers of products 4d and 4g.

The calculations followed the protocol elaborated earlier14 based on the plausible assumption that enantioselectivity can be predicted by the relative stabilities of intermediates following the Michael addition step in the presence of catalyst. We therefore assumed that all the interactions determining enantioselectivity were present both at the preceding transition state (TS) and in this intermediate state with similar strengths. The more endothermic the C–C bond formation is, the more this assumption is reasonable, since the Hammond postulate indicates a larger similarity between the TS and the subsequent intermediate state. We also presume that no epimerization occurs in the subsequent steps and therefore the configuration of the enantiomeric carbon remains intact. We also note that the subsequent protonation generates an additional stereocenter in the product. In this respect, we have found that the intermediate is oriented to the crown ether in such a position that the catalyst efficiently shields one side of the prochiral centre. This geometry implies that the formation of the first chiral center determines the configuration of the second center, in accord with the generally high diastereomer ratio observed experimentally.

Due to the size and elusive nature of the systems, we selected the most likely conformations for each reaction by an extensive conformational search. We employed the OPLS force field and performed a Monte Carlo sampling of the rotatable torsions and low modes of the possible combinations of substrates and catalysts for all eight reaction paths. The structures were then minimized, and for all paths the 100 most stable structures were selected. These structures were optimized by DFT, employing the ωB97XD functional and the 6-31G* basis set.15 Then, from each set of optimized molecules, the ten most stable structures were selected for an additional single-point energy calculation using the 6-311G** basis set and the SMD solvent model with toluene as the solvent.16

Our main findings and interpretations are summarized in Fig. 3. First, we compared the relative stability of the structures leading to different stereoisomers. We see that when the lariat has a p-methoxyphenyl termination, stereoselectivity is enhanced as opposed to termination with a phenyl group. Energy levels in the former case clearly show preference for one of the stereoisomers. For CN ligand, we see a very pronounced effect, while in case of COOMe the effect is somewhat weaker. The calculated ca. 4 kcal mol−1 energy difference in case of a CN ligand is sufficient to induce a very high value of enantiomeric excess (it depends exponentially on the energy differences), whereas the smaller 2.3 kcal mol−1 discrepancy for COOMe indicates lower enantioselectivity. In contrast, phenyl as end group induces energy differences within 1 kcal mol−1 (referring to the lowest energy levels), which indicates less efficient stereocontrol. In brief, the main message of the left panel is that the p-methoxyphenyl termination for the side-arm is beneficial for enantioselectivity.


image file: c7nj03345a-f3.tif

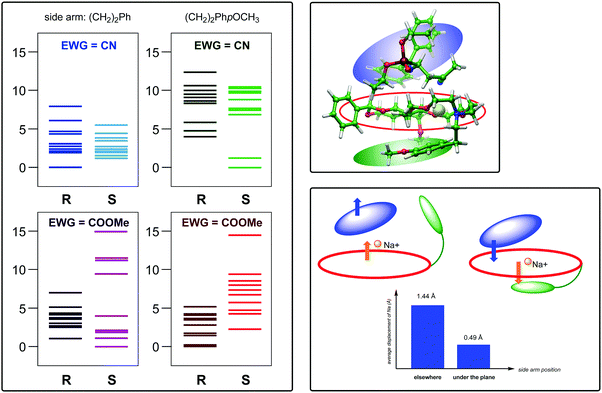

Fig. 3 Theoretical modeling of stereoselectivity in the catalytic formation of 4d and 4g. Left panel: Relative stabilities (kcal mol−1) of stereoisomers of intermediates for the possible combinations of reactants and catalysts. Right panel top: A typical intermediate structure leading to 4g (in S configuration at the carbon atom subject to Michael addition). The lariat moiety features a p-methoxyphenyl group. The annotations indicate how we can derive a cartoon representation of the mechanism. Blue, red and green areas represent the substrate, the crown ether and the side arm, respectively. Right panel bottom: Simple mechanistic view of how the side arm can affect the position of the Na+ cation and consequently how the reactive complex can get closer to the chiral catalyst. The graph shows average distances (in Å) of Na+ cation and the plane of crown ether for situations when (i) the side arm is in close contact with it (“under the plane”) and (ii) when interaction of Na+ is inhibited (“elsewhere”).

As mentioned earlier, the arrangement of the Michael-adduct-catalyst intermediate strongly determines the configuration at C3 after protonation because the catalyst efficiently shields one of the prochiral faces of the intermediate. In particular, examination of these structures reveals that when the side arm is phenyl-terminated, the main products for both CN and COOMe are the (S,R) + (R,S) pair of enantiomers. In contrast, for the 4-methoxyphenyl termination, we found that (S,R) + (R,S) for EWG = CN, while (R,R) + (S,S) for EWG = COOMe.

Regarding the possible structural origin of the observed stereocontrol, we point out that the large conformational freedom of the systems is manifested in various structural motifs (several close-lying conformers). However, one important motif is the position of the side arm of the crown ethers, exerting a very significant effect. Fig. 3 (right panel, top), shows a typical structure in which the lariat interacts with the cation at the opposite face relative to the substrate. In this conformation, the sodium cation can simultaneously interact with the substrate anion and the aromatic ring of the lariat. In such situations, the sodium ion remains very close to the crown ring. In fact, considering all the structures in which this situation occurs, an average 0.5 Å displacement from the plane of the crown ether could be obtained (the plane of the crown ether ring is defined as the least-square plane of the oxygen atoms) as shown in the diagram in the bottom right panel of Fig. 3. In contrast, when the orientation of the side arms does not allow such simultaneous interaction, the average displacement of Na+ is 1.44 Å (towards the substrate). This large effect has an important implication that the catalyst can exert a stronger chiral control on the substrate when it is pulled closer to the crown ether by the sodium cation. Although we could not see a uniform lariat orientation in most of the substrate + catalysts sets studied, a significantly higher population of favourable situations was found when the side arm was terminated by 4-methoxyphenyl group. This can be rationalized by the more electron-rich p-methoxyphenyl-sodium ion interaction due to the presence of the OCH3 group, which then contributed to an enhanced stereoselectivity predicted for these catalysts. This mechanism is depicted in Fig. 3 (right panel, bottom), where the average displacements of sodium are also shown. Further support for the proposed mechanism is provided by the experiment as follows: when sodium was replaced by potassium, stereoselectivity dropped since the larger size of the K+ cation prevented it from obtaining close proximity with the crown ether and substrate, and thus the latter could not sufficiently approach the catalyst.

3. Conclusions

Synthesis of a series of new D-glucose appended lariat ethers 3j–m and their application along with earlier synthesized crown ethers 3e–j in a stereoselective phase transfer catalytic Michael-addition of N-protected aminomethylenephosphonates 1 onto acrylic acid derivatives and trans-β-nitrostyrene 2 have been reported. The Michael-addition proceeds with high enantioselectivity (ee: 91–96%) to acrylonitrile and methacrylonitrile, with medium stereoselectivity (ee: 74–78%) to trans-cinnamonitrile and trans-nitrostyrene and with very low enantioselectivity (ee: <5–30%) to esters of acrylic, methacrylic and cinnamic acid. Adducts 4a–i are considered as versatile building blocks for the preparation of functionalized enantiopure α-aminophosphonates and phosphonopeptides. Theoretical modeling of stereoselectivity in the catalytic formation of the adducts rationalized the absolute configuration of the predominant adducts 4d (1R,3R for the major diastereomer) and 4g (1S,3R for the major diastereomer). The pronounced influence of the side arm of the crown ethers 3h and 3i was also rationalized by our calculations. A mechanism is proposed where the strength of interaction between lariat and sodium cation is correlated with stereoselectivity. This mechanism also provides an explanation for the decline in stereoselectivity when Na+ is replaced by K+.

4. Experimental

General

NMR spectra were recorded on Bruker Avance-DRX-500 and 300 instruments using tetramethylsilane (1H,13C) as internal standard and 85% H3PO4 (31P) as external standard, all in CDCl3 solution. High-resolution MS measurements were carried out on a Waters LCT Premier XE spectrometer coupled with Acquity UPLC system [ESI, 2.5 kV spray voltage, 250 °C capillary temperature, solvent: CH3CN (+0.035 v/v% TFA)[thin space (1/6-em)]:[thin space (1/6-em)]H2O (+0.05 v/v% TFA) grad: 5–95% CH3CN]. Mass spectra for 3k and 3m were measured on a Varian MAT312 instrument. Thin layer chromatography was performed on silica gel plates (60 GF-254, Merck), while column chromatography was carried out using Silica gel 60 (0.063–0.2 mm, Merck). HPLC measurements were carried out on Jasco PU 1580 equipment supplied with a Jasco UV1575 detector. Optical rotations were measured with Perkin Elmer 241 polarimeter at room temperature.

General procedure for the synthesis of catalysts 3k–m

Compound 5 (1.48 g, 2.05 mmol) and the amine component (2.22 mmol) in 30 ml abs. MeCN were stirred and refluxed with an excess of dry Na2CO3 (1.40 g) for 16–24 h under argon. After completion of the reaction, the suspension was filtered and the filtrate was concentrated. The residue was taken up in chloroform (20 mL), washed twice with water (20 ml), dried over Na2SO4 and concentrated. The crude product was viscous oil, purified by column chromatography using CH2Cl2–MeOH = 95[thin space (1/6-em)]:[thin space (1/6-em)]5 as an eluent.
Phenyl-4,6-O-benzylidene-2,3-dideoxy-β-D-glucopyranosido-[2,3h]-N-(3-methoxyphenethyl)-1,4,7,10-tetraoxa-13-azacyclopentadecane (3k). White powder, [α]22D = −40 (c 1, CHCl3). 1H-NMR (500 MHz,), δ (ppm): 2.65–2.88 (m, 4H, CH2NCH2, 2H, CH2Ar), 2.90–3.05 (m, 2H, CH2N), 3.42–3.85 (m, 13H, 5 × CH2O, H-4, H-3, H-2), 3.79 (s, 3H, CH3O), 3.96–4.04 (m, 3H, OCH2, H-6b), 4.08 (td, J = 10.5 Hz, 2.6 Hz, 1H, H-5), 4.36 (dd, J = 10.5 Hz, 5.0 Hz, 1H, H-6a) 5.07 (d, J = 7.7 Hz, 1H, H-1), 5.55 (s, 1H, PhCH), 6.72–6.75 (m, 2H, ArH), 6.78 (d, J = 7.54 Hz, 1H, ArH) 7.01–7.04 (m, 2H, ArH), 7.07 (d, J = 7.61 Hz, 1H, ArH), 7.19 (dd, J = 8.41 Hz, 7.52 Hz, 1H, ArH), 7.27–7.33 (m, 2H, ArH), 7.34–7.40 (m, 3H, ArH), 7.46–7.51 (m, 2H, ArH). 13C-NMR (60 MHz), δ (ppm): 34.24 (CH2Ph), 54.22 (CH2N), 54.32 (CH2N), 55.37 (CH2N), 58.76 (CH3O), 66.32 (CHO), 68.94 (CH2O), 70.60 (CH2O), 70.68 (CH2O), 72.59 (CH2O), 72.70 (CH2O), 81.19 (CHO), 81.72 (CHO), 81.94 (CHO), 101.43 (OCHO), 102.36 (OCHO), 111.48 (Ph), 114.78 (Ph), 117.16 (Ph), 121.36 (Ph), 123.25 (Ph), 126.24 (Ph), 128.49 (Ph), 129.23 (Ph), 129.53 (Ph), 129.82 (Ph), 137.45 (Phq), 157.28 (Phq), 159.83 (Phq). ESI-MS, m/z: 636.4 [M + H]+; 658.4 [M + Na]+.
Phenyl-4,6-O-benzylidene-2,3-dideoxy-β-D-glucopyranosido-[2,3h]-N-(3,4-dimethoxyphenethyl)-1,4,7,10-tetraoxa-13-azacyclopentadecane (3l). White powder, [α]22D = −46 (c 1, CHCl3). 1H-NMR (500 MHz): δ (ppm): 2.62–2.66 (m, 2H, CH2N 2H, CH2Ar), 2.73–2.89 (m, 4H, CH2NCH2), 3.42–3.71 (m, 7 × 2H, O–[C with combining low line][H with combining low line][2 with combining low line]), 3.78 (s, 3H), 3.8 (s, 3H), 3.92–3.93 (m, 1H, CH2–O–[C with combining low line][H with combining low line][C with combining low line][H with combining low line]–O– CH2), 3.91–3.94 (m, 3H, OCH2, H-6b), 4.24 (dd, JHH = 5 Hz, 10.5 Hz, 1H, H-6a), 5.0 (d, 1H, JHH = 7.65 Hz, [H with combining low line][- with combining low line][1 with combining low line]), 5.48 (s, 1H, Ph[C with combining low line][H with combining low line]), 6.65–6.67 (m, 2H, ArH), 6.71–6.723 (m, 1H, ArH), 6.95–7.08 (m, 3H, ArH), 7.22–7.52 (m, 2H, ArH), 7.29–7.31 (m, 1H, ArH), 7.36–7.42 (m, 2H, ArH). 13C-NMR (60 MHz): δ (ppm): 33.82 (CH2Ph), 54.15 (CH2N), 54.26 (CH2N), 55.92 (CH3O), 56.11 (CH3O), 59.06 (–O–[C with combining low line][H with combining low line]–CH2–O–), 66.16 (CHO), 68.78 (CH2O), 70.59 ([C with combining low line][H with combining low line][2 with combining low line][O with combining low line]), 70.67 ([C with combining low line][H with combining low line][2 with combining low line][O with combining low line]), 72.55 (CH2O), 72.67 (CH2O), 81.06 (CHO), 81.57 (CHO), 81.80 (CHO), 101.27 (O[C with combining low line][H with combining low line]O), 102.21 (O[C with combining low line][H with combining low line]O), 111.33 (Ph), 112.21 (Ph), 117.0 (Ph), 120.62 (Ph), 123.09 (Ph), 126.07 (Ph), 128.32 (Ph), 129.06 (Ph), 129.65 (Ph), 137.3 (Phq), 148.87 (Phq), 157.11 (Phq), FAB-MS m/z 666.3267 (measured NH+), 666.3278 (calc. MH+).
Phenyl-4,6-O-benzylidene-2,3-dideoxy-α-D-glucopyranosido-[2,3h]-N-(2-(1,4,7-trioxa-10-azacyclododecan-10-yl)ethyl)-1,4,7,10-tetraoxa-13-azacyclopentadecane (3m). 1H-NMR (500 MHz): δ (ppm): 2.54–2.81 (m, 8H, CH2NCH2), 2.85–2.95 (m, 4H, CH2N), 3.42–3.85 (m, 22H, 11 × CH2O, H-4, H-3, H-2), 3.96–4.04 (m, 3H, OCH2, H-6b), 4.15 (td, J = 10.5 Hz, 2.6 Hz, 1H, H-5), 4.22 (dd, J = 10.5 Hz, 5.0 Hz, 1H, H-6a), 4.96 (d, J = 7.7 Hz, 1H, H-1), 5.48 (s, 1H, PhCH), 6.85–7.02 (m, 3H, ArH), 7.20–7.42 (m, 7H, ArH). 13C-NMR (60 MHz): δ (ppm): 53.81 (CH2N), 54.30 (CH2N), 55.37 (CH2N), 55.75 (CH2N), 67.24 (CHO), 69.2 (CH2O), 69.9 (CH2O), 70.60 (CH2O), 72.35 (CH2O), 72.61 (CH2O), 80.55 (CHO), 81.32 (CHO), 81.77 (CHO), 101.81 (OCHO), 102.28 (OCHO), 111.27 (Ph), 112.31 (Ph), 117.0 (Ph), 120.62 (Ph), 123.09 (Ph), 126.07 (Ph), 127.61 (Ph), 128.32 (Ph), 137.23 (Arq), 158.54 (Arq). ESI-MS, m/z: 359.5 [M + 2H]2+; 717.4 [M + H]+.

General procedure for the synthesis of 4

The stirred mixture of 1 (0.5 g, 1.5 mmol), catalyst 3 (0.15 mmol) and NaOtBu (0.192 g, 2 mmol) in abs. toluene (7 mL) was cooled to −78 °C under an argon atmosphere. After 10 minutes, the toluene solution (3 mL) of the acrylic acid derivative 2 (1.8 mmol) was added. After stirring for the given time at −78 °C the reaction was quenched with saturated aqueous NH4Cl and extracted with toluene. The combined organic extracts were dried over MgSO4, and the toluene was evaporated under reduced pressure. Products 4 were isolated by column chromatography on silica using EtOAc–hexane = 7[thin space (1/6-em)]:[thin space (1/6-em)]3 (for 4a, f, g, h and i) and CH2Cl2–MeOH = 9[thin space (1/6-em)]:[thin space (1/6-em)]1 (for 4d) as eluent. Catalysts 3 were also recovered during the column chromatography.
4-(Benzhydrylidene-amino)-4(diethoxy-phosphoryl)-butyric acid ethyl ester (4a). M.p. 30–33 °C. [α]20D = 5.6 (c 1.0, CHCl3). 1H NMR (300 MHz): δ (ppm): 1.18 (3H, t, JHH = 7.2 Hz), 1.31 (3H, t, JHH = 7.1 Hz), 1.36 (3H, t, JHH = 7.1 Hz), 2.16–2.37 (4H, m), 3.90–3.95 (1H, m), 4.05 (2H, q, JHH = 7.2 Hz), 4.11–4.34 (4H, m), 7.30–7.53 (10H, m). 13C NMR (60 MHz): δ (ppm): 14.1, 16.4, 16.5, 26.3 (d, JPC = 4.2 Hz), 31.2 (d, JPC = 15.1 Hz), 60.3, 60.6 (d, JPC = 158.6 Hz), 62.4 (d, JPC = 7.1 Hz), 62.7 (d, JPC = 7.1 Hz), 127.95 (Ph), 128.2 (Ph), 128.4 (Ph), 128.6 (Ph), 128.8 (Ph), 130.3 (Ph), 133.8 (Ph), 135.7 (Ph), 139.2 (Ph), 170.0 (CN), 172.8 (CO). 31P NMR: (121.5 MHz): δ (ppm): 23.7. FAB-MS m/z 432.4 [M + 1]+ (calcd 431.46).
4-(Benzhydrylidene-amino)-4(diethoxy-phosphoryl)-2-methyl-butyric acid methyl ester (4d). Colorless oil. HPLC conditions: Chiralpack AD-H (hexane–IPA 95[thin space (1/6-em)]:[thin space (1/6-em)]5, flow rate: 0.8 ml min−1, 256 nm, 20 °C) major diastereomer: tmajor = 6.8 min and tminor = 12.8 min; minor diastereomer: tmajor = 9.1 min and tminor = 65.1 min. Major diastereomer: 1H NMR (500 MHz): δ (ppm): 1.14 (d, J = 7.1 Hz, 3H), 1.35 (t, J = 7.1 Hz, 6H), 2.0–2.24 (m, 1H), 2.24–2.38 (m, 1H), 2.40–2.58 (m, 1H), 3.42 (s, 3H), 3.90–4.02 (m, 1H), 4.03–4.27 (m, 4H), 7.20–7.62 (m, 10H). 13C NMR (60 MHz): δ (ppm): 16.35, (OCH2CH3), 16.56 (OCH2CH3), 17.95 (CHCH3), 31.24 (d, JPC = 4.2 Hz, CH2), 37.40 (d, JPC = 15.0 Hz, CHCO), 51.2 (OCH3), 59.52 (d, JPC = 153 Hz, CHP), 62.26 (d, JPC = 6.60 Hz, POCH2CH3), 62.68 (d, JPC = 6.70 Hz, POCH2CH3), 127.95 (Ph), 128.41 (Ph), 128.45 (Ph), 128.57 (Ph), 128.71 (Ph), 128.84 (Ph), 128.86 (Ph), 128.93 (Ph), 130.18 (Ph), 130.28 (Ph), 135.70 (Ph), 135.74 (Ph), 137.53 (Ph), 139.58 (Ph), 168.85 (CN), 174.56 (CO). 31P NMR (121 MHz): δ (ppm): 24.2. Minor diastereomer: 1H NMR (500 MHz): δ (ppm): 0.91 (d, J = 7.0 Hz, 3H), 1.30 (t, J = 7.0 Hz, 3H), 1.31 (t, J = 7.1 Hz, 3H), 1.80–1.95 (m, 1H), 2.24–2.38 (m, 1H), 2.40–2.58 (m, 1H), 3.49 (s, 3H), 3.90–4.02 (m, 1H), 4.03–4.27 (m, 4H), 7.20–7.62 (m, 10H). 13C NMR (60 MHz): δ (ppm): 16.61, (OCH2CH3), 16.72 (OCH2CH3), 18.92 (CHCH3), 27.97 (C(CH3)3), 35.16 (d, JPC = 4.9 Hz, CH2), 37.74 (d, JPC = 14.4 Hz, CHCH3), 59.52 (d, JPC = 158 Hz, CHP), 62.30 (d, JPC = 6.60 Hz, POCH2CH3), 62.60 (OC(CH3)3), 62.65 (d, JPC = 6.60 Hz, POCH2CH3), 127.95 (Ph), 128.41 (Ph), 128.45 (Ph), 128.57 (Ph), 128.71 (Ph), 128.84 (Ph), 128.86 (Ph), 128.93 (Ph), 130.18 (Ph), 130.28 (Ph), 135.70 (Ph), 135.74 (Ph), 137.53 (Ph), 139.58 (Ph), 169.72 (CN), 175.44 (CO), 31P NMR (121 MHz): δ (ppm): 24.0.
[1S-(Benzhydrylidene-amino)-3R-cyano-3-methyl-propyl]-phosphonic acid diethyl ester (4g). Colorless oil. [α]20D = 17.1 (c 0.8, CHCl3). HPLC conditions: Chiralpack AD-H (hexane–IPA 95[thin space (1/6-em)]:[thin space (1/6-em)]5, flow rate: 0.8 mL min−1, 256 nm, 5 °C) major diastereomer: tmajor = 53.4 min and tminor = 22.5 min; minor diastereomer: tmajor = 27.7 min and tminor = 69.2 min. Major diastereomer: 1H NMR (500 MHz): δ (ppm): 1.02 (d, J = 7.0 Hz, 3H), 1.24 (t, J = 7.0 Hz, 3H), 1.28 (t, J = 7.1 Hz, 3H), 1.98–2.10 (m, 1H), 2.22–2.70 (m, 2H), 3.88–4.00 (m, 1H), 4.00–4.20 (m, 2H), 7.19–7.62 (m, 10H). 13C NMR (60 MHz): δ (ppm): 16.53, (OCH2CH3), 16.60, (OCH2CH3), 18.63 (CH3), 23.02 (d, JPC = 16.2 Hz, CHCH3), 36.34 (d, JPC = 4.3 Hz, CH2), 59.14 (d, JPC = 157.34 Hz, CHP), 62.78 (d, JPC = 7.89 Hz, POCH2CH3), 65.40 (d, JPC = 6.54 Hz, POCH2CH3), 122.68 (CHCN), 128.13 (Ph), 128.32 (Ph), 128.46 (Ph), 128.48 (Ph), 128.48 (Ph), 128.56 (Ph), 128.68 (Ph), 128.90 (Ph), 128.91 (Ph), 129.0 (Ph), 129.08 (Ph), 130.1 (Ph), 130.65 (Ph), 132.46 (Ph), 135.06 (Ph), 135.32 (Ph), 139.12 (Ph), 139.25 (Ph), 171.90 (CN). 31P NMR (121 MHz): δ (ppm): 22.8. Minor diastereomer: 1H NMR (500 MHz): δ (ppm): 1.18 (d, J = 7.1 Hz, 3H), 1.23 (t, J = 7.1 Hz, 3H), 1.29 (t, J = 7.1 Hz, 3H), 1.98–2.10 (m, 1H), 2.22–2.70 (m, 2H), 3.88–4.0 (m, 1H), 4.0–4.2 (m, 2H), 7.19–7.62 (m, 10H). 13C NMR (60 MHz): δ (ppm): 16.53, (OCH2CH3), 16.60, (OCH2CH3), 17.70 (CH3), 22.69 (d, JPC = 15.2 Hz, CHCH3), 35.94 (d, JPC = 4.8 Hz, CH2), 59.20 (d, JPC = 159.09 Hz, CHP), 62.87 (d, JPC = 4.41 Hz, POCH2CH3), 62.97 (d, JPC = 4.0 Hz, POCH2CH3), 122.04 (CHCN), 128.13 (Ph), 128.32 (Ph), 128.46 (Ph), 128.48 (Ph), 128.48 (Ph), 128.56 (Ph), 128.68 (Ph), 128.90 (Ph), 128.91 (Ph), 129.0 (Ph), 129.08 (Ph), 130.1 (Ph), 130.65 (Ph), 132.46 (Ph), 135.06 (Ph), 135.32 (Ph), 139.12 (Ph), 139.25 (Ph), 172.61 (CN). 31P NMR (121 MHz): δ (ppm): 22.8. MS (ESI): m/z = 399.18296 [M + H]+. Calcd for C22H28N2O3P: 399.18321.
[1-(Benzhydrylidene-amino)-3-cyano-2-phenyl-propyl]-phosphonic acid diethyl ester (4h). Colorless oil. HPLC conditions: Chiralpack AD-H (hexane–IPA 95[thin space (1/6-em)]:[thin space (1/6-em)]5, flow rate: 1 ml min−1, 256 nm, 5 °C) major diastereomer: tmajor = 32.7 min and tminor = 62.8 min; minor diastereomer: tmajor = 27.7 min and tminor = 69.2 min. Major diastereomer: 1H NMR (500 MHz): δ (ppm): 1.24 (t, J = 7.05 Hz, 3H), 1.29 (t, J = 7.03 Hz, 3H), 3.30 (dd, JHaHb = 17.22 Hz, JHH = 5.59 Hz, 1H), 3.55 (dd, JHaHb = 17.22 Hz, JHH = 3.98 Hz, 1H), 3.71–3.80 (m, 1H), 3.99–4.16 (m, 5H), 7.04–7.62 (m, 15Har). 13C NMR (60 MHz): δ (ppm): 16.7, (d, JPC = 5.71 Hz, CH3), 16.7, (d, JPC = 5.66 Hz, CH3), 18.7 (d, JPC = 4.03 Hz, CH2), 44.0 (d, JPC = 3.42 Hz, CHPh), 62.9 (d, JPC = 7.0 Hz, OCH2), 63.1 (d, JPC = 7.21 Hz, OCH2), 65.4 (d, JPC = 155.45 Hz, CHP), 119.6 (CH2CN), 127.8 (Ph), 127.8 (Ph), 127.8 (Ph), 128.2 (Ph), 128.4 (Ph), 128.4 (Ph), 128.6 (Ph), 128.9 (Ph), 129.0 (Ph), 129.5 (Ph), 131.0 (Ph), 135.0 (d, JPC = 2.63 Hz, CArq), 139.1 (d, JPC = 3.73 Hz, CArq), 139.3 (d, JPC = 13.97 Hz, CArqCH), 172.9 (d, JPC = 15,59 Hz, Ph2CN). 31P NMR (121 MHz): δ (ppm): 21.80. Minor diastereomer: 1H NMR (500 MHz): δ (ppm): 1.10 (t, J = 7.03 Hz, 3H), 1.14 (t, J = 7.0 Hz, 3H), 2.85 (dd, JHaHb = 16.52 Hz, JHH = 9.80 Hz, 1H), 3.10 (dd, JHaHb = 16.52 Hz, JHH = 4.0 Hz, 1H), 3.51–3.58 (dd, JHaHb = 13.25 Hz, JHH = 3.98 Hz, 1H), 3.71–3.8 (m, 1H), 3.99–4.16 (m, 5H), 7.04–7.62 (m, 15Har). 13C NMR (60 MHz): δ (ppm): 16.4, (d, JPC = 6.11 Hz, CH3), 16.5, (d, JPC = 6.12 Hz, CH3), 18.7 (d, JPC = 4.03 Hz, CH2), 50.1 (d, JPC = 16.17 Hz, CHPh), 62.9 (d, JPC = 7 Hz, OCH2), 63.1 (d, JPC = 7.21 Hz, OCH2), 59.8 (d, JPC = 168.87 Hz, CHP, 127.8 (Ph), 127.8 (Ph), 127.8 (Ph), 128.2 (Ph), 128.4 (Ph), 128.4 (Ph), 128.6 (Ph), 128.9 (Ph), 129.0 (Ph), 129.0 (Ph), 131.0 (Ph), CH2CN, CArq and Ph2CN) can’t be assigned. 31P NMR (121 MHz): δ (ppm): 21.8. MS (ESI): major diastereomer: m/z = 461.1985 [M + H]+, minor diastereomer: m/z = 461.2001 [M + H]+. Calcd for C27H30N2O3P: 461.1994.
[1-(Benzhydrylene-amino)-3-nitro-2-phenyl-1-propyl]-phosphonic acid diethyl ester (4i). Pale yellow oil. HPLC conditions: Chiralpack AD-H (hexane–IPA 95[thin space (1/6-em)]:[thin space (1/6-em)]5, flow rate: 0.5 ml min−1, 222 nm) major diastereomer: tmajor = 32.7 min and tminor = 62.8 min; minor diastereomer: tmajor = 27.7 min and tminor = 69.2 min. Major diastereomer: 1H NMR: (500 MHz), δ (ppm): 1.20 (t, JHH = 7.06 Hz, 3H), 1.26 (t, JHH = 7.06 Hz, 3H), 3.78–3.97 (m, 1H), 3.97–4.11 (m, 4H), 4.15–4.25 (m, 1H), 5.20 (dd, JHAHM = 11.4 Hz, JHAHB = 14.0 Hz, 1H), 5.55 (dd, JHBHM = 4.15 Hz, JHAHB = 14.0 Hz, 1H), 6.9–7.4 (m, 15Har). 13C NMR (60 MHz): δ (ppm): 16.4, (d, JPC = 6.11 Hz, CH3), 16.5, (d, JPC = 6.12 Hz, CH3), 42.65 (d, JPC = 16.40 Hz, CHPh), 58.5 (d, JPC = 153.87 Hz, CHP), 62.9 (d, JPC = 7 Hz, OCH2), 63.3 (d, JPC = 7.2 Hz, OCH2), 77.4 (d, JPC = 4.03 Hz, CH2NO2), 126.2 (Ph), 126.8 (Ph), 127.2 (Ph), 127.8 (Ph), 128.2 (Ph), 128.4 (Ph), 128.5 (Ph), 128.6 (Ph), 128.9 (Ph), 129.0 (Ph), 131.2 (Ph), 137.5 (Phq) 148.9 (Phq), 162.7 (Ph2CN). 31P NMR (121 MHz): δ 21.8. 31P NMR (121 MHz): δ (ppm): 21.6. Minor diastereomer: 1H NMR: (500 MHz), δ (ppm): 1.10 (t, JHH = 7.14 Hz, 6H), 3.78–3.97 (m, 1H), 3.97–4.11 (m, 4H), 4.15–4.25 (m, 1H), 4.75 (dd, JHAHB = 13.4 Hz, JHAHM = 10.8 Hz, 1H), 5.11 (dd, JHAHB = 13.4 Hz, JHAHM = 4.6 Hz, 1H), 5.90 (d, JHBHM = 4.15 Hz, JHAHB = 14.0 Hz, 1H), 6.9–7.4 (m, 15Har). 13C NMR (60 MHz): δ (ppm): 16.6, (d, JPC = 6.10 Hz, CH3), 16.6, (d, JPC = 6.11 Hz, CH3), 42.12 (d, JPC = 15.02 Hz, CHPh), 59.8 (d, JPC = 151.54 Hz, CHP), 62.9 (d, JPC = 7.12 Hz, OCH2), 63.4 (d, JPC = 7.18 Hz, OCH2), 77.8 (d, JPC = 4.03 Hz, CH2NO2), 126.2 (Ph), 126.8 (Ph), 127.2 (Ph), 127.8 (Ph), 128.2 (Ph), 128.4 (Ph), 128.5 (Ph), 128.6 (Ph), 128.9 (Ph), 129.0 (Ph), 131.2 (Ph), 137.5 (Phq) 148.9 (Phq), 162.7 (Ph2CN). 31P NMR (121 MHz): δ (ppm): 23.5.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

Financial support by the Hungarian Scientific Research Found (OTKA No. PD 112166) and from the National Research, Development and Innovation Office (NKFI Grant No. K116034) are gratefully acknowledged. A. S. acknowledges fruitful interactions with Á. Madarász. We thank Professor M. Nógrádi for helpful discussions.
