Rational design of a molecularly imprinted polymer for dinotefuran: theoretical and experimental studies aimed at the development of an efficient adsorbent for microextraction by packed sorbent

Camilla Fonseca Silva , Keyller Bastos Borges * and Clebio Soares do Nascimento Jr. *
Departamento de Ciências Naturais, Universidade Federal de São João del-Rei, Campus Dom Bosco, Praça Dom Helvécio 74, Fábricas, 36301-160, São João del-Rei, Minas Gerais, Brazil. E-mail: keyller@ufsj.edu.br

Received 9th August 2017 , Accepted 20th October 2017

First published on 20th October 2017

In this work, we studied theoretically the formation process of a molecularly imprinted polymer (MIP) for dinotefuran (DNF), testing distinct functional monomers (FM) in various solvents through density functional theory calculations. The results revealed that the best conditions for MIP synthesis were established with methacrylic acid (MAA) as FM in a 1[thin space (1/6-em)]:[thin space (1/6-em)]4 stoichiometry and with chloroform as the solvent. This protocol showed the most favourable stabilization energies for the pre-polymerization complexes. Furthermore, the formation of the FM/template complex is enthalpy driven and the occurrence of hydrogen bonds between the DNF and MAA plays a major role in the complex stability. To confirm the theoretical results, MIP was experimentally synthesized considering the best conditions found at the molecular level and characterized by scanning electron microscopy and thermogravimetric analysis. After that, the synthesized material was efficiently employed in microextraction by packed sorbent combined with high-performance liquid chromatography in a preliminary study of the recovery of DNF from water and artificial saliva samples.

1. Introduction

Molecular imprinting technology has been considered an important synthetic approach to the development of molecular recognition that can mimic natural recognition entities, such as biological receptors.1 Molecularly imprinted polymers (MIP) have gained remarkable attention in analytical analysis due to their use in separation/purification processes. Recently, MIP have been found to be a good replacement for biological macromolecules in various areas of research, including practical applications.2,3

The synthesis of MIP involves the formation of a complex between a template or target molecule and the functional monomers (FM) in an appropriate solvent. Immediately after the polymerization step, the template is withdrawn and cavities are left in the polymeric matrix, which are complementary in both functionality and size arrangement to those of the template molecules.4,5 Thus, MIP can recognize in a selective way the template molecule from structurally related compounds. This kind of macromolecular material can be used in sample preparation and pre-determined selectivity. Furthermore, it has been applied in chromatography and capillary electrophoresis as a separating agent,6,7 in the synthesis of molecularly imprinted nanoparticles,8,9 as chemical sensors10–12 and in controlled drug release.13–15

Although the synthesis of MIP is relatively easy, the optimization of MIP demands the selection of the best FM, which should present the most effective interactions with the template to achieve high selectivity and rebinding capacity, and the best suitable polymerization solvent for each selected template, considering various reagents.16 Experimentally, a standard imprinting protocol synthesis is time consuming and tedious. Routinely, the selection of the best imprinting conditions has been mainly made in an empirical way based on a trial-and-error method and chemical intuition. In this sense, to improve the properties of MIP, computer-aided studies have proved an effective and useful tool in the search for optimal imprinting conditions, which can save substantial labour and laboratory resources.17 The use of theoretical calculations in MIP modelling has allowed the suitable preparation of high affinity polymers through a systematic rational design procedure.18

Recently, some publications reporting the applicability of density functional theory (DFT) methods for use in chromatographic,19 electrophoretic,20,21 and enantioselective methods have been found in the literature. In addition, the use of quantum mechanics methods to rationalize MIP design for application in the sample preparation process has increased considerably since the end of the last decade.22–32 DFT allows the accurate study of novel molecules of theoretical interest to be carried out at a lower computational cost as compared with pure post-Hartree–Fock ab initio methods. In a very recent work, our group has investigated MIP formation for tramadol, an analgesic drug. Distinct FM were used for the evaluation of the interaction process of tramadol, in distinct solvents employing DFT calculations at the B3LYP/6-311G(d,p) level. We could establish that the best MIP synthesis conditions were obtained with acrylic acid (AA) as FM in a 1[thin space (1/6-em)]:[thin space (1/6-em)]3 mole ratio and using chloroform as the solvent.32

Dinotefuran (DNF) (Fig. S1), a nitroguanidine neonicotinoid insecticide usually found as a racemic mixture, was chosen as the template molecule. It has been used to control a wide range of pests, such as whiteflies, leafhoppers, aphids, mealy bugs, stink bugs, leaf miners, ants, cockroaches, fleas, flies, crickets and gnats.33 Thus, because it is a relatively new, widely marketed and low-cost molecule, monitoring it in environmental, food or biological fluid samples is useful as a strategy to guarantee food quality and consumer safety, as well as preservation of waterways, soils and biodiversity.

In this context, the main goals of this work were to (i) select the best-suited FM using DFT calculations of structural and energetic parameters, (ii) find the most stable mole ratio between FM and the template molecule, (iii) find the most suitable solvent for the MIP synthesis, (iv) prepare and characterize a non-imprinted polymer (NIP) and MIP by thermogravimetric analysis (TGA) and scanning electron microscopy (SEM), (v) optimize the enantioselective analysis of DNF enantiomers and (vi) evaluate the potential of MIP in a preliminary study of the recovery and precision of DNF enantiomers from water and artificial saliva samples employing microextraction by packed sorbent (MEPS) as the sample preparation technique. It is worth emphasizing that to our knowledge, this is the first work involving theoretical and experimental studies (rational synthesis) of MIP for the DNF molecule.

2. Experimental

2.1. Materials and reagents

For the synthesis of MIP, the following reagents were employed: DNF Pestanal® (analytical standard, template), methacrylic acid (MAA) inhibited with 250 mg L−1 hydroquinone (as the FM), chloroform (porogenic solvent), and ethylene glycol dimethacrylate (EGDMA) inhibited with 100 mg L−1 monomethyl ether hydroquinone (cross-linking agent) were obtained from Sigma–Aldrich (Steinheim, Germany) and 4,4′-azo-bis-(4-cyanopentaenoic) (radical initiator) was obtained from Santa Cruz Biotechnology (Santa Cruz, CA, USA).

HPLC grade hexane, methanol and ethanol were obtained from J.T. Baker (Mexico City, MX, Mexico). Diethylamine was obtained from Sigma–Aldrich (Steinheim, Germany). The components for artificial saliva, i.e. NaHCO3 (0.5208 g), K2HPO4 (0.1045 g), NaCl (0.8770 g), KCl (0.4770 g), CaCl2·2H2O (0.4410 g), were obtained from Sigma–Aldrich (Steinheim, Germany) and transferred to a 1 L volumetric flask, and sonicated and the volume was filled with ultrapure water to the line. All other chemicals were of analytical grade with the highest purity available. Water was distilled and purified using a Millipore Milli-Q Plus system (Bedford, MA, USA).

2.2. Preparation of stock and standard solutions

DNF stock solution was prepared in methanol at a concentration of 1 mg mL−1, and stored at −20 °C in the absence of light. Standard solutions were prepared daily using serial dilutions of this stock solution in water or artificial saliva to obtain concentrations of 20 ng mL−1 and 100 ng mL−1, which were also stored at −20 °C in the absence of light.

2.3. Instrumentation

2.3.1. Chromatographic conditions. An Agilent high-performance liquid chromatography (HPLC) model 1260 system (Agilent Technologies, Palo Alto, CA, USA) equipped with a quaternary pump (G1311B), a thermostat model 1290 (G1330B), an automatic injector model 1260 Hip ALS (G1367E), a column oven model 1290 TCC (G1316C) and a diode array detector model 1260 VL+ (G1315C) was used for chromatographic analysis. All enantioselective separations were performed on an analytical Chiralpak® IA column (100 mm × 4.6 mm, 3.0 μm). The mobile phase consisted of a mixture of hexane[thin space (1/6-em)]:[thin space (1/6-em)]ethanol[thin space (1/6-em)]:[thin space (1/6-em)]methanol (83[thin space (1/6-em)]:[thin space (1/6-em)]10[thin space (1/6-em)]:[thin space (1/6-em)]7, v/v/v) plus 0.5% diethylamine at a flow rate of 1.2 mL min−1 and detected at 270 nm. All chromatographic procedures were conducted at 25 ± 3 °C and the injection volume was 10 μL for standards and samples. An Agilent Open LAB Chromatography Data System® was used to control the HPLC system and for data acquisition.
2.3.2 MIP and NIP characterization. TGA was conducted in a thermobalance (2950, TA Instruments, New Castle, DE, USA) at a heating rate of 10 °C min−1, under a nitrogen stream (50 mL min−1) at 25–600 °C. The SEM images were obtained using a TM3000 Hitachi Analytical Table Top (Tarrytown, NY, USA) microscope with an electron acceleration of 15 kV.

2.4. Theoretical methodology

2.4.1. FM, stoichiometries and synthesis solvent. DFT calculations using the B3LYP functional34 and the standard 6-311G(d,p) basis set35 have been performed to optimize the geometry of all the species selected in this work, i.e. the template molecule (DNF), the following FM molecules: AA, MAA, p-vinyl benzoic acid (APV) and 2-(trifluoromethyl)acrylic acid (TFMAA) and the respective FM/template complexes. No type of symmetry constraint was required over the process of geometry optimization. Conformational investigations for various possible spatial configurations were carried out to achieve the global minimum, which was found by the B3LYP/6-311G(d,p) vibrational frequency calculations (all frequencies were found to be real).

The thermodynamic properties such as enthalpy (ΔH), Gibbs free energy (ΔG) and the entropic contribution (TΔS) regarding the formation process of FM/template complexes were calculated using eqn (1)–(3) as follows:

ΔH = Hcomplex − [HDNF + nEFM],(1)
ΔG = Gcomplex − [GDNF + nGFM],(2)
TΔS = TScomplex − [TSDNF + nTSFM],(3)
with n ranging from 1 to 4 leading to 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 1[thin space (1/6-em)]:[thin space (1/6-em)]2, 1[thin space (1/6-em)]:[thin space (1/6-em)]3 and 1[thin space (1/6-em)]:[thin space (1/6-em)]4 stoichiometries.

Posteriorly, the solvent effect was considered to predict the stability of the FM/template complexes using the integral equation formalism of the polarizable continuum model.36 The solvents chosen for testing were water, chloroform, acetonitrile, methanol, acetone and dimethyl sulfoxide. All theoretical calculations were carried out using the Gaussian 2009 quantum mechanics package.37

2.5. Experimental methodology

2.5.1. MIP and NIP syntheses. After the optimization of the synthesis conditions via DFT, experimental synthesis was performed via a bulk polymerization procedure. In accordance with this procedure, MIP was synthesized using 1 mmol of DNF and 4 mmol of MAA dissolved in 10 mL of chloroform. Subsequently, 20 mmol of EGDMA were added. Finally, 0.3 mmol of 4,4′-azo-bis-(4-cyanopentaenoic) was added. This solution was sonicated for 10 min and kept in an oven at 80 °C for 24 h. The obtained material was triturated and washed first with a methanol[thin space (1/6-em)]:[thin space (1/6-em)]acetic acid solution (9[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v) to remove the DNF and then with methanol to remove the residual acetic acid. After washing, the material was dried at approximately 65 °C for 48 h. Finally, the material obtained was sieved using a 100-mesh sieve. The NIP was synthesized under the same MIP conditions, but without the addition of the template molecule.
2.5.2. Recoveries and precision. Standard solutions at two different concentrations of DNF were added to 200 μL of blank water or artificial saliva, respectively, to obtain concentrations of 20 ng mL−1 and 100 ng mL−1. These mixtures were subjected to the MEPS procedure and injected into the HPLC system. The peak areas of analytes obtained in this way were compared with those obtained from standard solutions at the same theoretical concentration, and the recovery percentage was calculated. The assays described above were repeated six times within the same day to obtain repeatability (intraday precision), expressed as a percentage relative to standard deviation (RSD%) values.

3. Results and discussion

3.1. Theoretical studies

3.1.1. FM and stoichiometry. The selection of FM by template interaction analysis permits the choice of high affinity MIP with control over their binding strength. Observing the DNF molecule (Fig. S1), its chemical structure comprises a collection of heterogeneous interaction sites able to form hydrogen bonds with the FM, although differing in affinity. In this sense, to obtain the strongest interaction sites, the electrostatic potential map onto the molecular surface of DNF was calculated. Fig. 1 shows the optimized geometry of DNF along with the electrostatic map. It is possible to check that attractive forces between DNF and FM in the MIP will occur at the regions coloured red in Fig. 1b. These comprise regions around the nitrogen (N1, N2 and N3) and oxygen heteroatoms (O1 and O2) as shown in Fig. 1a. Based on quantitative information from the electrostatic map, each FM was hydrogen bonded sequentially in the four interactions sites, leading to distinct FM/template complexes with 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 1[thin space (1/6-em)]:[thin space (1/6-em)]2, 1[thin space (1/6-em)]:[thin space (1/6-em)]3 and 1[thin space (1/6-em)]:[thin space (1/6-em)]4 stoichiometries.
image file: c7an01324h-f1.tif
Fig. 1 (a) DFT-optimized geometry for the dinotefuran template molecule and (b) electrostatic potential map highlighting the three most susceptible regions (1, 2 and 3) to interact via hydrogen bonds with the FMs (regions in red).

Our first attempt was to evaluate the interaction of every FM (AA, MAA, APV and TFMAA) with the furanosyl oxygen (O1) leading to 1[thin space (1/6-em)]:[thin space (1/6-em)]1 mole ratio complexes. The DFT-optimized geometries for the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 FM–template complexes are shown in Fig. S2. The establishment of two hydrogen bonds in each of the complexes can be noticed: one between the hydrogen of the FM's hydroxyl group and the DNF furanosyl oxygen (O⋯H), the other between the FM's carboxyl oxygen and the DNF hydrogen located in the N2 group (N⋯H).

The calculated B3LYP thermodynamic properties, ΔH, ΔG and TΔS in the gas phase for the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 FM–template complexes, are given in Table 1. From the results, it is possible to notice that the DNF-(AA)1, DNF-(APV)1 and DNF-(TFMAA)1 complexes exhibited very small energy differences, around 1.0 kcal mol−1H and ΔG). On the other hand, the best complex, which means the most stable one, is achieved with MAA functional monomer. The DNF-(MAA)1 complex is about 3.0 kcal mol−1 more favourable than the other 1[thin space (1/6-em)]:[thin space (1/6-em)]1 species, both for ΔH and ΔG, as can be observed in Table 1.

Table 1 Thermodynamic properties ΔH, ΔG and TΔS for DNF/FM complexes in 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 1[thin space (1/6-em)]:[thin space (1/6-em)]2, 1[thin space (1/6-em)]:[thin space (1/6-em)]3 and 1[thin space (1/6-em)]:[thin space (1/6-em)]4 molar ratios. Values are given in kcal mol−1
Complexes ΔH ΔG TΔS H bonds
In the last column is given the number of hydrogen bonds established per complex.
DNF-(AA)1 −16.5 −4.8 −11.7 2
DNF-(MAA)1 −19.6 −8.3 11.3 2
DNF-(APV)1 −16.5 −4.8 −11.7 2
DNF-(TFMAA)1 −17.8 −5.1 −12.7 2
DNF-(AA)2 −28.7 −6.4 −22.3 4
DNF-(MAA)2 −35.5 −13.7 −22.3 4
DNF-(APV)2 −28.9 −6.4 −22.5 4
DNF-(TFMAA)2 −30.6 −6.7 −23.9 4
DNF-(AA)3 −40.7 −9.5 −31.2 5
DNF-(MAA)3 −50.5 −19.6 −30.9 5
DNF-(APV)3 −40.5 −10.6 −29.9 5
DNF-(TFMAA)3 −41.1 −11.0 −30.1 5
DNF-(AA)4 −54.3 −12.5 −41.8 6
DNF-(MAA)4 −67.4 −25.0 −42.4 6
DNF-(APV)4 −53.9 −12.2 −41.7 6
DNF-(TFMAA)4 −55.2 −13.3 −41.9 6

Then, a second FM was added to the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 optimized species at the nitro group (NO2), resulting in the formation of 1[thin space (1/6-em)]:[thin space (1/6-em)]2 FM/template complexes. Observing Table 1, it is clearly seen that the same behaviour was found as for the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 complexes, i.e. the DNF-(AA)2, DNF-(APV)2 and DNF-(TFMAA)2 possess almost degenerate energies and the DNF-(MAA)2 remains the most stable 1[thin space (1/6-em)]:[thin space (1/6-em)]2 complex (about 6.0 kcal mol−1 more favourable than the other complexes). For all 1[thin space (1/6-em)]:[thin space (1/6-em)]2 species, four hydrogen bonds can be found between the template and FM, as shown in Fig. S3. The two new hydrogen bonds are formed as follows: one of them between the hydrogen of the FM's hydroxyl group and the oxygen (O2) located in the DNF nitro group (O⋯H), and the other between the FM's carboxyl oxygen and the hydrogen located in the N2 group of DNF (N⋯H).

Following this, a third FM was added to the 1[thin space (1/6-em)]:[thin space (1/6-em)]2 species at the N1 amine group of DNF (see Fig. 1), resulting in the formation of 1[thin space (1/6-em)]:[thin space (1/6-em)]3 FM/template complexes. In Table 1, it is easy to notice again the same systematic behaviour as that found for the 1[thin space (1/6-em)]:[thin space (1/6-em)]1 and 1[thin space (1/6-em)]:[thin space (1/6-em)]2 complex energies. The DNF-(MAA)3 continues to be the most stable complex (about 10.0 kcal mol−1 more favourable than the other 1[thin space (1/6-em)]:[thin space (1/6-em)]3 species). For all 1[thin space (1/6-em)]:[thin space (1/6-em)]3 species, five hydrogen bonds are formed between the template and FM, as can be observed in Fig. S4. The newest hydrogen bond is formed between the hydrogen of the FM's hydroxyl group and the N1 amine nitrogen of DNF (N⋯H).

Finally, a fourth FM was added to the 1[thin space (1/6-em)]:[thin space (1/6-em)]3 optimized species at the N2 amine group of DNF (see Fig. 1), resulting in the formation of 1[thin space (1/6-em)]:[thin space (1/6-em)]4 complexes. The same systematic behaviour as that found for the 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 1[thin space (1/6-em)]:[thin space (1/6-em)]2 and 1[thin space (1/6-em)]:[thin space (1/6-em)]3 complexes can be observed in Table 1. Again, the DNF-(MAA)4 continues to be the most stable complex (about 13.0 kcal mol−1 more favourable than the other complexes). In 1[thin space (1/6-em)]:[thin space (1/6-em)]4 complexes, six hydrogen bonds are formed between the template and FM, as can be observed in Fig. 2. The newest hydrogen bond is detected between the hydrogen of the FM's hydroxyl group and the N3 amine nitrogen of DNF (N⋯H).

image file: c7an01324h-f2.tif
Fig. 2 B3LYP/6-311G(d,p)-optimized structures for the 1[thin space (1/6-em)]:[thin space (1/6-em)]4 FM/template complexes: (a) DNF-(AA)4, (b) DNF-(MAA)4, (c) (DNF-APV)4, and (d) DNF-(TFMAA)4. The hydrogen bonds are drawn in dotted lines to facilitate visualization.

It can be seen from Table 1 that the complexes formed with a 1[thin space (1/6-em)]:[thin space (1/6-em)]4 stoichiometry are the most stable in comparison with the mole ratios 1[thin space (1/6-em)]:[thin space (1/6-em)]1, 1[thin space (1/6-em)]:[thin space (1/6-em)]2 and 1[thin space (1/6-em)]:[thin space (1/6-em)]3. Besides, the hydrogen bonds found between the DNF and FM molecules play a crucial role in the FM/template complex formation. Still in Table 1, one can notice that the entropic contribution [TΔS] is almost constant for all complexes, regardless of the differing mole ratios. Thus, we can state that the formation of the complexes is not governed by entropy. Instead, it is a spontaneous and enthalpy-driven process. In this sense, the DFT methods offer a very computationally feasible way to include electron correlation effects in quantum chemical calculations, which is important to describe intermolecular interactions.22

From these results, we selected MAA as the best FM for the MIP synthesis of DNF, based on a systematic structural and energetic analysis. Besides, we could also determine the ideal stoichiometry, with 1[thin space (1/6-em)]:[thin space (1/6-em)]4 being found as the best mole ratio for synthesis purposes.

3.1.2 Solvent selection. The next step in this work was the determination of the best solvent for the MIP synthesis. It is a crucial step, as the solvent must solubilize all the components present in the synthesis and also not cause alterations in the interactions between reactants. Six solvents were chosen: water, acetone, dimethyl sulfoxide, chloroform, acetonitrile and methanol. The ΔH and ΔG values for the DNF-(MAA)4 complex (previously found in section 3.1.1 as the best FM/template) in each solvent are shown in Table 2.
Table 2 Thermodynamic properties, ΔH and ΔG, for the DNF-(MAA)4 complex considering distinct solvents. Values are given in kcal mol−1
Solvents DNF-(MAA)4 complex
Water −70.7 −16.5
Acetone −78.5 −21.8
Dimethyl sulfoxide −72.2 −17.7
Chloroform −86.9 −30.3
Acetonitrile −73.5 −18.5
Methanol −76.6 −19.7

As can be seen in Table 2 the lowest ΔH (−86.9 kcal mol−1) and ΔG (−30.3 kcal mol−1) values found for DNF-(MAA)4 are in the presence of chloroform as the solvent. The interaction between FM and the target molecule is accomplished through hydrogen bonds; thus a non-polar solvent with a low dielectric constant, such as chloroform, can be considered a more adequate medium for the interactions. Furthermore, higher dielectric constant solvents, such as acetonitrile, may be used; however, the MIP obtained will possess a lower ability in rebinding to the template molecule. For protic solvents, such as water and methanol, they will release hydrogen ions into the medium, which will compete in the formation of hydrogen bonds with those that can be formed between FM and the template molecule. Thus, it can provide a compromised functionality polymer. We concluded that chloroform should be the best solvent for MIP synthesis.

3.2. Experimental studies

3.2.1. HPLC method development. A simple HPLC–DAD method for the separation of DNF enantiomers was performed to study the adsorption efficiency of MIP in water and artificial saliva samples. Chen and colleagues (2012) reported the separation of DNF enantiomers using a ChromegaChiral CCA (250 mm × 4.6 mm, 5 μm) column with hexane[thin space (1/6-em)]:[thin space (1/6-em)]ethanol[thin space (1/6-em)]:[thin space (1/6-em)]methanol (85[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]10, v/v/v) as the mobile phase at a flow rate of 1.0 mL min−1 and detection at 270 nm. In this work, we evaluated the influence of the percentage composition of the mobile phase employing the Chiralpak® IA column (100 mm × 4.6 mm, 3 μm). Fig. S5(A) presents the initial tests for the chromatographic separation of the DNF enantiomers employing hexane[thin space (1/6-em)]:[thin space (1/6-em)]ethanol[thin space (1/6-em)]:[thin space (1/6-em)]methanol (85[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]10, v/v/v) at a flow rate of 1.0 mL min−1 as described in the literature.38 Although the chiral selectors of the ChromegaChiral CCA (a polysaccharide-coated chiral stationary phase) and Chiralpak® IA (a polysaccharide-immobilized chiral stationary phase) columns were the same, both formed by 3,5-dimethylphenyl carbamate amylose, the chromatographic behaviours were different. A baseline separation was not observed. Fig. S5(B) shows the chromatogram employing 80% hexane, 10% ethanol, 10% methanol plus 0.1% diethylamine at a flow rate of 12 mL min−1. As can be seen, this condition did not show a good separation. Fig. S5(C) refers to the chromatogram with 83% hexane, 11% ethanol, 6% methanol plus 0.25% diethylamine and a flow rate of 1.2 mL min−1. A better separation was observed between the enantiomers, although they appear with posterior tails. Finally, Fig. 3 show the best conditions for the enantioseparation of DNF, which was obtained with hexane[thin space (1/6-em)]:[thin space (1/6-em)]ethanol[thin space (1/6-em)]:[thin space (1/6-em)]methanol (83[thin space (1/6-em)]:[thin space (1/6-em)]10[thin space (1/6-em)]:[thin space (1/6-em)]7, v/v/v) plus 0.5% diethylamine and a flow rate of 1.2 mL min−1. Under these conditions, (+)-(S)-DNF eluted at 4.19 min and (−)-(R)-DNF eluted at 5.03 min, presented a resolution of 1.9, more than 2000 theoretical plates and asymmetry around 1.1.
image file: c7an01324h-f3.tif

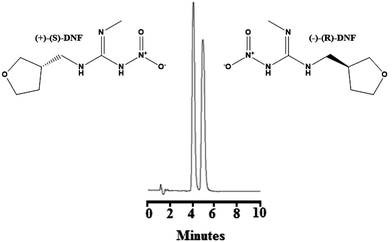

Fig. 3 Chromatogram referring to optimized chromatographic conditions for the enantioseparation of dinotefuran. Conditions: Chiralpak® IA (100 mm × 4.6 mm, 3 μm), hexane[thin space (1/6-em)]:[thin space (1/6-em)]ethanol[thin space (1/6-em)]:[thin space (1/6-em)]methanol (83[thin space (1/6-em)]:[thin space (1/6-em)]10[thin space (1/6-em)]:[thin space (1/6-em)]7, v/v/v) plus 0.5% diethylamine, 10 μL volume of injection, flow rate 1.2 mL min−1, and detection at 270 nm. (+)-(S)-DNF eluted at 4.19 min and (−)-(R)-DNF eluted at 5.03 min.
3.2.2. MIP and NIP syntheses and characterization. According to this synthesis methodology, stoichiometric quantities of the template molecule and FM were added to the reaction vial, which bind strategically at specific positions in a suitable solvent medium. Next, the cross-linking agent, responsible for the interconnection between the molecules of the functional monomer, was added, which should subsequently generate the polymer network. Finally, the radical initiator was added, with the function of generating reactive radicals to initiate the polymerization reaction.

The synthesis of NIP and MIP was conducted by bulk polymerization, in which the polymers were synthesized first and ground into particles for their application in the sample preparation techniques, such as solid-phase extraction, MEPS and others. In fact, the size of the particles could influence the extraction efficiency and selectivity of the MIP. Low-porosity polymers with a small surface area have a low molecular recognition capacity, basically due to the slow diffusion of the analytes towards the selective sites located in the micropores.39–44 Therefore, the morphological structures of NIP and MIP were investigated by SEM. Fig. S6(A and B) shows SEM micrographs under 180× for NIP and 200× for MIP. As expected, the heating-induced bulk polymerization method carried out in a homogeneous system containing the monomer, the template molecule, the solvent, the cross-linking reagent and the radical initiator in the absence of oxygen resulted in the formation of relatively large particles of irregular shape and non-uniform size.42–44 However, it is known that these irregularities do not limit the application of this material as an efficient adsorbent.

Fig. S6(C and D) shows the curves obtained by TGA, performed in a temperature range of 25 to 600 °C for the NIP and MIP. Our research group has been working on the synthesis of MIP using MAA as FM,39–44 in which it is possible to determine the presence of three main thermal events. The first one (between approximately 25 and 80 °C) presents a small loss of mass due to the evaporation of residual water. The second event (between approximately 250 and 450 °C) indicates the beginning of the decomposition process of the materials showing a rapid loss of mass. The third (between approximately 450 and 600 °C) corresponds to a small loss of mass due to the possible formation and evaporation of some volatile compounds. Therefore, it has been observed that the decomposition of the materials occurs at relatively high temperatures, about 300 °C, thus demonstrating good thermal stability.

3.2.3. MEPS optimization. The MEPS optimizations were conducted using 5 mg of the MIP, which was packed into a 1 mL syringe between two PTFE frits (20 μm pore size) to extract the DNF enantiomers. Before use for the first time, the adsorbent was conditioned first with 200 μL of methanol and then with 200 μL of a water[thin space (1/6-em)]:[thin space (1/6-em)]methanol (95[thin space (1/6-em)]:[thin space (1/6-em)]5, v/v) mixture. To start the optimization process, some conditions were set: 5 mg of MIP, 200 μL of a water[thin space (1/6-em)]:[thin space (1/6-em)]methanol (95[thin space (1/6-em)]:[thin space (1/6-em)]5, v/v) mixture, 200 μL of spiked sample at 100 ng mL−1 of DNF (water or artificial saliva), 200 μL of washing solvent, 200 μL of elution solvent, sample pH equal to 5.5 (water or saliva) and without the addition of salt. After each extraction, the eluent was dried under nitrogen flow and resuspended in 50 μL of ethanol prior to HPLC injection. Effect of washing solvent. In this parameter, the best washing solvent is the one that extracts a small amount of analyte, but removes interference from the matrix. For this study, water, ethanol and methanol were evaluated. Methanol extracted 3.32 ± 0.13 and 3.27 ± 0.38%, ethanol extracted 2.59 ± 0.31 and 3.07 ± 0.42% and water 2.64 ± 0.16 and 2.34 ± 0.19% of (+)-(S)-DNF and (−)-(R)-DNF, respectively (Fig. 4A). Water was more appropriate because it could remove interference from the matrix and extracted a very small amount of DNF enantiomers.
image file: c7an01324h-f4.tif

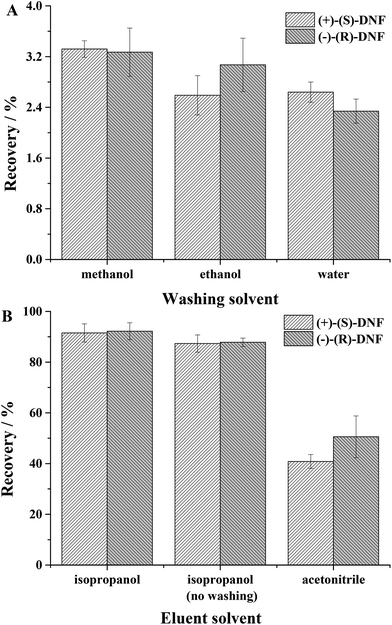

Fig. 4 (A) Effect of washing solvent: water, ethanol and methanol; (B) effect of elution solvent: isopropanol, isopropanol without the previous washing step and acetonitrile. Effect of elution solvent. This step used isopropanol, isopropanol without a previous washing step and acetonitrile (Fig. 4B). Although the recoveries were similar for the solvents isopropanol and isopropanol without the previous washing step, we opted for the first due to the removal of interference from the matrix. After only two initial tests, washing solvent and elution solvent, the recoveries/standard deviation for (+)-(S)-DNF and (−)-(R)-DNF reached 91.51 ± 3.58% and 92.21 ± 3.34%, respectively. The recovery values for water and artificial saliva (90.43 ± 4.76% and 91.09 ± 4.58%) did not present a significant difference. Our synthesized material, used as an adsorbent in MEPS, was superior to other sorbents described in the literature,45 in which the recovery of DNF ranged from 15.6 ± 1.4 to 57.2 ± 3.1%. In addition, the MIP synthesized by rational design and non-rational design presented recoveries ranging from 89.03 to 92.68 and 54.87 to 59.56, respectively. Table 3 presents the recoveries and precision using rational and non-rational design for the MIP syntheses. Finally, the technique after two simple experiments proved to be effective for the extraction of DNF enantiomers from water and artificial saliva, using small volumes of solvents and a small mass of MIP with recoveries around 100%.
Table 3 Recoveries and precision using rational and non-rational design for the MIP syntheses
Analytes Concentration (ng mL−1) Rational designa Non-rational designb
% Recovery (mean ± SD) (n = 6) Precision RSD% (n = 6) % Recovery (mean ± SD) (n = 6) Precision RSD% (n = 6)
a Conditions for MIP synthesis using rational design: 1 mmol of DNF, 4 mmol of MAA, 10 mL of chloroform, 20 mmol of EGDMA and 0.3 mmol of 4,4′-azo-bis-(4-cyano pentaenoic). b Conditions for MIP synthesis using non-rational design: 1 mmol of DNF, 2 mmol of AA, 10 mL of acetonitrile, 20 mmol of EGDMA and 0.3 mmol of 4,4′-azo-bis-(4-cyano pentaenoic).
(+)-(S)-DNF 20 89.03 3.91 54.87 1.85
100 89.87 4.64 56.44 5.08
(−)-(R)-DNF 20 92.68 3.63 58.65 8.70
100 91.90 4.03 59.56 7.94

4. Concluding remarks

In the present paper, we report for the first time theoretical and experimental studies for the interaction process of FM with DNF aimed at obtaining the best MIP synthesis conditions. This is a summary of the main conclusions drawn from our results: (i) the best FM/template mole ratio was 1[thin space (1/6-em)]:[thin space (1/6-em)]4 based on structural and energetic data, (ii) the best FM was found to be MAA, (iii) chloroform, a non-polar solvent with a low dielectric constant, was predicted to be the best solvent, (iv) the hydrogen bonds formed between the DNF and FM play a major role in the complex stability, (v) the complex formation process is enthalpy driven because the entropic contribution is almost constant for each DNF-(FM)n complex regardless of the different stoichiometries, (vi) an enantioselective HPLC method was developed and improved compared with previous work, (vii) MIP for DNF was rationally synthesized and characterized by TGA and SEM, being an excellent material for the adsorption process, (viii) MEPS proved to be an efficient and simple technique for sample preparation, (ix) this strategy can be applied to other systems to economize time and cost, improve the efficiency of extraction, reduce matrix effects and prolong the lifetime of the instruments.


MIPMolecularly imprinted polymer
NIPNon-imprinted polymer
FMFunctional monomers
DFTDensity functional theory
MAAMethacrylic acid
AAAcrylic acid
APV p-Vinyl benzoic acid
TFMAA2-(Trifluoromethyl)acrylic acid
EGDMAEthylene glycol dimethacrylate
TGAThermogravimetric analysis
SEMScanning electron microscopy
MEPSMicroextraction by packed sorbent

Conflicts of interest

All authors declare no conflict of interest, particularly no financial and personal relationships with other people or organizations that could inappropriately influence this work.


The authors would like to thank the Brazilian agencies CNPq (Conselho Nacional de Desenvolvimento Científico e Tecnológico) and FAPEMIG (Fundação de Amparo à Pesquisa do Estado de Minas Gerais) for financial support. This study is also part of a project involving the Rede Mineira de Química (RQ-MG) supported by FAPEMIG (project REDE-113/10; project CEX – RED-0010-14).
