Intramolecular 1,5-C(sp3)–H radical amination via Co(II)-based metalloradical catalysis for five-membered cyclic sulfamides

Hongjian Lu *bc, Kai Lang ab, Huiling Jiang b, Lukasz Wojtas b and X. Peter Zhang *ab
aDepartment of Chemistry, Merkert Chemistry Center, Boston College, Chestnut Hill, Massachusetts 02467, USA. E-mail: peter.zhang@bc.edu
bDepartment of Chemistry, University of South Florida, Tampa, FL 33620, USA
cThe Institute of Chemistry & Biomedical Sciences, Nanjing University, Nanjing, 210093, P. R. China. E-mail: hongjianlu@nju.edu.cn

Received 20th May 2016 , Accepted 25th July 2016

First published on the web 28th July 2016


Co(II)-based metalloradical catalysis (MRC) proves effective for intramolecular 1,5-C–H amination of sulfamoyl azides under neutral and nonoxidative conditions, providing a straightforward approach to access strained 5-membered cyclic sulfamides with nitrogen gas as the only byproduct. The metalloradical amination system is applicable to different types of C(sp3)–H bonds and has a high degree of functional group tolerance. Additional features of the Co(II)-catalyzed 1,5-C–H amination include excellent chemoselectivity toward allylic and propargylic C–H bonds. The unique reactivity and selectivity profile of the Co(II)-catalyzed 1,5-C–H amination is attributed to the underlying radical mechanism of MRC.


Introduction

Radical chemistry has recently demonstrated increasing applications in organic synthesis, which has been traditionally dominated by the development of synthetic methods based on ionic chemistry.1 Among other approaches,2 metalloradical catalysis (MRC), which involves the development of metalloradical complexes as potential open-shell catalysts for initiating as well as controlling homolytic radical reactions, provides a fundamentally new strategy to address some long-standing challenges associated with radical chemistry.3,4 As stable metalloradicals, cobalt(II) complexes of porphyrins [Co(Por)] have recently emerged as a unique class of catalysts for C–H amination through a 1e radical mechanism.5,6 Supported by porphyrin ligands bearing amide functionalities, the Co(II)-based MRC has been shown to be particularly effective in activating various sulfamoyl azides for intramolecular radical amination of different types of C–H bonds, leading to the formation of 6-membered cyclic sulfamides with a high control of reactivities and selectivities.7 The success of the metalloradical system is attributed to the stabilization of the key α-Co(III)-aminyl radical intermediates (also known as Co(III)-nitrene radicals) through hydrogen-bonding interaction with the amide group of the porphyrin ligand as well as the high propensity of the α-metalloaminyl radicals toward 1,6-H-atom abstraction, followed by facile 6-exo-tet radical cyclization.5,7 To date, the feasibility of the α-metalloaminyl radicals for 1,5-H-atom abstraction to form the corresponding ε-Co(III)-alkyl radicals (Scheme 1: A to B) and subsequent 5-exo-tet radical cyclization to generate the strained 5-membered cyclic sulfamides (Scheme 1: B to 2) remains unexplored. If successful, the catalytic C–H amination process (Scheme 1) would be highly attractive as the resulting 5-membered cyclic sulfamides have found important applications in the development of pharmaceutical agents (Fig. 1).8
image file: c6sc02231f-s1.tif

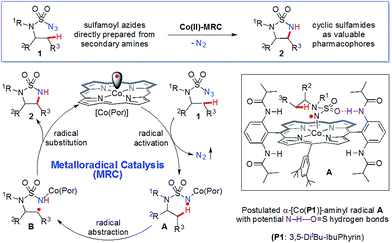

Scheme 1 Metalloradical approach for 5-membered cyclic sulfamides via radical C(sp3)–H amination.

image file: c6sc02231f-f1.tif

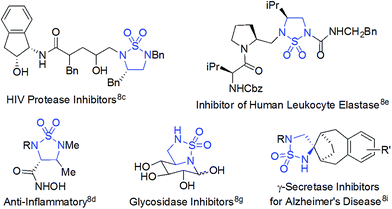

Fig. 1 Selected examples of biologically active molecules containing the 5-membered cyclic sulfamide motif.

A number of different metal-based catalytic systems have been developed for regioselective intramolecular C(sp3)–H amination to prepare N-heterocycles of variable ring size and functionality.9,10 Although considerable advances have been made, there has been no previous reports of the efficient synthesis of 5-membered cyclic sulfamides via metal-catalyzed intramolecular C–H amination.11–13 It is evident that catalytic 1,5-C(sp3)–H amination for the formation of 5-membered cyclic sulfamides is a challenging process, which is presumably attributable to the potentially strained [3.1.0]-bicyclic transition state associated with the asynchronous concerted mechanism that is shared by most catalytic C–H amination systems via metallonitrene intermediates.9j,14 Considering its stepwise radical mechanism through less-strained 6-membered monocyclic transition states (Scheme 1: A) followed by low-barrier radical substitution,5a we anticipated the possibility of applying MRC to address the challenges of this transformation (Scheme 1). Herein, we report that metalloradical catalysts [Co(Por)] are highly effective in activating sulfamoyl azides for intramolecular 1,5-C–H radical amination under neutral and nonoxidative conditions, affording the strained 5-membered cyclic sulfamides in high yields, with nitrogen gas as the only byproduct. In addition to its simple and practical protocol, the Co(II)-based metalloradical system exhibits excellent chemoselectivity and high functional group tolerance.

Results and discussion

At the outset of this project, the sulfamoyl azide 1a,15 which contains benzylic C–H bonds for potential 1,5-H-atom abstraction, was selected as the model substrate to test the possibility of intramolecular 1,5-C(sp3)–H amination via MRC (Scheme 2). Initial experiments showed that the metalloradical complex [Co(TPP)] (TPP: tetraphenylporphyrin), which is commercially available, could activate azide 1a for the intramolecular radical amination of the benzylic C(sp3)–H bond, affording the strained 5-membered cyclic sulfamide 2a in 51% yield. Further optimization experiments indicated that [Co(P1)], which is supported by the D2h-symmetric amidoporphyrin 3,5-DitBu-IbuPhyrin (P1), was a superior metalloradical catalyst for the radical C–H amination reaction, leading to the formation of the desired 2a in 90% yield (Scheme 2). The enhanced catalytic activity of [Co(P1)] over [Co(TPP)] is ascribed to the stabilization of the key α-Co(III)-aminyl radical intermediate by the amide functionalities through hydrogen-bonding interaction (Scheme 1, A).5a,b,6c,d,7
image file: c6sc02231f-s2.tif

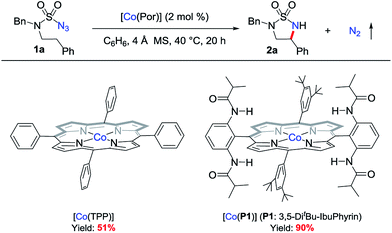

Scheme 2 Ligand effect on Co(II)-catalyzed 1,5-C(sp3)–H metalloradical amination.

Under the optimized conditions, the [Co(P1)]-based metalloradical system was shown to be effective for intramolecular 1,5-C(sp3)–H radical amination of a wide range of sulfamoyl azide substrates (Table 1). In addition to effective amination reactions of benzylic C–H bonds with varied electronic properties (entries 1–4), the Co(II)-based catalytic system could efficiently aminate α-C(sp3)–H bonds of heteroaromatic rings such as furan (entry 5) and thiophene (entry 6), without complication from potential reactions with the heteroatoms. As exemplified by the high-yielding formation of trans-cyclic sulfamide 2c, excellent diastereoselectivity could be achieved (entry 3). The metalloradical amination by [Co(P1)] could also be applied for non-benzylic C–H substrates, as demonstrated with the successful formation of the cyclic sulfamide 2g and bicyclic sulfamide 2h in respectable yields (entries 7 and 8), along with the corresponding 6-membered structure product formation.12g Moreover, even the challenging electron-deficient C(sp3)–H substrates, such as α-C–H bonds of esters and amides, could be aminated smoothly, producing α,β-diamino acid derivatives (entries 9 and 10).7c Besides secondary C–H bonds, this system proceeded successfully with more sterically hindered tertiary C(sp3)–H bonds as well (entries 7 and 11). It is notable that the α,β-diamino acid derivative 2k bearing a quaternary α-carbon center could be synthesized in near quantitative yield (entry 11). Different N-substituents in the azide substrates were effectively tolerated in the C–H amination process. For example, sulfamoyl azides containing both electron-donating and electron-withdrawing N-substituents, such as N-benzyl (entry 1), N-methyl (entry 2), N-Boc groups (entry 11), and N-4-methoxybenzyl (entry 15), groups proved to be suitable substrates.

Table 1 Intramolecular 1,5-C(sp3)–H radical amination of sulfamoyl azides by metalloradical catalyst [Co(P1)]a
a Performed in C6H6 at 40 °C for 20 h using 2 mol% [Co(P1)] under N2 in the presence of 4 Å MS; [azide 1a] = 0.10 M; isolated yields. b Confirmed by X-ray crystallographic structure analysis. c Yield based on 1H NMR analysis of purified mixture of 1,5- and 1,6-products, 37% 6-membered ring product was also obtained. d 18% of the 6-membered ring product was obtained. e 5 mol% [Co(P1)].
image file: c6sc02231f-u1.tif


The [Co(P1)]-catalyzed 1,5-C–H radical amination system exhibited excellent chemoselectivity towards allylic C–H bonds without affecting the C[double bond, length as m-dash]C π bonds.12e,f,16 For instance, the allylic C–H bonds of electron-rich trisubstituted alkenes were effectively aminated in high yields to afford the corresponding 5-membered cyclic sulfamides 2l and 2m without observation of the corresponding aziridination products (entries 12 and 13). Furthermore, this amination process was shown to be stereospecific regarding the stereochemistry of the alkene units as exemplified by the catalytic reactions of both trans- and cis-alkene-derived sulfamoyl azide substrates (entries 14–16). Under the standard conditions, the expected allylic C–H amination products 2n, 2o and 2p were formed in high yields with excellent stereospecificity as well as chemoselectivity. The fact that no olefin isomerization was observed during these catalytic amination reactions suggests the 5-exo-tet radical cyclization of the corresponding ε-Co(III)-allylic radical (Scheme 1: B to 2) proceeds with a low barrier and even faster than the facile trans- and cis-C[double bond, length as m-dash]C π bond isomerization.17 The Co(II)-based MRC is among the few catalytic systems that are effective for amination of propargylic C–H bonds without affecting the electron-rich C[triple bond, length as m-dash]C π bonds.7d,18,19 Functionalization of propargylic C–H bonds of both aryl-conjugated and alkyl-substituted alkynes led to the formation of the desired 5-membered cyclic sulfamides in high yields (entries 17–19). Moreover, the propargylic C–H bond of unprotected terminal alkynes could be also aminated selectively without interference from the acidic terminal C(sp)–H bond, as demonstrated by the formation of the cyclic sulfamide 2t in 89% yield.

The demonstrated chemoselectivity and functional group tolerance of [Co(P1)]-catalyzed 1,5-C–H amination made it possible for late-stage functionalization of complex molecules in a predicable fashion. For example, when stigmasterol-based azide 1u, which was directly prepared from the corresponding amine by a one-step procedure (ESI),15 was used as a substrate, 1,5-amination of the allylic C–H bond among various C–H and C[double bond, length as m-dash]C bonds was chemoselectively achieved, providing the fused multicyclic sulfamide 2u in 70% yield (Scheme 3A) with the cis-stereoisomer only.20 We also showed that the reaction could be effectively scaled up to 0.5 mmol in a similar 72% yield. As a further demonstration of the functional group tolerance of the current catalytic system, when the deoxyuridine-based substrate 1v, which was prepared directly from the corresponding deoxyuridine-based amine (ESI),15 was treated with [Co(P1)], the propargylic C–H bond was selectively aminated to afford the deoxyuridine-derived 5-membered cyclic sulfamide 2v in 95% yield (Scheme 3B). Direct modification of highly functionalized amine compounds with known bioactivities may offer an attractive opportunity to obtain unexplored 5-membered cyclic sulfamides like 2u and 2v for the study of interesting biological activities.8 In addition, the resulting cyclic sulfamides 2 bearing various functionalities may also serve as efficient precursors for the preparation of the valuable corresponding 1,2-diamines.21 For example, cyclic sulfamide 2m was effectively converted to the corresponding unprotected 1,2-diamine derivative 2m′ in 91% yield (eqn (1)).


image file: c6sc02231f-u2.tif(1)


image file: c6sc02231f-s3.tif

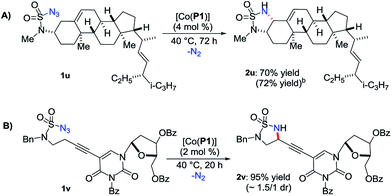

Scheme 3 Late-stage functionalization of complex molecules by Co(II)- based 1,5-C–H radical aminationa. (a) Isolated yields. (b) On 0.5 mmol scale.

The catalytic capability of Co(II)-based metalloradical catalysis (MRC) to facilitate intramolecular 1,5-C(sp3)–H amination to form 5-membered cyclic sulfamides is uniquely remarkable. The challenge of this type of transformation can be appreciated by examining the geometric parameters of 5-membered cyclic sulfamides in comparison with those of acyclic and 6-membered cyclic sulfamides. To this end, we synthesized and structurally characterized sulfamides 2i, 3 and 4 by X-ray crystallography (ESI). As illustrated in Fig. 2A, while the N–S–N bond angle of the 6-membered cyclic sulfamide 3 is 9.2° smaller than that of acyclic sulfamide 4, the deviation in the N–S–N bond angle for 5-membered cyclic sulfamide 2i from 4 is considerably larger (16.1°),22 signifying the great angle strain inherent in the 5-membered cyclic sulfamide structure. It would be expected to have even greater ring strain for the corresponding [3.1.0]-bicyclic transition state (Fig. 2B; right) associated with intramolecular 1,5-C(sp3)–H amination via the asynchronous concerted mechanism through metallonitrene intermediates.12,14 This presumably accounts for the previous absence of effective catalytic systems for 1,5-C(sp3)–H amination towards formation of 5-membered cyclic sulfamides.11,12 Through a fundamentally different pathway involving the two-step radical cascade (Scheme 1: A to B and then B to 2), Co(II)-based metalloradical catalysis (Fig. 2B; left) effectively obviates a highly strained [3.1.0]-bicyclic transition state, allowing for efficient construction of 5-membered cyclic sulfamides.6–8


image file: c6sc02231f-f2.tif

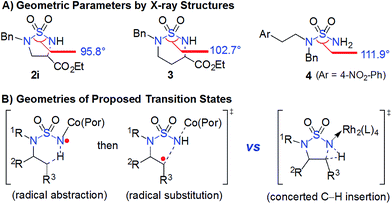

Fig. 2 (A) Comparison of geometric parameters between acyclic and cyclic sulfamides based on X-ray structures. (B) Geometries of proposed transitional states for stepwise (left) and concerted (right) processes of intramolecular 1,5-C(sp3)–H amination.

Together with the previous reports on intramolecular 1,6-C(sp3)–H amination to form 6-membered cyclic sulfamides,7 the current work reveals the versatile pathways of Co(II)-based MRC for selective amination.23 Although the key α-metalloaminyl radical intermediates are capable of undergoing both 1,5- and 1,6-H-atom abstraction followed by facile 5- and 6-exo-tet radical cyclization, respectively, the differentiation of the two pathways toward a selective catalytic process can be effectively achieved by Co(II)-MRC for most substrates in a predictable fashion.7

Conclusions

In summary, by applying the concept of metalloradical catalysis (MRC), a new approach has been successfully demonstrated for addressing the challenges of intramolecular 1,5-C(sp3)–H amination to construct strained 5-membered cyclic sulfamides. The metalloradical complex [Co(P1)] is an effective catalyst with the capability of activating a broad scope of sulfamoyl azides for intramolecular 1,5-amination of different types of C(sp3)–H bonds with high stereospecificity, providing straightforward access to the potentially bioactive 5-membered cyclic sulfamide compounds in high yields. The Co(II)-based catalytic system can be simply operated under neutral and non-oxidative conditions without the need for any additives, generating nitrogen gas as the only byproduct. Furthermore, this 1,5-C(sp3)–H amination process features excellent chemoselectivity and functional group tolerance, allowing for late-stage functionalization of complex molecules. The success in addressing this challenging amination process by Co(II)-MRC is believed to be directly related to the underlying radical mechanism involving the key α-Co(III)-aminyl radical intermediate.

Acknowledgements

We are grateful for financial support by NIH (R01-GM098777) and in part by NSF (CHE-1624216).

References

  1. For recent reviews, see: (a) B. Quiclet-Sire and S. Z. Zard, Pure Appl. Chem., 2011, 83, 519–551 CAS; (b) J. M. R. Narayanam and C. R. J. Stephenson, Chem. Soc. Rev., 2011, 40, 102–113 RSC; (c) C. K. Prier, D. A. Rankic and D. W. C. MacMillan, Chem. Rev., 2013, 113, 5322–5363 CrossRef CAS PubMed.
  2. For selected recent examples, see: (a) J. Du, K. L. Skubi, D. M. Schultz and T. P. Yoon, Science, 2014, 344, 392–396 CrossRef CAS PubMed; (b) J. M. Hoyt, V. A. Schmidt, A. M. Tondreau and P. J. Chirik, Science, 2015, 349, 960–963 CrossRef CAS PubMed; (c) J. L. Jeffrey, J. A. Terrett and D. W. C. MacMillan, Science, 2015, 349, 1532–1536 CrossRef CAS PubMed; (d) Q. M. Kainz, C. D. Matier, A. Bartoszewicz, S. L. Zultanski, J. C. Peters and G. C. Fu, Science, 2016, 351, 681–684 CrossRef CAS PubMed.
  3. For reviews on applications of Co(II)-based MRC, see: (a) S. Fantauzzi, A. Caselli and E. Gallo, Dalton Trans., 2009, 5434–5443 RSC; (b) T. G. Driver, Org. Biomol. Chem., 2010, 8, 3831–3846 RSC; (c) H. Lu and X. P. Zhang, Chem. Soc. Rev., 2011, 40, 1899–1909 RSC; (d) C. M. Che, V. K. Y. Lo, C. Y. Zhou and J. S. Huang, Chem. Soc. Rev., 2011, 40, 1950–1975 RSC; (e) H. Pellissier and H. Clavier, Chem. Rev., 2014, 114, 2775–2823 CrossRef CAS PubMed.
  4. For a recent review on Ti(III)-based MRC, see: (a) A. Gansäuer, S. Hildebrandt, E. Vogelsang and R. A. Flowers II, Dalton Trans., 2016, 45, 448–452 RSC. For the first demonstration of Ti(III)-based metalloradical non-catalytic process, see: (b) W. A. Nugent and T. V. RajanBabu, J. Am. Chem. Soc., 1988, 110, 8561–8562 CrossRef CAS. For select examples of catalytic processes via Ti(III)-based MRC, see: (c) A. Gansäuer, B. Rinker, M. Pierobon, S. Grimme, M. Gerenkamp and C. Mück-Lichtenfeld, Angew. Chem., Int. Ed., 2003, 42, 3687–3690 CrossRef PubMed; (d) A. Gansäuer, C.-A. Fan, F. Keller and J. Keil, J. Am. Chem. Soc., 2007, 129, 3484–3485 CrossRef PubMed; (e) A. Gansäuer, A. Fleckhaus, M. A. Lafont, A. Okkel, K. Kotsis, A. Anoop and F. Neese, J. Am. Chem. Soc., 2009, 131, 16989–16999 CrossRef PubMed; (f) A. Gansäuer, S. Hildebrandt, A. Michelmann, T. Dahmen, D. von Laufenberg, C. Kube, G. D. Fianu and R. A. Flowers II, Angew. Chem., Int. Ed., 2015, 54, 7003–7006 CrossRef PubMed.
  5. For detailed studies on the radical mechanism of [Co(Por)]-catalyzed C–H amination, including EPR observation of α-Co(III)-aminyl radical intermediates (also known as Co(III)-nitrene radicals), see: (a) V. Lyaskovskyy, A. I. Olivos Suarez, H. Lu, H. Jiang, X. P. Zhang and B. de Bruin, J. Am. Chem. Soc., 2011, 133, 12264–12273 CrossRef CAS PubMed. For related DFT studies on the radical mechanism of [Co(Por)]-catalyzed olefin aziridination and the ligand hydrogen-bonding effect, see: (b) A. I. Olivos Suarez, H. Jiang, X. P. Zhang and B. de Bruin, Dalton Trans., 2011, 40, 5697–5705 RSC; (c) K. H. Hopmann and A. Ghosh, ACS Catal., 2011, 1, 597–600 CrossRef CAS; for detailed studies on a similar radical mechanism involving α-Co(III)-alkyl radical intermediates (also known as Co(III)-carbene radicals), see: (d) W. I. Dzik, X. Xu, X. P. Zhang, J. N. H. Reek and B. de Bruin, J. Am. Chem. Soc., 2010, 132, 10891–10902 CrossRef CAS PubMed; (e) J. L. Belof, C. R. Cioce, X. Xu, X. P. Zhang, B. Space and H. L. Woodcock, Organometallics, 2011, 30, 2739–2746 CrossRef CAS PubMed; (f) H. Lu, W. I. Dzik, X. Xu, L. Wojtas, B. de Bruin and X. P. Zhang, J. Am. Chem. Soc., 2011, 133, 8518–8521 CrossRef CAS PubMed.
  6. For select examples of [Co(Por)]-catalyzed C–H amination, see: (a) J. V. Ruppel, R. M. Kamble and X. P. Zhang, Org. Lett., 2007, 9, 4889–4892 CrossRef CAS PubMed; (b) H. Lu, V. Subbarayan, J. Tao and X. P. Zhang, Organometallics, 2009, 29, 389–393 CrossRef; (c) H. Lu, J. Tao, J. E. Jones, L. Wojtas and X. P. Zhang, Org. Lett., 2010, 12, 1248–1251 CrossRef CAS PubMed; (d) L.-M. Jin, H. Lu, Y. Cui, C. L. Lizardi, T. N. Arzua, L. Wojtas, X. Cui and X. P. Zhang, Chem. Sci., 2014, 5, 2422–2427 RSC; (e) S. Cenini, E. Gallo, A. Penoni, F. Ragaini and S. Tollari, Chem. Commun., 2000, 2265–2266 RSC; (f) F. Ragaini, A. Penoni, E. Gallo, S. Tollari, C. Li Gotti, M. Lapadula, E. Mangioni and S. Cenini, Chem.–Eur. J., 2003, 9, 249–259 CrossRef CAS PubMed; (g) P. Zardi, D. Intrieri, A. Caselli and E. Gallo, J. Organomet. Chem., 2012, 716, 269–274 CrossRef CAS. For a review on C–H amination via Co(II)-based MRC, see: (h) H. Lu and X. P. Zhang, Chem. Soc. Rev., 2011, 40, 1899–1909 RSC.
  7. (a) H. Lu, H. Jiang, L. Wojtas and X. P. Zhang, Angew. Chem., Int. Ed., 2010, 49, 10192–10196 CrossRef CAS PubMed; (b) H. Lu, H. Jiang, Y. Hu, L. Wojtas and X. P. Zhang, Chem. Sci., 2011, 2, 2361–2366 RSC; (c) H. Lu, Y. Hu, H. Jiang, L. Wojtas and X. P. Zhang, Org. Lett., 2012, 14, 5158–5161 CrossRef CAS PubMed; (d) H. Lu, C. Li, H. Jiang, C. L. Lizardi and X. P. Zhang, Angew. Chem., Int. Ed., 2014, 53, 7028–7032 CrossRef CAS PubMed; (e) for a study of porphyrin ligand effect on Co(II)-based C–H amination, see ref. 6a; (f) for the use of different amide-containing porphyrins to support Co(II)-catalyzed radical C–H amination, see ref. 6c.
  8. For selected reviews, see: (a) J.-Y. Winum, A. Scozzafava, J.-L. Montero and C. T. Supuran, Med. Res. Rev., 2006, 26, 767–792 CrossRef CAS PubMed; (b) A. B. Reitz, G. R. Smith and M. H. Parker, Expert Opin. Ther. Pat., 2009, 19, 1449–1453 CrossRef CAS PubMed; for selected examples, see: (c) R. D. Tung, F. G. Salituro, D. D. Deininger, G. R. Bhisetti, C. T. Baker and A. Spaltenstein, US Pat., 5945413, 1999Chem. Abst.1999, 131, 185247; (d) R. J. Cherney and B. W. King, WO-0228846, 2002Chem. Abst., 2002, 136, 309923; (e) J. Zhong, X. Gan, K. R. Alliston and W. C. Groutas, Bioorg. Med. Chem., 2004, 12, 589–593 CrossRef CAS PubMed; (f) T. Sparey, D. Beher, J. Best, M. Biba, J. L. Castro, E. Clarke, J. Hannam, T. Harrison, H. Lewis, A. Madin, M. Shearman, B. Sohal, N. Tsou, C. Welch and J. Wrigley, Bioorg. Med. Chem. Lett., 2005, 15, 4212–4216 CrossRef CAS PubMed; (g) M. Benltifa, M. I. García Moreno, C. Ortiz Mellet, J. M. García Fernández and A. Wadouachi, Bioorg. Med. Chem. Lett., 2008, 18, 2805–2808 CrossRef CAS PubMed; (h) Q. Yang, Y. Li, D. Dou, X. Gan, S. Mohan, C. S. Groutas, L. E. Stevenson, Z. Lai, K. R. Alliston, J. Zhong, T. D. Williams and W. C. Groutas, Arch. Biochem. Biophys., 2008, 475, 115–120 CrossRef CAS PubMed; (i) M. A. Brodney, G. Barreiro, K. Ogilvie, E. Hajos-Korcsok, J. Murray, F. Vajdos, C. Ambroise, C. Christoffersen, K. Fisher, L. Lanyon, J. Liu, C. E. Nolan, J. M. Withka, K. A. Borzilleri, I. Efremov, C. E. Oborski, A. Varghese and B. T. O'Neill, J. Med. Chem., 2012, 55, 9224–9239 CrossRef CAS PubMed.
  9. For selected reviews on catalytic C(sp3)–H amination, see: (a) P. Müller and C. Fruit, Chem. Rev., 2003, 103, 2905–2920 CrossRef PubMed; (b) Z. G. Li and C. He, Eur. J. Org. Chem., 2006, 4313–4322 CrossRef CAS; (c) H. M. L. Davies and J. R. Manning, Nature, 2008, 451, 417–424 CrossRef CAS PubMed; (d) F. Collet, R. H. Dodd and P. Dauban, Chem. Commun., 2009, 5061–5074 RSC; (e) D. N. Zalatan and J. Du Bois, Top. Curr. Chem., 2010, 292, 347–378 CrossRef CAS PubMed; (f) F. Collet, C. Lescot and P. Dauban, Chem. Soc. Rev., 2011, 40, 1926–1936 RSC; (g) J. W. W. Chang, T. M. U. Ton and P. W. H. Chan, Chem. Rec., 2011, 11, 331–357 CrossRef CAS PubMed; (h) H. M. L. Davies, J. Du Bois and J. Q. Yu, Chem. Soc. Rev., 2011, 40, 1855–1856 RSC; (i) J. Du Bois, Org. Process Res. Dev., 2011, 15, 758–762 CrossRef CAS PubMed; (j) J. L. Roizen, M. E. Harvey and J. Du Bois, Acc. Chem. Res., 2012, 45, 911–922 CrossRef CAS PubMed; (k) T. A. Ramirez, B. Zhao and Y. Shi, Chem. Soc. Rev., 2012, 41, 931–942 RSC; (l) J. Yamaguchi, A. D. Yamaguchi and K. Itami, Angew. Chem., Int. Ed., 2012, 51, 8960–9009 CrossRef CAS PubMed; (m) G. Dequirez, V. Pons and P. Dauban, Angew. Chem., Int. Ed., 2012, 51, 7384–7395 CrossRef CAS PubMed.
  10. For selected reviews and highlights on catalytic intramolecular C–H amination, see: (a) H. M. L. Davies and M. S. Long, Angew. Chem., Int. Ed., 2005, 44, 3518–3520 CrossRef CAS PubMed; (b) T. G. Driver, Nat. Chem., 2013, 5, 736–738 CrossRef CAS PubMed; (c) J. L. Jeffrey and R. Sarpong, Chem. Sci., 2013, 4, 4092–4106 RSC; (d) O. V. Zatolochnaya and V. Gevorgyan, Nat. Chem., 2014, 6, 661–663 CrossRef CAS PubMed.
  11. (a) For favored formation of 6-membered cyclic sulfamides through catalytic intramolecular C–H amination, see: T. Kurokawa, M. Kim and J. D. Bois, Angew. Chem., Int. Ed., 2009, 48, 2777–2779 CrossRef CAS PubMed; (b) to the best of our knowledge, only two substrates were reported for the formation of 5-membered cyclic sulfamides through catalytic intramolecular benzylic 1,5-C(sp3)–H amination using an Ir-based catalyst in moderate yields, see: M. Ichinose, H. Suematsu, Y. Yasutomi, Y. Nishioka, T. Uchida and T. Katsuki, Angew. Chem., Int. Ed., 2011, 50, 9884–9887 CrossRef CAS PubMed.
  12. For favored formation of analogous 6-membered cyclic sulfamates through catalytic intramolecular C–H amination, see ref. 9 and 10. For limited examples of the formation of 5-membered cyclic sulfamates through catalytic intramolecular C–H amination (mostly benzylic C–H amination), see: (a) C. G. Espino, P. M. Wehn, J. Chow and J. Du Bois, J. Am. Chem. Soc., 2001, 123, 6935–6936 CrossRef CAS; (b) J. L. Liang, S. X. Yuan, J. S. Huang, W. Y. Yu and C. M. Che, Angew. Chem., Int. Ed., 2002, 41, 3465–3468 CrossRef CAS; (c) Y. Cui and C. He, Angew. Chem., Int. Ed., 2004, 43, 4210–4212 CrossRef CAS PubMed; (d) E. Milczek, N. Boudet and S. Blakey, Angew. Chem., Int. Ed., 2008, 47, 6825–6828 CrossRef CAS PubMed; (e) Y. Liu, X. Guan, E. L.-M. Wong, P. Liu, J.-S. Huang and C.-M. Che, J. Am. Chem. Soc., 2013, 135, 7194–7204 CrossRef CAS PubMed; for allylic C(sp3)–H amination with one specific substrate, see ref. 12e and (f) S. M. Paradine and M. C. White, J. Am. Chem. Soc., 2012, 134, 2036–2039 CrossRef CAS PubMed; (g) S. M. Paradine, J. R. Griffin, J. Zhao, A. L. Petronico, S. M. Miller and M. C. White, Nat. Chem., 2015, 7, 987–994 CrossRef CAS PubMed.
  13. 5-Membered cyclic sulfamides have been traditionally synthesized through interconversion of functional groups. For selected examples, see: (a) K. C. Nicolaou, S. A. Snyder, D. A. Longbottom, A. Z. Nalbandian and X. H. Huang, Chem.–Eur. J., 2004, 10, 5581–5606 CrossRef CAS PubMed; (b) R. I. McDonald and S. S. Stahl, Angew. Chem., Int. Ed., 2010, 49, 5529–5532 CrossRef CAS PubMed; (c) D. E. Olson, J. Y. Su, D. A. Roberts and J. Du Bois, J. Am. Chem. Soc., 2014, 136, 13506–13509 CrossRef CAS PubMed; For transition-metal promoted/catalyzed diamination of alkenes, see: (d) T. P. Zabawa, D. Kasi and S. R. Chemler, J. Am. Chem. Soc., 2005, 127, 11250–11251 CrossRef CAS PubMed; (e) K. Muñiz, J. Streuff, C. H. Höevelmann and A. Núñez, Angew. Chem., Int. Ed., 2007, 46, 7125–7127 CrossRef PubMed; (f) B. G. Zhao, W. C. Yuan, H. F. Du and Y. Shi, Org. Lett., 2007, 9, 4943–4945 CrossRef CAS PubMed; (g) K. Muñiz, C. H. Hövelmann and J. Streuff, J. Am. Chem. Soc., 2008, 130, 763–773 CrossRef PubMed; (h) B. Wang, H. F. Du and Y. Shi, Angew. Chem., Int. Ed., 2008, 47, 8224–8227 CrossRef CAS PubMed; (i) R. G. Cornwall, B. G. Zhao and Y. Shi, Org. Lett., 2013, 15, 796–799 CrossRef CAS PubMed; (j) K. Muñiz and C. Martínez, J. Org. Chem., 2013, 78, 2168–2174 CrossRef PubMed.
  14. For mechanistic studies of Rh2-catalyzed intramolecular C(sp3)–H amination, see: (a) K. W. Fiori, C. G. Espino, B. H. Brodsky and J. Du Bois, Tetrahedron, 2009, 65, 3042–3051 CrossRef CAS; (b) P. M. Wehn, J. H. Lee and J. Du Bois, Org. Lett., 2003, 5, 4823–4826 CrossRef CAS PubMed.
  15. N,N-Disubstituted sulfamoyl azides were directly prepared from secondary amines by a one-step procedure (see ESI). The DSC experiment indicated that these sulfamoyl azides were thermally stable without decomposition up to at least 100 °C, see ESI for a representative DSC plot of a sulfamoyl azide.
  16. For the preference of intramolecular [6,3]-C[double bond, length as m-dash]C aziridination of sulfamides over 1,5-allylic C(sp3)–H amination of sulfamides in Rh2-based catalytic system, see ref. 11a. For the preference of catalytic intramolecular [6,3]-C[double bond, length as m-dash]C aziridination over 1,5-allylic C–H amination of analogous sulfamates, see: (a) F. Duran, L. Leman, A. Ghini, G. Burton, P. Dauban and R. H. Dodd, Org. Lett., 2002, 4, 2481–2483 CrossRef CAS PubMed; (b) ref. 14b ; (c) K. Guthikonda, P. M. Wehn, B. J. Caliando and J. Du Bois, Tetrahedron, 2006, 62, 11331–11342 CrossRef CAS; (d) A. Estéoule, F. Durán, P. Retailleau, R. H. Dodd and P. Dauban, Synthesis, 2007, 1251–1260 Search PubMed; (e) G. Malik, A. Estéoule, P. Retailleau and P. Dauban, J. Org. Chem., 2011, 76, 7438–7448 CrossRef CAS PubMed.
  17. For a computational study on rotational isomerization of allylic radicals, see: (a) D. J. Pasto, J. Phys. Org. Chem., 1997, 10, 475–483 CrossRef CAS; for observation of olefin isomerization in a parallel study on Co(II)-based metalloradical catalysis for 1,5-C–H alkylation of α-methoxycarbonyl-α-diazosulfones, see: (b) X. Cui, X. Xu, L.-M. Wojtas, L. Jin and X. P. Zhang, Chem. Sci., 2015, 6, 1219–1224 RSC.
  18. For examples of intramolecular 1,6-addition of C[triple bond, length as m-dash]C π bonds of analogous sulfamates without observation of 1,5-propargulic C–H amination, see: (a) A. R. Thornton and S. B. Blakey, J. Am. Chem. Soc., 2008, 130, 5020–5021 CrossRef CAS PubMed; (b) A. R. Thornton, V. I. Martin and S. B. Blakey, J. Am. Chem. Soc., 2009, 131, 2434–2435 CrossRef CAS PubMed; (c) N. Mace, A. R. Thornton and S. B. Blakey, Angew. Chem., Int. Ed., 2013, 52, 5836–5839 CrossRef CAS PubMed.
  19. For Rh2-catalyzed propargylic C(sp3)–H amination of carbamates, see: (a) R. D. Grigg, J. W. Rigoli, S. D. Pearce and J. M. Schomaker, Org. Lett., 2012, 14, 280–283 CrossRef CAS PubMed; (b) H. Lebel, C. Trudel and C. Spitz, Chem. Commun., 2012, 48, 7799–7801 RSC.
  20. Stigmasterol-based sulfamoyl amine was produced in 22% yield as the only side product (Scheme S1 in ESI), which could be smoothly converted back to the starting azide 1u under diazo transfer conditions (Scheme S2 in ESI).
  21. For the methods to convert 5-membered cyclic sulfamides to 1,2-diamines, see ref. 13bf and i.
  22. For corresponding O–S–N bond angles of acyclic sulfamate (103°), 5-membered cyclic sulfamate (95°), and 6-membered cyclic sulfamate (104°), see ref. 9j.
  23. To further demonstrate the versatility of metalloradical amination, the sulfamoyl azide 1w, which incorporates both N-homoallyl and N-bishomoallyl groups into a single substrate, was designed and synthesized as a substrate for the catalytic reaction. Considering that the two potential reactive arms in the azide are both flexible and differ only by a single methylene unit, they were anticipated to have near equal probability to react with the resulting α-Co(III)-aminyl radical intermediate without any electronic and steric bias. As expected, the catalytic reaction of azide 1w by [Co(P1)] gave comparable yields of both the 6-membered cyclic sulfamide 2w (44%) and the 5-membered cyclic sulfamide 2w′ (35%) along with [4.1.0]bicyclic aziridine 2w′′ (20%) under standard conditions. This experiment further confirmed the competence of the α-Co(III)-aminyl radical intermediate to proceed via multiple reaction pathways, including 1,5- and 1,6-H-atom abstraction as well as 1,6-C[double bond, length as m-dash]C addition. It is important to emphasize that these multiple reaction pathways of Co(II)-based MRC can be effectively differentiated toward a selective catalytic process for substrates with specific electronic and steric properties.
    image file: c6sc02231f-u3.tif
    .
