Drop formation in non-planar microfluidic devices

Author affiliations

Abstract

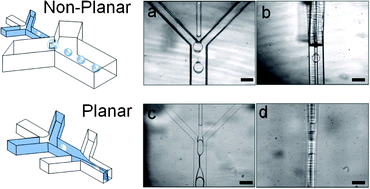

Microfluidic devices can be used to produce single or multiple emulsions with remarkably precise control of both the contents and size of the drops. Since each level of a multiple emulsion is formed by a distinct fluid stream, very efficient encapsulation of materials can be achieved. To obtain high throughput, these devices can be fabricated lithographically, allowing many devices to operate in parallel. However, to form multiple emulsions using a planar microfluidic device, the wettability of its surface must switch from hydrophobic to hydrophilic on the scale of micrometers where the drops are formed; this makes the fabrication of the devices very difficult. To overcome this constraint, we introduce non-planar microfluidic devices with graduated thicknesses; these can make drops even when their wetting properties do not favor drop formation. Nevertheless, the dependence of drop formation on the device geometry, the flow rates and the properties of the fluids, particularly in the case of unfavorable wetting, is very complex, making the successful design of these devices more difficult. Here we show that there exists a critical value of flow of the continuous phase above which drop formation occurs; this value decreases by two orders of magnitude as the wetting to the device wall of the continuous phase improves. We demonstrate how this new understanding can be used to optimize device design for efficient production of double or multiple emulsions.

Graphical abstract: Drop formation in non-planar microfluidic devices

Back to tab navigation

Supplementary files

Publication details

The article was received on 11 May 2012, accepted on 28 Jun 2012 and first published on 04 Jul 2012


Article type: Paper
DOI: 10.1039/C2LC40546F
Citation: Lab Chip, 2012,12, 4263-4268
  •   Request permissions

    Drop formation in non-planar microfluidic devices

    A. Rotem, A. R. Abate, A. S. Utada, V. Van Steijn and D. A. Weitz, Lab Chip, 2012, 12, 4263
    DOI: 10.1039/C2LC40546F
