Issue 3, 2021

Cation ordered Ni-rich layered cathode for ultra-long battery life

Abstract

Fluorine doping of a compositionally graded cathode, with an average concentration of Li[Ni0.80Co0.05Mn0.15]O2, yields a high discharge capacity of 216 mA h g−1 with unprecedented cycling stability by retaining 78% of its initial capacity after 8000 cycles. The cathode is cycled at 100% depth of discharge (DOD), unlike the currently deployed layered cathode whose DOD is limited to 60–80% to compensate for capacity fading and guarantee the required battery life. Additionally, the capacity and cycling stability of the cathode easily surpass those of the existing state-of-the-art batteries, while achieving the energy density goal of 800 W h kg−1cathode for electric vehicles (EV) with ultra-long cycle life. The structural and chemical stabilities of the cathode were provided by the compositional partitioning and unique microstructure of the compositionally graded cathode combined with the ordered site-intermixing of Li and transition metal (TM) ions discovered via transmission electron microscopy. F doping induced the formation of a 2ahex × 2ahex × chex superlattice from ordered Li occupation in TM slabs and vice versa, which has been proven to be essential for suppressing microcrack formation in deeply charged states, while maintaining the structural stability of the cathode during extended cycling. Furthermore, the proposed cathode allows for the recycling of used EV batteries in energy storage systems, thereby alleviating the negative environmental impact by reducing the CO2 emissions and cost associated with disposing of dead batteries.

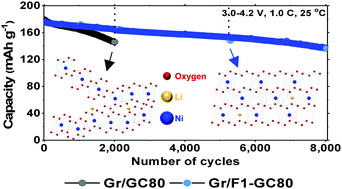

Graphical abstract: Cation ordered Ni-rich layered cathode for ultra-long battery life

Supplementary files

Article information

Article type
Paper
Submitted
01 12月 2020
Accepted
28 1月 2021
First published
29 1月 2021
This article is Open Access
Creative Commons BY-NC license

Energy Environ. Sci., 2021,14, 1573-1583

Cation ordered Ni-rich layered cathode for ultra-long battery life

U. Kim, G. Park, P. Conlin, N. Ashburn, K. Cho, Y. Yu, D. A. Shapiro, F. Maglia, S. Kim, P. Lamp, C. S. Yoon and Y. Sun, Energy Environ. Sci., 2021, 14, 1573 DOI: 10.1039/D0EE03774E
