Issue 21, 2024

A high-temperature-triggered crosslinking reaction to achieve excellent intrinsic flame retardancy of organic phase change composites

Abstract

The host–guest composite that integrates a porous scaffold and organic phase change materials (PCMs) features high energy density and customizable function, promising for advanced thermal storage/utilization. However, highly flammable organic PCMs are prone to severe combustion in porous structures, making it challenging for traditional flame-retardant methods to balance fire safety and latent heat. Herein, a high-temperature-triggered crosslinking reaction between the host and guest is designed using a polybenzoxazine-based aerogel (PB-1) and benzoxazine-based PCMs (C-dad). At high temperatures, the ring-opening polymerization (ROP) of C-dad can be initiated by and reacted with the phenolic groups of PB-1 to form a polybenzoxazine copolymer monolith with an improved char yield and intrinsic low flammability and without using the typical flame-retardant components. This enables the obtained composite (PB-1/C-dad) to well balance latent heat (145.3 J g−1), char yield (a char residue of 13.1% at 600 °C), and flame retardancy (a peak heat release rate of 231 W g−1), outperforming the representative flame-retardant modified polymer/organic PCM complexes reported in the literature. This thermal-triggered mechanism allows PB-1/C-dad to be repeatedly and stably used within the working temperature and activates its flame retardancy when exposed to open flames. The proposed host–guest crosslinking strategy is believed to inspire the development of inherently nonflammable phase change composites for safer thermal management.

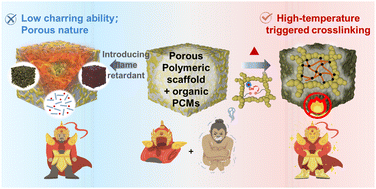

Graphical abstract: A high-temperature-triggered crosslinking reaction to achieve excellent intrinsic flame retardancy of organic phase change composites

Supplementary files

Article information

Article type
Communication
Submitted
29 6月 2024
Accepted
12 8月 2024
First published
14 8月 2024

Mater. Horiz., 2024,11, 5274-5284

A high-temperature-triggered crosslinking reaction to achieve excellent intrinsic flame retardancy of organic phase change composites

J. Liu, Y. Xiao, Y. Wang, Y. Wuliu, X. Zhu, L. Zhang and X. Liu, Mater. Horiz., 2024, 11, 5274 DOI: 10.1039/D4MH00831F
