Seeing is believing: what is on the surface of silver nanocrystals suspended in their original reaction solution

Abstract

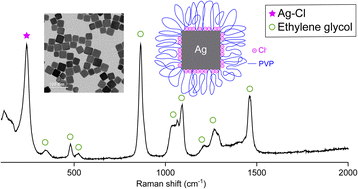

Colloidal synthesis of inorganic nanocrystals always involves a multitude of ionic and molecular species. How the chemical species affect the evolution of nanocrystals remains a black box. As an essential ingredient in the polyol synthesis of Ag nanocubes, Cl⁻ has been proposed to co-adsorb on the surface with poly(vinyl pyrrolidone) (PVP) to facilitate shape evolution. However, there is still no direct evidence to confirm the presence of Cl⁻ on the surface of Ag nanocubes while they are suspended in the original reaction solution. By leveraging the high sensitivity of surface-enhanced Raman scattering, here we offer direct evidence, for the first time, by resolving the Ag–Cl vibrational peak at 240 cm⁻¹. This characteristic peak disappears if the synthesis is conducted in the absence of Cl⁻. Instead, three peaks associated with CF₃COO⁻ (from the precursor to Ag) are observed. When the sample is diluted with ethylene glycol, all the peaks associated with CF₃COO⁻ decrease proportionally in intensity, implying the involvement of chemisorption and negligible desorption during dilution. The chemisorbed CF₃COO⁻ is readily replaced by Cl⁻ due to their major difference in binding strength. The co-adsorbed Cl⁻ forces the carbonyl group of PVP binding to the Ag surface to take a more perpendicular configuration, enhancing its peak intensity. Altogether, these findings shed new light on the roles played by various chemical species in a successful synthesis of Ag nanocubes.
