Colour by design: tuning the solid-state emission of coronene bisimide by tailored matrices

Abstract

A photofunctional coronene bisimide (CBI) has been equipped with two bulky terphenyl imide substituents that control self-assembly, restricting it to the formation of well-defined dimers with a remarkably high association constant of K = 3.0 × 10⁵ M⁻¹ in methylcyclohexane/1,1,2,2-tetrachloroethane (TCE). Further, the electron-poor CBI acts as a versatile supramolecular host capable of forming charge-transfer (CT) complexes with various electron-rich guest molecules, including perylene, triphenylene, and 3,6-diiodocarbazole with binding affinities up to K = 10³ M⁻¹ in TCE. As shown in this article, the variety of supramolecular assemblies formed by CBI enables a unified strategy for emission colour tuning over a wide spectral range. In the crystalline solid-state, the photoluminescence can be tuned from green up to the near-infrared region through either monomer-like or dimer-like polymorphs, or guest binding. Further, the external heavy-atom effect of 3,6-diiodocarbazole allows for dual emission of thermally activated delayed fluorescence and phosphorescence, making the cocrystal with diiodocarbazole the first example of a CBI cocrystal with delayed emission. This study presents a general design strategy for emission tuning of CBIs, which is expected to be extendable to a variety of luminescent host systems.

---

Introduction

Materials with tunable emission properties are in demand for various applications including organic light-emitting diodes (OLEDs),¹ organic lasers,^2,3 and bioimaging.⁴ The respective materials are often based on transition or rare earth metal complexes which are disadvantageous from the perspective of abundancy and sustainability.^5,6 In this regard it is promising that recent research on purely organic systems demonstrated emission colour tuning through polymorphism,^7,8 guest encapsulation⁹ or for carbon dots.^10,11 Further, as a particularly promising approach, we and others identified tailored supramolecular host–guest systems making use of donor–acceptor interactions for tuning emission properties.^12–14 Different from conventional donor–acceptor π-stacks whose emission originates purely from excited singlet states (exciplexes), this research established the benefits originating from the involvement of triplet states for the expansion of the wavelength range and the increase of photoluminescence quantum yield by additional photon fluxes originating from delayed fluorescence or phosphorescence. A particularly compelling example has been introduced by George and co-workers for solutions and cocrystals of a simple pyromellitic bisimide.¹⁵ By simple dissolution of pyromellitic bisimide in various electron-donating solvents the emission colour of the singlet charge-transfer (¹CT) state could be tuned from 420 nm (tetrahydrofuran) to 500 nm (tetramethylbenzene). Furthermore, by cocrystallization with diiodobenzenes the wavelength range could be expanded up to 560 nm due to the activation of phosphorescence from the triplet CT (³CT) state.¹⁵

What remains as a limitation, however, is the fact that the weak non-covalent interaction strength in donor–acceptor complexes of small aromatic compounds¹⁶ can only be used either with a large excess of one component, i.e. applied as a solvent, or in cocrystals, the latter requiring proper size match between the two components.¹⁷ A solution to this problem can be realized by larger aromatic surfaces which provide sufficient binding strength to form tightly bound donor–acceptor complexes in solution as well as in amorphous matrices as applied in OLED research.^14,18–20 With few exceptions, however, this research has not yet demonstrated broad wavelength tunability but was primarily focused on the exploration of the various photophysical processes upon photoexcitation of pre-assembled donor–acceptor pairs, i.e. emission from exciplex states, thermally activated delayed fluorescence (TADF), and phosphorescence.²¹

To demonstrate the concept of emission colour tuning over a wider spectral range by means of triplet state activation in donor–acceptor complexes, coronene appeared as an interesting candidate due to its triplet accessibility, which affords phosphorescence and TADF emission.^22–26 Polymorphism has also been described for coronene,²⁷ and its large π-surface makes it a promising host candidate for guest complexation. Compared to coronene, electron-poor coronene bis(dicarboximides) (CBIs) exhibit a larger π-scaffold which together with the lower electron density allows for more effective complexation of various aromatic guest molecules. Furthermore, the thoughtful choice of bulky imide substituents might be used to design desirable host–guest complexes. However, unlike coronene, there are only a few examples of CBIs exhibiting such emission features originating via the involvement of the triplet states.^19,28–31 In 2014, Fukuzumi, Hasobe and co-workers reported a study on coronenes being equipped with one up to four imide groups. For several derivatives high quantum yields were reported for intersystem crossing (ISC), however, only little information on the phosphorescence observed in nitrogen-purged frozen 2-methyl tetrahydrofuran at 77 K was provided.²⁸ Three years later, the same group focused on bisimides but only reported lifetimes of the locally excited triplet state (³LE).²⁹ At the same time, Hariharan and co-workers demonstrated that core-twisting of annulated CBI derivatives enhances the triplet formation yield. However, phosphorescence emission was only observed at 77 K.³⁰ Then in 2024, Zhao et al. reported the rapid ISC and triplet lifetimes for a CBI with nanohoops attached to the chromophore, but likewise did not report phosphorescence spectra.³¹ In the same year, our group reported a CBI cyclophane with high binding affinities to various polycyclic aromatic hydrocarbon (PAH) guest molecules in solution. For this system, the guest molecules could activate different emission pathways via the newly formed ¹CT states. Binding guest molecules containing heavy atoms such as platinum acetylacetonate or 1,8-dibromonaphthalene even enabled dual emission involving TADF and room-temperature phosphorescence (RTP).¹⁹

Following this precedent work, herein we report our results for a new CBI derivative bearing sterically demanding imide substituents for which we could accomplish emission colour tuning from the green up to the near-infrared (NIR) region by judicious choice of the surrounding matrix. This desirable feature could be achieved by the strong and well-defined supramolecular binding of the enlarged π-scaffold of CBI, compared to conventional smaller donor–acceptor complexes, thereby enabling self-aggregation and complexation with different guest molecules. A maximum photoluminescence (PL) quantum yield (Φ_PL) of 19% was thereby reached for the dimer containing crystal of CBI 1. Additionally, TADF and RTP emission were activated by the external heavy-atom effect from cocrystal components. Importantly, because these systems form structurally defined, non-dynamic supramolecular assemblies, they also exhibit polarization-dependent photoluminescence properties. Overall, this work demonstrates that rational molecular design enables broad-range emission tuning in donor–acceptor systems through controlled supramolecular assembly.

Results and discussion

Synthesis, characterization, and crystallization

CBI 1 has been designed as a supramolecular host bearing sterically demanding meta-terphenyl imide substituents and two alkyl chains attached to the coronene core unit. The latter induce higher solubility of the large and planar CBI π-scaffold (Fig. 1a) while the meta-terphenyl groups bearing tert-butyl substituents in the para-position suppress molecular aggregation and promote the uptake of planar (hetero-)aromatic guest molecules.^32–34 As guest molecules we chose triphenylene (T), perylene (P), and 3,6-diiodocarbazole (I₂Cz) (Fig. 1a). CBI 1 was synthesized in 31% yield via an optimized imidization procedure,^32,35 using precursor molecules synthesized according to the literature (Schemes S1 and S2, SI).^36–38 CBI 1 was characterized using high-resolution mass spectrometry (HRMS), as well as ¹H-NMR, UV/vis, and PL spectroscopy and X-ray analysis (see SI for details).

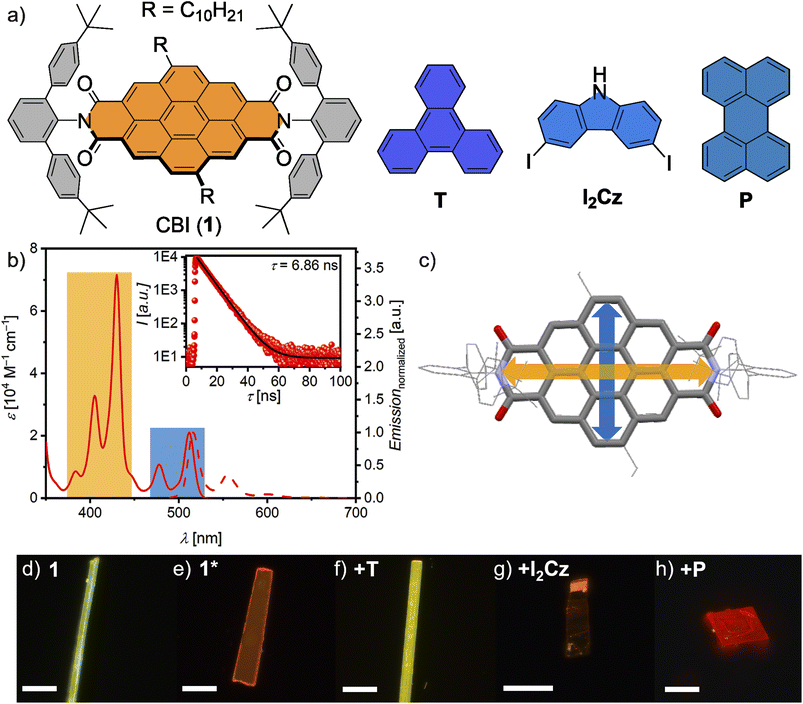

Fig. 1 (a) Chemical structures of the investigated shielded host molecule CBI 1 and the guest molecules T, I₂Cz and P. (b) UV/vis absorption (solid) and scaled emission (dashed) spectra of CBI 1 in CHCl₃ solution (c₀ = 1.2 × 10⁻⁵ M and 2.7 × 10⁻⁷ M) at room temperature. The emission was detected after excitation at 476 nm. Inset depicts lifetime measurement (red circles) after excitation at 479.7 nm while detecting the respective maximum. The mono-exponential fit is also shown (black line) as well as the lifetime is given. (c) Illustration of the S₀–S₁ (blue arrow) and S₀–S₂ (gold arrow) transition dipole moments of CBI. Fluorescence microcopy images of microcrystals of two single crystals of 1 (d and e) and cocrystals with T (f), I₂Cz (g) and P (h) on Si/SiO₂ substrates at 298 K upon UV irradiation. The scale bars equal 100 µm.

The UV/vis absorption spectrum of 1 in chloroform (CHCl₃) solution is typical of CBI, with well-resolved vibronic S₀–S₁ absorption at around 510 nm (λ_max) and an S₀–S₂ transition at around 430 nm with extinction coefficients (ε_max) of around 20 000 and 70 000 M⁻¹ cm⁻¹, respectively (Fig. 1b and Table S1, SI).¹⁹ With regard to the later discussed excitonic coupling among CBIs in crystalline samples it is important to note the orthogonal arrangement of the transition dipole moments (µ_eg) for these two electronic transitions (Fig. 1c) and the fact that the lowest energy transition (S₁) is polarized orthogonal to the N,N′-axis,³⁹ a feature that distinguishes CBIs from the related perylene bis(dicarboximides) (PBIs). The emission spectrum of CBI 1 shows a mirror-image relationship to the absorption bands with a fluorescence quantum yield of 31%, a small Stokes shift (Δṽ_Stokes = 151 cm⁻¹) and a decay time of 6.9 ns (Fig. 1b).

Single crystals of pristine CBI 1 and cocrystals with P, T, and I₂Cz suitable for X-ray analysis were grown by slow diffusion of an anti-solvent into the solution of CBI 1. Two different single-crystals of pristine CBI 1 could be grown from CHCl₃ (c₀ = 10⁻³ M) and iodobenzene solutions (IBz; c₀ = 10⁻³ M) with diffusion of methanol as anti-solvent. For the cocrystals, either toluene (P and T) or CHCl₃ (I₂Cz) was used, with methanol (P and T) or n-hexane (I₂Cz) slowly diffusing into the stock solution of CBI 1 (c₀ = 10⁻³ M). The ratio to 1 and guest in the respective solutions varied between 1 : 2 (P and T) and 1 : 4 (I₂Cz). Suitable crystals of the five (co)crystals of CBI 1 were handpicked, deposited on an Si/SiO₂ quartz substrate and investigated with a (PL) polarizing optical microscope (POM) under white light (halogen lamp) and UV light irradiation (Fig. 1d–h and S1, SI). The crystals, as well as their emission colour, range from green to deep red. Unexpectedly, two different crystals were obtained from pristine CBI from CHCl₃ or IBz, respectively, emitting either green, similar to the monomer in solution, or orange light.

The molecular arrangement of host 1 with and without complexation of guest molecules within the five (co)crystals is illustrated in Fig. 2 (Table S2–S6, SI). The orange emissive single crystal is built up from tightly packed (π–π-distances of 3.4 Å) units of isolated dimers 1₂ (Fig. 2a and S2, SI) which are rotationally displaced by 64°. Similar supramolecular interactions as for the previously mentioned PBI, like C–H⋯π interactions at 3.5 Å between chromophore and meta-terphenyl imide substituent, can be observed.³² The crystal obtained from CHCl₃ also provides proof to the dimerization observed in solution (vide infra). In contrast, in the yellow-green-emissive crystal obtained from IBz, the shielded CBI 1 adopts an extended laterally slipped-stack arrangement of parallelly oriented CBI molecules at a distance of 3.4 Å. The centre-to-centre distance is accordingly enlarged 6.8 Å with a lateral displacement of 30° (Fig. 2b and S3, SI).

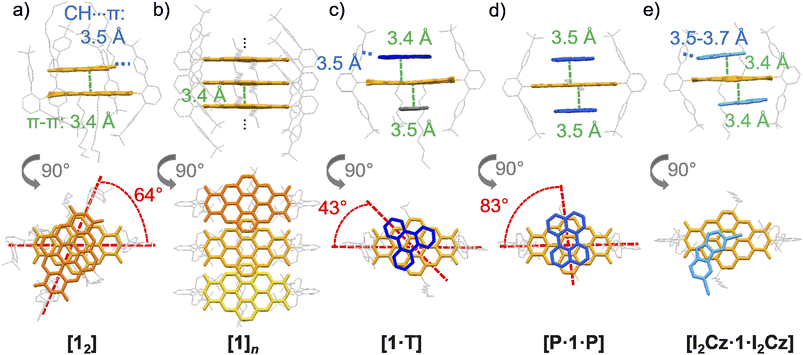

Fig. 2 Single-crystal (a and b) and cocrystal structures of the sterically shielded CBI 1 (yellow-orange) with guest molecules (blue) (c) T, (d) P and (e) I₂Cz shown in side-view (top) and top-view (bottom). The CBI chromophore and guest molecules are displayed in capped sticks, whereas the imide substituents and the substituents at the CBI core are displayed in wireframe (grey). The single-crystals either form separated dimers (a) [1₂] or (b) a lateral-displaced slip-stacked alignment [1]_n. The cocrystals form (c) either 1 : 1 complex, [1·T] including a toluene molecule (grey), or 1 : 2 complexes, (d) [P·1·P] and (e) [I₂Cz·1·I₂Cz]. The distances between the respective π-surfaces are shown in green, the C–H⋯π and N–H⋯π distances in blue (side-view), as well as the angle between the molecules in red (top-view). Molecular disorder (b–e) and solvent molecules (b, c and e) are omitted for clarity.

For all cocrystals, the CBI receptor unit is embedded between two aromatic guest molecules. For the cocrystal with T, CBI is stacked at a distance of 3.4 Å and at a rotation angle of 43° to T whilst its second π-surface is in contact to a π-stacked toluene molecule at a distance of 3.5 Å (Fig. 2c and S4, SI). Thus, despite a 1 : 2 ratio for CBI 1 : T in the crystallization solution, only one T binds in the crystalline solid state. A possible explanation for this observation could be an allosteric effect.⁴⁰ The two solubilizing decyl alkyl chains at the CBI core point both to the other side of the bound T, effectively blocking the π-surface of the CBI and narrowing the cavity. Thus, binding of a second T might be suppressed, and the cavity is instead filled with the smaller toluene molecule. For the other two cocrystals – in accordance with complexation study in solution, vide infra – isolated 1 : 2 complexes are obtained for the cocrystal with P (1 : 2). Here a singular molecule 1 is surrounded by two P molecules on both sides of the chromophore's surface. Thus, the two components stack at a distance of 3.5 Å with the long axis of P rotated 83° relative to the long axis of the CBI (Fig. 2d and S5, SI). In the cocrystal with the smallest guest I₂Cz, one I₂Cz molecule binds on each side of the CBI π-surface at a distance of 3.4 Å. Additionally, the CBI chromophore is surrounded by two additional I₂Cz molecules forming hydrogen bonds between the I₂Cz's N–H and the CBI's C=O moieties with a distance of 2.0 Å (Fig. 2e and S6, SI). Therefore, five different crystals of sterically shielded 1 with and without molecules of different donor abilities could be grown: two single crystals of pristine CBI 1 and three cocrystals containing different guest molecules.

Aggregation and complexation studies

Different from other cocrystalline CT complexes,¹⁶ the large π-surface of CBI can provide sufficiently large Gibbs π–π-stacking energies with aromatic guest molecules that are mostly governed by dispersion forces, i.e. related to the area of the interacting surfaces.⁴¹ This allows us to support our investigations on the emission colour tuning by environmental engineering in solid state samples by the related defined complexes formed in solution upon addition of the respective guest molecules. Firstly, the aggregation of 1 was examined in a mixture of methylcyclohexane/1,1,2,2-tetrachloroethane (MCH/TCE = 85/15) at 298 K. The concentration(c₀)-dependent study shown in Fig. 3a displays spectral changes upon increasing c₀ with multiple isosbestic points. The spectra at higher c₀ are less structured than that of the monomer and spread over a larger wavelength range. The intensity of the S₀–S₂ absorption decreases and a new λ_max at 448 nm appears. The S₀–S₁ absorption also decreases and shifts bathochromically. As multiple isosbestic points are observable at 435, 469 and 517 nm, only two different species are present in the studied concentration range, indicating a dimerization process. Therefore, the experimental data were fitted according to a global monomer–dimer model⁴² over the 350–600 nm spectral range. The monomer spectrum calculated from those data almost perfectly matches the experimental absorption spectrum at 10⁻⁵ M in more polar CHCl₃ where monomers prevail (Fig. 1b). A degree of aggregation (α_agg) up to 90% can be reached at the solubility limit of 1 × 10⁻⁴ M in the respective solvent mixture (Fig. 3a and S7, SI). The dimerization constant in MCH/TCE (85/15) at 298 K is remarkably high with K = 3.0 × 10⁵ M⁻¹, significantly exceeding that of the smaller PBI chromophore with the same terphenyl imide substituents (4.3 × 10⁴ M⁻¹) which was determined in pure MCH.³² This enhanced thermodynamic driving force for dimerization arises from the by 40% larger π-surface of CBI 1 compared to PBI, resulting in stronger intermolecular interactions with a Gibbs free binding energy of ΔG = −31.2 kJ mol⁻¹. Although aggregation of CBI derivatives has been reported before,^43,44 the focus of these earlier works were different and did not provide dimers of defined size with such exceptionally high aggregation constant of 10⁵ M⁻¹. Regarding the photoluminescence properties, the transition from monomers to dimers goes along with significant changes in wavelength and lifetime. Thus, whilst the monomer of CBI 1 shows a green short-lived emission at 516 nm in CHCl₃ (Fig. 1b), the dimer 1₂ exhibits an orange excimer-like emission λ_em at 594 nm, which is less structured compared to the monomer and shows an increased lifetime (τ_PL) of 19.9 ns (Fig. S8, SI).

Fig. 3 (a) Concentration-dependent UV/vis absorption spectra (grey solid lines) for CBI 1 in MCH/TCE (85/15; c₀ = 1.26 × 10⁻⁴ – 5.66 × 10⁻⁷ M) at 298 K. The dashed (grey) and solid lines represent the calculated monomer (red) and dimer (blue) spectra according to a global fit analysis by the monomer–dimer model. The arrows indicate the spectral changes with increasing concentration. The inset depicts the monomer–dimer fit (red line) at λ_max = 426 nm (black symbols). (b) UV/vis absorption spectra (solid lines) for a solution of CBI 1 (c₀ = 1.45 × 10⁻⁵ M, red line) and changes upon addition of T as guest (grey to blue lines, 5538 eq.) in TCE at 298 K. Arrows depict spectral changes with increasing amount of the guest T. Inset shows the absorption at λ_max = 513 nm (black symbol) with nonlinear curve to the 1 : 2 (red line) global (490–550 nm) model.

As the thermodynamic driving force for self-assembly of CBI 1 is reduced in more polar solvents like pure TCE, and since the single-crystal structure showed that the imide substituents form a cavity, host–guest titrations were performed with electron-rich P, T and I₂Cz as guest molecules at 298 K, which have different electron-donating strength (Fig. S9, SI). Complexation with 1 is demonstrated by significant changes in UV/vis absorption spectra upon addition of guest molecules (Fig. 3b and S10–S12, SI). As exemplified by the titration with T in Fig. 3b there is a strong decrease of both CBI absorption bands with a concomitant bathochromic shift as T concentration increases, corroborating the formation of a CT complex. An initial quasi-isosbestic point at around 517 nm disappears at higher T concentrations, which clearly indicates the sequential guest binding via the initial 1 : 1 to a final 1 : 2 complex with binding constants of K₁ = 199 and K₂ = 17 M⁻¹. Titration with P likewise shows a decrease of the CBI absorption as well as the formation of a broad CT band from around 550–650 nm. The binding constants are the highest for P with K₁ = 1008 and K₂ = 235 M⁻¹ (Table S7, SI). This result complies with our expectations, given that P has the largest and most shape-complementary π-surface of all guests and can therefore form the strongest interactions with 1. Accordingly, for the titration with the smallest guest I₂Cz we observe the lowest binding constants of K₁ = 126 and K₂ = 42 M⁻¹. Still, compared to our previous studies on complexation with shielded PBIs with the same meta-terphenyl substituents, the formation of 1 : 2 complexes in solution is strongly supported by the increased CBI π-surface size.³² As expected from the CT character seen in the absorption spectra, pronounced changes can also be observed in the emission spectra of the complexes compared to that of the parent CBI which are all red shifted and less structured (Fig. S13 and Table S8, SI). For the complex with P the emission maximum is shifted most strongly to 680 nm, indicative for an exciplex, with the tail extending into the NIR region.

Solid state PL measurements

As a most interesting part of this study, the emission properties of the five (co)crystals were investigated. Suitable crystallites were handpicked onto Si/SiO₂ substrates (Fig. S14, SI) and ensembles of each were deposited on quartz substrates for the determination of Φ_PL (Fig. 4a and S15–S19, SI). The crystal [1]_n with slip-stacked CBI molecules exhibits a well-resolved green emission with vibronic fine structure at an emission maximum (λ_em) of 536 nm with a short lifetime (τ_PL) of 4.44 ns and a Φ_PL of 9% (Fig. 4a, S20 and Table 1, SI). Our theoretical analysis, taking both Coulomb and CT coupling into account, suggests weak J-type coupling (J_total = −94 cm⁻¹; Fig. S21 and Table S9, SI),^45,46 which may contribute to the modest bathochromic shift of the emission band while retaining monomer-like vibronic structure, similar to that observed for the CBI 1 monomers in solution (Table 1).

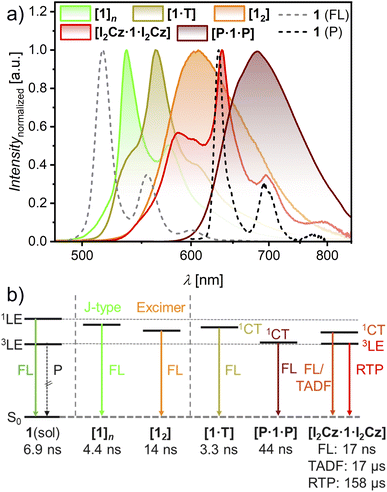

Fig. 4 (a) PL spectra of respective microcrystals on Si/SiO₂ substrate at 298 K upon UV irradiation ([1]_n) or excitation at λ_ex = 440 nm ([1₂]), 452 nm ([I₂Cz·1·I₂Cz]) or 476 nm ([1·T], [P·1·P]), respectively. Additionally, the fluorescence (FL, 298 K; dashed grey) and phosphorescence (P, 80 K; dashed black) of 1 in (frozen) CHCl₃ solution are shown. (b) Schematic illustration of the energy levels of pristine 1 in solution and of the five (co)crystals. Additionally, the major lifetime components are given below.

Table 1 Summary of the optical properties of 1 as a monomer in solution as well as in the (co)crystalline state at 298 K. (Co)crystalline materials are marked by [guest·1·guest]

Material	λabs/CT [nm]	λem [nm]	ΦPL^b [%]	τPL(Rel.)^c [ns(%)]	PL
a Measured in CHCl3.b ΦPL with absolute method at 298 K.c τPL measured either with µs flash-lamp (TADF, RTP) or with ps laser (^1LE, CT and EX) at RT and at their respective maxima with major lifetime components for mono- or biexponential fits.
1^a solution	430	516	31	6.86 (100)	^1LE
[1]n crystal	440	536	9	4.44 (87)	^1LE
				12.3 (13)
[12] crystal	472	608	19	14.0 (85)	EX
				28.3 (15)
[1·T] crystal	474	563	16	3.30 (79)	CT
				8.87 (21)
[I2Cz·1·I2Cz] crystal	468	587	<1	1.68 × 10^4 (50)	TADF
		635		1.58 × 10^5 (59)	RTP
[P·1·P] crystal	471	677	3	44.1 (100)	CT

---

The second single-crystal, composed of isolated dimers with substantial π–π-overlap, [1₂] exhibits a bright and broad orange fluorescence (FL) at λ_em of 608 nm. This red-shifted and broadened emission, together with an increased τ_PL of 14.0 ns (with a second component of 28.3 ns) is consistent with excimer-like (EX) emission.⁴⁷ This behavior is plausibly associated with stronger intermolecular interactions in the twisted, closely π-stacked dimer arrangement, which may facilitate enhanced coupling between transition dipole moments (µ_eg) and allow for some degree of structural relaxation in the excited state.⁴⁸ Calculations for the Coulomb and CT couplings for the dimer structure in the single crystal here show opposing values with a smaller negative, i.e. J-type, J_coul (−101 cm⁻¹) and a larger positive, i.e. H-type, J_CT (573 cm⁻¹; Fig. S21 and Table S9, SI). The weak Coulomb coupling for the CBI S₁ state may not only arise from a non-ideal arrangement for J-type coupling but also a consequence of the rather small µ_eg of only 3.0 D. Therefore, CT (J_CT) and vibronic couplings may be more dominant for determining the observable spectral changes.^45,46 Still, this crystal [1₂] has a high Φ_PL of 19% which like the spectral shape mimics the emission observed for the dimer aggregate in solution (Table 1; S8 and Fig. S8, SI).

The 1 : 1 cocrystal [1·T] has a yellow and structured emission with λ_em at 563 nm and τ_PL of 3.30 and 8.87 ns, indicating exciplex fluorescence emission with a Φ_PL of around 16%. Again, the shape of the emission spectrum is similar to that obtained for the 1 : 2 complex in solution as they originate from the same donor (T) and acceptor (1) pair (Table 1; S8 and Fig. S13, SI). The broad and structureless red emission of the 1 : 2 cocrystal [P·1·P], with a maximum at 677 nm and an increased lifetime of 44.1 ns is a clear case of exciplex fluorescence emission. Again, this emission mimics that of the complex formed by CBI 1 and P in solution after selective irradiation of the CT band (Table 1; S8 and Fig. S13, SI).

The most interesting case is the cocrystal [I₂Cz·1·I₂Cz] which exhibits a dual orange-red emission at room temperature, albeit with a Φ_PL of only 1% (Table 1). One emission band is broad with a maximum of λ_em at 587 nm, the other shows well-resolved vibronic progressions at a maximum of λ_em at 635 nm with τ_PL of 17 ns and 158 µs, respectively (Fig. S19, SI). The latter value indicates room-temperature phosphorescence (RTP) not only due to the long τ_PL, but also to the fact that the structural shape and position match those of the phosphorescence emission from ³LE of 1 in solution sensitized by ethyl iodide at 80 K (Fig. 4a). The external heavy-atom effect (eHAE) of the iodine atoms attached to the carbazole guest can obviously effectively sensitize ISC.¹⁹ The lifetime measurement for the CT emission at 587 nm revealed both prompt fluorescence with τ_PL of 17.1 ns (Fig. S19c, SI) and a delayed component (see ungated and gated spectra in Fig. S19b, SI). By using a flash-lamp, a long lifetime from 16.8 up to 237 µs could be measured, indicating TADF emission. Therefore, ISC between the ¹CT and the ³LE of CBI is present, as well as reverse ISC (RISC). These results demonstrate that the 1 : 2 complex exhibits dual TADF and RTP emission in the solid state. The prompt emission again matches the emission obtained in solution of the complex (Table 1; S8 and Fig. S13, SI).

Based on our experimental findings, we can now compare the energy levels of the emissive states for the (co)crystals with those of 1 in solution (Fig. 4b). The emissive states of the (co)crystals are all located below the locally excited singlet state (¹LE) and higher than the triplet state (³LE) of the CBI chromophore. As expected from the energy levels of the frontier orbitals (Fig. S9, SI), the emission observed for the cocrystals becomes more red-shifted from T to I₂Cz up to P. The ¹CT state of [P·1·P] is here the lowest. For [I₂Cz·1·I₂Cz] the ¹CT and ³LE states are energetically close which enables dual emission with TADF and RTP contributions. Notably, the ³LE state remains rather unchanged in the cocrystal as the position of the RTP proves. The anisotropy of all the cocrystals was also investigated using polarization-dependent microscopy (Fig. S22–S26, SI). All crystals showed a measurable dependence, with the strongest response observed for [1₂] and [1·T], corresponding to an intensity reduction of about 70%.

Temperature-dependent measurement of [I₂Cz·1·I₂Cz]

To explore in more depth the emissive characteristics of the [I₂Cz·1·I₂Cz] cocrystal, temperature(T)-dependent experiments were performed under an inert argon atmosphere. Ensembles of cocrystalline samples deposited on Si/SiO₂ substrates were cooled to 80 K, followed by stepwise heating (ΔT = 20 K) up to 298 K. Further, the PL spectrum at 5 K could be measured (Fig. 5). Upon cooling [I₂Cz·1·I₂Cz] down to 80 K a strong increase of the emission intensity and a more structured spectrum is observed which is explained by the suppression of thermal lattice vibrations and the deactivation of RISC towards TADF. Upon further cooling to 5 K the broad CT emission at 587 nm vanishes completely and τ_PL further increases to over 5 ms (80 K, 635 nm), while the spectral shape remains rather unchanged, resulting from a reduction in non-radiative decay. Increasing the temperature to room temperature causes the emission intensity and lifetime to decrease significantly (Table S10, SI). The T-dependent PL study verifies that [I₂Cz·1·I₂Cz] exhibits phosphorescence emission (Fig. S27, SI). To the best of our knowledge, this is the first pure organic CBI-based cocrystal showing RTP and TADF emission.

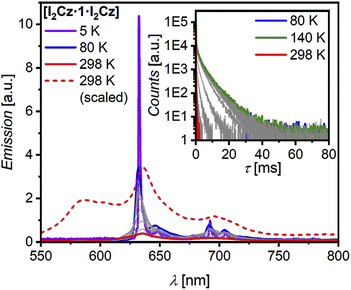

Fig. 5 Temperature-dependent PL measurement of an ensemble of micro-cocrystals [I₂Cz·1·I₂Cz] under inert conditions on Si/SiO₂ substrate upon excitation at λ_ex = 452 nm. PL spectra are displayed at 80 K (blue line), in steps of 20 K (grey lines) heating up to 298 K (red line). The spectrum at 5 K (λ_ex = 480 nm; solid violet line) and the scaled spectrum at 298 K (dashed red line) are also given. Inset shows the evolution of the PL lifetime starting from 80 K (blue line) upon heating in steps of 20 K (grey lines) up to 140 K (green line) and 298 K (red line).

Conclusions

With the attachment of two bulky meta-terphenyl substituents at the imide nitrogen, a sterically shielded coronene bisimide (CBI) chromophore could be synthesized. By this means, the formation of extended π-stacks could be prohibited and instead either dimer aggregates or 1 : 2 host-guest complexes could be obtained. Thus, self-assembly in low-polarity methylcyclohexane/1,1,2,2-tetrachloroethane (MCH/TCE) solvent mixtures afforded discrete dimeric π-stacks characterized by a high binding affinity of 3.0 × 10⁵ M⁻¹ at 298 K. Further, the electron-poor CBI can act as an efficient host system for various electron-rich guest molecules as demonstrated for perylene (P), triphenylene (T), and 3,6-diiodocarbazole (I₂Cz). Formation of 1 : 2 charge-transfer (CT)-complexes has been demonstrated for all three guests in TCE solution, with binding constants as high as K₁ = 1008 M⁻¹ and K₂ = 235 M⁻¹ for P. Five different single-crystal structures could be obtained that show a broadly tunable emission colour ranging from green up to the NIR. With almost identical and well-characterized complexes being accessible both in solution (due to the high binding affinity of the large CBI π-surface) and in solid state (due to the prohibition of more extended π-stack formation by the sterically demanding imide substituents), a unique investigation of emission properties became possible. Thus, two different crystals of the pristine CBI 1 showed very similar emission properties as observed for the monomer and the dimer aggregate in solution. One crystal exhibits an H-type dimer packing with orange excimer-type emission and the highest quantum yield of all the crystals. The other crystal exhibits a slipped-stacked packing arrangement which afforded a green monomer-like fluorescence and quantum yield of 9%. Next, by uptake of T and P in the receptor pockets of CBI co-crystals were obtained that show yellowish (16%) and red (3%) exciplex fluorescence, respectively. Most remarkably, the co-crystal of CBI 1 with I₂Cz (1 : 4) exhibited a red-coloured dual emission originating from the ¹CT state (and involving both prompt and delayed fluorescence via thermally activated delayed fluorescence (TADF)) and a long-lived room-temperature phosphorescence (RTP) from CBI's ³LE state. This work demonstrates that the emission of CBI systems can be tuned across a broad spectrum (from green to NIR) by controlling self-assembly and guest binding. This establishes a fundamental design principle, whereby the supramolecular organisation and host–guest interactions of a structurally defined CBI platform collectively determine the emission colour and excited-state dynamics.

Author contributions

S. S.: conceptualization, investigation, formal analysis, visualization, writing – original draft; Ö. Ö.: investigation, visualization; K. S.: investigation (crystallography), formal analysis (crystallography); D. H.: investigation (spectroscopy), writing – review & editing; J. D.: investigation (spectroscopy); S. H.: resources; S. K.: resources, writing – review & editing; M. S.: conceptualization, investigation (spectroscopy), formal analysis (spectroscopy), supervision, writing – review & editing; F. W.: conceptualization, resources, supervision, writing – review & editing, founding acquisition.

Conflicts of interest

There are no conflicts to declare.

Data availability

CCDC 2540045 [1]_n, 2540046 [1₂], 2540047 [1·T], 2540048 [P·1·P] and 2540049 [I₂Cz·1·I₂Cz] contain the supplementary crystallographic data for this paper.^49a–e

The data underlying this study are available in the supplementary information (SI) and in Zenodo, an open research repository, at https://doi.org/10.5281/zenodo.19203936.

Supplementary information is available. See DOI: https://doi.org/10.1039/d6sc02467j.

Acknowledgements

We acknowledge DESY (Hamburg, Germany), a member of the Helmholtz Association HGF, for the provision of experimental facilities. Parts of this research were carried out at PETRA III. Data were collected using P11 operated by DESY Photon Science. We would like to thank Dr. Guillaume Pompidor and Dr. Johanna Hakanpää for assistance during the experiments. Beamtime was allocated for proposals I-20230262 and I-20231007. We acknowledge financial support by the German Research Foundation (DFG) through the Würzburg-Dresden Cluster of Excellence ctd.qmat – Complexity, Topology and Dynamics in Quantum Matter (EXC 2147, project-id 390858490). The authors thank Dr. Menyhárt B. Sárosi for the theoretical calculations and Johannes Nowarra for X-ray diffraction measurements.
