Wissuta
Boonta‡
a,
Ratanakorn
Teerasarunyanon‡
a,
Chattarika
Sukpattanacharoen
bc,
Sanhawat
Rumporee
a,
Phurinat
Lorwongkamol
a,
Nattapong
Paiboonvorachat
a,
Pongphak
Chidchob
a,
Suwit
Suthirakun
b and
Junjuda
Unruangsri
*ad
aDepartment of Chemistry, Faculty of Science, Chulalongkorn University, Bangkok 10330, Thailand. E-mail: junjuda.u@chula.ac.th
bSchool of Chemistry, Institute of Science, Suranaree University of Technology, Nakhon Ratchasima 30000, Thailand
cDivision of Innovation and Research, Department of Disease Control, Ministry of Public Health, Nonthaburi 11000, Thailand
dPhotocatalysts for Clean Environment and Energy Research Unit, Faculty of Science, Chulalongkorn University, Bangkok 10330, Thailand
First published on 10th April 2025
The development of metal-free, low-loading catalysts, together with the use of water as a benign solvent is desirable for advancing facile and efficient catalysis of organic transformations in an environmentally friendly manner. The direct oxidation of sulfides to sulfoxides is a key process in organic synthesis and pharmaceuticals. This study introduces metal-free porphyrin-integrated poly[9,9′-dioctylfluorenyl-2,7-diyl)-co-(1,4-benzo-thiadiazole)] polymer dots (PFBT-TPP Pdots) as photocatalysts for photo-aerobic sulfide oxidation in water. PFBT-TPP Pdots were synthesized by the Suzuki–Miyaura cross-coupling process. DFT calculations confirmed the conjugation and delocalization characteristics of TPP incorporated into PFBT. The conjugated polymers were converted into Pdots using coprecipitation with poly(styrene-co-maleic anhydride). Pdots with a diameter of around 30 nm demonstrated exceptional dispersion in water. PFBT-TPP Pdots efficiently photocatalyzed 0.1 M of thioanisole or other sulfide derivatives, attaining remarkable conversion efficiency (80–100%) and selectivity (88–100%) at a low catalytic loading (50 μg of conjugated polymer) in water, under 1 atm O2, at ambient temperature, and under 3 h-LED illumination (20 W, λ = 456 nm). The photocatalytic process was scaled to produce gram quantities of the isolated product with high selectivity and no signs of over-oxidation. This demonstrates a sustained and practical application. The computational analysis and experimental findings illustrated that PFBT-TPP Pdots effectively generated reactive oxygen species during photocatalysis, leading to enhanced catalytic efficiency compared to PFBT Pdots and their metal-containing counterparts. This study highlights the potential of Pdots for efficient, selective photocatalysis in aqueous environments, overcoming common solubility challenges for substrates and products.
The utilization of various categories of organic and inorganic compounds such as PSs or PCs has garnered interest. Organic dyes, for example, porphyrins,11,12 Rose Bengal,13 BODIPY,14 methylene blue,15 riboflavin,16 9,10-dicyanoanthracene,17 and thioxanthones18 were used as PSs or PCs in photo-aerobic oxidation of sulfides. Their drawbacks are the degradation of organic dye-based PSs during photocatalysis and their difficult-to-tune photophysical properties. Over-oxidation and C–H oxidation have occurred concurrently in certain instances. The use of inorganic catalytic materials, Bi4O5Br2 and Pt/BiVO4, as PCs was witnessed.19,20 However, sluggish reactivity and poor selectivity were detected. It was also discovered that the combined organic–inorganic composite dye-Ti-MCM-41,21 dye-TiO2,22,23 CdS/g-C3N4,24 and metal organic frameworks25 functioned as efficient PCs. Nonetheless, additional redox mediators, including trimethylamine, 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO), and H2O2, are necessary for these catalytic systems. Coordination metal complexes were also found to function as active photocatalysts for sulfide conversion.26,27 However, their cost and contamination of metal residue in the products were proved to be disadvantageous. Another category of heterogeneous photocatalysts burgeoning in this field is organic polymeric materials, graphitic carbon nitride (g-C3N4)28,29 and conjugated polymers.30,31 These materials possess adjustable electronic properties and synthetic variation. It is crucially noteworthy that sulfide oxidation by homogeneous and heterogeneous photocatalysts is commonly conducted in organic solvents. The oxidation reaction in water, a solvent known for its cost-effectiveness and environmental benignity, is hindered by the restricted solubility of photocatalysts and sulfide substrates. This limitation leads to challenges in mass transfer.32,33 Therefore, the precedent literature featuring photo-aerobic sulfide oxidation in water is scarce.
Polymer dots (Pdots) are an emerging class of conjugated organic polymer nanoparticles characterized by a diameter that is smaller than 100 nm. Pdots contain a folded conjugated polymer that facilitates intense π–π stacking interactions between inter- and intra-chains, resulting in charge localization within the particles via the creation of excimers and exciplexes.34 A polymeric surfactant or amphiphilic polymer forms an exterior layer, enabling Pdots to disperse in water. Their distinctive optical, electronic, luminescence, and physical properties, and water solubility lead to initial practical utilities in biological applications, including phototherapeutics, cell imaging, and biosensing.35–37 In addition, Pdots have also been implemented in catalysis, particularly in the processes involving multiple charge transfers and aqueous media. There has been a focus on utilizing Pdots with various chemical architectures, as well as their combination with nanoparticles, for photo-driven hydrogen evolution over the past few years.38–41 Furthermore, Tian et al. only recently demonstrated the intriguing application of Pdots in photocatalytic CO2-to-CO conversion in aqueous solutions, achieving an appreciable rate with 100% selectivity.42
In this study, we investigate the potential of Pdots based on poly[9,9′-dioctylfluorenyl-2,7-diyl)-co-(1,4-benzo-thiadiazole)] (PFBT) and its incorporated porphyrin (PFBT-TPP) and metalated porphyrin (PFBT-(M)TPP) derivatives, as photocatalysts for aerobic oxidation of sulfide in aqueous media. Within our scope of study, PFBT with 1 mol% TPP incorporated (PFBT-1%TPP) displayed the best activity toward thioanisole oxidation, achieving a superior sulfoxide production of 1.33 mol g−1 h−1 and over 99% selectivity. A broad range of sulfides were fully converted into the corresponding sulfoxides with similar rates to thioanisole. Our photocatalytic system can be scaled up to gram-scale production. The photocatalytic examination revealed that both 1O2 and ˙O2− are oxidants in this case. The experimental findings were supported by DFT calculations. To the best of our knowledge, this is the first-time illustration of Pdots successfully functioning as a photocatalyst in sulfoxidation in water, with no cocatalysts or sacrificial electron donors needed.
Synthetic protocols and detailed characterization of 5-phenyldipyrromethane, 5,15-bis(4-bromophenyl)-10,20-diphenylporphyrin (TPP-Br2), ZnTPP-Br2, and CoTPP-Br2 are provided in the ESI.†
We first characterized the chemical structures of the parent PFBT polymer and porphyrin-containing PFBT-TPP polymers. 1H-NMR spectroscopy confirmed the presence of TPP units in the PFBT-TPP polymers (Fig. S1†). Due to low loading of TPP units, IR spectra of PFBT-TPP showed almost no difference to that of PFBT (Fig. S2†). The mole fractions of TPP units incorporated in PFBT-TPP polymers were 0.74 and 4.3 mol% for PFBT-1%TPP and PFBT-5%TPP, respectively (Fig. S1†), as calculated by using the 1H-NMR integral ratio between the methyl protons of dioctyl substituents in the 9,9′-dioctylfluorenyl-2,7-diyl unit against N–H protons of TPP rings. For metalloporphyrin-containing polymers, the actual contents of incorporated metals were 44% (PFBT-1%CoTPP) and 77% (PFBT-1%ZnTPP) as analyzed by inductively coupled plasma optical emission spectroscopy. These values were slightly lower than the feeding TPP value of 1 mol%. Furthermore, the number average molecular weight (Mn) and polydispersity index (PDI) of all polymers were analyzed by gel permeation chromatography (Table S1†). Adding higher mole fractions of TPP units led to shorter polymer chains (Mn = 47.2 kg mol−1 for PFBT, 38.8 kg mol−1 for PFBT-1%TPP and 15.3 kg mol−1 for PFBT-5%TPP), while the molecular weight distribution became narrower (i.e. lower PDI values) with the increasing mole fraction of TPP units. The incorporation of 1 mol% of (M)TPP units also reduced the Mn of the polymers as compared to that of the non-metalated PFBT-1%TPP polymer. These trends likely stem from the decreasing solubility of growing polymer chains as more TPP units are added, thus hindering the formation of longer TPP-containing polymer chains in the synthetic medium.
Photophysical properties of PFBT, PFBT-TPP and PFBT-(M)TPP polymers were compared in their molecularly dissolved state. The solution of PFBT polymer in THF displayed the main absorption peak at 455 nm (Fig. 1b). For TPP- and (M)TPP containing polymers, new absorption peaks, including the intense Soret band at 418 nm and a group of weak Q bands between 500 and 650 nm, could be observed, thus indicating the presence of TPP- and (M)TPP units in the conjugated polymers (Fig. 1b and S3†). For photoluminescence characterization, all polymers showed emission bands at 534 nm, which originated from the conjugated PFBT backbone (Fig. 1c).42,47 Interestingly, the emission intensity became lower when incorporating TPP or (M)TPP units in the main chains (Fig. 1c and S4†). Such emission quenching strongly suggests the energy transfer between PFBT chains and TPP or (M)TPP units.48 Therefore, we can conclude that the porphyrin derivatives were successfully incorporated into the main chains of PFBT polymers. To understand the influence of TPP units on the electronic structures of the copolymers, the energy levels of frontier molecular orbitals of PFBT-1%TPP were computationally calculated (Fig. S5†). It can be seen that the HOMOs and LUMOs of PFBT-1%TPP are distributed over both PFBT and TPP units, signifying that the TPP unit is well conjugated into the PFBT main chain, and a certain degree of delocalization is anticipated. The computational analysis of PFBT demonstrated a smaller bandgap when a larger conjugated system was constructed (Fig. S6†). and PFBT (n = 4) was calculated to have a bandgap of 2.70 eV, a LUMO level at −2.60 eV and a HOMO level at −5.31 eV. Once (M)TPP was integrated to PFBT, a slight change in bandgap values was observed in the range of 2.60–2.70 eV, while the LUMO and HOMO levels of PFBT-TPP and PFBT-(M)TPP were changed in energy to ca. −2.46 eV and −5.06 to −5.16 eV, respectively (Fig. 1c).
Pdots exhibited different photophysical properties when compared to the loose polymer solution in THF. In particular, the absorption spectrum of Pdots was slightly broadened and red-shifted (Fig. 2c and S9†), indicating the interchain interactions and the aggregation of polymer chains in Pdots.42,49–52 The formation of Pdots also affects the photoluminescence of the polymers (Fig. 2d and S10†); the emission was quenched and also red-shifted when compared to that in THF. The decrease in fluorescence intensity could be attributed to the interchain interactions of conjugated polymer aggregates inside the Pdot core, leading to a prolonged excited-state lifetime as well as more non-radiative relaxation and migration of electrons to the quenching sites.42,53 An attempt to measure the accurate fluorescence lifetimes to probe these effects was unsuccessful due to the instrumental limitation for sub nanosecond analysis. In addition to the emission of the PFBT backbone, the characteristic fluorescence bands of TPP units could be clearly observed at 655 nm and 720 nm.54(M)TPP-based Pdots displayed similar absorption and emission profiles to the benchmark polymers. However, the TPP fluorescence was quenched and blue-shifted in (M)TPP-based Pdots (e.g., 600 nm and 650 nm observed in PFBT-1%ZnTPP Pdots).55 Some physical properties of Pdots are summarized in Table S2†.
A time profile of the photocatalytic process was obtained over a 24-h duration (Fig. 3a). The conversion of thioanisole progressively increased, achieving >98% conversion after 10 h, with >95% selectivity. Moreover, there was no evidence of sulfone formation or other degradation products when the photocatalytic activity was tested for an additional duration of 14 h. This may be attributed to the formation of hydrogen bonds between water and thioanisole, thereby preventing over-oxidation to the corresponding sulfone.56,57
Recognizing the potential of PFBT Pdots in photocatalytic aerobic oxidation of sulfide, we sought to modify the structure of the conjugated PFBT polymer by incorporating TPP units into the polymer chain. We anticipated that porphyrin would serve as a promising candidate for enhancing the generation of ROS, as demonstrated in prior literature studies.58,59PFBT-1%TPP Pdots was evaluated as a photocatalyst in the oxidation of sulfides under similar circumstances. The photocatalytic efficiency was significantly enhanced, achieving 100% conversion of thioanisole to MPS within 3 h with >99% selectivity (Fig. 3b).
Under a limited oxygen concentration atmosphere (i.e. air zero), thioanisole conversion was compromised and decreased to 25%. Furthermore, it was noted that the photocatalytic activity remained unchanged despite the increase in the amount of TPP units integrated into the conjugated polymer chain, as PFBT-5%TPP Pdots served as a photocatalyst. Thus, only PFBT-1%TPP Pdots will be subjected to further photocatalytic investigation and discoursed in this work.
We then assessed the enhanced catalytic efficacy of the metal-free photocatalyst, PFBT-1%TPP Pdots, in comparison to PFBT-1%ZnTPP Pdots and PFBT-1%CoTPP Pdots (Fig. 3c).
The photocatalyzed conversion of thioanisole to MPS using PFBT-1%ZnTPP Pdots was much slower than that using PFBT-1%TPP Pdots; nonetheless, the conversion steadily increased with time and a full conversion was achieved within 10 h, akin to the process catalyzed by PFBT Pdots. In contrast to the others, the photocatalysis by PFBT-1%CoTPP Pdots was sluggish. An extended induction time was noticed throughout the initial 8 h, with around 25% sulfide conversion recorded at 12 h. This comparative experiment marked the superior photocatalytic performance of the metal-free conjugated polymer dots for sulfide oxidation under the studied conditions.

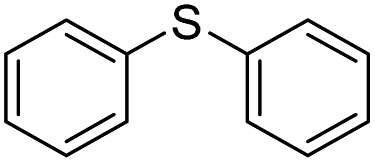

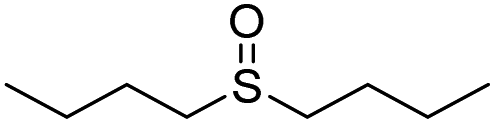

Having established the optimal reaction conditions and the best performing photocatalyst, the scope of sulfide substrates was expanded to cover electron-donating and electron-withdrawing derivatives of thioanisole, dialkyl thioether, and diphenyl thioether. The photo-oxidation of various sulfides (0.2 mmol, 0.1 M) employing PFBT-1%TPP Pdots as the photocatalyst under identical conditions was conducted with 3 h irradiation. Table 1 demonstrates that photocatalysis with PFBT-1%TPP Pdots consistently achieved good yield and selectivity across many substrates, indicating broad substrate compatibility. Nonetheless, the conversion efficiency of these substrates may be influenced by their electronic effects. The electron-withdrawing aryl-substituted sulfide (Entry 3, Table 1) attained only 81% conversion and 96% selectivity. This observation is frequently reported in other studies in this field.60,61 Dibutyl thioether underwent photocatalysis, resulting in 100% conversion with 88% selectivity of dibutyl sulfoxide and 12% of dibutyl sulfone (Entry 4, Table 1). Dibutyl thioether was the only substrate that underwent over-oxidation to yield sulfone under these catalytic conditions. This is anticipated to be attributed to the most electron-rich sulfur atom of dibutyl sulfide among all tested substrates. Lastly, the oxidation of diphenyl sulfide is commonly recognized as more challenging than that of analogous dialkyl or alkyl aryl thioethers due to the reduced electron density on the sulfur atom. The oxidation of diphenyl sulfide with singlet oxygen is considerably less active in comparison to the oxidation of other sulfides.11,62 The comprehensive photo-oxidation of diphenyl sulfide to the corresponding sulfoxide (100% conversion with ≥99 selectivity, Entry 5 Table 1), suggests that our catalytic system may use both 1O2 and ˙O2− as ROS (vide infra).
Entry | Substrate | Product | Conv. (%)b | Sel (%)b |
---|---|---|---|---|
a All experiments were performed in the presence of 0.2 mmol sulfide, 2 mL of PFBT-1%TPP Pdot aqueous solution (50 mg of PFBT-1%TPP), and an O2 balloon, under 3 h photo-irradiation with a blue LED (λmax = 456 nm). b Determined by GC-FID using dodecane as an internal standard. Three repeat experiments were carried out and the underlying error estimate is ±3%. | ||||
1 |
![]() |
![]() |
100 | ≥99 |
2 |
![]() |
![]() |
100 | 95 |
3 |
![]() |
![]() |
81 | 96 |
4 |
![]() |
![]() |
100 | 88 (12% sulfone) |
5 |
![]() |
![]() |
100 | ≥99 |
The endeavours to increase the extent of thioanisole photooxidation were evident. The gram-scale reaction was executed successfully with 10 mmol thioanisole (1.2 g) and 100 mL of PFBT-1%TPP Pdot aqueous solution under 3 h of blue LED illumination (Fig. S12†). The resulting product, MPS, was obtained in a 95% isolated yield with high NMR purity (Fig. S13†). Crystallization in cold methanol was utilised to obtain additional purification. This effective scale-up reaction shed light on the practical use of the green and sustainable photocatalytic sulfide oxidation. It is essential to highlight that our research showcases effective sulfide photo-oxidation at milligram to gram scales in pure water, a phenomenon that is rather uncommon due to the insolubility of sulfides in water and limited mass transfer. Our photocatalysis results were incorporated into a small compilation of studies on light-mediated aerobic oxidation of sulfides in aqueous or water-based binary systems for thorough and comparative analysis (Table S3†).
Equipped with this information, we were able to suggest plausible processes for photo-oxidation of sulfide (Fig. 5). Upon the illumination of PFBT-1%TPP Pdot, electrons in the HOMO are promoted to the LUMO, generating free electrons and positively charged holes. This consequently facilitates two concurrent routes for ROS generation via ET and SET processes. For the ET pathway, the generated 1O2 reacts with electron-rich sulfide producing a diradical peroxysulfoxide intermediate (A). This species then reacts with another sulfide giving an unstable hypervalent intermediate (B), which eventually transforms into the corresponding sulfoxide.65 Simultaneously, the positively charged hole oxidizes sulfide forming a radical cation (C), which then reacts with ˙O2−, leading to the peroxide cation intermediate (D) in aqueous solution. The intermediate interacts with an additional sulfide, subsequently undergoing deprotonation to produce the equivalent sulfoxide. The process, including proton transfer stages, suggests that a protic medium such as water may significantly facilitate the synthesis of sulfoxide.66
![]() | ||
Fig. 5 Proposed mechanism for the photo-oxidation of sulfide to sulfoxide via electron transfer (ET) and single electron transfer (SET) reactions. |
When considering the excitation states and corresponding energy levels of PFBT-1%TPP as a closed-shell system, we found that the primary singlet excitation was S0 → S5 (Fig. 6). This excitation process involved the HOMO-2 → LUMO + 1 transition, corresponding to an intramolecular charge transfer (ICT) within the polymer chain. For the emission process, the main fluorescence peaks of PFBT-1%TPP observed at 534 nm and 655 nm (Fig. 1c and 2d) originated from relaxation pathways involving LUMO + 3 → HOMO (S2 → S0) and LUMO → HOMO (S1 → S0) transitions, thus indicating a strong contribution from the TPP unit. In the context of the triplet excited state, the relative energy level of the S1 state closely aligned with that of the T5 state, allowing a population of intersystem crossing (ISC) toward the triplet state. This ISC was driven by the energetic difference between excited singlet and triplet states with a intersystem crossing energy gap (ΔEISC) of 0.15 eV. Subsequently, energy transfer via processes like triplet–triplet annihilation or triplet−triplet energy transfer led to singlet oxygen (1O2) generation.
An introduction of metal centers in PFBT-(M)TPP polymers could affect the generation of 1O2 to a certain degree. In PFBT-1%ZnTPP, the Zn metal center led to a slight alteration in the primary singlet excitation, transitioning to S0 → S7 (HOMO-2 → LUMO + 1, Fig. S16†). Given the minor adjustments in relative energy levels of S1 and T5 states (ΔEISC = 0.27 eV), processes like triplet–triplet annihilation or triplet−triplet energy transfer could also potentially facilitate the generation of 1O2.67 Interestingly, upon introducing Co metal in the PFBT-1%CoTPP complex, we observed that the dominant doublet excitation is the D0 → D32 transition, corresponding to a balanced mixture of β-SOMO-2 → β-LUMO and α-SOMO-2 → α-LUMO type excitations in the doublet orbitals. These transitions involved the ICT within the polymer chain and pyridinic N moiety, while other transitions were negligible. Upon relaxation from D13 to D0, the excited state of PFBT-1%CoTPP underwent radiative decay from β-LUMO + 2 to β-SOMO-1, leading to the emission at 534 nm. This transition was also associated with the ICT within the polymer chain. As shown in Fig. 6b, there was no driving force present to trigger quartet formation through ISC, either in the ground-state geometry or in a relaxed Q1 state. Consequently, there was no energy pathway for quartet-triplet annihilation to induce or excite the transition from triplet ground state oxygen (3O2) to singlet oxygen (1O2) in the excited state.68 Furthermore, it is noteworthy that the theoretical calculations indicated that both absorption and emission of PFBT-(M)TPP polymers predominantly originated from the PFBT backbone, further corroborating the experimental data, which showed no distinct TPP-based spectral features.
Taken together, computational analysis aligned with the experimental results in terms of the maximum absorption wavelengths (PFBT-1%TPP: calculated 448 nm and experimental 450 nm; PFBT-1%CoTPP: calculated 448 nm and experimental 450 nm), the primary contributions to the emission spectra, and the photo-aerobic phenomena. This underpins the superior photo-aerobic efficacy bestowed by the metal free PFBT-1%TPP to its metal-containing counterparts.
Footnotes |
† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5se00146c |
‡ These authors contributed equally. |
