Aminophosphonium organocatalysts for the ring-opening copolymerisation of epoxide and cyclic anhydride

Abstract

The Kirsanov reaction has been used to synthesise air stable, efficient and selective bifunctional aminophosphonium catalysts for the alternating ring-opening copolymerisation of cyclohexene oxide and phthalic anhydride without the need for a co-initiator.

---

Ring-Opening Copolymerisation (ROCOP) is a living polymerisation technique, which produces polyesters by selectively incorporating epoxides and cyclic anhydrides in an alternating fashion.^1,2 Control over the rate and alternating selectivity is determined by the catalyst, with the first example reported by Fischer in 1960.³ Since then, numerous highly active catalysts have been developed, including metal complexes based on porphyrin (Al(III), Cr(III), Co(III), Mn(III)),^4–6 salen (Al(III), Cr(III), Co(III), Mn(III)),^7–10 β-diiminate (Zn(II))¹¹ and dinucleating Schiff base (e.g., Al(III)/K(I))^12,13 ligands.¹⁴ More recently, organocatalysts have emerged as effective catalysts for ROCOP.¹⁵ The first metal free catalysis for ROCOP was reported by Gnanou, Feng and coworkers; Et₃B, in combination with an onium halide or onium alkoxide initiator, was shown to selectively catalyse the ROCOP of propylene oxide (and later other epoxides) and CO₂.^16,17 This has inspired other organocatalytic systems based on the combination of a Lewis acid (e.g., thio(urea)) and nucleophilic initiator (e.g., bis(triphenylphosphoranylidene)ammonium chloride (PPNCl)).^18–23 Phosphazene bases and benzyl alcohol have also been used in combination with thiourea moieties.^21,24,25In situ, this creates an aminophosphonium cation, which can act as a Lewis acid catalyst, and an alkoxide initiator (a system also efficient for ROP²⁴).

Aminophosphonium salts can also be directly produced through the Kirsanov reaction, via the oxidation of a phosphine with Br₂, followed by nucleophilic addition of an amine to form an aminophosphonium bromide salt, although anion exchange is possible.²⁶ Furthermore, such strategy relies on a wide pool of commercially available primary amines. We therefore envisioned that the Kirsanov reaction could be used to readily synthesise and tailor simple and air/moisture stable aminophosphonium salts towards ROCOP.

We hypothesised that the combination of the aminophosphonium moiety with a tertiary amine would weaken the N–H bond, improving epoxide activation as well as facilitating proton shuttling towards chain end stabilisation, with the bromide anion initiating the polymerisation. 1 was thus generated in one pot by reaction of readily available triphenyl phosphine (PPh₃) with commercial, bifunctional N,N-dimethylethylenediamine (Fig. 1), isolated in near quantitative yield (99%) as an air stable white powder, and characterised by multinuclear (³¹P{¹H}, ¹³C{¹H}, ¹H) NMR spectroscopy (Fig. S1 and S2, ESI†). Mass spectrometry detected a singly positively charged species with an m/z = 349.18 (Fig. S8, ESI†), and X-ray diffraction analysis of single crystals also confirmed a monocationic structure (Fig. 1). Efforts to protonate the tertiary amine by addition of HCl (2 mol L⁻¹ in Et₂O) affected no change in the ³¹P{¹H} NMR spectrum (Fig. S22, ESI†).

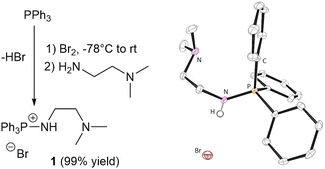

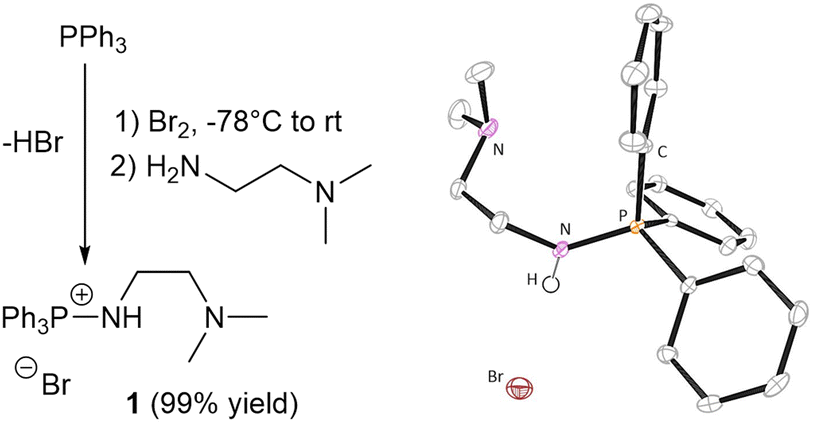

Fig. 1 Left: Synthesis of 1. Right: Molecular structure of 1 obtained by X-ray diffraction analysis. Thermal ellipsoids are drawn to the 50% probability level. Hydrogen atoms are omitted for clarity, except for the aminophosphonium proton.

Contrary to previous syntheses of aminophophonium salts using the Kirsanov reaction, no additional base is required to trap side-product HBr, which we postulate is removed during work-up. It is worth noting that when an additional base is used to trap HBr (e.g., DABCO), 1 is also unequivocally obtained, as evidenced by identical characterisation data.

1 was next tested for the benchmark ROCOP of cyclohexene oxide (CHO) and phthalic anhydride (PA), with no solvent and at 120 °C. At [CHO]₀ : [PA]₀ : [1]₀ loadings of 400 : 200 : 1, 1 was found to catalyse the reaction, producing polymers with good activity (TOF = 78–80 h⁻¹) and good selectivity for ester vs. ether linkages (86–91%) (Table 1, entries 1 and 2; Fig. S23, ESI†). At full conversion of PA, the resulting polymer had an M_n,SEC of 14 100 g mol⁻¹ as measured by SEC (against narrow polystyrene standards) (Table 1, entry 2). The alternating nature of the resultant polymers was further evidenced by MALDI-ToF mass spectrometry analysis which detected polymeric series with a repeat unit of 246 g mol⁻¹, consistent with an alternating PA/CHO polymer sequence (Fig. S24, ESI†). The living/controlled polymerization character of the ROCOP was illustrated by the linear increase of the M_n,SEC with PA conversion whilst maintaining low dispersities (Fig. S25, ESI†). SEC traces showed a bimodal distribution which were attributed to residual diol impurities in CHO and diacid impurities in PA, limiting the obtention of high molecular mass (Fig. S26, ESI†).

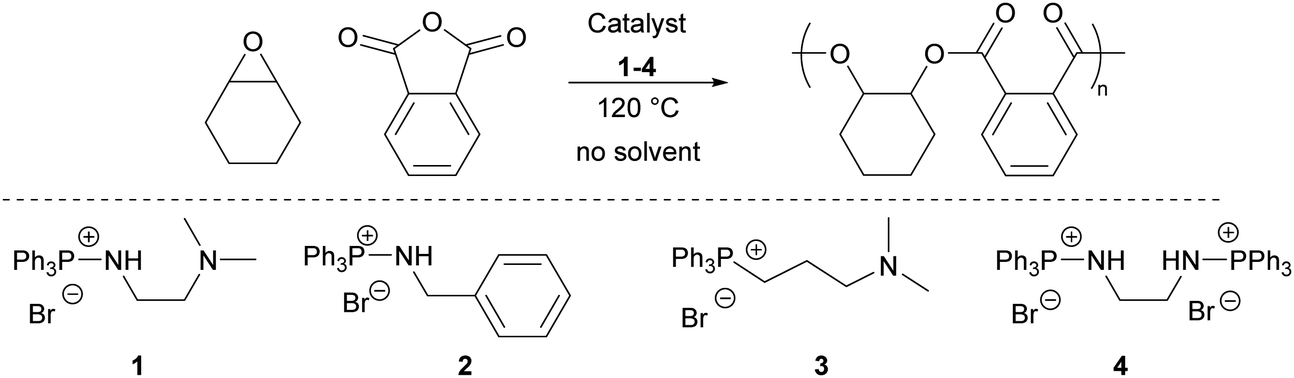

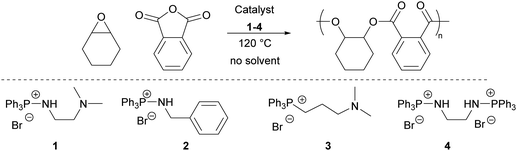

Table 1 Polymerisation data for the ROCOP of CHO and PA with compounds 1–4

Entry^a	Cat	[CHO]0 : [PA]0 : [cat]0	Temp. (°C)	Time (min)	PA Conv.^b (%)	TON^c	TOF^d (h^−1)	CHO Conv.^e (%)	% Select.^f	M n,SEC (ĐM)
a Reactions carried out at [CHO]0 = 5.8 mol L^−1, neat at 120 °C unless otherwise stated. b Conversion of PA determined by ^1H NMR spectroscopy by relative integration of the aromatic protons in PA (CDCl3, δ 7.95–7.80 ppm) and poly(CHO-alt-PA) (CDCl3, δ 7.52–7.33 ppm). c TON = (moles of PA consumed) × (moles of catalyst)^−1. d TOF = (moles of PA consumed) × (moles of catalyst)^−1 × (time of reaction)^−1. e Conversion of CHO determined by ^1H NMR spectroscopy by relative integration of protons singlets in CHO (CDCl3, δ 3.02 ppm) and poly(CHO-alt-PA) (CDCl3, δ 5.06 ppm). f Selectivity of ester vs. ether links determined by ^1H NMR spectroscopy using the relative integration of the ester and ether linkages polyester (CDCl3, δ = 5.13 ppm) and polyether (CDCl3, δ = 3.61–3.30 ppm). g M n,SEC in g mol^−1, calculated by SEC relative to polystyrene standards in tetrahydrofuran (THF) eluent; ĐM = Mw/Mn. h 1 was acidified with 1 equivalent of HCl prior use in catalysis (see ESI).
1	1	400 : 200 : 1	120	60	39	78	78	24	86	6100 (1.20)
2	1	400 : 200 : 1	120	150	>99	200	80	63	91	14 100 (1.23)
3	2	400 : 200 : 1	120	60	9	18	18	5	83	<1000
4	3	400 : 200 : 1	120	40	93	186	279	49	96	14 900 (1.14)
5	4	400 : 200 : 1	120	60	14	28	28	7	66	<1000
6	1	200 : 200 : 1	120	30	36	72	144	37	93	3900 (1.16)
7	1	200 : 200 : 1	120	60	46	92	92	47	92	6800 (1.20)
8	1	400 : 200 : 1	140	15	29	58	232	16	89	3600 (1.14)
9	1	400 : 200 : 1	160	15	18	36	144	15	83	<1000
10	1	400 : 0 : 1	120	60	—	—	—	—	—	<1000
11	1	400 : 200 : 1	120	120	28	56	28	19	76	2000 (1.20)
12	PPNCl	400 : 200 : 1	120	30	100	200	>400	55	62	<1000
13	Ph3PO	400 : 200 : 1	120	60	<1	—	—	<1	—	<1000

---

This was corroborated using MALDI-ToF mass spectrometry which detected several polymer distributions, including higher M_n,SEC species initiated from residual cyclohexane diol (Fig. S24, ESI†). Lower M_n,SEC species showed polymers with a 2-bromo-cyclohexanol end group, confirming that the bromide anion of 1 can act as an initiator via nucleophilic attack onto CHO.

Catalytic activity could be further increased to 232 h⁻¹ by performing the reaction at 140 °C (Table 1, entry 8). However, further increasing the temperature to 160 °C led to a decrease in activity (TOF = 144 h⁻¹), suggesting side reactions or degradation (Table 1, entry 9). Lowering the reaction temperature to 60 °C significantly reduced the TOF, although ROCOP was possible (TOF = 5 h⁻¹). ROCOP of CHO and PA at a [CHO]₀ : [PA]₀ : [1]₀ ratio of 200 : 200 : 1 resulted in non-significant improvement of the selectivity towards ester linkages (Table 1, entries 6 and 7). Control experiments with [CHO]₀ : [PA]₀ : [1]₀ ratios of 400 : 2 : 1 and 400 : 0 : 1 showed no conversion after 90 minutes, indicating 1 does not catalyse CHO ROP (Table 1, entry 10). Acidified 1 (1·HCl) was also tested in catalysis, and showed significantly reduced activity compared to its non-acidified counterpart (TOF = 28 vs. 78 h⁻¹) with notably reduced selectivity (76% of ester linkages) (Table 1, entry 11 vs. 1). This points towards the monocationic species 1 being the active catalytic species. 1 is more selective towards polyesters than previous iminophosphorane organocatalysts.²⁵ However, where comparisons are possible, 1 is less active than the ammonium- or phosphonium-containing organoboron systems designed by Wu and team (TOF = 80 vs. 258 vs. 1024 h⁻¹; respectively).^27,28

Monofunctional aminophosphonium salt 2 was synthesised using benzyl amine and tested in catalysis (Table 1, entry 4), but showed significantly lower activity compared to 1, with 9% PA conversion after 60 min. Commercial bifunctional phosphonium/tertiary amine salt, 3, was also tested. After 40 minutes the reaction had solidified with a PA conversion of 93%, producing poly(CHO-alt-PA) with an M_n,SEC of 14 900 g mol⁻¹ and Đ_M of 1.14 (Table 1, entry 3). Collectively, these results suggest the key role of the tertiary amine group for catalysis, likely through the facilitation of proton shuttling towards the activation of monomers and the stabilisation of transition states and growing chain ends. Finally, a diaminophosphonium salt, 4, was synthesised and tested for the ROCOP of CHO. 13% conversion was achieved after 60 minutes, showing limited activity, consistent with the results obtained with aminophosphonium salts that do not feature a tertiary amine (2) or have an additional ammonium group (1·HCl). Catalysis with commercial PPNCl achieved a high TOF (>400 h⁻¹) but SEC analysis showed that only oligomers were produced (M_n,SEC < 1000 g mol⁻¹) (Table 1, entry 12). Previous studies have found PPNCl capable of catalysing CHO/PA ROCOP, at 110 °C in toluene.²⁹ Triphenyl phosphine oxide was shown to be catalytically inactive (Table 1, entry 13).

To gather insights into the catalytically active form of 1, in situ³¹P{¹H} NMR reaction monitoring was carried out. Polymerisations were performed at a [PA]₀ : [1]₀ ratio of 50 : 1 in an excess of CHO at 120 °C under argon in a J Young NMR tube. After 60 minutes, all PA had reacted according to ¹H NMR analysis. No change in the signal of 1 was observed in the ³¹P{¹H} NMR spectra throughout the experiment, indicating either that the phosphorus remains remote from the active catalytic site or that the resting state of the catalyst is structurally similar to 1 in CHO. However, no degradation of the catalyst was observed by ³¹P{¹H} NMR analysis, and coupled with the inactivity of the Ph₃PO, this points towards 1 being a true catalyst which remains intact throughout polymerisation (Fig. S27, ESI†).

The kinetic profile of the ROCOP of CHO/PA, catalysed by 1, was monitored with in situ FTIR spectroscopy. Polymerisations were performed at a [CHO]₀ : [PA]₀ : [1]₀ loading of 800 : 400 : 1 at 120 °C without solvent and followed by analysis of the absorption intensity at 1783 cm⁻¹, corresponding to the ν_C=O vibration in PA. A zero-order dependence on [PA] was determined from linear plots of [PA] against time (Fig. S28, ESI†). The order with respect to CHO was next considered, CHO consumption being inferred by measuring the growth of the ν_C=O vibration at 1722 cm⁻¹ in poly(CHO-alt-PA). Plots of ln([CHO]_t/[CHO]₀) against time showed a linear correlation, revealing a first order dependence on [CHO] (k_CHO = 4.42 × 10⁻⁵ s⁻¹; Fig. S29, ESI†). We next demonstrated that 1 was catalytically active when handled in air (Fig. S28, ESI†). While the kinetic profile unexpectedly deviated from linearity, which could be due to side reactions including progressive catalyst deactivation, ROCOP proceeded faster in air than under argon. Such rate acceleration has also been observed for metal-catalysed ROCOP,³⁰ when chain transfer agents (CTAs) are used or in the presence of air/water, but is yet to be fully rationalised. The likely moisture in the air functioning as CTA was also reflected in the final molar masses, with polymers with higher M_n,SEC produced under argon (16 300 g mol⁻¹, Đ_M = 1.23) and lower M_n,SEC, monomodal polymers produced in air (4400 g mol⁻¹, Đ_M = 1.10). Only a small number of air tolerant catalysts for the ROCOP of CHO/PA have been reported so far.^13,30,31

To shed further light on the catalytic active species, modelling of the ring-opening of CHO was carried out using DFT calculations (see ESI†), having been identified by kinetics study as a key catalytic step. For simplicity, only the opening by the bromide anion (initiation step) was modelled (Fig. 2). The propagation step will be analogous but for a carboxylate growing chain as the nucleophile. Consistent with pK_a values and the molecular structure inferred from X-ray diffraction, 1's most stable isomer (by 8.2 kcal mol⁻¹) is the aminophosphonium species (P–NH) and not the quaternary ammonium salt. Activation of CHO by hydrogen bonding was found to happen preferentially at the aminophosphonium, but to be overall endergonic (+8.8 kcal mol⁻¹). Next, the lowest energy barrier for CHO ring-opening was calculated to be the nucleophilic attack of the bromide away from the PPh₃ group, which had an energy barrier of 32.5 kcal mol⁻¹. ROCOP being quantitative at 120 °C within a few hours, circa 30 kcal mol⁻¹ is an acceptable energy barrier. The resulting alkoxide was shown to be stabilised by the aminophosphonium moiety. The reactivity of a putative doubly protonated 1 (1·HBr) was also examined by DFT calculations (Fig. S31, ESI†). While the concurrent activation of CHO by both the ammonium and aminophosphonium moiety remained endergonic (+10.0 kcal mol⁻¹), the barrier to ring-opening was found to be 29.3 kcal mol⁻¹, lower but within error to what is calculated for the monocationic species at this cursory stage. This preliminary study clearly calls for further mechanistic investigation, including a full conformation search on the propagation step.

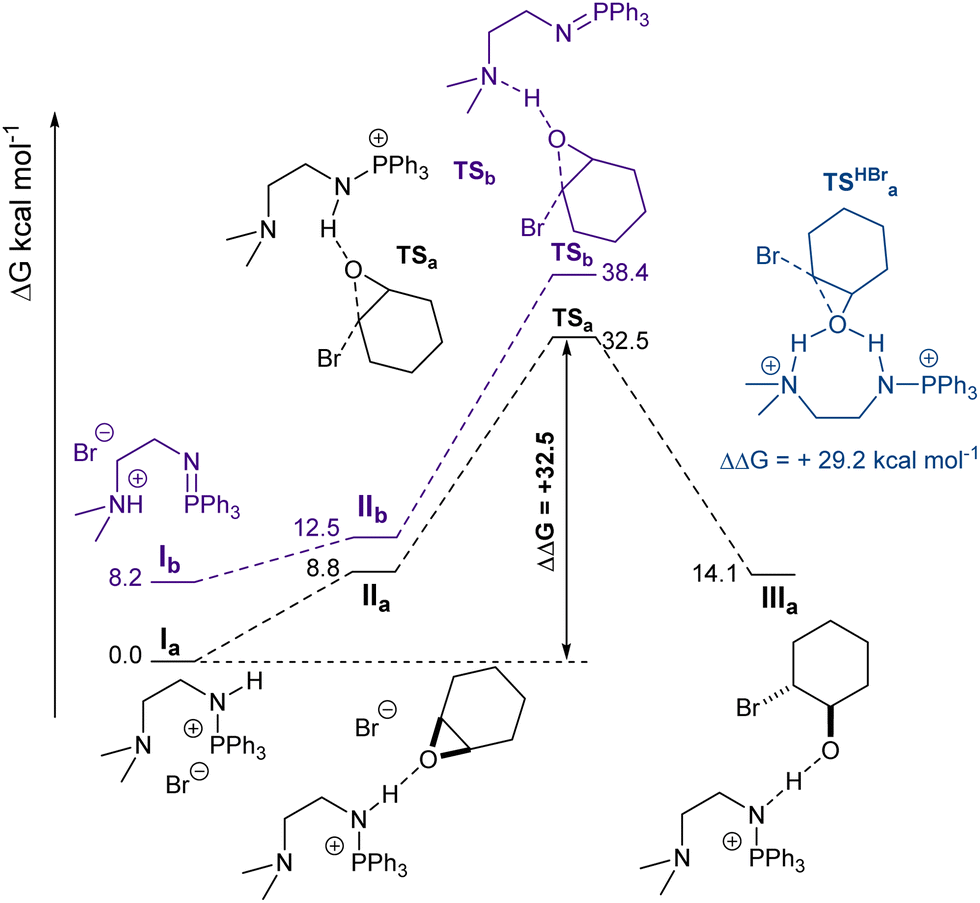

Fig. 2 DFT computed reaction profiles for the ring-opening of CHO by 1 (initiation step).

To conclude, the Kirsanov reaction has been used to synthesise a simple, novel organocatalyst which has been shown to be active in the ROCOP of CHO and PA, including in air. Our results demonstrate the potential of aminophosphonium salts, made from abundant phosphines and primary amines, as simple organocatalysts for ROCOP, and a promising and tuneable alternative to widely used PPNCl.
