Temperature-dependent self-trapped models regulating energy transfer in rare earth double perovskites via 5s² electron doping

Abstract

Due to their environmental friendliness, structural plasticity, and tunable emission, lead-free halide double perovskites offer a broad spectrum of applications in light-emitting diode (LED), photodetectors, infrared imaging, and temperature sensing. Herein, we synthesized rare earth-based Cs₂NaYCl₆ double perovskites using a solvothermal method, and Sb³⁺/Sm³⁺ co-doping can effectively modulate the luminescence by adjusting the band gap structure and channels of energy transfer. With the Sm³⁺-feeding concentration increasing, the emission could be adjusted from blue to white, attributed to an effective energy transfer from the self-trapped state to Sm³⁺. Temperature-dependent photoluminescence spectra indicate that the double self-trapped exciton emission at low temperatures originated from two minima in the excited state of ³P₁. The relative sensitivity of the optical temperature sensor reached 1.08% K⁻¹, which was better than that of other rare earth perovskites. The LED device based on Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆@polymethylmethacrylate displays a chromaticity coordinate of (0.29, 0.28), a color rendering index of 87, and the correlated color temperature of 10 986 K. Our work explores an in-depth understanding of energy transfer in double self-trapped states and provides new material for advanced applications.

---

1. Introduction

Lead-based halide perovskites (A = MA⁺/FA⁺/Cs⁺ and X = Cl⁻/Br⁻/I⁻), typically characterized by APbX₃, have garnered significant attention due to their excellent photovoltaic properties, including high light absorption coefficients, low defect densities, and large electron sizes.^1–3 Based on these advantages, lead-based perovskites have been found to have broad applications in many fields, such as light emitting diodes (LEDs) and^4,5 X-ray detectors.⁶ The disadvantages of a low stability and environmental unfriendliness are also accompanied by lead-based perovskites.⁷ However, environmentally friendly cation substitution is an effective strategy to overcome the toxicity of Pb²⁺ ions. Replacing two Pb²⁺ cations as B⁺ and B³⁺ sites in halide double perovskites with the formula A₂B⁺B³⁺X₆ (e.g. Cs₂NaInCl₆)⁸ is a universal strategy.^9–15 However, indirect bandgap or parity prohibited transition cause a weak photoluminescence (PL) in pristine lead-free perovskites. Doping with metal ions or alloying can alter the bandgap or disrupt the symmetry of double perovskites, breaking forbidden transitions and thereby enhancing their optical properties. By introducing Na⁺ and Bi³⁺ into the Cs₂AgInCl₆ host, Tang's group broke the inversion-symmetry-induced parity-forbidden transition and reduced the electronic dimensionality of the semiconductor, thus achieving an effective white light emission.¹⁶ By introducing Sb³⁺ into the Cs₂NaInCl₆ host, our group effectively regulated the density of states (DOS) and significantly enhanced the PL quantum yield (QY) of the self-trapped exciton (STE) (up to 75.89%).⁸ However, aforementioned studies only achieved a single luminescence mode. It is widely recognized that doping with rare earth elements is an effective method for tuning luminescent color.^17–22 Rare earth ions typically exhibit a wide emission range from ultraviolet (UV) to infrared due to their rich (4fⁿ) electronic configurations, along with long PL lifetimes and excellent optical stability.^23–26 Xia's group reported on Bi³⁺:Cs₂Ag(In_1−xTb_x)Cl₆ halide perovskites,²⁷ which modulated luminescence from green to orange. However, the tuning range of luminescence did not extend to cover the entire spectrum. Tang et al. confirmed the existence of an energy transfer from a STE to a rare earth in Ho³⁺:Cs₂(Na, Ag)InCl₆ and fabricated white LED.²⁸ Zhu et al. obtained white light emission by combining CsPbBr₃ NCs and Cs₂Ag_1−xK_xIn_0.125Bi_0.875Cl₆ double perovskites.²⁹ The stability of double perovskites is significantly improved through K⁺ ion alloying. However, the lower PLQY of 15.96% limited broader application. Overall, abovementioned works only focus on LED applications and do not realize the multi-functional application of phosphors. Furthermore, the luminescence of all these works originates from the single self-trapped state and how to regulate the energy transfer process is not understood in depth.

In this work, Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ were synthesized by a solvent-thermal method, resulting in the emission color transitioning steadily from blue to warm white with increasing Sm³⁺ feeding concentration. When a 2% Sm³⁺ precursor is the feed, the PLQY is as high as 68%. We propose a model to explain physical processes associated with energy transfer from the STE to the Sm³⁺ energy level. The single STE emission was observed at a higher temperature (up to 260 K), but the excited state ³P₁ was split into two minima and resulted in a double STE emission at a lower temperature (below 260 K). 5s² electron doping (Sb³⁺-doping) facilitates the energy transfer efficiency. Furthermore, we attempted multifunctional applications of the phosphors. At room temperature, the LED device exhibits chromaticity coordinates (CIE) of (0.28, 0.29), a color rendering index (CRI) of 87 and the correlated color temperature (CCT) of 10 986 K, and the efficient infrared emission (400–1250 nm) is suitable for advanced infrared imaging. Further, the non-contact optical thermometry of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ has demonstrated that absolute and relative sensitivities can reach 0.14% K⁻¹ and 1.08% K⁻¹, respectively. Our work provides new physical insights into regulating energy transfer and references for the rational design of functional materials.

2. Results and discussion

Pristine and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ are of a highly symmetric three-dimensional cubic structure belonging to the Fm3̄m space group. Cs₂NaYCl₆ consists of alternately arranged [NaCl₆]⁵⁻ and [YCl₆]³⁻ octahedra (Fig. 1a). The powder X-ray diffraction (PXRD) analysis reveals that the introduction of Sb³⁺ ions causes a shift in diffraction peaks towards higher angles, as seen in Fig. 1b. This shift is due to the smaller ionic radius of Sb³⁺ (76.0 pm) compared to that of Y³⁺ (90.0 pm), which results in the contraction of the lattice. Conversely, an increase in the Sm³⁺-feeding concentration leads to the diffraction peaks shifting towards lower angles. This shift originates from the substitution of Sb³⁺/Sm³⁺ ions for Y³⁺ ions due to the larger ionic radius of Sm³⁺ (95.8 pm) compared to that of Y³⁺ (90.0 pm), and lattice expansion dominates a further shift. Due to the low doping content, no large change in lattice parameters was observed. The impurity peaks at 31.7° and 45.6° were from NaCl; however, a slight excess of NaCl is necessary for synthesizing samples with high yields. The X-ray photoelectron spectra (XPS) of pristine and doped perovskites show that the peaks at 160.4 and 158.5 eV are attributed to the Y 3d orbital (Fig. 1c) with no significant deviations. Fig. 1d shows the peaks of the Sb 3d orbital of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆, which are located at 535.9 and 531.9 eV. Moreover, Fig. 1e shows the peak of the Sb 3d orbital, which is located at 1088.4 eV. The XPS spectra of Cs, Na and Cl of pristine and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ samples in Fig. S1† indicate that no striking deviations in binding energies are observed between pristine and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ perovskites, which is attributed to the strong electronegativity of the rare earth ions. As shown in Fig. 1f, a scanning electron microscopy (SEM) image shows that the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ perovskites are of micrometer scale. Furthermore, the energy-dispersive X-ray spectroscopy (EDS) mapping indicated Cs, Na, Y, Cl, Sb and Sm elements were uniformly distributed in the crystal.

Fig. 1 (a) Crystal structures of pristine Cs₂NaYCl₆, Sb³⁺:Cs₂NaYCl₆ and 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆. (b) PXRD patterns of pristine and doped Cs₂NaYCl₆ double perovskites. High-resolution XPS spectra of Y 3d (c), Sb 3d (d) and Sm 3d (e). (f) SEM image and element mapping of 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites.

To further investigate the optical properties of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆, PL, PL excitation (PLE), time-resolved PL (TRPL), and absorption spectroscopy have been performed. As shown in Fig. S2,† the absorption spectrum of pristine Cs₂NaYCl₆ shows a strong absorption at 310 nm and two weak absorption bands at 355 and 402 nm. After Sb³⁺ doping, the whole absorption band is enhanced, and a new absorption band appears at 260 and 300 nm originating from the ¹S₀ → ³P₁ of Sb³⁺. The absorption spectra of Sm³⁺-doped samples are basically the same as those of undoped samples, which indicate that the introduction of Sm³⁺ does not contribute to the absorption, or absorption peaks overlap. As shown in Fig. S3a,† under 268 nm excitation, the double perovskites exhibit a broadband blue emission centered at 465 nm with a Stokes shift of 1.96 eV. After Sb³⁺ doping, the PL intensity of Sb³⁺:Cs₂NaYCl₆ is more than 10 times that of the pristine sample, with a Stokes shift of 0.93 eV. A large Stokes shift is a distinctive feature of STE emission. Simultaneously, the PL intensity of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ is significantly enhanced by Sb³⁺ doping, achieving more than 30 times that of Sm³⁺:Cs₂NaYCl₆, as illustrated in Fig. S3b.† As a bridge of energy transfer, 5s² dopants can more effectively transfer excited electrons from the excited state to the energy level of the rare earth ions. This is because STE emission possesses a wide excitation region and large absorption strength, which can overcome the weak absorption of the f–f transition through the efficient energy transfer. These indicate that the doping of Sb³⁺ greatly improves the luminescence efficiency of the samples. At room temperature, under 345 nm excitation, the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites exhibits STE emission centered at 465 nm (Fig. 2a), where the visible (VIS) emission at 565, 603, 651 and 712 nm is from the ⁴G_5/2 → ⁶H_{J=(5/2, 7/2, 9/2, 11/2)} energy level transitions of Sm³⁺, and the near-infrared (NIR) emission at 941, 951, 1026 and 1170 nm is from the ⁴G_5/2 → ⁶F_{K=(9/2, 7/2, 5/2, 3/2)} energy level transitions of Sm³⁺.³⁰ By normalizing the intensity of STE emission at 465 nm, the intensity of the rare earth emission from Sm³⁺ is gradually enhanced with increasing Sm³⁺-feeding concentration. Three excitation peaks at 285, 320, and 345 nm of the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites at different emissions can be observed in Fig. 2b. The peak at 285 nm is attributed to the transition from the singlet ¹S₀ to ¹P₁ of Sb³⁺, while excitation peaks at 320 and 345 nm correspond to the transitions from the ground state ¹S₀ to triplet ³P₁. The excitation peak at 410 nm originates from the ⁶H_5/2 → ⁴F_7/2 transition of the Sm³⁺ ion.³¹ The profiles of the PLE in NIR emission in Fig. 2c is similar to that in Fig. 2b, indicating that almost all NIR emissions are from the energy transfer from Sb³⁺ to Sm³⁺, and only a very small portion comes from ⁶H_5/2 → ⁴F_7/2 of the Sm³⁺ ions. Fig. 2d shows PL spectra normalized at 465 nm under different excitations. As the excitation wavelength increases, the emission intensity of Sm³⁺ emission relative to STE emission gradually increases, which indicates that Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ has an excitation wavelength dependence.³² The integral area ratio S_550–750/S_400–550 of STE emission to Sm³⁺ emission is shown in Fig. 2e, which is positively correlated with the Sm³⁺-feeding concentration, indicating the promoted energy transfer from ³P₁ of Sb³⁺ to ⁴D_5/2 of Sm³⁺. CIE coordinates that correspond to the PL spectra at varying Sm³⁺-feeding concentrations are depicted in Fig. S4.† As the Sm³⁺-feeding concentration increases, the luminescence gradually shifts from blue to white. The initial CIE coordinate is (0.19, 0.21), and the final CIE coordinate is (0.36, 0.32). The PLQY reaches a maximum of 68% at a 2% Sm³⁺-feeding concentration and further gradually decreases with further increasing the Sm³⁺-feeding concentration (Fig. S5†). Broad-band STE emission is usually accompanied by a large Stokes shift, with barely any self-absorption in the PL process. This is also the reason why the sample has a higher PLQY. Fig. 2f demonstrates that the integral area ratio of Sm³⁺ emission to STE emission increases with increasing excitation wavelength. The PL decay spectra of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ at 465 nm under a 345 nm excitation are shown in Fig. 2g, and specific values are expressed in Table S1.† The PL lifetime at 465 nm decreases from 1.21 to 0.79 μs with increasing Sm³⁺-feeding concentration. All the emissions exhibit microsecond lifetimes corresponding to the ¹S₀ → ³P₁ transition of Sb³⁺. This changing trend indicates an efficient energy transfer from the STE to Sm³⁺ exists (Fig. 2h). The energy transfer efficiency of the STE to Sm³⁺ can be expressed by the following eqn (1):^27,33

where τ₀ and τ_x are the PL lifetimes of STE emission without and with Sm³⁺ doping. The energy transfer efficiencies with different Sm³⁺-feeding concentrations are 2.48% (Sm³⁺:1%), 4.96% (Sm³⁺:2%), 14.05% (Sm³⁺:3%), 21.49% (Sm³⁺:4%), and 34.71% (Sm³⁺:5%). These indicate that the energy transfer efficiency increases with increasing Sm³⁺-feeding concentration. The PL lifetimes of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ at 651 and 951 nm decreases with Sm³⁺-feeding concentration and are of the millisecond scale (Fig. S6†), suggesting concentration quenching due to the increased Sm³⁺-feeding concentration. A schematic diagram of the photophysical mechanism of the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites at a high temperature is shown in Fig. S7.† The electrons transitioned from the ground state (GS) to the free electron (FE) state under ultraviolet excitation. Then, through Intersystem Crossing (ISC), the excited electrons arrive at the ³P₁ energy level of Sb³⁺, via the ³P₁ → ¹S₀ transition producing STE emission and part of the energy transmitted to the excitation level ⁴G_5/2 of Sm³⁺, further generating the corresponding Sm³⁺ emission by radiative recombination.

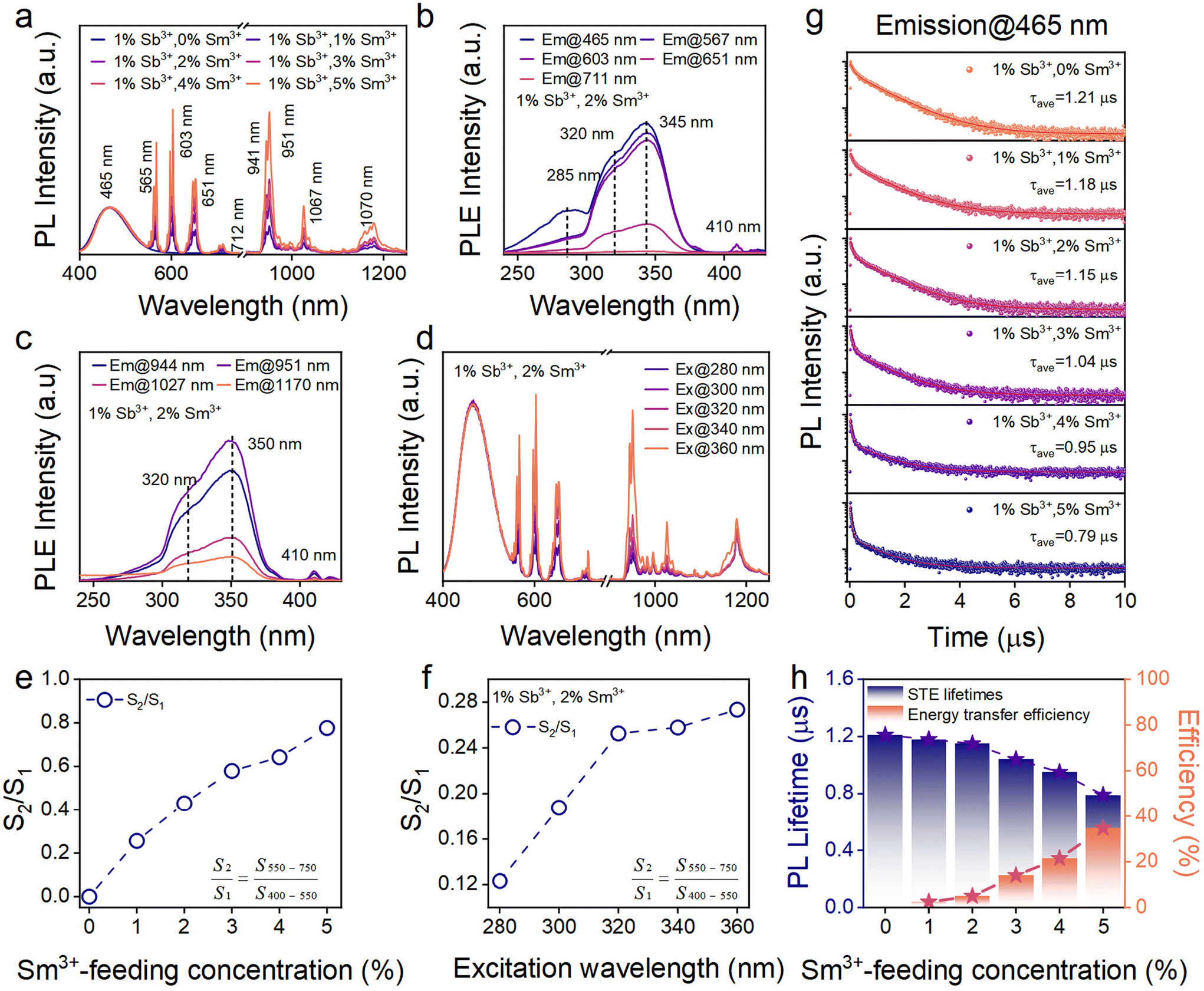

Fig. 2 (a) Normalized PL spectra of the 1% Sb³⁺, x% Sm³⁺ co-doped Cs₂NaYCl₆ (x = 1, 2, 3, 4 and 5) double perovskites with different Sm³⁺-feeding concentrations under 345 nm excitation. (b) PLE spectra of the 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites at different emissions. (c) PLE spectra of the 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites under different NIR emissions. (d) Normalized PL spectra of the 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites under different excitations. (e) Integral area ratio S_550–750/S_400–550 of the STE emission to Sm³⁺ emission in 1% Sb³⁺, x% Sm³⁺ co-doped Cs₂NaYCl₆ (x = 1, 2, 3, 4 and 5) crystals with different Sm³⁺-feeding concentrations. (f) Integral area ratio of S_550–750/S_400–550 of the 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites under different excitations. (g) PL decay curves of the 1% Sb³⁺, x% Sm³⁺ co-doped Cs₂NaYCl₆ (x = 1, 2, 3, 4 and 5) double perovskites monitored at 465 nm. (h) PL lifetimes and energy transfer efficiency of the 1% Sb³⁺, x% Sm³⁺ co-doped Cs₂NaYCl₆ (x = 1, 2, 3, 4 and 5) double perovskites with different Sm³⁺-feeding concentrations.

To gain more understanding about the electron-optical phonon coupling of 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆, temperature-dependent PL spectroscopy was utilized to explore the photophysical process. The PL spectra at 140 and 300 K are shown in Fig. 3a. The PL spectra shows a double STE emission at 140 K and only a single STE emission at 300 K. The emission centered at 465 nm is defined as STE₁, and the emission centered at 550 nm is defined as STE₂. Comparing Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ with similar Sb-doped systems,³⁴ there are two possible explanations for the double STE emission at low temperatures. One is due to the bimodality that arises from the dynamical Jahn–Teller coupling of the orbital triplet state ³P₁ to two minima.³⁵ The excited state shows two minima, which result in two different emission bands. Another reason is that the single state ¹P₁ → ¹S₀ transition and triple state ³P₁ → ¹S₀ transition co-exist together. To study the source of the double STE emission at low temperatures, the lifetimes of STE₁ and STE₂ emissions were monitored separately at 140 K (Fig. 3b). The PL lifetimes of 0.52 and 1.22 μs for high-energy and low-energy emissions are obtained (Fig. 3b), respectively. The PL lifetimes of both STE emissions are in the microsecond scale. Sb³⁺ is characterized by a typical electron configuration of 5s²,³⁶ exhibiting STE emission with nanosecond lifetimes resulting from the transition of ¹P₁ to ¹S₀ ³⁷ and microsecond lifetimes arising from the transition of ³P₁ to ¹S₀. Therefore, the STE₁ and STE₂ emissions of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ belong to the triplet state emission. Temperature-dependent PL spectra and pseudo-color maps are shown in Fig. 3c and S8,† and double STE emission can be clearly detected from 80 to 260 K and Sm³⁺ emission positions are largely independent of temperature. This is because the f–f transition of rare earths is not easily affected by temperature, and the two minima of the ³P₁ orbital of Sb³⁺ result in a double STE emission at low temperatures. Fig. 3d shows the variation of PL lifetime and intensity at 540 nm from 140 to 260 K, and both show a decreasing trend with increasing temperatures due to thermal quenching. As shown in Fig. S9,† the PL intensity at 465 nm increases gradually with temperature. This is attributed to the electrons gaining more energy and so tend to a higher energy radiative transition with increasing temperature. Fig. 3e shows the variation of PL lifetime and intensity at 651 nm from 120 to 400 K. PL intensity and lifetime increase from 120 to 280 K, which is attributed to the weakening of phonon scattering and reduction of defects more favorable to radiative recombination at low temperature. While PL intensity and lifetime show a decreasing trend from 280 to 400 K, which is attributed to thermal quenching at the high temperature. As shown in Fig. 3f and i, STE₁ and STE₂ were fitted using eqn (2), respectively.^38,39

I(t) = I₀/(1 + Ae^−E_a/TK_B), (2)

where I(t) is the integrated PL intensity at the experimental temperature, E_a is the exciton activation energy. I₀ is the integrated intensity at 0 K, K_B is the Boltzmann constant, and T is the temperature. For STE₁ and STE₂, exciton activation energies are 105.51 and 129.53 meV, respectively. These values significantly exceed the thermal activation energy of 26 meV at room temperature. This suggests that the highly localized STE are stable.

Fig. 3 (a) PL spectra of 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ at 140 and 300 K. (b) PL lifetime of 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ at 140 and 300 K. (c) Pseudo-color map from temperature-dependent PL spectra of 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆. The evolutions of the PL lifetime and intensity at 540 (d) and 651 nm (e) with temperature. The fitted exciton activation energy E_a (f), Huang–Rhys factor S (g) and electron-optical phonon coupling (h) of STE₁. The fitted exciton activation energy E_a (i), Huang-Rhys factor S (j) and electron-optical phonon coupling (k) of STE₂.

Huang Rhys factor S is obtained by fitting the full width at half-maximum (FWHM) and temperature (T) using the following eqn (3):^16,40

where ħω_phonon is the phonon frequency, K_B is the Boltzmann constant, and T is the thermodynamic temperature. The value of S represents the electron–phonon coupling parameter, directly influencing the degree of lattice distortion and manifesting in a significant Stokes shift.^41,42 STE₂ exhibits a greater Stokes shift than that of STE₁, as depicted in Fig. S10.†S values for STE₁ and STE₂ are 21.3 and 42.5, respectively, suggesting that STE₂ experiences a greater lattice distortion (Fig. 3g and j).

The electron-optical phonon coupling energy Γ_op was fitted using the following eqn (4):⁴³

Γ(T) = Γ₀ + Γ_op/(e^ħω_op/^K_BT − 1), (4)

where Γ₀ represents the intrinsic line width at 0 K, and ħω_op denotes the longitudinal optical phonon energy. According to eqn (4), the values of Γ_op for STE₁ and STE₂ are determined as 240.62 and 411.01 meV, respectively (Fig. 3h and k). These Γ_op values indicate a substantial interaction between electrons and phonons, as well as the Jahn–Teller effect contributing to the lattice transient STE₂ having a greater electro-phonon coupling energy, implying stronger Jahn–Teller effect and lattice distortions, which match its larger S value.⁴⁴ Fig. S11† depicts a schematic illustration of the physical mechanism of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ at low temperatures. This is somewhat different from the mechanism diagram at high temperatures (Fig. S7†). When the excited electrons arrive, the ³P₁ energy level of Sb³⁺ and two minima in the ³P₁ energy level result in a double STE emission at low temperatures. Meanwhile, benefiting from the energy-transfer channel from STE to Ln³⁺, part of the energy can be transferred to the Sm³⁺ ions to emit multicolor.

To get a better knowledge of the electrical structure and luminous characteristics of Cs₂NaYCl₆ and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆, we performed density functional theory (DFT) calculations on pristine and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ structures. Because of the covalent states of Sb³⁺/Sm³⁺ and Y³⁺, a [SbCl₆]³⁻ and [SmCl₆]³⁻ octahedron is used to replace the [YCl₆]³⁻ octahedron. It is found that pristine Cs₂NaYCl₆ exhibits a flat energy band structure with a direct band gap of 5.01 eV (Fig. 4a). After Sb³⁺ doping, the emergence of a new energy level results in a narrower bandgap of 3.75 eV (Fig. 4b). Furthermore, both structures have very flat energy bands with limited dispersion, indicating a large effective mass and confined properties for electrons and holes, which promotes the creation of highly localized electron distributions. The calculated DOS reveals that the valence band maximum (VBM) of Cs₂NaYCl₆ primarily comprises the Cl 3p state, while the conduction band minimum (CBM) is composed of Y 4d and Cl 3p states, as illustrated in Fig. 4c. The VBM of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ consisted of Sb 5s and Cl 3p states, and the CBM consisted of the Sb 5p state (Fig. 4d). Dopant s-electrons mainly contribute near the band edges of the host. So, the s-electron dopants (Sb³⁺) act as sensitizers and emitters. The charge density distribution of pristine Cs₂NaYCl₆ reveals that the charge of the VBM is primarily concentrated around [YCl₆]³⁻ octahedra, as depicted in Fig. 4e. Conversely, the charge of the CBM is concentrated around Cl (Fig. 4f). The charge density distribution of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ reveals that the charge of the VBM is primarily concentrated around the [YCl₆]³⁻ octahedra (Fig. 4g). The charge of the CBM is concentrated around [SbCl₆]³⁻ octahedra (Fig. 4h).

Fig. 4 Calculated electronic band structures of Cs₂NaYCl₆ (a) and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ (b). DOS of Cs₂NaYCl₆ (c) and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ (d). Charge densities of Cs₂NaYCl₆ (e and f) and Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ (g and h).

To explore the potential applications of the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites, the stability of the samples in the environment was initially investigated. Fig. S12† presents a comparison of the XRD and PL spectra of the sample after one month with those of the fresh sample, demonstrating a good environmental stability at room temperature and a high humidity of 70%. Our samples were placed in a relatively high humidity environment (70%) for one month. From the XRD pattern, a NaCl impurity was observed, and the main diffraction peaks of the samples did not obviously change, which indicated that the samples were of high humidity stability and good humidity resistance. Fig. 5a demonstrates that the LED device, emitting cool white light, that was fabricated by integrating the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites with polymethylmethacrylate (PMMA) on a 365 nm UV chip, achieving a CRI of up to 87. The LED device exhibits a CIE of (0.28, 0.29) and a CCT of 10 986 K. Furthermore, the prepared LED lamp exhibited an excellent spectral stability across various currents ranging from 20 to 200 mA, as illustrated in Fig. 5b. Different imaging photographs of a conch and coffee cap under natural light irradiation and NIR light irradiation are depicted in Fig. 5c. Furthermore, the observation of different energy level transitions of Sm³⁺ with varying temperature sensitivities prompted us to explore the utilization of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ for temperature sensing. As shown in Fig. S13,† we observe a decrease in emission at 603 nm with increasing temperature within the range of 120–260 K, while the emission at 951 nm exhibits a positive correlation within the same temperature range. This phenomenon suggests the potential use of the fluorescence intensity ratio (FIR) technique for precise temperature measurements. The relationship between temperature and FIR can be described by the following eqn (5):⁴⁵

where constants B, C and ΔE are related to the properties of Sb³⁺/Sm³⁺. Fig. 5d shows the relationship between FIR, calculated as I_{603 nm}/I_{951 nm} and experimental temperature T. It is noted that when the temperature rises from 120 to 260 K, the FIR value increases from 0.06 to 0.2. In the field of temperature sensing, absolute temperature sensitivity (S_a) and relative temperature sensitivity (S_r) are crucial factors to consider when assessing an optical temperature measurement. The values of (S_a) and S_r can be calculated by eqn (6) and (7):^46,47

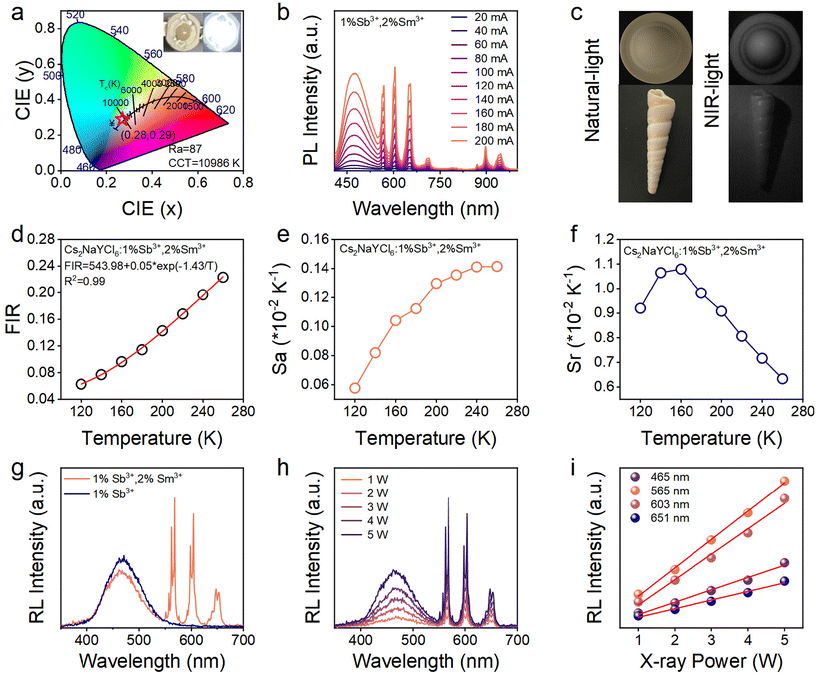

Fig. 5 (a) CIE of 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆. (b) PL spectra of the 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites under different currents. (c) Photos of a coffee cup lid and conch under natural and NIR light, respectively. FIR (d), S_a (e) and S_r (f) as functions of temperature. (g) RL spectra of the 1% Sb³⁺, 2% Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites. (h) Variable power X-ray spectrum. (i) RL intensity variation with power at different emissions.

As shown in Fig. 5e and f, for the samples, the maximum values of S_a and S_r are 0.14 and 1.08% K⁻¹, respectively. In addition to the high sensitivity, the repeatability and stability of optical temperature measurements are also critical. Among the same type of rare-earth doped perovskites, the S_a and S_r values of optical temperature measurements in this work are among leading values (Table S2†). Temperature resolution (δT) is another important parameter to evaluate the performance of optical thermometry, which can be expressed as follows:

In this case, ΔFIR/FIR stands for the relative error in the measurement process, and its value is approximately 0.5%.^47,48 Hence, it is calculated that the minimum temperature resolution is 0.46 at 160 K. At the same time, the non-contact optical thermometry of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ has a good repeatability. The above results indicate that Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ is a potential material for non-contact optical thermometers. Additionally, Sb³⁺:Cs₂NaYCl₆ and the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites exhibit light emission under excitation by high-energy X-rays, as depicted in Fig. 5g. We conducted experiments at various X-ray power intensities to establish the relationship between emission and X-ray intensity. Notably, the radioluminescence (RL) intensity of Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ displays a linear correlation with the power of X-rays, as illustrated in Fig. 5h and i.

3. Conclusions

In summary, the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ rare-earth double perovskites with a tunable emission and excellent stability were synthesized via a solvothermal method. It was found that the transition of ³P₁ → ¹S₀ could be split into two transitions due to the Jahn–Teller effect, resulting in a double STE emission within a temperature range of 80 to 260 K. However, as the temperature increases, the excited electrons tend to move toward a higher energy STE emission, leading to the disappearance of the low-energy STE emission within the same temperature range (80–260 K). By adjusting the Sm³⁺ feeding concentration, we were able to adjust the energy transfer efficiency between STE and Sm³⁺ emissions. Furthermore, the Sb³⁺/Sm³⁺ co-doped Cs₂NaYCl₆ double perovskites exhibited multifunctional applications in high-energy X-rays and night vision. These double perovskites possess excellent optical properties and stability, rendering them promising candidates for applications in white-light illumination and temperature sensing.
