Pramod Sharma*,
Soumitra Das and
Rajesh K. Vatsa
Chemistry Division, Bhabha Atomic Research Centre, Mumbai 400 085, India. E-mail: pramod@barc.gov.in
First published on 9th September 2016
Interaction of tetrahydrofuran clusters with nanosecond laser pulses has been investigated at 532 and 1064 nm, using a time-of-flight mass spectrometer and home-built electron analyzer setup. An efficient laser–cluster interaction has been observed at both the laser wavelengths, based on detection of multiply charged atomic ions. At 532 nm, multiply charged atomic ions up to C4+ and O4+ have been observed, while at 1064 nm multiply charged atomic ions up to C5+ and O6+ have been detected. Such efficient laser cluster interaction is supposed to be facilitated by coupling of laser energy into the cluster by collisional heating of electrons confined within the cluster. Accordingly, kinetic energy distribution of electrons liberated upon interaction of tetrahydrofuran clusters with nanosecond laser pulses has been quantified using a home-built electron analyzer setup. A good correlation between the ionization energy of the highest multiply charged atomic ions observed at the two laser wavelengths and the measured kinetic energy of electrons (up to ∼80–100 eV at 532 nm and up to ∼300 eV at 1064 nm) has been obtained. Present studies suggest that upon initial ionization of the cluster by a multiphoton ionization mechanism, which is predominant under nanosecond laser conditions, further enhanced ionization of the cluster constituents during the time-span of the laser pulse is dominated by energetic electrons. These electrons are energized via inverse Bremsstrahlung absorption process, causing step-wise electron ionization of cluster constituents and augmentation of charge on the cluster, over a time scale where cluster expansion can be considered to be insignificant.
Consequently, evolution of different atomic and molecular cluster systems have been investigated, upon their interaction with laser pulses of intensity ≥1014 W cm−2 and over wavelength range spanning from IR to X-ray region.14–18 Various theoretical models have been proposed to explain different facets of laser–cluster interaction.19–27 Mainly all these models consider laser–cluster interaction to be a multistep process – involving initial ionization of the cluster constituents at the leading portion of the laser pulse, subsequent energy absorption by the ionized cluster media from the remnant portion of the laser pulse – leading to enhanced multi-step ionization of the cluster constituents and finally disintegration of the excessively ionized cluster under the influence of the coulombic field. All these processes occur in the sub-picosecond time-span. Of all these theoretical models “nanoplasma model” has been extensively utilized for rationalizing different aspects of laser–cluster interaction.26,27 This model considers that solid like density of cluster facilitates rapid energization of inner ionized electrons (ionized electrons confined within the cluster) via collisional inverse Bremsstrahlung (IBS) process, under the influence of laser pulse. These energized electrons facilitate further enhanced ionization of the cluster constituents.
In the last decade, there have been several reports regarding enhanced ionization and Coulomb explosion of clusters upon interaction with nanosecond laser pulses of intensity ∼109 to 1011 W cm−2.28–32 Unlike the extensive experimental studies carried out using ultrafast laser pulses over intensity range of 1014 to 1018 W cm−2 and the theoretical models proposed to describe the evolution of clusters upon irradiation with laser pulses, the literature is sparse with theoretical models to account for interaction of clusters with nanosecond laser pulses over intensity range of 109 to 1011 W cm−2. Consequently, to account for such efficient laser–cluster interaction under nanosecond laser field conditions, a three-stage cluster ionization model has been proposed by Wang et al.,33 drawing analogy from the nanoplasma model. Although the proposed three-stage cluster ionization model qualitatively explains the wavelength dependent behavior, based on IBS heating of the clusters via quasi free electrons, concerns were raised regarding direct applicability of nanoplasma model under nanosecond laser conditions. Because, under femtosecond laser irradiation cluster expansion can be considered to be negligible (near solid like density), which facilitates laser energy absorption via IBS. On the contrary under nanosecond laser conditions, considering cluster expansion insignificant has been suggested to be inappropriate as under the influence of coulombic forces the cluster is expected to undergo significant expansion, consequently collisional heating via inverse Bremsstralgun is expected to be inefficient.
In a recent study, we investigated interaction of tetrahydrofuran clusters ((THF)n) with nanosecond laser pulses over intensity range of 109 to 1010 W cm−2.34 THF was used because of its high volatility, which facilitates generation of clusters upon supersonic expansion. In addition this cyclic ether forms clusters with cage like structure containing voids, which act as site for electron solvation.35 Thus these sites might assist in confining the quasi-free electrons and aid in efficient coupling of laser-energy with the cluster media. A significant observation of the study was generation of multiply charged atomic ions up to C4+ and O4+ at 532 nm, while at 1064 nm multiply charged atomic ions up to C5+ and O6+ were observed. Also calculations based on the proposed three stage model, suggested that upon initial ionization, the cluster survives for sub-picosecond timescale under the influence of the laser pulse – coupling laser energy with the cluster media, prior to disintegration.34 Here, as the ionization energy of the highest observed multiply charged atomic ions at 532 and 1064 nm, were 64.5 eV (C4+) and 392 eV (C5+) (Table 1), (THF)n clusters provide an ideal system to verify the preposition of IBS heating of the cluster media by energized inner ionized electrons leading to generation of multiply charged atomic ions, under the influence of nanosecond laser field. As the kinetic energy of the electrons liberated upon disintegration of the (THF)n clusters should be comparable with the ionization energy of the highest observed multiply charged atomic ions, at the two laser wavelengths. Accordingly, studies have been carried out to quantify the kinetic energy of the electrons liberated upon interaction of (THF)n clusters, with 532 and 1064 nm using in house developed retarding field electron energy analyzer. In the following, we describe the indigenously developed electron energy analyzer and present the experimental findings to probe role of inner ionized electron in coupling laser energy with the cluster media.
Charge state | Ionization energy of isolated carbon ions (Cn+) (eV) | Ionization energy of isolated oxygen ions (On+) (eV) |
---|---|---|
+1 | 11.26 | 13.62 |
+2 | 24.38 | 35.12 |
+3 | 47.88 | 54.93 |
+4 | 64.49 | 77.41 |
+5 | 392 | 113.9 |
+6 | 490 | 138.12 |
+7 | 739.32 | |
+8 | 871.39 |
![]() | ||
Fig. 1 (a) In-house built electron energy analyzer setup. (b) Electron energy analyzer setup, mounted inside the experimental chamber. (c) Schematic of the electron energy analyzer. |
Fig. 3 illustrates positive ion time-of-flight mass spectrum obtained, upon interaction of 532 nm laser pulses of intensity ∼5 × 109 W cm−2. Under identical experimental conditions, the kinetic energy distribution of electrons is presented in Fig. 4. Similarly, Fig. 5 depicts positive ion time-of-flight mass spectrum obtained, when clusters of (THF)n were irradiated with 1064 nm laser pulses of intensity ∼1 × 1010 W cm−2. The corresponding plot for kinetic energy of electrons is shown in Fig. 6. These studies suggest that at 532 nm, along with fragment ions, the highest observed multiply charged atomic ions are C4+ and O4+. While for studies carried out at 1064 nm, multiply charged atomic ions up to C5+ and O6+ have been observed. As these multiply charged atomic ions are associated with large kinetic energy, often ion signals arising from multiply charged atomic ions exhibited significant peak broadening in the time-of-flight mass spectra. As a result, the ion signal for an individual multiply charged atomic ion comprises of a broad forward component and a sharp energy-focused backward component, thus complicating assignment of m/z value to the particular ion.34 In order to overcome this issue, several mass spectra were recorded by varying extraction/acceleration voltage, for a given set of experimental conditions. These recorded spectra are then individually calibrated using different reference fragment ions. Since the variation of extraction and acceleration voltage leads to variation in the arrival time of individual ion, upon calibration precise m/z assignment to all the ion signals recorded in the mass spectrum aids in resolving this complexity. Alongside, based on electron energy distribution derived from the integrated electron signal as a function of retardation potential, it is observed that at 532 nm, the electron energy distribution peaks at ∼15 eV, with mean electron energy of ∼24 eV and the distribution tails ∼80–100 eV. Similarly at 1064 nm, the electron energy distribution is found to peak at ∼80 eV, with mean electron energy of ∼72 eV and the tailing of electron energy distribution is observed up to ∼300 eV. Here it is worth mentioning that, in the present setup the laser–cluster interaction region is devoid of any extraction electrodes or other surfaces in its close vicinity to avoid contribution from potential artifacts and alteration of electron energy distribution.
![]() | ||

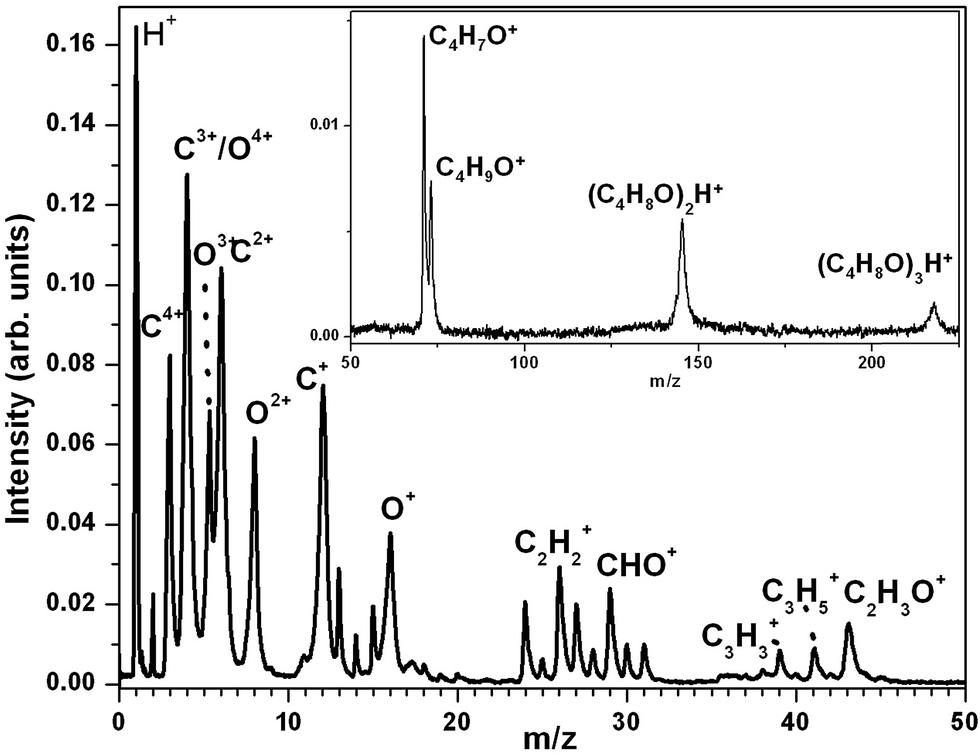

Fig. 3 Positive ion time-of-flight mass spectrum obtained upon interaction of (THF)n clusters with 532 nm laser pulse of intensity ∼5 × 109 W cm−2. |
![]() | ||

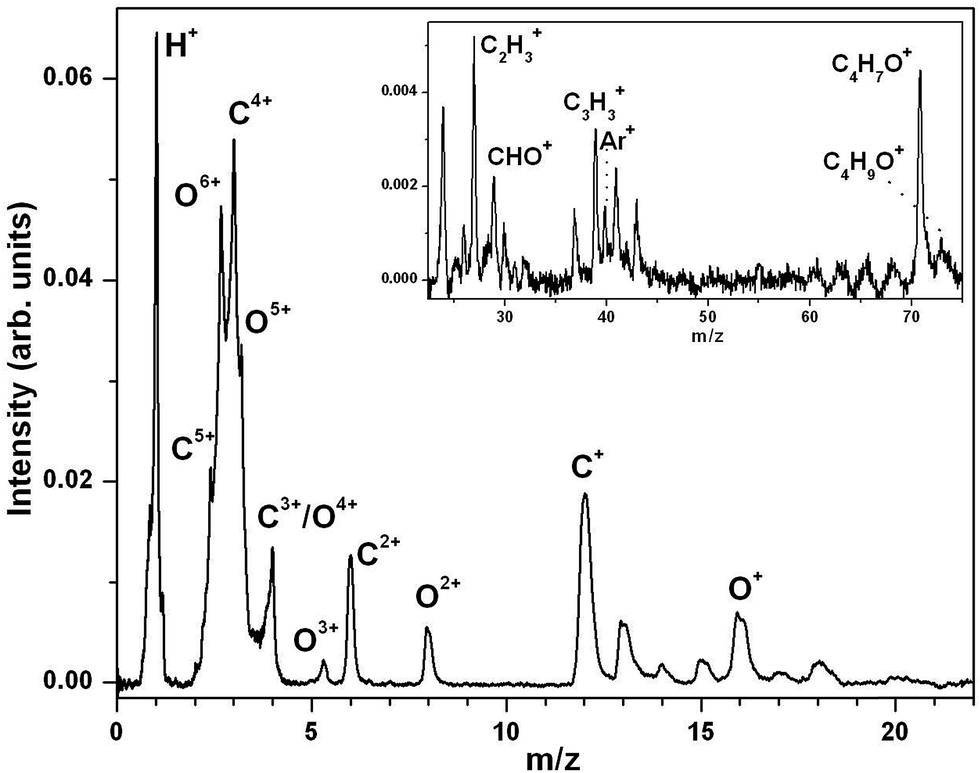

Fig. 5 Positive ion time-of-flight mass spectrum obtained upon interaction of (THF)n clusters with 1064 nm laser pulse of intensity ∼1.1 × 1010 W cm−2. |
For studies carried out at 532 nm, based on time-of-flight mass spectrum it was considered that contribution to m/z = 4 in the mass spectrum recorded at 532 nm, was mainly due to C3+ and contribution from O4+ was negligible. However, the electron energy measurement studies carried out at 532 nm, where electrons with kinetic energy higher than ionization energy of O4+ (Table 1) are observed suggest that there is significant contribution to m/z = 4 ion signal from O4+ ion as well.
Thus the kinetic energy of electrons liberated upon laser–cluster interaction, is in qualitative agreement with the ionization energy of highest observed multiply charged atomic ions observed at the two laser wavelengths.
The rate of energy extraction from the laser pulse by the confined electrons via IBS process40,41 is given by eqn (1)
![]() | (1) |
Up = 9.33 × 10−14I (W/cm2)λ2 (μm)2 | (2) |
From eqn (1) and (2), it is obvious that the total energy gained by the inner ionized electrons, in the time span starting from initial ionization till the disintegration of cluster, is dictated by the product of ponderomotive energy and the total number of effective electron-ion/neutral collision frequency. Eqn (2) further suggests that as the wavelength (λ) increases, ponderomotive energy (Up) of electrons and in turn total extracted energy increases quadratically for a given laser intensity. Hence, higher level of ionization is expected at longer laser wavelengths. This qualitatively explains our results obtained at 532 and 1064 nm, where higher multiply charged atomic ions and electrons with comparatively enhanced kinetic energy were obtained at longer laser wavelength.
Thus the three stage cluster ionization model accounts for energization of electrons and generation of multiply charged atomic ions, however generation of hydrogen like C5+ ions at 1064 nm having ionization energy of ∼392 eV cannot be explained based solely on the three-stage model, since the electron energy measurement studies suggest observation of electrons with kinetic energy ∼300 eV. To account for this anomaly observed between the ionization energy of the highest observed multiply charged atomic ion and the kinetic energy of electrons, one has to invoke the effect of screening within the highly charged cluster under the influence of laser field.42–44 Screening effects arise due to presence of charged particles in close proximity, within the solid density cluster. Consequently the internal electric field produced by ions and electrons, generated upon initial ionization significantly suppresses the ionization potential of species (atoms/molecules/ions) present within the cluster as compared to its isolated counterpart. The extent of ionization potential suppression depends on the overall intra-cluster electric field experienced by the species. In addition, the local cluster electric field also facilitates electron ionization.45
The degree of ionization potential suppression can be estimated using eqn (3), which is derived from Debye potential using the first-order perturbation theory46
![]() | (3) |
Using eqn (3), suppression of ionization potential of multiply charged atomic ions upon interaction of tetrahydrofuran clusters has been estimated. All calculations presented here are performed in atomic units (a.u.). Calculations were performed for different charge state of carbon and oxygen ions at varying electron energy for the case of 532 and 1064 nm, assuming neutral cluster density as liquid density of tetrahydrofuran i.e. 0.0011 a.u. (0.8892 g cm−3). For 532 and 1064 nm, calculations were carried out considering different level of cluster ionization, as the average charge state of atomic ions observed at 532 and 1064 nm are different. At 532 nm, for estimating the suppression in ionization energy for O3+ → O4+, the parameters were derived considering that at the stage when the multiply charge ions are generated the cluster has sustained at least 10% ionization, causing cluster expansion by an order of magnitude. At this stage, ne = Qna(3 × 4)C + (8 × 1)H + (1 × (4 − 1)O), where Q = 0.1, na = 0.00011. Based on these values Debye radius (R) is calculated to be . Substituting the value of Debye radius and Zeff = 4.77 (for O4+ n = 2 and Ez = 77.41 eV = 2.844 a.u.) in eqn (3) one obtains ionization energy of O4+ as a function of electron temperature. Fig. 7 and 8 depicts ionization energy of highest observed multiply charged atomic ions as a function of electron energy, at 532 and 1064 nm respectively. As can be seen from Fig. 7 and 8, the ionization energy of atomic ion significantly decreases at lower electron energy. At 532 nm, the ionization energy of O4+ at electron energy of 24 eV (mean electron energy measured at 532 nm) decreases from 77.41 to 69.3 eV. Similarly, ionization energy of C5+ as a function of electron energy is depicted in Fig. 8. For C5+, ionization energy decreases from 392 eV to 327 eV, at electron energy of 72 eV (mean electron energy measured at 1064 nm). While at lower electron temperature of ∼25 eV, the ionization energy of C5+ is estimated to be ∼300 eV. Thus screening effect considerably decreases ionization energy of the atomic ions at lower electron energy. Consequently, it was justifiable to investigate effect of screening on ionization energy of O5+ (at 532 nm), C6+ and O7+ (at 1064 nm) as a function of electron energy. These ions are the next higher analogues of highest multiply charged atomic ions detected under our experimental conditions (i.e. O4+ and C5+ and O6+). Though these higher analogue ions were below the detection limit in the recorded time-of-flight mass spectra, does screening effect predict generation of these multiply charged atomic ions? For comparison, ionization energy of these multiply charged atomic ions are also illustrated in Fig. 7 (O5+) and 8 (C6+ and O7+). As shown in the figures, the effect of screening significantly reduces the ionization energy of these multiply charged atomic ions: however the extent of ionization potential lowering is not adequate to facilitate generation of higher multiply charged analogues upon electron ionization, under our experimental conditions.
Thus generation of multiply charged atomic ions, upon interaction of clusters with nanosecond laser pulses can be explained on the basis of three stage cluster ionization model discussed above. The electron kinetic energy distribution profiles support the vital role played by inner ionized electrons in efficient coupling of laser energy with the cluster media, leading to enhanced electron ionization of cluster constituents and augmentation of charge on the cluster. Concurrently, augmentation of charge on the cluster instigates screening effect which significantly suppresses the ionization energy of cluster constituents: thereby facilitating their ionization to higher charged states. These sequence of events i.e. electron energization – ionization of cluster constituents – generation of additional electrons – further suppression of ionization potential continues until the cluster disintegrates or till the duration of the laser pulse. Above discussed model is a simplified version of the actual cluster ionization mechanism. For example, in ionization energy suppression calculations involving screening effect within ionized cluster, the calculations have been carried out for discrete distribution of ion charge and electron energy. However, in actual scenario there is a dynamic distribution of ions of varying charge state within the cluster, which progressively increases along the duration of the laser pulse, preceding cluster disintegration. Similarly, the inner ionized electrons within the cluster are also associated with varying electron energy distribution. Consequently at any given instance, following initial ionization of the cluster the electric field and accordingly the ionization energy suppression of ion is an average quantity, characterizing collective effect of all ions and electrons on a particular ion within the cluster. This explains the complexity of laser–cluster interaction upon interaction with nanosecond laser, which involves multi-step interdependent excitation process leading to generation of multiply charged atomic ions.
