Issue 6, 2017

Synthesis and photovoltaic properties of three different types of terpolymers

Abstract

Three types of photoactive terpolymers (Random, Regular and Block) were synthesized by incorporating two electron-deficient moieties and one electron-rich moiety based on two parent donor polymers, poly[(2,5-bis(2-decyltetradecyloxy)phenylene)-alt-(5,6-difluoro-4,7-di(thiophen-2-yl)benzo[c][1,2,5]thiadiazole)] (PPDT2FBTDT) and poly[(2,5-bis(2-decyltetradecyloxy)phenylene)-alt-(5,6-dicyano-4,7-di(thiophen-2-yl)benzo[c][1,2,5]thiadiazole)] (PPDT2CNBT). All three terpolymers showed broad light absorption in the range of 300–850 nm covering the absorption of two parent polymers. Their optical, electrochemical, morphological and photovoltaic properties were compared and investigated in detail. Power conversion efficiencies (PCEs) of 5.63, 4.45 and 3.13% were obtained for PPDT2FBTDT-random-PPDT2CNBT, PPDT2FBTDT-regular-PPDT2CNBT and PPDT2FBTDT-block-PPDT2CNBT based photovoltaic devices, respectively. Through intensive investigation on charge carrier mobility, photocurrent and light intensity dependence of JSC, the random structure was proved to be the most effective molecular design in this series of terpolymers, showing weaker charge recombination and enhanced charge transport/extraction with well-distributed blend morphology. The fine modulation of different arrangements and compositions of the three monomers in a main chain is crucial for optimizing the terpolymeric structures as efficient photoactive materials.

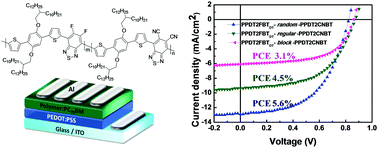

Graphical abstract: Synthesis and photovoltaic properties of three different types of terpolymers

Supplementary files

Article information

Article type
Research Article
Submitted
15 အောက် 2016
Accepted
12 ဒီ 2016
First published
19 ဇန် 2017

Mater. Chem. Front., 2017,1, 1147-1155

Synthesis and photovoltaic properties of three different types of terpolymers

M. A. Uddin, N. G. An, Y. Li, S. Song, H. Ryu, J. Y. Kim and H. Y. Woo, Mater. Chem. Front., 2017, 1, 1147 DOI: 10.1039/C6QM00267F
